Whirlpool ACP102PS2 User Manual

UNIT PARTS

For Model: ACP102PS2

PORTABLE

AIR CONDITIONER

2−07 Litho In U.S.A. (dmm)

1

Part No. W10115118

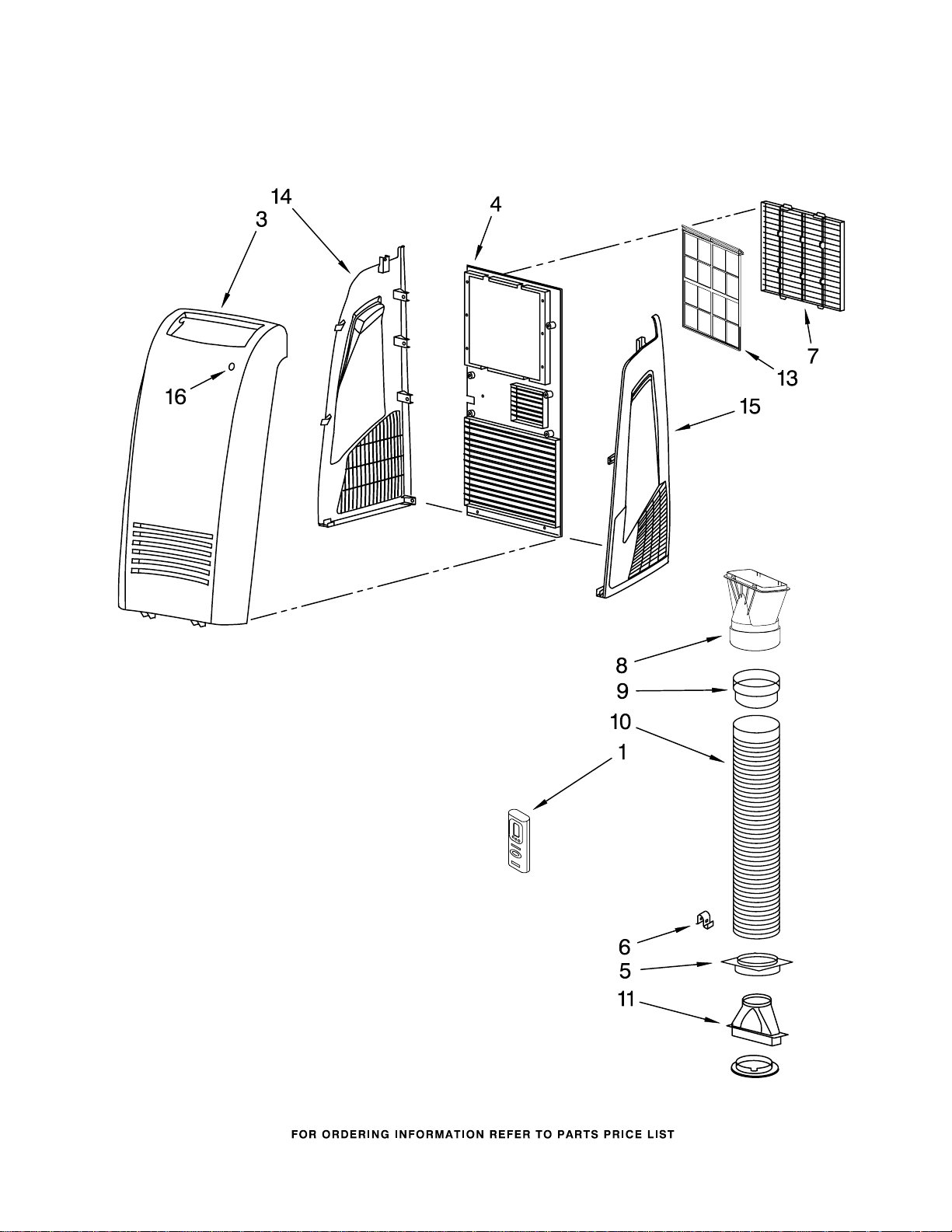

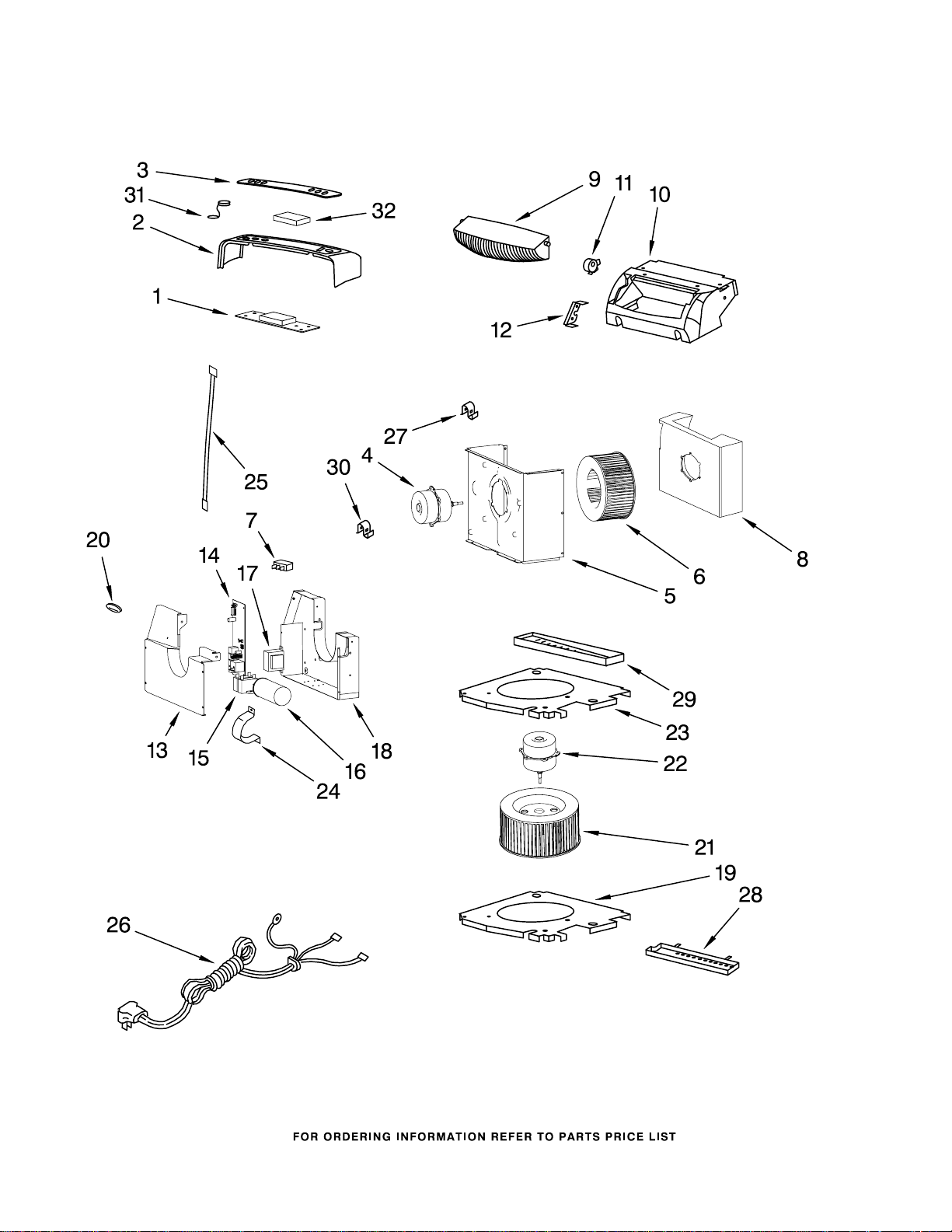

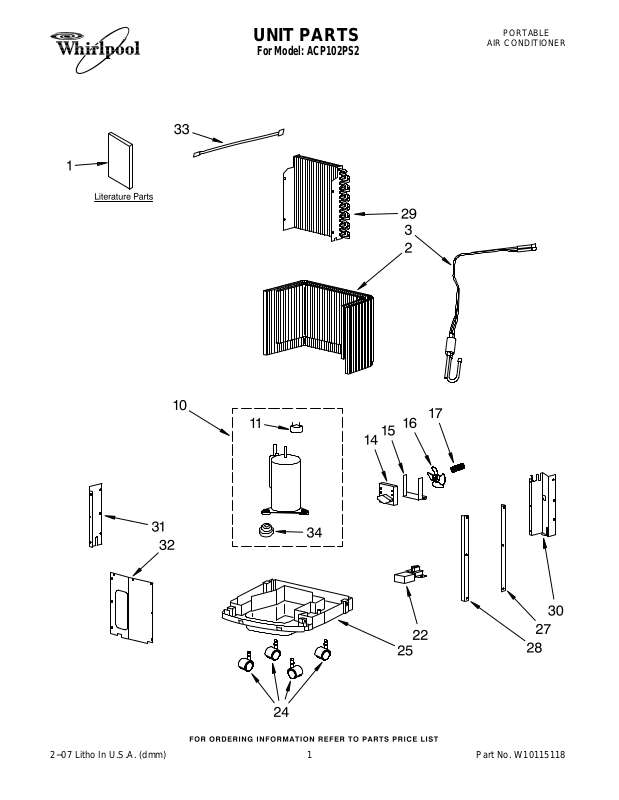

UNIT PARTS

For Model: ACP102PS2

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8215247 Guide, Use & Care
8215248 Diagram, Wiring

2 8215210 Condenser
3 8215225 Tube Restrictor

Assembly

10 8215197 Compressor,

Assembly

11 8215198 Overload
14 8215206 Motor, Fan
15 8215207 Base, Motor
16 8215208 Fan
17 8215209 Spring
22 8215204 Switch, Level
24 8215200 Roller
25 8215203 Base
27 Support, Back

8215205 Right
8215202 Left

28 Support, Front

8215201 Right

8215196 Left
29 8215218 Evaporator
30 8215195 Support (Right)
31 8215193 Support (Left)
32 8215194 Support (Front)
33 8215219 Thermistor
34 8215199 Grommet

REFRIGERANT CHARGE

21.6 oz.

2

W10115118
