Page 1
Page 2
Page 3
1 1155727 Condenser
2 643295 Overload
3 708531 Bend, Return (13)
4 49599 Strainer
5 484230 Tube & Strainer (Includes Illus. 4)
6 950961 Tube, Restrictor (Length 40.0")
7 1155859 Blade, Fan
8 595085 Setscrew, 5/16 x 1/4
9 485334 Clip, Balancing
10 1156162 Motor, Fan
11 488130 Nut, Hex 8-32 (4)
12 643296 Gasket, Cover
13 950243 Evaporator
14 643297 Cover, Terminal
15 643298 Spring, Overload
16 996773 Anticipator, Temperature
17 475577 Clip, Anticipator
18 950323 Base
20 484136 Harness, Wiring
22 646499 Grommet (3)
23 949990 Sleeve (3)
24 858121 Locknut (3)
25 643296 Gasket, Terminal Cover
26 949996 Overload
27 949997 Spring, Overload
28 949999 Cover, Terminal
29 950005 Retainer, Terminal Cover
30 643299 Retainer, Cover
31 1155519 Tube, 90~ Connect
32 947364 Tube, Flow Divider
33 643179 Spring, Mtg
34 484033 Plate, Mtg
35 949634 Clip, Mtg (2) (Cabinet-Front)
36 708532 Bend, Return (4)
39 819075 Compressor Assembly
40 1155558 Fan, Blade Evaporator
41 852451 Clamp, Wiring
42 949975 Plate, Mounting Compressor
43 488480 Screw,8x1/2
488481 Screw (Repair)
44 643179 Spring, Mounting
Following Parts Not Illustrated
LITERATURE PARTS
LIT1156461 Sheet, Tech And Wiring Diagram
LIT950354 Guide, Use And Care
LIT1156463 Guide, Energy
LIT879686 List, Repair Parts
Page 4
Page 5
1 646870 Seal, Condensate
2 859934 Sealer, Tube
3 488480 Screw,8x1/2
488481 Screw (Repair)
4 646297 Shroud, Condenser
5 649879 Support, Unit
6 999760 Capacitor, Running
7 856105 Bracket, Capacitor
8 486288 Nut, Speed #8A
9 477442 Clip, Shroud
10 859931 Seal, Strip
11 646774 Extension, Dividing Wall
12 854841 Seal, Strip
13 859822 Wall, Dividing
14 857774 Seal, Panel
15 996685 Guard, Evaporator Impeller
16 647216 Cord, Appliance
17 487871 Screw, ST 8-32 x 3/8
18 856094 Wire, Ground
20 646123 Shroud, Evaporator
21 859890 Plate, Dividing Wall
27 950524 Switch, Rotary
28 950403 Control, Temperature
29 950400 Panel, Control
30 488734 Screw, 6-32 x .175
31 852063 Seal, Condensate
32 857923 Seal, Condenser (R.S.)
Page 6
Page 7

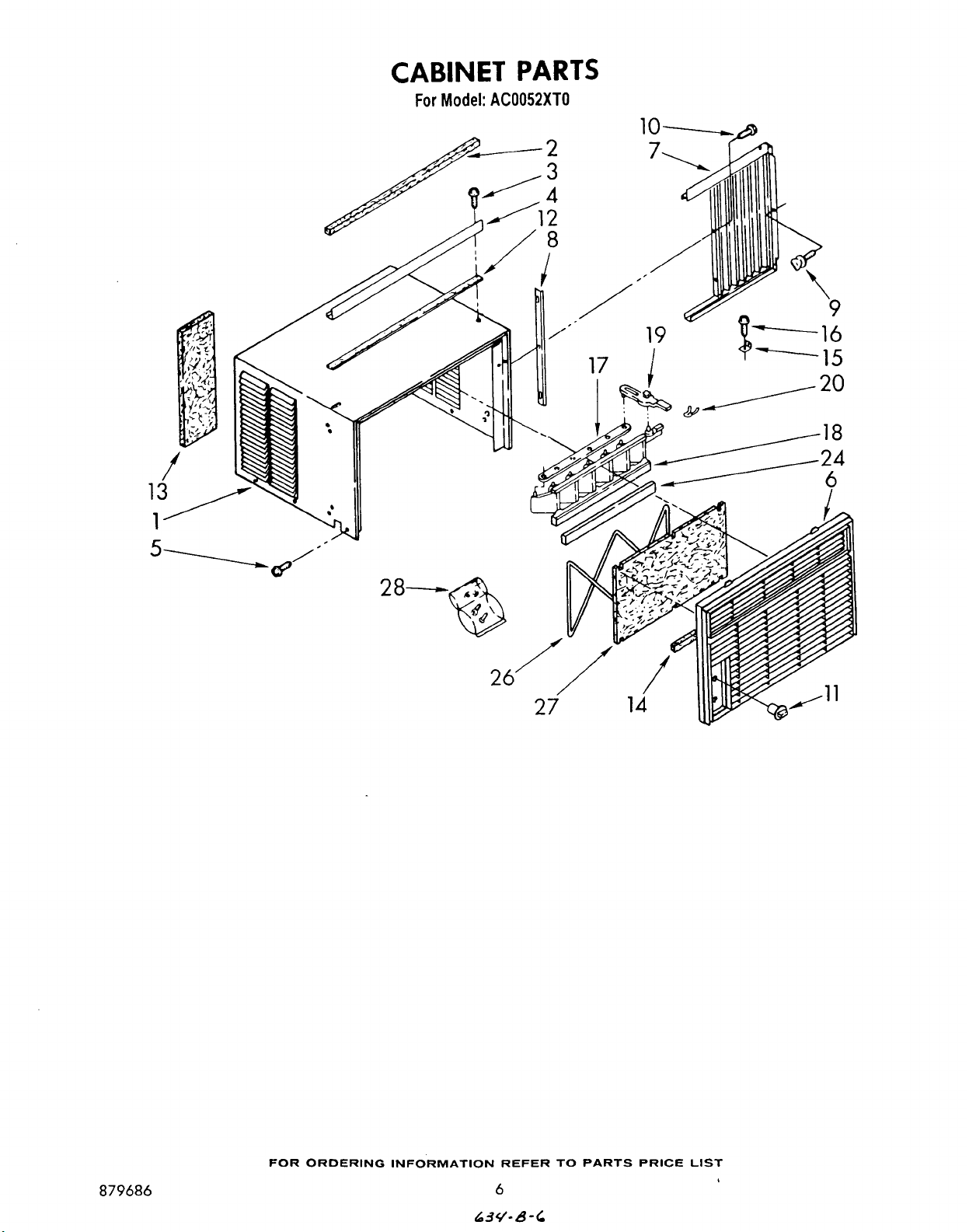

1 857903 Cabinet
2 469877 Gasket, Meeting Rail
3 488720 Screw, 10 x 1/2 (3)
4 993849 Channel, Top
5 488875 Screw, ST 8-32 x 3/8 (6)
6 950408 Front, Cabinet Assembly
7 646158 Housing, Curtain (L.S.)
646154 Housing, Curtain (R.S.)
8 646160 Retainer, Curtain (2)
9 475581 Thumbscrew (2)
10 488730 Screw, 8 x 7/16 (6)
11 951156 Knob, Control (2)
12 856990 Seal, Strip
13 857777 Seal, Rear Cabinet Flange
14 949090 Seal, Cabinet Front
15 644228 Bracket, Window
16 488255 Screw,8x3/4
17 645684 Link, Louver (2)
18 645605 Louver, Vertical
19 645683 Handle, Louver (2)
20 641484 Spring, Detent (1)
24 855238 Seal, Vertical Louver
26 646963 Retainer, Filter
27 854925 Filter
28 476180 Bag, Accessory
Page 8
Page 9

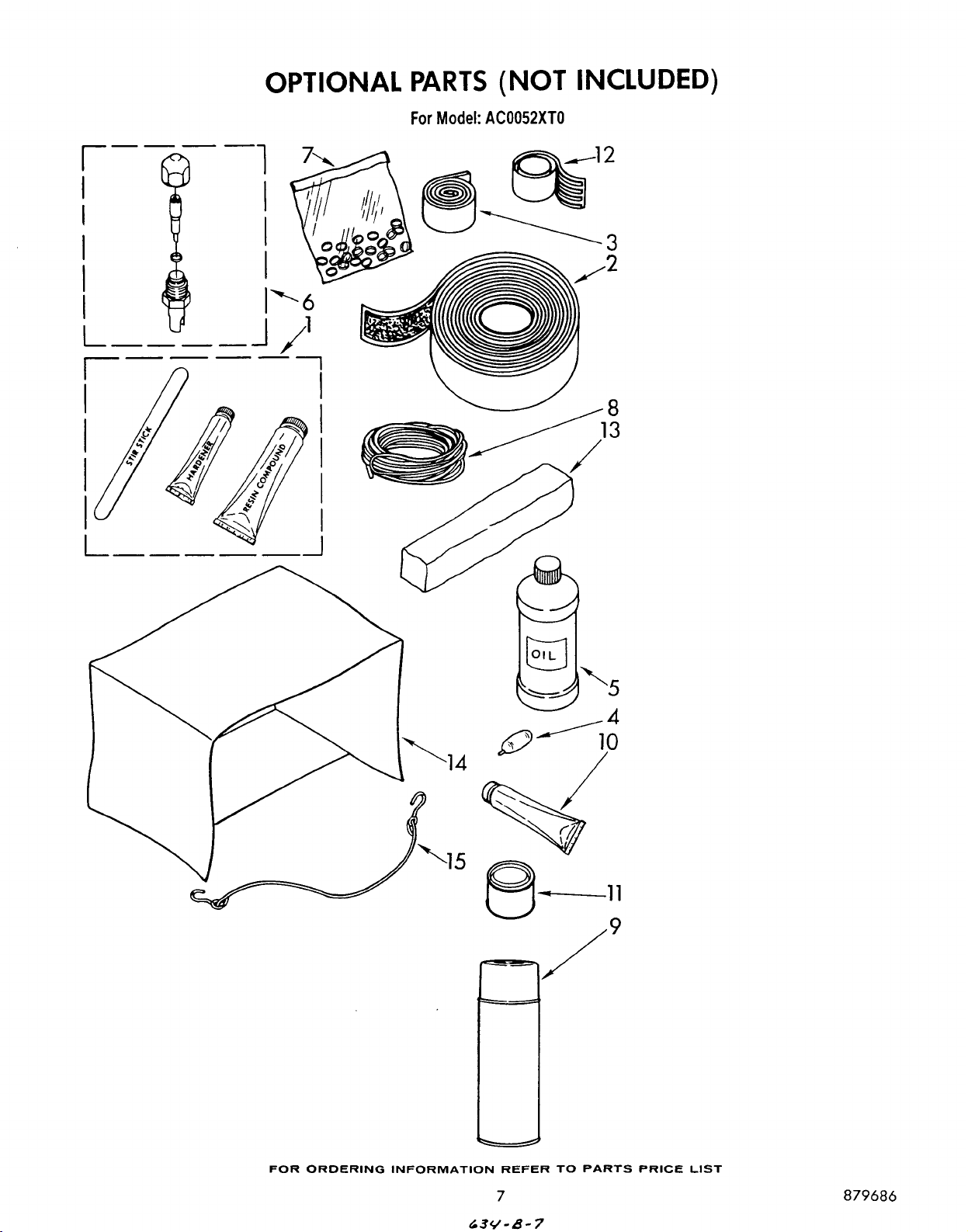

1 799833 Epoxy, Tube (Aluminum Repair)
2 505168 Tape, No Drip 30'
3 479502 Tape, Vinyl 36'
4 10943 Oil, Turbine 1 Fl. Oz.
5 99243 Oil, Turbine 8 Fl. Oz.
6 Valve, Access
876620 3/16" Tube O.D.
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
7 978865 Seal, Ring Access Valve (20-Pack)
8 Wire, 25'Roll
10875 Blue 16 Ga.
242820 Black 14 Ga.
242825 Red 14 Ga.
242826 White 14 Ga.
47261 Black 12 Ga.
299885 Red 12 Ga.
47263 White 12 Ga.
9 813684 Adhesive, Insulation (24 Oz. Spray)
10 279368 Adhesvive, Insulation (2 Oz. Tube)
11 485426 Paint, Touch-up Starlight Gray 1/2 Pint (Lacquer)
12 212643 Sealer, Permagum 4-1" Strips
13 99344 Sealer, Permagum 1 Lb. Bar
14 484067 Cover, Winter
15 813610 Retainer, Cord (Winter Cover)
Page 10
Page 11

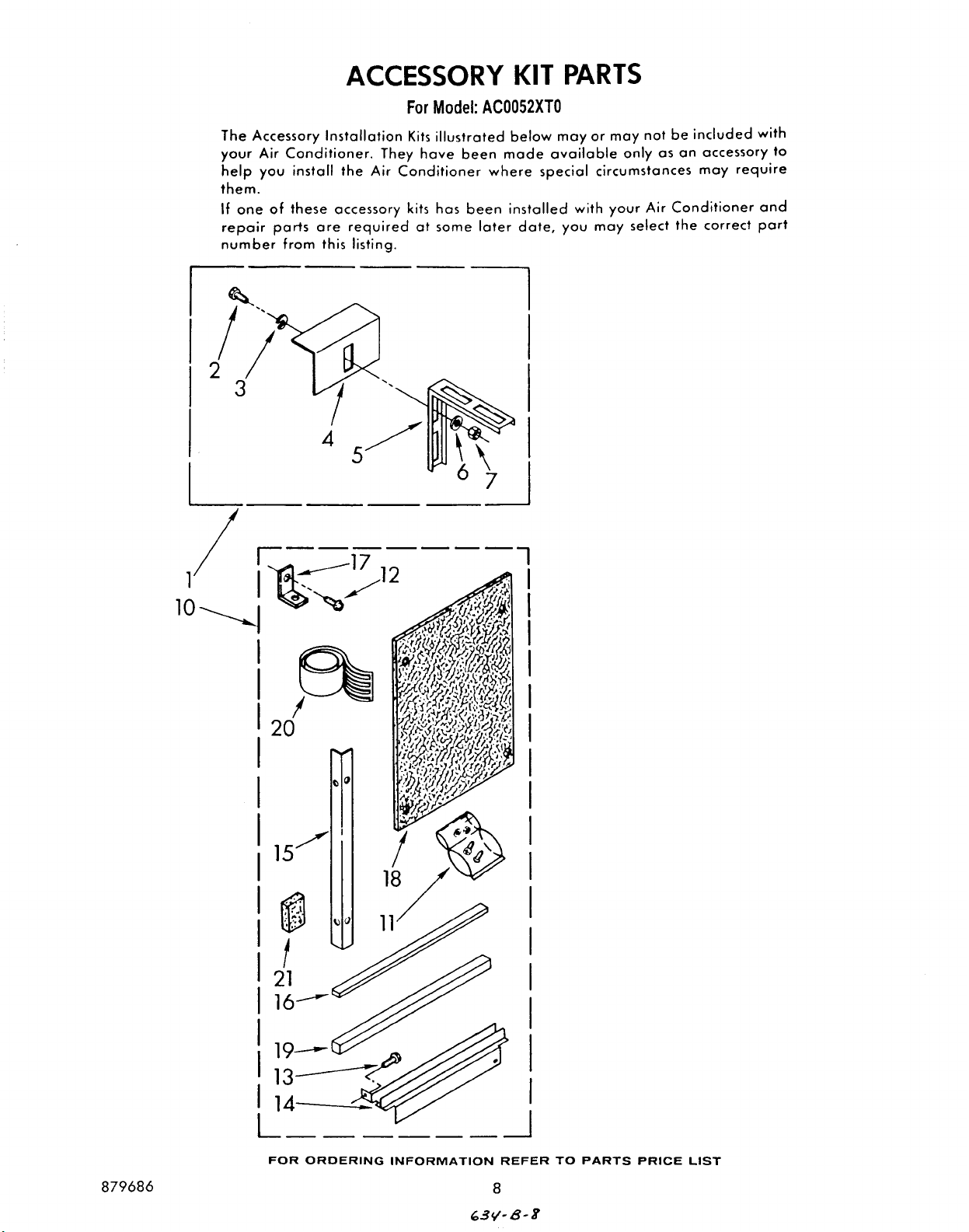

1 485678 Kit, Outside Sill (For Additional Support)
2 488750 Bolt, 1/4-20 x 3/4 (6)
3 488808 Washer, Flat (6)
4 645515 Bracket, Sill (2)
5 485466 Bracket, Rail (2)
6 486009 Washer, Lock (6)
7 486035 Nut, 1/4-20 (6)
10 994818 Kit, Window Installation
11 858358 Bag, Accessory
12 488255 Screw, Wood #8 X 3/8 (3)
13 488017 Screw, S.M. #8 X 3/8 (8)
14 Bracket, Mounting
645562 Right Side
645563 Left Side
15 646988 Angle, Side (2)
16 856979 Seal, Strip
17 644228 Bracket, Window, Lock
18 648854 Board, Filler (2)
19 469877 Seal, Meeting Rail
20 470168 Sealer, Gum
21 995274 Spacer, Block
Following Parts Not Illustrated
LITERATURE PARTS
LIT485706 Instructions, Installation (Outside Sill Kit)
