Whirlpool 9762354A User Manual

GAS RANGE

Use & Care Guide

For questions about features, operation/performance, parts,

accessories or service, call: 1-800-253-1301 or visit our website

In Canada, call for assistance, installation or service, call:

at...www.whirlpool.com

1-800-807-6777 or visit our website at...

www.whirlpool.ca

CUISINIÈRE À GAZ

Guide d’utilisation

et d’entretien

Au Canada, pour assistance, installation ou service, composer le

1-800-807-6777 ou visitez notre site web à

www.whirlpool.ca

9762354A

Table of Contents/Table des matières.................. 2

To the installer: Please leave this instruction book with the unit. To the consumer: Please read and keep this book for future reference.

Pour l'installateur : laisser ce manuel d'instructions avec l'appareil. Pour le consommateur : lire ce manuel et le conserver pour consultation ultérieure.

TABLE OF CONTENTS

TABLE DES MATIÈRES

RANGE SAFETY .............................................................................3

The Anti-Tip Bracket ....................................................................4

PARTS AND FEATURES................................................................5

COOKTOP USE ..............................................................................6

Cooktop Controls.........................................................................6

Sealed Surface Burners ...............................................................6

Home Canning .............................................................................7

Cookware .....................................................................................7

ELECTRONIC OVEN CONTROLS.................................................8

Display..........................................................................................8

Start..............................................................................................8

Cancel or Off/Cancel....................................................................8

Clock ............................................................................................8

Tones............................................................................................8

Fahrenheit and Celsius.................................................................9

Timer.............................................................................................9

Control Lock................................................................................. 9

Oven Temperature Control ..........................................................9

OVEN USE.....................................................................................10

Aluminum Foil.............................................................................10

Positioning Racks and Bakeware ..............................................10

Split Oven Rack..........................................................................10

Bakeware....................................................................................11

Meat Thermometer.....................................................................11

Oven Vent...................................................................................11

Baking and Roasting..................................................................11

Choice Bake

Broiling........................................................................................12

Warm Hold (on some models) ...................................................12

Timed Cooking (on some models).............................................13

Sequence Programming (on some models) ..............................14

Warming Drawer (on some models) ..........................................15

RANGE CARE ...............................................................................16

Self-Cleaning Cycle (on some models)......................................16

General Cleaning........................................................................17

Oven Light ..................................................................................18

Oven Door ..................................................................................18

Storage Drawer ..........................................................................19

Warming Drawer (on some models) ..........................................19

TROUBLESHOOTING ..................................................................20

ASSISTANCE OR SERVICE.........................................................21

In the U.S.A. ...............................................................................21

In Canada ...................................................................................21

WARRANTY ..................................................................................22

Function (on some models) ................................12

SÉCURITÉ DE LA CUISINIÈRE ...................................................23

La bride antibasculement...........................................................24

PIÈCES ET CARACTÉRISTIQUES ..............................................25

UTILISATION DE LA TABLE DE CUISSON................................26

Commandes de la table de cuisson ..........................................26

Brûleurs de surface scellés ........................................................26

Préparation de conserves à la maison.......................................27

Ustensiles de cuisson ................................................................27

COMMANDES ÉLECTRONIQUES DU FOUR ............................28

Affichage.....................................................................................28

Mise en marche..........................................................................28

Cancel (annulation) ou Off/Cancel (arrêt/annulation).................28

Horloge .......................................................................................28

Signaux sonores.........................................................................28

Fahrenheit et Celsius..................................................................29

Minuterie.....................................................................................29

Verrouillage des commandes.....................................................29

Commande de la température du four ......................................29

UTILISATION DU FOUR...............................................................29

Papier d’aluminium.....................................................................29

Positionnement des grilles et des ustensiles de cuisson..........30

Grille de four en deux pièces .....................................................30

Ustensiles de cuisson ................................................................31

Thermomètre à viande ...............................................................31

Évent du four ..............................................................................31

Cuisson au four et rôtissage ......................................................31

Fonction Choice Bake

Cuisson au gril............................................................................32

Warm Hold (garde au chaud) (sur certains modèles)................33

Cuisson minutée (sur certains modèles)....................................34

Programmation de séquences (sur certains modèles) ..............35

Tiroir-réchaud (sur certains modèles) ........................................36

ENTRETIEN DE LA CUISINIÈRE.................................................37

Programme d'autonettoyage (sur certains modèles) ................37

Nettoyage général ......................................................................38

Lampe du four............................................................................40

Porte du four...............................................................................40

Tiroir de remisage.......................................................................41

Tiroir-réchaud (sur certains modèles) ........................................41

DÉPANNAGE.................................................................................42

ASSISTANCE OU SERVICE.........................................................43

GARANTIE.....................................................................................44

(sur certains modèles)..........................32

RANGE SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

follow instructions.

can be killed or seriously injured if you don't

You instructions.

– Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this

or any other appliance.

– WHAT TO DO IF YOU SMELL GAS:

Do not try to light any appliance.

•

Do not touch any electrical switch.

•

Do not use any phone in your building.

•

Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's

•

instructions. If you cannot reach your gas supplier, call the fire department.

•

– Installation and service must be performed by a qualified installer, service agency or

the gas supplier.

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the State of California to cause cancer, birth defects, or other reproductive harm, and requires businesses to warn of potential exposure to such substances.

WARNING: This product contains a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm.

This appliance can cause low-level exposure to some of the substances listed, including benzene, formaldehyde, carbon monoxide, toluene, and soot.

The Anti-Tip Bracket

The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without having the anti-tip bracket fastened down properly.

WARNING

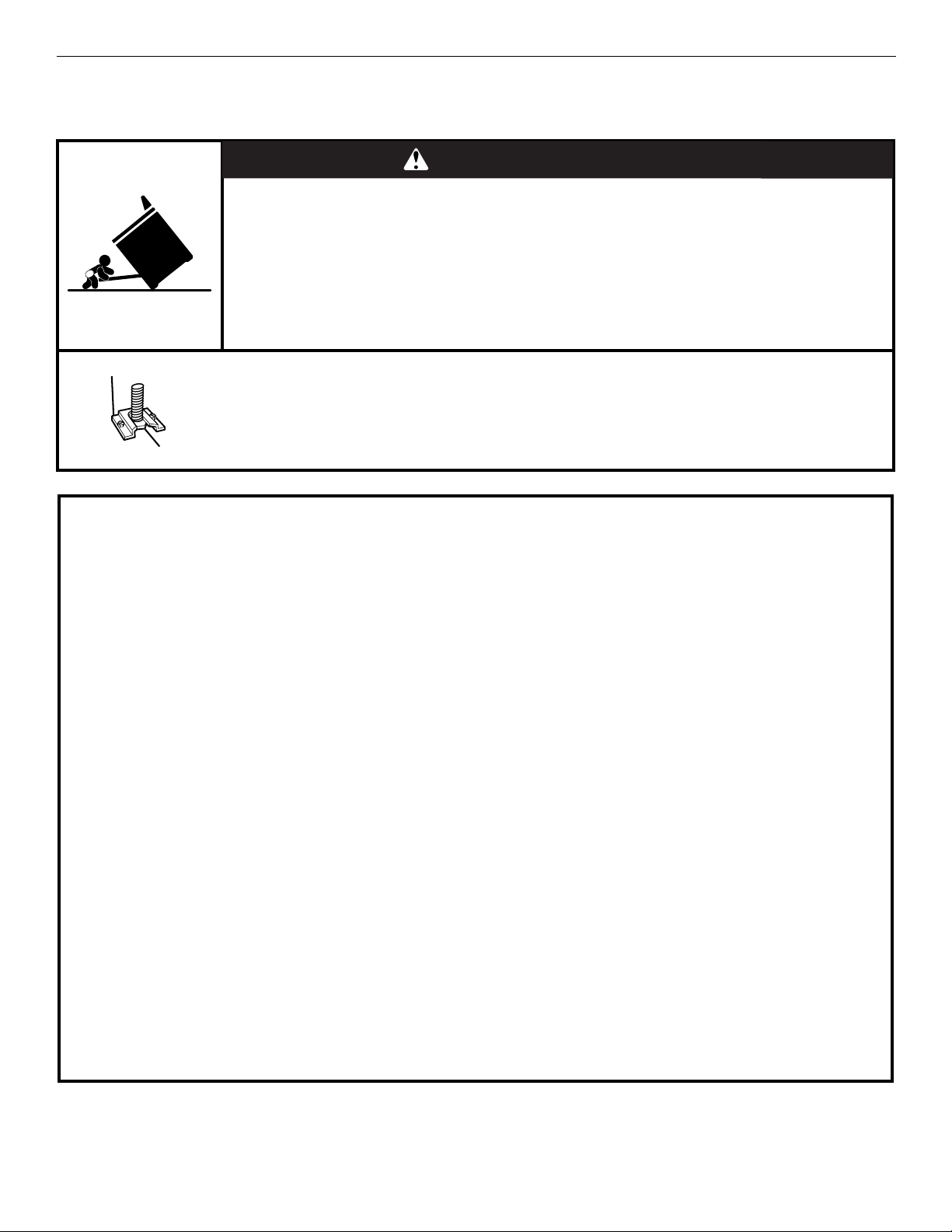

Tip Over Hazard A child or adult can tip the range and be killed. Connect anti-tip bracket to rear range foot. Reconnect the anti-tip bracket, if the range is moved. See the installation instructions for details. Failure to follow these instructions can result in death or serious burns to children and adults.

Anti-Tip Bracket

Range Foot

Making sure the anti-tip bracket is installed:

• Slide range forward.

• Look for the anti-tip bracket securely attached to floor.

• Slide range back so rear range foot is under anti-tip bracket.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock,

injury to persons, or damage when using the range, follow basic precautions, including the following:

■ WARNING: TO REDUCE THE RISK OF TIPPING OF

THE RANGE, THE RANGE MUST BE SECURED BY PROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECK IF THE DEVICES ARE INSTALLED PROPERLY, SLIDE RANGE FORWARD, LOOK FOR ANTI-TIP BRACKET SECURELY ATTACHED TO FLOOR, AND SLIDE RANGE BACK SO REAR RANGE FOOT IS UNDER ANTI-TIP BRACKET.

■ CAUTION: Do not store items of interest to children in

cabinets above a range or on the backguard of a range – children climbing on the range to reach items could be seriously injured.

■ Proper Installation – The range, when installed, must be

electrically grounded in accordance with local codes or, in the absence of local codes, with the

Code, ANSI/NFPA70

electrically grounded in accordance with Canadian Electrical Code. Be sure the range is properly installed and grounded by a qualified technician.

. In Canada, the range must be

National Electrical

■ This range is equipped with a three-prong grounding plug

for your protection against shock hazard and should be plugged directly into a properly grounded receptacle. Do not cut or remove the grounding prong from this plug.

■ Disconnect the electrical supply before servicing the

appliance.

■ Never Use the Range for Warming or Heating the Room.

■ Injuries may result from the misuse of appliance doors or

drawers such as stepping, leaning, or sitting on the doors or drawers.

■ Maintenance – Keep range area clear and free from

combustible materials, gasoline, and other flammable vapors and liquids.

■ Storage in or on the Range – Flammable materials should

not be stored in an oven or near surface units.

■ Top burner flame size should be adjusted so it does not

extend beyond the edge of the cooking utensil.

For self-cleaning ranges –

■ Before Self-Cleaning the Oven – Remove broiler pan and

other utensils. Wipe off all excessive spillage before initiating the cleaning cycle.

SAVE THESE INSTRUCTIONS

PARTS AND FEATURES

This manual covers several different models. The range you have purchased may have some or all of the parts and features listed. The locations and appearances of the features shown here may not match those of your model.

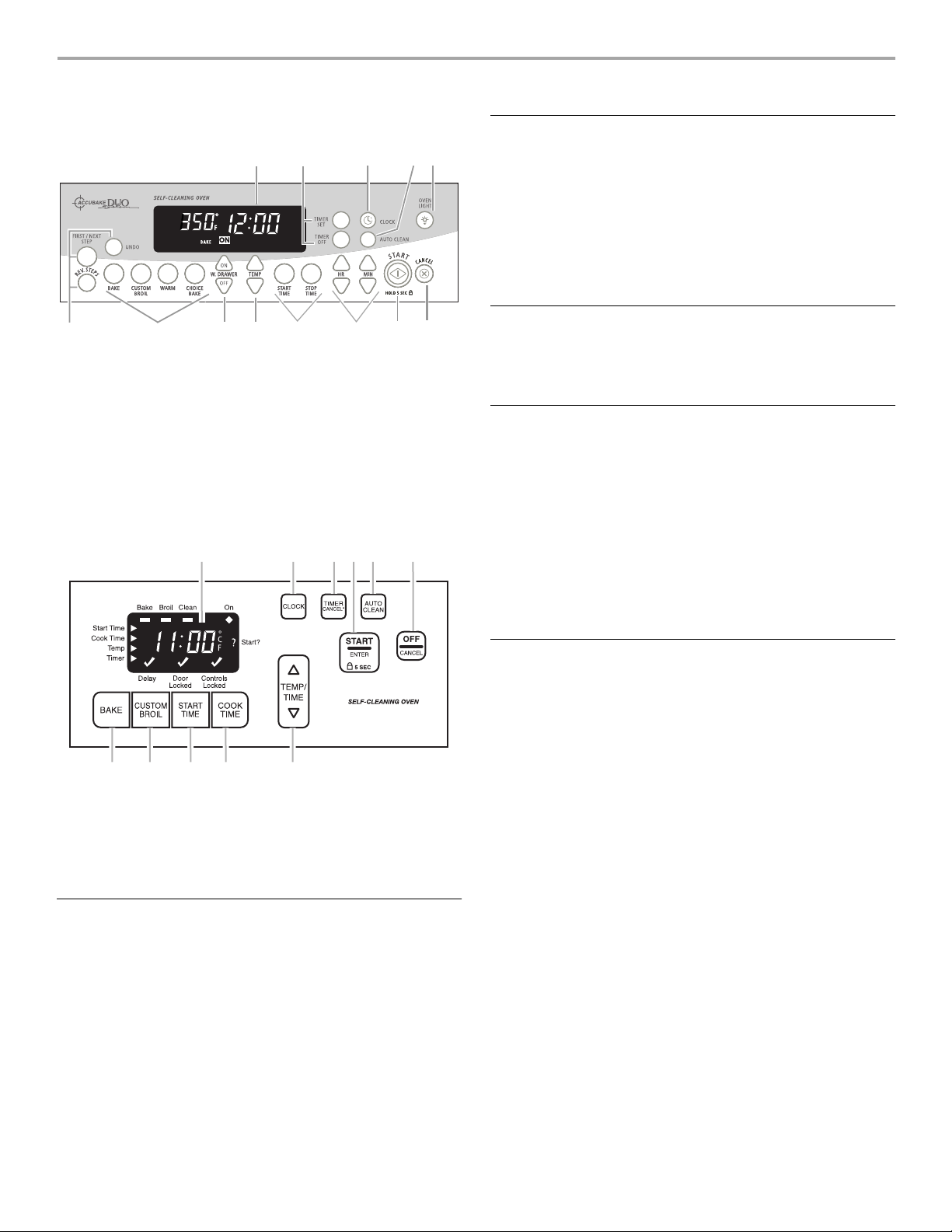

Control Panel

Range

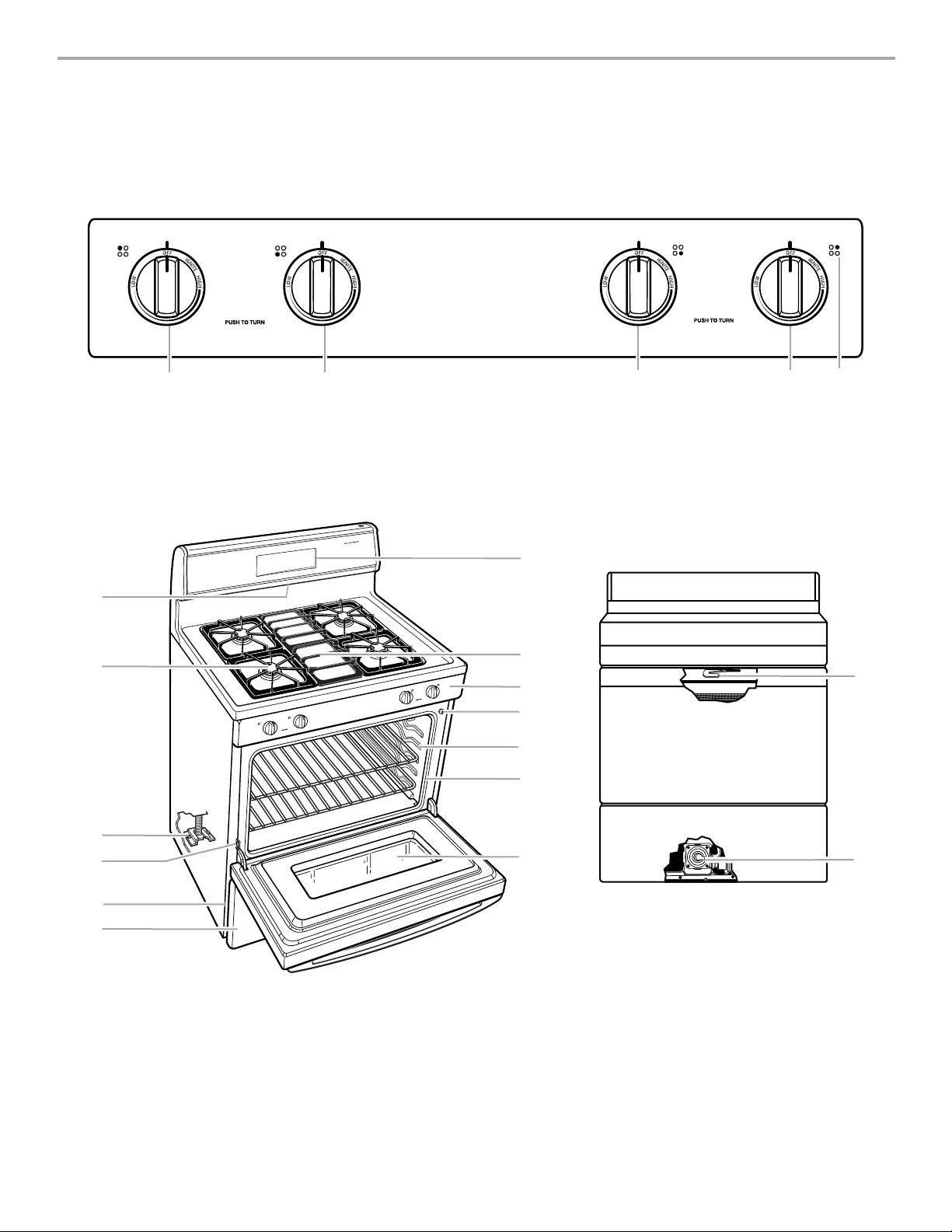

A. Left rear burner control B. Left front burner control

(power burner on some models)

C. Right front burner control D. Right rear burner control

(ACCUSIMMER

E. Surface burner locator

burner on some models)

C D

E F

A. Oven vent B. Surface cooking area C. Anti-tip bracket D. Oven door hinge E. Model and serial number

plate (behind left side of storage drawer)

F. S t or a ge d r aw er

(warming drawer on some

models) G. Electronic oven control H. Center grate (on some models)

I. Surface burner control

J. Automatic oven light switch K. Oven rack L. Gasket

M. Oven door window

N. Self-clean latch O. Gas regulator

Parts and Features not shown

Oven light Broiler pan and grid Roasting rack Storage drawer liner

(on some models)

COOKTOP USE

Cooktop Controls

WARNING

Fire Hazard

Do not let the burner flame extend beyond the edge of the pan.

Turn off all controls when not cooking. Failure to follow these instructions can result in death

or fire.

To Cle an:

IMPORTANT: Before cleaning, make sure all controls are off and

the oven and cooktop are cool. Do not use oven cleaners, bleach or rust removers.

Power™ Burner (on some models)

The left front burner is designed to give ultra-high power when it is fully on. It can be used to rapidly bring liquid to a boil and to cook large quantities of food.

ACCUSIMMER® Burner (on some models)

The right rear burner has an adjustable heat setting for more precise simmering and low temperature cooking.

Power failure

In case of prolonged power failure, the surface burners can be lit manually. Hold a lit match near a burner and turn knob counterclockwise to IGNITE. After burner lights, turn knob to setting.

Electric igniters automatically light the surface burners when control knobs are turned to IGNITE.

Before setting a control knob, place filled cookware on the grate. Do not operate a burner using empty cookware or while the grate is unoccupied.

To S et :

1. Push in and turn knob counterclockwise to IGNITE.

All 4 surface burners will click. Only the burner with the control knob turned to IGNITE will produce a flame.

2. Turn knob anywhere between HIGH and LOW. Use the

following chart as a guide when setting heat levels.

SETTING RECOMMENDED USE

IGNITE

HIGH

Between HIGH and LOW

LOW

REMEMBER: When range is in use or (on some models) during the Self-Cleaning cycle, the entire cooktop area may become hot.

■ Light the burner.

■ Start food cooking.

■ Bring liquid to a boil.

■ Hold a rapid boil.

■ Quickly brown or sear food.

■ Fry or sauté foods.

■ Cook soups, sauces and gravies.

■ Stew or steam foods.

■ Keep food warm.

■ Simmer.

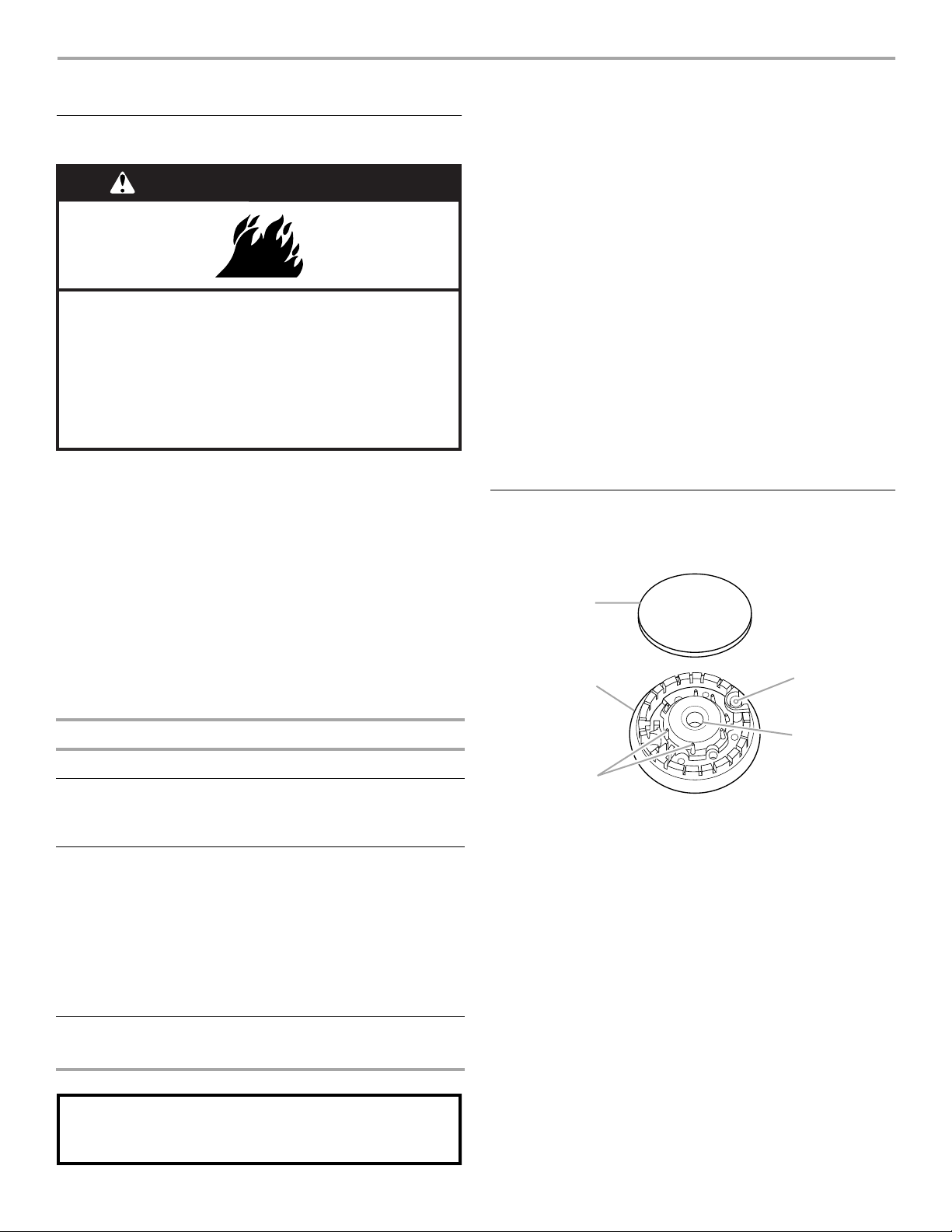

Sealed Surface Burners

IMPORTANT: Do not obstruct the flow of combustion and ventilation air around the burner grate edges.

A. Burner cap B. Burner base C. Alignment pins D. Igniter

E. Gas tube opening

Burner cap: Always keep the burner cap in place when using a surface burner. A clean burner cap will help avoid poor ignition and uneven flames. Always clean the burner cap after a spillover and routinely remove and clean the caps according to the “General Cleaning” section.

Gas tube opening: Gas must flow freely throughout the gas tube opening for the burner to light properly. Keep this area free of soil and do not allow spills, food, cleaning agents or any other material to enter the gas tube opening. Protect it from spillovers by always using a burner cap.

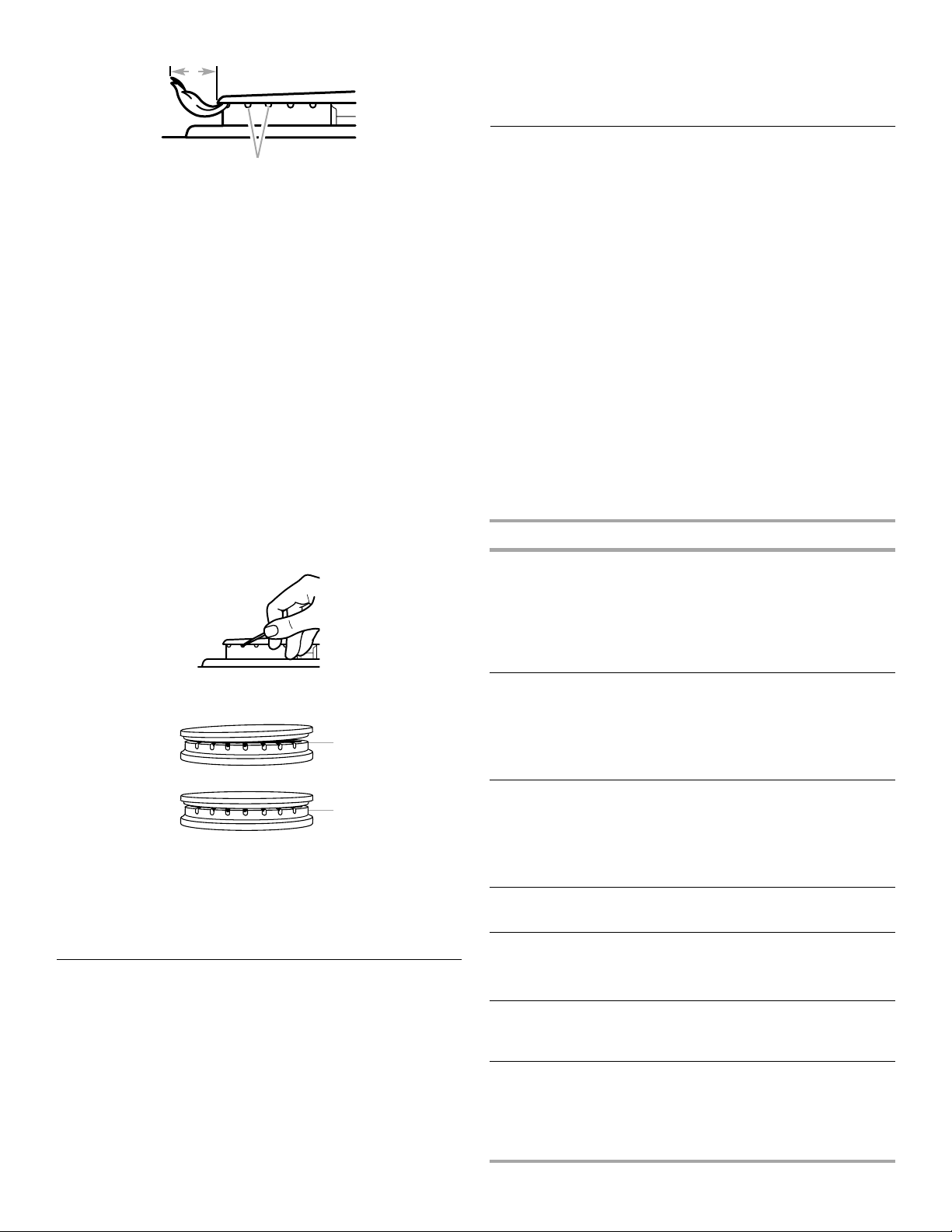

A. 1-1¹⁄₂" (25-38 mm) B. Burner ports

Burner ports: Check burner flames occasionally for proper size

and shape as shown above. A good flame is blue in color, not yellow. Keep this area free of soil and do not allow spills, food, cleaning agents or any other material to enter the burner ports.

To Clean:

IMPORTANT: Before cleaning, make sure all controls are off and

the oven and cooktop are cool. Do not use oven cleaners, bleach or rust removers.

1. Remove the burner cap from the burner base and clean

according to “General Cleaning” section.

2. Clean the gas tube opening with a damp cloth.

3. Clean clogged burner ports with a straight pin as shown. Do

not enlarge or distort the port. Do not use a wooden toothpick. If the burner needs to be adjusted, contact a trained repair specialist.

Cookware

IMPORTANT: Do not leave empty cookware on a hot surface cooking area, element or surface burner.

Ideal cookware should have a flat bottom, straight sides and a well-fitting lid, and the material should be of medium-to-heavy thickness.

Rough finishes may scratch the cooktop. Aluminum and copper may be used as a core or base in cookware. However, when used as a base they can leave permanent marks on the cooktop or grates.

Cookware material is a factor in how quickly and evenly heat is transferred, which affects cooking results. A nonstick finish has the same characteristics as its base material. For example, aluminum cookware with a nonstick finish will take on the properties of aluminum.

Cookware with nonstick surfaces should not be used under the broiler.

Use the following chart as a guide for cookware material characteristics.

COOKWARE CHARACTERISTICS

4. Replace the burner cap, making sure the alignment pins are

properly aligned with the burner cap.

A. Incorrect B. Correct

5. Turn on the burner. If the burner does not light, check cap

alignment. If the burner still does not light, do not service the sealed burner yourself. Contact a trained repair specialist.

Home Canning

When canning for long periods, alternate the use of surface burners between batches. This allows time for the most recently used areas to cool.

■ Center the canner on the grate.

■ Do not place canner on 2 surface burners at the same time.

■ For more information, contact your local agricultural

department. Companies that manufacture home canning products can also offer assistance.

Aluminum

Cast iron

Ceramic or Ceramic glass

Copper

Earthenware

Porcelain enamel-onsteel or cast iron

Stainless steel

■ Heats quickly and evenly.

■ Suitable for all types of cooking.

■ Medium or heavy thickness is best for

most cooking tasks.

■ Heats slowly and evenly.

■ Good for browning and frying.

■ Maintains heat for slow cooking.

■ Follow manufacturer’s instructions.

■ Heats slowly, but unevenly.

■ Ideal results on low to medium heat

settings.

■ Heats very quickly and evenly.

■ Follow manufacturer’s instructions.

■ Use on low heat settings.

■ See stainless steel or cast iron.

■ Heats quickly, but unevenly.

■ A core or base of aluminum or copper

on stainless steel provides even heating.

ELECTRONIC OVEN CONTROLS

Style 1 - Electronic Oven Controls (on some models)

Start

The START or START/ENTER pad begins any oven function. If not pressed within 5 seconds after pressing a function pad, the “START?” indicator light will flash as a reminder. On some models, “START?” will appear on the display.

If not pressed within 5 minutes after pressing a function pad, the oven display will return to the time of day mode and the programmed function will be canceled.

A. Display

B. Timer C. Clock D. Auto clean

E. Oven light pad

(on some models)

F. Sequence programming

(on some models)

G. Oven settings

H. Warming drawer

(on some models)

I. Temperature

J. Timed cooking

(on some models)

K. Hour/minute

(on some models)

L. Start/control lock

M. Cancel

Style2 - Electronic Oven Controls (on some models)

ABCDEF

A. Oven display B. Clock C. Timer/cancel D. Start/enter (control lock) E. Auto clean F. O f f /c a n c el

G. Temperature/time H. Cook time

I. Start time

J. Custom broil

K. Bake

Display

When power is first supplied to the appliance, “PF” or a flashing time will appear on the display. Press CANCEL or OFF/CANCEL to clear “PF” or flashing time from the display.

If “PF” or flashing time appears, a power failure has occurred. Press CANCEL or OFF/CANCEL and reset the clock if needed.

When the oven is not in use, the display shows the time of day. When performing a timed cook function, the display will show

either hours and minutes, or minutes and seconds.

Cancel or Off/Cancel

The CANCEL or OFF/CANCEL pad stops any function except the Clock, Timer and Control Lock.

Clock

On some models, this is a 12-hour clock that shows a.m. and p.m.

To S et :

Before setting, make sure the oven and Timer are off.

1. Press CLOCK.

2. Depending on your model, press the HR or MIN or TEMP/

TIME “up” or “down” arrow pads to set the time of day, including a.m. or p.m.

3. Press CLOCK or START.

Tones

Tones are audible signals, indicating the following:

One tone

■ Valid pad press

■ Oven is preheated (long tone)

■ Function has been entered

■ Reminder, repeating each minute after the end-of-cycle tones

Three tones

■ Invalid pad press

Four tones

■ End of cycle

Reminder Tones: Reminder tones may be turned off. On some models, press and hold STOP TIME for 5 seconds. “rEP OFF” or “off” will appear in the display. Repeat to turn reminder tones back on, and “rEP on” or “on” will appear in the display.

All Tones: All of the above tones are preset on. All except the end-of-cycle tones can be turned off.

To Turn Off/On (on some models): Press and hold START TIME for 5 seconds. A tone will sound, and “Snd OFF” will appear on the display. Repeat to turn tones on, and “Snd on” will appear on the display.

On some models, only the loudness of the tones can be adjusted. On other models, the tones cannot be adjusted or turned off.

Tone Pitch: The pitch is preset at high, but can be changed to low. On some models, only the loudness of the tones can be adjusted. On other models, the tones cannot be adjusted or turned off.

To Change (on some models): Press and hold BAKE for 5 seconds. A tone will sound, and “Snd LO” will appear on the display. Repeat to change, and “Snd Hi” will appear on display.

Fahrenheit and Celsius

The temperature is preset at Fahrenheit, but can be changed to Celsius on some models.

To Change: Press and hold CUSTOM BROIL for 5 seconds. A tone will sound, and “°C” will appear on the display. Repeat to change back to Fahrenheit. To exit mode, press CANCEL or OFF/CANCEL.

Timer

The Timer can be set in hours or minutes up to 12 hours and 59 minutes, and counts down the set time. The Timer does not start or stop the oven.

Oven Temperature Control

IMPORTANT: Do not use a thermometer to measure oven temperature because opening the oven door may cause burner cycling to give incorrect readings.

The oven provides accurate temperatures; however, it may cook faster or slower than your previous oven, so the temperature calibration can be adjusted. It can be changed in Fahrenheit or Celsius.

A minus sign means the oven will be cooler by the displayed amount. The absence of a sign means the oven will be warmer by the displayed amount. Use the following chart as a guide.

ADJUSTMENT °F (ADJUSTMENT °C)

10°F (5°C) ...a little more

20°F (10°C) ...moderately more

30°F (15°C) ...much more

-10°F (-5°C) ...a little less

-20°F (-10°C) ...moderately less

-30°F (-15°C) ...much less

COOKS FOOD

To S et :

1. Press TIMER SET or TIMER CANCEL*. The timer indicator

light will light up on some models. If no action is taken after 5 minutes, the display will return to the time of day mode.

2. Depending on your model, press the HR or MIN or TIME/

TEMP “up” or “down” arrow pads to set the length of time to cook.

3. Press START or TIMER SET. When the set time ends, end-of-

cycle tones will sound, then, if enabled, reminder tones will sound every minute on some models.

4. Press TIMER OFF or TIMER CANCEL* anytime to cancel the

Timer and reminder tones. Remember, do not press the CANCEL pad because the oven

will turn off.

To display the time of day for 5 seconds when the timer is counting down, press CLOCK.

Control Lock

The Control Lock shuts down the control panel pads to avoid unintended use of the oven.

When the control is locked, only the ACCUSIMMER SET, OVEN LIGHT (on some models) and TIMER pads will function.

To Lock/Unlock Control: Before locking, make sure the oven and Timer are off. Press and hold START for 5 seconds. A single tone will sound, and “Loc” will appear on the display.

Repeat to unlock. “Loc” will disappear from the display.

, CLOCK

To A dj us t O ve n Te mp er at ure C alib ration:

1. Press and hold BAKE for 5 seconds until the oven display

shows the current calibration, for example “0°F CAL” or “00.”

2. Press the TEMP or TEMP/TIME “up” or “down” arrow pad(s)

to increase or to decrease the temperature in 10°F (5°C) amounts. The adjustment can be set between 30°F (15°C) and -30°F (-15°C).

3. Press START or START/ENTER.

OVEN USE

Odors and smoke are normal when the oven is used the first few times, or when it is heavily soiled.

IMPORTANT: The health of some birds is extremely sensitive to the fumes given off. Exposure to the fumes may result in death to certain birds. Always move birds to another closed and wellventilated room.

BAKEWARE

To cook food evenly, hot air must be able to circulate. Allow 2" (5 cm) of space around bakeware and oven walls. Use the following chart as a guide.

NUMBER OF PAN(S)

POSITION ON RACK

Aluminum Foil

IMPORTANT: Do not line the oven bottom with any type of foil, liners or cookware because permanent damage will occur to the oven bottom finish.

■ On those models with bottom vents, do not block or cover

the oven bottom vents.

■ Do not cover entire rack with foil because air must be able to

move freely for best cooking results.

■ To catch spills, place foil on rack below dish. Make sure foil is

at least ½" (1.3 cm) larger than the dish and that it is turned up at the edges.

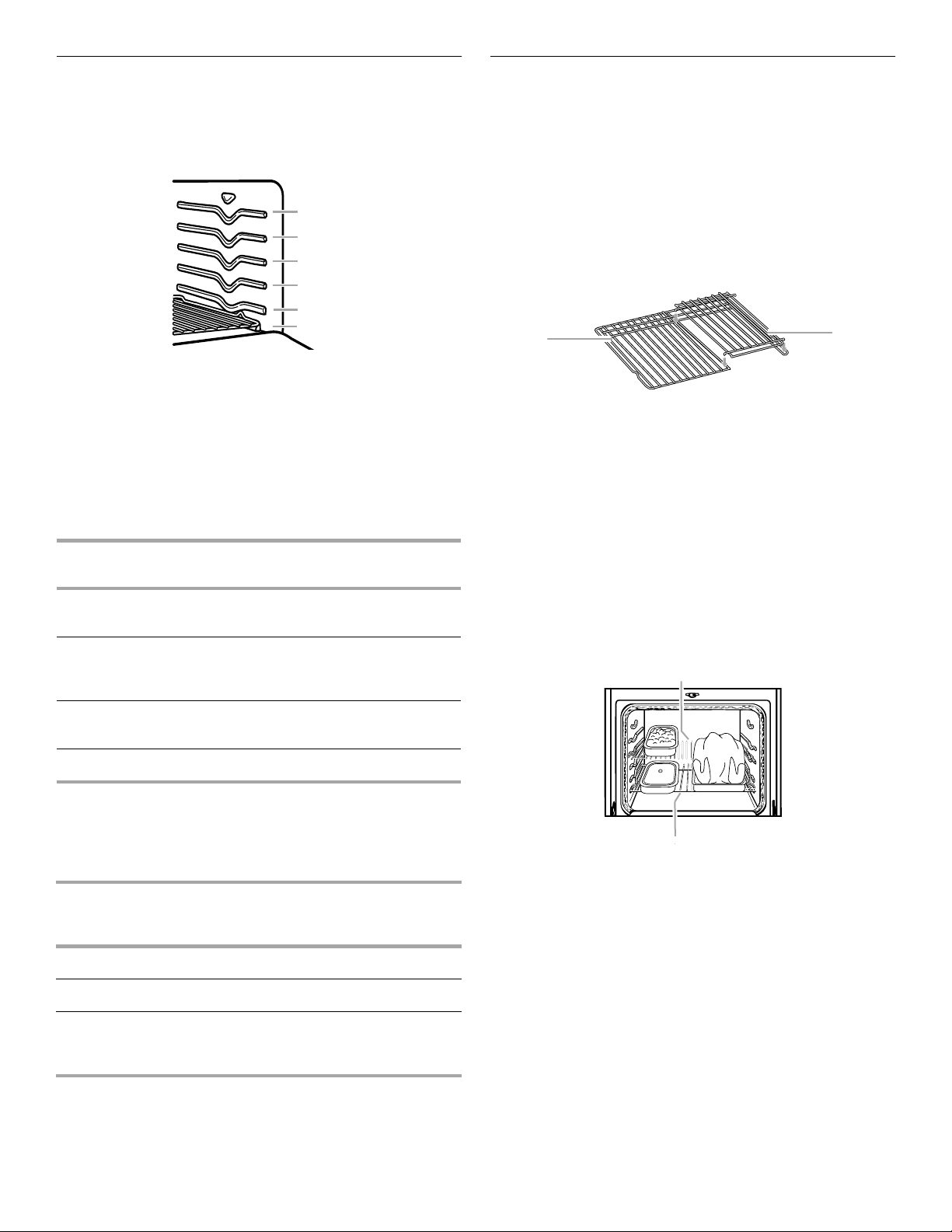

Positioning Racks andBakeware

IMPORTANT: To avoid permanent damage to the porcelain finish, do not place food or bakeware directly on the oven door or bottom.

5 4

3 2 1

RACKS

NOTES:

■ Position racks before turning the oven on.

■ Do not move racks with bakeware on them.

■ Make sure racks are level.

To move a rack, pull it out to the stop position, raise the front edge, then lift out. Use the following illustration and chart as a guide.

FOOD RACK POSITION

1 Center of rack.

2 Side by side or slightly staggered.

3 or 4 Opposite corners on each rack. Make sure

that no bakeware piece is directly over another.

Split Oven Rack

(on some models)

Split-Rack with Removable Insert

The split-rack with removable insert is a space maximizer. When the two are attached, they make a full rack. The insert can also be removed to provide room for large items such as a turkey and casseroles.

The insert can also be used on the counter for a cooling rack. Do not place more than 25 lbs (11.3 kg) on the split-rack.

A. Split-rack B. Removable insert

If your model does not have a split-rack, you may purchase one. Ask for Part Number 4396927.

To Use Racks:

1. Place a full rack on position 1 or 2, and the split-rack on

position 3 or 4.

2. Place large items on the right side of the full rack.

3. Place deeper, covered dishes on the left side of the full rack.

4. Place shallow dishes on the split-rack.

5. When finished cooking, slowly remove items.

Frozen pies, large roasts, turkeys, angel food cakes

Bundt cakes, most quick breads, yeast breads, casseroles, meats

Cookies, biscuits, muffins, cakes, nonfrozen pies

Extra-large items 6

1 or 2

2 or 3

A. Rear rack section B. Front rack section

Bakeware

The bakeware material affects cooking results. Follow manufacturer’s recommendations and use the bakeware size recommended in the recipe. Use the following chart as a guide.

Oven Vent

BAKEWARE/

RECOMMENDATIONS

RESULTS

Light colored aluminum

■ Light golden

■ Use temperature and time

recommended in recipe.

crusts

■ Even browning

Dark aluminum and other bakeware with dark, dull and/or nonstick finish

■ Brown, crisp

crusts

Insulated cookie sheets or baking pans

■ Little or no

■ May need to reduce baking

temperatures 25°F (15°C).

■ Use suggested baking time.

■ For pies, breads and casseroles,

use temperature recommended in recipe.

■ Place rack in center of oven.

■ Place in the bottom third of oven.

■ May need to increase baking time.

bottom browning

Stainless steel

■ Light, golden

■ May need to increase baking time.

crusts

■ Uneven browning

Stoneware/Baking stone

■ Crisp crusts

Ovenproof glassware, ceramic

■ Follow manufacturer’s

instructions.

■ May need to reduce baking

temperatures 25°F (15°C).

glass or ceramic

■ Brown, crisp

crusts

Meat Thermometer

On models without a temperature probe, use a meat thermometer to determine doneness of meat, poultry and fish. The internal temperature, not appearance, should be used to determine doneness. A meat thermometer is not supplied with this appliance.

■ Insert the thermometer into the center of the thickest portion

of the meat or inner thigh or breast of poultry. The tip of the thermometer should not touch fat, bone or gristle.

■ After reading the thermometer once, push it into the meat

½" (1.3 cm) more and read again. If the temperature drops, cook the meat or poultry longer.

■ Check all meat, poultry and fish in 2 or 3 different places.

A. Oven vent

The oven vent releases hot air and moisture from the oven, and should not be blocked or covered. Blocking or covering the oven vent will cause poor air circulation, affecting cooking and cleaning results. Do not set plastics, paper or other items that could melt or burn near the oven vent.

Baking and Roasting

ACCUBAKE® DUO SYSTEM® Temperature Management (on some models)

The ACCUBAKE® DUO SYSTEM® temperature management technology uses two sensors to maintain even temperatures.

The two temperature sensors independently control the bake and broil burners for optimal cooking results. The bake and broil cycle on and off in intervals. This feature is automatically activated when the oven is in use.

Before baking and roasting, position racks according to the “Positioning Racks and Bakeware” section. When roasting, it is not necessary to wait for the oven preheat conditioning time to end before putting food in unless recommended in the recipe.

To Bake or Roast:

1. Press BAKE.

2. Press TEMP or TEMP/TIME “up” or “down” arrow pad to set

a temperature other than 350°F (175°C) in 5°F (3°C) amounts. The bake range can be set between 170°F and 500°F (75°C and 260°C).

When the oven temperature is greater than 170°F (77°C), no preheat conditioning time will be shown in the display. The preheat conditioning time will not change if the temperature is reset before the countdown time ends.

3. Press START or START/ENTER. The temperature can be

changed after this step. The start pad does not need to be pressed again.

If baking and roasting while the minute timer is counting down, the set temperature can be seen for 5 seconds by pressing BAKE.

4. Press CANCEL or OFF/CANCEL when finished.

Preheating

After the start pad is pressed, the oven will enter a timed preheat conditioning. “PrE” (on some models) and the countdown time will appear on the display. When the preheat conditioning time ends, a tone will sound and the selected temperature will appear on the display.

Preheat temperatures are affected by varying factors such as room temperature and peak energy usage times. It is normal for the temperature showing on the display and the actual oven temperature to differ due to the cycling of the elements.

Waiting an additional 10 minutes, after the preheat conditioning time ends, to put food in the oven is suggested when baking foods with leavening ingredients, such as yeast, baking powder, baking soda and eggs.

Choice Bake®Function

(on some models)

The CHOICE BAKE® function reduces top heat in the oven during cooking. It is ideal when baking pies, breads and casseroles and when roasting meat and poultry.

During traditional baking and roasting, the bake and broil elements or burners cycle on and off at intervals. When CHOICE

is selected, the broil element or burner cycles on less

BAKE frequently. This reduces top browning of foods and allows you more customized control of your cooking results.

To Use :

1. Press CHOICE BAKE® function.

Press the TEMP “up” or “down” arrow pads to set a temperature other that 350°F (175°C) in 5° increments. The bake range can be set between 170°F and 500°F (75°C and 260°C).

2. Press START.

The temperature can be changed after this step by pressing the TEMP “up” or “down” arrow pads and then pressing START.

3. Press OFF/CANCEL when finished cooking. To use the CHOICE BAKE

to acheive less top browning, press CHOICE BAKE the desired temperature and press START.

function during a regular Bake cycle

cycle, set

To Custom Broil:

1. Press CUSTOM BROIL.

2. Press TEMP “up” or “down” arrow pad to change the

temperature in 5°F (5°C) amounts. The broil range can be set between 300°F (150°C) and HI (525°F [275°C]).

3. Press START or START/ENTER.

4. Press CANCEL or OFF/CANCEL when finished.

BROILING CHART

For best results, place food 3" (7 cm) or more from the broil burner. Times are guidelines only and may need to be adjusted for individual tastes. Recommended rack positions are numbered from the bottom (1) to the top (5). For diagram, see the “Positioning Racks and Bakeware” section.

RACK

FOOD

Steak

1" (2.5 cm) thick medium rare medium well-done

Ground meat patties*

³⁄₄" (2 cm) thick well-done 4 13-14 6-7

POSITION

4 4 4

Approximate Time (minutes)

SIDE 1 SIDE 2

14-15 15-16 18-19

7-8 8-9 9-10

Broiling

Broiling uses direct radiant heat to cook food. Changing the temperature when Custom Broiling allows more precise control when cooking. The lower the temperature, the slower the cooking. Thicker cuts and unevenly shaped pieces of meat, fish and poultry may cook better at lower broiling temperatures.

■ For best results, use a broiler pan and grid (provided on some

models). They are designed to drain juices and help avoid spatter and smoke.

If your model does not have a broiler pan, one may be ordered. See “Assistance or Service” section to order. Ask for Part Number 4396923.

■ For proper draining, do not cover the grid with foil. The

bottom of the pan may be lined with aluminum foil for easier cleaning.

■ Trim excess fat to reduce spattering. Slit the remaining fat on

the edges toavoid curling.

■ Pull out oven rack to stop position before turning or removing

food. Use tongs to turn food to avoid the loss of juices. Very thin cuts of fish, poultry or meat may not need to be turned.

■ After broiling, remove the pan from the oven when removing

the food. Drippings will bake on the pan if left in the heated oven, making cleaning more difficult.

Before broiling, position rack according to the Broiling Chart. It is not necessary to preheat the oven before putting food in unless recommended in the recipe. Position food on grid in the broiler pan, then place it in the center of the oven rack. Close the door.

To B roi l :

1. Press CUSTOM BROIL.

2. Press START or START/ENTER.

3. Press CANCEL or OFF/CANCEL when finished.

Pork chops

1" (2.5 cm) thick 4 21-22 10-11

Ham slice, precooked

¹₂" (1.25 cm) thick 4 8-10 4-5

Frankfurters 46-73-4

Lamb chops

1" (2.5 cm) thick 4 15-17 8-9

Chicken

bone-in pieces boneless breasts

Fish Fillets

¹₄-¹₂" (0.6-1.25 cm) thick Steaks ³₄-1" (2-2.5 cm) thick

*Place up to 9 patties, equally spaced, on broiler grid.

3 4

18-20 12-16

8-10

15-18

18-20 11-16

4-5

7-9

War m Ho ld

(on some models)

WARNING

Food Poisoning Hazard

Do not let food sit in oven more than one hour before or after cooking.

Doing so can result in food poisoning or sickness.

IMPORTANT: Food must be at serving temperature before placing it in the warmed oven. Food may be held up to 1 hour, however breads and casseroles may become too dry if left in the oven during Warm Hold.

Warm Hold Feature allows hot cooked foods to stay serving temperature. It can also be used at the end of a timed cook.

To Use Automatic Warm Hold Feature:

At the end of a timed cook, either with or without a delayed start, or at the end of a sequence program in which the last step is not the Warm Hold mode, the oven will automatically default to a 1-hour warm hold mode at 170°F (77°C).

When the cook time ends or the last step of the sequence is complete, the display will show a warming countdown time. When warming ends, the oven will automatically shut off and “End” will appear on the display. Four tones will sound, and then four 1-second reminder tones will sound every minute thereafter.

To Disable Automatic Warm Hold: Press and hold WARM for 5 seconds. “Off” will appear in the 4-digit display. Repeat to turn back on.

When using the Automatic Warm Hold Feature, cook times may need to be adjusted accordingly so that foods do not become overcooked and dry.

To Use Manual Warm Hold Feature:

1. Press WARM.

2. Set the temperature (optional).

Press the TEMP “up” or “down” arrow pad to raise or lower the temperature in 5°F (3°C) amounts to set a temperature other than 150°F (66°C). The warm range is 100°F-200°F (38°C-93°C).

3. Press START.

4. Press OFF/CANCEL when finished.

Timed Cooking

(on some models)

WARNING

Food Poisoning Hazard

Do not let food sit in oven more than one hour before or after cooking.

Doing so can result in food poisoning or sickness.

Timed Cooking allows the oven to be set to turn on at a certain time of day, cook for a set length of time, and/or shut off automatically. Delay start should not be used for food such as breads and cakes because they may not bake properly.

Style 1 - Electronic Controls (see “Electronic Oven Controls” section)

To Set a Timed Cook:

1. Press BAKE (optional).

2. Press the TEMP “up” or “down” arrow pads to enter a

temperature other than the one displayed.

3. Press STOP TIME.

4. Press the HR and MIN “up” or “down” arrow pads to enter

the desired time to end cooking.

5. Press START. The display will count down the time.

When the time ends, the oven will shut off automatically and “End” will appear on the display. End-of-cycle tones will sound, then, if enabled, reminder tones will sound every minute.

6. Open and close the oven door to clear the display and/or

stop reminder tones.

To Set a Delayed Timed Cook:

Before setting, make sure the clock is set to the correct time of day. See “Clock” section.

1. Press desired cook function.

2. Press the TEMP “up” or “down” arrow pads to enter a

temperature other than the one displayed.

3. Press START TIME or DELAY START TIME.

4. Press the HR and MIN “up” or “down” arrow pads to enter

the time of day to start.

5. Press STOP TIME (optional).

6. If STOP TIME has been pressed, press the HR and MIN “up”

or “down” arrow pads to enter the desired time to end cooking.

7. Press START. “DELAY” will appear on the display.

When the start time is reached, the oven will automatically turn on. When the stop time is reached (if programmed), the oven will shut off automatically and “End” will appear on the display. End-of-cycle tones will sound, then, if on, reminder tones will sound every minute.

8. Open and close the oven door to clear the display and/or

stop reminder tones.

Style 2 - Electronic Oven Control (see “Electronic Oven Controls” section)

To Set a Timed Cook:

1. Press BAKE. The bake indicator light will light up.

2. Set the temperature (optional).

3. Press the TEMP/TIME “up” or “down” arrow pad to enter a

temperature other than the one displayed.

4. Press COOK TIME. The cook time oven indicator light will

light up.

5. Press TEMP/TIME “up” or “down” arrow pad to enter the

length of time to cook.

6. Press START/ENTER. The display will count down the time.

When the time ends, the oven will shut off automatically and “End” will appear on the display.

7. Press CANCEL or OFF/CANCEL or open the oven door to

clear the display.

To Set a Delayed Timed Cook:

Before setting, make sure the clock is set to the correct time of day. See “Clock” section.

1. Press BAKE.

2. Set the temperature (optional).

3. Press the TEMP/TIME “up” or “down” arrow pad to enter a

temperature other than the one displayed.

4. Press COOK TIME. The cook time oven indicator light will

light up.

5. Press the TEMP/TIME “up” or “down” arrow pad to enter the

length of time to cook.

6. Press START TIME. The start time/delay oven indicator light

will light up.

7. Press the TEMP/TIME “up” or “down” arrow pad to enter the

time of day to start.

8. Press START/ENTER.

When the start time is reached, the oven will automatically turn on. The temperature and/or time settings can be changed any time after pressing START/ENTER by repeating steps 1-7. When the set cook time ends, the oven will shut off automatically and “End” will appear on the display.

9. Press CANCEL or OFF/CANCEL or open the oven door to

clear the display.

Sequence Programming

Sequence Programming allows you to program at one time up to 4 cooking functions. Other oven functions, such as the Timer and Warming Drawer may be used when a sequenced Program is running.

All steps of a sequenced program must be programmed with a stop time. If a stop time is not entered for a step in the sequence program, and the FIRST/NEXT STEP pad is pressed, 3 tones will sound prompting you to enter a stop time.

Sequence Programming takes precedence over any nonsequenced cooking function. For example, if an untimed Bake function is in process and a sequence program is started, the untimed Bake function will be canceled, and the program sequence will start.

Example - Sequence Programming

To Program the First Step of the Sequence:

1. Press FIRST/NEXT STEP.

“PROGRAM” and “STEP” will appear on the display. A flashing “1” will also appear on the display, indicating that Step 1 is being programmed.

2. Press BAKE, or any other desired cooking function.

3. Press TEMP “up” or “down” arrow pad (if desired) to select a

temperature other than the one displayed.

4. Press START TIME, then HR and MIN “up” or “down” arrow

pads to set the time of day for the first cooking function to begin. For example, 1:00.

If START TIME is not pressed, then the sequence of cooking functions will begin immediately once programming is complete and START is pressed.

The display will show either the time of day (if start time was not programmed) or the start time (if same was programmed), but with a flashing colon. “Stop” and “Time” will also appear on the display.

5. Press STOP TIME, then HR and MIN “up” or “down” arrow

pads to set the time of day for the first cooking function to stop. For example, 1:15.

To Program Next Steps (2 through 4) of the Sequence:

1. Press FIRST/NEXT STEP.

“PROGRAM” and “STEP” will appear on the display. The number of the step being programmed will flash. “START” and “TIME will also appear on the display.

2. Press Choice Bake

3. Press TEMP “up” or “down” arrow pad (if desired) to select a

temperature other than the one displayed.

4. Press STOP TIME, then HR and MIN “up” or “down” arrow

pads to select a stop time. For example, 1:35.

5. Continue repeating steps 1 through 4 until the desired

number of sequences have been set. You can program up to 4 cooking functions within the sequence.

6. Press START to begin sequence.

If you choose to press START, your program sequence will begin. Additional steps cannot be added to the sequence once START has been pressed.

Press CANCEL at any time to clear program and to stop program.

, or any other desired cooking function.

(on some models)

To Review/Modify Programmed Sequence:

If program steps are partially or completely programmed, yet the sequence has not been started, the programmed cooking functions can be reviewed.

1. Press REVIEW STEPS. Step 1 will appear in the display.

Subsequent presses of REVIEW STEPS will cause display of programmed steps in order.

“STEP” and “RECALL” will appear on the display. The number of the displayed step will flash. A recalled step will remain lit on the display for 5 minutes if no further action is taken.

2. If fewer than 4 steps have been programmed, press REVIEW

STEPS repeatedly until the last programmed step is displayed, then press FIRST/NEXT STEP if it is desired to program an additional step.

While a step is recalled, a cook function pad can be used to change the function, or the TEMPERATURE “up” or “down” arrow pad can be used to change the set temperature.

START TIME, when used with the HR or MIN “up” or “down” arrow pads, can be used to change, add or delete a delayed start.

STOP TIME can be used to change the stop time. Changing the stop time of a step will automatically change the start times and stop times of all subsequent programmed cook functions.

3. After Review/Modification of the programmed sequence is

complete, press START to begin sequence.

To Modify Sequence Programming:

1. Press UNDO.

The last step of the sequence will be canceled, and the step prior to the canceled sequence will show on the display for either review or modification.

If the programmed sequence has not been started, see “To Program Next Steps of the Sequence” section to program a step to replace the canceled cook function.

2. Press START.

The first step will show on the display and the program sequence will begin.

Changes can be made during a programmed cook function; however, changes cannot be made after a programmed cook function has been completed.

If at any time during an active sequenced program FIRST/ NEXT STEP is pressed, 3 tones will sound.

+ 30 hidden pages
