Whirlpool 9760332A User Manual
®
GAS RANGE
Use & Care Guide
For questions about features, operation/performance, parts,
accessories or service, call: 1-800-253-1301 or visit our website
In Canada, call for assistance, installation or service, call:
at...www.whirlpool.com
1-800-807-6777 or visit our website at...
www.whirlpool.ca
CUISINIÈRE À GAZ
Guide d’utilisation
et d’entretien
Au Canada, pour assistance, installation ou service, composez le
1-800-807-6777
ou visitez notre site web à
www.whirlpool.ca
9763002A
Table of Contents/Table des matières .................. 2
To the installer: Please leave this
instruction book with the unit.
To the consumer: Please read and
keep this book for future reference.
Pour l'installateur : laisser ce manuel
d'instructions avec l'appareil.
Pour le consommateur : lire ce manuel et
le conserver pour consultation ultérieure.
TABLE OF CONTENTS
TABLE DES MATIÈRES
RANGE SAFETY .............................................................................3
The Anti-Tip Bracket ....................................................................4
PARTS AND FEATURES................................................................5
COOKTOP USE ..............................................................................6
Cooktop Controls.........................................................................6
Cooktop Lockout .........................................................................6
Sealed Surface Burners ...............................................................6
Home Canning .............................................................................7
Cookware.....................................................................................7
ELECTRONIC OVEN CONTROLS.................................................8
Display..........................................................................................8
Start..............................................................................................8
Off/Cancel ....................................................................................8
Clock ............................................................................................8
Tones............................................................................................8
Fahrenheit and Celsius.................................................................9
Timer.............................................................................................9
Control Lockout............................................................................9
Oven Temperature Control ..........................................................9
OVEN USE.......................................................................................9
Aluminum Foil...............................................................................9
Positioning Racks and Bakeware................................................9
Split Oven Rack (on some models)............................................10
Bakeware....................................................................................10
Meat Thermometer.....................................................................11
Oven Vent...................................................................................11
Baking and Roasting..................................................................11
Broiling........................................................................................11
Hold Warm Feature (on some models)......................................12
Timed Cooking (on some models).............................................12
Sequence Programming (on some models)..............................13
RANGE CARE ...............................................................................14
Self-Cleaning Cycle (on some models)......................................14
General Cleaning........................................................................15
Oven Light (on some models)....................................................17
Oven Door..................................................................................17
Storage Drawer ..........................................................................17
TROUBLESHOOTING ..................................................................18
ASSISTANCE OR SERVICE.........................................................19
In the U.S.A. ...............................................................................19
In Canada...................................................................................19
WARRANTY ..................................................................................20
SÉCURITÉ DE LA CUISINIÈRE ...................................................21
La bride antibasculement...........................................................22
PIÈCES ET CARACTÉRISTIQUES ..............................................23
UTILISATION DE LA TABLE DE CUISSON................................24
Commandes de la table de cuisson..........................................24
Désactivation de la table de cuisson.........................................24
Brûleurs de surface scellés........................................................25
Préparation de conserves à la maison.......................................25
Ustensiles de cuisson ................................................................25
COMMANDES ÉLECTRONIQUES DU FOUR............................26
Affichage.....................................................................................27
Mise en marche..........................................................................27
Off/Cancel (arrêt/annulation)......................................................27
Horloge.......................................................................................27
Signaux sonores.........................................................................27
Fahrenheit et Celsius..................................................................27
Minuterie.....................................................................................27
Verrouillage des commandes.....................................................28
Commande de la température du four......................................28
UTILISATION DU FOUR...............................................................28
Papier d’aluminium.....................................................................28
Positionnement des grilles et des ustensiles de cuisson..........28
Grille de four en deux pièces (sur certains modèles) ................29
Ustensiles de cuisson ................................................................29
Thermomètre à viande ...............................................................30
Évent du four..............................................................................30
Cuisson au four et rôtissage ......................................................30
Cuisson au gril............................................................................30
Caractéristique Hold Warm (garder au chaud)
(sur certains modèles)................................................................31
Cuisson minutée (sur certains modèles)....................................32
Programmation de séquences (sur certains modèles)..............33
ENTRETIEN DE LA CUISINIÈRE.................................................34
Programme d'autonettoyage (sur certains modèles) ................34
Nettoyage général......................................................................35
Lampe du four (sur certains modèles).......................................36
Porte du four...............................................................................37
Tiroir de remisage.......................................................................37
DÉPANNAGE.................................................................................38
ASSISTANCE OU SERVICE.........................................................39
GARANTIE ....................................................................................40
®
2
RANGE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you don't immediately
DANGER
WARNING
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
WARNING: If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
follow instructions.
can be killed or seriously injured if you don't
You
instructions.
follow
– Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
– WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
•
Do not touch any electrical switch.
•
Do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
•
instructions.
If you cannot reach your gas supplier, call the fire department.
•
– Installation and service must be performed by a qualified installer, service agency or
the gas supplier.
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances
known to the State of California to cause cancer, birth defects, or other reproductive harm, and requires businesses to warn of
potential exposure to such substances.
WARNING: This product contains a chemical known to the State of California to cause cancer, birth defects, or other
reproductive harm.
This appliance can cause low-level exposure to some of the substances listed, including benzene, formaldehyde, carbon
monoxide, toluene, and soot.
3

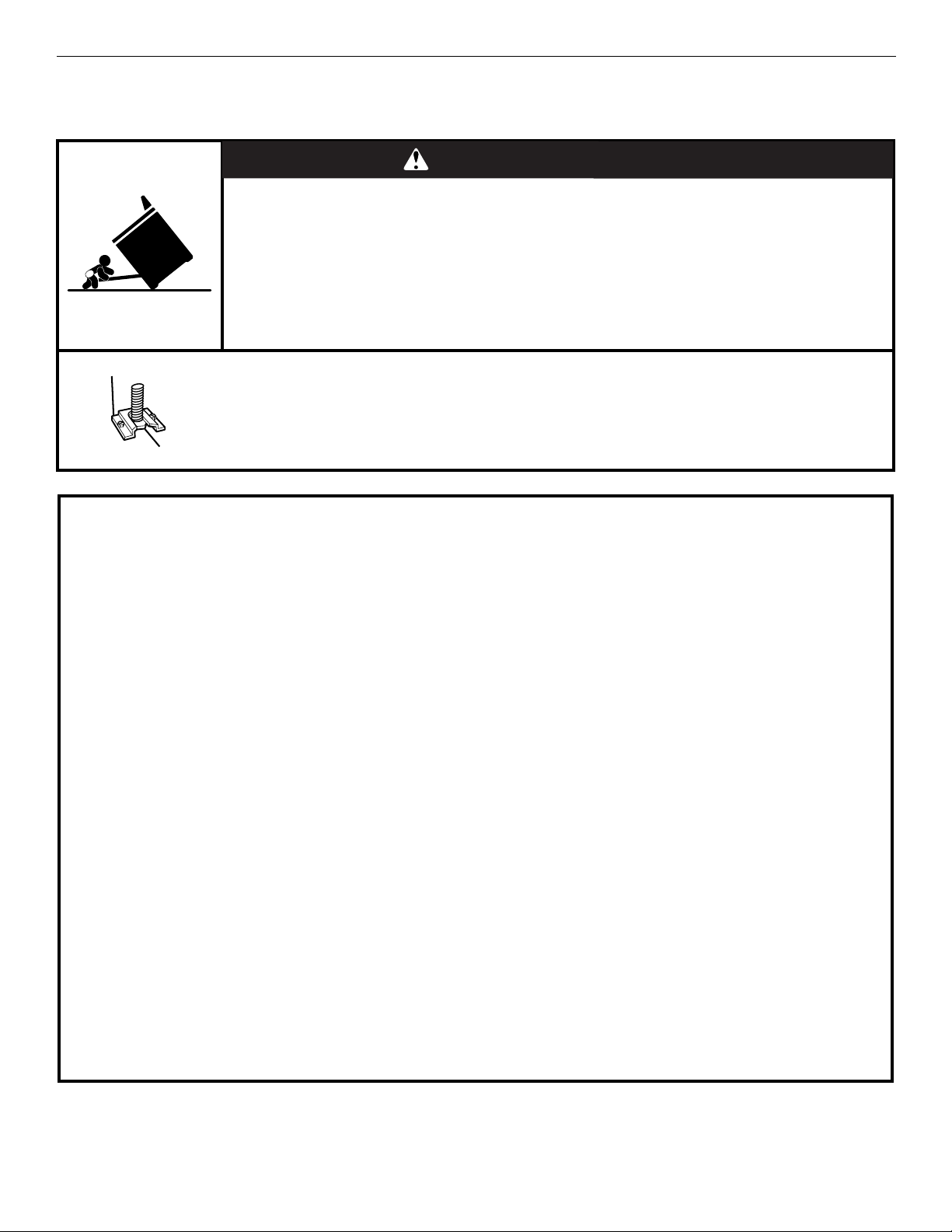

The Anti-Tip Bracket
The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without
having the anti-tip bracket fastened down properly.
WARNING
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns to children and adults.
Anti-Tip Bracket
Range Foot
Making sure the anti-tip bracket is installed:
• Slide range forward.
• Look for the anti-tip bracket securely attached to floor.
• Slide range back so rear range foot is under anti-tip bracket.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical shock,
injury to persons, or damage when using the range, follow
basic precautions, including the following:
■ WARNING: TO REDUCE THE RISK OF TIPPING OF
THE RANGE, THE RANGE MUST BE SECURED BY
PROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECK
IF THE DEVICES ARE INSTALLED PROPERLY, SLIDE
RANGE FORWARD, LOOK FOR ANTI-TIP BRACKET
SECURELY ATTACHED TO FLOOR, AND SLIDE RANGE
BACK SO REAR RANGE FOOT IS UNDER ANTI-TIP
BRACKET.
■ CAUTION: Do not store items of interest to children in
cabinets above a range or on the backguard of a range –
children climbing on the range to reach items could be
seriously injured.
■ Proper Installation – The range, when installed, must be
electrically grounded in accordance with local codes or, in
the absence of local codes, with the
Code, ANSI/NFPA70
electrically grounded in accordance with Canadian
Electrical Code. Be sure the range is properly installed and
grounded by a qualified technician.
. In Canada, the range must be
National Electrical
■ This range is equipped with a three-prong grounding plug
for your protection against shock hazard and should be
plugged directly into a properly grounded receptacle. Do
not cut or remove the grounding prong from this plug.
■ Disconnect the electrical supply before servicing the
appliance.
■ Never Use the Range for Warming or Heating the Room.
■ Injuries may result from the misuse of appliance doors or
drawers such as stepping, leaning, or sitting on the doors
or drawers.
■ Maintenance – Keep range area clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
■ Storage in or on the Range – Flammable materials should
not be stored in an oven or near surface units.
■ Top burner flame size should be adjusted so it does not
extend beyond the edge of the cooking utensil.
For self-cleaning ranges –
■ Before Self-Cleaning the Oven – Remove broiler pan and
other utensils. Wipe off all excessive spillage before
initiating the cleaning cycle.
SAVE THESE INSTRUCTIONS
4

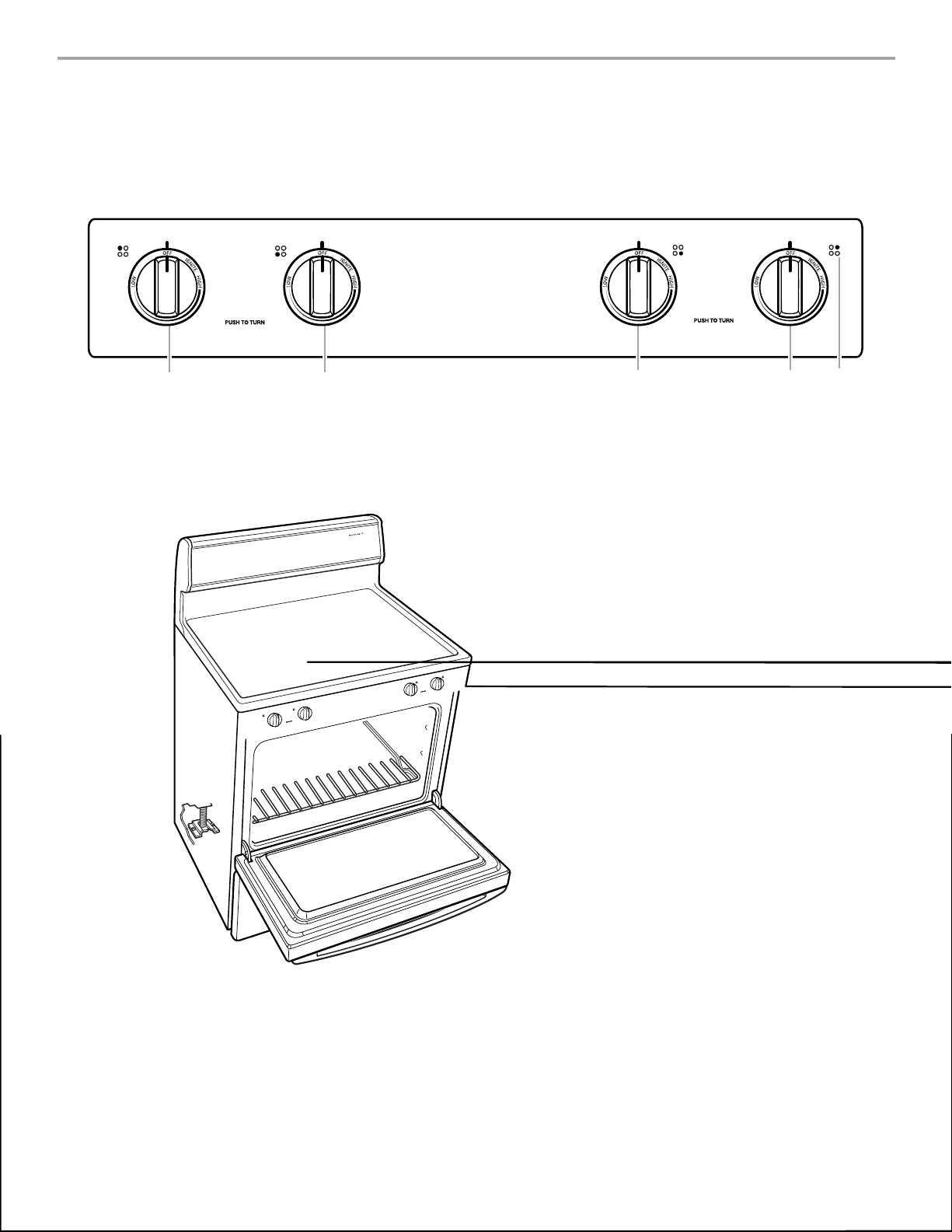

PARTS AND FEATURES
O
This manual covers several different models. The range you have purchased may have some or all of the parts and features listed. The
locations and appearances of the features shown here may not match those of your model.
Control Panel
AB
A. Left rear burner control
B. Left front burner control
(power burner on some models)
Range
A
B
C
D
C
C. Right front burner control D. Right rear burner control
(ACCUSIMMER
E. Surface burner locator
®
burner on some models)
G
H
I
J
K
L
M
D
E
N
E
F
A. Oven vent
B. Surface cooking area
C. Anti-tip bracket
D. Oven door hinge
E. Model and serial number
plate (behind left side of
storage drawer)
F. St o rag e d raw er
(warming drawer on some
models)
G. Electronic oven control
H. Center grate (on some models)
I. Surface burner control
J. Automatic oven light switch
K. Oven rack
L. Gasket
M. Oven door window
N. Self-clean latch
O. Gas regulator
Parts and Features not shown
Oven light
Broiler pan and grid
Roasting rack
Storage drawer liner
(on some models)
5
COOKTOP USE
Cooktop Controls

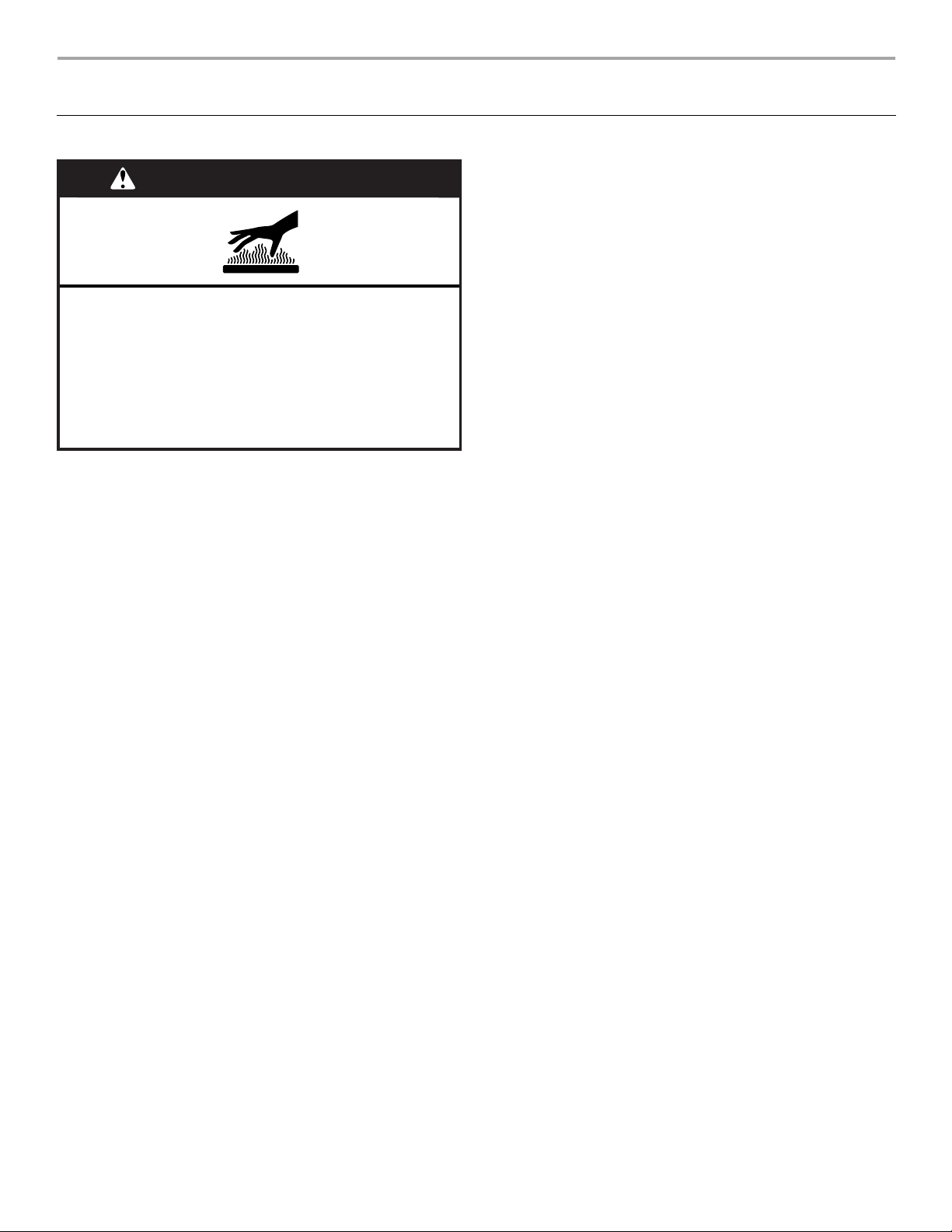

WARNING
Fire Hazard
Do not let the burner flame extend beyond the edge of
the pan.
Turn off all controls when not cooking.
Failure to follow these instructions can result in death
or fire.
To C lean:
IMPORTANT: Before cleaning, make sure all controls are off and
the oven and cooktop are cool. Do not use oven cleaners, bleach
or rust removers.
Power™ Burner (on some models)
The left front burner is designed to give ultra-high power when it
is fully on. It can be used to rapidly bring liquid to a boil and to
cook large quantities of food.
ACCUSIMMER® Burner (on some models)
The right rear burner has an adjustable heat setting for more
precise simmering and low temperature cooking.
Power failure
In case of prolonged power failure, the surface burners can be lit
manually. Hold a lit match near a burner and turn knob
counterclockwise to IGNITE. After burner lights, turn knob to
setting.
Electric igniters automatically light the surface burners when
control knobs are turned to IGNITE.
Before setting a control knob, place filled cookware on the grate.
Do not operate a burner using empty cookware or while the grate
is unoccupied.
To S et:
1. Push in and turn knob counterclockwise to IGNITE.
All 4 surface burners will click. Only the burner with the
control knob turned to IGNITE will produce a flame.
2. Turn knob to anywhere between HIGH and LOW. Use the
following chart as a guide when setting heat levels.
SETTING RECOMMENDED USE
IGNITE
HIGH
Between
HIGH and LOW
■ Light the burner.
■ Start food cooking.
■ Bring liquid to a boil.
■ Hold a rapid boil.
■ Quickly brown or sear food.
■ Fry or sauté foods.
■ Cook soups, sauces and gravies.
■ Stew or steam foods.
Cooktop Lockout
The Cooktop Lockout prevents unintended use of the surface
burners. When the cooktop is locked out, the surface burners
cannot be turned on by the control knobs.
When power is first supplied to the range, or if the range loses
power, the surface burners will be in the Cooktop Lockout
position. The surface burners cannot be activated until power is
restored to the range and (or) the Cooktop Lockout is
disengaged. Also, cooktop burners will be in the Cooktop
Lockout position during the self-clean cycle.
To Lock/Unlock Cooktop:
Before using, turn all control knobs to OFF. Press and hold the
Cooktop Lockout icon keypad for 3 seconds. A single tone will
sound, and “Loc On” and a cooktop icon will appear on the
display. After 3 seconds the clock display will reappear.
Repeat to unlock cooktop. “Loc OFF” will appear on the display
for 3 seconds, and the cooktop icon will disappear from the
display.
Sealed Surface Burners
IMPORTANT: Do not obstruct the flow of combustion and
ventilation air around the burner grate edges.
LOW
REMEMBER: When range is in use or (on some models)
during the Self-Cleaning cycle, the entire cooktop area may
become hot.
■ Keep food warm.
■ Simmer.
6

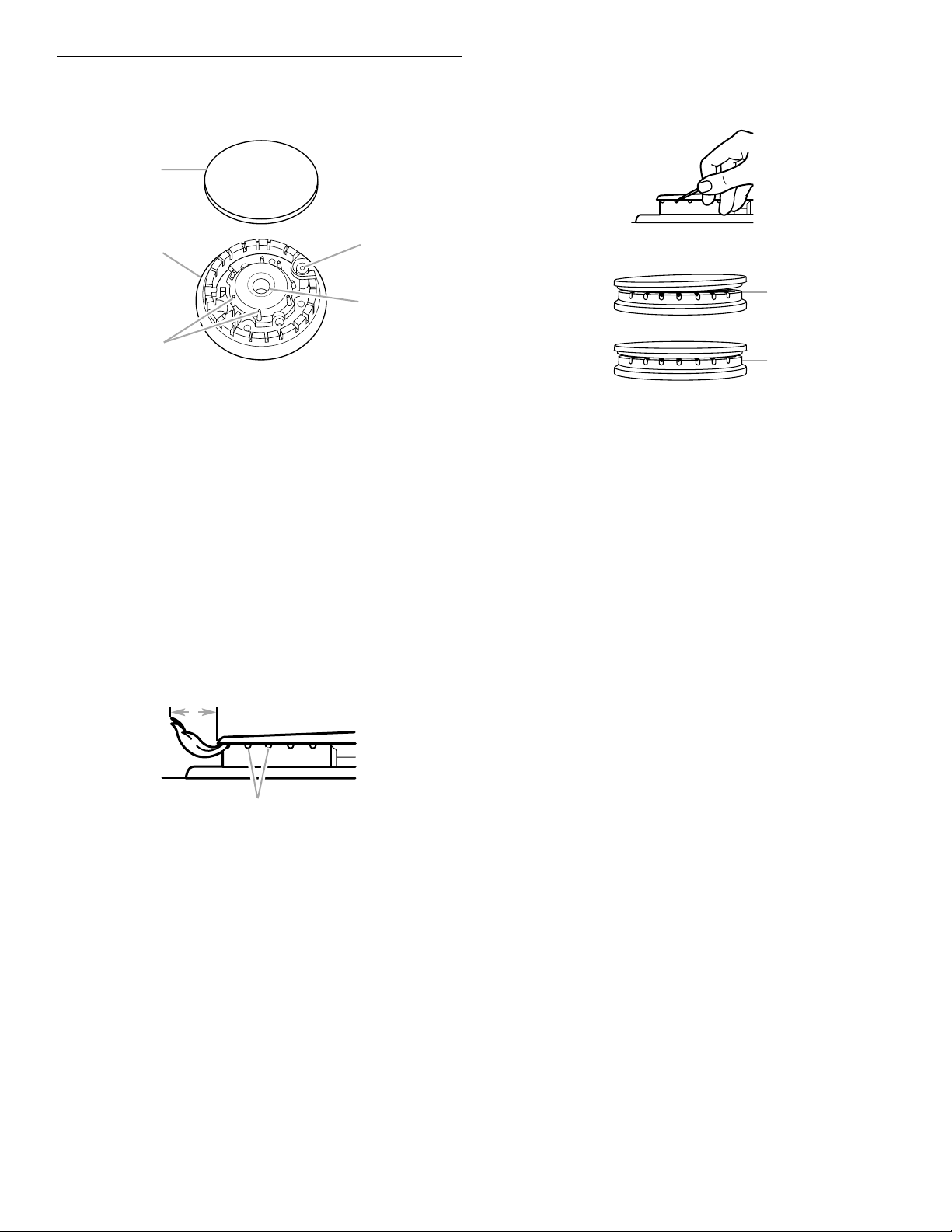

A. Burner cap
B. Burner base
C. Alignment pins
D. Igniter
E. Gas tube opening
Burner cap: Always keep the burner cap in place when using a
A
B
surface burner. A clean burner cap will help avoid poor ignition
and uneven flames. Always clean the burner cap after a spillover
and routinely remove and clean the caps according to the
“General Cleaning” section.
Gas tube opening: Gas must flow freely throughout the gas tube
opening for the burner to light properly. Keep this area free of soil
and do not allow spills, food, cleaning agents or any other
material to enter the gas tube opening. Protect it from spillovers
by always using a burner cap.
A
B
A. 1-1¹⁄₂" (25-38 mm)
B. Burner ports
Burner ports: Check burner flames occasionally for proper size
and shape as shown above. A good flame is blue in color, not
yellow. Keep this area free of soil and do not allow spills, food,
cleaning agents or any other material to enter the burner ports.
To C lea n:
IMPORTANT: Before cleaning, make sure all controls are off and
the oven and cooktop are cool. Do not use oven cleaners, bleach
or rust removers.
1. Remove the burner cap from the burner base and clean
according to “General Cleaning” section.
2. Clean the gas tube opening with a damp cloth.
3. Clean clogged burner ports with a straight pin as shown. Do
not enlarge or distort the port. Do not use a wooden
toothpick. If the burner needs to be adjusted, contact a
trained repair specialist.
Home Canning
When canning for long periods, alternate the use of surface
burners between batches. This allows time for the most recently
used areas to cool.
■ Center the canner on the grate.
■ Do not place canner on 2 surface burners at the same time.
■ For more information, contact your local agricultural
department. Companies that manufacture home canning
products can also offer assistance.
Cookware
IMPORTANT: Do not leave empty cookware on a hot surface
cooking area, element or surface burner.
Ideal cookware should have a flat bottom, straight sides and a
well-fitting lid, and the material should be of medium-to-heavy
thickness.
Rough finishes may scratch the cooktop or grates. Aluminum and
copper may be used as a core or base in cookware. However,
when used as a base they can leave permanent marks on the
cooktop or grates.
Cookware material is a factor in how quickly and evenly heat is
transferred, which affects cooking results. A nonstick finish has
the same characteristics as its base material. For example,
aluminum cookware with a nonstick finish will take on the
properties of aluminum.
Cookware with nonstick surfaces should not be used under the
broiler.
Use the following chart as a guide for cookware material
characteristics.
COOKWARE CHARACTERISTICS
Aluminum
■ Heats quickly and evenly.
■ Suitable for all types of cooking.
■ Medium or heavy thickness is best for
most cooking tasks.
4. Replace the burner cap, making sure the alignment pins are
properly aligned with the burner cap.
A. Incorrect
B. Correct
5. Turn on the burner. If the burner does not light, check cap
alignment. If the burner still does not light, do not service the
sealed burner yourself. Contact a trained repair specialist.
Cast iron
Ceramic or
Ceramic glass
■ Heats slowly and evenly.
■ Good for browning and frying.
■ Maintains heat for slow cooking.
■ Follow manufacturer’s instructions.
■ Heats slowly, but unevenly.
■ Ideal results on low to medium heat
settings.
Copper
■ Heats very quickly and evenly.
Earthenware ■ Follow manufacturer’s instructions.
■ Use on low heat settings.
Porcelain
■ See stainless steel or cast iron.
enamel-onsteel or cast
iron
Stainless steel ■ Heats quickly, but unevenly.
■ A core or base of aluminum or copper
on stainless steel provides even
heating.
7
ELECTRONIC OVEN CONTROLS
AB
C
D
E
F
G
I
K
HJLMN
Style 1 - Electronic Oven Controls (on some models)
A. Auto clean
B. Start time
C. Oven display
D. Clock
E. Timer set/off
F. S t ar t
G. Off/Cancel
Style 2 - Electronic Oven Controls (on some models)
H. Hour/minute
I. Temperature
J. Cooking functions
K. Cook time
L. Control lockout
M. Night light/Cooktop lockout
N. Oven light
Start
The Start pad begins any oven function. If the Start pad is not
pressed within 5 seconds after pressing a function pad, the
“START?” indicator light will flash as a reminder. On some
models, “START?” will appear on the display.
If the Start is not pressed within 5 minutes after pressing a
function pad, the oven display will return to the time of day mode
and the programmed function will be canceled.
Off/Cancel
The Off/Cancel pad stops any function except the Clock, Timer
and Control Lock.
Clock
On some models, this is a 12-hour clock that shows a.m. and
p.m.
To S et:
Before setting, make sure the oven and Timer are off.
1. Press CLOCK.
2. Depending on your model, press the HR or MIN or
TEMP/HOUR “up” or “down” arrow pads to set the time of
day, including a.m. or p.m.
3. Press CLOCK or START.
A. Oven light
B. Clock
C. Display
D. Start
E. Cancel/Off
F. Te m p / T i m e
G. Cooking functions
H. Control lockout
I. Auto Clean
J. Timer
Display
When power is first supplied to the appliance, a flashing time will
appear on the display. Press OFF/CANCEL to clear flashing time
from the display.
If flashing time appears, a power failure has occurred. Press
OFF/CANCEL and reset the clock if needed.
When the oven is not in use, the display shows the time of day.
When performing a timed cook function, the display will show
either hours and minutes, or minutes and seconds.
Ton es
Tones are audible signals, indicating the following:
One tone
■ Valid pad press
■ Oven is preheated (long tone)
■ Function has been entered
■ Reminder, repeating each minute after the end-of-cycle tones
Three tones
■ Invalid pad press
Four tones
■ End of cycle
Reminder Tones: Reminder tones may be turned off. On some
models, press and hold STOP TIME for 5 seconds. “rEP OFF” or
“off” will appear in the display. Repeat to turn reminder tones
back on, and “rEP on” or “on” will appear in the display.
All Tones: All of the above tones are preset on. All except the
end-of-cycle tones can be turned off.
To Turn Off/On (on some models): Press and hold START TIME
for 5 seconds. A tone will sound, and “Snd OFF” will appear on
the display. Repeat to turn tones on, and “Snd on” will appear on
the display.
On some models, only the loudness of the tones can be adjusted.
On other models, the tones cannot be adjusted or turned off.
Tone Pitch: The pitch is preset at high, but can be changed to
low. On some models, only the loudness of the tones can be
adjusted. On other models, the tones cannot be adjusted or
turned off.
To Change (on some models): Press and hold BAKE for
5 seconds. A tone will sound, and “Snd LO” will appear on the
display. Repeat to change, and “Snd Hi” will appear on display.
8
Fahrenheit and Celsius
The temperature is preset at Fahrenheit, but can be changed to
Celsius on some models.
To Change: Press and hold BROIL for 5 seconds. A tone will
sound, and “°C” will appear on the display. Repeat to change
back to Fahrenheit. To exit mode, press OFF/CANCEL.
Timer
The Timer can be set in hours or minutes up to 12 hours and
59 minutes, and counts down the set time. The Timer does not
start or stop the oven.
To S et:
1. Press TIMER SET or TIMER CANCEL*. The timer indicator
light will light up on some models. If no action is taken after
5 minutes, the display will return to the time of day mode.
2. Depending on your model, press the HR or MIN or
TEMP/HOUR “up” or “down” arrow pads to set the length of
time to cook.
3. Press START or TIMER SET. When the set time ends, end-of-
cycle tones will sound, then, if enabled, reminder tones will
sound every minute on some models.
4. Press TIMER OFF or TIMER CANCEL* anytime to cancel the
Timer and reminder tones.
Remember, do not press the OFF/CANCEL pad because the
oven will turn off.
To display the time of day for 5 seconds when the timer is
counting down, press CLOCK.
To Lock/Unlock Control: Before locking, make sure the oven
and Timer are off. Press and hold START for 5 seconds. A single
tone will sound, and “Loc” will appear on the display.
Repeat to unlock. “Loc” will disappear from the display.
Oven Temperature Control
IMPORTANT: Do not use a thermometer to measure oven
temperature because opening the oven door may cause burner
cycling to give incorrect readings.
The oven provides accurate temperatures; however, it may cook
faster or slower than your previous oven, so the temperature
calibration can be adjusted. It can be changed in Fahrenheit or
Celsius.
A minus sign means the oven will be cooler by the displayed
amount. The absence of a sign means the oven will be warmer by
the displayed amount. Use the following chart as a guide.
ADJUSTMENT °F
(ADJUSTMENT °C)
10°F (5°C) ...a little more
20°F (10°C) ...moderately more
30°F (15°C) ...much more
-10°F (-5°C) ...a little less
-20°F (-10°C) ...moderately less
-30°F (-15°C) ...much less
COOKS FOOD
Control Lockout
The Control Lockout shuts down the control panel pads to avoid
unintended use of the oven.
®
When the control is locked, only the ACCUSIMMER
SET, OVEN LIGHT (on some models) and TIMER pads will
function.
, CLOCK
OVEN USE
Odors and smoke are normal when the oven is used the first few
times, or when it is heavily soiled.
IMPORTANT: The health of some birds is extremely sensitive to
the fumes given off. Exposure to the fumes may result in death to
certain birds. Always move birds to another closed and wellventilated room.
Aluminum Foil
IMPORTANT: Do not line the oven bottom with any type of foil,
liners or cookware because permanent damage will occur to the
oven bottom finish.
■ On those models with bottom vents, do not block or cover
the oven bottom vents.
■ Do not cover entire rack with foil because air must be able to
move freely for best cooking results.
■ To catch spills, place foil on rack below dish. Make sure foil is
at least ¹⁄₂" (1.3 cm) larger than the dish and that it is turned
up at the edges.
To A dj ust Ov en Temper ature Calib ra tio n:
1. Press and hold BAKE for 5 seconds until the oven display
shows the current calibration, for example “0°F CAL” or “00.”
2. Press the TEMP or TEMP/HOUR “up” or “down” arrow pad(s)
to increase or to decrease the temperature in 10°F (5°C)
amounts. The adjustment can be set between 30°F (15°C)
and -30°F (-15°C).
3. Press START.
Positioning Racks and Bakeware
IMPORTANT: To avoid permanent damage to the porcelain
finish, do not place food or bakeware directly on the oven door or
bottom.
5
4
3
2
1
6

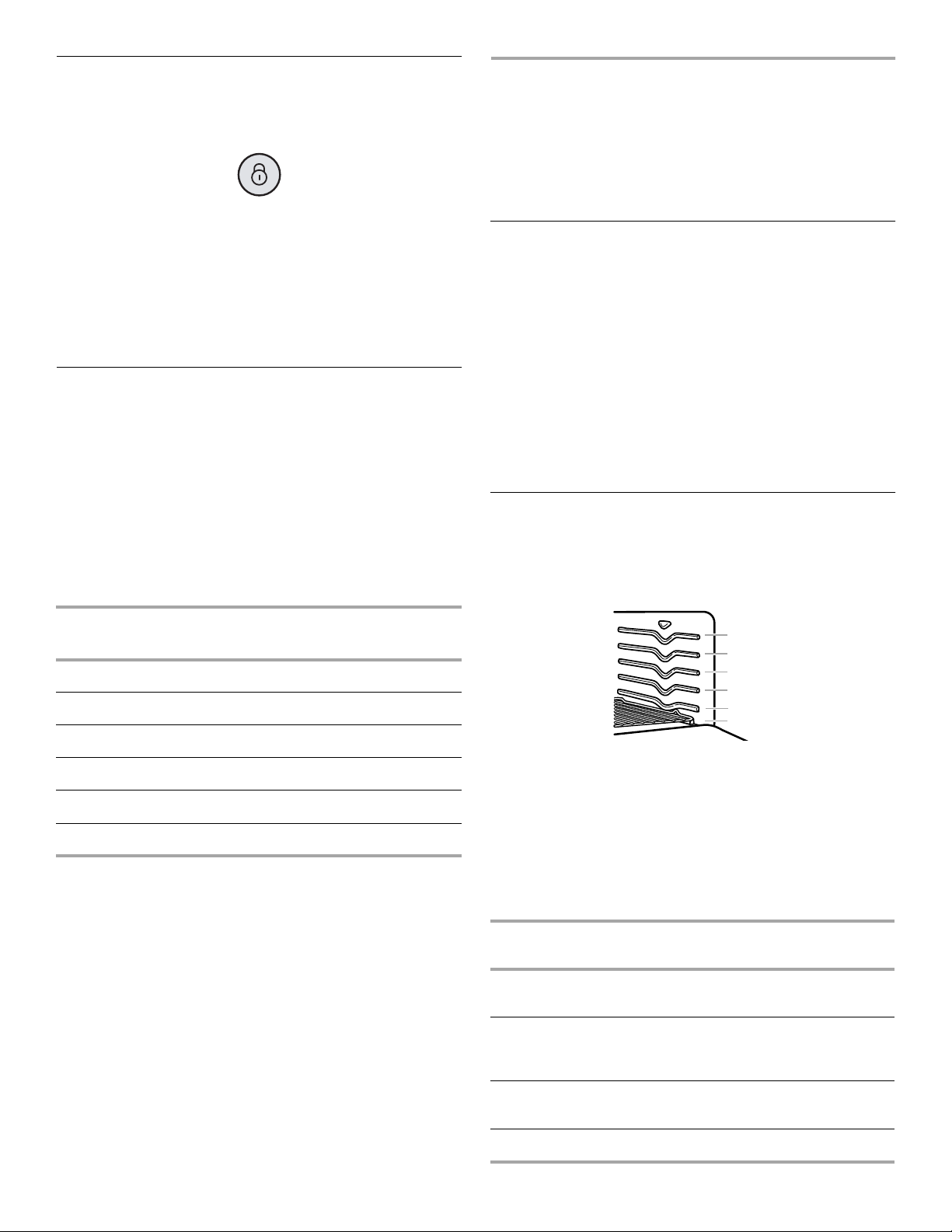

RACKS
NOTES:
■ Position racks before turning on the oven.
■ Do not move racks with bakeware on them.
■ Make sure racks are level.
9
To move a rack, pull it out to the stop position, raise the front
edge, then lift out. Use the following illustration and chart as a
guide.
FOOD RACK POSITION
5. When finished cooking, slowly remove items.
A
Frozen pies, large roasts, turkeys,
1 or 2
angel food cakes
Bundt cakes, most quick breads, yeast
2
breads, casseroles, meats
Cookies, biscuits, muffins, cakes,
2 or 3
nonfrozen pies
Extra-large items 6
BAKEWARE
To cook food evenly, hot air must be able to circulate. Allow
2" (5 cm) of space around bakeware and oven walls. Use the
following chart as a guide.
NUMBER OF
POSITION ON RACK
PAN(S)
1 Center of rack.
2 Side by side or slightly staggered.
3 or 4 Opposite corners on each rack. Make sure
that no bakeware piece is directly over
another.
Split Oven Rack
(on some models)
Split-Rack with Removable Insert
The split-rack with removable insert is a space maximizer. When
the two are attached, they make a full rack. The insert can also be
removed to provide room for large items such as a turkey and
casseroles. Do not place more than 25 lbs (11.3 kg) on the splitrack.
The insert can also be used on the counter for a cooling rack.

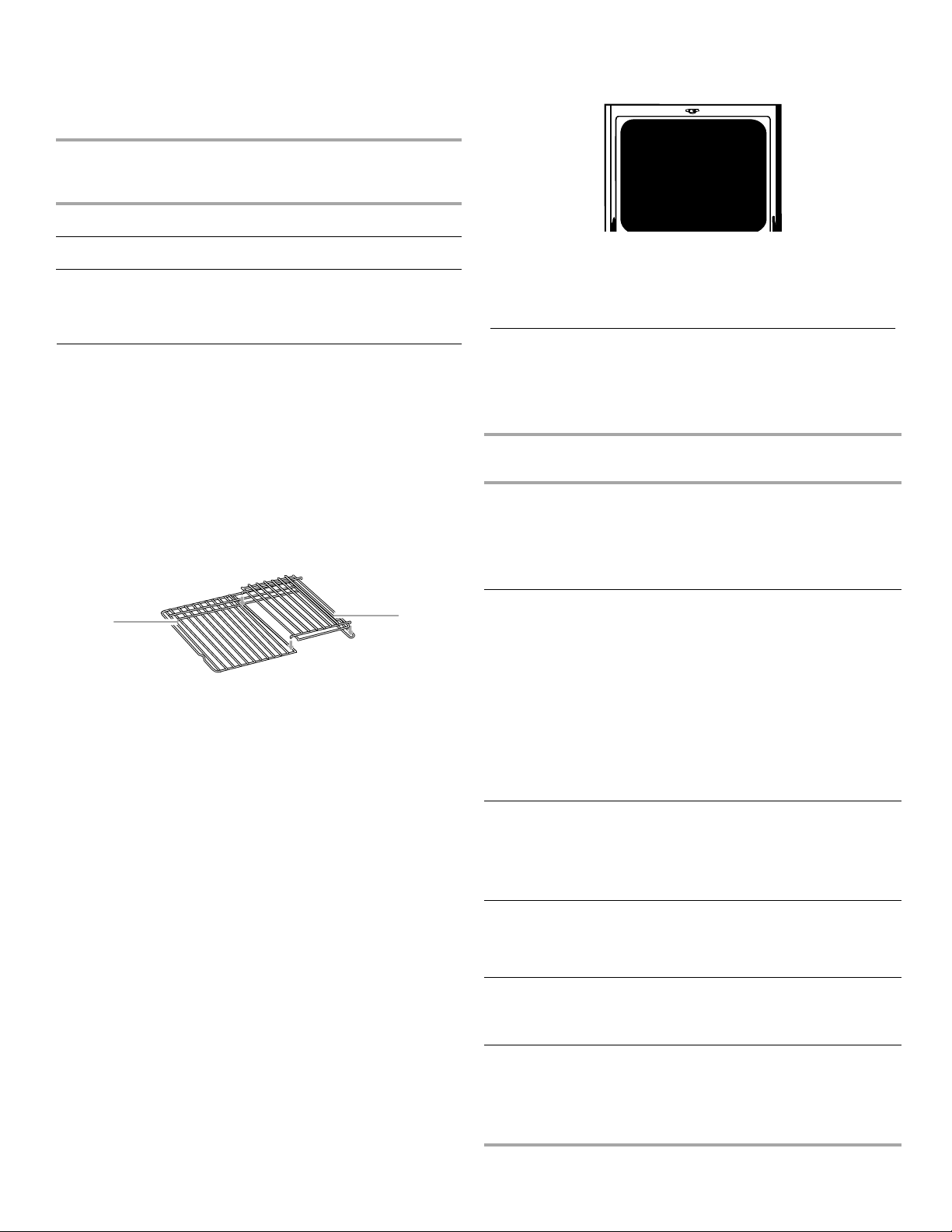

A
A. Split-rack
B. Removable insert
If your model does not have a split-rack, you may purchase one.
See “Assistance or Service” section to order. Ask for Part
Number 4396927.
To Use Racks:
1. Place a full rack on position 1 or 2, and the split-rack on
position 3 or 4.
2. Place large items on the right side of the full rack.
3. Place deeper, covered dishes on the left side of the full rack.
4. Place shallow dishes on the split-rack.
B
B
A. Rear rack section
B. Front rack section
Bakeware
The bakeware material affects cooking results. Follow
manufacturer’s recommendations and use the bakeware size
recommended in the recipe. Use the following chart as a guide.
BAKEWARE/
RESULTS
Light colored
aluminum
■ Light golden
crusts
■ Even browning
Dark aluminum and
other bakeware with
dark, dull and/or
nonstick finish
■ Brown, crisp
crusts
Insulated cookie
sheets or baking
pans
■ Little or no
bottom browning
Stainless steel
■ Light, golden
crusts
■ Uneven browning
Stoneware/Baking
stone
■ Crisp crusts
Ovenproof
glassware, ceramic
glass or ceramic
■ Brown, crisp
crusts
RECOMMENDATIONS
■ Use temperature and time
recommended in recipe.
■ May need to reduce baking
temperatures 25°F (15°C).
■ Use suggested baking time.
■ For pies, breads and casseroles,
use temperature recommended in
recipe.
■ Place rack in center of oven.
■ Place in the bottom third of oven.
■ May need to increase baking time.
■ May need to increase baking time.
■ Follow manufacturer’s
instructions.
■ May need to reduce baking
temperatures 25°F (15°C).
10
Meat Thermometer
On models without a temperature probe, use a meat
thermometer to determine doneness of meat, poultry and fish.
The internal temperature, not appearance, should be used to
determine doneness. A meat thermometer is not supplied with
this appliance.
■ Insert the thermometer into the center of the thickest portion
of the meat or inner thigh or breast of poultry. The tip of the
thermometer should not touch fat, bone or gristle.
■ After reading the thermometer once, push it into the meat
½" (1.3 cm) more and read again. If the temperature drops,
cook the meat or poultry longer.
■ Check all meat, poultry and fish in 2 or 3 different places.
Oven Vent
A. Oven vent
The oven vent releases hot air and moisture from the oven, and
should not be blocked or covered. Blocking or covering the oven
vent will cause poor air circulation, affecting cooking and
cleaning results. Do not set plastics, paper or other items that
could melt or burn near the oven vent.
Baking and Roasting
ACCUBAKE® Temperature Management (on some models)
The ACCUBAKE
levels during preheat and bake to maintain a precise temperature
range for optimal cooking results. The bake and broil burners
cycle on and off in intervals. This feature is automatically
activated when the oven is in use.
Before baking and roasting, position racks according to the
“Positioning Racks and Bakeware” section. When roasting, it is
not necessary to wait for the oven preheat conditioning time to
end before putting food in unless recommended in the recipe.
®
system electronically regulates the oven heat
Preheating
After the start pad is pressed, the oven will enter a timed preheat
conditioning. “PrE” (on some models) and the countdown time
will appear on the display. When the preheat conditioning time
ends, a tone will sound and the selected temperature will appear
on the display.
Preheat temperatures are affected by varying factors such as
room temperature and peak energy usage times. It is normal for
the temperature showing on the display and the actual oven
temperature to differ due to the cycling of the burners.
Waiting an additional 10 minutes, after the preheat conditioning
time ends, to put food in the oven is suggested when baking
foods with leavening ingredients, such as yeast, baking powder,
baking soda and eggs.
Broiling
Broiling uses direct radiant heat to cook food. Changing the
temperature when Custom Broiling allows more precise control
when cooking. The lower the temperature, the slower the
cooking. Thicker cuts and unevenly shaped pieces of meat, fish
and poultry may cook better at lower broiling temperatures.
■ For best results, use a broiler pan and grid (provided on some
models). They are designed to drain juices and help avoid
spatter and smoke. If your model does not have a broiler pan,
one may be ordered. See “Assistance or Service” section to
order. Ask for Part Number 4396923.
■ For proper draining, do not cover the grid with foil. The
bottom of the pan may be lined with aluminum foil for easier
cleaning.
■ Trim excess fat to reduce spattering. Slit the remaining fat on
the edges to avoid curling.
■ Pull out oven rack to stop position before turning or removing
food. Use tongs to turn food to avoid the loss of juices. Very
thin cuts of fish, poultry or meat may not need to be turned.
■ After broiling, remove the pan from the oven when removing
the food. Drippings will bake on the pan if left in the heated
oven, making cleaning more difficult.
Before broiling, position rack according to the Broiling Chart. It is
To Bake or Roast:
1. Press BAKE.
2. Press TEMP or TEMP/HOUR “up” or “down” arrow pad to set
a temperature other than 350°F (175°C) in 5°F (3°C) amounts.
The bake range can be set between 170°F and 500°F (75°C
and 260°C).
When the oven temperature is greater than 170°F (77°C), no
preheat conditioning time will be shown in the display. The
preheat conditioning time will not change if the temperature is
reset before the countdown time ends.
3. Press START. The temperature can be changed after this
step. The start pad does not need to be pressed again.
If baking and roasting while the minute timer is counting
down, the set temperature can be seen for 5 seconds by
pressing BAKE.
4. Press OFF/CANCEL when finished.
11
BROILING CHART
For best results, place food 3" (7 cm) or more from the broil
burner. Times are guidelines only and may need to be adjusted
for individual tastes. Recommended rack positions are numbered
from the bottom (1) to the top (5). For diagram, see the
“Positioning Racks and Bakeware” section.
Approximate
FOOD
Steak
1" (2.5 cm) thick
medium rare
medium
well-done
Ground meat patties*
³⁄₄" (2 cm) thick
well-done 4 13-14 6-7
Pork chops
1" (2.5 cm) thick 4 21-22 10-11
Ham slice, precooked
¹₂" (1.25 cm) thick 4 8-10 4-5
Frankfurters 46-73-4
Lamb chops
1" (2.5 cm) thick 4 15-17 8-9
Chicken
bone-in pieces
boneless breasts
Fish
Fillets
¹₄-¹₂" (0.6-1.25 cm) thick
Steaks
³₄-1" (2-2.5 cm) thick
*Place up to 9 patties, equally spaced, on broiler grid.
RACK
POSITION
4
4
4
3
4
4
4
Time (minutes)
SIDE 1 SIDE 2
14-15
15-16
18-19
18-20
12-16
8-10
15-18
7-8
8-9
9-10
18-20
11-16
4-5
7-9
Style 1 - Electronic Oven Control
To U se:
1. Press WARM.
2. Set the temperature (optional).
Press the TEMP “up” or “down” arrow pad to raise or lower
the temperature in 5°F (5°C) amounts to set a temperature
other than 170°F (75°C). The warm range is 170°F-200°F
(75°C-93°C).
3. Press START.
4. Press OFF/CANCEL when finished.
To Add to the End of a Set Cook Time:
1. Press BAKE.
2. Set the temperature (optional).
Press the TEMP “up” or “down” arrow pad to set a
temperature other than 350°F (177°C).
3. Press COOK TIME.
4. Press the HOUR/MIN “up” or “down” arrow pads to set cook
time.
5. Press WARM.
A 1 hour warm time will automatically be set.
6. Set the warm temperature (optional).
Press the TEMP “up” or “down” arrow pad to raise or lower
the temperature in 5°F (5°C) amounts to set a temperature
other than 170°F (75°C). The warm range is 170°F-200°F
(75°C-93°C).
7. Press START.
The display will show the cook time counting down. When
cook time ends, the display will show a warming time.
When warming time ends, the oven will automatically shut off
and “End” and COOK TIME will show on the display. Four
tones will sound, and then four 1-second reminder tones will
sound every minute thereafter.
8. Press OFF/CANCEL or open the oven door to stop reminder
tones and remove “End” from display. The time of day will
return to the display.
Hold Warm Feature
(on some models)
WARNING
Food Poisoning Hazard
Do not let food sit in oven more than one hour before
or after cooking.
Doing so can result in food poisoning or sickness.
IMPORTANT: Food must be at serving temperature before
placing it in the warmed oven. Food may be held up to 1 hour;
however, breads and casseroles may become too dry if left in the
oven during Hold Warm.
The Hold Warm feature allows hot cooked foods to stay at
serving temperature. It can also be used at the end of a timed
cook.
12
Style 2 - Electronic Oven Control
To U se:
1. Press WARM.
2. Temperature is set at 170° (75°C) for 60 minutes.
3. Press START.
4. Press OFF/CANCEL when finished.
Timed Cooking
(on some models)
WARNING
Food Poisoning Hazard
Do not let food sit in oven more than one hour before
or after cooking.
Doing so can result in food poisoning or sickness.
Timed Cooking allows the oven to be set to turn on at a certain
time of day, cook for a set length of time, and/or shut off
automatically. Delay start should not be used for food such as
breads and cakes because they may not bake properly.
Loading...
