Whirlpool 905.2.02, 906.2.12, 906.2.02, 905.2.12 Quick reference guide [EN]
IGB FINDKNPENLFD SGR

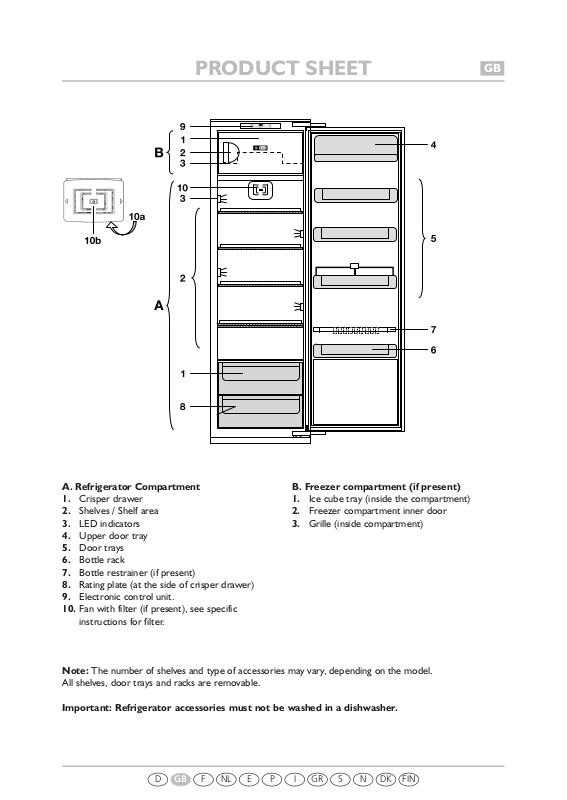

A. Refrigerator Compartment
1. Crisper drawer
2. Shelves / Shelf area
3. LED indicators
4. Upper door tray
5. Door trays
6. Bottle rack
7. Bottle restrainer (if present)
8. Rating plate (at the side of crisper drawer)
9. Electronic control unit.
10. Fan with filter (if present), see specific
instructions for filter.
B. Freezer compartment (if present)
1. Ice cube tray (inside the compartment)
2. Freezer compartment inner door
3. Grille (inside compartment)
Note: The number of shelves and type of accessories may vary, depending on the model.
All shelves, door trays and racks are removable.
Important: Refrigerator accessories must not be washed in a dishwasher.
PRODUCT SHEET
GB
FINDKNSGRIPENLFGBD
A. Display indicating the set temperature. If the
letter “A” flashes on the display, contact the
After-sales Service.
B. Stand-by “ON” button.
C. Temperature Selection Button (+3, +4, +5,
+6, +7°C)
D. Fast Freeze button, for appliances with a
Freezer compartment (the Fast Freeze
function should be activated at least 3 hours
before freezing fresh food. It deactivates
automatically after 26 hours).
D. Fast Cool button, for appliances without a
Freezer compartment (the function deactivates
automatically after approx. 6 hours).
E. The yellow LED stays on while the Fast Freeze
function (or Fast Cool) is active.
F. Button for muting the acoustic alarm (the alarm
sounds if the door is left open for more than
two minutes).
G. The red LED flashes when the door open alarm
is activated or when the letter “A” flashes on
the display.
H. “Child Lock”: to activate the function, press
buttons F and D at the same time. This
prevents other people (e.g. children) from
changing the temperature or selected functions.
To deactivate the “Child Lock” function repeat
the same procedure, long-pressing buttons F
and D at the same time.
CONTROL PANEL DESCRIPTION
B A C
HG DEF
