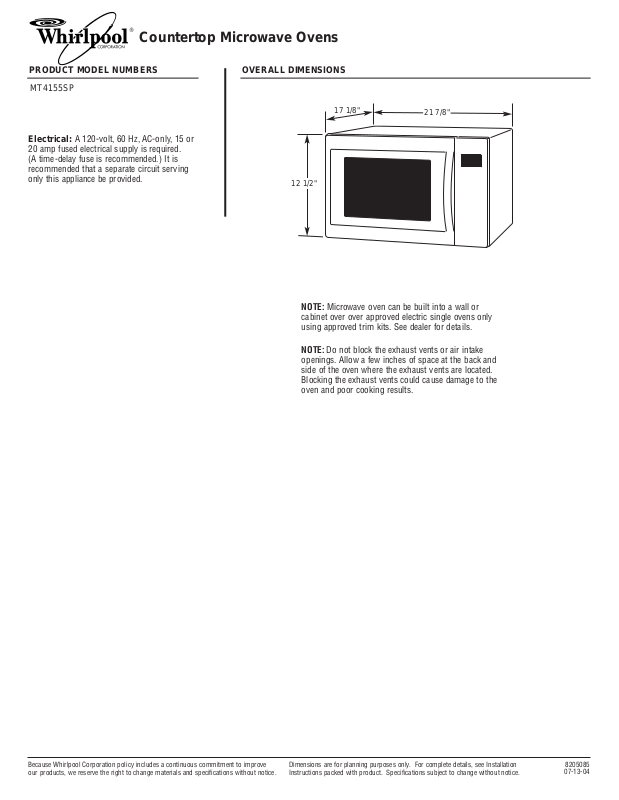

Whirlpool 8205085 User Manual

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS
MT4155SP
Electrical: A 120-volt, 60 Hz, AC-only, 15 or 20 amp fused electrical supply is required. (A time-delay fuse is recommended.) It is recommended that a separate circuit serving only this appliance be provided.
®
Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specifications subject to change without notice.
8205085
07-13-04
A12 1/2"
21 7/8"
17 1/8"
NOTE: Microwave oven can be built into a wall or cabinet over over approved electric single ovens only using approved trim kits. See dealer for details.
NOTE: Do not block the exhaust vents or air intake openings. Allow a few inches of space at the back and side of the oven where the exhaust vents are located. Blocking the exhaust vents could cause damage to the oven and poor cooking results.
