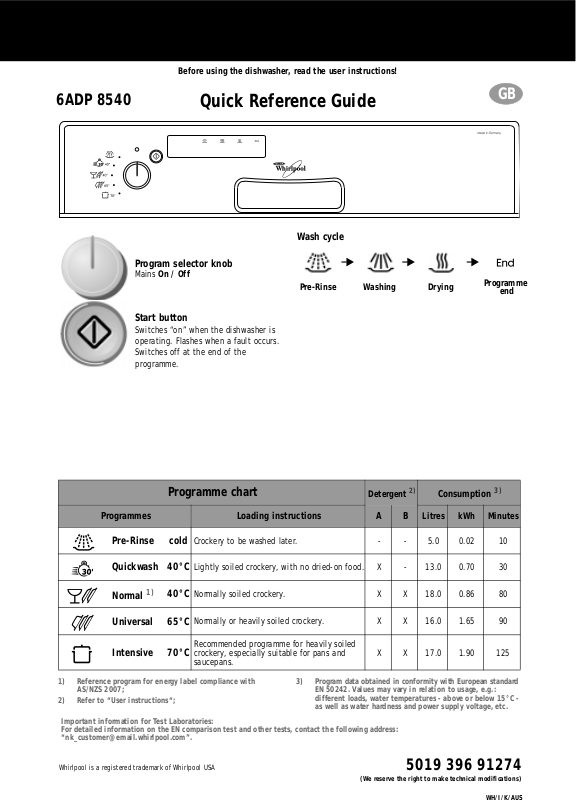

6ADP 8540
Whirlpool is a registered trademark of Whirlpool USA
5019 396 91274
GB
6ADP 8540
Quick Reference Guide
Before using the dishwasher, read the user instructions!
WH/I/K/AUS
(We reserve the right to make technical modifications)
1) Reference program for energy label compliance with
AS/NZS 2007;
2) Refer to “User instructions“;
3) Program data obtained in conformity with European standard
EN 50242. Values may vary in relation to usage, e.g.:
different loads, water temperatures - above or below 15°C -
as well as water hardness and power supply voltage, etc.
Program selector knob
Mains
On / Off
Start button
Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the
programme.
Wash cycle
Pre-Rinse Washing Drying
Programme
end
Programme chart
Detergent
2)
Consumption
3)
Programmes Loading instructions A B
Litres kWh Minutes
Pre-Rinse cold
Crockery to be washed later. - - 5.0 0.02 10
Quickwash 40°C
Lightly soiled crockery, with no dried-on food. X - 13.0 0.70 30
Normal
1)
40°C
Normally soiled crockery. X X 18.0 0.86 80
Universal 65°C
Normally or heavily soiled crockery. X X 16.0 1.65 90
Intensive 70°C
Recommended programme for heavily soiled
crockery, especially suitable for pans and
saucepans.
X X 17.0 1.90 125
Important information for Test Laboratories:
For detailed information on the EN comparison test and othe r te sts, contact the following address:
“nk_customer@email.whirlpool.com”.
WH/II/K/AUS
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Automatic start by turning the programme selector knob (in case of
retractable knob, first press the knob to access it).
Large compartment A:
With each wash cycle.
Small compartment B:
For programmes with pre-wash only.
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator D. Electric
indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
Select the desired programme.
The corresponding indicator lamp comes on.
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is
then memorised (even in the
event of power failure).
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
Only after the START button has switched off: Access the knob (in case of
retractable knob, press and then release the knob).
To accelerate the drying process, slightly open the door at the end of the
program.
WARNING: WHEN THE DOOR IS OPENED STEAM COMES OUT!
Unload the appliance, starting from the lower rack.
Switch on the appliance
How to fill the detergent
AB
C
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Close the dishwasher door,
turn on the water tap
Select a programme
Select options
Press the Start button
“Change programme”
Press the START button for 2 sec. until
the Start indicator lamp switches off;
Select another programme and
press the START button again.
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks
