Whirlpool 6ADP 5656 Quick Reference Guide

Before using the dishwasher, read the user instructions!

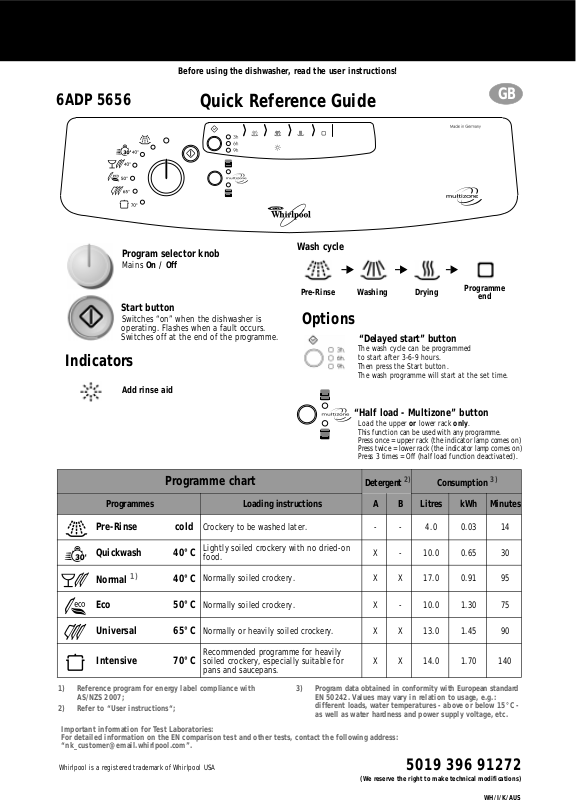

6ADP 5656		Quick Reference Guide				GB

Program selector knob

Mains On / Off

Start button

Switches “on” when the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme.

Indicators

Wash cycle

Pre-Rinse		Washing		Drying		Programme
						end

Options

“Delayed start” button

The wash cycle can be programmed to start after 3-6-9 hours.

Then press the Start button.

The wash programme will start at the set time.

Add rinse aid

“Half load - Multizone” button

					Load the upper or lower rack only.
					This function can be used with any programme.
					Press once = upper rack (the indicator lamp comes on)
					Press twice = lower rack (the indicator lamp comes on)
					Press 3 times = Off (half load function deactivated).
	Programme chart					Detergent 2)		Consumption 3)
Programmes		Loading instructions				A	B	Litres	kWh	Minutes
Pre-Rinse	cold	Crockery to be washed later.				-	-	4.0	0.03	14
Quickwash	40°C	Lightly soiled crockery with no dried-on				X	-	10.0	0.65	30
		food.
Normal 1)	40°C	Normally soiled crockery.				X	X	17.0	0.91	95
Eco	50°C	Normally soiled crockery.				X	-	10.0	1.30	75
Universal	65°C	Normally or heavily soiled crockery.				X	X	13.0	1.45	90
Intensive	70°C	Recommended programme for heavily
		soiled crockery, especially suitable for				X	X	14.0	1.70	140
		pans and saucepans.

1)Reference program for energy label compliance with AS/NZS 2007;

2)Refer to “User instructions“;

3)Program data obtained in conformity with European standard EN 50242. Values may vary in relation to usage, e.g.: different loads, water temperatures - above or below 15°C - as well as water hardness and power supply voltage, etc.

Important information for Test Laboratories:

For detailed information on the EN comparison test and other tests, contact the following address: “[e-mail]”.

Whirlpool is a registered trademark of Whirlpool USA	5019 396 91272
	(We reserve the right to make technical modifications)

WH/I/K/AUS

How to use the appliance

Further indications are given in the single chapters and in the user instructions.

Switch on the appliance

How to fill the detergent

Check the rinse aid level

Check the regeneration salt level

Load the racks

Close the dishwasher door, turn on the water tap

Select a programme

Select options

Press the Start button

Wash cycle

Switch off the appliance

Turn off the water tap, unload the racks

Automatic start by turning the programme selector knob (in case of retractable knob, first press the knob to access it).

Large compartment A:			C
With each wash cycle.	A	B
Small compartment B:
For programmes with pre-wash only.

Mechanical indicator C.

Electric indicator on control panel (if provided).

On models with water softener system only.

Mechanical indicator D. Electric indicator on control panel (if provided).

Refer to the dishwasher loading instructions.

Select the desired programme.

The corresponding indicator lamp comes on.

If necessary (and if provided) the corresponding indicator lamp lights up.

The selected programme is then memorised (even in the event of power failure).

“Change programme”

Press the START button for 2 sec. until the Start indicator lamp switches off;

Select another programme and press the START button again.

-Only open the dishwasher if necessary (Warning: beware of hot steam).

-If the appliance is switched off during a wash cycle, when switched on again it will resume the cycle from where it was interrupted.

Only after the START button has switched off: Access the knob (in case of retractable knob, press and then release the knob).

To accelerate the drying process, slightly open the door at the end of the program.

WARNING: WHEN THE DOOR IS OPENED STEAM COMES OUT!

Unload the appliance, starting from the lower rack.

WH/II/K/AUS
