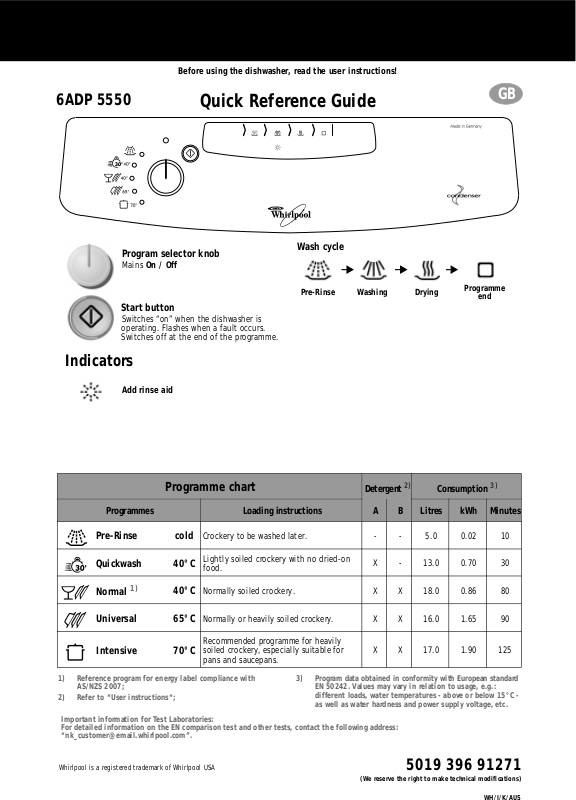

Whirlpool 6ADP 5550 Quick Reference Guide
Before using the dishwasher, read the user instructions!
6ADP 5550
Program selector knob
Mains
Start button
Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the programme.
Indicators
Add rinse aid
On / Off
Quick Reference Guide
Wash cycle
Pre-Rinse Washing Drying
GB
Programme
end
Programme chart
Detergent
Programmes Loading instructions A B Litres kWh Minutes
Pre-Rinse cold
Quickwash 40°C
Normal
1)
Universal 65°C
Intensive 70°C
1) Reference program for energy label compliance with
AS/NZS 2007;
2) Refer to “User instructions“;
Important information for Test Laboratories:
For detailed information on the EN comparison test and othe r te sts, contact the following address:
“nk_customer@email.whirlpool.com”.
Whirlpool is a registered trademark of Whirlpool USA
Crockery to be washed later. - - 5.0 0.02 10
Lightly soiled crockery with no dried-on
food.
Normally soiled crockery. X X 18.0 0.86 80
40°C
Normally or heavily soiled crockery. X X 16.0 1.65 90
Recommended programme for heavily
soiled crockery, especially suitable for
pans and saucepans.
3) Program data obtained in conformity with European standard
EN 50242. Values may vary in relation to usage, e.g.:
different loads, water temperatures - above or below 15°C as well as water hardness and power supply voltage, etc.
X - 13.0 0.70 30
X X 17.0 1.90 125
(We reserve the right to make technical modifications)
2)
Consumption
3)
5019 396 91271
WH/I/K/AUS
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Switch on the appliance
How to fill the detergent
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Close the dishwasher door,
turn on the water tap
Select a programme
Automatic start by turning the programme selector knob (in case of
retractable knob, first press the knob to access it).
Large compartment A:
With each wash cycle.
Small compartment B:
For programmes with pre-wash only.
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator D. Electric
indicator on control panel (if provided).

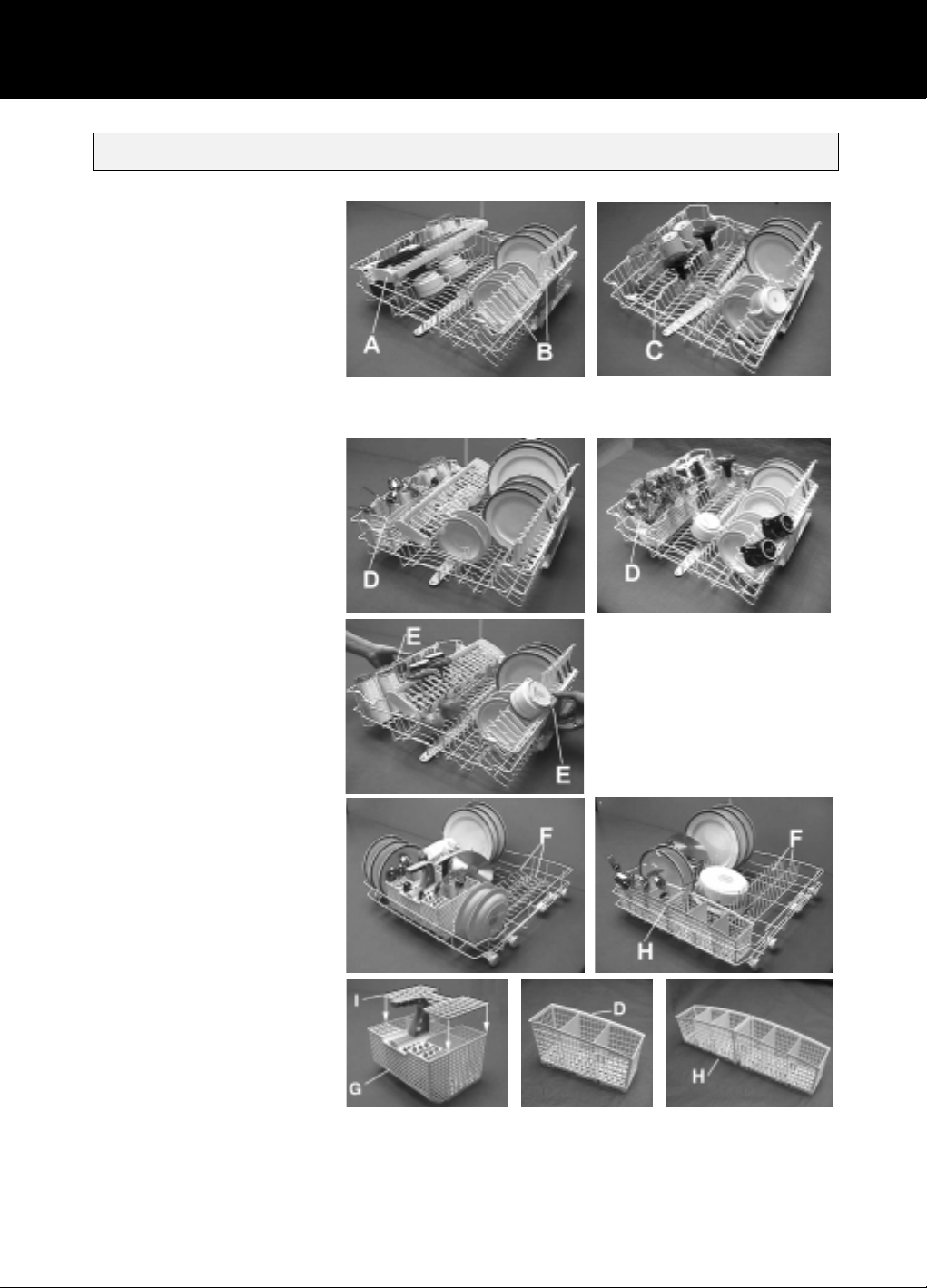

Refer to the dishwasher loading instructions.
Select the desired programme.
The corresponding indicator lamp comes on.
AB
C
Select options
Press the Start button
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is
then memorised (even in the
event of power failure).
Only after the START button has switched off: Access the knob (in case of
retractable knob, press and then release the knob).
To accelerate the drying process, slightly open the door at the end of the
program.
WARNING: WHEN THE DOOR IS OPENED STEAM COMES OUT!
Unload the appliance, starting from the lower rack.
“Change programme”
Press the START button for 2 sec. until
the Start indicator lamp switches off;
Select another programme and
press the START button again.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
WH/II/K/AUS
