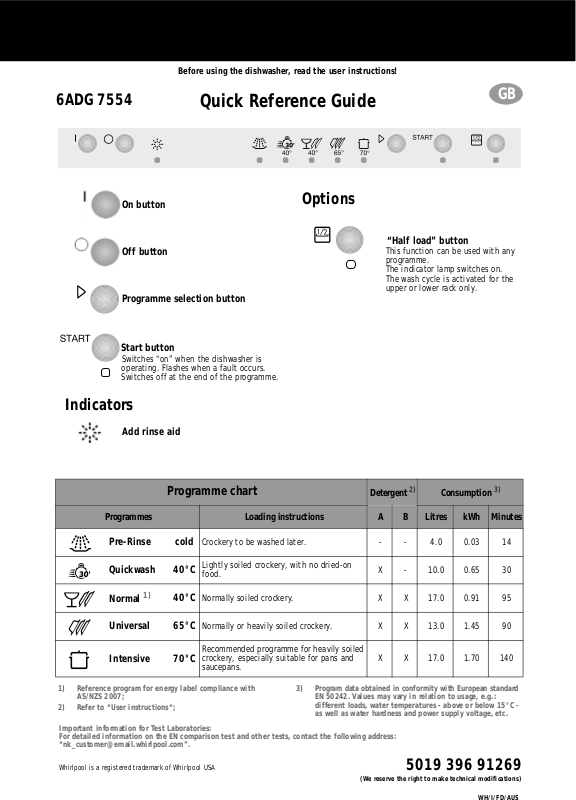

Whirlpool 6ADG 7554 Quick Reference Guide
Before using the dishwasher, read the user instructions!
6ADG 7554
On button
Off button
Programme selection button
Start button
Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the programme.
Indicators
Quick Reference Guide
Options
GB
“Half load” button
This function can be used with any
programme.
The indicator lamp switches on.
The wash cycle is activated for the
upper or lower rack only.
Add rinse aid
Programme chart
Programmes Loading instructions A B Litres kWh Minutes
Pre-Rinse cold
Quickwash 40°C
Normal
1)
Universal 65°C
Intensive 70°C
1) Reference program for energy label compliance with
AS/NZS 2007;
2) Refer to “User instructions“;
Important information for Test Laboratories:
For detailed information on the EN comparison test and othe r te st s, contact the following address:
“nk_customer@email.whirlpool.com”.
Crockery to be washed later. - - 4.0 0.03 14
Lightly soiled crockery, with no dried-on
food.
Normally soiled crockery. X X 17.0 0.91 95
40°C
Normally or heavily soiled crockery. X X 13.0 1.45 90
Recommended programme for heavily soiled
crockery, especially suitable for pans and
saucepans.
3) Program data obtained in conformity with European standard
EN 50242. Values may vary in relation to usage, e.g.:
different loads, water temperatures - above or below 15°C as well as water hardness and power supply voltage, etc.
Detergent
X - 10.0 0.65 30
X X 17.0 1.70 140
2)
Consumption
3)
Whirlpool is a registered trademark of Whirlpool USA
(We reserve the right to make technical modifications)
5019 396 91269
WH/I/FD/AUS
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Open the door,
switch on the appliance
How to fill the
detergent dispenser
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Select a programme
Select options
Press the ON button.
Large compartment A:
With each wash cycle.
Small compartment B:
For programmes with pre-wash only.
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener system only.
Mechanical indicator D. Electric indicator
on control panel (if provided).
Refer to the dishwasher loading instructions.
The last programme selected will light up.
Press the button until the desired programme lights up.
If necessary (and if provided)
the corresponding indicator lamp lights up.
AB
C
Press the Start button
Turn on the water tap
close the dishwasher door
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks
The selected programme is then
memorised (even in the event
of power failure).
At the end of the programme an acoustic signal will sound.
Only after the START button has switched off: press the OFF button.
All the indicator lamps switch off.
To accelerate the drying process, slightly open the door at the end of the
program.
WARNING: WHEN THE DOOR IS OPENED STEAM COMES OUT!
Unload the appliance, starting from the lower rack.
“Change programme”
Press the START button for 2 sec. until
the Start indicator lamp switches off;
Select another programme and
press the START button again.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
