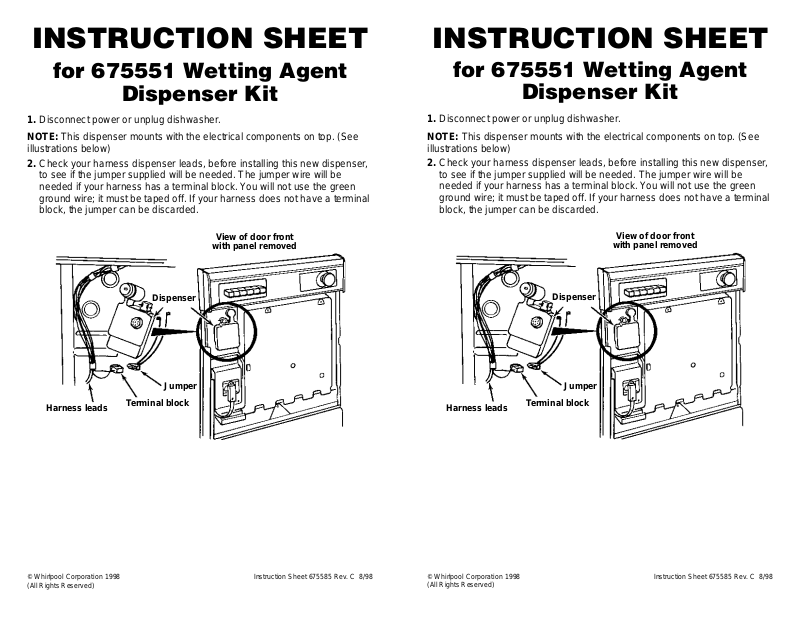

INSTRUCTION SHEET
for 675551 Wetting Agent Dispenser Kit
1. Disconnect power or unplug dishwasher.
NOTE: This dispenser mounts with the electrical components on top. (See illustrations below)
2.Check your harness dispenser leads, before installing this new dispenser, to see if the jumper supplied will be needed. The jumper wire will be needed if your harness has a terminal block. You will not use the green ground wire; it must be taped off. If your harness does not have a terminal block, the jumper can be discarded.
View of door front with panel removed
Dispenser
Jumper
Terminal block
Harness leads
INSTRUCTION SHEET
for 675551 Wetting Agent Dispenser Kit
1. Disconnect power or unplug dishwasher.
NOTE: This dispenser mounts with the electrical components on top. (See illustrations below)
2.Check your harness dispenser leads, before installing this new dispenser, to see if the jumper supplied will be needed. The jumper wire will be needed if your harness has a terminal block. You will not use the green ground wire; it must be taped off. If your harness does not have a terminal block, the jumper can be discarded.
View of door front with panel removed
Dispenser
Jumper
Terminal block
Harness leads
