A NOTE TO YOU
Thank you for buying a WHIRLPOOL* appliance.
The Whirlpool Brand is committed to designing quality products that consistently perform for you to make
your life easier. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care
Guide. It is full of valuable information about how to operate and maintain your appliance properly and safely.
Please read it carefully.
Also, complete and mail the Ownership Registration Card provided with your appliance. The card helps us
notify you about any new information on your appliance.
Please record your model’s information.
Whenever you call to request service for your appliance, you need to know your complete model number
and serial number. You can find this information on the
model and serial number label (see the diagram on the
“Parts and Features” page for the location of the label).
Also, record the other information shown in the next
column.
Keep this book and the sales slip together in a safe place for future reference.
Model Number __________________________________
Serial Number ___________________________________
Purchase Date __________________________________
Dealer Name ____________________________________
Dealer Address __________________________________
Dealer Phone ___________________________________
Our Consumer Assistance Center number is toll free.
To find detailed product information, the location of the nearest Whirlpool dealer or authorized servicer, to
purchase an accessory item, or register your appliance on-line, please visit our Web site at
www.whirlpool.com
1-800-253-1301
In Canada, for assistance or service, see the “Requesting Assistance or Service” section.
In Canada, visit our Web site at www.whirlpool.com/canada
2
Page 3
WASHER SAFETY
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word “DANGER” or
“WARNING.” These words mean:
You will be killed or seriously injured if you don’t
wDANGER
wWARNING
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
basic precautions, including the following:
Read all instructions before using the washer.
•
Do not wash articles that have been previously
•
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, other flammable,
or explosive substances as they give off vapors
that could ignite or explode.
Do not add gasoline, dry-cleaning solvents, or
•
other flammable, or explosive substances to the
wash water. These substances give off vapors
that could ignite or explode.
Under certain conditions, hydrogen gas may be
•
produced in a hot water system that has not been
used for 2 weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not been
used for such a period, before using the washing
machine, turn on all hot water faucets and let the
water flow from each for several minutes. This will
release any accumulated hydrogen gas. As the
gas is flammable, do not smoke or use an open
flame during this time.
– To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow
follow instructions.
You can be killed or seriously injured if you don’t
follow instructions.
Do not allow children to play on or in the washer.
•
Close supervision of children is necessary when the
washer is used near children.
Before the washer is removed from service or
•
discarded, remove the door.
Do not reach into the washer if the tub or agitator is
•
moving.
Do not install or store the washer where it will be
•
exposed to the weather.
Do not tamper with controls.
•
Do not repair or replace any part of the washer or
•
attempt any servicing unless specifically recommended in this Use and Care Guide or in published
user-repair instructions that you understand and
have the skills to carry out.
See Installation Instructions for grounding
•
requirements.
– SAVE THESE INSTRUCTIONS –
3
Page 4
PARTS AND FEATURES
The parts and features of your washer are illustrated on this page. Become familiar with all parts
and features before using your washer. Page references are included next to some features. Refer
to those pages for more information about the features.
NOTE: The drawings in this book may vary from your washer model. They are designed to show
the different features of all models covered by this book. Your model may not include all features.
Load size
selector
(p. 6)
Liquid fabric
softener
dispenser
(pp. 6, 12)
Agitator
Temperature
selector
(p. 6)
Cycle signal
selector
(p. 6)
Extra rinse
selector
(p. 6)
U
Cycle control knob
(pp. 7-10)
Liquid chlorine
bleach dispenser
(p. 5)
Model and serial
number label
(under lid)
Basket
Tub
MAGIC CLEAN*
lint filter
(bottom of
washer basket)
(p. 10)
4
Page 5
OPERATING YOUR WASHER
To get the best washing results possible, you must use your washer correctly. This section tells
you how to use your washer properly and efficiently.
USING YOUR WASHER
wWARNING
Explosion Hazard
Never place items in the washer that are
dampened with gasoline or other
flammable fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any
type of oil on it (including cooking oils).
Doing so can result in death, explosion,
or fire.
1. Measure detergent and pour it into the washer.
If desired, you may
•
also add powder or
liquid color-safe
bleach.
Add extra detergent
•
for the Super Wash
cycle.
2. Drop a sorted load of clothes loosely into your
washer, filling to the
top row of holes.
Load evenly to
•
maintain washer balance. Mix large and
small items.
Items should move
•
easily through the wash
water. Overloading can
cause poor cleaning.
To reduce wrinkling
of permanent press clothes and some synthetic
knits, use a large load size to provide more space
(see step 6).
•
wWARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can
result in death, fire, or electrical shock.
3. (OPTIONAL STEP) Pour measured liquid chlorine
bleach into the liquid
chlorine bleach dispenser. Bleach will
be diluted automatically
during the wash part of
the cycle.
Never use more than
•
1 cup (250 mL) for a full
load. Use less with a
smaller load size.
Follow the manufac-
turer’s directions for safe use.
To avoid spilling, use a cup with a pouring spout.
•
Do not let bleach splash, drip, or run down into the
washer basket.
Make sure you use only liquid chlorine bleach in
•
this dispenser.
•
continued on next page
5
Page 6
OPERATING YOUR WASHER
USING YOUR WASHER (CONT.)
4. (OPTIONAL STEP) Pour measured liquid fabric
softener into the fabric
softener dispenser.
Do not spill or drip
•
any fabric softener on
the clothes.
Make sure you use
•
only liquid fabric
softener in this
dispenser.
Dilute liquid fabric softener by filling the dis-
•
penser with warm
water until liquid
reaches the
crossbar in the
opening.
Softener is added
•
automatically during
the rinse portion of
the cycle.
5. Close the washer lid.
7. Set the Water Temperature selector to the
correct setting for the
type of fabric and soils
being washed.
Use the warmest
•
water safe for fabric.
Follow garment label instructions.
•
HOT: 130°F (54°C) or above.
– Whites and pastels.
– Heavy and greasy soils.
WARM: 90 to 110°F (32 to 44°C).
– Bright colors.
– Moderate to light soils.
COLD: 70 to 90°F (21 to 32°C).
– Colors that bleed or fade.
– Light soils.
8. (OPTIONAL STEP) For an additional rinse and
spin at the end of a wash cycle, set the Extra
Rinse selector to On.
9. (OPTIONAL STEP) Set the Cycle Signal selector
to On if you want your washer to sound a signal
when the wash cycle is finished. This signal is
helpful when you are washing items that should
be removed from the washer as soon as the
cycle ends.
6. Turn the Load Size selector to the correct setting
for your wash load and
the type of fabric being
washed.
Your washer has five
•
load size settings.
Choose a load size
•
that allows the load to
move freely for best
fabric care. See
“Loading” later in this
section.
Change the setting after the washer has
•
started filling by turning the selector to a
different setting.
6
Page 7
USING YOUR WASHER (CONT.)
OPERATING YOUR WASHER

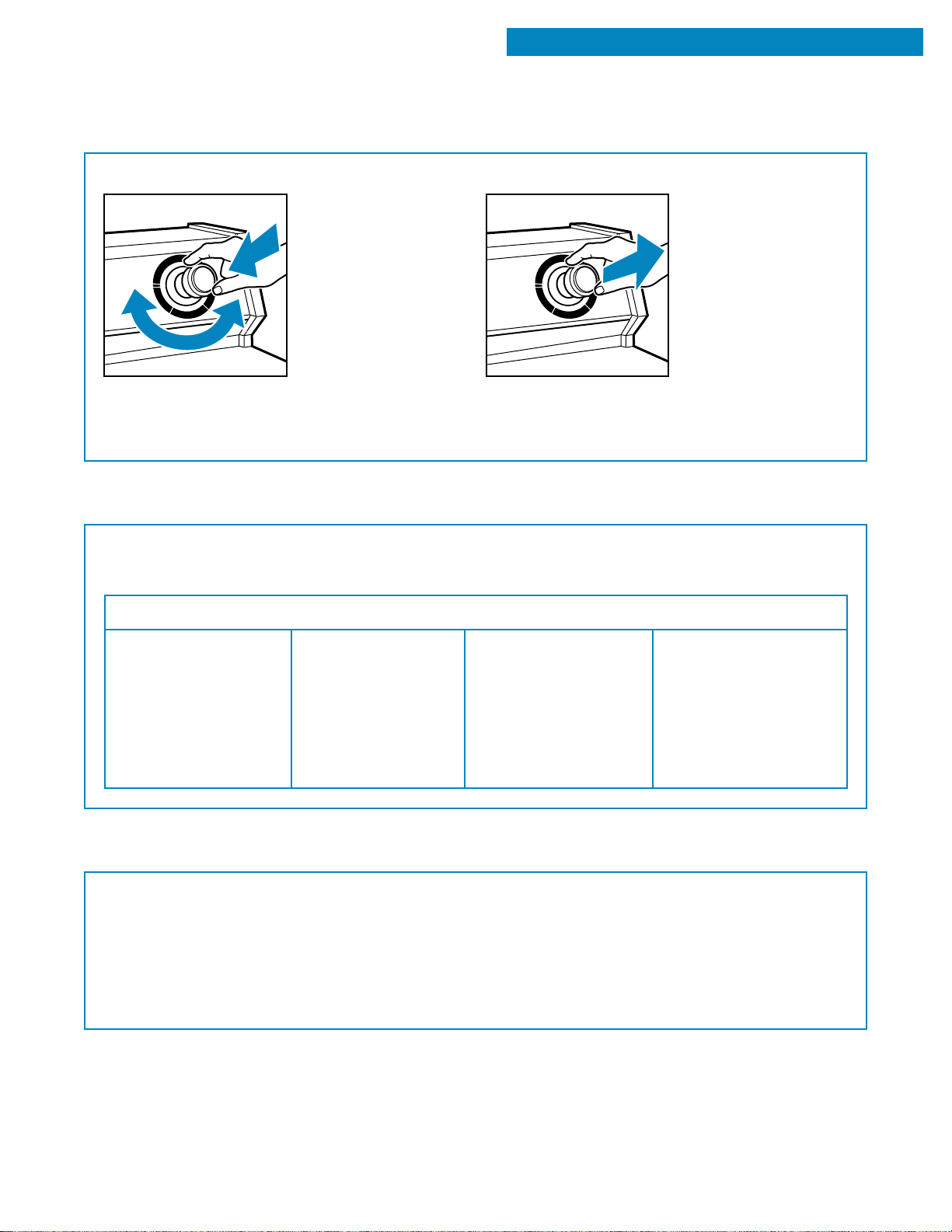

10. Push in the Cycle Control knob and turn it to
the wash cycle you
want. See “Cycle
descriptions” later in
this section.
Reduce the wash
•
time when using a
small load size setting.
11. Pull out the Cycle Control knob to start the
washer.
NOTE: To stop the washer at any time, push in the
Cycle Control knob. To restart the washer, close
the lid (if open) and pull out the Cycle Control knob.
LOADING
Loading suggestions
For these suggested full-sized loads, set the Load Size selector to the highest load size setting.
SUPER CAPACITY PLUS WASHERS
Heavy Work Clothes
3 pair pants
3 shirts
4 pair jeans
1 coverall
1 overall
Delicates
3 camisoles
1 quilted robe
4 slips
4 panties
2 bras
2 nighties
1 baby’s dress
Towels
10 bath towels
10 hand towels
14 wash cloths
1 bath mat
Mixed Load
3 double sheets
4 pillowcases
8 T-shirts
6 pair shorts
2 shirts
2 blouses
8 handkerchiefs
SELECTING A CYCLE AND TIME
This section describes the available wash cycles
and will help you make the best cycle selections
for your wash loads. Each cycle is designed for
different types of fabric and soil levels.
The washer pauses briefly throughout each cycle.
•
These pauses are normal. Refer to “Understanding
normal washer sounds” to learn more about the
sounds you may hear during a wash cycle.
Refer to “Understanding what happens in each
•
cycle” later in this section to learn what happens
during a wash cycle.
7
Page 8
OPERATING YOUR WASHER

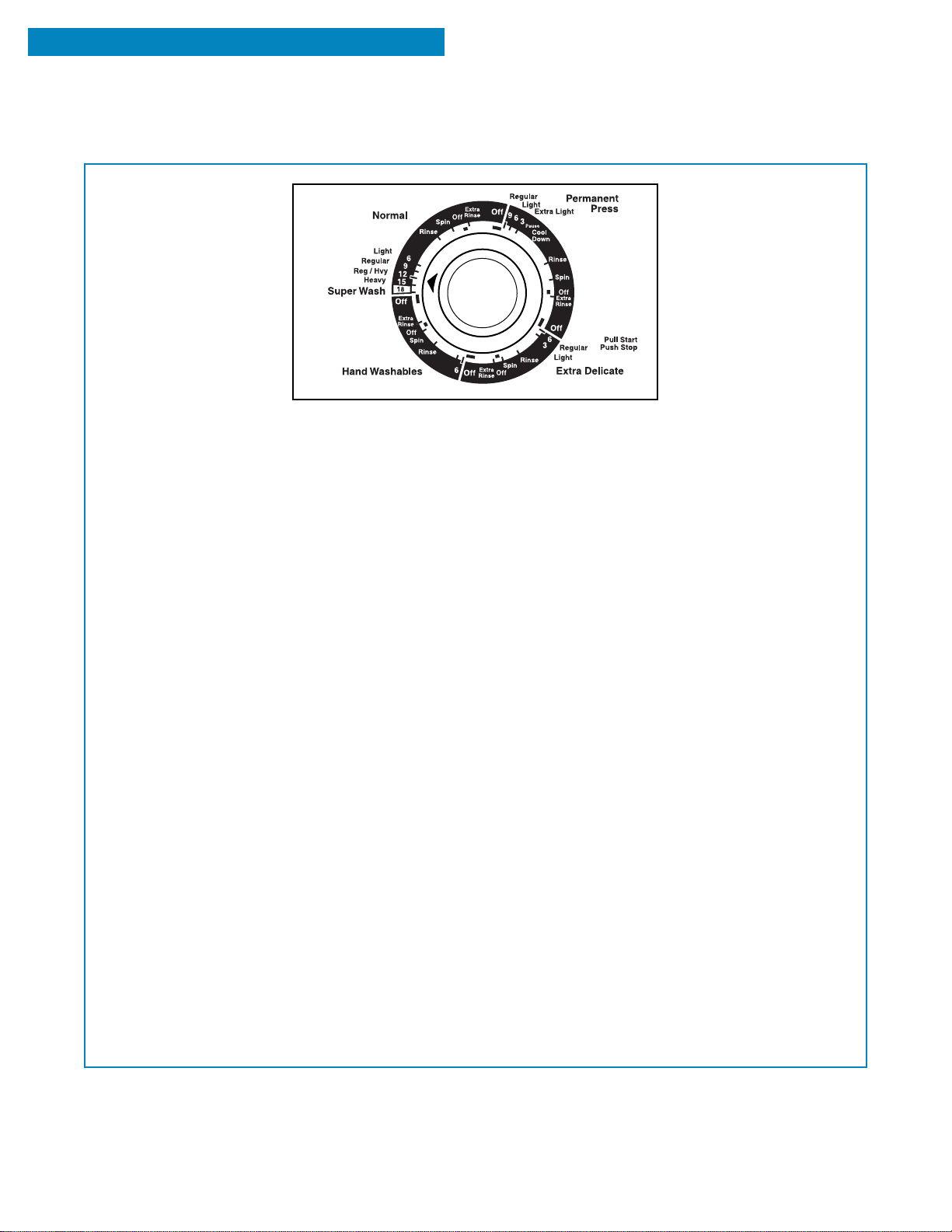

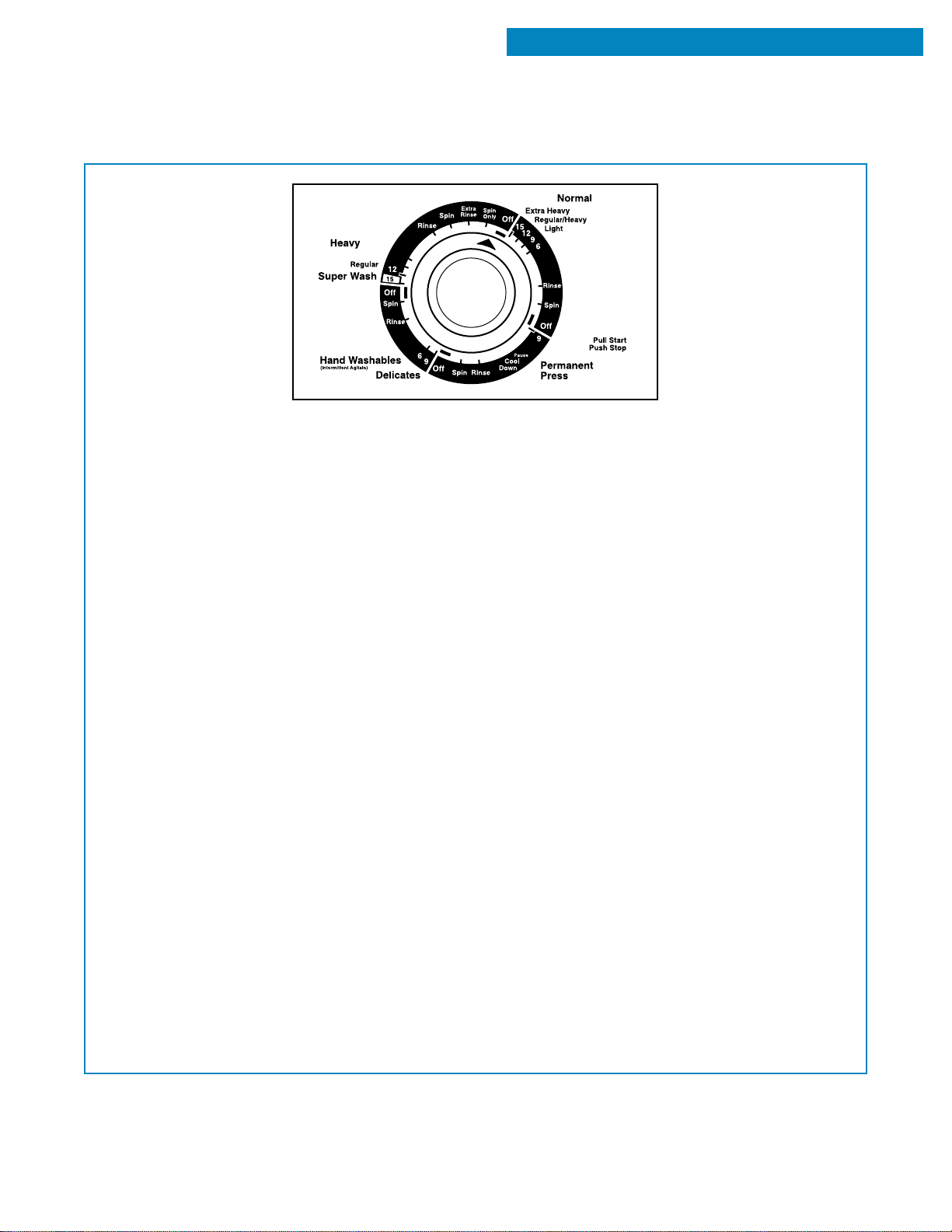

CYCLE DESCRIPTIONS
(Models GSQ9300, GSQ9340,GSQ9344, GST9344)
Cycles may vary with model
U
Normal cycle
The Normal cycle features high-speed agitation for
cleaning cottons and linens. High spin speeds
shorten drying times. Select 9 (Regular), 12 (Reg/
Hvy)†, or 15 (Heavy) minutes of wash time, depending on whether your load is moderately or heavily
soiled. For lightly soiled cotton and linen fabrics,
use the 6-minute Light setting.
Super Wash – Select the 18-minute Super Wash
feature to wash heavily soiled loads that need
maximum soil removal. Use two times the amount
of recommended detergent for this cycle.
Permanent Press cycle
The Permanent Press cycle starts with high-speed
agitation and then steps down to low-speed agitation for cleaning permanent press blends and
synthetic fabrics. To minimize wrinkling, this cycle
features a cool-down rinse and a low-speed final
spin. Select 3 (Extra Light)†, 6 (Light) or 9 (Regular)
minutes to clean very light to moderately soiled
loads.
Extra Delicate cycle
The Extra Delicate cycle features an extra lowspeed agitation for gentle soil removal from
delicate items and washable knits. Low spin
speeds minimize wrinkling. Select 3 (Light)† or 6
(Regular) minutes to clean light to moderately
soiled loads.
†
On some models
Ultimate Care* cycle
(Hand Washables)
The Ultimate Care (Hand Washables) cycle features
a series of brief, extra low-speed agitations
(7 seconds) and short soaks (12 seconds) to gently
clean special-care items. Low spin speeds minimize
wrinkling. Use 6 minutes of wash time to clean lightly
soiled hand washables.
Garments are labeled “Hand Wash” because:
The fiber or construction may be sensitive to
•
agitation.
The fabric contains sensitive dyes that may bleed.
•
Properly sort and then use your Hand Washables
cycle for gentle washing. Follow care label directions for drying. Items that may shrink should be
dried flat. Block these items by gently stretching to
original measurements. Woolens tend to shrink
more the first time they are washed.
If items appear to be floating due to trapped air,
•
stop the washer by pushing in the Cycle Control
knob. Push items down into the water. Restart the
washer.
8
Page 9
CYCLE DESCRIPTIONS
(Model LSR8300)
OPERATING YOUR WASHER
U
Normal cycle
The Normal cycle features extended high-speed
agitation followed by a brief period of low-speed
agitation for cleaning cottons and linens. High spin
speeds shorten drying times. Select 9 (Light),
12 (Regular/Heavy), or 15 (Extra Heavy) minutes of
wash time, depending on whether your load is
moderately or heavily soiled. For lightly soiled cotton
and linen fabrics, use the 6-minute setting.
Heavy cycle
Super Wash – Select the 15-minute Super Wash
feature to wash heavily soiled loads that need
maximum soil removal. Use two times the amount of
recommended detergent for this cycle.
Permanent Press cycle
The Permanent Press cycle starts with high-speed
agitation and then steps down to low-speed agitation
for cleaning permanent press blends and synthetic
fabrics. To minimize wrinkling, this cycle features a
cool-down rinse and a low-speed final spin.
Ultimate Care* cycle
(Hand Washables)
The Ultimate Care (Hand Washables) cycle features
a series of brief, extra low-speed agitations
(7 seconds) and short soaks (12 seconds) to gently
clean special-care items. Low spin speeds minimize
wrinkling. Use 6 minutes of wash time to clean lightly
soiled hand washables.
Garments are labeled “Hand Wash” because:
The fiber or construction may be sensitive to
•
agitation.
The fabric contains sensitive dyes that may bleed.
•
Properly sort and then use your Hand Washables
cycle for gentle washing. Follow care label directions for drying. Items that may shrink should be
dried flat. Block these items by gently stretching to
original measurements. Woolens tend to shrink
more the first time they are washed.
If items appear to be floating due to trapped air,
•
stop the washer by pushing in the Cycle Control
knob. Push items down into the water. Restart the
washer.
Delicate cycle
The Delicate cycle features an extra low-speed
agitation and then steps to a series of brief, extra
low-speed agitations (7 seconds) and short soaks
(12 seconds) for gentle soil removal from delicate
items and washable knits. Low spin speeds minimize
wrinkling. Select this 9-minute cycle to clean light
to moderately soiled loads.
9
Page 10
OPERATING YOUR WASHER
RINSE/DRAIN AND SPIN
Rinse and Spin feature
When using extra detergent for heavily soiled
clothes, or washing special-care items, you may
find an extra rinse and spin is needed.
For an additional rinse and spin, push in the
•
Cycle Control knob and turn it clockwise to any
of the Rinse settings. The washer fills to the
selected load size, agitates, drains, and spins.
NOTE: An Extra Rinse option is also available. See
“Using your washer” earlier in this section.
MAGIC CLEAN* LINT FILTER
Your washer has a self-cleaning lint filter at the
bottom of the basket. Wash and rinse water flow
over the filter during agitation, separating the lint
from the water. The lint spins out of the system
during the spin part of the cycle.
If your washer drains into a tub, remove any lint
collected in the tub or strainer.
Drain and Spin feature
A drain and spin may help shorten drying times for
some heavy fabrics or special-care items by removing excess water.
For a drain and spin, push in the Cycle Control
•
knob and turn it clockwise to any of the Spin
settings. Then pull out the Cycle Control knob.
The washer drains, then spins.
Basket
interior
MAGIC CLEAN lint filter
UNDERSTANDING NORMAL WASHER SOUNDS
Your new washer may make sounds your old one
didn’t. Because the sounds may be unfamiliar, you
may be concerned about them. Don’t be; most of
them are normal.
The following describes some of the sounds you
may hear and what causes them.
During washing
When you select a small load size setting, your
washer has a lower water level. This may cause a
clicking sound from the upper part of the agitator.
During drain
If water is drained quickly from your washer (depending on your installation), you may hear air being
pulled through the pump during the end of draining.
After drain and before spin
When the cycle changes from draining to spinning,
you may hear gears engaging.
10
Page 11
UNDERSTANDING WHAT HAPPENS IN EACH CYCLE
OPERATING YOUR WASHER
When the Cycle Control knob is set to a number
and pulled out, the washer fills (to the selected load
size) before agitation and timing start. The washer
begins agitating immediately after filling; agitation
occurs with the washer lid up or down.

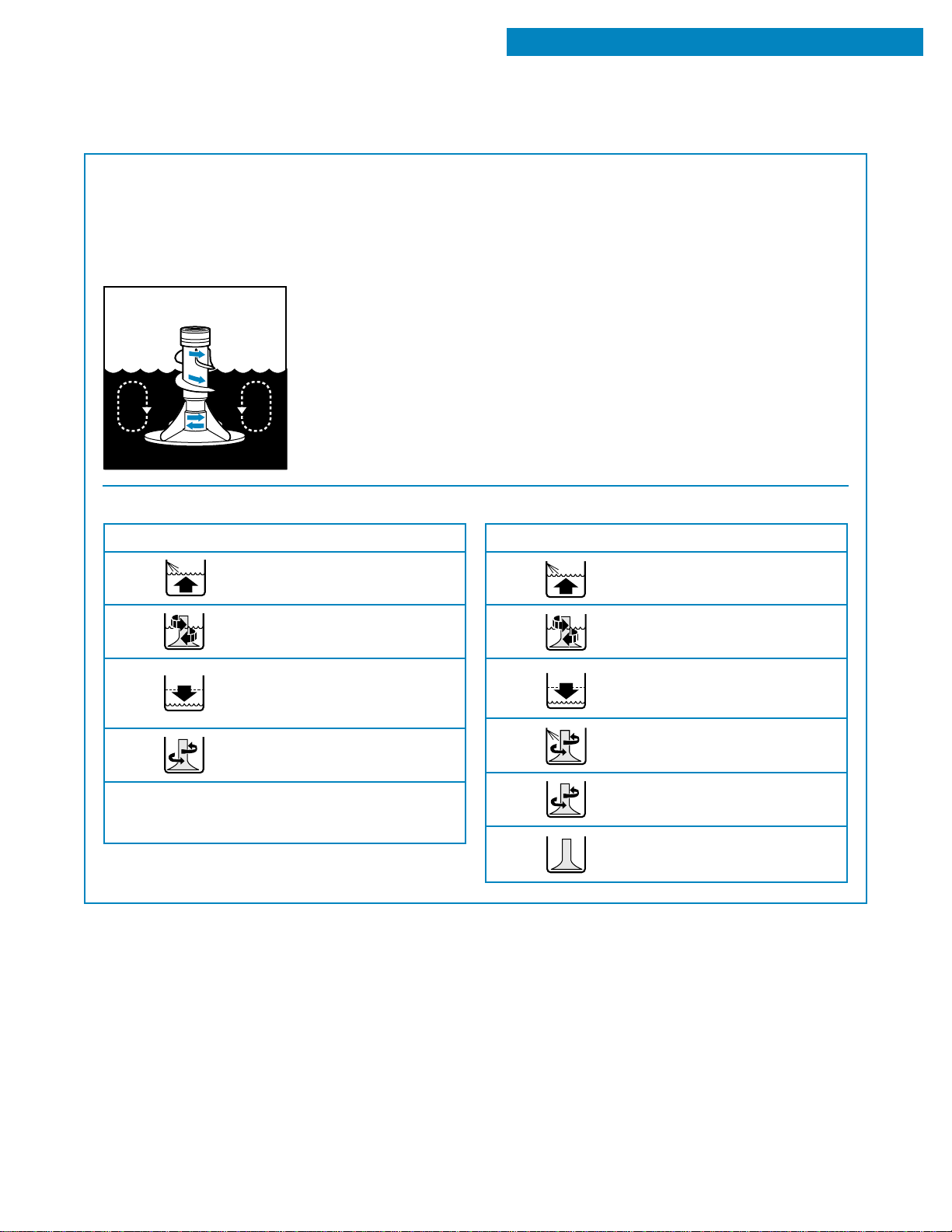

During agitation, the XTRA ROLL ACTION* agitator
creates a continuous
rollover action that provides a thorough cleaning
of the wash load.
Sequence of cycles
WASH
Fill
▼
After agitation starts, the Cycle Control knob turns
clockwise until it points to an Off area and the
cycle ends.
NOTE: The washer pauses briefly throughout
each cycle. These pauses are normal for washer
operation.
RINSE
Fill
▼
Wash selected time
▼
†
Drain
No agitation
▼
Spin
▼
†
The Permanent Press cycle partially drains, fills, agitates
briefly, and drains.
Rinse
▼
Drain-No agitation
▼
Spin-Spray rinse
▼
Spin
▼
Off
11
Page 12
CARING FOR YOUR WASHER
Proper care of your washer can extend its life. This section explains how to care for your washer
properly and safely.
CLEANING YOUR WASHER
Cleaning the exterior
Use a soft, damp cloth or sponge to wipe up any
spills such as detergent or bleach.
Occasionally wipe the outside of
your washer to keep it looking new.
Cleaning the interior
Clean your washer interior by mixing 1 cup (250 mL)
of chlorine bleach and 2 cups (500 mL) of detergent.
Pour this into your washer and run it through a complete cycle using hot water. Repeat this process if
necessary.
NOTE: Remove any hard water deposits using
only cleaners labeled as washer safe.
Cleaning the liquid fabric softener dispenser
Flush dispenser periodically with warm water, as
shown. Remove the dispenser by grasping the top
of the dispenser with both hands and squeezing
and pushing upwards with thumbs. Clean the
dispenser by rinsing it under a water faucet.
Replace it after cleaning.
NOTE: Do not wash clothes with this dispenser
removed. Do not add detergent or bleach to this
dispenser; it is for liquid fabric softener use only.
WINTER STORAGE, MOVING, VACATION CARE
Install and store your washer where it will not freeze.
Because some water may stay in the hoses, freezing can damage your washer. If storing or moving
your washer during freezing weather, winterize it.
To winterize washer:
1. Shut off both water faucets.
2. Disconnect and drain water inlet hoses.
3. Put 1 quart (1 L) of R.V.-type antifreeze in the
basket.
4. Run washer on a drain and spin setting (see
“Drain and spin feature” earlier in this section)
for about 30 seconds to mix the antifreeze
and water.
5. Unplug washer or disconnect power.
INLET HOSES
Replace inlet hoses after 5 years of use to reduce
the risk of hose failure. Inspect and replace inlet
hoses if bulges, kinks, cuts, wear, or leaks are found.
To use washer again:
1. Flush water pipes and hoses.
2. Reconnect water inlet hoses.
3. Turn on both water faucets.
4. Plug in washer or reconnect power.
5. Run the washer through a complete cycle with
1 cup (250 mL) of detergent to clean out antifreeze.
Non-use or vacation care:
Operate your washer only when you are at home. If
you will be on vacation or not using your washer for
an extended period of time, you should:
Unplug the power supply cord or turn off electrical
•
power to the washer.
Turn off the water supply to the washer. This helps
•
avoid accidental flooding (due to a water pressure
surge) while you are away.
When replacing your inlet hoses, mark the date of
replacement on the label with a permanent marker.
12
Page 13
TROUBLESHOOTING
Most laundering problems are easily solved if you understand the cause. Check the following list
for common washing problems. If you need further assistance, see the “Requesting Assistance
or Service” section.
COMMON WASHING PROBLEMS
Problem...
Washer leaks
NOTE: After
checking these,
check household
plumbing.
Washer won’t
drain/spin
Cause...
Fill hoses not tight.
•
Fill hose washers not properly seated.
•
Drain hose clamp not properly installed
•
or is off.
Drain is clogged.
•
Tub moved forward during unloading,
•
causing water to deflect off of tub ring.
Unit not level, causing water to deflect
•
off of tub ring.
Fill or spray rinses are deflecting off of
•
load. Washer is overloaded or load is
unbalanced.
Drain hose is clogged.
•
Lid is open.
•
End of drain hose more than
•
72 inches (190.9 cm) above floor.
Too much detergent – excessive sudsing.
•
Low voltage or using an extension cord.
•
Solution...
Tighten hoses. See Installation
•
Instructions.
Reseat (reposition) washers. See
•
Installation Instructions.
Clamp drain hose.
•
Unclog drain. Sink and standpipe
•
must be able to handle 17 gallons
(64.6 L) of water per minute.
Ensure tub is centered before
•
starting washer.
Ensure front feet are installed and
•
nuts are tightened. Level washer.
Redistribute the load, or reduce
•
load size.
Unclog hose. See Installation
•
Instructions for proper installation
of drain hose.
Close the lid.
•
Lower drain hose.
•
Use less detergent.
•
Check electrical source or call
•
electrician. Do not use extension
cords.
Wet loads
Washer continues to fill/drain or cycle stuck
NOTE: Washer
pauses briefly
throughout each
cycle. This is normal.
Washer makes noise
Wrong cycle for load being washed.
•
Cold rinses.
•
Top of drain hose is lower than water
•
level in washer.
Drain hose fits too tightly into standpipe.
•
Drain hose taped into standpipe.
•
Load is unbalanced.
•
Washer is not level.
•
Nuts on front feet not tight.
•
Yellow shipping strap with cotter pins
•
not completely removed.
Choose a cycle with a higher spin
•
speed.
Cold rinses leave loads wetter than
•
warm rinses. This is normal.
Raise the drain hose. It must be
•
higher for proper operation.
Adjust drain hose for loose yet
•
secure fit. See Installation
Instructions.
Do not seal off drain hose with
•
tape. The hose needs an air gap.
Redistribute load.
•
Level washer. Reset rear leveling
•
legs. See Installation Instructions.
Tighten nuts.
•
See Installation Instructions.
•
continued on next page
13
Page 14
TROUBLESHOOTING
COMMON WASHING PROBLEMS (CONT.)
Problem...
Washer makes noise
(cont.)
Won’t fill/rinse/agitate
or wrong temperature
Washer stops
Agitator operation
Water level seems
too low or washer
not completely filling
Washer tub is crooked
Cause...
Gears engaging after drain and
•
before spin.
Upper part of agitator clicks during wash.
•
Power cord not plugged in.
•
Timer dial is not lined up.
•
Water inlet valve screens are plugged.
•
Water is turned off.
•
Hot and cold hoses are reversed.
•
Inlet hose is kinked.
•
Power cord not plugged in.
•
No power at plug.
•
Fuse blown or circuit breaker open.
•
Using an extension cord.
•
Timer dial is not lined up.
•
Timer knob not pulled out.
•
Washer at pause in Permanent Press
•
cycle (approximately 2 minutes).
Machine is overloaded.
•
The top of the agitator moves only in one
•
direction.
The top of the agitator is loose.
•
The top of the agitator is much higher
•
than the highest water level. This creates
a perception of the washer not being full.
Tub is pulled forward when unloading.
•
Tub moves.
•
Unit not level.
•
Solution...
This is normal.
•
This is normal.
•
Plug in power cord.
•
Turn timer knob to the right
•
slightly and pull to start.
Clean screens.
•
Turn on water.
•
Reverse hoses.
•
Straighten hoses.
•
Plug in power cord.
•
Check electrical source or call
•
electrician.
Replace fuse or reset circuit
•
breaker. If problem continues,
call electrician.
Do not use extension cords.
•
Turn timer to the right slightly
•
and pull to start.
Set and pull out knob.
•
Allow cycle to continue.
•
Wash smaller loads.
•
This is normal.
•
This is normal.
•
This is normal.
•
Push tub to center before
•
starting.
This is normal.
•
Ensure front feet are installed
•
and nuts tightened. Level
washer. Reset rear leveling legs.
See Installation Instructions.
14
Page 15
COMMON WASHING PROBLEMS (CONT.)
TROUBLESHOOTING
Problem...
Residue or lint on load
Tearing
Cause...
Improper sorting.
•
Overloading.
•
Paper or tissue in pockets.
•
Not enough detergent.
•
Detergent not dissolving.
•
Wash water colder than 70°F (21°C).
•
Overloading. Improper use of washer.
•
Improper use of chlorine bleach.
•
Sharp items not removed from pockets;
•
fasteners not fastened.
Items damaged before washing.
•
Solution...
Sort lint givers (towels, chenille) from
•
lint takers (corduroy, synthetics). Also
sort by color.
Lint can be trapped in load if over-
•
loaded. Wash smaller loads.
Clean out pockets before washing.
•
Use enough detergent to hold
•
lint in water.
Use wash water warmer than 70°F
•
(21°C).
Use wash water warmer than 70°F
•
(21°C).
Loads should move freely during
•
wash. Wash smaller loads.
Do not pour chlorine bleach directly
•
on load. Wipe up bleach spills.
Undiluted bleach will damage fabrics.
Clean out pockets before washing.
•
Zip zippers before washing.
Mend rips and broken threads in
•
seams before washing.
Stains on load
Load is wrinkled
Improper use of fabric softener.
•
Iron (rust) in water.
•
Not enough detergent used, causing soil
•
to be redeposited.
Dye transfer due to not sorting loads
•
properly.
Dye transfer due to not unloading
•
washer promptly.
Not removing load promptly.
•
Wrong cycle for fabrics being washed.
•
Overloading.
•
Wash water not warm enough to relax
•
wrinkles. Using warm rinses.
Hoses reversed.
•
Dilute fabric softener and add to rinse
•
portion of cycle only. Do not drip
fabric softener on clothes.
Install an iron filter.
•
Use enough detergent to remove soil
•
and hold it in suspension.
Sort dark clothing from whites and
•
lights.
Unload the washer as soon as it
•
stops.
Unload the washer as soon as it
•
stops.
Use the Permanent Press cycle or
•
another cycle with low spin speeds to
reduce wrinkling.
Loads should move freely during
•
wash. Wash smaller loads.
If safe for fabric, use warm or hot
•
wash water. Use cold rinse water.
Reverse hoses.
•
continued on next page
15
Page 16
TROUBLESHOOTING
COMMON WASHING PROBLEMS (CONT.)
Problem...
Load is tangled/ twisted
Clogged dispensers or bleach leaking
Gray whites, dingy colors
Cause...
Overloading.
•
Clothes wrapped around agitator.
•
Not diluting softener.
•
Use of color-safe bleach in chlorine
•
bleach dispenser.
Improper use of chlorine bleach.
•
Dye transfer.
•
Wash temperature too low.
•
Not enough detergent.
•
Hard water.
•
Solution...
Loads should move freely during
•
wash. Wash smaller loads.
Do not wrap items around agitator.
•
Dilute fabric softener in the dispenser.
•
Add powder or liquid color-safe
•
bleach directly to the basket. Do not
use chlorine bleach dispenser for
color-safe bleach.
Always measure bleach before adding
•
to the dispenser. Carefully pour into
the dispenser. Wipe up bleach spills.
Sort dark clothes from whites and
•
lights.
Use hot or warm washes if safe for
•
fabric. Hot water should be at least
130°F (54°C) to clean heavy or
greasy soils.
Use more detergent for washing
•
heavy soils in cold or hard water.
Use more detergent when washing
•
in hard water.
16
Page 17
REQUESTING ASSISTANCE OR SERVICE
To avoid unnecessary service calls, please check the “Troubleshooting” section. It may save you
the cost of a service call. If you still need help, follow the instructions below.
IF YOU NEED ASSISTANCE OR SERVICE IN THE U.S.A.
Call the Whirlpool Consumer Assistance Center
toll free at 1-800-253-1301. Our
consultants are available to
assist you.
When calling:
Please know the purchase date, and
the complete model and serial number of your
appliance (see “A Note to You” ). This information
will help us better respond to your request.
Our consultants provide assistance with:
Features and specifications on our full line
•
of appliances
Installation information
•
Use and maintenance procedures
•
IF YOU NEED REPLACEMENT PARTS
If you need to order replacement parts, we recommend that you only use FSP* factory authorized
parts. FSP replacement parts will fit right and work
right, because they are made to the same exacting
specifications used to build every new
WHIRLPOOL* appliance.
Accessory and repair parts sales
•
Specialized customer assistance (Spanish speak-
•
ing, hearing impaired, limited vision, etc.)
Referrals to local dealers, service companies, and
•
repair parts distributors.
Whirlpool service technicians are trained to fulfill
the product warranty and provide after-warranty
service, anywhere in the United States.
To locate the authorized Whirlpool service company
in your area, you can also look in your telephone
directory Yellow Pages.
To locate FSP replacement parts in your area, call
our Consumer Assistance Center telephone number
or your nearest authorized service center.
FOR FURTHER ASSISTANCE
If you need further assistance, you can write to
Whirlpool with any questions or concerns at:
Whirlpool Brand Home Appliances
Consumer Assistance Center
c/o Correspondence Dept.
2000 North M-63
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your
correspondence.
Gearcase assembly
covered by your
warranty.
17
Page 18
REQUESTING ASSISTANCE OR SERVICE
IF YOU NEED ASSISTANCE OR SERVICE IN CANADA
1. If the problem is not due to one of the
items listed in “Troubleshooting”
Contact the dealer from whom you purchased your
appliance, or call the Inglis Limited
Consumer Assistance Centre
toll free, 8:30 a.m. – 6 p.m. (EST),
at 1-800-461-5681.
†
...
2. If you need service†...
Contact your nearest Inglis Limited Appliance Service
branch or authorized servicing outlet to service your
appliance. (See list below.)
†
When asking for assistance or service, please
provide a detailed description of the problem,
your appliance’s complete model and serial
numbers, and the purchase date. (See the
“A Note to You” section.) This information
will help us respond properly to your request.
Inglis Limited Appliance Service – Consumer Services
Direct service branches:
BRITISH COLUMBIA 1-800-665-6788
ALBERTA 1-800-661-6291
ONTARIO Ottawa area 1-800-267-3456
(except 807 area code) Outside the Ottawa area 1-800-807-6777
MANITOBA, SASKATCHEWAN 1-800-665-1683
and 807 area code in ONTARIO
QUEBEC Montreal (except South Shore) 1-800-361-3032
South Shore Montreal 1-800-361-0950
Quebec City 1-800-463-1523
Sherbrooke 1-800-567-6966
ATLANTIC PROVINCES 1-800-565-1598
FOR FURTHER ASSISTANCE
If you need further assistance, you can write to
Inglis Limited with any questions or concerns at:
Consumer Relations Department
Inglis Limited
1901 Minnesota Court
Mississauga, Ontario L5N 3A7
Please include a daytime phone number in your
correspondence.
18
Page 19
INDEX
This index is alphabetical. Look for the word or phrase you are interested in, then look for the
page number.
TOPIC PAGE
ASSISTANCE ....................................................... 17-18
CLEANING
Exterior ................................................................... 12
Interior .................................................................... 12
Liquid fabric softener dispenser ............................. 12
CYCLES ........................................................... 8-10, 11
CYCLE SIGNAL ........................................................... 6
DISPENSERS
Liquid chlorine bleach .............................................. 5
Liquid fabric softener ............................................... 6
EXTRA RINSE .............................................................. 6
FEATURES/PARTS ...................................................... 4
INLET HOSES ............................................................ 12
LINT FILTER ...............................................................10
LOADING ..................................................................... 7
OPERATING ........................................................... 5-11
TOPIC PAGE
PARTS/FEATURES ...................................................... 4
RINSE/DRAIN AND SPIN ...........................................10
SAFETY ........................................................................ 3
SERVICE .............................................................. 17-18
SOUNDS ....................................................................10
STORAGE .................................................................. 12
TROUBLESHOOTING .......................................... 13-16
WARRANTY ............................................................... 20
WASHER OPERATION
Selecting a cycle and time ................................. 7-10
Selecting a load size ................................................ 6
Selecting a temperature ...........................................6
Stopping/restarting .................................................. 7
Using the dispensers............................................ 5, 6
Using your washer................................................ 5-7
19
Page 20
WHIRLPOOL
*
AUTOMATIC WASHER WARRANTY
(U.S.A. AND CANADA)
LENGTH OF WARRANTY
FULL ONE-YEAR
WARRANTY
FROM DATE OF PURCHASE
LIMITED FIVE-YEAR
WARRANTY
FROM DATE OF PURCHASE
LIMITED TEN-YEAR
WARRANTY
FROM DATE OF PURCHASE
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of your washer.
2. Instruct you how to use your washer.
3. Replace house fuses or correct house wiring or plumbing.
B. Repairs when your washer is used in other than normal, single-family household use.
C. Pickup and delivery. Your washer is designed to be repaired in the home.
D. Damage to your washer caused by accident, misuse, fire, flood, acts of God, or use of products not
approved by Whirpool.
E. Any labor costs during the limited warranties.
F. Replacement parts or repair labor costs for units operated outside the United States and Canada.
G. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
WHIRLPOOL WILL PAY FOR
FSP* replacement parts and repair labor to correct defects in materials or
workmanship. Service must be provided by an authorized Whirlpool
service company.
FSP replacement parts for any part of gearcase assembly if defective in
materials or workmanship. The gearcase assembly is shown in the
“Requesting Assistance or Service” section of this book.
FSP replacement parts for any top and lid rust.
FSP replacement parts for outer tub should it crack, or fail to contain
water, due to defective materials or workmanship.
1/98
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so
this exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state or province to province.
Outside the United States and Canada, a different warranty may apply. For details, please contact your
authorized Whirlpool dealer.
If you need assistance or service, first see the “Troubleshooting” section of this book. After checking “Troubleshooting,” additional help can be found by checking the “Requesting Assistance or Service” section. In the
U.S.A., call our Consumer Assistance Center at 1-800-253-1301.
For information in Canada:
Please contact your authorized Whirlpool dealer or call the Consumer Assistance Centre at 1-800-461-5681
(toll free) between 8:30 a.m. and 6 p.m. EST from anywhere in Canada.
For assistance or service in Canada:
If you need assistance or service in Canada, first see the “Troubleshooting” section of this book. After checking
“Troubleshooting,” additional help can be found by checking the “Requesting Assistance or Service” section.
3950310
© 1998 Whirlpool Corporation
Registered trademark of Whirlpool, U.S.A., Inglis Limited licensee in Canada
*
Printed in U.S.A.
1/98
Loading...
