A Note to You
Thank you for buying an ESTATE® appliance.
ESTATE appliances give you all the functionality of name brand appliances at a value price.
To ensure you enjoy many years of trouble-free operation, we have developed this Use and
Care Guide. It is full of valuable information on how to operate and maintain your appliance
properly and safely. Please read it carefully. Also, please complete and mail the Ownership
Registration Card provided with your appliance. This will help us notify you about any new
information on your appliance.
Please record your model’s information.
Whenever you call to request service on
your appliance, you need to know your
complete model number and serial number.
You can find this information on the model
and serial number label (see diagram on
page 4 for location of label).
Please also record the purchase date of
your appliance and your dealer’s name,
address, and telephone number.
Keep this book and the sales slip together in a safe place for future reference.
Model Number _________________________
Serial Number _________________________
Purchase Date _________________________
Dealer Name __________________________
Dealer Address ________________________
Dealer Phone __________________________
Our Consumer Assistance Center
number is toll-free.
1-800-253-1301
2
Page 3
Washer Safety
Your safety is important to us.
This guide contains safety statements under
warning symbols. Please pay special
attention to these symbols and follow any
instructions given. Here is a brief explanation of the symbol.
This symbol alerts you to
hazards such as fire, electrical
shock, or other injuries.
IMPORTANT SAFETY INSTRUCTIONS
WARNING – To reduce the risk of fire,
electric shock, or injury to persons when
using the washer, follow basic precautions, including the following:
• Read all instructions before using the
washer.
• Do not wash articles that have been
previously cleaned in, washed in,
soaked in, or spotted with gasoline, drycleaning solvents, or other flammable or
explosive substances as they give off
vapors that could ignite or explode.
• Do not add gasoline, dry-cleaning
solvents, or other flammable or explosive substances to the wash water.
These substances give off vapors that
could ignite or explode.
• Under certain conditions, hydrogen gas
may be produced in a hot water system
that has not been used for 2 weeks or
more. HYDROGEN GAS IS EXPLOSIVE.
If the hot water system has not been
used for such a period, before using the
washing machine, turn on all hot water
faucets and let the water flow from each
for several minutes. This will release any
accumulated hydrogen gas. As the gas
is flammable, do not smoke or use an
open flame during this time.
• Do not allow children to play on or in the
washer. Close supervision of children is
necessary when the washer is used
near children.
• Before the washer is removed from
service or discarded, remove the door.
• Do not reach into the washer if the tub
or agitator is moving.
• Do not install or store the washer where
it will be exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the
washer or attempt any servicing unless
specifically recommended in this Use
and Care Guide or in published
user-repair instructions that you understand and have the skills to carry out.
• See Installation Instructions for ground-
ing requirements.
– SAVE THESE INSTRUCTIONS –
3
Page 4
Parts and Features

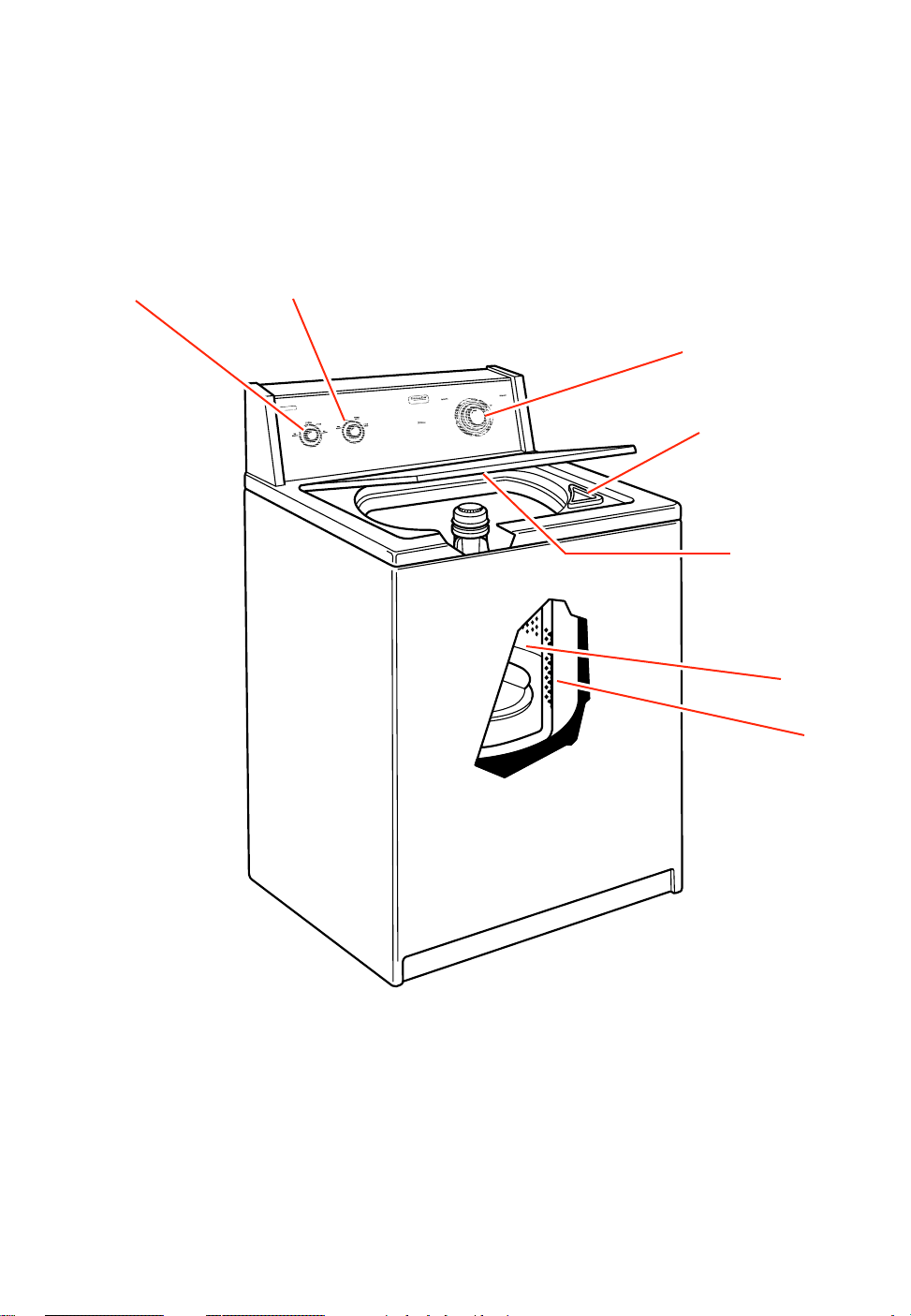

The parts and features of your washer are illustrated on this page. Become familiar with all
parts and features before using your washer.
Load Size
Selector
(p. 6)
Water Temperature
Selector
(p. 6)
8 CYCLE
WASHWASH
TEMPERATURETEMPERATURE
RINSE
WATERWATER
LOAD SIZELOAD SIZE
SAVERSAVER
WHIRLPOOL CORPORATIONWHIRLPOOL CORPORATION
HEAVY DUTY / SUPER CAPACITYHEAVY DUTY / SUPER CAPACITY
2 SPEED WASHER2 SPEED WASHER
Cycle Control Knob
(pp. 7-9)
CORPORATION
1/2 HP MOTOR 1/2 HP MOTOR
REGULAR REGULAR
EX-HEAVYHEAVY
LIGHTLIGHT
HEAVYHEAVY
PRE-WASH
6
12
14
18
OFF
4
20
SOAK
DOUBLE-ACTION AGITATORDOUBLE-ACTION AGITATOR
•
COOL
DOWN
(PAUSE)
OFF
GENTLE / DELICATES GENTLE / DELICATES
OFF
PULL START • PUSH STOPPULL START • PUSH STOP
SELF CLEANING FILTER SELF CLEANING FILTER
•
Liquid chlorine
bleach dispenser
(p. 10)
PERMANENT
OFF
PRESS
REGULAR REGULAR
12
NORMAL
M
O
R
F
WHIRLPOOL
Model and serial
number label
(under lid)
Basket
Tub
Self-cleaning
lint filter
(bottom of washer basket)
(p. 9)
4
Page 5
Operating Your Washer
To obtain the best washing results, you must operate your washer properly. This section
gives you this important information. Page references are included for more information.

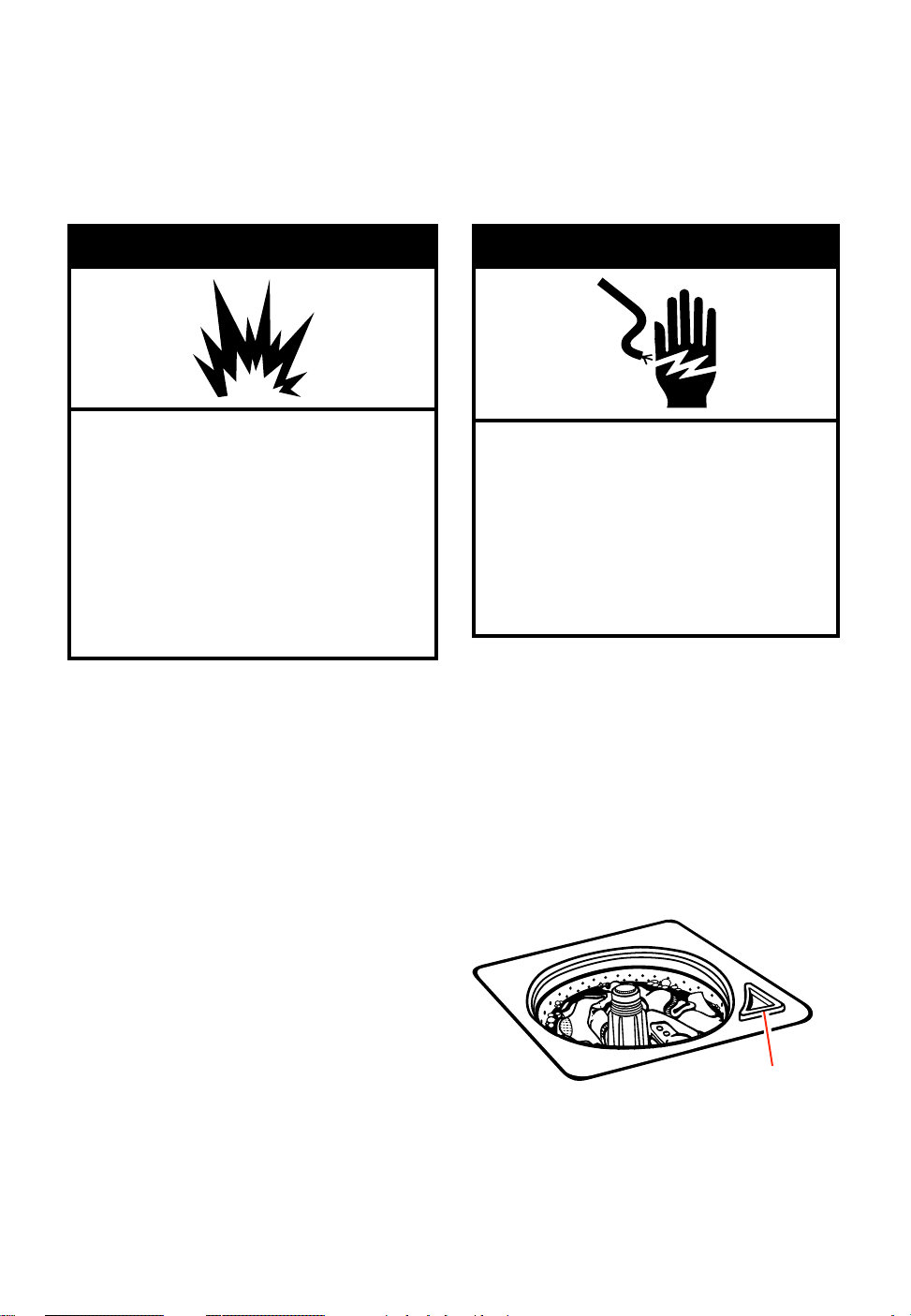

wWARNING
Explosion Hazard
Never place items in the washer that
are dampened with gasoline or other
flammable fluids.
Do not wash or dry items soiled with
vegetable or cooking oils because
they may contain some oil after
laundering.
Doing so can result in death,
explosion, or fire.
Starting your washer
1. Add measured detergent to the
washer. Then place a sorted load of
clothes in the washer.
• Sort and load clothes as described on
pages 12 and 13.
• If desired, you may also add color safe
bleach.
2. (OPTIONAL STEP) If desired, add
measured liquid chlorine bleach to
the liquid chlorine bleach dispenser.
See page 10.
• Use only liquid chlorine bleach in the
bleach dispenser.
3. Close the washer lid.
wWARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions
can result in death, fire or
electrical shock.
Liquid chlorine
bleach dispenser
continued on next page
5
Page 6
OPERATING YOUR WASHER
4. Turn the Load Size Selector to the
setting that corresponds with the size
of your wash load and the type of
fabric being washed.
• See pages 12 and 13 for loading
suggestions.
• To change the load size setting after
the washer has started to fill, turn the
Selector to the desired new setting.
MEDIUM
SMALL LARGE
WATER
LOAD SIZE
SAVER
5. Select a Wash-Rinse Temperature with
the Water Temperature Selector. Match
the water temperatures with the type
of fabric and soils being washed.
• See page 14 for water temperature
guidelines.
6. Push in the Cycle Control Knob and
turn it clockwise to the wash cycle
you want. See pages 7 to 9.
7. Pull out the Cycle Control Knob to
start the washer.
COLD
COLD
WASH
RINSE
WARM
COLD
TEMPERATURE
HOT
COLD
8. (OPTIONAL STEP) Add measured
liquid fabric softener to the final rinse
water. See page 10.
Stopping/restarting your washer
• To stop the washer at any time, push in
the Cycle Control Knob.
6
• To restart the washer, close the lid (if
open) and pull out the Cycle Control Knob.
Page 7
OPERATING YOUR WASHER
Selecting a cycle and time
This section illustrates and describes the
wash cycles you can select with the Cycle
Control Knob. Use this information to help
you make the best cycle selections for your
wash loads. Each cycle is designed for
different types of fabrics and soil levels.
• The washer pauses briefly throughout
each cycle. These pauses are normal for
washer operation.
• Refer to page 8 to learn more about the
sounds you may hear during a wash cycle.
• Also, refer to page 9 to help you under-
stand what happens during a wash cycle.
NORMAL
DELICATES
REGULAR
HEAVY
OFF
LIGHT
14
6
10
8
PULL START • PUSH STOPPULL START • PUSH STOP
Normal cycle
The Normal cycle features high agitation
and spin speeds to shorten drying time.
Use this cycle for cleaning cotton and linen
fabrics. Select 6, 10, or 14 minutes of wash
time, depending on whether your load is
lightly, moderately, or heavily soiled.
Permanent Press cycle
The Permanent Press cycle features a cooldown rinse and low spin speeds to reduce
wrinkling. Use this cycle for cleaning permanent press and some synthetic fabrics.
Select 10 or 8 minutes of wash time, depending on whether your wash load is
moderately or lightly soiled.
OFF
10
PERMANENT
PRESS
COOL
DOWN
OFF
(PAUSE)
Delicates cycle
The Delicates cycle features a reduced
agitation speed for gentle soil removal.
Low spin speeds reduce wrinkling. Use
this 8-minute cycle for cleaning lightly to
moderately soiled delicate items and
washable knits.
NOTE: The 8-minute Permanent Press
cycle is indicated on your control panel with
a dot only, directly below the 10-minute
cycle.
continued on next page
7
Page 8
OPERATING YOUR WASHER

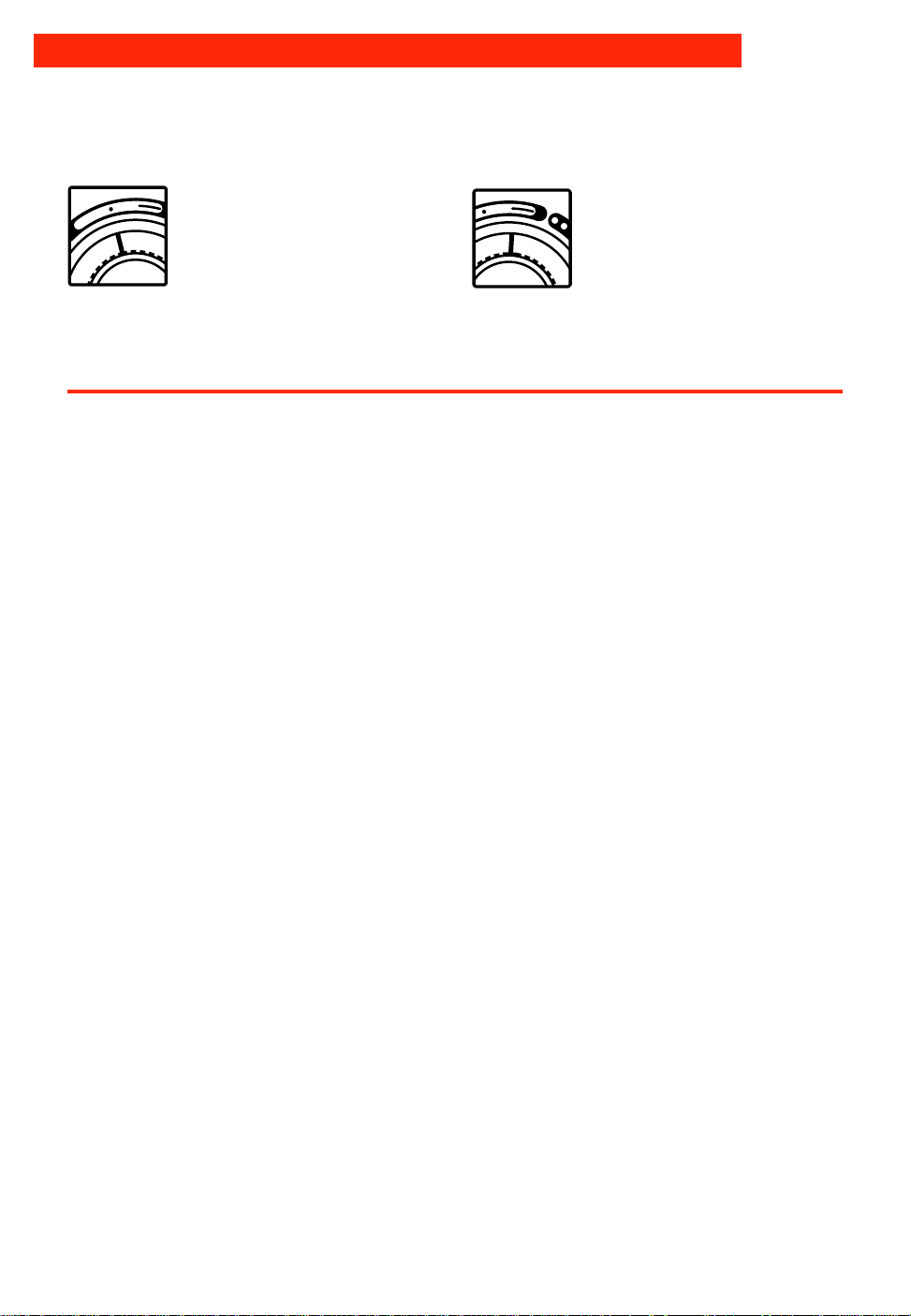

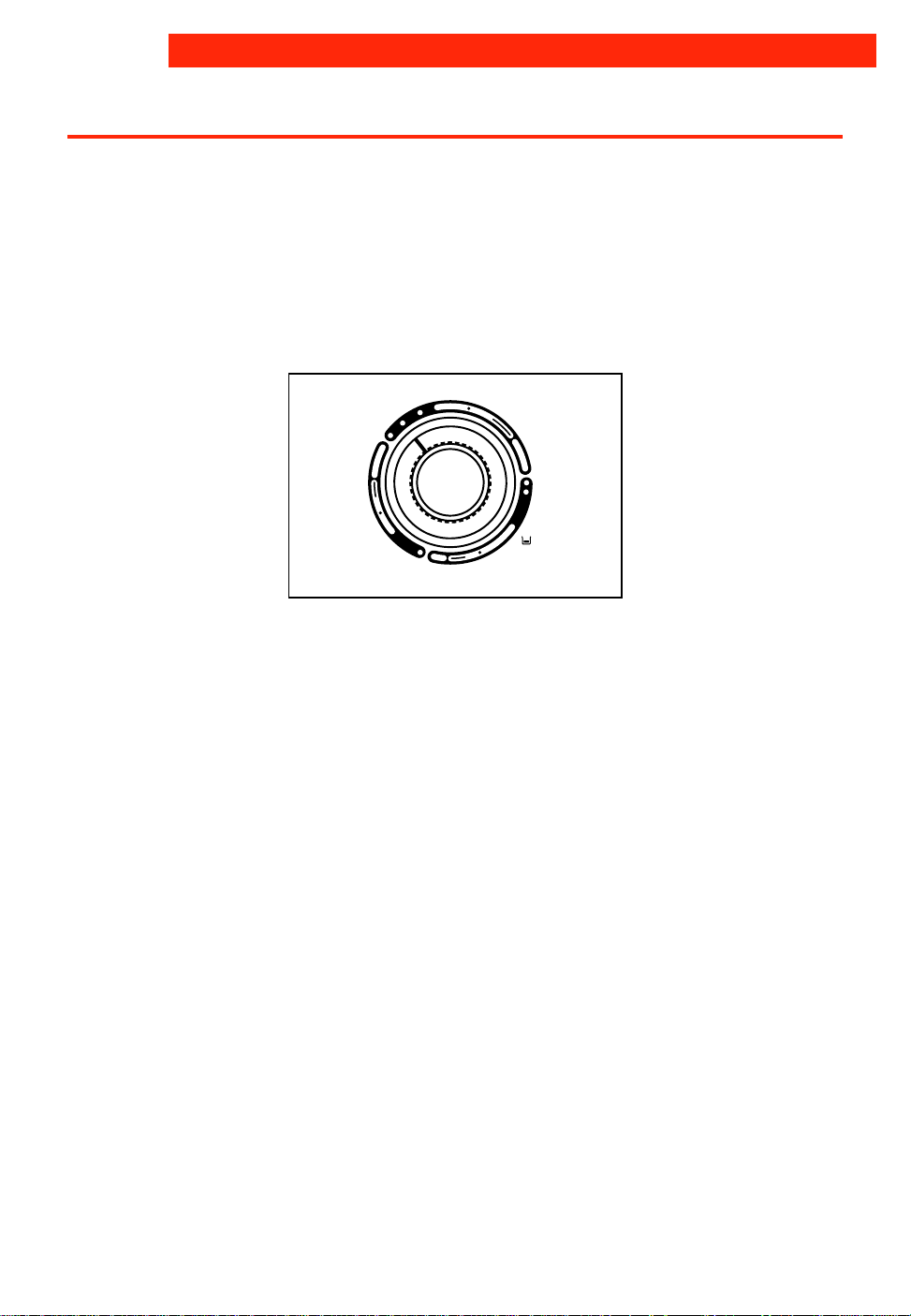

Rinse and Spin feature
When using extra detergent for heavily
soiled clothes, or washing
special-care items, you may
find an extra rinse and spin is
needed. For an additional
rinse, push in the Cycle
Control Knob and turn clockwise to any of
the dots, as illustrated. Pull out the Cycle
Control Knob. The washer will fill to the
selected load size, agitate, drain, and spin.

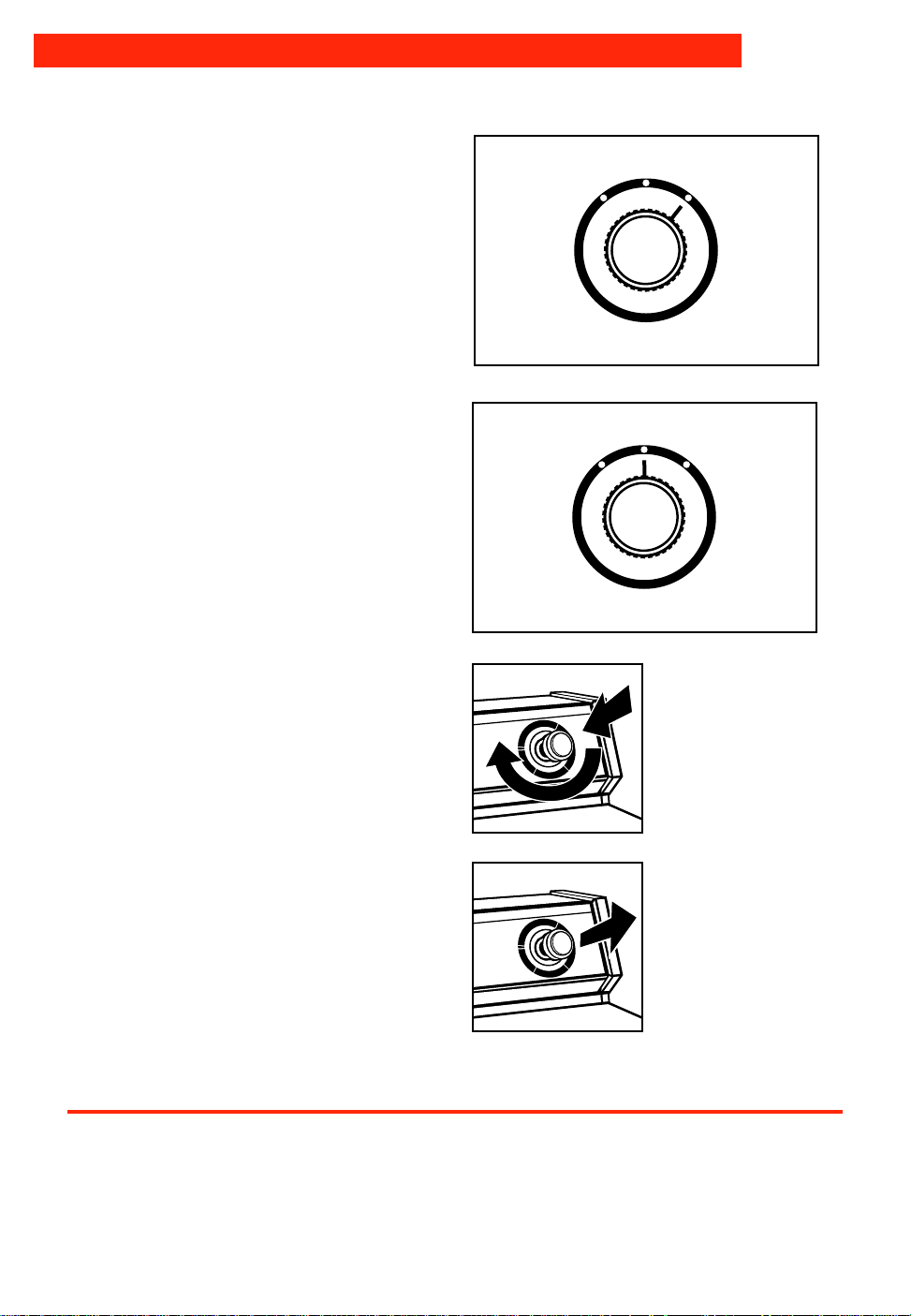

Drain and Spin feature
A drain and spin may help shorten drying
times for some heavy fabrics
or special-care items by
removing excess water. To
add a drain and spin, push in
the Cycle Control Knob and
turn clockwise to any of the dashes, as
illustrated. Pull out the Cycle Control Knob.
The washer will drain, then spin.
Understanding normal washer sounds
Your new washer may make sounds that
your old one didn’t. Because the sounds are
unfamiliar, you may be concerned about
them. Don’t be; most of them are normal.
The following describes some of the
sounds you may hear and what causes
them.
During washing
When you select a small load size setting for
a small wash load, your washer has a lower
water level. With this lower water level, you
may hear a clicking sound from the upper
portion of the agitator.
During drain
The rate that water is drained from your
washer depends on your installation. If water
is drained quickly from the washer, you may
hear air being pulled through the pump. This
happens during the end of draining.
After drain and before spin
When the cycle changes from draining to
spinning, you may hear gears engaging.
8
Page 9
OPERATING YOUR WASHER
Understanding what happens in each cycle
When the Cycle Control Knob is set to a
number and pulled out, the washer fills (to
the selected load size) before agitation and
timing start. The washer begins agitating
immediately after filling; agitation occurs with
the washer lid up or down.
After agitation starts, the Cycle Control Knob
turns clockwise until it points to an OFF area
and the cycle ends.
NOTE: The washer pauses briefly through-
out each cycle. These pauses are normal for
washer operation.

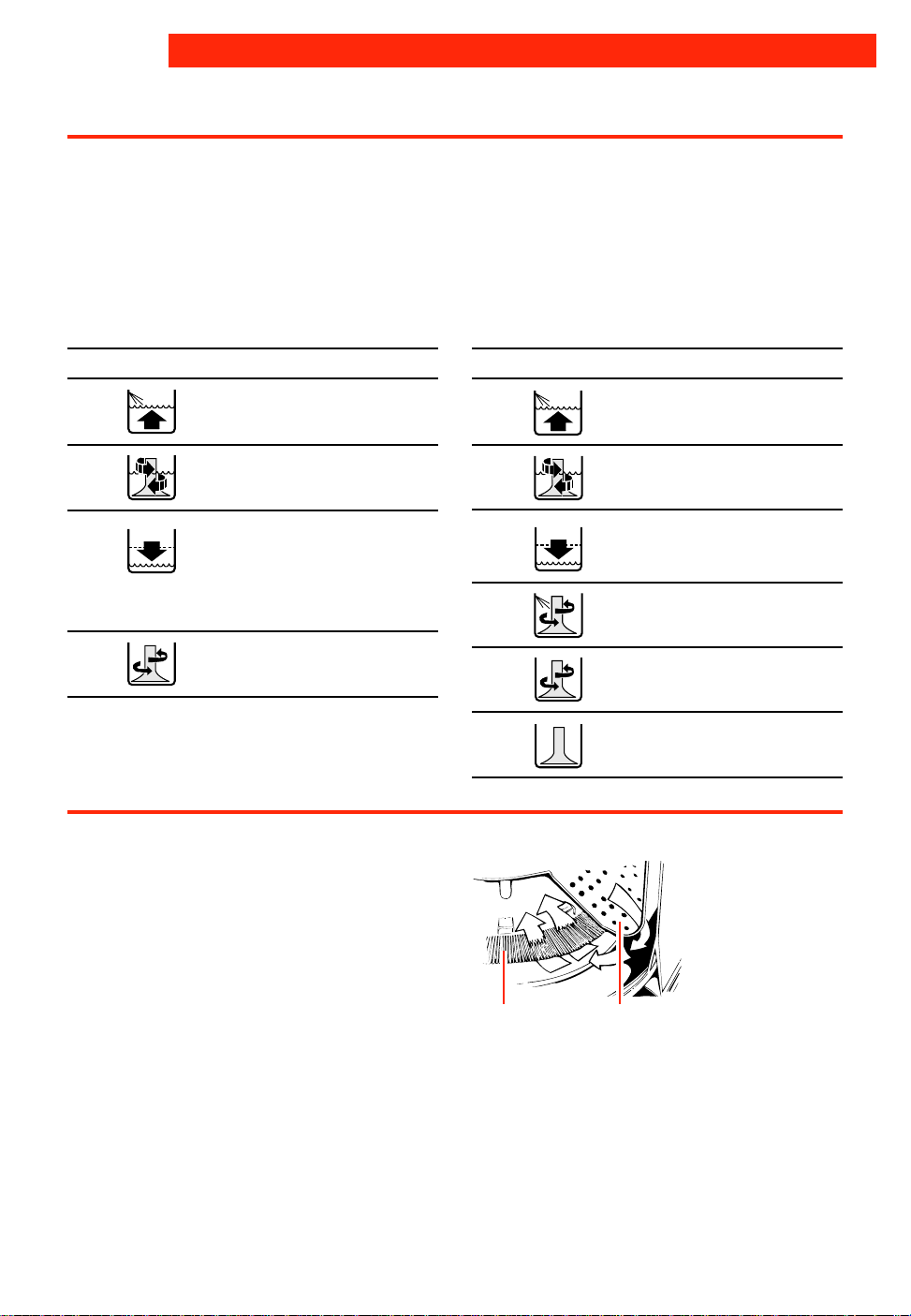

WASH
Fill
▼
Wash selected time
▼
Drain*
No agitation
▼
*The Permanent Press cycle partially
drains, fills, agitates briefly, and drains.
Spin
▼
Self-cleaning lint filter
The lint filter at the bottom of the washer
basket cleans itself. During agitation, wash
and rinse water pass over the filter, separating the lint from the water. The lint is then
spun away from the filter and out of the
system during the spin part of the cycle.
If your washer drains into a tub, remove
any lint collected in the tub or strainer.
Self-cleaning
lint filter
RINSE
Fill
▼
Rinse
▼
Drain – No agitation
▼
Spin-Spray rinse
▼
Spin
▼
Off
Basket
interior
9
Page 10
OPERATING YOUR WASHER
Adding liquid chlorine bleach
Use your washer’s liquid chlorine bleach
dispenser to add bleach to the wash load.
Always measure liquid chlorine bleach. Do
not guess. Never use more than 1 cup
(250 mL) for a full load. Use less with lower
water level settings. Follow manufacturer’s
directions for safe use. Use a cup with a
pouring spout to avoid spilling.

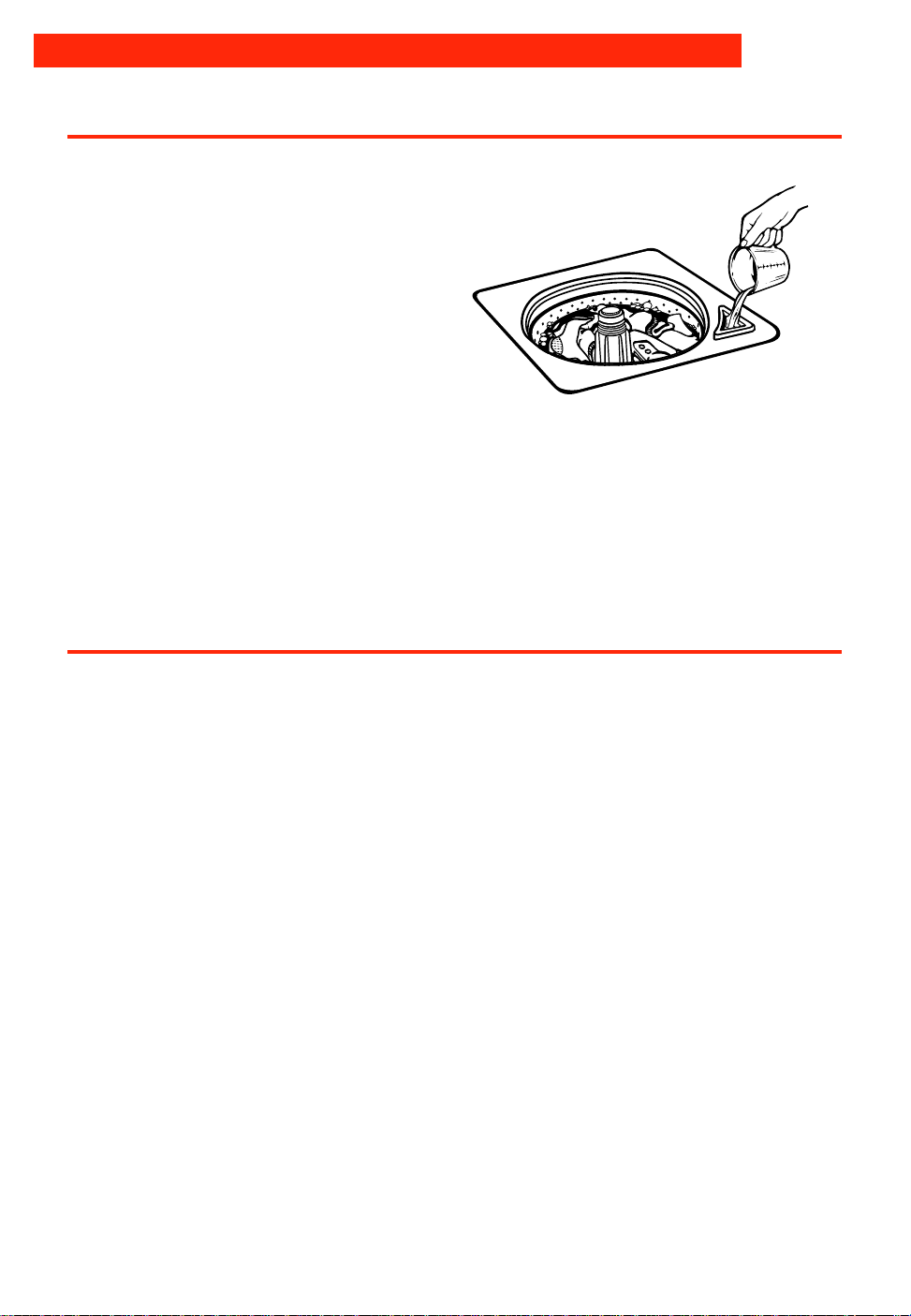

1. Load the washer.
2. Pour measured chlorine bleach carefully
into the dispenser. Do not let bleach
splash, drip, or run down into washer
basket. Undiluted bleach will damage any
fabric it touches.
3. Start the washer. Bleach will be diluted
automatically during wash part of cycle.
NOTE: Do not use this dispenser to add
powdered chlorine or color safe bleach to
your wash load. The dispenser is for liquid
chlorine bleach use only.
Adding liquid fabric softener
• Always dilute fabric softener with 1⁄2 to
1 cup (125 to 250 mL) warm water.
Undiluted fabric softener can stain fabrics.
• Add diluted fabric softener only in the
final rinse.
• Fabric softener should not be mixed with
other laundry products because greasy
stains may form. If stains form, remove by
wetting the stain and rubbing with liquid
detergent or a bar of soap. Rewash the
stained item.
• Too much fabric softener can make some
items (diapers and towels) nonabsorbent.
If this happens, use less fabric softener or
do not use it every time.
10
Page 11
Caring for Your Washer
Proper care of your washer can extend its life. This section explains how to care for your
washer properly and safely.
Cleaning your washer
Exterior
Wipe up detergent, bleach, and other spills
with a soft, damp cloth or
sponge as they occur. Occasionally wipe the outside of the
washer to keep it looking like
new.
Do not put sharp or metal objects in your
washer. They can damage the
finish. Check all pockets for
pins, clips, money, bolts, nuts,
etc. Do not lay these objects
on your washer after emptying
pockets.
Winter storage or moving care
Install and store your washer where it will
not freeze. Because some water may stay
in the hoses, freezing can damage your
washer. If storing or moving your washer
during freezing weather, winterize it.
To winterize washer:
1. Shut off both water faucets.
2. Disconnect and drain water inlet hoses.
3. Put 1 quart (1L) of R.V.-type antifreeze in
the basket.
4. Run washer on a drain and spin setting
(see page 8) for about 30 seconds to mix
the antifreeze and water.
5. Unplug the power supply cord.
Interior
Clean interior with 1 cup (250 mL) of chlorine bleach mixed with 2 cups (500 mL) of
detergent. Run washer through a complete
cycle using hot water. Repeat process if
necessary.
NOTE: Remove hard water deposits using
only cleaners labeled as washer safe.
To use washer again:
1. Flush water pipes and hoses.
2. Reconnect water inlet hoses.
3. Turn on both water faucets.
4. Reconnect power supply cord.
5. Run the washer through a complete cycle
with 1 cup (250 mL) of detergent to clean
out antifreeze.
Non-use or vacation care
Operate your washer only when you are at
home. If you will be on vacation or not using
your washer for an extended period of time,
you should:
• Unplug the power supply cord or turn off
electrical power to the washer.
• Turn off the water supply to the washer.
This helps avoid accidental flooding (due
to a water pressure surge) while you are
away.
11
Page 12
Laundry Tips
This section reviews proper laundering techniques and gives you additional washing
information.
Preparing clothes for washing
• Close zippers, snaps, and hooks to avoid
snagging other items. Remove
pins, buckles, and other hard
objects to avoid scratching the
washer interior. Remove nonwashable trim and ornaments.
• Empty pockets and turn them inside out.
• Turn down cuffs, brush away lint and dirt.
• Turn synthetic knits inside out to avoid
pilling.
Sorting
• Separate heavily soiled items from lightly
soiled ones, even if they would
normally be washed together.
Separate lint givers (towels,
chenille) from lint takers
(corduroy, synthetics, permanent press). When possible, turn lint givers
inside out.
• Tie strings and sashes so they will not
tangle.
• Mend tears, loose hems, and seams.
• Treat spots and stains. (See “Removing
Stains” on pages 16-18.)
• Stained or wet garments should be
washed promptly for best results.
• Separate dark colors from light colors,
colorfast items from noncolorfast items.
• Sort by fabric and construction (sturdy
cottons, knits, delicate items).
Loading
• Drop items into washer loosely. Fill to the
top of the basket (top row of
holes). Do not wrap items
around the agitator. Items
should move easily through
wash water for best cleaning
and wrinkle-free results. Items should sink
and reappear later.
• Load washer properly and select correct
load size setting. Overloading or packing
the machine, and selecting a setting too
small for the wash load can:
– cause poor cleaning.
– increase wrinkling.
– create excessive lint.
– wear out items faster (because of pilling).
12
• Load by the amount of space items take
up, not by their weight.
• Mix large and small items in each load.
Load evenly to maintain
washer balance. An offbalance load can make the
washer vibrate during spin.
• Use a large load size setting to reduce
wrinkling with permanent press clothes and
some synthetic knits. These items should
have more room to move in the water than
heavy items (towels, jeans).
• Reduce wash time when using a small
load size setting. Loads with only a few
small items need less wash time.
Page 13
LAUNDRY TIPS
Loading suggestions
For these suggested full-sized loads, set the Load Size Selector to the highest load size
setting.
EXTRA LARGE CAPACITY WASHERS
Heavy Work
Clothes
2 pair pants
3 shirts
3 pair jeans
1 coverall
Knits
2 slacks
2 blouses
4 shirts
4 tops
2 dresses
Permanent Press
1 double sheet
1 tablecloth
1 dress
1 blouse
2 slacks
3 shirts
2 pillowcases
Mixed Load
2 double or
1 king size sheet(s)
4 pillowcases
6 T-shirts
6 pair shorts
2 shirts
2 blouses
6 handkerchiefs
Towels
8 bath towels
8 hand towels
10 wash cloths
1 bath mat
Delicates
2 camisoles
4 slips
4 panties
2 bras
2 nighties
Saving energy
• Use warm or cold wash water for most
loads. Use hot water only when washing
heavy, greasy soils or whites.
• Wash full loads.
• Use lower water levels when washing
small loads.
• Avoid rewashing. Use enough detergent
and pretreat stains or heavy soils. Use the
cycles and wash times recommended for
the fabric and soil.
• Use your washer during off-peak hours –
usually early morning and late evening.
(Ask your power company for details.)
13
Page 14
LAUNDRY TIPS
Water guidelines
Selecting water temperatures
WASH WATER
TEMPERATURE*
HOT
130°F (54°C)
or above
WARM
90-110°F
(32-44°C)
COLD
70-90°F
(21-32°C)
SUGGESTED FABRICS
• Work clothes
• Sturdy whites/colorfast
pastels
• Diapers
• Dark/noncolorfast colors
• Permanent press items
• Nylon, polyester, acrylics,
silks, woolens
• Knits/delicate fabrics
• Extra-sensitive colors
• Noncolorfast items
• Hand washables
COMMENTS
• Best cleaning for heavily soiled items
• Removes oils, perspiration, greasy
soils, and stains
• Prevents graying or yellowing
• Best for moderately soiled to lightly
soiled items
• Safe for most fabric finishes
• Less fading and dye bleeding
• Reduces wrinkling
• Best for very lightly soiled items
• Saves hot water
• Best rinse water temperature
*The washer features cold rinses for all wash temperatures.
Checking hot water
temperature
Your hot water should be 130°F (54°C) or
above. If you do not know your hot water
temperature, you can check it easily. You
may need to raise the temperature of your
water heater. To check your hot water:
1. Fill a pan with the hottest water available
from the faucet that fills your washer.
NOTE: If you do not have a faucet at your
washer site, collect the water from the
faucet closest to your washer.
2. Place a candy thermometer or cooking
thermometer in the water to check the
temperature.
NOTE: In wash water temperatures colder
than 70°F (21°C), detergents do not dissolve
well. Also, soils may be difficult to remove
and some fabrics may retain wear wrinkles
and may have increased pilling.
Water hardness
Many poor washing results can be traced to
the hardness of the wash water. To check
your water hardness:
• City water – ask the city water company.
• Well water – ask the local water authority.
Ask for the mineral content in grains/gallon
or parts/million. If your water is more than
8 grains/gallon or more than 137 parts/
million, you should consider:
• Installing a water softener.
• Using more detergent.
• Using a packaged water conditioner.
• Not using soap.
14
Page 15
LAUNDRY TIPS
Washing special-care items
Most garments and household textiles have care labels with laundering instructions. Always
follow care label directions when they are available. Below are general washing instruc-
tions for some special washables.
ITEM
Blankets
(electric or woolen)
Curtains, drapes,
slipcovers
Diapers
Elastic, spandex
Flame-retardant
clothing
Knits, washables
CARE INSTRUCTIONS
Pretreat spots and stains. Select water temperature, cycle, and
time according to the type of blanket being washed. Two rinses
may be necessary. Check care label to see if manufacturer
recommends machine washing.
Wash small loads. Crowding may cause wrinkling. Replace
slipcovers while still slightly damp. They will dry to fit tightly.
NOTE: Sun-damaged curtains and draperies will tear whether
hand or machine washed.
When using chlorine bleach for soaking, add extra detergent to the
load. Avoid overuse of fabric softeners – absorbency will be
reduced.
Elastic picks up oil from the body. Oil can damage elastic. Wash
often to reduce the damage. Use warm water and sufficient
detergent to remove oils. Do not use chlorine bleach.
Items will be clearly labeled as flame-retardant. Follow
manufacturer’s instructions to retain flame-retardant qualities.
Knits are comfortable to wear because they stretch. However, this
means that knits are more likely to be stretched and damaged
when washed (especially bulky knits). Knits made of synthetic
fabrics such as polyester, nylon, and acrylic tend to keep their
original shape more than knits made of cotton or ramie.
Pillows, stuffed
toys
Plastic, rubber
items
Quilts, bedspreads
Scatter rugs
Snowsuits, jackets
Washing feather pillows is not recommended unless they will be
dried in a dryer.
Treat as delicate items. Wash in warm water. Wash small items in
a mesh bag.
Do not wash cotton-filled comforters unless they are quilted or
stitched. Tucked cotton batting tends to slip and become lumpy.
An extra rinse may be necessary.
Shake or vacuum rugs to remove loose dirt. Wash more than one
rug at a time. If washing only one rug, add bath towels to balance
the load.
Wash only one or two items at a time. You may need to stop the
washer occasionally to press air from the items being washed. An
extra rinse may be necessary.
15
Page 16
Removing Stains
Stained, heavily soiled, or greasy items may need to be prewashed or soaked for best
results. Soaking helps remove protein-type stains like blood, milk, or grass. Prewashing helps
loosen soil before washing.
Stain removal rules
• Use warm water for soaking or prewashing
stained laundry. Hot water can set stains.
• Most stains are easier to remove when
they are fresh. Old or set stains may not
come out. Follow package directions for
pretreatment products.
• Before treating any stain, find out what
kind of stain it is, how old the stain is, what
kind of fabric it is, and if the fabric is
colorfast. (Check the care label.)
• Washing and drying can set some stains.
• Start with cold or warm water. Hot water
can set some stains.
Stain removal guide
• When bleach is recommended, use a
bleach that is safe for the fabric.
• Test stain removers on an inside seam or
hidden corner of the item to see if the color
is removed.
• Put the stained area face down on a paper
towel or white cloth. Apply the stain
remover to the back of the stain. This
forces the stain off the fabric instead of
through it.
• Meat tenderizer or enzyme presoaks help
break down some protein stains so they
are easier to remove.
STAIN
Alcoholic
beverage
Blood
Chewing
gum
Chocolate
or coffee
Crayon and
candle wax
Cream,
milk, or
ice cream
TO REMOVE
These stains turn brown with age, so treat immediately. Sponge or soak
fresh stains with cold water. Wash. If stain remains, soak 15 minutes in a
solution of lukewarm water, liquid detergent, and a few drops of white
vinegar. Rinse. Wash.
Rinse immediately or soak in cold water with enzyme presoak for 30
minutes or longer. Rinse. Rub detergent into any remaining stains. Rinse.
If stain remains, put a few drops of 3% hydrogen peroxide on stain for 3-5
minutes. Rinse thoroughly. Wash.
Use ice to make gum hard. Scrape off what you can. Sponge with a
nonflammable fabric cleaner. Let dry. Wash.
Sponge immediately with a nonflammable fabric cleaner or apply a prewash
soil and stain remover. Rinse. Wash. If stain remains, apply a liquid detergent to stain or soak in warm water with an enzyme presoak. Rewash.
Scrape off excess with a dull knife. Place fabric between two blotters or
facial tissue. Press with warm iron. Remove color stain with nonflammable
fabric cleaner. Hand wash until stain is gone. If full load is crayon stained,
take to cleaners or coin-operated dry cleaning machine.
Sponge with a nonflammable fabric cleaner, or a prewash soil and stain
remover. Rinse. Wash. Repeat if necessary. If stain remains, apply a few
drops of liquid detergent and a few drops of ammonia. Blot dry and rinse.
If stain remains, soak in an enzyme presoak. Wash.
16
Page 17
REMOVING STAINS
STAIN
Deodorants
and antiperspirants
Fat, grease,
or oil
Fruit stains
Grass or
green
vegetables
Ink or
ballpoint
pen ink
Iron or rust
TO REMOVE
Light stain: Treat with liquid detergent or your regular laundry detergent.
Wash in hottest water safe for fabric.
Heavy stain: Place face down on towel and treat with a paste of ammo-
nia and color safe bleach. Let stand for 30 minutes. Wash in hottest water
safe for fabric.
wWARNING
Fire Hazard
Do not wash or dry items soiled with vegetable or cooking
oils because they may contain some oil after laundering.
Doing so can result in death or fire.
Items soiled with vegetable or cooking oil should not be washed or dried.
For other types of greasy stains, use one of the methods below:
• Use pretreatment stain remover. Follow label directions. Wash in hottest
water safe for fabric.
• Use talcum powder to absorb as much grease as possible. Sponge with
a nonflammable fabric cleaner. Rinse. Wash.
• Treat with liquid detergent or rub a detergent paste on the stain. Wash
using hottest water safe for fabric.
Fresh stains: Soak immediately in cool water. Wash. If stain remains,
cover area with a paste made of color safe bleach, a few drops of hot
water, and a few drops of ammonia. Wait 15-30 minutes. Wash.
Old stains: Sponge with white vinegar. Rinse. Repeat procedure for
fresh stains.
Soak in warm or cold water with an enzyme presoak for at least 30 minutes,
or sponge with denatured alcohol. Wash in water temperature and bleach
safe for the fabric. For colored fabrics, check colorfastness before applying
alcohol. For acetate, sponge with a nonflammable fabric cleaner. If stain
remains, bleach with 3% hydrogen peroxide. Rinse. Rewash.
Spray stain with an aerosol hair spray or rubbing alcohol. Sponge stain
continuously until all bleeding stops. Let dry. Repeat if necessary. Wash.
If stain remains, bleach if safe for fabric. (India and other indelible inks
are almost impossible to remove completely.)
Colored or noncolorfast items: Apply lemon juice and salt. Place in the
sun to dry. Rinse thoroughly. Repeat if necessary.
White or colorfast items: Try a rust remover. Test first on inside seam or
hem. Some rust removers are not washer safe. Follow package directions.
continued on next page
17
Page 18
REMOVING STAINS
STAIN
Ketchup or
tomato
products
Lipstick
Meat juice,
egg
Mildew
Mustard
Paint
Perspiration
Scorch
Soft drinks
TO REMOVE
Sponge immediately with a nonflammable fabric cleaner or apply a prewash
soil and stain remover. Rinse. Wash. If stain remains, apply a liquid detergent to stain or soak in warm water with an enzyme presoak. Rewash.
Apply nonflammable fabric cleaner or prewash soil and stain remover.
Blot with absorbent material. Repeat if necessary. Rinse. If stain remains,
rub with liquid detergent. Wash.
Scrape off excess with a dull knife. Soak in cold or warm water with
enzyme presoak at least 30 minutes, or treat stains with a nonflammable
fabric cleaner. Wash.
Wash in hottest water safe for fabric. If stain remains, soak in warm water
and a color safe bleach for 15-30 minutes. Rewash. (Old mildew stains
are almost impossible to remove. Mildew fungus destroys or weakens
fabrics.) An alternative to bleach is to treat with salt and lemon juice and
dry in direct sunlight. Rinse and rewash. Mildew may form if wet or damp
laundry remains in your washer for extended periods of time. To prevent
mildew, promptly dry laundry after washing.
Treat immediately. Scrape off excess mustard. Sponge with a nonflammable fabric cleaner or a prewash soil and stain remover. Rinse. Work
liquid detergent and a few drops of vinegar into stain. Rinse. If stain
remains, apply 3% hydrogen peroxide. Rinse and wash.
Hand wash paint-stained items.
Water base: Treat stains while still wet. (These paints cannot be removed
after they have dried.) Rinse in warm water to flush out paint. Sponge with
a nonflammable fabric cleaner. Rinse. Wash.
Oil base: Scrape off fresh paint. Sponge with a nonflammable fabric
cleaner. While stain is still wet with solvent, rub liquid detergent into it.
Wash with hottest water safe for fabric.
Remove stains before ironing. Perspiration stains may weaken fabric.
Wash or sponge stain thoroughly with detergent and warm water. If
perspiration has changed the color of the fabric, use one of the following
treatments:
Fresh stains: Apply ammonia to stain. Rinse. Launder to remove
ammonia odor.
Old stains: Apply white vinegar to stain. Rinse. Launder to remove
vinegar odor.
Severe scorch cannot be removed. Wet stain with 3% hydrogen peroxide.
Cover with a dry cloth and press with an iron as hot as is safe for fabric.
Rinse well. Wash.
OR
Wet with lemon juice and spread in the sun to dry. Wash.
Sponge immediately with cold water and alcohol. Heat and detergent may
set stain.
18
Page 19
Troubleshooting
Most laundering problems are easily solved if you understand the cause. Check the following
list for common laundry problems and the next page for common washer problems. If you
need further assistance, see page 21.
Common laundry problems
PROBLEM
Brown, yellow
stains
Dye transfer
Gray whites,
dingy colors
Greasy looking
spots
Lint
Load too wet
after spin
Shrinking
Snags, rips, and
holes
CAUSE
• Chlorine staining
• Iron in water heater or pipes; iron and manganese in water
• Improper sorting
• Load not immediately removed from washer after end of cycle
• Improper sorting
• Water temperature too low
• Not enough detergent
• Using soap in very hard water (use detergent in hard water)
• Fabric softener poured directly on clothes
• Not enough detergent
• Improper sorting
• Paper or tissue in pockets
• Pilling being mistaken for lint
• Not enough detergent
• Cold rinses
• Cycle stopped before spinning is complete
• Fabric type (some knits stretch during manufacturing – laundering
returns fabric to original size)
• Care label directions not followed
• Items damaged before washing
• Misuse of chlorine bleach (do not pour directly on clothes);
dispenser not used
• Sharp items not removed from pockets; fasteners not fastened
Stiff, rough
fabrics
Twisting/
Tangling
Wrinkling
Yellow areas
(from body oils)
• Using soap in very hard water (use detergent in hard water)
• Not enough detergent
• Line drying
• Overloading
• Clothes wrapped around agitator
• Overloading (leave more room for permanent press and knits)
• Load not immediately removed from washer after cycle
• Warm rinse water
• Cycle selection incorrect
• Water temperature too low
• Not enough detergent
19
Page 20
TROUBLESHOOTING
Common washer problems

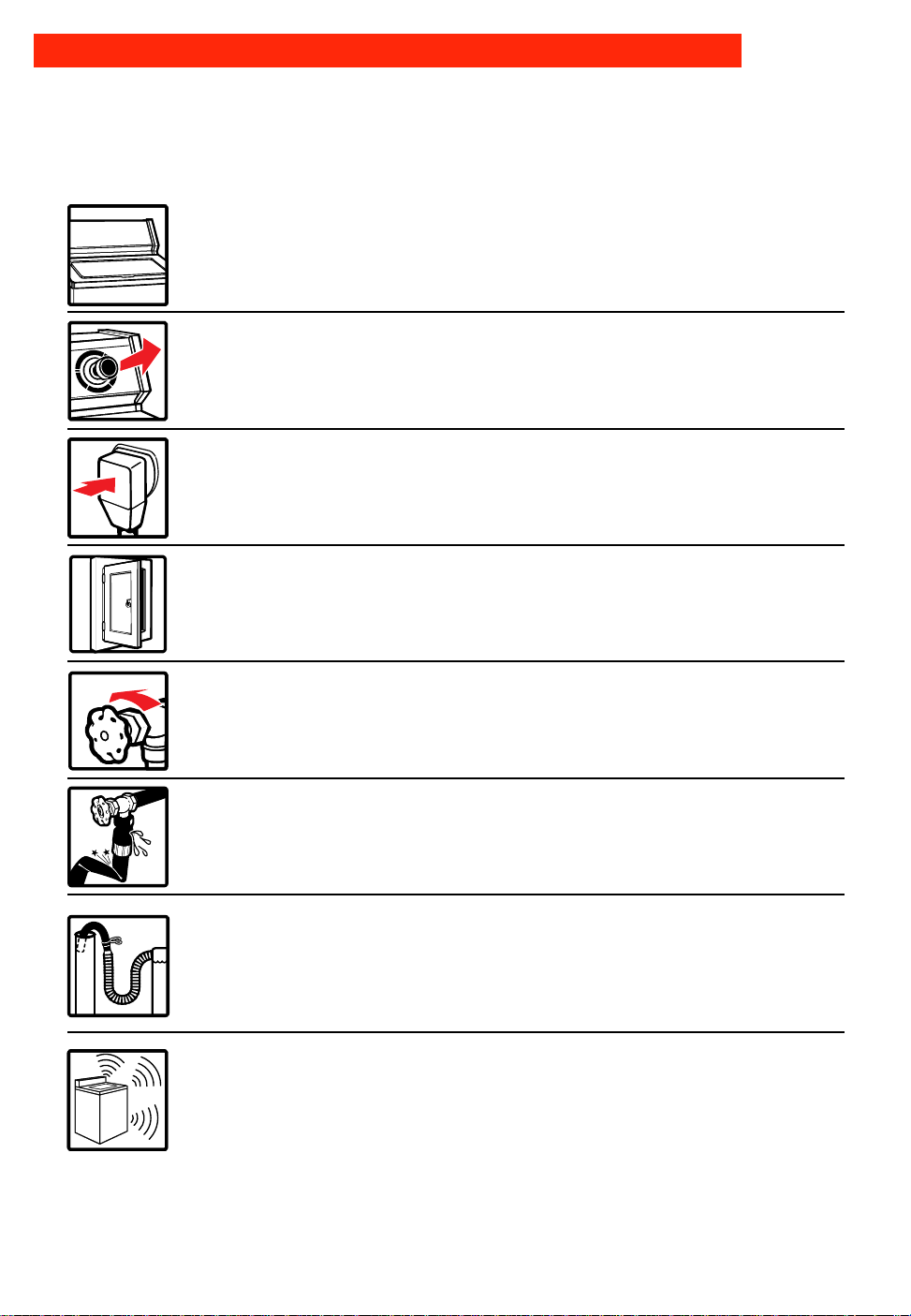

Before calling for service, check these:
Is the lid closed?
▼
Is the Cycle Control Knob set and pulled out?
▼
Is the power cord firmly plugged into a live outlet with proper voltage?
▼
Have you blown a household fuse or tripped a circuit breaker?
▼
Are both the hot and cold water faucets turned on?
▼
Are the water hoses kinked or clogged?
▼
Is the drain hose higher than the water level in the washer? It must be higher for
proper operation.
▼
Is the washer making noises (see page 8), or vibrating?
Is the wash load properly distributed around the agitator?
NOTE: Washer stops briefly during a wash cycle. These pauses are normal.
If none of these items was causing your problem, see “Requesting Assistance or Service”
on page 21.
20
Page 21
Requesting Assistance or Service
Before calling for assistance or service, please check “Troubleshooting” on pages 19 and 20.
It may save you the cost of a service call. If you still need help, follow the instructions below.
1. If you need assistance* …
Call the Whirlpool Consumer Assistance
Center telephone number.
Dial toll-free from anywhere
in the U.S.A.:
1-800-253-1301
and talk with one of our trained
consultants. The consultant can instruct you
in how to obtain satisfactory operation from
your appliance or, if service is necessary,
recommend a qualified service company in
your area.
If you prefer, write to:
Whirlpool Brand Home Appliances
Consumer Assistance Center
c/o Correspondence Dept.
2000 North M-63
Benton Harbor, MI 49022-2692
Please include a daytime phone number in
your correspondence.
2. If you need service* …
Whirlpool has a nationwide network of
authorized Whirlpool service
companies. Whirlpool service
technicians are trained to fulfill
the product warranty and
provide after-warranty service,
anywhere in the United States. To locate the
authorized Whirlpool service company in
your area, call our Consumer Assistance
Center telephone number (see Step 1) or
look in your telephone directory Yellow
Pages under:
•APPLIANCE-HOUSEHOLD- • WASHING MACHINES &
MAJOR, SERVICE & REPAIR DRYERS, SERVICE & REPAIR
See:
Whirlpool Appliances or -
Authorized Whirlpool Service Authorized Whirlpool Service
Example:
XYZ Service Co.) (
(
See:
Whirlpool Appliances or
Example:
XYZ Service Co.)
3. If you need FSP
®
replacement parts …
FSP is a registered trademark of Whirlpool
Corporation for quality parts. Look for this
symbol of quality whenever you need a
replacement part for your ESTATE® appliance. FSP replacement parts will fit right
and work right, because they are made to
the same exacting specifications used to
build every new ESTATE appliance.
To locate FSP replacement parts in your
area, refer to Step 2 or call the Whirlpool
Consumer Assistance Center number in
Step 1.
4. If you are not satisfied
with how the problem
was solved …
• Contact the Major Appliance Consumer
Action Program (MACAP). MACAP is a
group of independent consumer experts
that voices consumer views at the highest
levels of the major appliance industry.
• Contact MACAP only when the dealer,
authorized servicer, and Whirlpool have
failed to resolve your problem.
Major Appliance Consumer Action Program
20 North Wacker Drive
Chicago, IL 60606
• MACAP will in turn inform us of your
action.

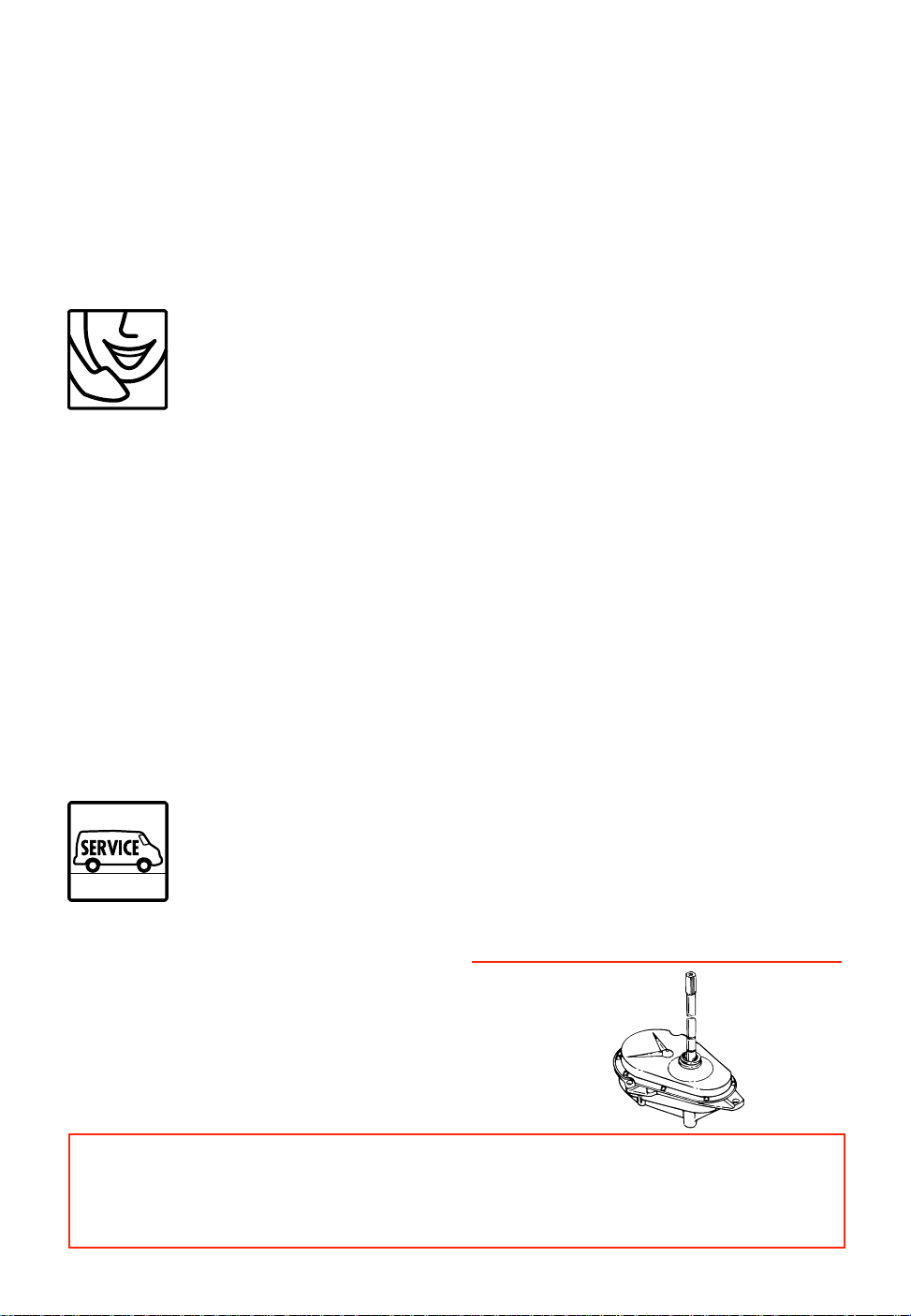

Gearcase assembly
covered by your
warranty
* When asking for help or service:
Please provide a detailed description of the problem, your appliance’s complete model
and serial numbers, and the purchase date. (See page 2.) This information will help us
respond properly to your request.
21
Page 22
NOTES
22
Page 23
NOTES
NOTES
23
Page 24
®
ESTATE
Automatic Washer Warranty
LENGTH OF WARRANTY
FULL ONE-YEAR
WARRANTY
FROM DATE OF PURCHASE
LIMITED FIVE-YEAR
WARRANTY
FROM DATE OF PURCHASE
LIMITED TEN-YEAR
WARRANTY
FROM DATE OF PURCHASE
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of your washer.
2. Instruct you how to use your washer.
3. Replace house fuses or correct house wiring or plumbing.
B. Repairs when your washer is used in other than normal, single-family household use.
C. Pickup and delivery. Your washer is designed to be repaired in the home.
D. Damage to your washer caused by accident, misuse, fire, flood, acts of God or use of
products not approved by Whirlpool.
E. Any labor costs during the limited warranties.
F. Repairs to parts or systems caused by unauthorized modifications made to the
appliance.
WHIRLPOOL WILL PAY FOR
FSP® replacement parts and repair labor to correct defects
in materials or workmanship. Service must be provided by
an authorized Whirlpool service company.
FSP replacement parts for any part of gearcase assembly
if defective in materials or workmanship. The gearcase
assembly is shown in the “Requesting Assistance or
Service” section of this book.
FSP replacement parts for any top and lid rust.
FSP replacement of outer tub should it crack, or fail to
contain water, due to defective materials or workmanship.
6/96
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so this exclusion or limitation may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to
state.
Outside the United States, a different warranty may apply. For details, please contact
your authorized Whirlpool dealer.
If you need service, first see the “Troubleshooting” section of this book. After checking
“Troubleshooting,” additional help can be found by checking the “Requesting Assistance
or Service” section, or by calling our Consumer Assistance Center telephone number,
1-800-253-1301, from anywhere in the U.S.A.
PART NO. 3950306
© 1996 Whirlpool Corporation ® Registered Trademark of Whirlpool Corporation, U.S.A. Printed in U.S.A.
6/96
Loading...
