A Note to You
Thank you for buying a Whirlpool® appliance.
Because your life is getting busier and more complicated, Whirlpool dryers are easy to use,
save time, and help you manage your home better. To ensure that you enjoy years of trouble
free operation, we developed this Use and Care Guide. It contains valuable information about
how to operate and maintain your dryer properly and safely. Please read it carefully. Also,
please complete and mail in the Ownership Registration Card provided with your appliance.
The card helps us notify you about any new information on your appliance.
Please record your moders information.
Whenever you call to request service on
your appliance, you need to know your
complete model number and serial number.
You can find this information on the model
and serial number label in the door well (see
diagram on page 5 for location of label).
Please also record the purchase date of
your appliance and your dealer’s name,
address, and telephone number.
Keep this book and the sales slip together in a safe place for future reference.
Model Number.
Serial Number .
Purchase Date.
Dealer Name
Dealer Address
Dealer Phone
__
Our Consumer Assistance Center number is toll-free 24 hours a day.
1-800-253-1301
Page 3
Dryer Safety
Your safety is important to us.
This guide contains safety statements under
warning symbols. Please pay special
attention to these symbols and follow any
instructions given. Here is a brief explana
tion of the use of the symbol.
This symbol will help alert you to such
dangers as personal injury, burns, fire,
and electrical shock.
IMPORTANT SAFETY INSTRUCTIONS
^WARNING
ÂWARNING
- Do not store or use gasoiine or other flammabie vapors and iiquids
in the vicinity of this or any other appiiance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electricai switch; do not use any phone in your
building.
• Clear the room, building, or area of aii occupants.
• Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
For your safety, the information in this
manual must be foliowed to minimize the
risk of fire or explosion, or to prevent
property damage, personal injury, or loss
of life.
continued on next page
Page 4
Important Safety Instructions
AWARNING
• Read all instructions before using your
dryer.
• Dryer must be electrically grounded. See
the Installation Instructions.
• Do not machine wash or machine dry
items cleaned, washed, soaked in, or
spotted with wax, paint, gasoline, oil, dry
cleaning solvents, or other flammable
fluids. The fumes can create a fire
hazard or explosion. Always hand wash
and line dry items containing these
materials.
• Do not wash or dry items that are soiled
with vegetable or cooking oil. These
items may contain some oil after laun
dering. Due to the remaining oil, the
fabric may smoke or catch fire by itself.
•Store flammable solvents or fluids away
from your dryer.
• Dry cleaning solvents or fluids should
never be put directly into your dryer.
• Do not let dust, lint, paper, rags, chemi
cals, etc., pile up around or under the
dryer.
To reduce the risk of fire, eiectrical shock, or
injury to persons when using your dryer, foilow
basic precautions, inciuding the following:
• Do not allow lint to build up inside the
dryer or exhaust system. Cleaning should
be done periodically by a qualified
person.
• Do not allow children to operate, play
with, or crawl inside your dryer. Supervise
children when your dryer is used near
children.
• Do not reach into a dryer if the drum
is moving.
• Install and/or store dryer where it will not
be exposed to the weather.
• Do not tamper with the controls.
• Do not dry rubber, rubber-like, or heatsensitive materials with heat.
• Unplug the power supply cord or turn off
electrical power before attempting to
service your dryer. Also, shut off gas
valve if you have a gas dryer.
•When removing from service or discard
ing a dryer, always remove the door to
prevent accidental entrapment.
• Clean lint screen before or after each
load.
• Use only fabric softeners specifically
labeled as not being harmful to the dryer.
Understanding your responsibilities
Be sure that your dryer:
-is located in an area where the
temperature is above 45°F (7°C).
-is properly installed in a well-ventilated
room and leveled on a floor that can
support the weight.*
-is connected to the proper outlet and
electrical supply.*
-is properly connected to fuel and
exhaust systems (gas dryers must be
vented outdoors).*
-is not installed against draperies or
curtains, or on carpet.*
-is properly maintained, repaired, and has
parts replaced by a qualified person.
-is used only for jobs normally expected of
home clothes dryers.
-is not used by anyone unable to operate
it properly.
' Never operate the dryer if:
- it is not working right (i.e. noisy, too hot).
- it is damaged.
- parts are missing.
-all panels are not in place.
-the lint screen is loose, damaged, or
missing.
See the Installation Instructions for com
plete information.
, - SAVE THESE INSTRUCTIONS -
Page 5
Parts and Features
The parts and features of your dryer are illustrated below. Become familiar with all parts and
features before using your dryer. Page references are included next to some features. Refer
to those pages for more information about the features.
NOTE: The drawings in this book may vary from your dryer model. They are designed to
show the different features of all models covered by this book. Your model may not include all
features.
Mini-hamper door*
Side-swing door*
*On some models
5
Page 6
Operating Your Dryer
The information in this section helps you learn to use your dryer efficiently and safely. Refer
to “Laundry Tips” on page 17 for additional information on sorting, loading, and drying most
types of washables.
Before starting your dryer
Before using your dryer, wipe the dryer drum
with a damp cloth to remove
dust from storing and shipping.
Starting your dryer
Your dryer may have a Dryer Features
Guide (usually located on top
of the dryer). Remove it and
place it with your Use and
Care Guide. The Features
Guide provides you with more
information about your dryer.
1. Load clothes into the dryer and close
the door.
2. Turn the Cycle Control Knob to the
desired cycle. Use the Energy
^— Preferred Automatic Setting (*)
to dry most loads (see page 7).
3. If your dryer has a Temperature Selector,
4. Push the Start Button.
m<(T\
NOTE: Your dryer stops automatically when
a cycle ends.
Stopping/restarting your dryer
You can stop your dryer anytime during
a cycle.
To stop the dryer, either:
• Open the dryer door.
To restart the dryer:
1. Close the door.
2. Select a new cycle and temperature (if
desired).
3. Push the Start Button.
set it to the desired setting
(see page 9). Some dryer
models have either a rotary
knob or pushbutton Tempera
ture Selector.
• Turn the Cycle Control Knob to
OFF.
NOTE: The Cycle Control Knob should point
to an OFF area when the dryer is not in use.
6
Page 7
OPERATING YOUR DRYER
Selecting the right cycle and setting
The following pages describe the cycles on
your dryer. Refer to the charts on pages 9-10
for help in selecting drying cycles.
Drying guidelines
• Always follow care label directions when
they are available.
• Use the Fluff Air cycle, or line dry rubber,
plastic, delicate, and heat-sensitive fabrics
(see page 10).
• The last few minutes of all cycles are without
heat to make the load easier to handle.
• To help reduce wrinkling, remove the load
from the dryer as soon as tumbling stops.
This is especially important for permanent
press, knits, and synthetic fabrics.
' Overdrying can cause shrinkage, static
cling, and damage to some fabrics.
' Refer to pages 17-20 for information
about:
- sorting clothes for drying
- choosing load sizes
- drying tips
- using dryer fabric softeners
- saving energy
- drying special-care items.
Cycle descriptions
Automatic Cycle(s)
Dry most loads using the Energy Preferred
Automatic Setting (»). Your Automatic
cycle(s) shuts off when the
selected dryness is
reached. The Cycle
Control Knob will not move
until the load is almost dry.
After the cool-down, the
Knob automatically turns
to an OFF area and
tumbling stops.
• If the load is drier than you like, select a
setting closer to LESS DRY the next time
you dry a similar load.
• If the load is not as dry as you like, com
plete drying using a Timed cycle. Select a
setting closer to VERY DRY the next time
you dry a similar load.
Some models offer high heat and low heat
Automatic cycles (see page 9).
NOTES:
• Some Automatic cycles use an electronic
DRY-MISER® control that senses the
amount of moisture in the load.
• Other Automatic cycles use an automatic
DRY-MISER control that senses the
exhaust temperature and determines the
dryness of the load.
Timed Cycle(s)
Use a Timed cycle to complete drying if
some items are damp
k. "so after Automatic drying.
Timed drying is also
useful for:
• Delicate items and
small loads that need
a short drying time.
• Bulky items and large
loads that require a
long drying time.
Some models offer high heat and low heat
Timed cycles (see page 9).
Fluff Air Cycle
(on some models)
The Fluff Air cycle has no heat. Use this un
heated cycle to fluff or air
dry bedding, plastic table
cloths, foam pillows,
sneakers, etc. See page
10 for more information
about the Fluff Air cycle.
NOTE: If your model
does not have the Fluff
Air cycle, line dry heat-sensitive items.
Page 8
OPERATING YOUR DRYER
Heavy Dry Cycle
(on some models)
Use Heavy Dry and a high heat setting to
dry large items or items
that are thicker or heavier
than a regular load (such
as heavy cotton bath
sheets or robes).
Damp Dry Cycle
(on some models)
Use Damp Dry to dry items to damp level or
to dry items that do not
require an entire drying
cycle. Two examples
are heavy cottons, such
as jeans, which you do
not want to become stiff,
or cotton clothes which
are easier to press when
damp.
TUMBLE PRESS® Cycle
(on some models)
The TUMBLE PRESS cycle removes
wrinkles from clothes that
have been packed in a
suitcase or closet, or
from items not removed
from the dryer at the end
of a cycle. As soon as
the dryer stops, fold or
put the items on hangers.
Towels Feature
(on some models)
When you have large loads of towels to dry,
you may want to use the
Towels feature in the
Automatic cycle. The
Towels setting allows for
more drying time and
automatically shuts off
the dryer when the
selected dryness is
reached. The Towels
feature also can be used for extra heavy
items such as mattress pads and quilts.
8
FINISH GUARD® Feature
(on some models)
When you are unable to remove a load from
the dryer as soon as it
stops, wrinkles can form.
The FINISH GUARD
feature tumbles the load
without heat every few
minutes up to 45 minutes
after the cycle ends. This
tumbling rearranges and
fluffs the load to avoid
wrinkles. You do not have to set the Cycle
Control Knob for the FINISH GUARD
feature. If you do not open the dryer door
within a few minutes after the cycle stops,
the FINISH GUARD feature takes over to
protect the load.
A signal sounds every few minutes when
FINISH GUARD is running. The signal and
cycle stop when you open the dryer door.
NOTE: See page 11 if your model has a
FINISH GUARD ON/OFF selector.
Rack Dry Feature
(on some models)
You may want to dry some items without
tumbling (such as wool
sweaters, stuffed toys, or
pillows). Use the drying
rack (see page 12) and
the Rack Dry feature for
these items, and a low
temperature setting.
During the drying cycle,
the drum turns, but the
rack does not move. Drying time depends
on the amount of moisture in the items.
NOTES:
• Be sure to follow the instructions on page
12 for installing the drying rack in your
dryer and placing items on the rack.
• Use the chart on page 12 to determine
temperatures and drying times.
• You may use either the Timed cycle or
Fluff Air cycle for rack drying.
Page 9
Drying cycles chart
Use the chart below to help you make
drying selections. The chart suggests heat
settings and drying times for various loads.
NOTES:
• Use an Automatic cycle to dry most loads.
• Use a Timed cycle only if the recom
mended Automatic cycle is not available.
OPERATING YOUR DRYER
' The check mark / in the chart below
denotes recommended temperature
settings. If some types of loads in the
chart have more than one suggested
temperature setting, choose the lowest
setting available on your dryer.
> Always follow care label directions when
they are available.
TYPE OF LOAD
COTTONS AND LINENS
Extra Heavy
Bedspreads, mattress pads, quilts
Heavyweight
Towels, jeans, corduroys, work clothes
Mediumweight
Sheets, cotton underwear, diapers
Lightweight
Batistes, organdies, lingerie
PERMANENT PRESS,
SYNTHETiCS, AND BLENDS
Heavyweight
Work clothes, jackets, raincoats
Mediumweight
Shirts, play clothes, sheets, slacks
Lightweight
, Lingerie, blouses, dresses
KNITS
Heavyweight
Cottons, rayons, blends, T-shirts,
slacks, shirts
Mediumweight
Synthetics (polyester, acrylic, etc.),
dress slacks, skirts, sweaters
Lightweight
Synthetics (polyester, acrylic, etc.) and
blends, lingerie, blouses, dresses
AUTOMATIC CYCLE
(heat settings)
Medium*
High
/
/
/
/
/
/
/
/
/
Low
/
/
/
Extra
Low*
/
TIMED CYCLE
(minutes)
High
70-80
50-60
40-50
40-50
30-40
40-50
Low
20-30
20-30
30-40
20-30
DELICATES**
Sheer curtains (2 or 3 panels),
gauze, lace, etc.
* Settings available only on dryer models with separate Temperature Selector.
** Fluff Air cycle (if available) or line drying is also recommended for delicate fabrics.
(See page 10.)
/
/
15-20
Page 10
OPERATING YOUR DRYER
Fluff Air cycle or line drying
The chart below includes examples of items
that require drying without heat. Use the
Fluff Air cycle (if available on your dryer
model), or place the items on a line or rack
to air dry.
NOTES:
• Heat-sensitive fabrics should not be dried
in the dryer.
• Line dry bonded or laminated fabrics.
• Always follow care label directions when
they are available.
TYPE OF LOAD FLUFF AIR CYCLE*
DELICATE FABRICS
Sheer curtains (2 or 3 panels), gauze, lace, etc.
(Use Fluff Air cycle if low heat is not available. See page 9.)
RUBBER, PLASTIC, HEAT-SENSITIVE FABRICS
Foam Rubber - Pillows, padded bras, stuffed toys
• Make sure coverings are securely stitched.
• Shake and fluff pillows by hand several times during the Fluff
Air cycle.
• Make sure pillows are completely dry. Foam rubber pillows
take a long time to dry.
Plastic - Shower curtains, tablecloths
Rubber-backed rugs
Olefin, Polypropylene, Sheer nylon
Do not dry heat-sensitive fabrics,
plastic, rubber, or some stuffed items
with heat. Use the Fluff Air cycle, if
available, or dry these items on a line
or rack.
Failure to do so could result in fire or
damaged items.
^WARNING
Fire Hazard
(minutes)
20-30
20-30
20-30
40-50
10-20
COTTON AND CANVAS SHOES
• Place several bath towels in the dryer to act as a buffer, or
place shoes on a drying rack if your dryer has one.
• Remove shoes from dryer while still damp.
• Stretch shoes and allow to air dry.
‘Reset cycle as needed to complete drying.
10
30-40 ■
Page 11
End of Cycle signal
(on some models)
The dryer sounds a signal to let you know
when the cycle is finished. The
signai is helpful when you are
drying permanent press,
synthetics, and other items
that should be removed from
the dryer as soon as it stops.
• On some dryers, the end of cycle signal is
not adjustable.
• On other dryers, the end of cycle signal
can be turned On or Off by a selector. The
end of cycle On/Off selector is part of the
Start Button on some models. The various
types of selectors are described in the
chart below.

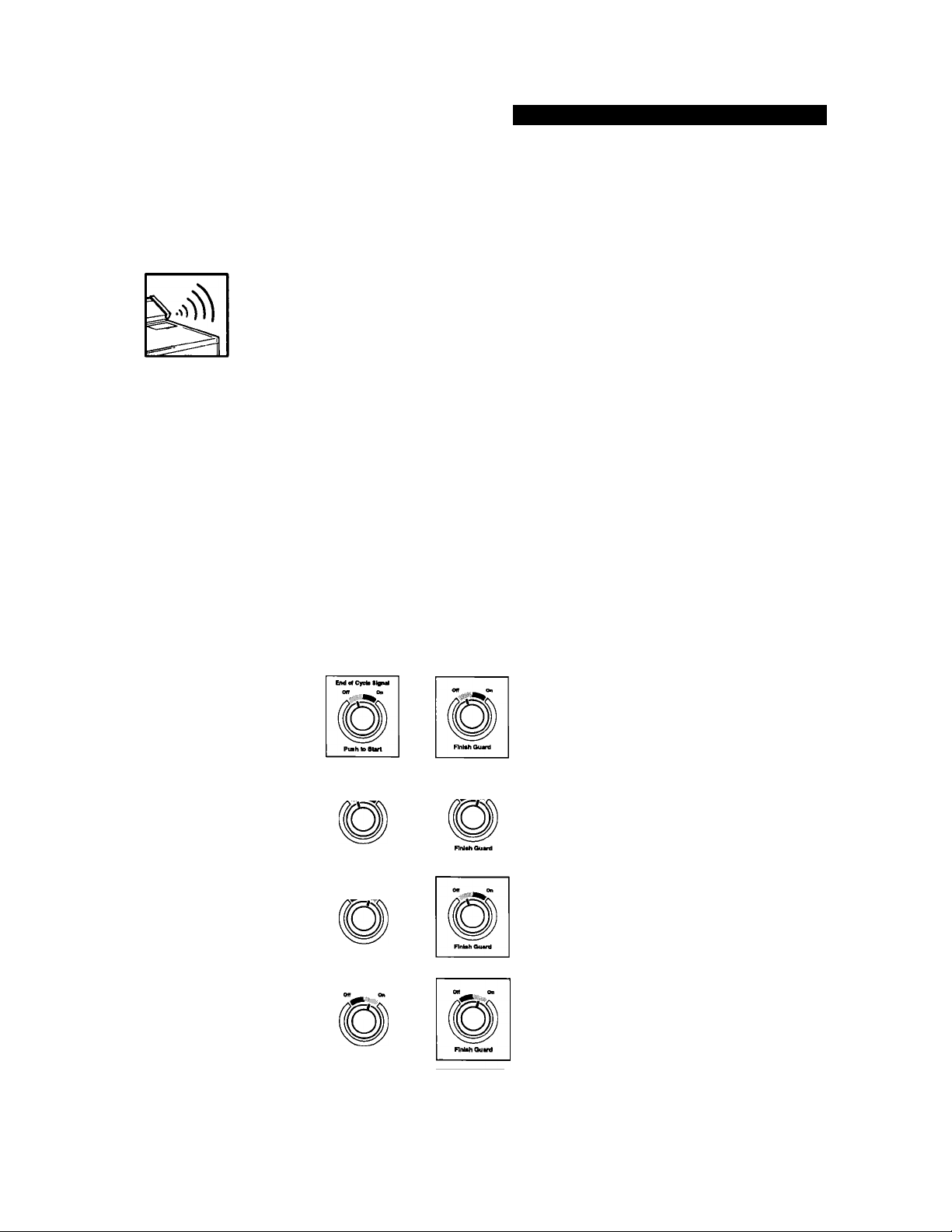

Using End of Cycle signal and
FINISH GUARD® feature
(on some models)
If your dryer has the end of cycle signal
and/or FINISH GUARD feature, they may be
turned On or Off as shown below.
NOTE: Unless you turn Off the FINISH
GUARD feature, it operates at the end of
the cycle.
Your model may have one of the following:
• Separate knob selectors for end of cycle
signal and FINISH GUARD feature.
• CLEAN TOUCH™ pushbutton pad for
both features.
OPERATING YOUR DRYER
SETTING
End of Cycle
Signal
OFF
Finish Guard
OFF
End of Cycle
Signal
OFF
Finish Guard
ON
End of Cycle
Signal
ON
Finish Guard
OFF
End of Cycle
Signal
ON
Finish Guard
ON
SEPARATE
EndgtCyctoSIgntf
End o( Cy«l» Stgnai
EndofCycIi Sl^wl
Push to Start
KNOBS
OR
CLEAN TOUCH
SELECTOR
1=1 s o
□ □□□
Finish Guard Cycle Signal
□ □□□
Finish Guard Cycle Signal
□ □□□
Finish Guard Cycle Signal
□ □□□
Finish Guard Cycle Signal
11
Page 12
OPERATING YOUR DRYER

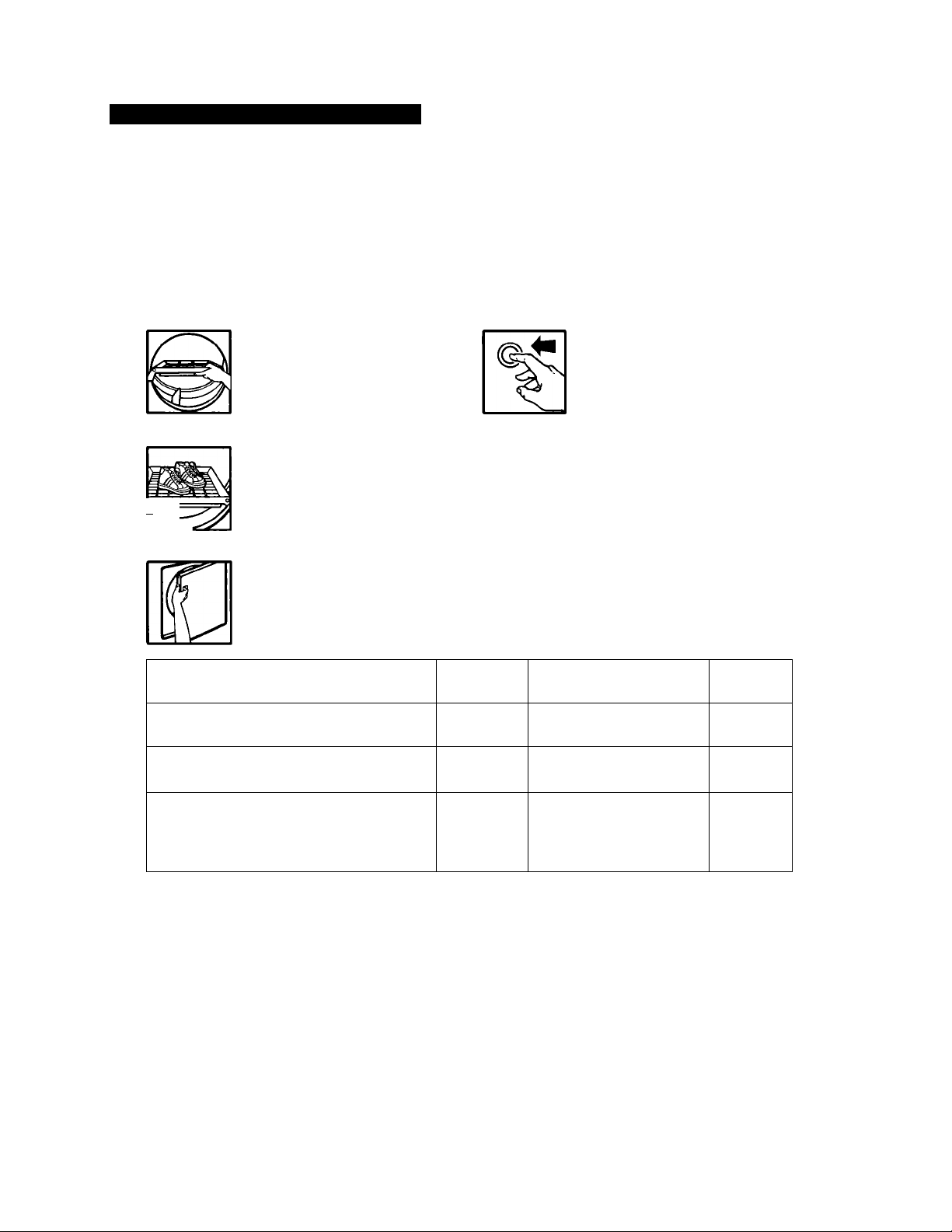

Using the drying rack
(on some models)
The drying rack lets you dry items that you
may not want to tumble. The rack does not
move, but the drum turns.
1. Fit rear legs of the rack into indentations in
the back wall of the dryer.
Lower the front so the legs
rest on the dryer opening.
4. Select the Timed drying cycle (and
temperature, if needed) or the Fluff Air
cycle (see page 7).
5. Push the Start Button.
2. Put wet items on top of the rack. Leave
space between the items so air
can reach all surfaces.
NOTE: Make sure nothing
^ = hangs over the edge of the rack.
3. Close the door.
RACK DRY
Wool sweaters
(Block to shape and lay flat on the rack)
Stuffed toys or pillows
(Cotton or polyester fiber filled)
Stuffed toys or pillows
(Foam rubber filled)
Sneakers or canvas shoes
NOTES:
• See the chart below for suggested cycles
and settings for the different types of items
that might best be rack dried.
• The rack must be removed for normal
tumbling.
• Drying time will depend on how much
moisture the items hold. The following
chart suggests drying times.
CYCLE
Timed LOW or EX LOW
Timed LOW or EX LOW
Fluff Air
TEMPERATURE
None; cycle is unheated.
TIME*
(minutes)
60
60
90
30-40
‘Reset cycle as needed to complete drying.
12
Page 13
Caring for Your Dryer
Proper care of your dryer can extend its life. This section explains how to care for your dryer
properly and safely.

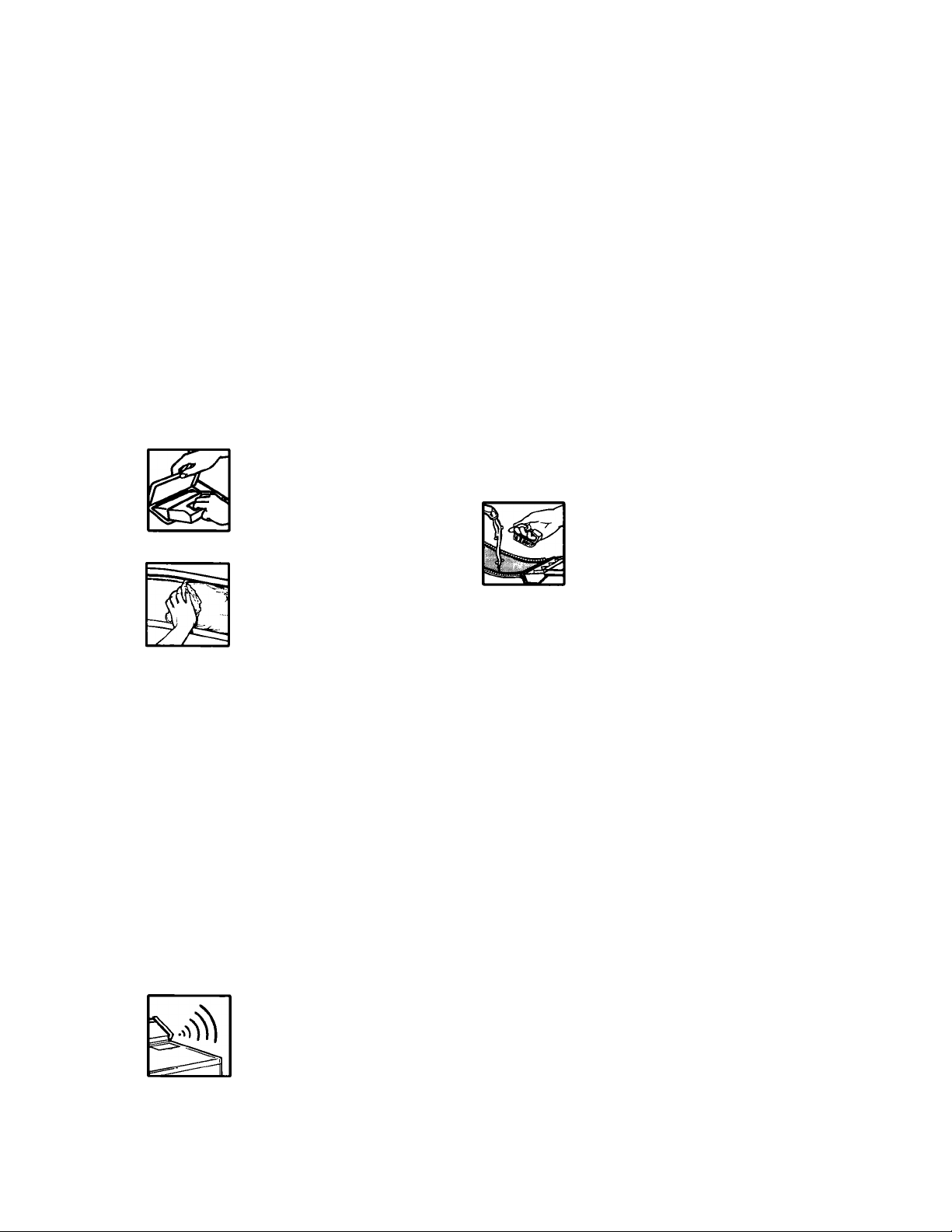

Cleaning the lint screen
Every load cleaning
The lint screen is located under a lid on top
of the dryer. Clean it before each load. A
screen blocked by lint can increase drying
time.
To clean:
1. Open the lid and pull the lint screen
straight out.
2. Roll lint off the screen with your fingers. Do
not rinse or wash screen to
remove lint. Wet lint is hard to
remove.
3. Push the lint screen firmly back into place
and close the lid.
IMPORTANT:
• Do not run the dryer with the lint screen
loose, damaged, blocked, or missing.
Doing so can cause overheating and
damage to both the dryer and fabrics.
• Some towels made of synthetic fibers and
natural fibers (polyester and cotton blends)
may shed more lint than other towels,
causing your dryer’s lint screen to fill up
faster. Be sure to remove lint from the lint
screen before and after drying new towels.
As needed cleaning
Laundry detergents and fabric softeners can
cause a residue buildup on the lint screen.
Clean the lint screen with a nylon brush
every six months or more frequently if it
becomes clogged due to a residue buildup.
Use the following method:
1. Wet both sides of lint screen with hot
water.
2. Wet a nylon brush with hot water and
liquid detergent: scrub lint
screen with the brush to
remove residue buildup.
3. Rinse screen with hot water.
4. Thoroughly dry lint screen with a clean
towel; replace in dryer.
Lint signal
(on some models)
The lint signal (a whistle tone) indicates
excessive lint is present on
your lint screen. A full lint
screen restricts airflow and
reduces drying efficiency.
When you hear the signal, stop
the dryer and clean the lint screen.
NOTE: Clean your lint screen before each
load. Do not wait for the lint signal.
13
Page 14
CARING FOR YOUR DRYER
Cleaning the dryer interior
Garments which contain unstable dyes,
such as denim blue jeans or brightly colored
cotton items, may discolor the dryer interior.
To clean dryer drum:
1. Make a paste with detergent and very
warm water.
2. Apply paste to a soft cloth and scrub area
until all excess dye is removed.
3. Wipe thoroughly with a damp cloth.
4. Tumble a load of rags to dry.
Changing the drum light
(on some models)
^WARNING
Explosion Hazard
•Turn off the electrical power before
cleaning the dryer interior.
• Make sure the dryer is cool.
• Use nonflammable cleaner.
Failure to do so could result in electri
cal shock or injury, fire, or explosion.
The dryer light automatically turns on inside
the dryer drum when you open the door.
To change drum light:
1. Unplug the dryer or disconnect the
electricity leading to the dryer at the main
power supply.
2. Open the dryer door. Remove the light
bulb cover from the back wall
of the dryer by turning the
cover clockwise.
3. Remove the light bulb by turning it
counterclockwise.
4. Replace the bulb with a 40-watt appliance
bulb only.
5. Replace the light bulb cover and lock in
place by turning counterclock
wise.
6. Reconnect power supply.
AWARNING
Electrical Shock and Fire Hazard
• Before removing light bulb, either
unplug the dryer or disconnect the
dryer at the main power supply.
•The bulb cover must be in place
during dryer operation to prevent
overheating and possible damage
to fabrics.
Operating the dryer with the bulb cover
removed can cause the dryer to fail or
create a fire hazard.
14
Page 15
Removing accumulated lint
Lint can gather inside the dryer and be a fuel
for fire. Lint should be removed every 2 to 3
years, or more often, depending on dryer
usage. Cleaning should be done by a
qualified person. If you have any questions
or comments, please call our Consumer
Assistance Center at 1 -800-253-1301.
CARING FOR YOUR DRYER
^WARNING
Electrical Shock Hazard
• Unplug the power supply cord or turn
off the electrical power before remov
ing dryer panels.
• Make sure the dryer is cool.
• Dryer parts can have sharp edges.
Use care when handling.
• When replacing front panel after lint
removal, the wire clips holding the
door switch wires must be anchored
to top of front and side panels. Wires
MUST NOT touch rotating drum. (See
page 16, Step 7.)
Failure to do so could result in
electrical shock or personal injury.
For all electric dryers, or gas dryers
which have a lower front access panel
NOTE: See page 16 if your dryer is gas and
has a full front panel.
1. Unplug the power supply cord or turn off
the electrical power.
2. Remove back panel (electric) or lower
. front access panel (gas). See the Installa
tion Instructions.
3. Remove lint from shaded area in illustra
tion with a soft brush or vacuum cleaner.
Avoid damaging wires, thermostats
(electric), funnel (gas), or ignitor (gas).
4. Replace panel.
5. Reconnect and level dryer again, if
necessary.

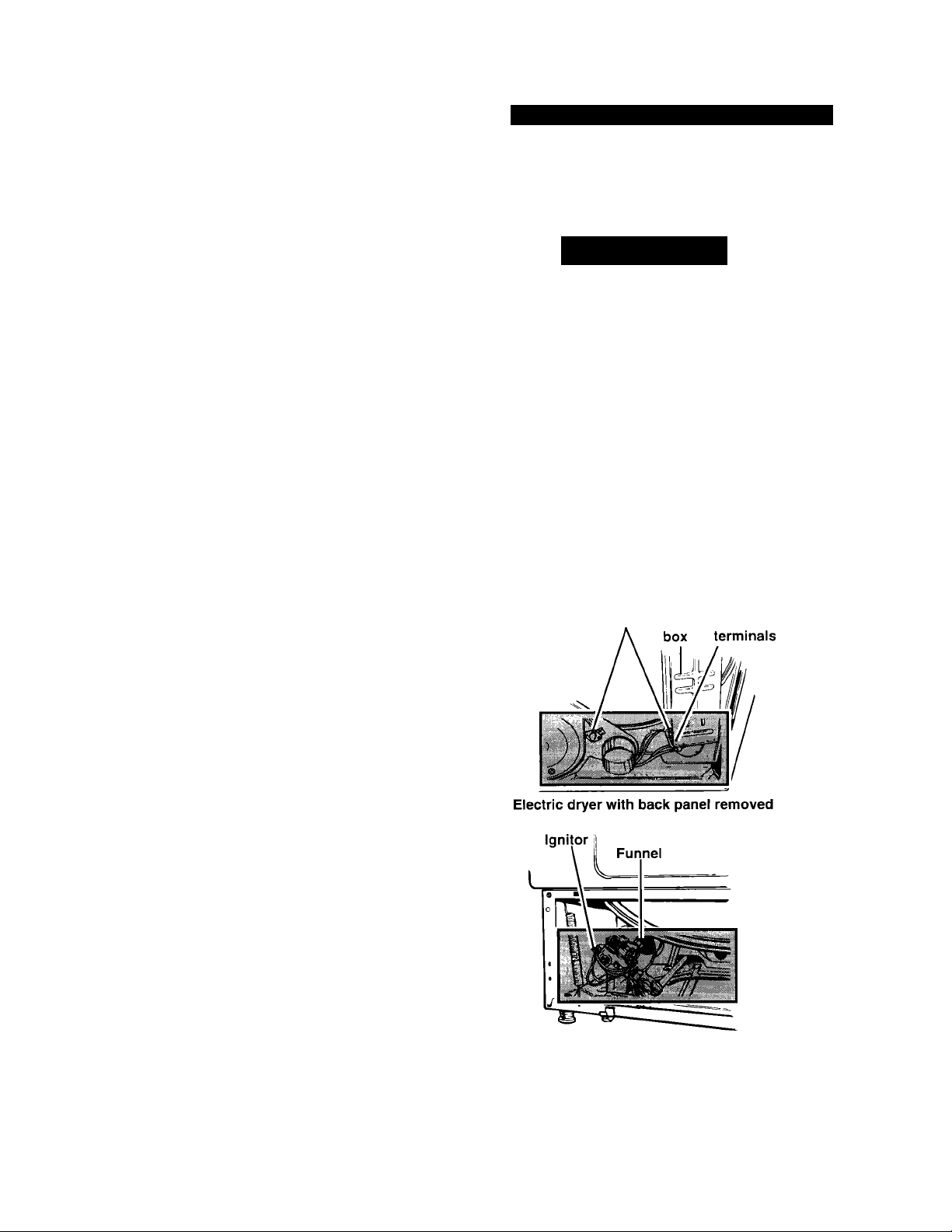

Thermostats Heater Heat element
Gas dryer with lower front
access panel removed
15
Page 16
CARING FOR YOUR DRYER

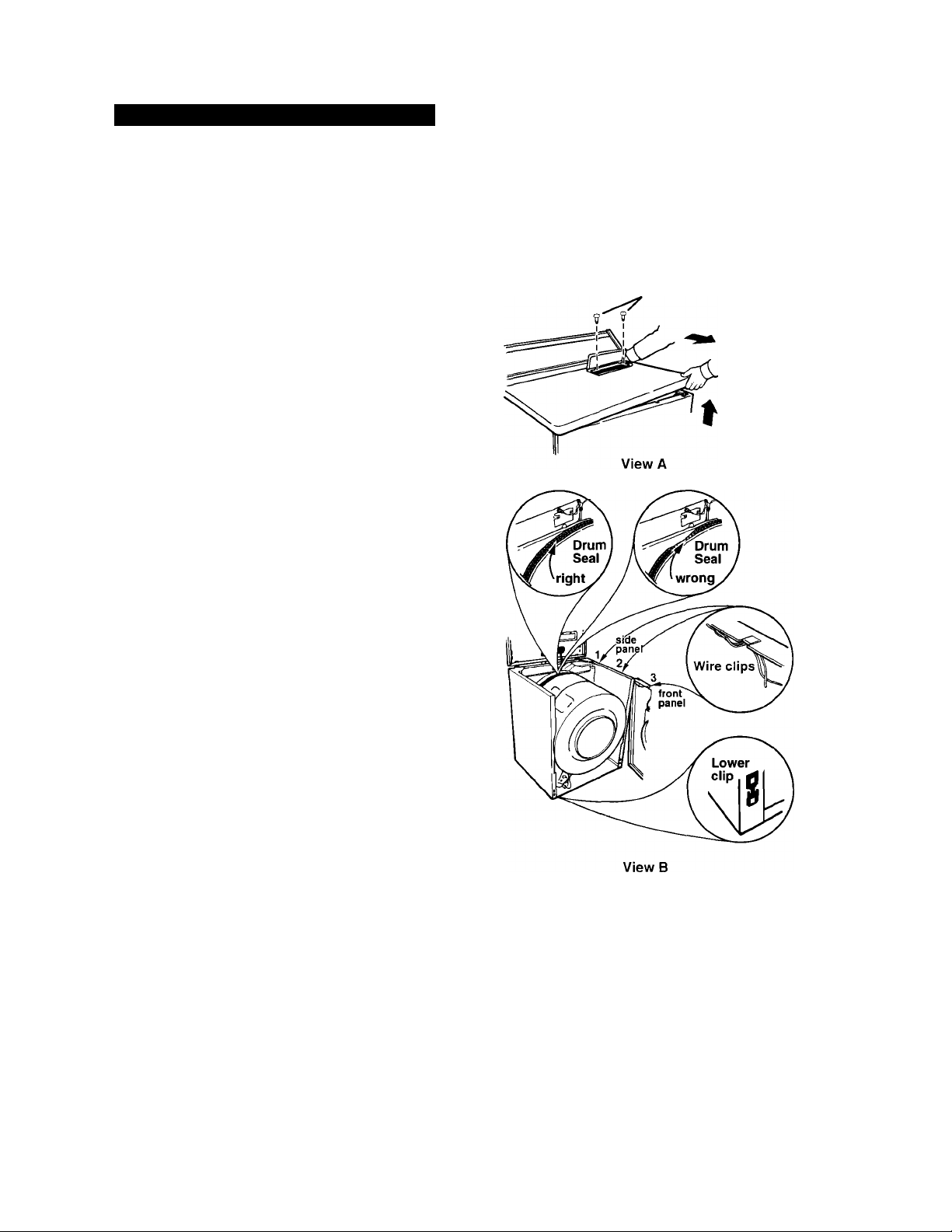

If your dryer is gas and has a full front
panel, remove front panel as follows:
1. Unplug the power supply cord or turn off
the electrical power.
2. Open lint screen lid. Remove two screws
from lint screen area.
3. Open top by pulling forward and up at
each front corner (see View A). Rest
raised top against wall behind dryer (top
is hinged at rear).
4. Remove two internal screws from front
panel flanges (near top front corners). Lift
front panel slightly, lifting off lower clips
(see lower clip inset of View B). Slowly
pull front panel forward, disengaging
panel from drum. (Drum will drop slightly.)
5. Move front panel aside and rest edge
against side of dryer. Avoid disconnecting
wire clips (see wire clips inset of View B)
or damaging wires.
6. Remove lint from area shown in “gas
dryer” illustration on page 15 with soft
brush or vacuum cleaner. Avoid damag
ing wires, funnel, or ignitor.
7. Reassemble in reverse order. Before
closing the top, check the following:
-Drum seal must be flared out (see
drum seal insets of View B) and prop
erly positioned against panel at back of
drum. Rotate drum counterclockwise
one full turn to check drum seal.
-Belt should be centered and tight on
dryer drum.
-Wire clips which hold the door switch
wires must be anchored in slot in top
of front panel (see wire clips inset of
View B) and along top edge of side
panel. Door wires must not touch drum
when dryer is operating. See Warning,
page 15.
8. Replace top panel and lint screen screws.
Top and front panels must be securely in
place before operating dryer.
9. Reconnect power and level dryer again
(if necessary).
Remove screws
before opening top
For more information, call our
Consumer Assistance Center
24 hours a day.
1-800-253-1301
16
Page 17
Laundry Tips
This section provides information on preparing clothes for drying, drying guidelines, and
instructions for drying special-care items.
NOTES:
• Refer to your Washer Use and Care Guide for proper washing techniques and additional
laundry tips.
• See pages 3 and 4 of this book for Important Safety Information.
Sorting clothes
' Separate dark from light colors; colorfast
from non-colorfast. Items
properly sorted for washing are
usually properly sorted for
drying.
’ Separate heavy fabrics (denim, towels)
from light fabrics (synthetics, permanent
press).
Choosing load sizes
' Separate lint givers (towels, chenille) from
lint takers (corduroy, synthetics, perma
nent press). When possible, turn lint takers
inside out.
• Mix large items with smaller items. Load
the dryer by the amount of
space items take up, not by
their weight. Do not overload
the dryer. Overcrowding
causes uneven drying and
wrinkling, and can cause items to wear out
faster (because of pilling).
' You may need to rearrange large items
(sheets, blankets, tablecloths) during a
cycle to reduce balling or rolling up.
Drying tips
• Close zippers, snaps, and hooks to avoid
snagging other items. Remove
heat-sensitive trim that can be
damaged by drying. Tie strings
and sashes so they will not
tangle.
• Check garments to make sure all spots
and stains were removed during the wash.
Do not tumble dry soiled or stained items.
Heat may permanently set stains.
' For better tumbling action, when drying
only a few small items, add one or two
lint-free towels. This also prevents small,
lightweight items from blocking airflow.
Sharp or metal objects can damage your
dryer. Check pockets for pins,
clips, money, bolts, nuts, etc.
Do not lay these objects on
your dryer after emptying
pockets. Turn pockets of
heavy items inside out for even drying.
• Place small items such as baby socks or
hankies in a mesh bag for easier removal.
• Articles to be ironed should be removed
from the dryer while still damp.
17
Page 18
LAUNDRY TIPS
Using dryer fabric softeners
Dryer fabric softeners are recommended for • Remove fabric softener stains by wetting
reducing static cling and for softening the stains and rubbing them with liquid
fabrics. Always follow package instructions detergent or bar soap and rewash,
carefully. • some fabric softeners can clog the lint
• Put one fabric softener sheet on top of the screen and slow drying. Use fabric softenload before starting the
dryer. Do not add a fabric
softener sheet after the drying
cycle has started. Instant heat
can cause the fabric softener
to spot fabrics.
ers labeled as dryer safe.
Saving energy
• Use an Automatic cycle to dry most loads.
• Dry only full loads without overdrying.
• Avoid overloading dryer, adding wet items
to a partly dried load, or opening the door
unnecessarily.
• Plan your laundry to dry one load after
another. A warm dryer shortens drying
time.
• Shorten drying times by exhausting dryer
properly and cleaning exhaust duct and
outside exhaust hood as needed.
-Keep the lint screen clean.
-Use your dryer in a room where room air
temperature is above 45°F (7°C).
-Sort loads by fabric weight and type.
Vacation care
1. Unplug power supply cord or turn off
electrical power supply.
2. Clean lint screen.
18
Page 19
LAUNDRY TIPS
Drying special-care items
Most garments and household textiles have manufacturer’s care labels with laundering
instructions. Always follow care label directions when they are available. Pages 9 and 10
include drying instructions for most types of washables. The chart below provides drying
instructions for special-care washables.
ITEMS
Blankets and
woolens when wet and allow to air dry. Line dry blankets in the shade on a
• Cotton, rayon,
synthetic blankets
• Electric blankets. If manufacturer recommends machine drying:
electric sheets.
woolen blankets.
washable woolen
garments
Curtains,
slipcovers
• Draperies,
slipcovers
DRYING INSTRUCTIONS
Machine drying knitted woolens is not recommended. Block to shape
breezy day over two lines. Pin edges together and straighten them.
When partly dry, turn the blanket over, re-pin, and re-straighten.
When dry, brush nap.
Dry as recommended for permanenf press fabrics on page 9.
1. Place one or two dry towels in the dryer and preheat 3-5 minutes
on a high setting. This will dry blankets faster and help avoid
pilling.
2. Put blanket in dryer with warm towels. Set control for 20 minutes.
3. Check after 10 minutes. Remove when still damp. Overdrying and
long tumbling can cause shrinking and pilling.
4. Place blanket on flat surface, or over two lines to finish drying.
Gently stretch to original size and shape.
5. When completely dry, brush gently to raise nap. Press binding
with cool iron if needed.
Remove drapery weights and hooks before laundering.
For slipcovers, replace while still slightly damp. They will dry to fit
tightly.
Dry only a few minutes.
1. Leave room in dryer for load to fluff.
2. Remove from dryer while slightly damp. Do not overdry.
Diapers, baby
clothes
Elastic items Remove from dryer while still slightly damp.
Flame-retardant
finishes
Wash and dry small items in a mesh bag or pillowcase for
convenient handling.
Remove diapers and cotton knit items while still slightly damp. They
will feel softer, shrink less, and be easier to fold.
Some items have been treated with a flame-retardant finish to
improve their resistance to burning. Such items are clearly labeled.
To retain flame-retardant qualities through continuous use and
washing, clean and dry according to the manufacturer’s instructions.
continued on next page
19
Page 20
LAUNDRY TIPS
ITEMS
Napped items
• Corduroy,
velveteen
Quilted, downfilled items
Snowsuits,
jackets
• Nylon or
polyester
Tinted, dyed, or
noncolorfast
items
Washable knits
DRYING INSTRUCTIONS
Dry separately or with similar colors to avoid lint transfer. Follow care
label instructions.
1. Remove from dryer while there is still a trace of moisture.
2. Smooth, reshape, and air dry before putting away.
Follow care label instructions.
1. Dry one at a time.
2. Remove from dryer and shake or fluff the item during the drying
cycle.
3. Smooth and reshape before putting away.
Check label for fiber content, then follow care label instructions.
1. Dry garment for about 10 minutes. Remove and turn inside out.
Dry for 10 more minutes.
2. Remove from dryer immediately and hang on a non-rusting hanger
to finish drying. This will help eliminate wrinkies.
Dry according to fabric, weight, and care label instructions. Wipe the
dryer drum carefully to remove any dye or lint that can be transferred
to other loads. See “Cleaning the dryer interior” on page 14.
Do not overdry knits. Overdrying can cause shrinking and static cling.
1. Select cycle according to fabric and construction.
2. Turn synthetics and blends inside out when drying to avoid pilling.
3. Remove cotton and rayon knits while still slightly damp. Stretch into
shape and lay flat to finish drying.
20
Page 21
Troubleshooting
Most laundering problems are easily solved if you understand the cause. Check the following
list for laundry problems you may have and their possible causes. Also refer to the next page
for a dryer checklist which can help you solve some simple problems without calling for
service. If you still need help, see “Requesting Assistance or Service” on page 23.
Common laundry problems
PROBLEM CAUSE
Greasy spots
Lint
Shrinking • Overdrying.
Slow drying
• Dryer fabric softener improperly used. See manufacturer’s directions.
• Drying soiled items.
• Full lint screen. (See page 13.)
• Load not properly sorted.
• Overdrying, especially synthetic fabrics that cause lint-attracting
static electricity.
• Load size too big or heavy.
• Tissue or paper left in pockets.
• Pilling (surface fuzz caused by normal wear and laundering)
attracts lint.
• Fabric type and quality inappropriate for drying.
• Dryer settings incorrect for fabric type.
• Manufacturer’s care label instructions not followed.
• Full lint screen.
• Load too large and bulky to dry quickly.
• Dryer located in room with temperature below 45°F (7°C).
Stains
Static
electricity
Wrinkling
• Exhaust duct clogged, restricted, or too long.
• Drying soiled items.
• Dryer fabric softener improperly used. See manufacturer’s directions.
• Dryer interior stained. (See page 14 for cleaning procedures.)
• Overdrying.
• Dryer fabric softener improperly used. See manufacturer’s directions.
• Load includes synthetics, synthetic blends, permanent press, and knit
fabrics that build up static electricity.
• Overloading.
• Overdrying, especially permanent press, and synthetic fabrics.
• Clothes left in dryer at end of cycle.
21
Page 22
TROUBLESHOOTING
Common dryer problems

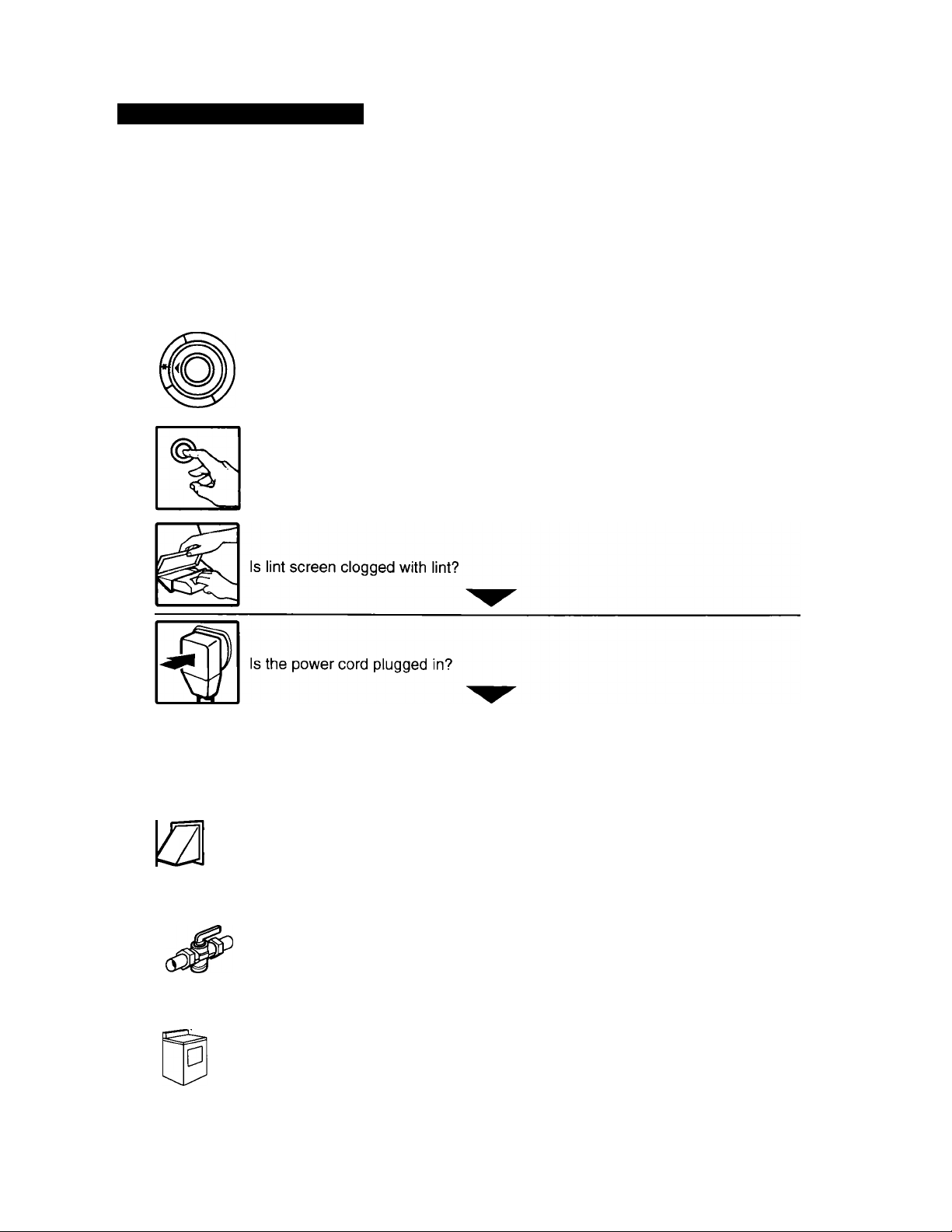

Before calling for service, check these:
Is the dryer door firmly closed?
Are the controls set in an ON position?
Did you firmly push the Start Button?
Have you blown a fuse or tripped the circuit breaker?
Is exhaust duct or outside exhaust hood clogged with lint?
For gas dryers, are the valves open on the dryer and the supply line?
Is the dryer making noise? Is there a thumping sound from support rollers
indicating dryer has not been used for awhile? Is the lint signal sounding?
If you still have problems, see “Requesting Assistance or Service” on page 23.
22
Page 23
Requesting Assistance or Service
Before calling for assistance or service, please check “Troubleshooting” on pages 21-22. It
may save you the cost of a service call. If you still need help, follow the instructions below.
1. If you need assistance* ...
Call the Whirlpool Consumer Assistance
Center telephone number.
w —y Dial toll-free from anywhere
J in the U.S.A.:
1-800-253-1301
and talk with one of our trained
consultants. The consultant can instruct you
in how to obtain satisfactory operation from
your appliance or, if service is necessary,
recommend a qualified service company in
your area.
If you prefer, write to:
Mr. William Clark
Consumer Assistance Representative
Whirlpool Corporation
2000 North M-63
Benton Harbor, Ml 49022-2692
Please include a daytime phone number in
your correspondence.
2. If you need service* ...
Whirlpool has a nationwide network of
^ authorized Whirlpool service
/
--------¿SERVjCrN technicians are trained to fulfill
^ the product warranty and
anywhere in the United States. To locate the
authorized Whirlpool service company in
your area, call our Consumer Assistance
Center telephone number (see Step 1) or
look in your telephone directory Yellow
Pages under:
X companies. Whirlpool service
provide after-warranty service.
3. If you need FSP®
replacement parts ...
FSP is a registered trademark of Whirlpool
Corporation for quality parts. Look for this
symbol of quality whenever you need a
replacement part for your Whirlpool®
appliance. FSP replacement parts will fit
right and work right, because they are made
to the same exacting specifications used to
build every new Whirlpool appliance.
To locate FSP replacement parts in your
area, refer to Step 2 or call the Whirlpool
Consumer Assistance Center number in
Step 1.
4. If you are not satisfied
with how the problem
was solved ...
• Contact the Major Appliance Consumer
Action Program (MACAP). MACAP is a
group of independent consumer experts
that voices consumer views at the highest
levels of the major appliance industry.
• Contact MACAP only when the dealer,
authorized servicer, and Whirlpool have
failed to resolve your problem.
Major Appliance Consumer Action Program
20 North Wacker Drive
Chicago, IL 60606
• MACAP will in turn inform us of your
action.
•APPUANCE-HOUSEHOLD-
MAJOR, SERVICE & REPAIR
- See: Whirlpool Appliances or
Authorized Whirlpool Service
{Example: XYZ Service Co.)
*When asking for help or service:
Please provide a detailed description of the problem, your appliance’s complete model
and serial numbers, and the purchase date. (See page 2.) This information will help us
respond properly to your request.
• WASHING MACHINES &
DRYERS, SERVICE & REPAIR
- See: Whirlpool Appliances or
Authorized Whirlpool Service
{Example: XYZ Service Co.)
23
Page 24
Index
This index is alphabetical. Look for the word or phrase you want, and then look for the
page number.
TOPIC
PAGE TOPIC
PAGE
AIR DRYING
AUTOMATIC cycles.......................................7
CARE/CLEANING
Dryer interior.............................................14
Lint screen ...............................................13
Vacation....................................................18
CHOOSING LOAD SIZES
CYCLES......................................................7-8
DAMP DRY cycle...........................................8
DRUM LIGHT, Changing
DRYER
Fabric softeners........................................18
Features
Restarting
Safety
Starting
Stopping
DRYING
Cycles chart................................................9
Rack
Special-care items
Tips
END OF CYCLE signal
ENERGY
Preferred setting......................................6-7
Saving.......................................................18
FINISH GUARD®
Feature
Selector
................................................
...........................
.............................
.....................................................
...................................................
......................................................
.......................................................
.....................................................
.........................................................
....................................
...........................................................
...............................
.......................................................
....................................................
10
17
14
3-4
12
19
17
11
11
FLUFF AIR cycle
HEAVY DRY cycle
LINE DRYING..............................................10
LINT
Accumulated.............................................15
Removal
Signal........................................................13
LOAD
Size...........................................................17
Sorting
......................................................
RACK DRY
Feature
5
6
6
6
8
Using
SAFETY......................................................3-4
SELECTING CYCLE/SETTING.....................7
SERVICE
SORTING LOAD..........................................17
START BUTTON
TEMPERATURE SELECTOR....................6, 9
TIMED cycles
TOWELS feature............................................8
TROUBLESHOOTING
Dryer problems.........................................22
Laundry problems
TUMBLE PRESS® cycle
WARRANTY.................................................28
.......................................................
........................................................
...........................................
.........................................
...................................................
....................................................
...........................................
.................................................
....................................
...............................
7
8
13
17
8
12
23
6
7
21
8
Page 25
WHIRLPOOL
Dryer Warranty
LENGTH OF WARRANTY
FULL ONE-YEAR WARRANTY
From Date of Purchase
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to;
1. Correct the installation of your dryer.
2. Instruct you how to use your dryer.
3. Replace house fuses or correct house wiring or plumbing.
4. Replace light bulbs.
B. Repairs when your dryer is used in other than normal, single-family household use.
C. Pickup and delivery. Your dryer is designed to be repaired in the home.
D. Damage to your dryer caused by accident, misuse, fire, flood, acts of God, or use of
products not approved by Whirlpool.
E. Repairs to parts or systems caused by unauthorized modifications made to the
appliance.
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so this exclusion or limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
WHIRLPOOL WILL PAY FOR
FSP® replacement parts and repair labor to correct
defects in materials or workmanship. Service must be
provided by an authorized Whirlpool service company.
Outside the United States, a different warranty may also apply. For details, please
contact your authorized Whirlpooi distributor or military exchange.
If you need service, first see the “Requesting Assistance or Service” section of this book.
After checking “Requesting Assistance or Service,” additional help is available by calling our
Consumer Assistance Center telephone number, 1-800-253-1301, from anywhere in
the U.S.A.
©
Prinled on recycled paper -
10% post-consumer waste
50% recovered materials
PART NO. 3401092 (D-Line)
) 1995 Whirlpool Corporation
& Registered Trademark/TM Trademark of Whirlpool, U.S.A.
Printed in U.S.A.
Loading...
