Use And Care

GUIDE

A Note to You ......................... 2

Washer Safety ........................ 3

Parts and Features ................ 4

Operating Your Washer......... 5

Starting your washer .......... 5

Stopping/restarting

your washer........................ 7

Selecting a cycle

and time.............................. 8

Using rinse and spin........... 9

Using drain and spin........... 9

Understanding normal

washer sounds ................... 9

Understanding what

happens in each cycle...... 10

MAGIC CLEAN® lint filter ... 11 Adding liquid

chlorine bleach ................. 11

Adding liquid

fabric softener................... 11

Caring for Your Washer ...... 12

Laundry Tips ........................ 13

Removing Stains.................. 17

Troubleshooting................... 20

Requesting Assistance

or Service ............................. 22

Warranty ............................... 24

PART NO. 3363573

1-800-253-1301

Call us with questions or comments.

ONE SPEED AUTOMATIC WASHERS

Page 2

A Note to You

Thank you for buying a WHIRLPOOL® appliance.

Because your life is getting busier and more complicated, WHIRLPOOL washers are easy to use, save time, and help you manage your home better. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care Guide. It contains valuable information about how to operate and maintain your washer properly and safely. Please read it carefully.

Also, please complete and mail in the Ownership Registration Card provided with your appliance. The card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service on your appliance, you need to know your complete model number and serial number. You can find this information on the model and serial number plate (see diagram on page 4 for location of plate).

Please also record the purchase date of your appliance and your dealer’s name, address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

Model Number _________________________ Serial Number _________________________ Purchase Date _________________________ Dealer Name __________________________ Dealer Address ________________________ Dealer Phone __________________________

Our Consumer Assistance Center number is toll-free.

1-800-253-1301

Page 3

Washer Safety

Your safety is important to us.

This guide contains safety statements under warning symbols. Please pay special attention to these symbols and follow any instructions given. Here is a brief explanation of the symbol.

IMPORTANT SAFETY INSTRUCTIONS

This symbol alerts you to hazards such as fire, electrical shock, or other injuries.

WARNING – To reduce the risk of fire, electric shock, or injury to

persons when using the washer, follow basic precautions, including the following:

•Read all instructions before using

the washer.

•Do not wash articles that have

been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable, or explosive substances as they give off vapors that could ignite or explode.

•Do not add gasoline, dry-cleaning

solvents, or other flammable, or explosive substances to the wash water. These substances give off vapors that could ignite or explode.

•Under certain conditions, hydro-

gen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using a washing machine, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

•Do not allow children to play on

or in the washer. Close supervision of children is necessary when the washer is used near children.

•Before the washer is removed

from service or discarded, remove the door.

•Do not reach into the washer if

the tub or agitator is moving.

•Do not install or store the washer

where it will be exposed to the weather.

•Do not tamper with controls.

•Do not repair or replace any part

of the washer or attempt any servicing unless specifically recommended in this Use and Care Guide or in published user-repair instructions that you understand and have the skills to carry out.

•See Installation Instructions for

grounding requirements.

– SAVE THESE INSTRUCTIONS –

Page 4

Parts and Features

The parts and features of your washer are illustrated on this page. Become familiar with all parts and features before using your washer.

NOTES:

• The drawings in this book may vary from your washer model. They are designed to

show the different features of all models covered by this book. Your model may not include all features.

• Page references are included next to some features. Refer to those pages for more

information about the features.

Water temperature

Warm Cold

Temperature

Cold Cold

WashWash RinseRinse

Off

Extra Rinse

Except Hand WashablesExcept Hand Washables

selector

(p. 7)

Normal

Regular

7 Cycle - 1 Speed 7 Cycle - 1 Speed

Pre - Wash

Permanent

Normal

Press

Spin

Light

Off

Rinse

PausePause

Cool

Down

Heavy

Rinse

Spin

Pull StartPull Start

Push StopPush Stop

Soak

Short

Spin

Rinse

Soak

Cycle control knob

(pp. 7-9)

Load size selector

(p. 6)

Heavy Duty • Large Capacity Heavy Duty • Large Capacity

Large

Medium

Small

Load Size

Warm Warm

Hot Cold

Extra

Large

Model and serial

number plate

(under lid)

(p. 2)

Basket

Tub

Page 5

Operating Your Washer

To obtain the best washing results, you must operate your washer properly. This section gives you this important information. Page references are included for more information.

wWARNING

Explosion Hazard

Never place items in the washer that are dampened with gasoline or other flammable fluids.

Do not wash or dry items soiled with vegetable or cooking oils because they may contain some oil after laundering.

Doing so can result in death, explosion, or fire.

Starting your washer

1. Add measured detergent to the

washer. Then place a sorted load of clothes in the washer.

• Sort and load clothes as described on

pages 13 and 14.

• If desired, you may also add color safe

bleach to the wash load.

2. Close the washer lid.

wWARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Failure to follow these instructions

can result in death, fire, or electrical shock.

continued on next page

Page 6

OPERATING YOUR WASHER

3. Turn the Load Size Selector to the

setting that corresponds with the size of your wash load and the type of fabric being washed.

• Depending on your model, your

washer’s Load Size Selector has two, three, or four settings (see illustrations).

• To change the load size setting after

the washer has started to fill, turn the Selector to the desired new setting.

Small

Load Size

Large

Medium

Small Large

Small

Medium

Load Size

Large

Extra Large

Page 7

OPERATING YOUR WASHER

4. Select a wash-rinse temperature with

the Water Temperature Selector. Match the water temperatures with the type of fabric and soils being washed.

• See page 15 for water temperature

guidelines.

• Depending on your model, your

washer’s Water Temperature Selector has either three or four settings (see illustrations).

• The top temperature is the wash water

and the bottom temperature is the rinse water.

5. Push in the Cycle Control Knob and

turn it clockwise to the wash cycle you want. See pages 8 and 9.

6. Pull out Cycle Control Knob to start

the washer.

Hot

Cold

Temperature

Warm

Cold

Hot

Cold

Temperature

Warm

Cold

Wash Rinse

Cold Cold

Warm Warm

7. (OPTIONAL STEP) If desired, add mea-

sured liquid chlorine bleach after the washer starts agitating. See page 11.

8. (OPTIONAL STEP) If desired, add mea-

sured and diluted liquid fabric softener to the final rinse cycle. See page 11.

Stopping/restarting your washer

• To stop the washer at any time, push in

the Cycle Control Knob.

• To restart the washer, close the lid (if open)

and pull out the Cycle Control Knob.

Page 8

OPERATING YOUR WASHER

Selecting a cycle and time

This section illustrates and describes the wash cycles you can select with the Cycle Control Knob. Use this information to help you make the best cycle selections for your wash loads. Each cycle is designed for different types of fabrics and soil levels.

• The washer pauses briefly throughout each

cycle. These pauses are normal for washer operation.

• Refer to page 9 to learn more about the

sounds you may hear during a wash cycle.

• Refer to page 10 to help you understand

what happens during a wash cycle.

Normal Cycle

The Normal cycle features longer spins to

shorten drying time.

Spin

Off

Normal

Regular

Heavy

Rinse

Use this cycle for cleaning cotton and linen fabrics. Select 6 (Regular) or 12 (Heavy) minutes of wash time, depending on whether your load

is moderately or heavily soiled.

Permanent Press Cycle

The Permanent Press cycle features a

cool-down rinse and shorter spins to reduce wrinkling. Use this cycle for cleaning permanent press and some synthetic fabrics. Select 4 (Light) or 8

Regular

Pause

Light

Cool

Down

Permanent Press

Rinse

Spin

Off

(Regular) minutes of wash time, depending on whether your wash load is lightly or moderately soiled.

Short Cycle

The Short cycle features brief wash and

soak periods, followed

by shorter spins. Use

this 8-minute cycle to

Soak

Rinse

Spin

Off

Short

clean delicate items

and washable knits

that are lightly or

moderately soiled.

Soak Cycle

The Soak cycle features brief periods of agi-

tation and soak time to help remove heavy

Off

soils and stains that need pretreatment.

• Use warm water

Soak

when soaking laundry. Hot water can set stains. See

pages 17-19 for stain removal information.

•

Use the amount of detergent or presoak additive recommended by the manufacturer.

• After the Soak cycle ends, add detergent

and set a new wash cycle.

Pre-Wash Cycle

The 4-minute Pre-Wash cycle features a

brief period of agitation to help remove

Off

Soak

Pre-Wash

Pre-Wash cycle ends, add detergent and start a new wash cycle.

heavy soils and stains that need pretreatment. See pages 17-19 for stain removal information. Once the

Page 9

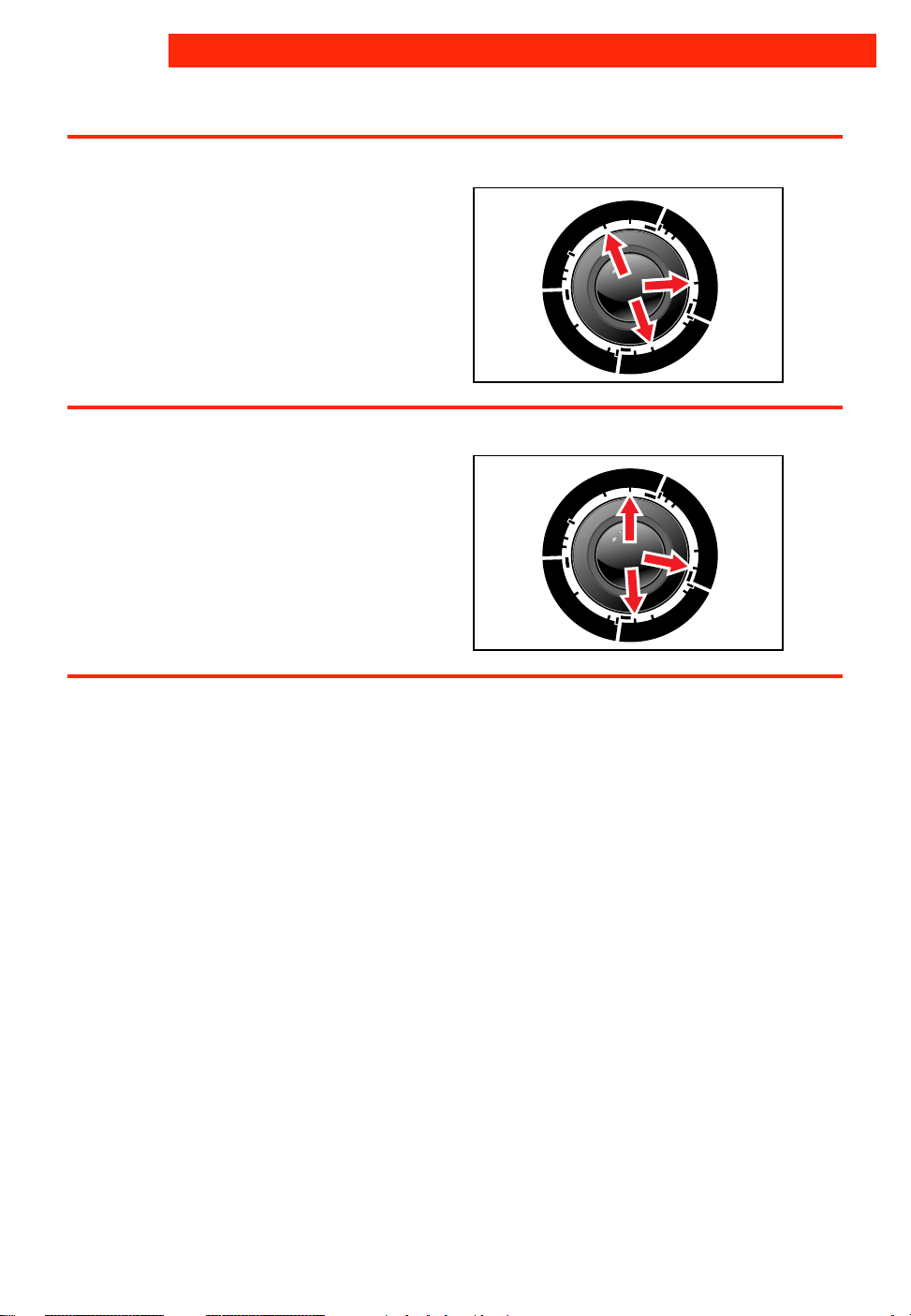

Using rinse and spin

When using extra detergent for heavily soiled clothes, or washing special-care items, you may find an extra rinse and spin is needed.

1. For an additional rinse, push in the Cycle

Control Knob and turn clockwise to Rinse, as illustrated.

2. Pull out the Cycle Control Knob. The

washer fills to selected load size, agitates, drains, and spins.

Using drain and spin

A drain and spin may help shorten drying times for some heavy fabrics or special-care items by removing excess water.

1. Push in the Cycle Control Knob and turn

clockwise to Spin, as illustrated.

2. Pull out the Cycle Control Knob. The

washer drains, then spins.

OPERATING YOUR WASHER

Regular

Normal

Regular

Heavy

Pre-Wash

Normal

Regular

Heavy

Pre-Wash

Off

Soak

Off

Soak

Spin

Off

Rinse

Spin

Off

Spin

Off

Rinse

Spin

Off

Soak

Regular

Soak

Pause

Light

Cool

Light

Cool

Down

Off

Down

Off

Rinse

Spin

Short

Rinse

Spin

Short

Permanent Press

Pull Start

Push Stop

Permanent Press

Pull Start

Push Stop

Understanding normal washer sounds

Your new washer may make sounds that your old one didn’t. Because the sounds are unfamiliar, you may be concerned about them. Don’t be; most of them are normal.

The following describes some of the sounds

you may hear and what causes them.

During washing

When you select a small load size setting for a small wash load, the water level in your washer is lower. With this lower water level, you may hear a clicking sound from the upper portion of the agitator.

During drain

The rate that water is drained from your washer depends on your installation. If water is drained quickly from the washer, you may hear air being pulled through the pump. This happens during the end of draining.

After drain and before spin

When the cycle changes from draining to spinning, you may hear gears engaging.

Page 10

OPERATING YOUR WASHER

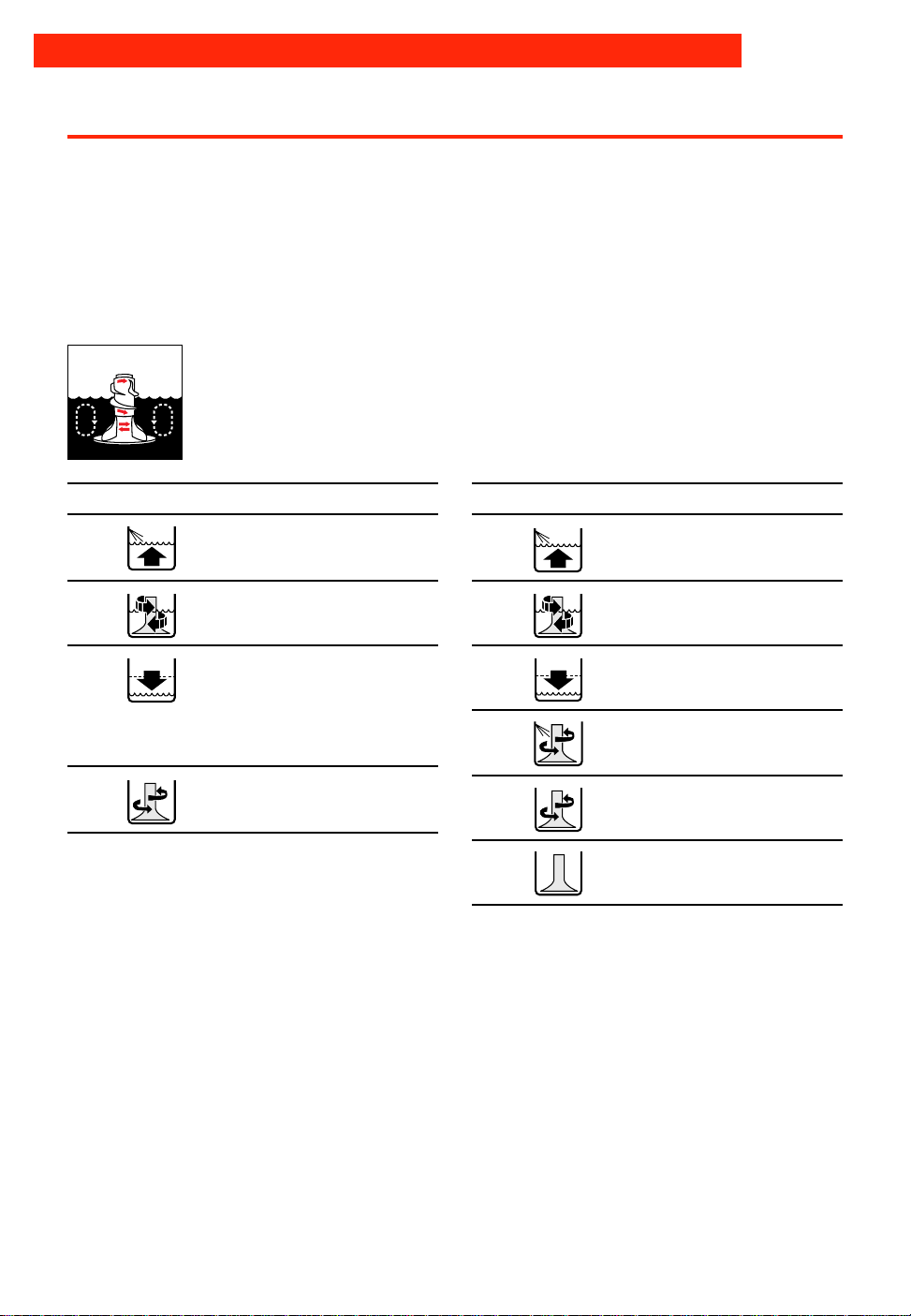

Understanding what happens in each cycle

When the Cycle Control Knob is set to a number and pulled out, the washer fills (to the selected load size) before agitation and timing start. The washer begins agitating immediately after filling; agitation occurs with the washer lid up or down.

During agitation, the agitator creates a

continuous rollover action that provides a thorough cleaning of the wash load.

After agitation starts, the Cycle Control Knob turns clockwise until it points to an OFF area and the cycle ends.

The washer pauses briefly throughout each cycle. These pauses are normal for washer operation.

WASH

Fill

▼

Wash selected time

▼

Drain*

No agitation

▼

*The Permanent Press cycle partially

drains, fills, agitates briefly, and drains.

Spin

▼

RINSE

Fill

▼

Rinse

▼

Drain-No agitation

▼

Spin-Spray rinse

▼

Spin

▼

Off

Page 11

OPERATING YOUR WASHER

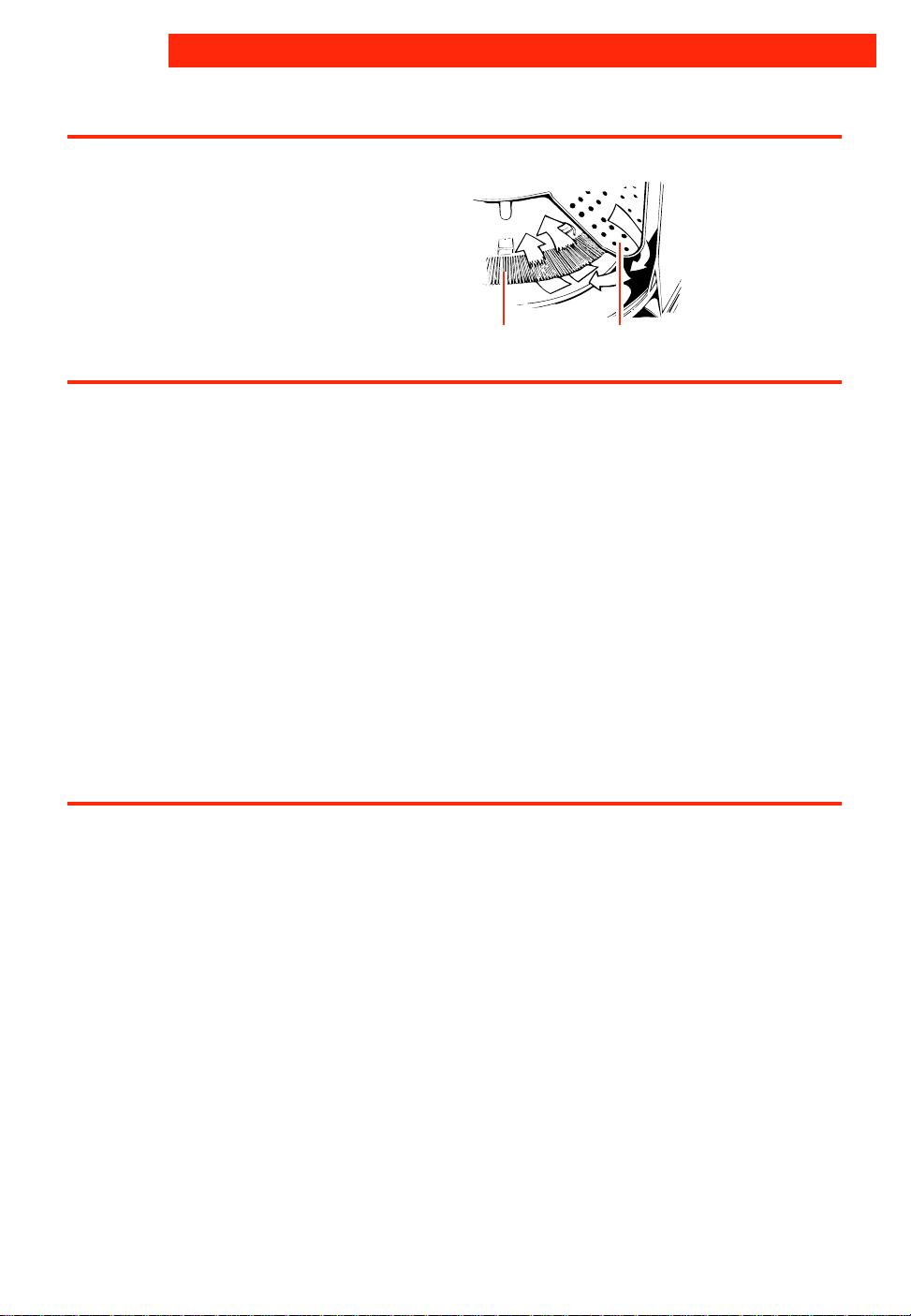

MAGIC CLEAN® lint filter

The lint filter at the bottom of the washer basket cleans itself. During agitation, wash and rinse water passes over the filter, separating the lint from the water. The lint is then spun away from the filter and out of the system during the spin part of the cycle.

If your washer drains into a tub, remove

any lint collected in the tub or strainer.

MAGIC CLEAN lint filter

Adding liquid chlorine bleach

Always measure liquid chlorine bleach. Do not guess. Never use more than 1 cup (250 mL) for a full load. Follow manufacturer’s directions for safe use. Use a cup with a pouring spout to avoid spilling.

1. Let the washer fill and begin agitating

the load.

2. Add bleach to wash cycle so it can be

removed in the rinse cycle. Pour bleach around agitator, not directly on load.

• Follow directions on care labels. Do not

use chlorine bleach on wool, silk, spandex, acetates, or some flameretardant fabrics.

• When soaking with chlorine bleach, add

detergent to soak water.

NOTE: Undiluted bleach will damage any

fabric it touches. The damage appears as rips, holes, tears, or color loss and may not show up until several washings later.

Basket interior

Adding liquid fabric softener

• Always dilute fabric softener with 1⁄2 to

1 cup (125 to 250 mL) warm water. Undiluted fabric softener can stain fabrics.

• Add diluted fabric softener only in the

final rinse.

• Fabric softener should not be mixed with

other laundry products because greasy stains may form. If stains form, remove them by wetting the stain and rubbing with liquid detergent or a bar of soap. Rewash the stained item.

• Too much fabric softener can make some

items (diapers and towels) nonabsorbent. If this happens, use less fabric softener or do not use it every time.

Page 12

Caring for Your Washer

Proper care of your washer can extend its life. This section explains how to care for your washer properly and safely.

Cleaning your washer

Exterior

Wipe up detergent, bleach, and other spills

with a soft, damp cloth or sponge as they occur. Occasionally wipe the outside of the washer to keep it looking like new.

Do not put sharp or metal objects in your

washer. They can damage the finish. Check all pockets for pins, clips, money, bolts, nuts, etc. Do not lay these objects on your washer after emptying pockets.

Winter storage or moving care

Install and store your washer where it will not freeze. Because some water may stay in the hoses, freezing can damage your washer. If storing or moving your washer during freezing weather, winterize it.

To winterize washer:

1. Shut off both water faucets.

2. Disconnect and drain water inlet hoses.

3. Put 1 quart (1L) of R.V.-type antifreeze in

the basket.

4. Run washer on a drain and spin setting

(see page 9) for about 30 seconds to mix the antifreeze and water.

5. Unplug the power supply cord.

Interior

Clean interior with 1 cup (250 mL) of chlorine bleach mixed with 2 cups (500 mL) of detergent. Run washer through a complete cycle using hot water. Repeat process if necessary.

NOTE: Remove hard water deposits using

only cleaners labeled as washer safe.

To use washer again:

1. Flush water pipes and hoses.

2. Reconnect water inlet hoses.

3. Turn on both water faucets.

4. Reconnect power supply cord.

5. Run the washer through a complete cycle

with 1 cup (250 mL) of detergent to clean out antifreeze.

Non-use or vacation care

Operate your washer only when you are at home. If you will be on vacation or not using your washer for an extended period of time, you should:

• Unplug the power supply cord or turn off

electrical power to the washer.

• Turn off the water supply to the washer.

This helps avoid accidental flooding (due to a water pressure surge) while you are away.

Page 13

Laundry Tips

This section reviews proper laundering techniques and gives you additional washing information.

Preparing clothes for washing

• Close zippers, snaps, and hooks to avoid

snagging other items. Remove pins, buckles, and other hard objects to avoid scratching the washer interior. Remove nonwashable trim and ornaments.

• Empty pockets and turn them inside out.

• Turn down cuffs, brush away lint and dirt.

• Turn synthetic knits inside out to avoid pilling.

Sorting

• Separate heavily soiled items from lightly

soiled ones, even if they would normally be washed together. Separate lint givers (towels, chenille) from lint takers

(corduroy, synthetics, permanent press). When possible, turn lint givers inside out.

• Tie strings and sashes so they will not

tangle.

• Mend tears, loose hems, and seams.

• Treat spots and stains. (See “Removing

Stains” on pages 17-19.)

• Stained or wet garments should be

washed promptly for best results.

• Separate dark colors from light colors,

colorfast items from noncolorfast items.

• Sort by fabric and construction (sturdy

cottons, knits, delicate items).

• Drop items into washer loosely. Fill to the

top of the basket (top row of

holes). Do not wrap items

around the agitator. Items

should move easily through

wash water for best cleaning and wrinkle-free results. Items should sink and reappear later.

• Load washer properly and select correct

load size setting. Overloading or packing the machine, and selecting a setting too small for the wash load can:

– cause poor cleaning. – increase wrinkling. – create excessive lint. – wear out items faster (because of pilling).

• Load by the amount of space items take

up, not by their weight.

• Mix large and small items in each load.

Load evenly to maintain washer balance. An offbalance load can make the washer vibrate during spin.

• Use a large load size setting to reduce

wrinkling with permanent press clothes and some synthetic knits. These items should have more room to move in the water than heavy items (towels, jeans).

• Reduce wash time when using a small

load size setting. Loads with only a few small items need less wash time.

Page 14

LAUNDRY TIPS

Loading suggestions

For these suggested full-sized loads, set the Load Size Selector to the highest load size setting.

LARGE CAPACITY WASHERS Heavy Work

Clothes

2 pair pants 3 shirts 3 pair jeans 1 coverall

Knits

2 slacks 2 blouses 4 shirts 4 tops 2 dresses

SUPER CAPACITY WASHERS

Permanent Press

1 double sheet 1 tablecloth 1 dress 1 blouse 2 slacks 3 shirts 2 pillowcases

Mixed Load

2 double or

1 king size sheet(s) 4 pillowcases 6 T-shirts 6 pair shorts 2 shirts 2 blouses 6 handkerchiefs

Towels

8 bath towels 8 hand towels 10 wash cloths 1 bath mat

Delicates

2 camisoles 4 slips 4 panties 2 bras 2 nighties

Heavy Work Clothes

3 pair pants 3 shirts 4 pair jeans 1 coverall 1 overall

Knits

3 slacks 3 blouses 6 shirts 4 tops 4 dresses

Permanent Press

2 double or

1 king size sheet(s) 1 tablecloth 1 dress 1 blouse 2 slacks 3 shirts 2 pillowcases

Saving energy

• Use warm or cold wash water for most

loads. Use hot water only when washing heavy, greasy soils or whites.

• On some models, use only cold rinses.

• Wash full loads.

• Use lower water levels when washing

small loads.

Mixed Load

3 double sheets 4 pillowcases 8 T-shirts 6 pair shorts 2 shirts 2 blouses 8 handkerchiefs

• Avoid rewashing. Use enough detergent

and pretreat stains or heavy soils. Use the cycles and wash times recommended for the fabric and soil.

• Use your washer during off-peak hours –

usually early morning and late evening. (Ask your power company.)

Towels

10 bath towels 10 hand towels 14 wash cloths 1 bath mat

Delicates

3 camisoles 1 quilted robe 4 slips 4 panties 2 bras 2 nighties 1 baby’s dress

Page 15

Water guidelines

Selecting water temperatures

WASH WATER TEMPERATURE*

HOT

130°F (54°C) or above

WARM

90-110°F (32-44°C)

COLD

70-90°F (21-32°C)

SUGGESTED FABRICS

• Work clothes

• Sturdy whites/colorfast

pastels

• Diapers

• Dark/noncolorfast colors

• Permanent press items

• Nylon, polyester, acrylics,

silks, woolens

• Knits/delicate fabrics

• Extra-sensitive colors

• Noncolorfast items

• Hand washables

LAUNDRY TIPS

COMMENTS

• Best cleaning for heavily soiled items

• Removes oils, perspiration, greasy

soils, and stains

• Prevents graying or yellowing

• Best for moderately soiled to lightly

soiled items

• Safe for most fabric finishes

• Less fading and dye bleeding

• Reduces wrinkling

• Best for very lightly soiled items

• Saves hot water

• Best rinse water temperature

* The washer features cold rinses for all wash temperatures. In addition, on some models,

warm rinses are available with warm washes. Warm rinse water provides better water extraction than cold rinse water and shortens drying times. However, warm rinse water may increase wrinkling when line drying. In cold climates, warm rinse water also provides a more comfortable temperature for handling the wash load.

Checking hot water temperature

Your hot water should be 130°F (54°C) or above. If you do not know your hot water temperature, you can check it easily. You may need to raise the temperature of your water heater. To check your hot water:

1. Fill a pan with the hottest water available

from the faucet that fills your washer.

NOTE: If you do not have a faucet at your

washer site, collect the water from the faucet closest to your washer.

2. Place a candy thermometer or cooking

thermometer in the water to check the temperature.

NOTE: In wash water temperatures colder

than 70°F (21°C), detergents do not dissolve well. Also, soils may be difficult to remove, and some fabrics may retain wear wrinkles and may have increased pilling.

Water hardness

Many poor washing results can be traced to the hardness of the wash water. To check your water hardness:

• City water – ask the city water company.

• Well water – ask the local water authority.

Ask for the mineral content in grains/gallon or parts/million. If your water is more than 8 grains/gallon or more than 137 parts/ million, you should consider:

• Installing a water softener.

• Using more detergent.

• Using a packaged water conditioner.

• Not using soap.

Page 16

LAUNDRY TIPS

Washing special-care items

Most garments and household textiles have care labels with laundering instructions. Always follow care label directions when they are available. Below are general washing instruc-

tions for some special washables.

ITEM Blankets

(electric or woolen)

Curtains, drapes, slipcovers

Diapers

Elastic, spandex

Flame-retardant clothing

Knits

CARE INSTRUCTIONS

Pretreat spots and stains. Select water temperature, cycle, and time according to the type of blanket being washed. Two rinses may be necessary. Check care label to see if manufacturer recommends machine washing.

Wash small loads. Crowding may cause wrinkling. Replace slipcovers while still slightly damp. They will dry to fit tightly.

NOTE: Sun-damaged curtains and draperies will tear whether

hand or machine washed. When using chlorine bleach for soaking, add extra detergent to

the load. Avoid overuse of fabric softeners – absorbency will be reduced.

Elastic picks up oil from the body. Oil can damage elastic. Wash often to reduce the damage. Use warm water and sufficient detergent to remove oils. Do not use chlorine bleach.

Items will be clearly labeled as flame-retardant. Follow manufacturer’s instructions to retain flame-retardant qualities.

Knits are comfortable to wear because they stretch. However, this means that knits are more likely to be stretched and damaged when washed (especially bulky knits). Knits made of synthetic fabrics such as polyester, nylon, and acrylic tend to keep their original shape more than knits made of cotton or ramie.

Pillows, stuffed toys

Plastic, rubber items

Quilts, bedspreads

Scatter rugs

Snowsuits, jackets

Washing feather pillows is not recommended unless they will be dried in a dryer.

Treat as delicate items. Wash in warm water. Wash small items in a mesh bag.

Do not wash cotton-filled comforters unless they are quilted or stitched. Tucked cotton batting tends to slip and become lumpy. An extra rinse may be necessary.

Shake or vacuum rugs to remove loose dirt. Wash more than one rug at a time. If washing only one rug, add bath towels to balance the load.

Wash only one or two items at a time. You may need to stop the washer occasionally to press air from the items being washed. An extra rinse may be necessary.

Page 17

Removing Stains

Stained, heavily soiled, or greasy items may need to be prewashed or soaked for best results. Soaking helps remove protein-type stains like blood, milk, or grass. Prewashing helps loosen soil before washing.

Stain removal rules

• Use warm water for soaking or prewashing

stained laundry. Hot water can set stains.

• Most stains are easier to remove when

they are fresh. Old or set stains may not come out. Follow package directions for pretreatment products.

• Before treating any stain, find out what

kind of stain it is, how old the stain is, what kind of fabric it is, and if the fabric is colorfast. (Check the care label.)

• Washing and drying can set some stains.

• Start with cold or warm water. Hot water

can set some stains.

Stain removal guide

• When bleach is recommended, use a

bleach that is safe for the fabric.

• Test stain removers on an inside seam or

hidden corner of the item to see if the color is removed.

• Put the stained area face down on a paper

towel or white cloth. Apply the stain remover to the back of the stain. This forces the stain off the fabric instead of through it.

• Meat tenderizer or enzyme presoaks help

break down some protein stains so they are easier to remove.

STAIN Alcoholic

beverage

Blood

Chewing gum

Chocolate or coffee

Crayon and candle wax

Cream, milk, or ice cream

TO REMOVE

These stains turn brown with age, so treat immediately. Sponge or soak fresh stains with cold water. Wash. If stain remains, soak 15 minutes in a solution of lukewarm water, liquid detergent, and a few drops of white vinegar. Rinse. Wash.

Rinse immediately or soak in cold water with enzyme presoak for 30 minutes or longer. Rinse. Rub detergent into any remaining stains. Rinse. If stain remains, put a few drops of 3% hydrogen peroxide on stain for 3-5 minutes. Rinse thoroughly. Wash.

Use ice to make gum hard. Scrape off what you can. Sponge with a nonflammable fabric cleaner. Let dry. Wash.

Sponge immediately with a nonflammable fabric cleaner or apply a prewash soil and stain remover. Rinse. Wash. If stain remains, apply a liquid detergent to stain or soak in warm water with an enzyme presoak. Rewash.

Scrape off excess with a dull knife. Place fabric between two blotters or facial tissue. Press with warm iron. Remove color stain with nonflammable fabric cleaner. Hand wash until stain is gone. If full load is crayon stained, take to cleaners or coin-operated dry cleaning machine.

Sponge with a nonflammable fabric cleaner, or a prewash soil and stain remover. Rinse. Wash. Repeat if necessary. If stain remains, apply a few drops of liquid detergent and a few drops of ammonia. Blot dry and rinse. If stain remains, soak in an enzyme presoak. Wash.

continued on next page

Page 18

REMOVING STAINS

STAIN Deodorants

and antiperspirants

Fat, grease, or oil

Fruit stains

Grass or green vegetables

Ink or ballpoint pen ink

Iron or rust

TO REMOVE Light stain: Treat with liquid detergent or your regular laundry detergent.

Wash in hottest water safe for fabric. Heavy stain: Place face down on towel and treat with a paste of ammo-

nia and color safe bleach. Let stand for 30 minutes. Wash in hottest water safe for fabric.

wWARNING

Fire Hazard

Do not wash or dry items soiled with vegetable or cooking oils because they may contain some oil after laundering.

Doing so can result in death or fire.

Items soiled with vegetable or cooking oil should not be washed or dried. For other types of greasy stains, use one of the methods below:

• Use pretreatment stain remover. Follow label directions. Wash in hottest

water safe for fabric.

• Use talcum powder to absorb as much grease as possible. Sponge with

a nonflammable fabric cleaner. Rinse. Wash.

• Treat with liquid detergent or rub a detergent paste on the stain. Wash

using hottest water safe for fabric.

Fresh stains: Soak immediately in cool water. Wash. If stain remains, cover area with a paste made of color safe bleach, a few drops of hot water, and a few drops of ammonia. Wait 15 to 30 minutes. Wash.

Old stains: Sponge with white vinegar. Rinse. Repeat procedure for fresh stains.

Soak in warm or cold water with an enzyme presoak for at least 30 minutes, or sponge with denatured alcohol. Wash in water temperature and bleach safe for the fabric. For colored fabrics, check colorfastness before applying alcohol. For acetate, sponge with a nonflammable fabric cleaner. If stain remains, bleach with 3% hydrogen peroxide. Rinse. Rewash.

Spray stain with an aerosol hair spray or rubbing alcohol. Sponge stain continuously until all bleeding stops. Let dry. Repeat if necessary. Wash. If stain remains, bleach if safe for fabric. (India and other indelible inks are almost impossible to remove completely.)

Colored or noncolorfast items: Apply lemon juice and salt. Place in the sun to dry. Rinse thoroughly. Repeat if necessary.

White or colorfast items: Try a rust remover. Test first on inside seam or hem. Some rust removers are not washer safe. Follow package directions.

Page 19

REMOVING STAINS

STAIN Ketchup

or tomato products

Lipstick

Meat juice, egg

Mildew

Mustard

Paint

Perspiration

Scorch

Soft drinks

TO REMOVE

Apply nonflammable fabric cleaner or prewash soil and stain remover. Blot with absorbent material. Repeat if necessary. Rinse. If stain still remains, rub with liquid detergent. Wash.

Scrape off excess with a dull knife. Soak in cold or warm water with enzyme presoak at least 30 minutes, or treat stains with a nonflammable fabric cleaner. Wash.

Wash in hottest water safe for fabric. If stain remains, soak in warm water and a color safe bleach for 15 to 30 minutes. Rewash. (Old mildew stains are almost impossible to remove. Mildew fungus destroys or weakens fabrics.) An alternative to bleach is to treat with salt and lemon juice and dry in direct sunlight. Rinse and rewash. Mildew may form if wet or damp laundry remains in your washer for extended periods of time. To prevent mildew, promptly dry laundry after washing.

Treat immediately. Scrape off excess mustard. Sponge with a nonflammable fabric cleaner or a prewash soil and stain remover. Rinse. Work liquid detergent and a few drops of vinegar into stain. Rinse. If stain remains, apply 3% hydrogen peroxide. Rinse and wash.

Hand wash paint-stained items. Water base: Treat stains while still wet. (These paints cannot be removed

after they have dried.) Rinse in warm water to flush out paint. Sponge with a nonflammable fabric cleaner. Rinse. Wash.

Oil base: Scrape off fresh paint. Sponge with a nonflammable fabric cleaner. While stain is still wet with solvent, rub liquid detergent into it. Wash with hottest water safe for fabric.

Remove stains before ironing. Perspiration stains may weaken fabric. Wash or sponge stain thoroughly with detergent and warm water. If perspiration has changed the color of the fabric, use one of the following treatments:

Fresh stains: Apply ammonia to stain. Rinse. Launder to remove ammonia odor.

Old stains: Apply white vinegar to stain. Rinse. Launder to remove vinegar odor.

Severe scorch cannot be removed. Wet stain with 3% hydrogen peroxide. Cover with a dry cloth and press with an iron as hot as is safe for fabric. Rinse well. Wash.

Wet with lemon juice and spread in the sun to dry. Wash. Sponge immediately with cold water and alcohol. Heat and detergent may

set stain.

Page 20

Troubleshooting

Most laundering problems are easily solved if you understand the cause. Check the following list for common laundry problems and the next page for common washer problems. If you need further assistance, see page 22.

Common laundry problems

PROBLEM Brown, yellow

stains Dye transfer

Gray whites, dingy colors

Greasy looking spots

Lint

Load too wet after spin

Shrinking

CAUSE

• Chlorine staining

• Iron in water heater or pipes; iron and manganese in water

• Improper sorting

• Load not immediately removed from washer after end of cycle

• Improper sorting

• Water temperature too low

• Not enough detergent

• Using soap in very hard water (use detergent in hard water)

• Fabric softener poured directly on clothes

• Not enough detergent

• Improper sorting

• Paper or tissue in pockets

• Pilling being mistaken for lint

• Not enough detergent

• Cold rinses

• Cycle stopped before spinning is complete

• Fabric type (some knits stretch during manufacturing –

laundering returns fabric to original size)

• Care label directions not followed

Snags, rips, and holes

Stiff, rough fabrics

Twisting/ Tangling

Wrinkling

Yellow areas

(from body oils)

• Items damaged before washing

• Misuse of chlorine bleach (do not pour directly on clothes)

• Sharp items not removed from pockets; fasteners not fastened

• Using soap in very hard water (use detergent in hard water)

• Not enough detergent

• Line drying

• Overloading

• Clothes wrapped around agitator

• Overloading (leave more room for permanent press and knits)

• Load not immediately removed from washer after cycle

• Warm rinse water

• Cycle selection incorrect

• Water temperature too low

• Not enough detergent

Page 21

Common washer problems

Before calling for service, check these:

Is the lid closed?

Is the Cycle Control Knob set and pulled out?

Is the power cord firmly plugged into a live outlet with proper voltage?

Have you blown a household fuse or tripped a circuit breaker?

TROUBLESHOOTING

▼

Are both the hot and cold water faucets turned on?

▼

Are the water hoses kinked or clogged?

▼

Is the drain hose higher than the water level in the washer? It must be higher for proper operation.

▼

Is the washer making noises (see page 9), or vibrating? Is the wash load properly distributed around the agitator?

NOTE: Washer stops briefly during a wash cycle. These pauses are normal.

If none of these items was causing your problem, see “Requesting Assistance or Service” on page 22.

Page 22

Requesting Assistance or Service

Before calling for assistance or service, please check “Troubleshooting” on pages 20-21. It may save you the cost of a service call. If you still need help, follow the instructions below.

1. If you need assistance* …

Call the Whirlpool Consumer Assistance

Center telephone number. Dial toll-free from anywhere in the U.S.A.:

1-800-253-1301

and talk with one of our trained consultants. The consultant can instruct you in how to obtain satisfactory operation from your appliance or, if service is necessary, recommend a qualified service company in your area.

If you prefer, write to:

Whirlpool Brand Home Appliances Consumer Assistance Center c/o Correspondence Dept. 2000 North M-63 Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

2. If you need service* …

Whirlpool has a nationwide network of

authorized Whirlpool service

companies. Whirlpool service

technicians are trained to fulfill

the product warranty and

provide after-warranty service, anywhere in the United States. To locate the authorized Whirlpool service company in your area, call our Consumer Assistance Center telephone number (see Step 1) or look in your telephone directory Yellow Pages under:

•APPLIANCE-HOUSEHOLD- • WASHING MACHINES &

MAJOR, SERVICE & REPAIR DRYERS, SERVICE & REPAIR

See:

Whirlpool Appliances or -

Authorized Whirlpool Service Authorized Whirlpool Service

Example:

XYZ Service Co.) (

(

See:

Whirlpool Appliances or

Example:

XYZ Service Co.)

3. If you need FSP

replacement parts …

FSP is a registered trademark of Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your WHIRLPOOL

appliance. FSP replacement parts will fit right and work right, because they are made to the same exacting specifications used to build every new WHIRLPOOL appliance.

To locate FSP replacement parts in your area, refer to Step 2 or call the Whirlpool Consumer Assistance Center number in Step 1.

4. If you are not satisfied

with how the problem was solved …

• Contact the Major Appliance Consumer

Action Program (MACAP). MACAP is a group of independent consumer experts that voices consumer views at the highest levels of the major appliance industry.

• Contact MACAP only when the dealer,

authorized servicer, and Whirlpool have failed to resolve your problem.

Major Appliance Consumer Action Program 20 North Wacker Drive Chicago, IL 60606

• MACAP will in turn inform us of your

action.

Gearcase assembly

covered by your

warranty

* When asking for help or service:

Please provide a detailed description of the problem, your appliance’s complete model and serial numbers, and the purchase date. (See page 2.) This information will help us respond properly to your request.

Page 23

NOTES

Page 24

WHIRLPOOL

Automatic Washer Warranty

LENGTH OF WARRANTY WHIRLPOOL WILL PAY FOR FULL ONE-YEAR

WARRANTY

FROM DATE OF PURCHASE

LIMITED FIVE-YEAR WARRANTY

FROM DATE OF PURCHASE

LIMITED TEN-YEAR WARRANTY

FROM DATE OF PURCHASE

WHIRLPOOL WILL NOT PAY FOR

A. Service calls to:

1. Correct the installation of your washer.

2. Instruct you how to use your washer.

3. Replace house fuses or correct house wiring or plumbing.

B. Repairs when your washer is used in other than normal, single-family household use. C. Pickup and delivery. Your washer is designed to be repaired in the home. D. Damage to your washer caused by accident, misuse, fire, flood, acts of God, or use of

products not approved by Whirlpool.

E. Any labor costs during the limited warranties. F. Repairs to parts or systems caused by unauthorized modifications made to the

appliance.

FSP® replacement parts and repair labor to correct defects in materials or workmanship. Service must be provided by an

authorized Whirlpool service company.

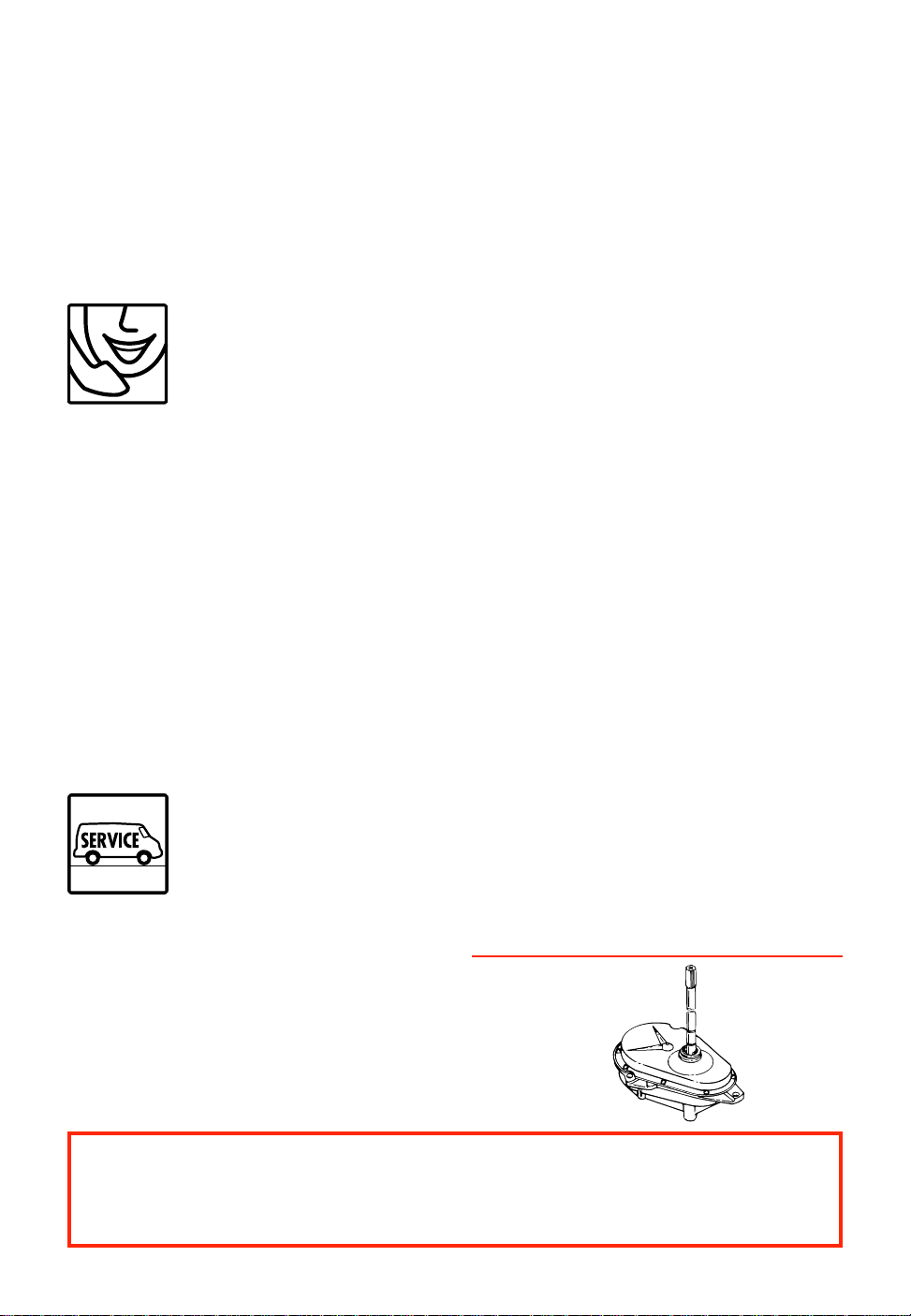

FSP replacement parts for any part of gearcase assembly if defective in materials or workmanship. The gearcase assembly is shown in the “Requesting Assistance or Service” section of this book.

FSP replacement parts for any top and lid rust. FSP replacement parts for outer tub should it crack, or fail to

contain water, due to defective materials or workmanship.

2-96

WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or

consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Outside the United States, a different warranty may apply. For details, please contact your authorized Whirlpool dealer.

If you need service, first see the “Troubleshooting” section of this book. After checking “Troubleshooting,” additional help can be found by checking the “Requesting Assistance or Service” section or by calling our Consumer Assistance Center telephone number,

1-800-253-1301, from anywhere in the U.S.A.

PART NO. 3363573

3/96
