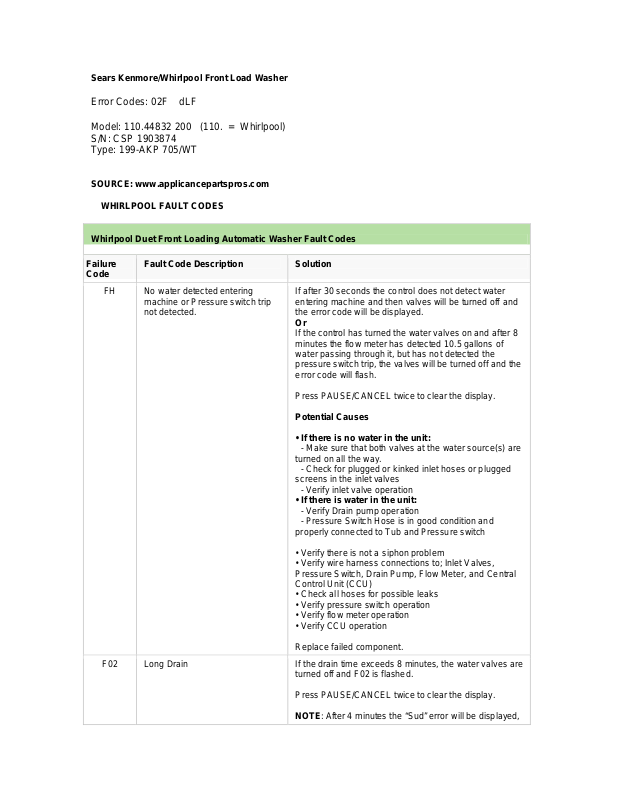

Sears Kenmore/Whirlpool Front Load Washer
Error Codes: 02F dLF
Model: 110.44832 200 (110. = Whirlpool)
S/N: CSP 1903874
Type: 199-AKP 705/WT
SOURCE: www.applicancepartspros.com
WHIRLPOOL FAULT CODES
Whirlpool Duet Front Loading Automatic Washer Fault Codes
Failure
Code
FH No water detected entering
Fault Code Description Solution
machine or Pressure switch trip
not detected.
If after 30 seconds the control does not detect water
entering machine and then valves will be turned off and
the error code will be displayed.
Or
If the control has turned the water valves on and after 8
minutes the flow meter has detected 10.5 gallons of
water passing through it, but has not detected the
pressure switch trip, the valves will be turned off and the
error code will flash.
Press PAUSE/CANCEL twice to clear the display.
Potential Causes
• If there is no water in the unit:
- Make sure that both valves at the water source(s) are
turned on all the way.
- Check for plugged or kinked inlet hoses or plugged
screens in the inlet valves
- Verify inlet valve operation
• If there is water in the unit:
- Verify Drain pump operation
- Pressure Switch Hose is in good condition and
properly connected to Tub and Pressure switch
• Verify there is not a siphon problem
• Verify wire harness connections to; Inlet Valves,
Pressure Switch, Drain Pump, Flow Meter, and Central
Control Unit (CCU)
• Check all hoses for possible leaks
• Verify pressure switch operation
• Verify flow meter operation
• Verify CCU operation
Replace failed component.
F02 Long Drain If the drain time exceeds 8 minutes, the water valves are
turned off and F02 is flashed.
Press PAUSE/CANCEL twice to clear the display.
NOTE: After 4 minutes the “Sud” error will be displayed,
then 4 minutes later the F02 error code will be displayed.
Potential Causes
• Check the drain hose and make sure it is not plugged or
kinked
• Check the electrical connections at the pump and make
sure the pump is running.
• Check the drain pump filter for foreign objects
• If the above does not correct the problem replace the
pump
F05 Water temperature sensor error If during the water heating step in the wash cycle, the
water temperature sensor (NTC) value is out of range, or
the heating element circuit has failed, the F05 error code
will be displayed.
Potential Causes
• Check the Water Temperature Sensor, Heating Element
and Element Relay
• Check connections to the Sensor, Heating Element and
Relay
Replace failed component.
F06 Drive motor tachometer error The control is unable to properly detect motor speed and
the machine will shut down. If a failure occurs during
high-speed spin the door will be unlocked after 3
minutes.
Potential Causes
• Check wire harness connections between the Drive
Motor/Tachometer and the Motor ControlUnit (MCU), and
between the MCU and the Central Control Unit (CCU)
• Check the Drive Motor
• Check the MCU
• Check the Wire Harness
Replace failed component.
F07 Motor control unit error The Central Control Unit has detected a short in the
motor control unit. If a failure occurs during high-speed
spin the door will be unlocked after 3 minutes.
Potential Causes
• Check wire harness connections between the Drive
Motor and the Motor Control Unit (MCU), and between
the MCU and the Central Control Unit (CCU)
• Check the MCU
• Check the Drive Motor
• Check the Wire Harness
Replace failed component.
F09 Overflow condition If the Overflow contact on the pressure switch is Closed
for more than 60 seconds an Overflow condition will
occur. In an Overflow condition, the Door will remain
locked, and the Drain Pump will run constantly, even if
PAUSE/CANCEL is pressed twice and the Display is
cleared. Unplug the unit to service.
