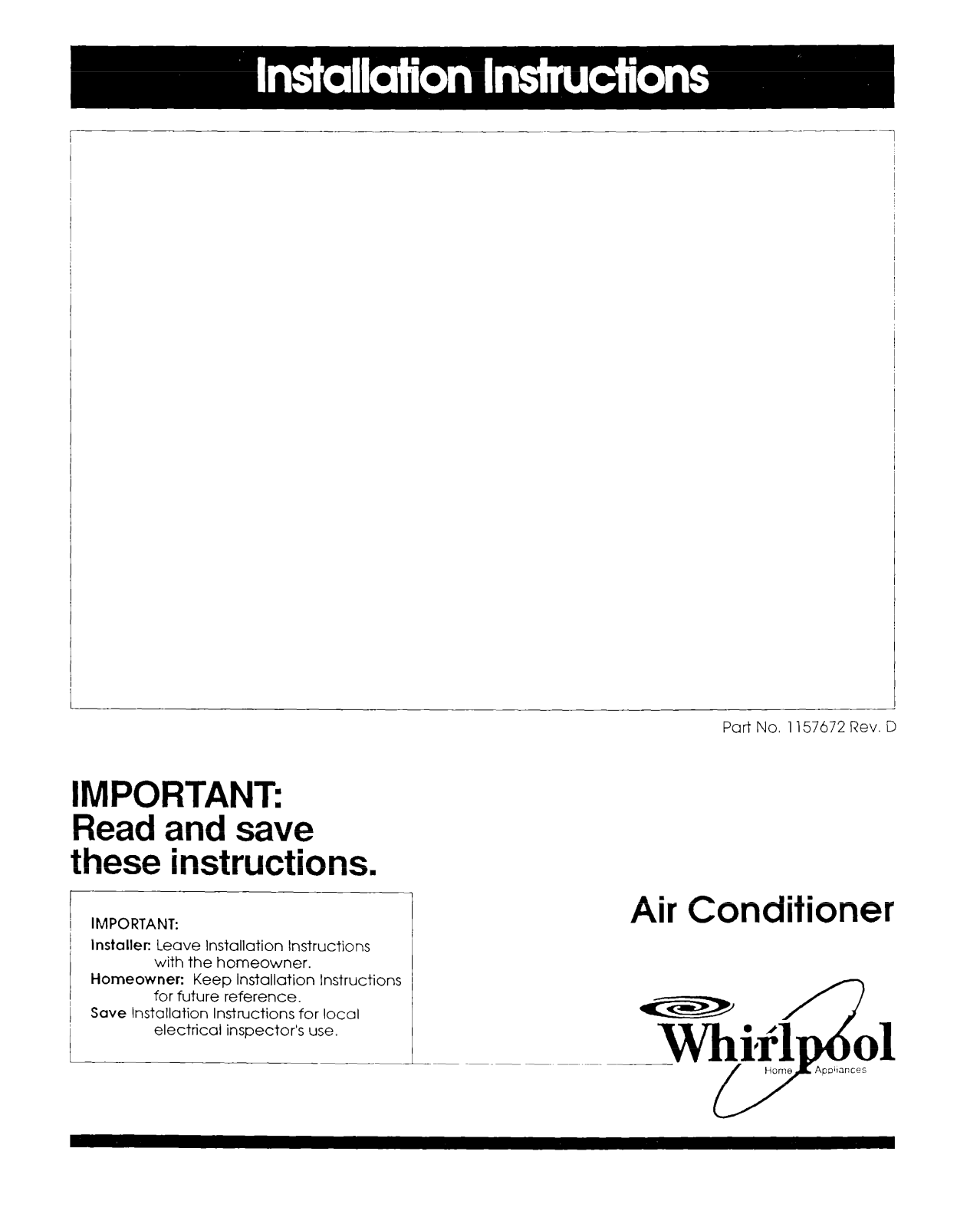

IMPORTANT:
Read and save
these instructions.
Part No. 1157672 Rev. D
( IMPORTANT:
j Installer: Leave Installation Instructions
with the homeowner.
Homeowner: Keep Installation Instructions
for future reference.
ave Installation Instructions for local
1 s
electrical inspector’s use.
Air
Conditioner

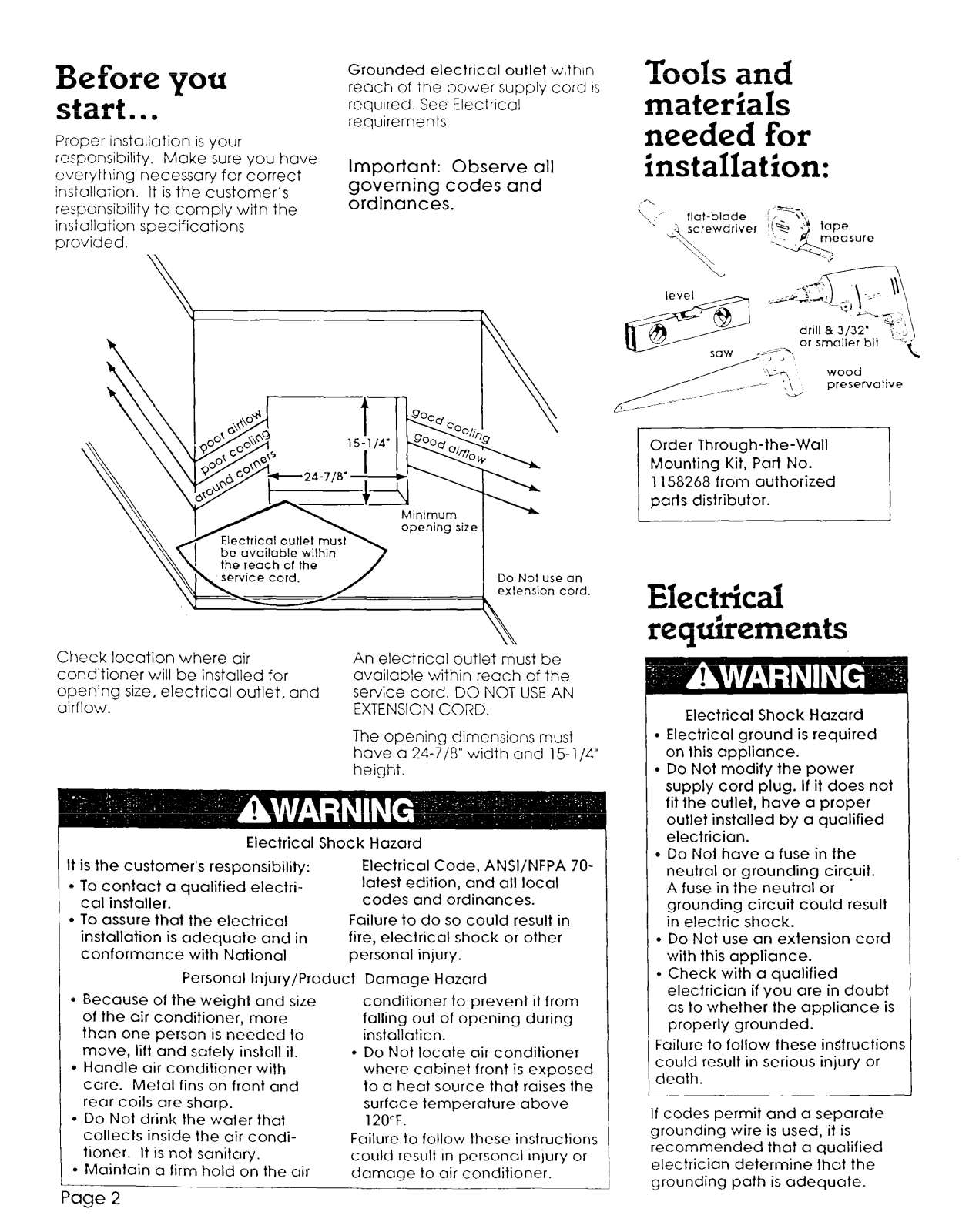

Before you
start.. .
ProDer installation is vour
responsibility. Make sure you have
everything necessary for correct
installation. It is the customer’s
responsibilitv to comDlv with the
installation specific&i&s
provided.
Grounded electrical outlet within
reach of the power supply cord IS
required. See Electrical
requirements.
Important: Observe all
governing codes and
ordinances.
Tools and
materials
needed for
installation:
Electrical outlet must
be available within
the reach of the
Check location where air
conditioner will be installed for
opening size, electrical outlet, and
airflow.
Electrical Shock Hazard
It is the customer’s responsibility:
* TO contact a qualified electri-
cc11 installer.
l
To assure that the electrical
installation is adequate and in
conformance with National
Personal Injury/Product Damage Hazard
l
Because of the weight and size
of the air conditioner, more
than one person is needed to
move, lift and safely install it.
l
Handle air conditioner with
care. Metal fins on front and
rear coils are sharp.
l
Do Not drink the water that
collects inside the air conditioner. It is not sanitary.
l
Maintain a firm hold on the air
Page 2
7/o ly\
opening size
7
Do Not use an
extension cord.
An electrical outlet must be
available within reach of the
service cord. DO NOT USE AN
EXTENSION CORD.
The opening dimensions must
have a 24-7/8” width and 15-l j4”
height.
Electrical Code, ANSI/NFPA 70latest edition, and all local
codes and ordinances.
Failure to do so could result in
fire, electrical shock or other
personal injury.
conditioner to prevent it from
falling out of opening during
installation.
l
Do Not locate air conditioner
where cabinet front is exposed
to a heat source that raises the
surface temperature above
120°F.
Failure to follow these instructions
could result in personal injury or
damage to air conditioner.
Order Through-the-Wall
Mounting Kit, Port No.
1158268 from authorized
parts distributor.
Electrical
requirements
Electrical Shock Hazard
l
Electrical ground is required
on this appliance.
l
Do Not modify the power
supply cord plug. If it does not
fit the outlet, have a proper
outlet installed by a qualified
electrician.
. Do Not have a fuse in the
neutral or grounding circuit.
A fuse in the neutral or
grounding circuit could result
in electric shock.
l
Do Not use an extension cord
with this appliance.
l
Check with a qualified
electrician if you are in doubt
as to whether the appliance is
properly grounded.
Failure to follow these insfructions
could result in serious injury or
death.
If codes permit and a separate
grounding wire is used, it is
recommended that a qualified
electrician determine that the
grounding path is adequate.
