Whelen SABKT24 User Manual
RADIATOR
SUPPORT
RADIATOR
SUPPORT
®

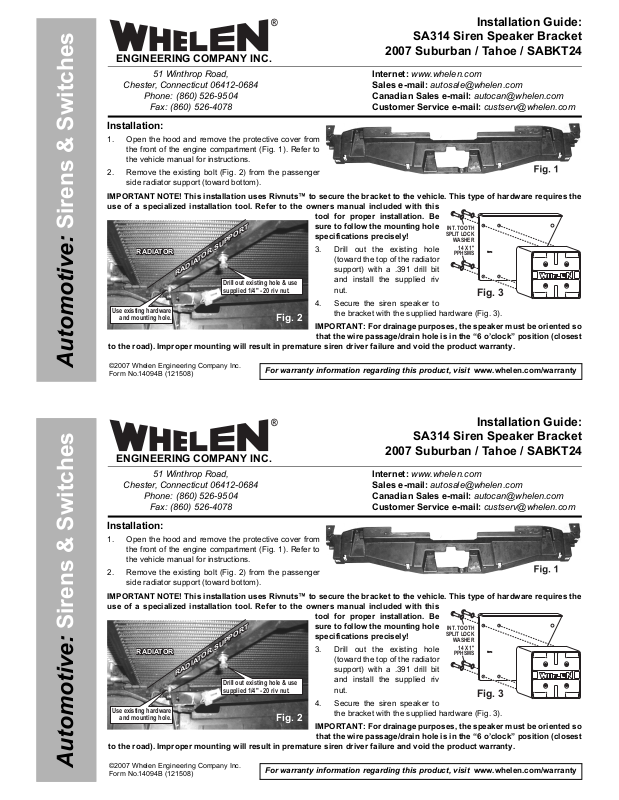

Installation Guide:
SA314 Siren Speaker Bracket
ENGINEERING COMPANY INC.
51 Winthrop Road,
Chester, Connecticut 06412-0684
Phone: (860) 526-9504
Fax: (860) 526-4078
Installation:
1. Open the hood and remove the protective cover from
the front of the engine compartment (Fig. 1). Refer to
the vehicle manual for instructions.
2. Remove the existing bolt (Fig. 2) from the passenger
side radiator support (toward bottom).
IMPORTANT NOTE! This installation uses Rivnuts™ to secure the bracket to the vehicle. This type of hardware requires the
use of a specialized installation tool. Refer to the owners manual included with this
RADIATOR
RADIATOR
RADIATOR SUPPORT
RADIATOR SUPPORT
Use existing hardware
and mounting hole.
to the road). Improper mounting will result in premature siren driver failure and void the product warranty.
Drill out existing hole & use
supplied 1/4" - 20 riv nut.
Fig. 2
tool for proper installation. Be
sure to follow the mounting hole
specifications precisely!
3. Drill out the existing hole
(toward the top of the radiator
support) with a .391 drill bit
and install the supplied riv
nut.
4. Secure the siren speaker to
the bracket with the supplied hardware (Fig. 3).
IMPORTANT: For drainage purposes, the speaker must be oriented so
that the wire passage/drain hole is in the “6 o’clock” position (closest
2007 Suburban / Tahoe / SABKT24
Internet: www.whelen.com
Sales e-mail: autosale@whelen.com
Canadian Sales e-mail: autocan@whelen.com
Customer Service e-mail: custserv@whelen.com
INT. TOOTH
SPLIT LOCK
WASHER
14 X 1"
PPHSMS
Fig. 3
Automotive: Sirens & Switches
©2007 Whelen Engineering Company Inc.
Form No.14094B (121508)
ENGINEERING COMPANY INC.
51 Winthrop Road,
Chester, Connecticut 06412-0684
Phone: (860) 526-9504
Fax: (860) 526-4078
Installation:
1. Open the hood and remove the protective cover from
the front of the engine compartment (Fig. 1). Refer to
the vehicle manual for instructions.
2. Remove the existing bolt (Fig. 2) from the passenger
side radiator support (toward bottom).
IMPORTANT NOTE! This installation uses Rivnuts™ to secure the bracket to the vehicle. This type of hardware requires the
use of a specialized installation tool. Refer to the owners manual included with this
RADIATOR
RADIATOR
RADIATOR SUPPORT
RADIATOR SUPPORT
Use existing hardware
and mounting hole.
to the road). Improper mounting will result in premature siren driver failure and void the product warranty.
Drill out existing hole & use
supplied 1/4" - 20 riv nut.
For warranty information regarding this product, visit www.whelen.com/warranty
®
Installation Guide:
SA314 Siren Speaker Bracket
2007 Suburban / Tahoe / SABKT24
Internet: www.whelen.com
Sales e-mail: autosale@whelen.com
Canadian Sales e-mail: autocan@whelen.com
Customer Service e-mail: custserv@whelen.com
tool for proper installation. Be
Fig. 2
sure to follow the mounting hole
specifications precisely!
3. Drill out the existing hole
(toward the top of the radiator
support) with a .391 drill bit
and install the supplied riv
nut.
4. Secure the siren speaker to
the bracket with the supplied hardware (Fig. 3).
IMPORTANT: For drainage purposes, the speaker must be oriented so
that the wire passage/drain hole is in the “6 o’clock” position (closest
INT. TOOTH
SPLIT LOCK
WASHER
14 X 1"
PPHSMS
Fig. 3
Automotive: Sirens & Switches
©2007 Whelen Engineering Company Inc.
Form No.14094B (121508)
For warranty information regarding this product, visit www.whelen.com/warranty
Page 1
5. Secure the bottom of the bracket (with speaker) to the vehicle using the existing hardware.
Secure the top of the bracket to the riv-nut you installed in step 2 using the supplied
mounting hardware Fig. 4).
6. Extend the WHITE (positive) and BLACK (negative) speaker wires to your siren amplifier
and connect as shown in the amplifiers instructions. Test the siren to confirm proper
operation.
7. Re-install the protective cover to complete this installation. Test all vehicle components and
equipment before returning the vehicle to service.
IMPORTANT! It is the responsibility of the installation technician to make sure that the
installation and operation of this product will not interfere with or compromise the
service, visually confirm the proper operation of this product, as well as all vehicle components and equipment.
operation or efficiency of any vehicle equipment! Before returning the vehicle to active
DANGER! Sirens produce extremely loud emergency warning tones!
Exposure to these tones without proper and adequate hearing protection, could
cause ear damage and/or hearing loss! The Occupational Safety & Health
Administration (www.osha.gov) provides information necessary to determine
safe exposure times in Occupational Noise Exposure Section 1910.95. Until you
have determined the safe exposure times for your specific application, operators
and anyone else in the immediate vicinity should be required to wear an
approved hearing protection device. FAILURE TO FOLLOW THIS
RECOMMENDATION COULD CAUSE HEARING LOSS!
1. Secure the bottom of the bracket (with speaker) to the vehicle using the existing hardware.
Secure the top of the bracket to the riv-nut you installed in step 2 using the supplied
mounting hardware Fig. 4).
2. Extend the WHITE (positive) and BLACK (negative) speaker wires to your siren amplifier
and connect as shown in the amplifiers instructions. Test the siren to confirm proper
operation.
3. Re-install the protective cover to complete this installation. Test all vehicle components and
equipment before returning the vehicle to service.
IMPORTANT! It is the responsibility of the installation technician to make sure that the
installation and operation of this product will not interfere with or compromise the
operation or efficiency of any vehicle equipment! Before returning the vehicle to active
service, visually confirm the proper operation of this product, as well as all vehicle components and equipment.
ACTIVATION OF THIS
SIREN MAY DAMAGE
UNPROTECTED EARS!
Loud siren noise can cause
Wear
Protection!
hearing damage and/or loss.
Refer to OSHA Section 1910.95 prior
to putting ANY siren into service!
CAUTION
DAN G E R ! Sirens produce extremely loud emergency warning tones!
Exposure to these tones without proper and adequate hearing protection, could
cause ear damage and/or hearing loss! The Occupational Safety & Health
Administration (www.osha.gov) provides information necessary to determine
safe exposure times in Occupational Noise Exposure Section 1910.95. Until you
have determined the safe exposure times for your specific application, operators
and anyone else in the immediate vicinity should be required to wear an
approved hearing protection device. FAILURE TO FOLLOW THIS
RECOMMENDATION COULD CAUSE HEARING LOSS!
Page 2
ACTIVATION OF THIS
SIREN MAY DAMAGE
UNPROTECTED EARS!
CAUTION
Loud siren noise can cause
Wear
Protection!
hearing damage and/or loss.
Refer to OSHA Section 1910.95 prior
to putting ANY siren into service!
