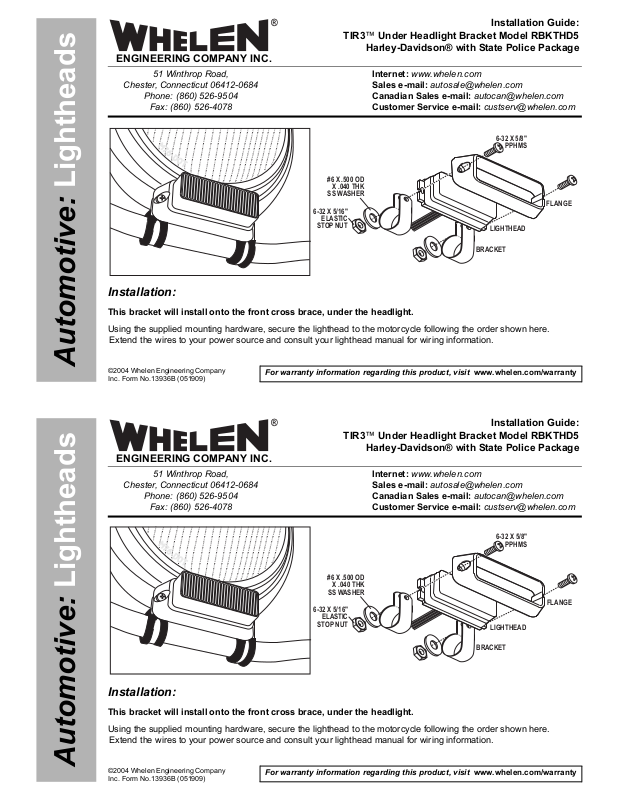

Installation Guide:
TIR3™ Under Headlight Bracket Model RBKTHD5
Harley-Davidson® with State Police Package
Internet: www.whelen.com
Sales e-mail: autosale@whelen.com
Canadian Sales e-mail: autocan@whelen.com
Customer Service e-mail: custserv@whelen.com
M
7
6
D
O
T
Installation:
This bracket will install onto the front cross brace, under the headlight.
Using the supplied mounting hardware, secure the lighthead to the motorcycle following the order shown here.
Extend the wires to your power source and consult your lighthead manual for wiring information.
Automotive: Lightheads
