Installation:
NOTE: Be sure to read all warnings in this
manual before starting installation.
NOTE: The gaskets supplied with
the Strip-Lite™ will not be
used in this installation.

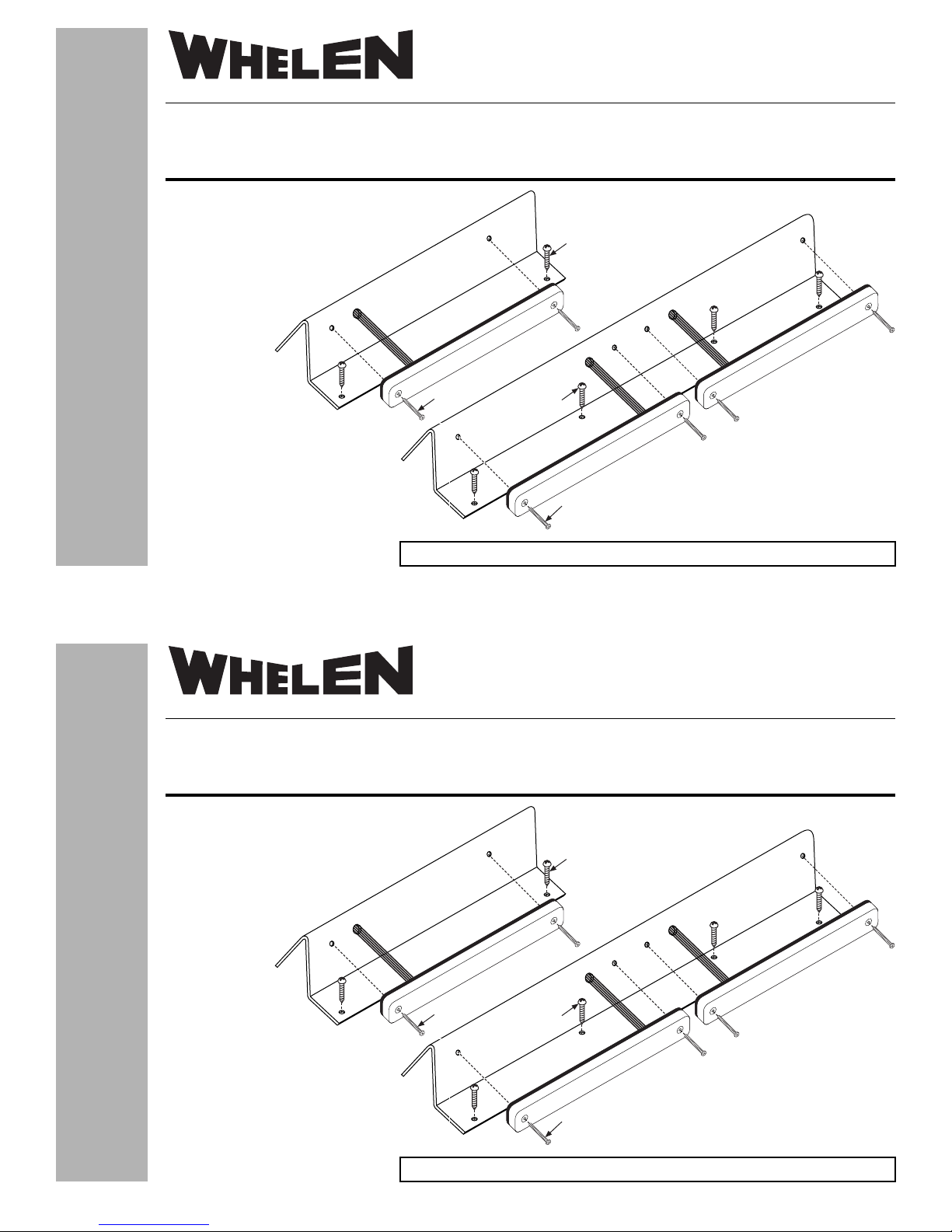

1. Secure the
lighthead(s) to
the bracket
using the 6-32
X 1” Phillips pan
head machine
screws supplied.
2. Secure the bracket to
mounting surface using the 10 X 3/8”
Phillips pan head sheet metal
screws.
3. Connect the lighthead(s) to power.
Refer to the lighthead instructions for
wiring.
Automotive: Lightheads
©2007 Whelen Engineering Company Inc.
Form No.14128A (071713)

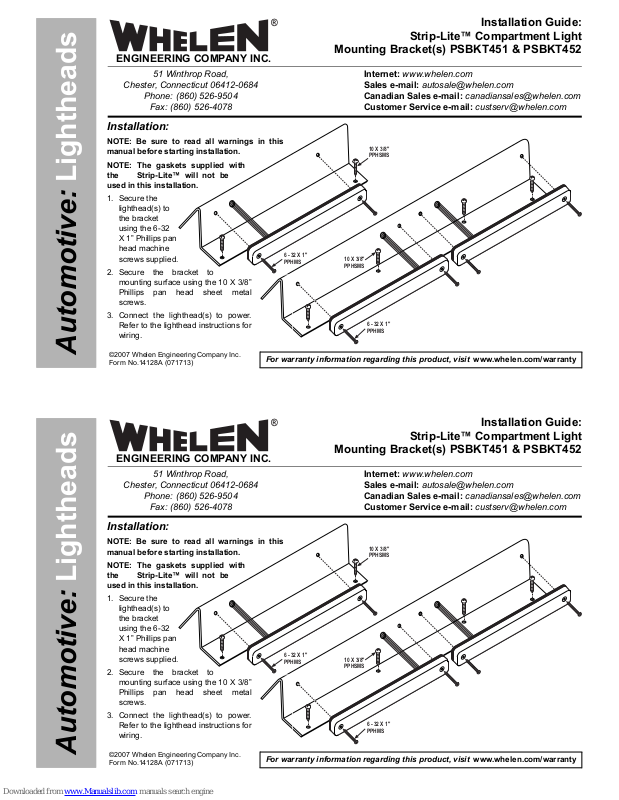

Installation Guide:
Strip-Lite™ Compartment Light
Mounting Bracket(s) PSBKT451 & PSBKT452
Internet: www.whelen.com
Sales e-mail: [email protected]
Canadian Sales e-mail: [email protected]
Customer Service e-mail: [email protected]
For warranty information regarding this product, visit www.whelen.com/warranty
ENGINEERING COMPANY INC.
51 Winthrop Road,
Chester, Connecticut 06412-0684
Phone: (860) 526-9504
Fax: (860) 526-4078
Installation:
NOTE: Be sure to read all warnings in this
manual before starting installation.
NOTE: The gaskets supplied with
the Strip-Lite™ will not be
used in this installation.
1. Secure the
lighthead(s) to
the bracket
using the 6-32
X 1” Phillips pan
head machine
screws supplied.
2. Secure the bracket to
mounting surface using the 10 X 3/8”
Phillips pan head sheet metal
screws.
3. Connect the lighthead(s) to power.
Refer to the lighthead instructions for
wiring.
Automotive: Lightheads
©2007 Whelen Engineering Company Inc.
Form No.14128A (071713)
Installation Guide:
Strip-Lite™ Compartment Light
Mounting Bracket(s) PSBKT451 & PSBKT452
Internet: www.whelen.com
Sales e-mail: [email protected]
Canadian Sales e-mail: [email protected]
Customer Service e-mail: [email protected]
For warranty information regarding this product, visit www.whelen.com/warranty
Page 1
Page 2
CAUTION! DO NOT LOOK DIRECTLY AT
THESE LEDS WHILE THEY ARE ON.
MOMENTAR Y BLINDNESS AND/OR EYE
DAMAGE COULD RESULT!
IMPORTANT WARNING!
CAUTION! DO NOT LOOK DIRECTLY AT
THESE LEDS WHILE THEY ARE ON.
MOMENTAR Y BLINDNESS AND/OR EYE
DAMAGE COULD RESULT!
IMPORTANT WARNING!
Caution:Permanent mounting of this product will require drilling. It is absolutely necessary to make sure that no other vehicle components
could be damaged by this process. Check both sides of the mounting surface before starting. If damage is likely, select a different location.
IMPORTANT! It is the responsibility of the installation technician to make sure that the installation
and operation of this product will not interfere with or compromise the operation or efficiency of any
vehicle equipment!
IMPORTANT! Before returning the vehicle to active service, visually confirm the proper operation of
this product, as well as all vehicle components/equipment.
WARNING! All customer supplied wires that connect to the positive terminal of the battery must be sized to supply at least 125% of the
maximum operating current and FUSED
at the battery to carry that load. DO NOT USE CIRCUIT BREAKERS WITH THIS PRODUCT!
Caution:Permanent mounting of this product will require drilling. It is absolutely necessary to make sure that no other vehicle components
could be damaged by this process. Check both sides of the mounting surface before starting. If damage is likely, select a different location.
IMPORTANT! It is the responsibility of the installation technician to make sure that the installation
and operation of this product will not interfere with or compromise the operation or efficiency of any
vehicle equipment!
IMPORTANT! Before returning the vehicle to active service, visually confirm the proper operation of
this product, as well as all vehicle components/equipment.
WARNING! All customer supplied wires that connect to the positive terminal of the battery must be sized to supply at least 125% of the
maximum operating current and FUSED
at the battery to carry that load. DO NOT USE CIRCUIT BREAKERS WITH THIS PRODUCT!
