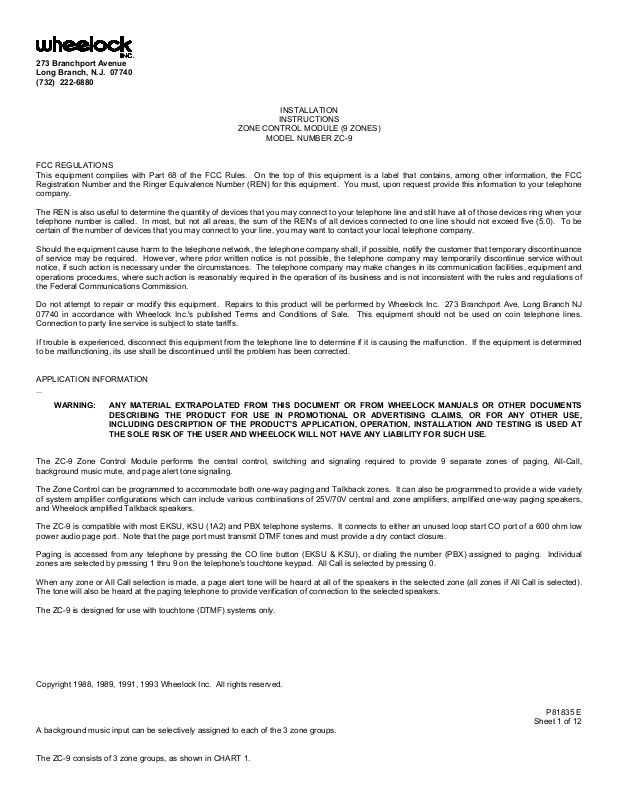

273 Branchport Avenue
Long Branch, N.J. 07740
(732) 222-6880
FCC REGULATIONS
This equipment complies with Part 68 of the FCC Rules. On the top of this equipment is a label that contains, among other information, the FCC
Registration Number and the Ringer Equivalence Number (REN) for this equipment. You must, upon request provide this information to your telephone
company.
The REN is also useful to determine the quantity of devices that you may connect to your telephone line and still have all of those devices ring when your
telephone number is called. In most, but not all areas, the sum of the REN's of all devices connected to one line should not exceed five (5.0). To be
certain of the number of devices that you may connect to your line, you may want to contact your local telephone company.
Should the equipment cause harm to the telephone network, the telephone company shall, if possible, notify the customer that temporary discontinuance
of service may be required. However, where prior written notice is not possible, the telephone company may temporarily discontinue service without
notice, if such action is necessary under the circumstances. The telephone company may make changes in its communication facilities, equipment and
operations procedures, where such action is reasonably required in the operation of its business and is not inconsistent with the rules and regulations of
the Federal Communications Commission.
Do not attempt to repair or modify this equipment. Repairs to this product will be performed by Wheelock Inc. 273 Branchport Ave, Long Branch NJ
07740 in accordance with Wheelock Inc.'s published Terms and Conditions of Sale. This equipment should not be used on coin telephone lines.
Connection to party line service is subject to state tariffs.
If trouble is experienced, disconnect this equipment from the telephone line to determine if it is causing the malfunction. If the equipment is determined
to be malfunctioning, its use shall be discontinued until the problem has been corrected.
APPLICATION INFORMATION
INSTALLATION
INSTRUCTIONS
ZONE CONTROL MODULE (9 ZONES)
MODEL NUMBER ZC-9
WARNING: ANY MATERIAL EXTRAPOLATED FROM THIS DOCUMENT OR FROM WHEELOCK MANUALS OR OTHER DOCUMENTS
The ZC-9 Zone Control Module performs the central control, switching and signaling required to provide 9 separate zones of paging, All-Call,
background music mute, and page alert tone signaling.
The Zone Control can be programmed to accommodate both one-way paging and Talkback zones. It can also be programmed to provide a wide variety
of system amplifier configurations which can include various combinations of 25V/70V central and zone amplifiers, amplified one-way paging speakers,
and Wheelock amplified Talkback speakers.
The ZC-9 is compatible with most EKSU, KSU (1A2) and PBX telephone systems. It connects to either an unused loop start CO port of a 600 ohm low
power audio page port. Note that the page port must transmit DTMF tones and must provide a dry contact closure.
Paging is accessed from any telephone by pressing the CO line button (EKSU & KSU), or dialing the number (PBX) assigned to paging. Individual
zones are selected by pressing 1 thru 9 on the telephone's touchtone keypad. All Call is selected by pressing 0.
When any zone or All Call selection is made, a page alert tone will be heard at all of the speakers in the selected zone (all zones if All Call is selected).
The tone will also be heard at the paging telephone to provide verification of connection to the selected speakers.
The ZC-9 is designed for use with touchtone (DTMF) systems only.
Copyright 1988, 1989, 1991, 1993 Wheelock Inc. All rights reserved.
A background music input can be selectively assigned to each of the 3 zone groups.
The ZC-9 consists of 3 zone groups, as shown in CHART 1.
DESCRIBING THE PRODUCT FOR USE IN PROMOTIONAL OR ADVERTISING CLAIMS, OR FOR ANY OTHER USE,
INCLUDING DESCRIPTION OF THE PRODUCT'S APPLICATION, OPERATION, INSTALLATION AND TESTING IS USED AT
THE SOLE RISK OF THE USER AND WHEELOCK WILL NOT HAVE ANY LIABILITY FOR SUCH USE.
P81835 E
Sheet 1 of 12
The group functions are programmed with internally located group selector switches as described in CHART 2.
GROUP FUNCTION CHOICES - PER GROUP
Amplifier Type 1. Central Amplifier:
2. Zone Amplifiers:
Background 1. Background music on.
Music 2. Background music off.
CHART 2: GROUP PROGRAMMABLE FUNCTIONS
If any or all of the zone groups require central amplification, then the choice of one or two central amplifiers is programmed for the system with an
internally located system selector switch, as described in CHART 3.
FUNCTION CHOICES - PER SYSTEM
1 or 2 Central
Amplifiers
2. Two Central Amplifiers:
CHART 3: SYSTEM PROGRAMMABLE FUNCTION
The speech direction function is programmed on a per zone basis, with nine internally located zone selector switches, as shown in CHART 4.
FUNCTION CHOICES - PER ZONE
Speech 1. One-way paging.
Direction 2. Talkback (two-way communication with
CHART 4: ZONE PROGRAMMABLE FUNCTION
Depending upon system amplifier configuration, the amplifier functions and background music mute operation will vary, as shown in CHART 5.
CONFIGURATION FUNCTION MUSIC MUTE OPERATION
(A) One (1) Central
Amplifier
(B) Two (2) Central
Amplifiers
GROUP ZONES
1 1,2,3
2 4,5,6
3 7,8,9
and
in all zones.
Music is muted only in the paged
zone(s).
CHART 1: ZONE GROUPS
25V or 70V audio output switched to
speakers with line matching transformers.
600 OHM audio input switched to separate
zone amplifiers connected to speakers
with 25V/70V line matching transformers,
one-way amplified speakers, or Wheelock
amplified talkback speakers and horns.
1. One Central Amplifier:
For both paging and background music.
Paging in any zone will mute music in all
zones
One for paging and one for background
music. Music is muted only in the zone
paged.
hands free reply).
Paging & Music Paging any zone will mute music
One for Paging
One for Music
P81835 E
Sheet 2 of 12
(C) Zone Amplifiers,
Speaker Amplifiers,
Talkback Speakers
and horns.
(D) Mixed
(A) & (C) Above
(E) Mixed
(B) & (C) Above
CHART 5: SYSTEM AMPLIFIER CONFIGURATIONS, FUNCTIONS, AND MUSIC MUTE OPERATION
The application diagrams in Figures 1 thru 4 show the four basic system configurations of the ZC-9, all of which are possible with the appropriate
programming switch selections.
Paging, Music
and
Talkback
Paging, Music
and
Talkback
Paging, Music
and
Talkback
Music is muted only in the paged
zone(s).
1. Central Amplifier Zones:
Paging mutes music in all
zones.
2. Zone Amplifier Zones:
Music is muted only in the
paged zone(s).
Music is muted only in the paged
zone(s).
One amplifier for both paging and background music. System uses
speakers with built-in line matching transformers.
FIGURE 1.
One Central Amplifier
FIGURE 2.
Two Central Amplifiers
One amplifier for paging, and one amplifier for background music.
System uses speakers with built-in line matching transformers.
P81835 E
Sheet 3 of 12
Each amplifier is for paging and background music in its own zone.
System uses speakers with built-in line matching transformers.
Existing system renovations and expansions often require different amplifier configurations in different zone groups. For example, an existing central
amplifier paging system may be zoned, and then expanded by adding amplified speakers or zone amplifiers. With the appropriate programming switch
selections, the following are some examples of mixed system possibilities.
In mixed systems, the different amplifier configurations must be installed in different zone groups. It is not possible to mix different amplifier
configurations within the same zone group.
The ZC-9 maximum amplifier and speaker capability for each zone and the total system is shown in CHART 6.
FIGURE 3.
Zone Amplifiers, 1 per zone
A. FIGURE 1 and FIGURE 3
B. FIGURE 1 and FIGURE 4
C. FIGURE 2 and FIGURE 3
D. FIGURE 2 and FIGURE 4
E. FIGURE 3 and FIGURE 4
FIGURE 4.
For one-way or talkback paging each amplifier is for paging and
background music for its own speakers.
NOTE
Amplified Speakers
P81835 E
Sheet 4 of 12
