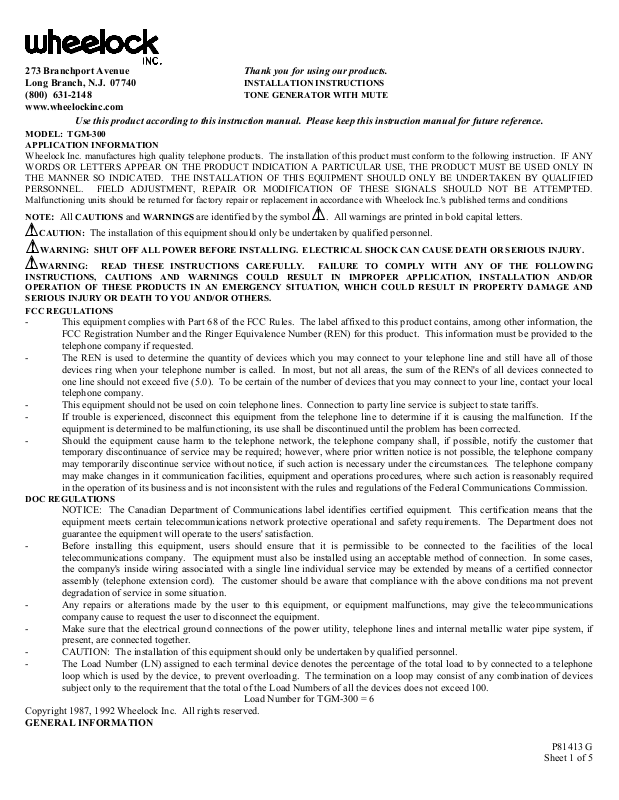

wheelock TGM-300 INSTALLATION INSTRUCTIONS
273 Branchport Avenue Thank you for using our products.
Long Branch, N.J. 07740
(800) 631-2148
www.wheelockinc.com
MODEL: TGM-300
APPLICATION INFORMATION
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
INSTALLATION INSTRUCTIONS
TONE GENERATOR WITH MUTE
Wheelock Inc. manufactures high quality telephone products. The installation of this product must conform to the following instruction. IF ANY
WORDS OR LETTERS APPEAR ON THE PRODUCT INDICATION A PARTICULAR USE, THE PRODUCT MUST BE USED ONLY IN
THE MANNER SO INDICATED. THE INSTALLATION OF THIS EQUIPMENT SHOULD ONLY BE UNDERTAKEN BY QUALIFIED
PERSONNEL. FIELD ADJUSTMENT, REPAIR OR MODIFICATION OF THESE SIGNALS SHOULD NOT BE ATTEMPTED.
Malfunctioning units should be returned for factory repair or replacement in accordance with Wheelock Inc.'s published terms and conditions
: All
NOTE
CAUTION:
WARNING: SHUT OFF ALL POWER BEFORE INSTALLING. ELECTRICAL SHOCK CAN CAUSE DEATH OR SERIOUS INJURY.
WARNING: READ THESE INSTRUCTIONS CAREFULLY. FAILURE TO COMPLY WITH ANY OF THE FOLLOWING
INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER APPLICATION, INSTALLATION AND/OR
OPERATION OF THESE PRODUCTS IN AN EMERGENCY SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND
SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
FCC REGULATIONS
CAUTIONS
The installation of this equipment should only be undertaken by qualified personnel.
and
WARNINGS
are identified by the symbol . All warnings are printed in bold capital letters.
- This equipment complies with Part 68 of the FCC Rules. The label affixed to this product contains, among other information, the
FCC Registration Number and the Ringer Equivalence Number (REN) for this product. This information must be provided to the
telephone company if requested.
- The REN is used to determine the quantity of devices which you may connect to your telephone line and still have all of those
devices ring when your telephone number is called. In most, but not all areas, the sum of the REN's of all devices connected to
one line should not exceed five (5.0). To be certain of the number of devices that you may connect to your line, contact your local
telephone company.
- This equipment should not be used on coin telephone lines. Connection to party line service is subject to state tariffs.
- If trouble is experienced, disconnect this equipment from the telephone line to determine if it is causing the malfunction. If the
equipment is determined to be malfunctioning, its use shall be discontinued until the problem has been corrected.
- Should the equipment cause harm to the telephone network, the telephone company shall, if possible, notify the customer that
temporary discontinuance of service may be required; however, where prior written notice is not possible, the telephone company
may temporarily discontinue service without notice, if such action is necessary under the circumstances. The telephone company
may make changes in it communication facilities, equipment and operations procedures, where such action is reasonably required
in the operation of its business and is not inconsistent with the rules and regulations of the Federal Communications Commission.
DOC REGULATIONS
NOTICE: The Canadian Department of Communications label identifies certified equipment. This certification means that the
equipment meets certain telecommunications network protective operational and safety requirements. The Department does not
guarantee the equipment will operate to the users' satisfaction.
- Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases,
the company's inside wiring associated with a single line individual service may be extended by means of a certified connector
assembly (telephone extension cord). The customer should be aware that compliance with the above conditions ma not prevent
degradation of service in some situation.
- Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications
company cause to request the user to disconnect the equipment.
- Make sure that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if
present, are connected together.
- CAUTION: The installation of this equipment should only be undertaken by qualified personnel.
- The Load Number (LN) assigned to each terminal device denotes the percentage of the total load to by connected to a telephone
loop which is used by the device, to prevent overloading. The termination on a loop may consist of any combination of devices
subject only to the requirement that the total of the Load Numbers of all the devices does not exceed 100.
Load Number for TGM-300 = 6
Copyright 1987, 1992 Wheelock Inc. All rights reserved.
GENERAL INFORMATION
P81413 G
Sheet 1 of 5
The Tone Generator portion of the module provides a pleasant chime signal when used with existing or newly installed paging systems. It
C
is designed for use on the public telephone network or behind PBX and key systems that use interrupted or continuous ringing voltages
from 40-130VAC, 20-30Hz. It is also designed for use with telephone communications systems whose ringing voltages are from 18 to 30
Volts AC/DC or those that supply a continuous or pulsed contact closure.
The Tone Generator produces a single chime sound once every second. Both the tone and the sound level are adjustable.
The muting portion of the module can be used to control 3 paging zones. If there is an incoming call the module will switch off the
background music and generate a pleasant chime tone over the paging system. See Figure 1 below.
Figure 1. Simplified Schematic
1
DRY CONTACT
FROM KSU
-24
GND
RING
CO LINE
TIP
POWER SUPPLY
24VDC/A
ZONE 1
ZONE 2
ZONE 3
FROM AUDIO SOURCE
(MUSIC AND/OR VOICE PAGING)
TO SPEAKER AMPLIFIER
OR PAGING AMPLIFIER
FROM AUDIO SOURCE
(MUSIC AND/OR VOICE PAGING)
TO SPEAKER AMPLIFIER
OR PAGING AMPLIFIER
FROM AUDIO SOURCE
(MUSIC AND/OR VOICE PAGING)
TO SPEAKER AMPLIFIER
OR PAGING AMPLIFIER
1T IN
1R IN
1R OUT
1T OUT
2T IN
2R IN
2R OUT
2T OUT
3T IN
3R IN
3R OUT
3T OUT
1
2
K1
3
4
5
6
7
8
9
10
11
12
VOL. 1
VOLUME
ZONE 1
K1
VOL. 2
K1
K1
K1
K1
VOL. 3
VOLUME
ZONE 2
VOLUME
ZONE 3
RING DETECTION
CHIME
TONE
ADJUSTMENT
2
3
4
5
6
7
To power the TGM-300 a 24 Volt power source is required. Wheelock's EPS-2401 power supply will power the TGM-300. The unit is
intended for indoor use only
SPECIFICATIONS:
Table 1.
Nominal Signal Input 90VRMS, 20Hz 24VAC/DC Contact Closure
Signal Input Range 40-130VRMS, 20-30Hz 18-30VAC/DC
Signal Current 5mA 7mA 10mA at 24VDC
Ringer Equivalence 0.4A -----Voice Impedance 30K OHMS at 3VRMS, 400Hz -----Power Input Voltage 24VDC
Power Input Current 50mA
Minimum Ring Cycle:
On Time
Off Time
0.8 Seconds
2 Seconds
0.5 Seconds
0.5 Seconds
Minimum Chime Frequency 700Hz
Maximum Chime Frequency 1200Hz
Termination Terminals
Output Impedance (T&R) 1000 Ohms
Output Level -15 dBm to +10 dBm
P81413 G
Sheet 2 of 5
