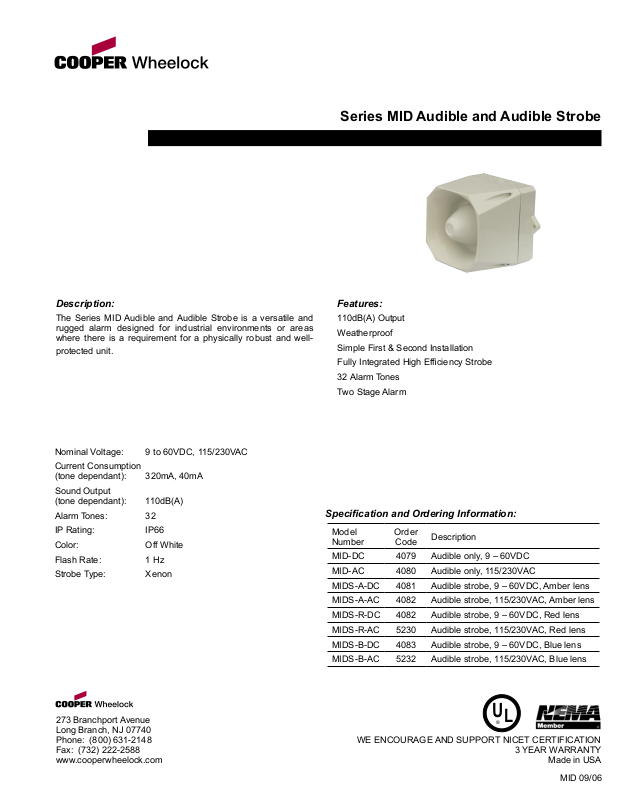

Wheelock MID Specification

U

L

®

Series MID Audible and Audible Strobe

Description:

The Series MID Audible and Audible Strobe is a versatile and
rugged alarm designed for industrial environments or areas
where there is a requirement for a physically robust and well-

protected unit.

Nominal Voltage: 9 to 60VDC, 115/230VAC

Current Consumption
(tone dependant): 320mA, 40mA

Sound Output
(tone dependant): 110dB(A)

Alarm Tones: 32

IP Rating: IP66

Color: Off White

Flash Rate: 1 Hz

Strobe Type: Xenon

Features:

110dB(A) Output

Weatherproof

Simple First & Second Installation

Fully Integrated High Efficiency Strobe

32 Alarm Tones

Two Stage Alarm

Specification and Ordering Information:

Model
Number

MID-DC 4079 Audible only, 9 – 60VDC

MID-AC 4080 Audible only, 115/230VAC

MIDS-A-DC 4081 Audible strobe, 9 – 60VDC, Amber lens

MIDS-A-AC 4082 Audible strobe, 115/230VAC, Amber lens

MIDS-R-DC 4082 Audible strobe, 9 – 60VDC, Red lens

MIDS-R-AC 5230 Audible strobe, 115/230VAC, Red lens

MIDS-B-DC 4083 Audible strobe, 9 – 60VDC, Blue lens

MIDS-B-AC 5232 Audible strobe, 115/230VAC, Blue lens

Order

Code

Description

273 Branchport Avenue
Long Branch, NJ 07740
Phone: [phone]
Fax: [phone]
www.cooperwheelock.com

WE ENCOURAGE AND SUPPORT NICET CERTIFICATION

3 YEAR WARRANTY

Made in USA

MID 09/06
