wheelock Accessory Drawings, Matrix Service Manual

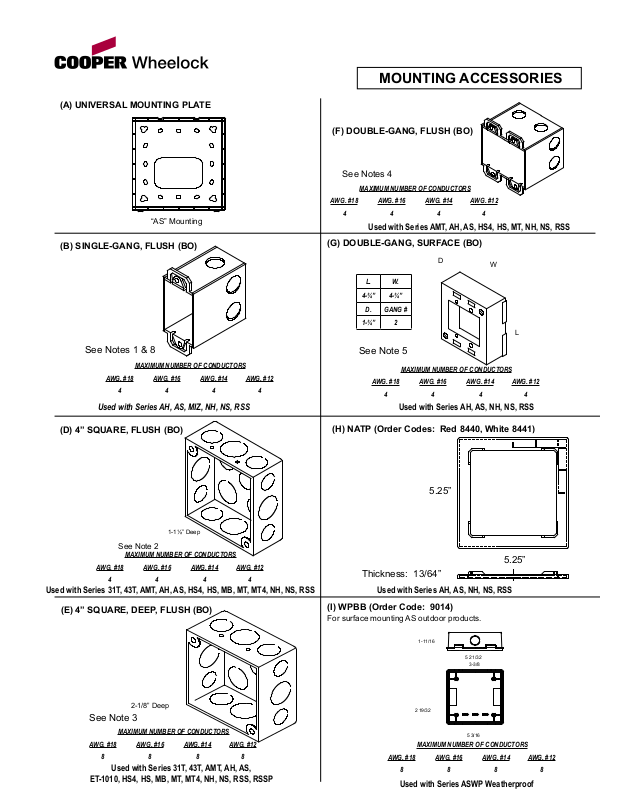

(A) UNIVERSAL MOUNTING PLATE
D
“AS” Mounting
(B) SINGLE-GANG, FLUSH (BO)
MOUNTING ACCESSORIES
(F) DOUBLE-GANG, FLUSH (BO)
See Notes 4
MAXIMUM NUMBER OF CONDUCTORS
AWG. #18 AWG. #16 AWG. #14 AWG. #12
4 4 4 4
Used with Series AMT, AH, AS, HS4, HS, MT, NH, NS, RSS
(G) DOUBLE-GANG, SURFACE (BO)
D
L. W.
4-¾” 4-¾”
D. GANG #
1-¾” 2
W
L
See Notes 1 & 8
MAXIMUM NUMBER OF CONDUCTORS
AWG. #18 AWG. #16 AWG. #14 AWG. #12
4 4 4 4
Used with Series AH, AS, MIZ, NH, NS, RSS
(D) 4” SQUARE, FLUSH (BO)
1-1½” Deep
See Note 2
MAXIMUM NUMBER OF CONDUCTORS
AWG. #18 AWG. #16 AWG. #14 AWG. #12
4 4 4 4
Used with Series 31T, 43T, AMT, AH, AS, HS4, HS, MB, MT, MT4, NH, NS, RSS
(E) 4” SQUARE, DEEP, FLUSH (BO)
See Note 5
MAXIMUM NUMBER OF CONDUCTORS
AWG. #18 AWG. #16 AWG. #14 AWG. #12
4 4 4 4
Used with Series AH, AS, NH, NS, RSS
(H) NATP (Order Codes: Red 8440, White 8441)
5.25”
5.25”
Thickness: 13/64”
Used with Series AH, AS, NH, NS, RSS
(I) WPBB (Order Code: 9014)
For surface mounting AS outdoor products.
1-11/16
5 21/32
3-3/8
2-1/8” Deep
See Note 3
MAXIMUM NUMBER OF CONDUCTORS
AWG. #18 AWG. #16 AWG. #14 AWG. #12
8 8 8 8
Used with Series 31T, 43T, AMT, AH, AS,
ET-1010, HS4, HS, MB, MT, MT4, NH, NS, RSS, RSSP
2 19/32
MAXIMUM NUMBER OF CONDUCTORS
AWG. #18 AWG. #16 AWG. #14 AWG. #12
8 8 8 8
5 3/16
Used with Series ASWP Weatherproof
TOP
(J) BB BACKBOX (Order Codes: Red 2830, Gray 2349)
Standard steel backbox with knockouts for interior surface mounting, concealed conduit mounting or semi-flush applications. It is painted to match the signal.
3-3/8
5
(N) DBB BACKBOX (Order Code: 2955)
Standard steel backbox provided with knockouts for interior surface mounting, concealed conduit mounting or semi-flush applications. It is painted to match the signal.
3-3/8
4
2-3/16
#8-32 TAP
3-3/8
4
(2) HOLES
PROVIDED WITH KNOCKOUTS
See Note 9
MAXIMUM NUMBER OF CONDUCTORS
FOR ½” & ¾” CONDUIT
AWG. #18 AWG. #16 AWG. #14 AWG. #12
4 4 4 4
Used with Series 31T, 43T, AH, AS, MB, MT4, NH, NS, RSS
(K) WBB WEATHER RESISTANT BACKBOX (Order Codes: Red 2959, White 2411)
Sturdy die cast housing, threaded conduit hole and knockout for outdoor ap­plications. It is painted to match the signal.
TAPPED FOR ½” CONDUIT
¼” DIA. (2) HOLES
2-1/16”
½” KNOCKOUT
MAXIMUM NUMBER OF CONDUCTORS
AWG. #18 AWG. #16 AWG. #14 AWG. #12
4 4 4 4
5” 4-1/8” 3-3/8”
3/8”
2”
0-1/4”
4-1/8”
Used with Series 31T, 43T, AHWP, ET-1010, MB, MT4
(L) ISP2 SURFACE ADAPTER (Order Code: Red 3194, White 3195)
5-1/4” SQ.
#8-32 TAP (2) HOLES
PROVIDED WITH KNOCK­OUTS FOR ½” & ¾” CONDUIT
3-3/8
4
MAXIMUM NUMBER OF CONDUCTORS
AWG. #18 AWG. #16 AWG. #14 AWG. #12
8 8 8 8
Used with Series 31T, 43T, AMT, AH, AS, ET-1010, HS4, HS, MB, MT, MT4, NH, NS, RSS
(O) RP-R RETROFIT PLATE (Order Code: 5042)
5-7/8
3-3/8
3-3/8
8
3-13/16
3-13/16
13/32
Used with Series 31T, 43T, AMT, AH, AS, CH70, E70, ET70,
ET-1010, ET-1080, HS4, HS, MB, MT, MT4, NH, NS, RSS
(P) SBB BACKBOX (Order Codes: Red 3204, White 3193)
For surface mounting speakers, chimes, andelectronic applications.
5-9/16
3-9/16
3 45/64
29/32
4 5/32
1 3/16
4 5/32
Used with Series AMT, CH70, E70, ET70, HS4, HS, MT
(M) IOB BACKBOX (Order Codes: Red 5046, White 5047)
For surface mounting MT products.
KNOCKOUTS FOR ½” CONDUIT (TOP, BOTTOM)
5-21/32
5-1/4 SQ.
3-3/8 SQ.
2-5/8
2-5/8
See Note 10
MAXIMUM NUMBER OF CONDUCTORS
AWG. #18 AWG. #16 AWG. #14 AWG. #12
8 8 8 8
Used with Series AMT, ET70WP, HS4, HS, MT, MTWP
See Note 11
5-1/2
3-3/8
MAXIMUM NUMBER OF CONDUCTORS
AWG. #18 AWG. #16 AWG. #14 AWG. #12
8 8 8 8
3-3/8
¾” KNOCKOUTS (EACH SIDE)
½” KNOCKOUTS (EACH SIDE)
Used with Series 43T, AMT, CH70, E70, ET70, ET-1080, HS4, HS, MB, MT, NH, NS, RSS
(Q) 4” SQUARE DEEP W/ EXTENSION RING, FLUSH (BO)
See Note 6
EXT. RING DEPTH 1-1/2” 2-1/8”
AWG. #18 8 8
AWG. #16 8 8
AWG. #14 8 8 AWG. #12 4 8
2-1/8” DEEP
1-1/2” DEEP
Used with Series CH70, CH90, E70, ET70, E90, ET90, ET-1080
3- 3/ 8"
TOP
(R) SFP SEMI-FLUSH PLATE (Order Codes: Red 2957, White
2958)
Stamped aluminum surface wall plate which mounts behind the basic unit and serves to cover recessed backboxes in semi-flush mounting applications. It is painted to match the signal.
6
3-3/8
5/16
(V) SSB-4 CEILING SUPPORT BRIDGE (Order Code: 3380)
Provisions for (4) J-nuts #8-32 ib 3-3/8” square Material: Steel
6-1/2”
#8-32 TAP (2) HOLES
3-3/8
6
Used with Series 31T, 43T, AMT, AH, AS, CH70, E70, ET70,
ET-1010, ET-1080, HS4, HS, MB, MT, MT4, NH, NS, RSS
(S) AP ADAPTER PLATE (Order Code: 2961)
Stamped aluminum adapter plate designed for applications where semi-flush installations cannot be used. The plate can be mounted to standard octagon or round backboxes single or double gang boxes or plaster rings. The backbox and basic unit are then fastened to the plate. This type mounting is referred to as a concealed conduit installation. It is painted to match the signal.
#8-32 TAP (4) HOLES
6
3-3/8
3-3/8
5/16
6
Used with Series
43T, MB
(T) WPSBB-R (Order Codes: Red 9751, White 3033)
1-11/16
5 21/32
3-3/8
23-3/4”
Used with Series CH70, CH90, E70, ET70, E90, ET90, ET-1080
(W) 411/16” SQUARE, DEEP SURFACE (B0)
See Note 7
MAXIMUM NUMBER OF CONDUCTORS
AWG. #18 AWG. #16 AWG. #14 AWG. #12
10 10 10 10
Used with Series SM, DSM
(X) SHBB SQUARE, SURFACE BACKBOX (Order Codes: Red 7254, White 7255)
11/16
1-9/16
1/2
5
3-3/8
Used with Series
2 19/32
RSSWP Weather-
proof
MAXIMUM NUMBER OF CONDUCTORS
AWG. #18 AWG. #16 AWG. #14 AWG. #12
8 8 8 8
5 3/16
(U) 5” SQUARE BACKBOX W/ EXTENSION RING, FLUSH (BO)
5”
5”
5”
5”
2 - 7/8”
Used with Series CH70, CH90, E70, ET70, E90, ET90, ET-1080
3-3/8
5
Used with Series 43T, AH, AS, MB, NH, NS, RSS
(Y) SER-R SQUARE SEMI-FLUSH EXTENSION RING (Order Codes: Red 3045, White 3049)
Used with Series CH70 E70, ET70
4-1/16
11-1/4
12-5/16
9-3/4
(Z) SBL-2 BACKBOX (Order Codes: Red 6988, White 6989)
23. 750 TYP
1 4. 4 63
8 .5 0 0
8. 50 0
7. 95 6
10. 000
7 .9 5 6
1 0 .0 0 0
1 .0 0 0 T Y P
THE CITY OF NEW YORK
DEPARTMENT OF BUILDINGS
U
L
®
1- 11/16
11-16
6 7/64 3-3/8
3-3/8
10 15/16
(DD) CBB-8 8” CEILING SPEAKER BACKBOX (Order Code: 3314)
Used with
See Note 12
Series RSSP
(AA) E50SB-R (Order Codes: Red 0230, White 0231)
Used with
Series E50
(BB) E50SSB-R (Order Codes: Red 0232, White 0233)
Used with Series
S 8” Ceiling
Speakers
(EE) E60 EXTENSION RING (Order Code: Red 3578, White 3757)
Used with
Series E50
(CC) SSB-8 8” CEILING SUPPORT BRIDGE (Order Code:
3573)
Used with Series S 8” Ceiling Speakers
(FF) ZBB (Order Codes: Red 6036, White 6045)
S5391 S2652
151-92-E





(GG) WFP PLATE (Order Codes: Red 4696, White 4697)
(HH) WFPA PLATE (Order Codes: Red 4696, White 4697)
BACKBOX DIMENSIONS FOR MPS
4-3/4” H x 3-1/4” W x 2-1/4” D
GENERAL NOTES
1. FIGURE B IS TYPICAL OF A STEEL CITY LXM-WOW BOX OR EQUAL. FIGURE B SHOULD BE A 3.5” DEEP BACKBOX FOR CONDUIT INSTALLTIONS AND IS TYPICAL OF A STEEL CITY CY-½ BOX OR EQUAL.
2. FIGURE D IS TYPICAL OF A STEEL CITY 52151 BOX OR EQUAL.
3. FIGURE E IS TYPICAL OF A STEEL CITY 52171 BOX OR EQUAL.
4. FIGURE F IS TYPICAL OF TWO STEEL CITY LXM-WOW BOXES OR EQUAL.
5. FIGURE G IS TYPICAL OF A WIREMOLD 5748-2 BOX OR EQUAL.
6. FIGURE Q IS TYPICAL OF A STEEL CITY 52171 BOX WITH A STEEL CITY 53151 EXTENSION RING OR EQUAL.
7. FIGURE W IS TYPICAL OF A STEEL CITY 72171-1 BOX OR EQUAL.
8. USE 3.5 DEEP BACKBOX ON ALL MIZ PRODUCTS WHEN EMT CONDUIT IS USED.
9. WHEN USED WITH AC HORN (J), “BB” MUST BE USED FOR SURFACE MOUNT.
10. HS4, HS, MT OR MTWP STROBE ARE FOR OUTDOOR MOUNTING.
11. USE WITH SERIES RSSP.
12. FIGURE U IS TYPICAL OF A RANDL INDUSTRIES BACKBOX. (“Total Number of conductors shall be in accordance with NEC table 314.16 (B)”).
MOUNTING MATRIX
Series E90/ET90
Series RSS/RSSR
Series RSSP
Series 31T
Series E50
Series 43T Bells
Sereis CH
Series ET80
Series ET1010
Series MB Motor Bells
Series E70/ET70
Series E60
Series MIZ/MIZ-TC
Series MT
Series NH/NS
Series HS4/HS
Series SM/DSM
Series AMT
Series AS/AH
Series RSSWP(1),
ASWP(2), AHWP(3),
MTWP(4), MT-
12/24(4), ET70WP(4)
(A) Universal Mounting Plate X (B) 1-GANG x 2” Deep - Flush (BO) Note 1 & 8 X X X X X (D) 4” x 4” x 1.5” Deep - Flush (BO) Note 2 X X X X X X X X (E) 4” x 4” x 2.125 Deep - Flush (BO) Note 3 X X X X X X X X X X X X X (F) 2-Gang x 3.5” Deep - Flush (BO) Note 4 & 8 X X X X X X X (G) 2-Gang x 1.75” Deep - Surface (BO) Note 5 X X X (H) NATP Trim Plate X X X (I) WPBB-R Weatherproof Backbox for ASWP 2 (J) BB Surface (WSI) Note 9 X X X X X X (K) WBB Weatherproof (WSI) X X X X X 3 (L) ISP Adapter (WSI) for Square Products X X X X X (M) IOB Surface & Weatherproof (WSI) Note 10 X X X X 4 (N) DBB Surface (WSI) X X X X X X X X X X (O) RP-R Retrofit Plate X X X X X X X X X X X (P) SBB Surface (WSI) Note 11 X X X X X X X X X X X (Q) 4” x 4” x 2.125” Box w/ 1.5” Extension Ring- Flush
(BO) Note 6 (R) SPT Semi-Flush Plate (WSI) X X X X X X X X X X X X (S) AP Adapter Plate (WSI) X X X X (T) WPSBB-R Weatherproof Backbox for RSSWP 1 (U) 5” Square Backbox w/ Extension Ring, Flush (BO) X X X X (V) SSB-4 Ceiling (WSI) Support Bridge X X X X X X (W) 4.6875” x 4.6785” x 2.125” Deep Surface (BO) X (X) SHBB (WSI) Shallow Surface X X X X X (Y) SER Semi-Flush Extension Ring (Retrofit Appl.) X X X (Z) SBL-2 Surface (WSI) Note 11 X X X X X X X (AA) E50SB Backbox for E50 Speaker X (BB) E50SSB Backbox for E50 Speaker Strobe X (CC) SSB-8 8” Speaker Support Tile Bridge X (DD) CBB-8 8” Ceiling Speaker Backbox (EE) E60 Extension Ring (FF) ZBB
X X X X X X
X
Series S
X
Series Z
X
Data Sheet Number(s)
S0310
S1610
S0410
S9008
S0410
S0500
S0510
S0600
S0710
S0800
S0800
S1500
S0310
S1610
S1611
S1700
S2000
S2100
S2400
S3000
S4000
S8100
S9004
S9006
S1100
Z1000
MOUNTING NOTES
Caution: The mounting options figures show the maximum number of field wires (conductors) that can enter the backbox
used with each mounting option. If these limits are exceeded, there may be insufficient space in the backbox to accommodate the field wires and stresses from the wires could damage the product. Although the limits shown for each mounting option comply with the National Electrical code (NEC), Wheelock recommends use of the largest backbox option and the use of approved stranded field wires whenever possible, to provide additional wiring room for easy installation and minimum stress on the product from wiring. Caution: Check that the installed product will have sufficient clearance and wiring room prior to installing backboxes and conduit, especially if sheathed multiconductor cable or 3/4” conduit fittings are used.
1. Mounting hardware for each mounting option is supplied.
2. Conduit entrances to the backbox should be selected to provide sufficient wiring clearance for the installed product. When extension rings are required, conduit should enter through the backbox, not the extension ring. Use Steel City #53151 (1-1/2” deep) or #53171 (2-1/8” deep) extension rings (as noted in the mounting options) or equal with the same cut-out area.
3. When terminating field wires, do not use more lead length than required. Excess lead length could result in insufficient wiring space for the appliance.
4. Use care and proper techniques to position the field wires in the backbox so that they use minimum space and produce minimum stress on the product. This is especially important for stiff, heavy gauge wires and wires with thick insulation or sheathing.
5. Do not pass additional wires (used for other than the appliance) through the backbox “unless the backbox is of a sufficient size to permit additional wiring as described in NEC 314.16 (B)”. Such additional wires could result in insufficient wiring space for the appliance.
NOTE: Due to continuous development of our products, specifications and offerings are subject to change without notice in accordance with Wheelock Inc. standard terms and conditions.
NFPA-72 (2002)
7.5.4* Appliance Location. Wall-mounted appliances shall be mounted such that the entire lens is not less than 2.0 m (80 in.) and not greater than 2.4 m (96 in) above the finished floor.
BACKBOX MOUNTING HEIGHTS
for WHEELOCK WALL MOUNTED
HORIZONTAL STROBE APPLIANCES
Series AS/AH Audible Strobe
Backbox Mounting Options*
(B) 1-Gang x 2” Deep - Flush (BO) 77 ½ 8 ½” 78 3/8” 7 5/8” 79 1/8” 6 7/8”
(D) 4” x 4” x 1.5” Deep - Flush (BO) 77” 9” 83 15/16” 77 7/8” 8 1/8” 78 5/8” 7 3/8” 79 15/16” 6 1/16”
(E) 4” x 4” x 2.125” Deep - Flush (BO) 77” 9” 83 15/16” 77 7/8” 8 1/8” 78 5/8” 7 3/8” 79 15/16” 6 1/16”
(F) 2-Gang x 3.5” Deep - Flush (BO) 77 ½” 8 ½” 78 3/8” 7 5/8” 79 1/8” 6 7/8” 80 9/16” 5 7/16”
(G) 2-Gang x 1.75” Deep - Surface (BO) 77 ½” 8 ½” 78 3/8” 7 5/8” 79 1/8” 6 7/8” 80 9/16” 5 7/16”
(M) IOB Surface & Weatherproof (WSI) 79 3/8” 6 5/8”
(P) SBB Surface (WSI) 79 1/4” 6 3/4”
(Q) 4” x 4” x 2.125” Box w/ 1.5” Extension Ring - Flush (BO)
(U) 5” Square Backbox w/ Extension Ring, Flush (BO)
(X) SHBB (WSI) Shallow Surface 76 ½” 9 ½” 77 3/8” 8 5/8” 78 1/8” 7 7/8”
(Y) 4” x 4” x 1.5” Box w/ 1.5” Extension Ring Plate (BO)
(Z) SBL-2 Surface (WSI) 78”
(FF) ZBB 78 1/8” 7 7/8”
Backbox Mounting Options*
(P) SBB Surface (WSI) 77 ¾ 8 ¼” 79 3/16” 6 13/16” 77 ¾” 8 ¼” 77 ¾” 8 ¼” 79 3/16” 6 13/16”
(Q) 4” x 4” x 2.125” Box w/ 1.5” Extension Ring - Flush (BO)
(U) 5” Square Backbox w/ Extension Ring
- Flush (BO)
(X) SHBB (WSI) Shallow Surface
(Y) 4” x 4” x 1.5” Box w/ 1.5” Extension Ring Plate - Flush (BO)
80 IN 6 IN 80 IN 6 IN 80 IN 6 IN 80 IN 6 IN 80 IN 6 IN
69 ½” 8 ½” 83 7/16” 77 3/8” 7 5/8” 78 1/8” 6 7/8” 79 7/16” 5 9/16”
Series CH70 Chime Strobe
80 IN 6 IN 80 IN 6 IN 80 IN 6 IN 80 IN 6 IN 80 IN 6 IN
77 ½” 7 ½” 80 6” 78 ½” 7 ½” 78 ½” 7 ½” 80” 6”
78” 7” 79 ½ 5 ½” 78” 7” 78” 7” 79 ½” 5 ½”
78 ½” 7 ½” 80” 6”
Series RSSP Flush and Surface Retrofit Plate
Series ET80 Speaker Strobe
Series NS Horn Strobe
Series E70 Speaker Strobe
Series Z and RSS Strobe
Series ET70 Speaker Strobe
Series MT and AMT Multitone Strobe
Series SA-70S Self Amplified Speaker Strobe
* Measured from Bottom of Backbox
NOTES: (BO) = By Others (WSI) = Wheelock Product
273 Branchport Avenue Long Branch, NJ 07740 Phone: (800) 631-2148 Fax: (732) 222-2588 www.cooperwheelock.com
WE ENCOURAGE AND SUPPORT NICET CERTIFICATION
3 YEAR WARRANTY
Made in USA
