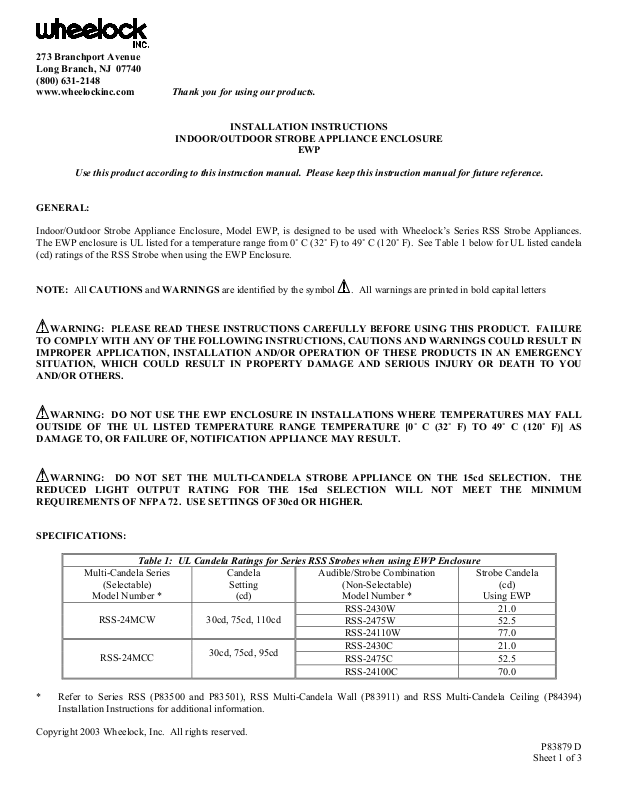

wheelock EWP INSTALLATION INSTRUCTIONS
273 Branchport Avenue
Long Branch, NJ 07740
(800) 631-2148
www.wheelockinc.com Thank you for using our products.
INSTALLATION INSTRUCTIONS
INDOOR/OUTDOOR STROBE APPLIANCE ENCLOSURE
EWP
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
GENERAL:
Indoor/Outdoor Strobe Appliance Enclosure, Model EWP, is designed to be used with Wheelock’s Series RSS Strobe Appliances.
The EWP enclosure is UL listed for a temperature range from 0û C (32û F) to 49û C (120û F). See Table 1 below for UL listed candela
(cd) ratings of the RSS Strobe when using the EWP Enclosure.
NOTE: All CAUTIONS and WARNINGS are identified by the symbol
. All warnings are printed in bold capital letters
WARNING: PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. FAILURE
TO COMPLY WITH ANY OF THE FOLLOWING INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN
IMPROPER APPLICATION, INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN AN EMERGENCY
SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU
AND/OR OTHERS.
WARNING: DO NOT USE THE EWP ENCLOSURE IN INSTALLATIONS WHERE TEMPERATURES MAY FALL
OUTSIDE OF THE UL LISTED TEMPERATURE RANGE TEMPERATURE [0û C (32û F) TO 49û C (120û F)] AS
DAMAGE TO, OR FAILURE OF, NOTIFICATION APPLIANCE MAY RESULT.
WARNING: DO NOT SET THE MULTI-CANDELA STROBE APPLIANCE ON THE 15cd SELECTION. THE
REDUCED LIGHT OUTPUT RATING FOR THE 15cd SELECTION WILL NOT MEET THE MINIMUM
REQUIREMENTS OF NFPA 72. USE SETTINGS OF 30cd OR HIGHER.
SPECIFICATIONS:
Table 1: UL Candela Ratings for Series RSS Strobes when using EWP Enclosure
Multi-Candela Series
(Selectable)
Model Number *
RSS-24MCW
Candela
Setting
(cd)
30cd, 75cd, 110cd
Audible/Strobe Combination
(Non-Selectable)
Model Number *
Strobe Candela
(cd)
Using EWP
RSS-2430W 21.0
RSS-2475W 52.5
RSS-24110W 77.0
RSS-24MCC
30cd, 75cd, 95cd
RSS-2430C 21.0
RSS-2475C 52.5
RSS-24100C 70.0
* Refer to Series RSS (P83500 and P83501), RSS Multi-Candela Wall (P83911) and RSS Multi-Candela Ceiling (P84394)
Installation Instructions for additional information.
Copyright 2003 Wheelock, Inc. All rights reserved.
P83879 D
Sheet 1 of 3
MOUNTING INFORMATION:
C
D
E
I
F
G
H
4 IN SQUARE, FLUSH BACKBOX MOUNTING INSTRUCTIONS
A. Centerline
B. Threaded mounting bosses
A
C. Mounting tabs
D. Insert the (4) external mounting tabs into enclosure slots as
shown. Using enclosure assembly as template place against
B
J
K
mounting surface with centerline 80 inches above floormark
and drill (4) 1/4-inch diameter holes 1 inch deep.
E. (4) 10-12 x 1 inch plastic anchors
F. (4) 10 x 1 1inch screws
G. (4) retaining clips
H. (4) 8-32 x 3/8-inch socket head screws.
I. Drain screen
J. Neoprene gasket
K. Cover (clear solid)
NOTE: AFTER ALL INSTALLATION PROCEDURES HAVE BEEN
COMPLETED, INSTALL GASKET IN ENCLOSURE GROOVE NOW
PLACE COVER IN GROOVE AND POSITION THE FOUR (4) CLIPS
IN THE SLOT CLOSEST TO EDGE OF COVER. TIGHTEN THE
FOUR (4) 8-32 MACHINE SCREWS USING A 3/32 ALLEN
WRENCH.
STAND-OFF INSTALATION
INSTRUCTIONS FOR AREAS WITH
FREQUENT WASHDOWNS
A
GASKET
STAND OFF BLOCKS (4)
B
C
D
F
E
1-3/4"
CONDUIT ENTRY HOLE
MUST BE FIELD DRILLED.
1. DRILL A PILOT HOLE
(MAXIMUM 1/2" )
CENTERLINE
TOP VIEW
1. Figure A is typical of a ¾ in. Rain tight conduit hub with neoprene o-ring threaded
for rigid conduit and imc. (O-Z/GEDNEY #CHM-75 or equivalent.)
2. Figure B is typical of a ¾ in. female adapter (Carlton #E942 or equivalent).
3. Figure C is typical of a ¾ in.-1/2 in. reduce bushing (Appleton #RB series or
equivalent).
4. Figure D is typical of a galvanized ½ in. conduit nipple.
5. Figure E is typical of a ½ in. conduit lock nut.
6. Figure F is typical of a 4 in. X 2-⅛ in. Deep Square Backbox 9RACO190 or
equivalent).
EXTERNAL MOUNTING
TABS (4)
CLEANING INSTRUCTIONS FOR
ENCLOSURE AND COVER
1. Rinse with water to remove abrasive
dust and dirt.
2. Wash with soap or mild detergent, using
a soft cloth (do not scrub).
3. Rinse once more, than dry with a soft
cloth or chamois.
4. Rinse with water to remove abrasive
dust and dirt.
5. Wash with soap or mild detergent, using
a soft cloth (do not scrub).
6. Rinse once more, than dry with a soft
cloth or chamois.
To remove grease or wet paint, rub gently
with a cloth wetted thoroughly with naptha
then wash and rinse. DO NOT USE
RAZOR BLADES.
P83879 D
Sheet 2 of 3
