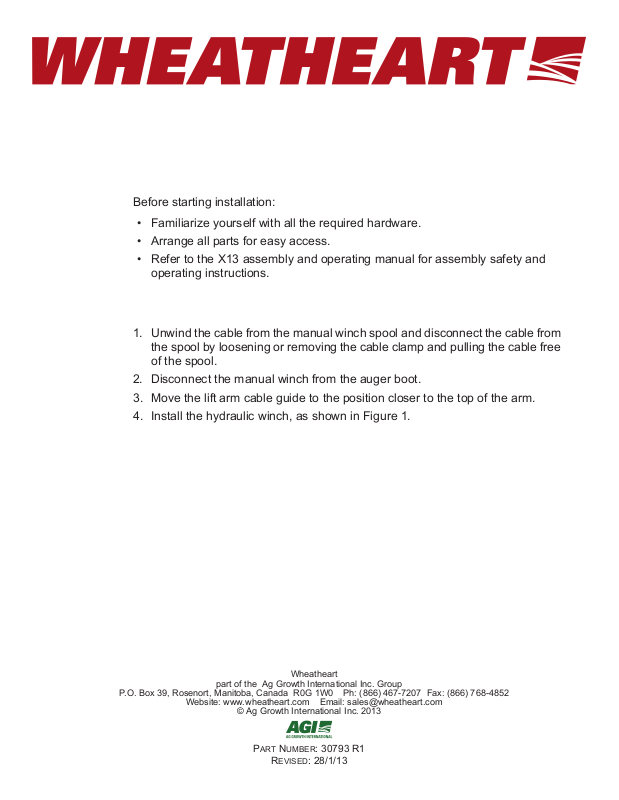

X13 HYDRAULIC WINCH KIT [A266]

Wheatheart

FOR X1374, X1384, & X1394 AUGER MODELS

INSTALLATION INSTRUCTIONS

Before starting installation:

• Familiarize yourself with all the required hardware.

• Arrange all parts for easy access.

• Refer to the X13 assembly and operating manual for assembly safety and

operating instructions.

HYDRAULIC WINCH INSTALLATION

1. Unwind the cable from the manual winch spool and disconnect the cable from
the spool by loosening or removing the cable clamp and pulling the cable free
of the spool.

2. Disconnect the manual winch from the auger boot.

3. Move the lift arm cable guide to the position closer to the top of the arm.

4. Install the hydraulic winch, as shown in Figure 1.

P.O. Box 39, Rosenort, Manitoba, Canada R0G 1W0 Ph: [phone] Fax: [phone]

artp of the Ag Growth International Inc. Group

Website: www.wheatheart.com Email: [e-mail]

© Ag Growth International Inc. 2013

PART NUMBER: 30793 R1

EVISED: 28/1/13

R

WINCH MOUNTING PLATE

HYDRAULIC
WINCH

3/8” LOCKNUTS [17402]

3/8” FLAT WASHERS
[17392]

5/16” X 1” BOLTS
[17125]

5/16” LOCKNUTS
[19980]

CABLE GUIDE

LIFT ARM

Figure 1 Installing the Hydraulic Winch

5. Install the hydraulic winch valve, and PTO transport strap, as shown in
Figure 2.

6. Feed winch cable under the spool, and connect the winch cable to the spool
(3 wraps around the spool, secure with clamp and clamp hardware) as shown
in Figure 3.

7. Connect hydraulic hose between the control valve and the winch, as shown in
Figure 4.
