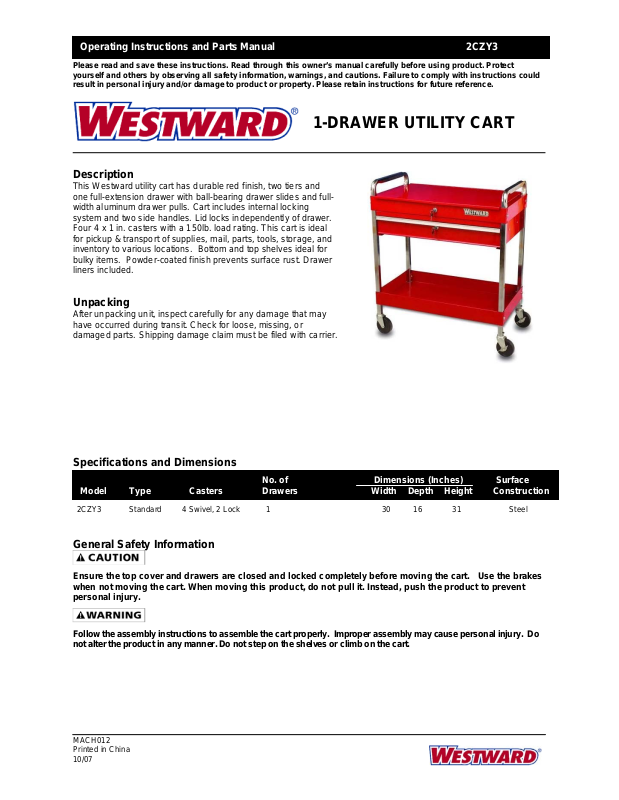

Operating Instructions and Parts Manual 2CZY3
Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect
yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could
result in personal injury and/or damage to product or property. Please retain instructions for future reference.
1-DRAWER UTILITY CART
Description
This Westward utility cart has durable red finish, two tiers and
one full-extension drawer with ball-bearing dra wer slides and fullwidth aluminum drawer pulls. Cart includes internal locking
system and two side handles. Lid locks independently of drawer.
Four 4 x 1 in. casters with a 150lb. load rating. This cart is ideal
for pickup & transport of supplies, mail, parts, tools, storage, and
inventory to various locations. Bottom and top shelves ideal for
bulky items. Powder-coated finish prevents surface rust. Drawer
liners included.
Unpacking
After unpacking unit, inspect carefully for any damage that may
have occurred during transit. Check for loose, missing, or
damaged parts. Shipping damage claim must be filed with carrier.
Specifications and Dimensions
No. o
Model Type Casters Drawers Width Depth Height Construction
Dimensions (Inches) Surface
2CZY3 Standard 4 Swivel, 2 Lock 1 30 16 31 Steel
General Safety Information
Ensure the top cover and drawers are closed and locked completely b efo re moving the cart. Use the brakes
when not moving the cart. When moving this product, do not pull it. Instead, push the product to prevent
personal injury.
Follow the assembly instructions to assemble the cart properly. Improper assembly may cause personal injury. Do
not alter the product in any manner. Do not step on the shelves or climb on the cart.
MACH012
Printed in China
10/07
Page 2
2CZY3 Westward Operating Instructions and Parts Manual
1-DRAWER UTILITY CART

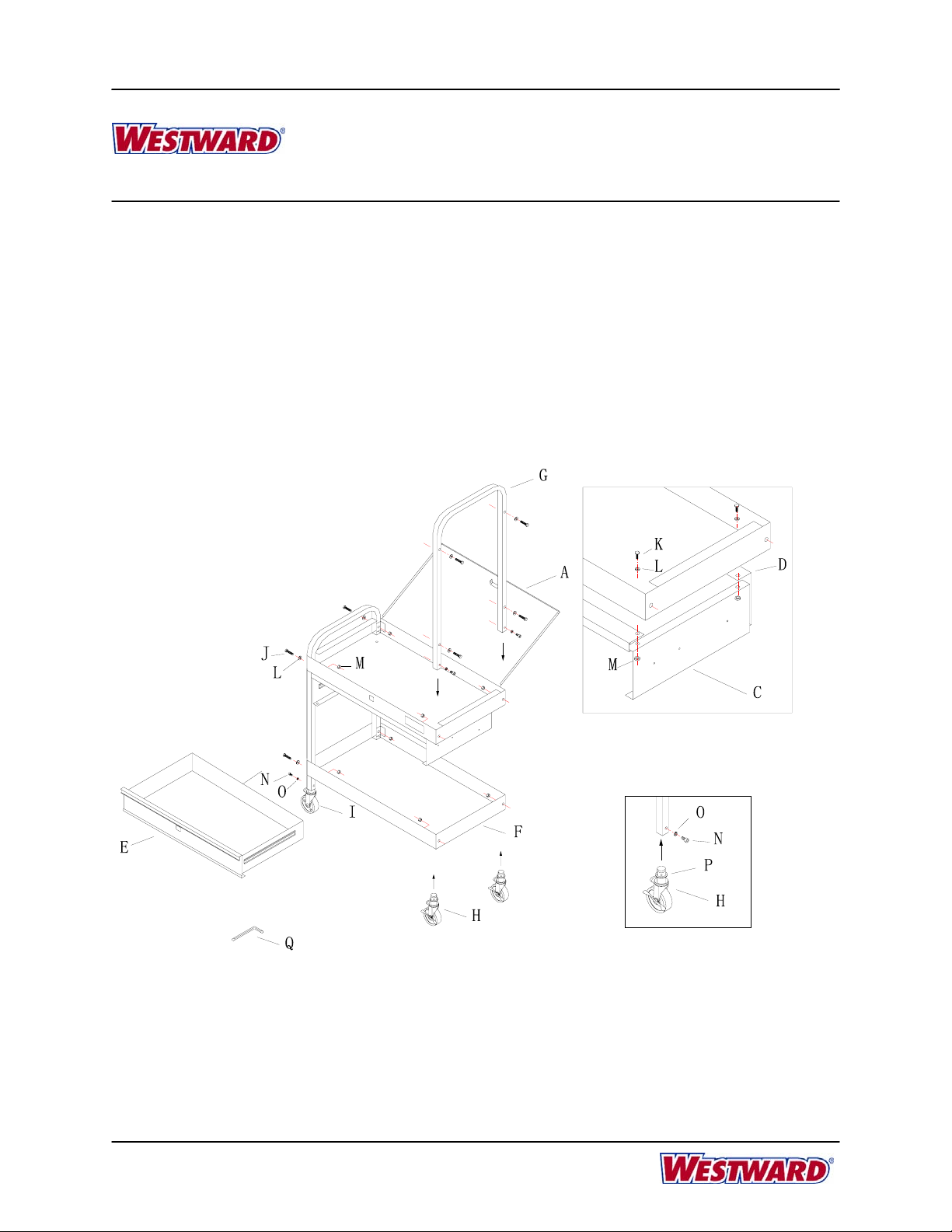

Assembly
NOTE: Finger tighten all bolts until the cart is completely assembled, then wrench tighten. When assembling the cart,
please start from top to bottom.
1. Assemble A, F, and G (2) using J (8), L (8), and M (8).
2. Assemble C (2), and D using K (6). L (6) and M (6).
3. Assemble H (2) and I (2) using N (4), O (4), P (4), and Q. Casters w/ brake must be installed on the same side.
4. Tight all bolts.
5. Install E by placing o n slid es channels and slide in fully. To remove drawers, the retaining clip on the slides
needs to be released by pushing lever up on one side and do wn on the other side at the s ame time, and slide out.
To reinstall drawers, place on slide channels and slide in fully.
2
Page 3
1-DRAWER UTILITY CART
2CZY3 Westward Operating Instructions and Parts Manual

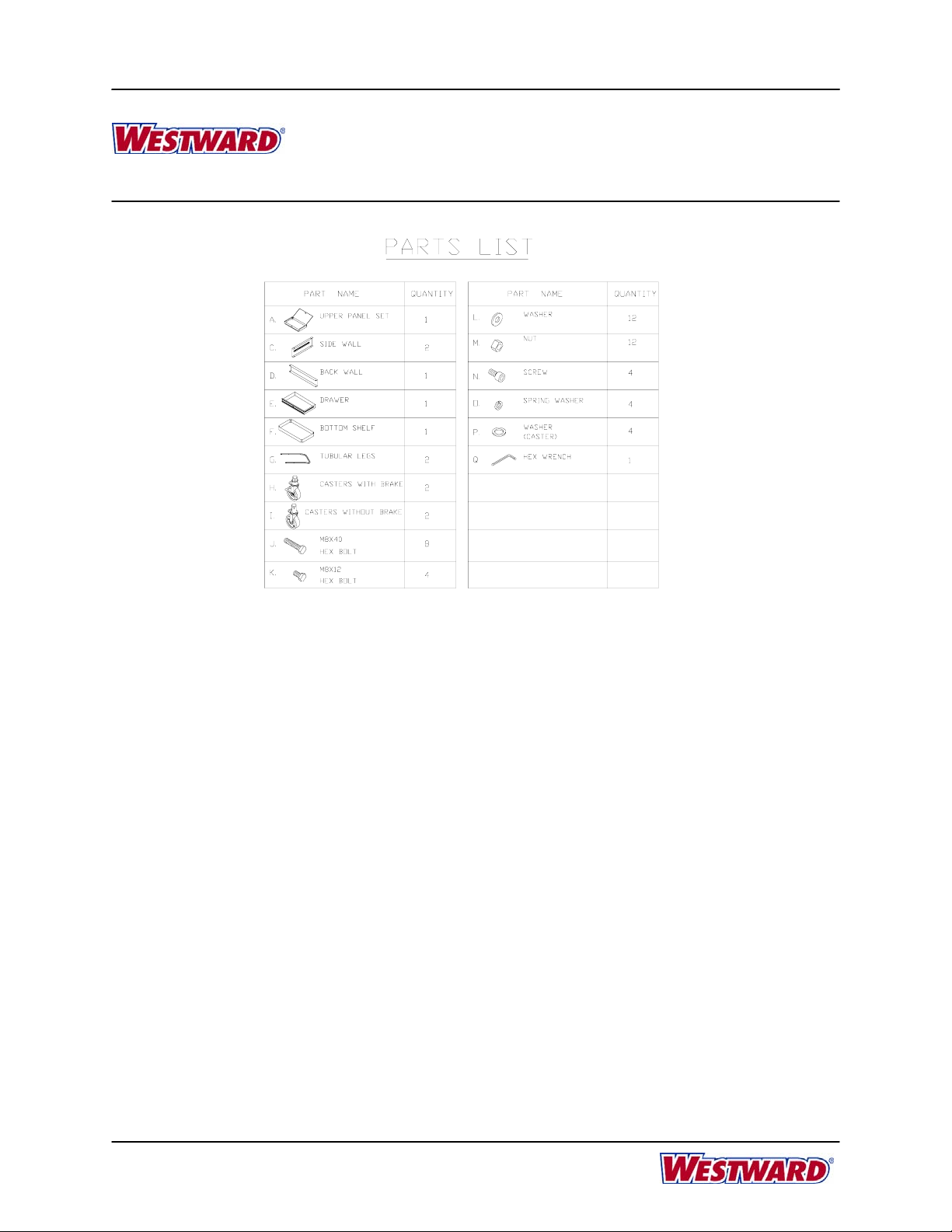

Maintenance
Lubricate lock with graphite. Lubricate the ball bearing slides with grease.
3
Page 4
1-DRAWER UTILITY CART
For Repair Parts, call 1-800-323-0620
24 hours a day – 365 days a year
Please provide the following:
- Model Number
- Serial Number (if any)
- Part description and number as shown on parts list
2CZY3 Westward Operating Instructions and Parts Manual

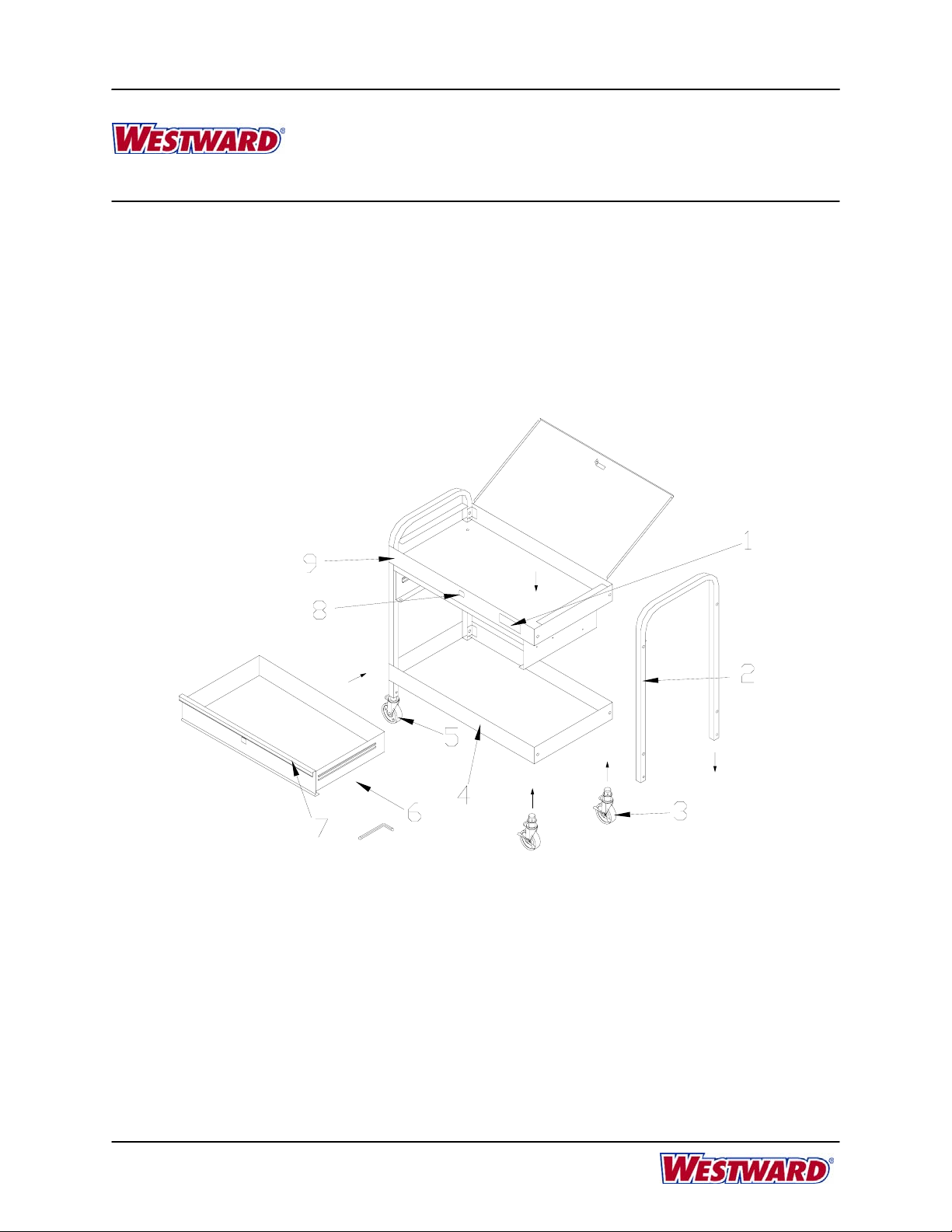

Figure X – Repair Parts Illustration for Model(s) 2CZY3
4
Page 5
1-DRAWER UTILITY CART
Repair Parts List
Reference
Number Description Part Number QTY
1 Side handle, power coated 02-0009 1 2CZY1, 2CZX2, 2CZX4, 2CZX9
GIS SKU
2CZY3 Westward Operating Instructions and Parts Manual
1 Nameplate 76-0008 1
1 Tubular side handle 02-B003 1 2CZY4
2 Side carrying handles, chrome-plated 04-09F 1 2CZX1, 2CZX3, 2CZX6, 2CZX7, 2CZX8
2 Nameplate 76-0008 1
2 MDF work top 20-A05 1 2CZX5
2 Drawer trim for small drawers F331031-3DX 1 2CZY2, 2CZY5
3
3 Plastic caps for side handle holes 17-14 2 2CZY1, 2CZX2, 2CZX4, 2CZX9
3 Plastic handle 04-19 1 2CZY7
4 Gas Struts 31-03A 1 2CZX3, 2CZX6, 2CZX7, 2CZX8
4 Slide-out perforated panel (w/ slides) F270081-2 1 2CZY7
4, 5 Swivel caster with brake 1
9, 5, 4, 9 Swivel caster without brake 1 2CZY2, 2CZY3, 2CZY4, 2CZY5
5 Fixed caster 1
7, 9 EVA top mat 73-454 1
7
8
Small Drawers (w/ slides & aluminum
pull)
Large Drawers (w/ slides & aluminum
pull) F270081-4D 1 2CZY7
Small Drawers (w/ slides & aluminum
pull) F270081-3D 1 2CZY7
F331031-3D 1 2CZY2, 2CZY5
2CZX1, 2CZX3, 2CZX6, 2CZX7, 2CZX8,
2CZY2, 2CZY3, 2CZY5
2CZY1, 2CZX2, 2CZX4, 2CZY7, 2CZX9,
2CZY4
2CZY1, 2CZX2, 2CZX4, 2CZY7, 2CZX9,
2CZY2, 2CZY3, 2CZY4
2CZY1, 2CZY2, 2CZX2, 2CZX4, 2CZY7,
2CZX9, 2CZY3, 2CZY4
2CZY1, 2CZY2, 2CZX2, 2CZX4, 2CZY7,
2CZX1, 2CZX3, 2CZX6, 2CZX7, 2CZX8,
2CZX9
2CZY1, 2CZY3, 2CZY5, 2CZY2, 2CZX2,
* Draw liner 2H182 1
NOTE: (1) TO ORDER JUST KEYS OR TO MATCH LOCK TO ANOTHER UNIT, GIVE NUMBER THAT IS STAMPED ON FACE
OF LOCK. (2) REPLACEMENT KEYS MAY BE ORDERED USING THE LETTER AND NUMBER COMBINATION WHICH
APPEARS ON THE FACE OF THE LOCK AS THE PART NUMBER. (3) Asterick * = Not shown.
2CZX4, 2CZY7, 2CZX1, 2CZX3, 2CZX6,
2CZX7, 2CZX8, 2CZX9
Manufactured for Grainger International, Inc.
100 Grainger Pkwy., Lake Forest IL 60045 U.S.A.
