West Penn CN-255CRGB-100, CN-255CRGB-12, CN-255CRGB-150, CN-255CRGB-25, CN-255CRGB-50 Specsheet
...Page 1
CABLE ACCESSORIESCABLE ACCESSORIES CATALOGCATALOG
Interconnect SolutionsInterconnect Solutions
Cable with ConfidenceCable with Confidence
WEST PENN WIREWEST PENN WIRE
CATV/MATV
& Accessories
CCTV Security
& Accessories
A/V - Pro-Video
& Accessories
A/V - Pro-Audio
& Accessories
LAN / Voice
& Accessories
Fiber Optics
& Accessories
Page 2
CN-F81NW
CN-F81
CN-F71
CATV/MATV
Assorted Adaptors
CATV/MATV
“F” Type Connectors
“F” Crimp Type Connectors
Catalog No. Description
CN-F56ALM RG6/U
CN-F56ALX RG6/U Quad Shield
CN-F59TFE/WP RG59/U West Penn Plenum
CN-F56TFE RG6/U Plenum
CN-F56AQ RG6/U Zinc plated with rubber O-Ring
CN-F59T 75 Ohm “F” Terminator
CN-F11ALX RG11/U
CN-F11TFE RG11/U Plenum
CN-F59ALM
CN-F59T
CN-F11ALX
CN-CSF-6
CATV/MATV
“F” Type Compression Connectors
CN-FCP-59
“F” Type Compression Connectors
Catalog No. Description
CN-CSF-6 RG6/U PVC
CN-FS6PL2 RG6/U Plenum
CN-FSNSQS-6 RG6/U Quad-Shielded- PVC
CN-FSNS-11 RG11/U & RG11 Quad Plenum
CN-FS11V RG11/U
CN-FS11PL RG11 Plenum , Quad, Quad Plenum
“F” Type Compression Connectors- Window Style
CN-FCP-825 MiniMax 25Awg.
CN-FCP-823 Miniature RG59/U 23Awg.
CN-FCP-59 RG59/U
CN-FCP-6 RG6/U
CN-FCP-6QD RG6/U Quad Shield
CN-DB6PL2 * Double Bubble 25Q841 & 256300
“F” Type Barrel and Adaptors
Catalog No. Description
CN-F81 F Barrel Splice
CN-F81NW F Barrel Splice with Nut and Washer
CN-F71 F Male to Male Adapter
800-245-4964 • www.westpenn-wpw.com
Small Profile
Compression
Design
Colored Rings are available- See page 110
CN-ADP100 “F” Female to “F” Push on
CN-ADP101 “F” Right Angle Push on
CN-ADP102 “F” Right Angle (F to M)
CATV/MATV Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
70
Page 3
Splitters
Catalog No. Description
GHS-2 2 Way Splitter- 1 GHZ
GHS-4 4 Way Splitter- 1 GHZ
GHS-8 8 Way Splitter- 1 GHZ
GHS-8
TL-120
Stripping Tools
Catalog No. Description
TL-7502 2 Cut Tool- RG59, RG6, RG58
TL-124 3 Cut Tool RG8, RG11, RG213
TL-CSST Compression Strip Tool- 2 Cut RG59 & RG6
TL-PS11 Compression Strip Tool RG11/U
TL-59-6 Miniature Strip Tool RG59 and 6
Tools Crimp and Compression
Catalog No. Description
TL-111 RG59 / RG6
TL-112 RG6 / RG11 (CN-F11ALX)
TL-115 Plenum RG11
TL-SNSA Compression Tool RG59 / RG6
TL-SNS11 Compression Tool RG11- CN-FSNS-11
TL-CCT-SS59/11
Compression Tool RG11- CN-FS11V & CN-FS11PL
TL-548G Alternate Compression Tool
TL-8808 “F” Compression Tool
CATV/MATV
Splitters
CATV/MATV
Strip Tools
CATV/MATV
Crimp/ Compression Tools
Replacement Blades
Catalog No. Description
TL-133 TL-7502
TL-SNSA
Coaxial Systems
Outside Plant Protection Splices
Gel Filled
Catalog No. Description
CN-8006667 RG11/U
CN-8006589 RG59/U and RG6/U
Notes:
TL-SNSA and TL-8808 - Accepts RG59, & RG6
TL-548G- Accepts RG59, RG6, & RG11
Crimp Tool Die Sizes:
TL-111: .324, .359
TL-112: .100, .322, .448
TL-115: .068, .100, .324, .384
CN-8006589
800-245-4964 • www.westpenn-wpw.com
CATV/MATV Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
71
Page 4
CATV/MATV - Over UTP Cables pgs.145-148
Baluns
CATV/MATV Passive Balun- “F” Type
CN-CATVF “F” Type to RJ45
CATV/MATV Passive Balun- RCA
CN-CATVRCAKS RCA Type to RJ45 Keystone Insert Design
CATV/MATV

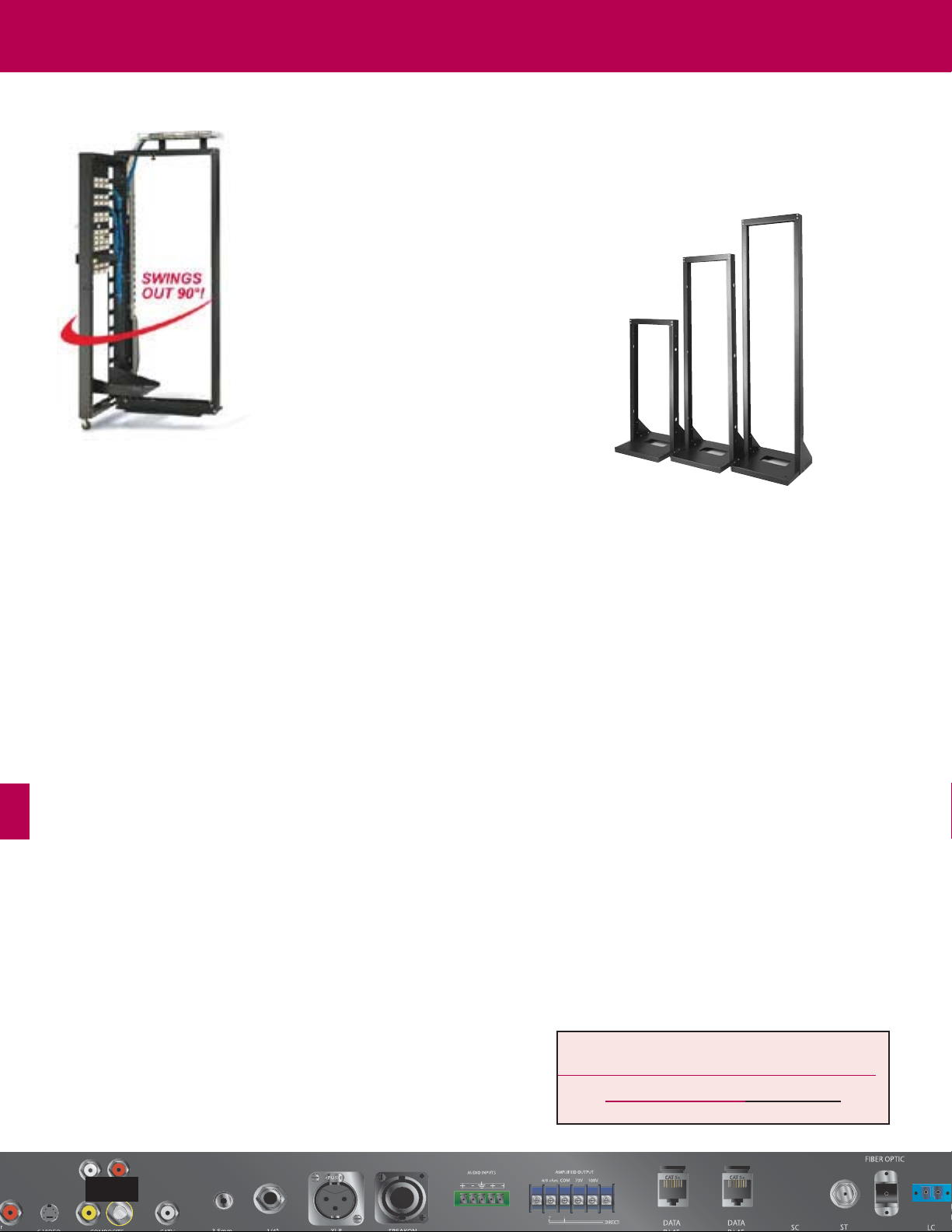

Racks
Free Standing Racks
WPDR-4819 19” Free Standing Rack- 48”
WPDR-7219 19” Free Standing Rack- 72”
WPDR-8419 19” Free Standing Rack- 84”
WPCR-8419 19” Cable Management Rack- 84”
Rack Mount Patch Panels
FI-RM24 Empty Rack - Load with 4 Adapter Plates (19”- 3.35”H X 11.970D)
FI-RM48 Empty Rack - Load with 8 Adapter Plates (19”- 5.1”H X 11.970D)
FI-RM72 Empty Rack - Load with 12 Adapter Plates (19”- 6.85”H X 11.970D)
“F” Type Adapter Plates
CN-ADPF81 6 “F” Type Female to Female Plate Installed
CN-ADPF81E 6 “F” Type Position Plate Empty
CN-ADP6BNK Blank Plate
CATV/MATV
Empty Patch Panels
CATV/MATV
Adaptor Plates 5.0625” X 1.125”
CN-ADPF81
For Additional Distribution Racks See Page 172 in the Fiber
Optic Accessories Section
Category 5 or Better UTP
Bandwidth: 5MHz to 862MHz
Category 5 or Better UTP
Bandwidth: 5MHz to 862MHz
800-245-4964 • www.westpenn-wpw.com
CATV/MATV
Cable Assemblies
West Penn Wire can custom produce any CATV/MATV Cable
Assembly needed. Call West Penn Wire Engineering Team
CATV/MATV Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
72
Page 5
Security Accessories
75 Ohm BNC Compression Style
CN-CSBNC-25
CN-CSBNC-59
75 Ohm BNC Compression Style
Catalog No. Description
CN-CSBNC-25 Multi-Piece Miniature 25Awg. 825
CN-CSBNC-59 1 Pc. RG59/U PVC
CN-FS59BNCPL4 1 Pc. RG59/U Plenum
CN-CSBNC-6 1 Pc. RG6/U PVC
CN-FS6BNCPL2 1 Pc. RG6/U Plenum
CN-CSBNC-11 RG11/U - Use TL-CSBNC-11 Tool
75 Ohm BNC Compression Style- Window
CN-BNCP-RGB 1 Pc. Miniature 25Awg. RGB- Window
CN-BNCP-825 1 Pc. MiniMax 25Awg. 825 -Window
CN-BNCP-59 1 Pc. RG59/U Window
CN-BNCP-6 1 Pc. RG6/U Window
Security Cable Assemblies
BNC to BNC
CCTV - Cable Assemblies RG59/U
Catalog No. Length (ft.)
CN-7B815BK-xx
Replace xx with:
3,6,10,15,20,25
CCTV - Cable Assemblies MiniMax 25AWG
Catalog No. Length Jacket Colors
CN-7B825**-3 3 Foot
**- Jacket Colors
Black-BK, Blue-BL, Red-RD,
Yellow-YE,
Green-GN, White-WH
CN-7B825**-6 6 Foot
CN-7B825**-10 10 Foot
CN-7B825**-15 15 Foot
CN-7B825**-20 20 Foot
CN-7B825**-25 25 Foot
CCTV - Cable Assemblies Plenum MiniMax 25AWG
Catalog No. Length Jacket Colors
CN-7B25825**-3 3 Foot
**- Jacket Colors
Black-BK, Blue-BL, Red-RD,
Yellow-YE,
Green-GN, White-WH
CN-7B25825**-6 6 Foot
CN-7B25825**-10 10 Foot
CN-7B25825**-15 15 Foot
CN-7B25825**-20 20 Foot
CN-7B25825**-25 25 Foot
Security CCTV Accessories

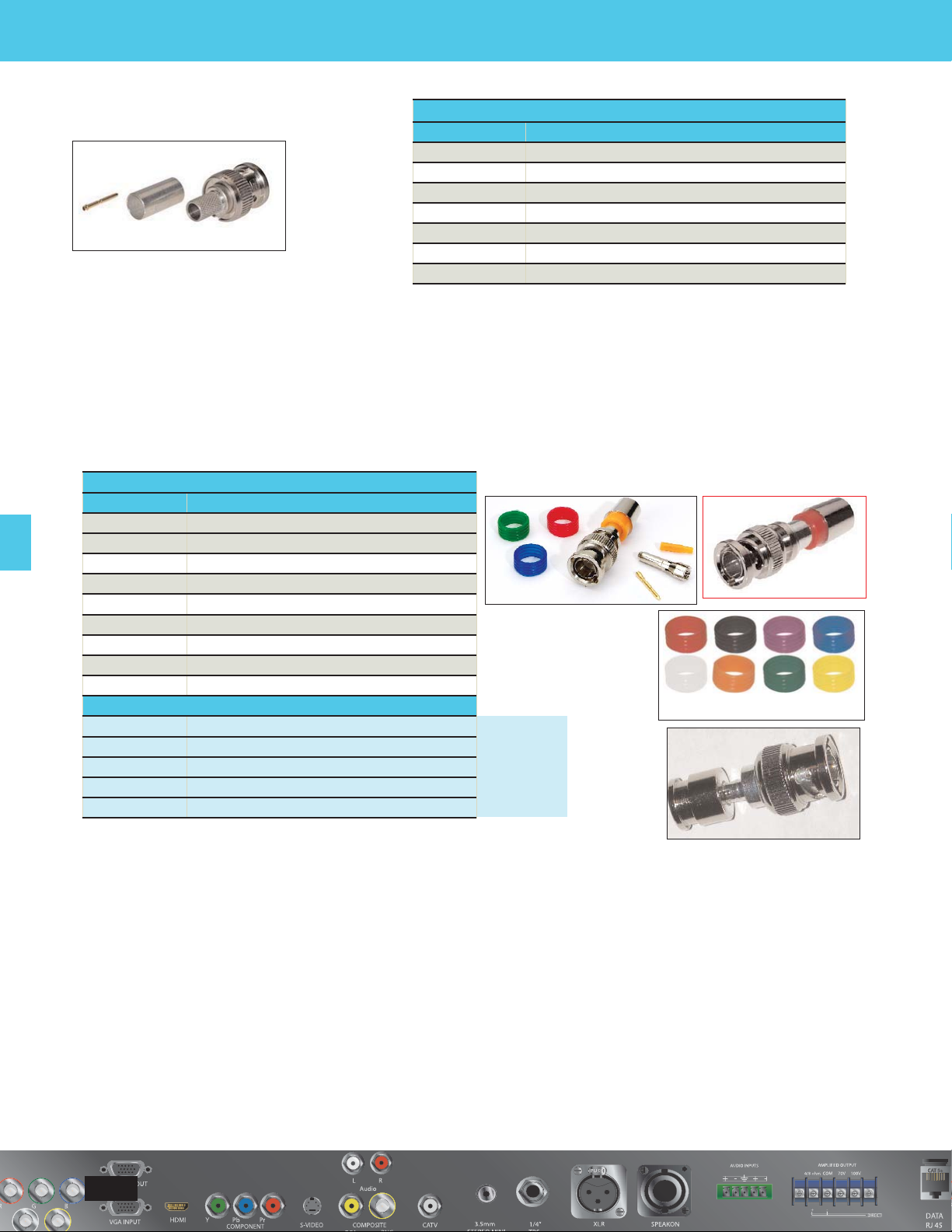

75 Ohm BNC Crimp Style
Catalog No. Description
CN-BM74-19 4 Pc.Miniature RGBHV
CN-BM74-18 4 Pc Minimax Miniature
CN-BM74-32 4 Pc RG59/U PVC or Plenum
CN-BM73-5 3 Pc RG6/U PVC
CN-BM73-4 3 Pc RG6/U Plenum
CN-BM73-3 3 Pc P806 Connector
CN-BF74-18 4 Pc Female Minimax Miniature
3 Pc. 75 Ohm BNC
Security Accessories
75 Ohm BNC Crimp Style
800-245-4964 • www.westpenn-wpw.com
CN-BNCP-RGB
Smaller
Profile
Compression
Design
Colored Rings are available- See page 110
WEST PENN WIRE
CABLE WITH CONFIDENCE
85
Page 6
Security CCTV Accessories
Security Accessories
Stripping Tools
Security Accessories
Crimp Tools
TL-107
TL-825
Tools Crimp and Compression
Catalog No. Description
TL-104 RG58, RG59/U, RG59 Plenum
TL-105 MiniMax 25Awg.and 26Awg.
TL-803 Universal MiniMax and RG59
TL-107 Universal RG59, RG6
TL-113 RG8/U & RG11/U
TL-115 RG8/U Plenum 25810
TL-119 RG8X/U
TL-SNSA Compression Tool BNC, RCA, F
TL-548G Alternate Compression Tool
TL-CSBNC-11 RG11/U Comp. Tool
TL-SNSA
Testers
Catalog No. Description
TL-1933A Receptacle Tester
Security Connectors
BNC Style- 50 Ohm
3 Pc. 50 Ohm BNC Crimp/Solder Style
Catalog No. Description
CN-BM53-8 RG8/U
CN-BM53-8X RG8X
CN-BM53-13 RG58/U
CN-BM53-25 RG58/U- Plenum
CN-BM53-26 RG11/U-
CN25810KBNC 25810
TL-1933A
Stripping Tools
Catalog No. Description
TL-124 3 Cut Tool RG8, RG11, RG213
TL-825 MiniMax 25Awg.
TL-CSST Compression Strip Tool- 2 Cut- RG59 & 6
TL-KLEIN All Purpose Strip Tool
TL-7503 Pro Series 3 step adjustable blades
TL-PS11 Compression Strip Tool- 2 Cut- RG11
Notes:
TL-SNSA - Accepts RG59, & RG6
TL-548G- Accepts RG59, RG6, & RG11
RECOMMENDED FOR WINDOW STYLE
BNC Removal Tools
Catalog No. Description
TL-4006 8” BNC Removal Tool
TL-KLEIN
800-245-4964 • www.westpenn-wpw.com
Crimp Tool Die Sizes: inches
TL-104: .068, .213, .255
TL-105: .068, .178
TL-803: .065, .068, .178, .213, .255
TL-107: .068, .093, .213, .255, .311
TL-113: .102, .359, .406
TL-115: .068, .100, .324, .384
TL-119: .068, .110, .213, .255, .324
WEST PENN WIRE
CABLE WITH CONFIDENCE
86
Page 7
Security CCTV Accessories
Security - CCTV Accessories

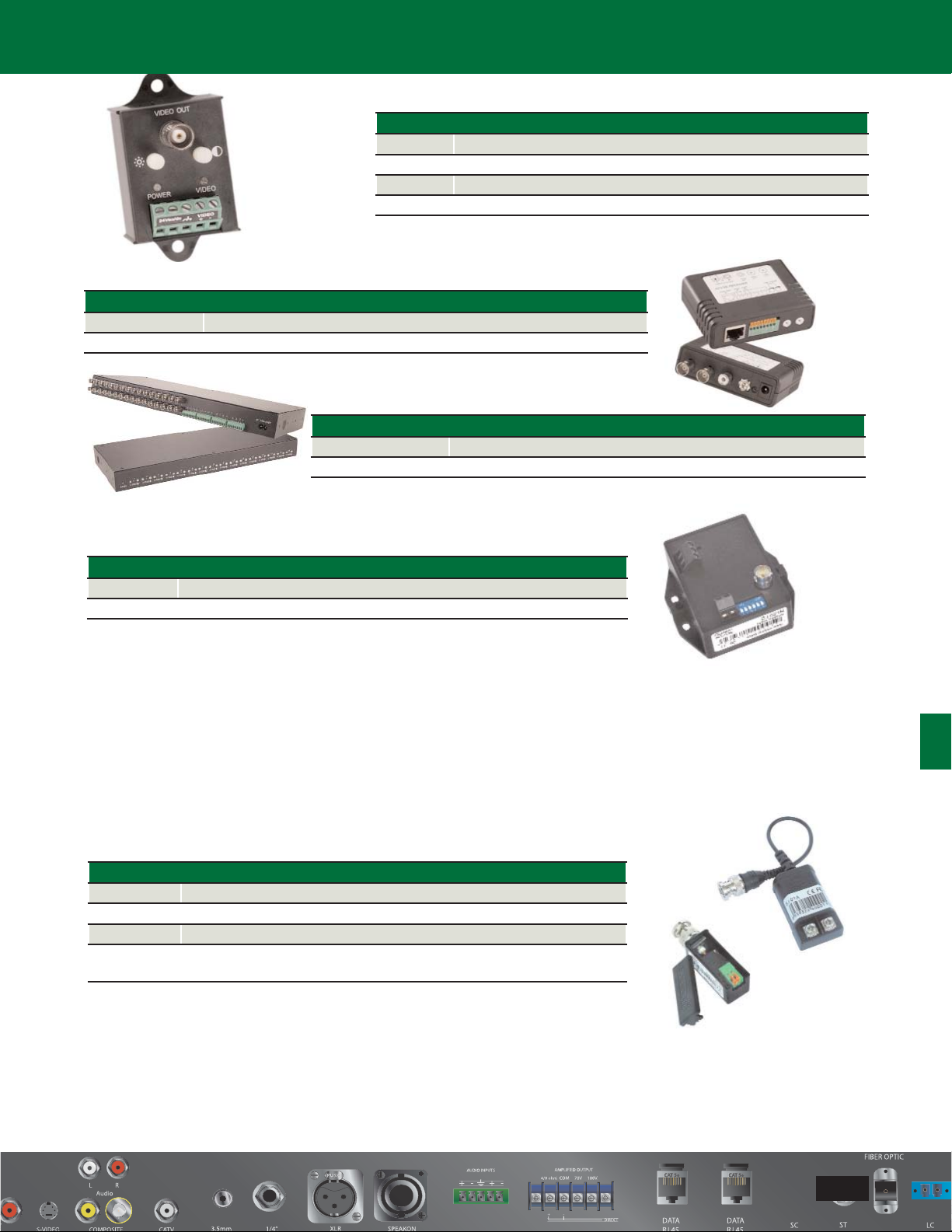

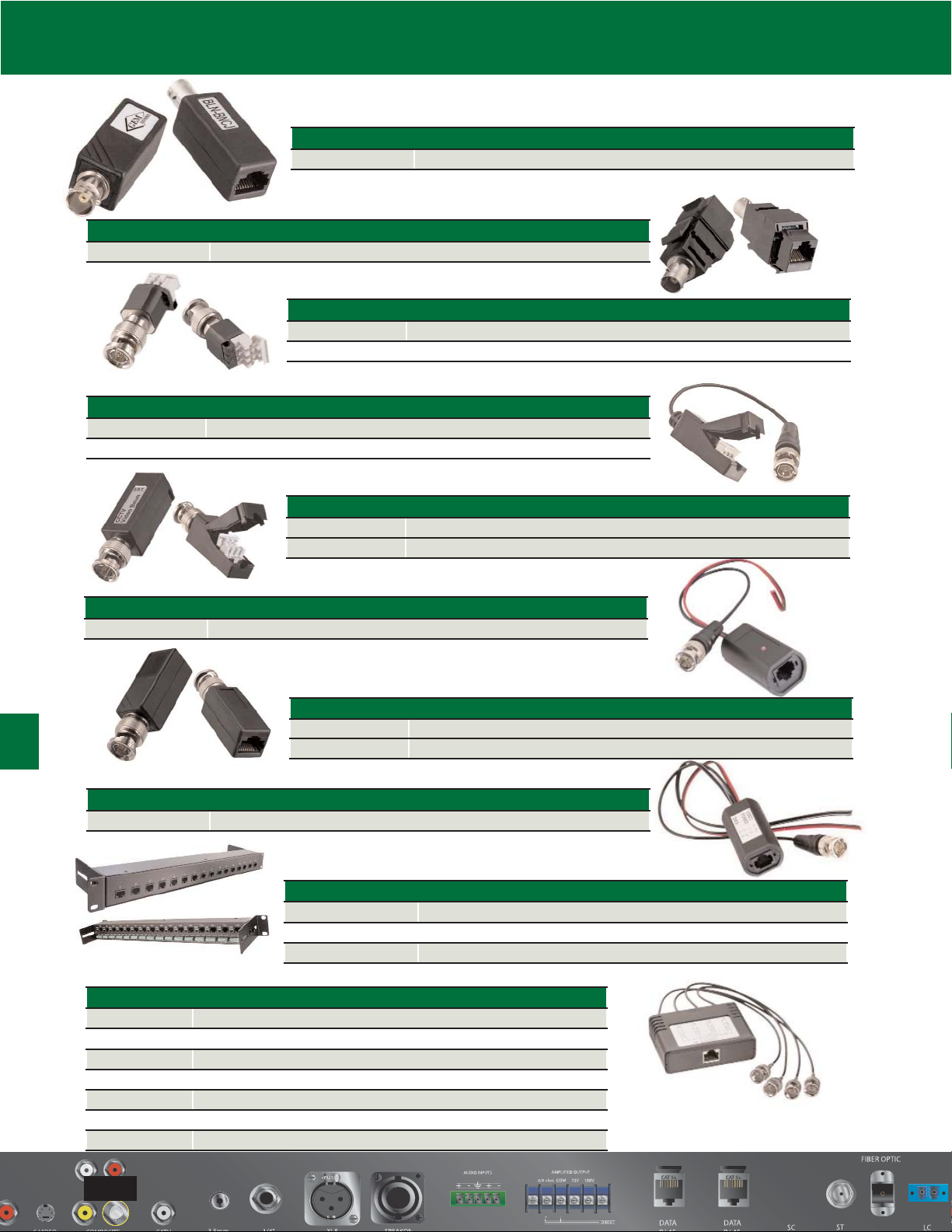

Baluns
CCTV Passive Device
CN-BNCJ BNC Female to RJ45
CCTV Passive Device
CN-BNCJKS BNC Female to RJ45 Keystone Mount
CCTV Passive Device
CN-MTL Miniature - BNC Male to IDC Clamp Down
CN-MTL2 Miniature - BNC Male to screw terminals- Sold in Pairs
CCTV Passive Device
CN-RJ45PT BNC Male to RJ45 IDC Clamp Down Pigtail
CN-STPT2 BNC Male to Screw Terminal Pigtail- Sold in Pairs
CCTV Passive Device
CN-TL BNC Male to IDC Clamp Down
CN-50VB10 Economy BNC Male to Spring Clamps- Sold in Pairs up to 1250ft.
CCTV Passive Device
CN-PVRJ45 BNC Male to RJ45 - Power Thru and Video
CCTV Passive Device
CN-RJ45 BNC Male to RJ45
CN-50VBRJ45 Economy BNC Male to RJ45 - Sold in Pairs - Up to 1250ft.
CCTV Passive Device
CN-VPDRJ45 BNC Male to RJ45 - Power Thru , Video, and Data
CCTV Passive Patch Panel
CN-H16PRJ45BNC 16 Port RJ45 to 16 Port BNC PatchPanel
CN-H16STRJ45 16 Port RJ45 With Power and Control Screw Terminal
CN-H16PRJ45 16 Port RJ45 to RJ45 PatchPanel
CCTV Active Receiver Hub
CN-AH16PRJ45BNC 16 Port Active Reciever Hub
CN-AH32PRJ45BNC 32 Port Active Reciever Hub
Category 5 or Better UTP
Distance: 2230ft
Category 5 or Better UTP
Distance 2230ft
Category 5 or Better UTP
Distance: 2230ft
Category 5 or Better UTP
Distance: 2230ft
Category 5 or Better UTP
Distance: 2230ft
Category 5 or Better UTP: Distance: 2230ft
Power: 3 Pair - 24VDC.
5VA: 519ft. (170mm), 10VA: 258ft. (85mm),
20VA: 130ft. (43mm), 30VA: 86ft
Complete listing of Baluns In the LAN Cable Accessories
pgs. 156-158
800-245-4964 • www.westpenn-wpw.com
CN-MTL2- Economy-
WEST PENN WIRE
CABLE WITH CONFIDENCE
87
Page 8
Security CCTV Accessories
Security Accessories

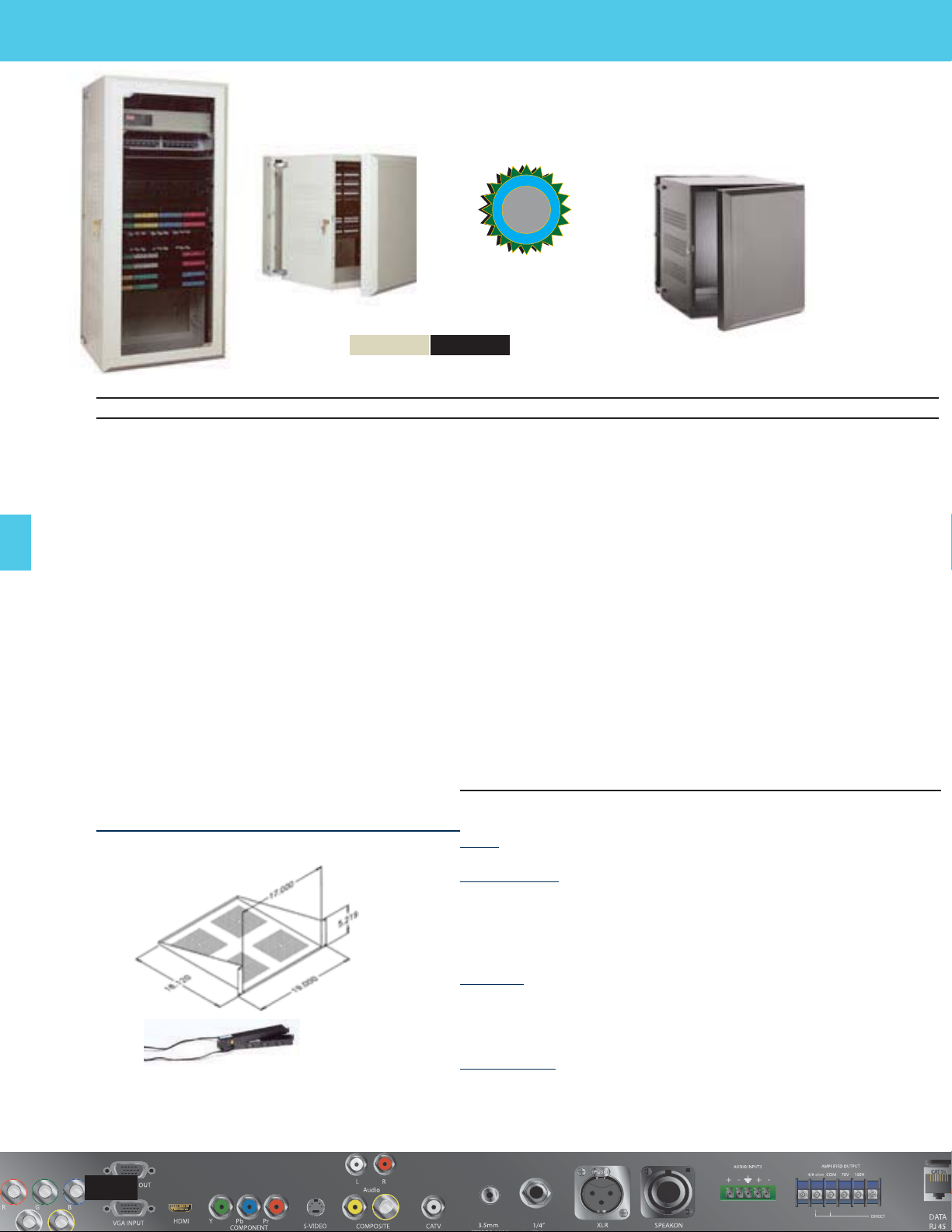

Wall Mount Enclosures
Wall Mount Enclosures
FI-WME06STL 6 Port Economy, Dedicated PP Loaded•
FI-WME12STL 12 Port Economy, Dedicated PP Loaded•
FI-WM12 6/12 Port Double Door, Six Pack Empty - 2 Plates
FI-WM24 24 Port Double Door, Six Pack Empty - 4 Plates
FI-WM48 48 Port Double Door, Six Pack Empty - 8 Plates
FI-WM100 100/120Port Wall Mount Patch Panel
BNC Adapter Plates
CN-ADPBNC 5 BNC Female to Female Plate Installed
CN-ADPBISO 5 BNC Female to Female Plate Isolated Installed
CN-ADPBNCE 5 BNC Position Empty
CN-ADP6BNK Blank Plate
Rack Mount Patch Panels
FI-RM24 Empty Rack - Load with 4 Adapter Plates (19”- 3.35”H X 11.970D)
FI-RM48 Empty Rack - Load with 8 Adapter Plates (19”- 5.1”H X 11.970D)
FI-RM72 Empty Rack - Load with 12 Adapter Plates (19”- 6.85”H X 11.970D)
CN-BNCE-16 16 Port BNC Empty (19”- 1.720”H X 8.00D)
CN-BNCE-32 32 Port BNC Empty (19”- 3.470”H X 8.00D)
CN-BNCE-48 48 Port BNC Empty (19”- 3.470”H X 8.00D)
CN-BNCL-16 16 Port BNC Loaded (19”- 1.720”H X 8.00D)
CN-BNCL-32 32 Port BNC Loaded (19”- 3.470”H X 8.00D)
CN-BNCL-48 48 Port BNC Loaded (19”- 3.470”H X 8.00D)
CN-BNCIL-16 16 Port BNC Isolated Loaded (19”- 1.720”H X 8.00D)
CN-BNCIL-32 32 Port BNC Isolated Loaded (19”- 3.470”H X 8.00D)
CN-BNCIL-48 48 Port BNC Isolated Loaded (19”- 3.470”H X 8.00D)
Free Standing Racks
WPDR-4819 19” Free Standing Rack- 48”
WPDR-7219 19” Free Standing Rack- 72”
WPDR-8419 19” Free Standing Rack- 84”
WPCR-8419 19” Cable Management Rack- 84”

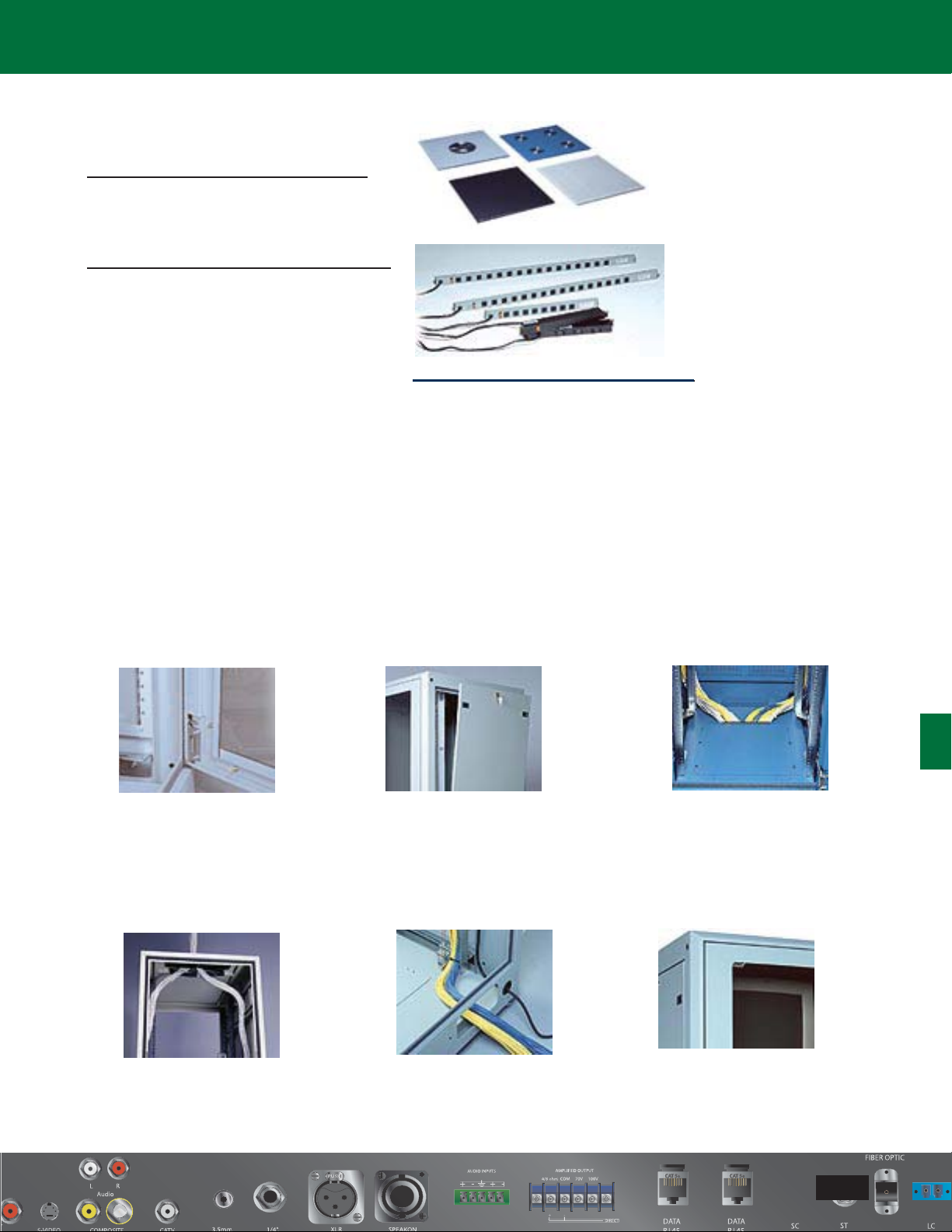

Security Accessories
Adapter Plates- 5.0625” X 1.125”
Security Products

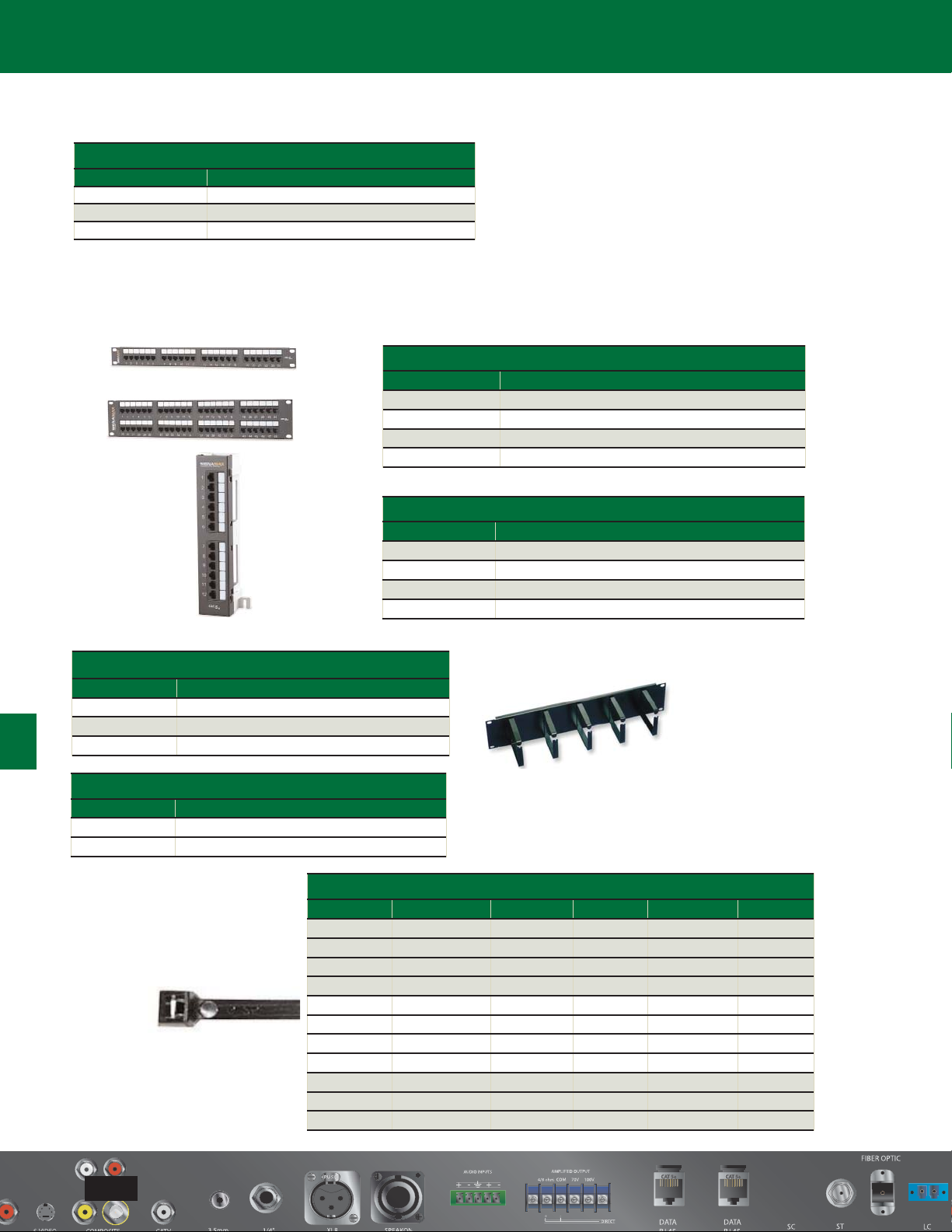

Rack Mount Panels
Security Adapter

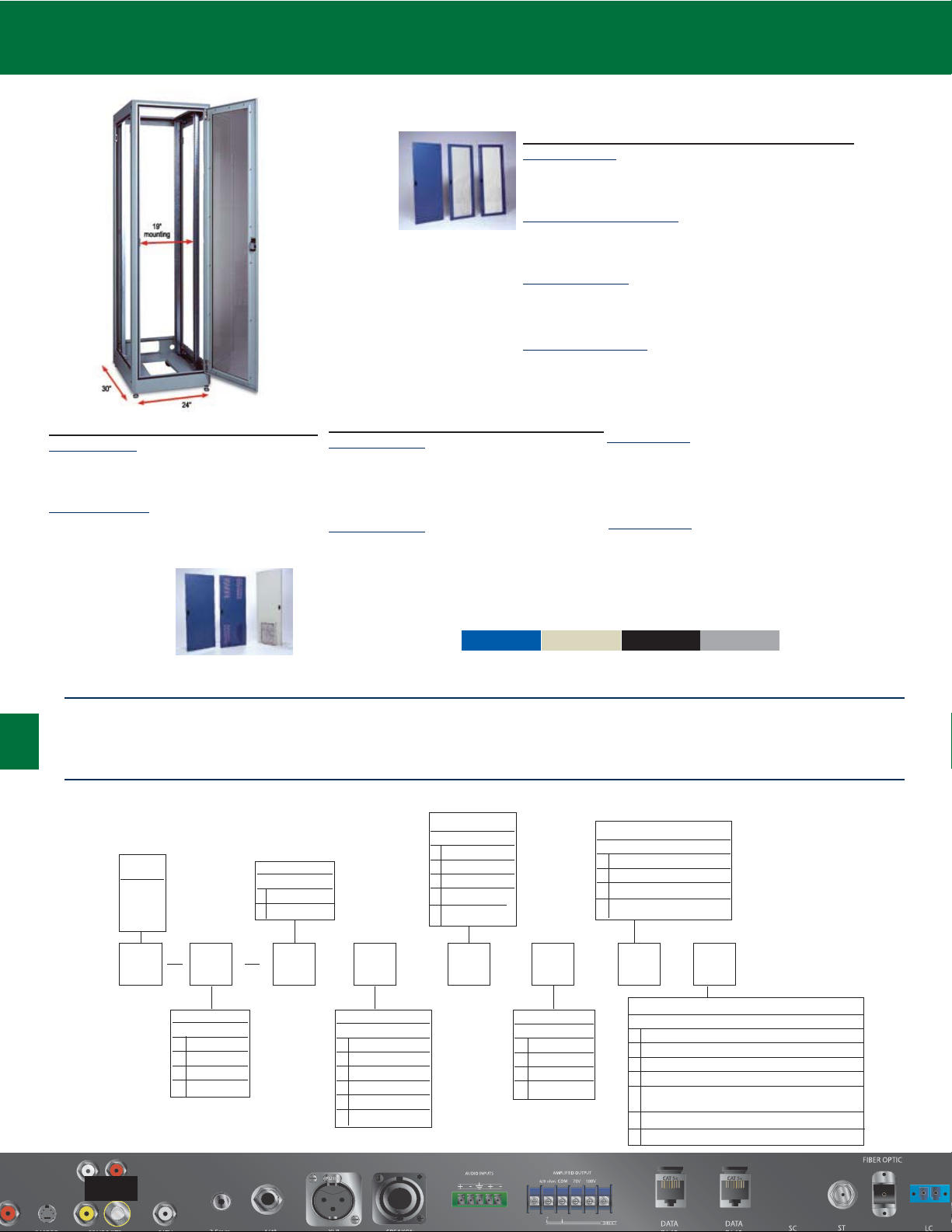

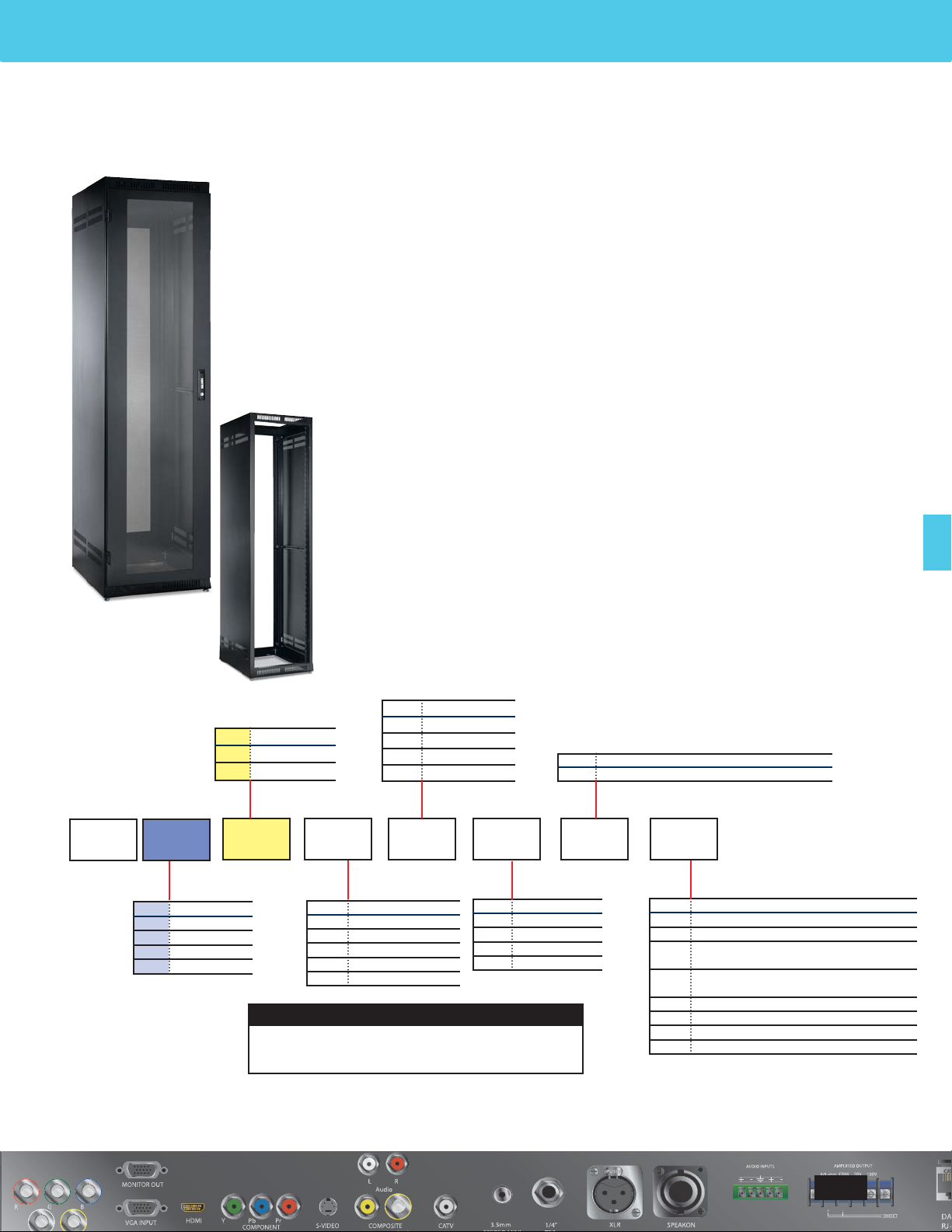

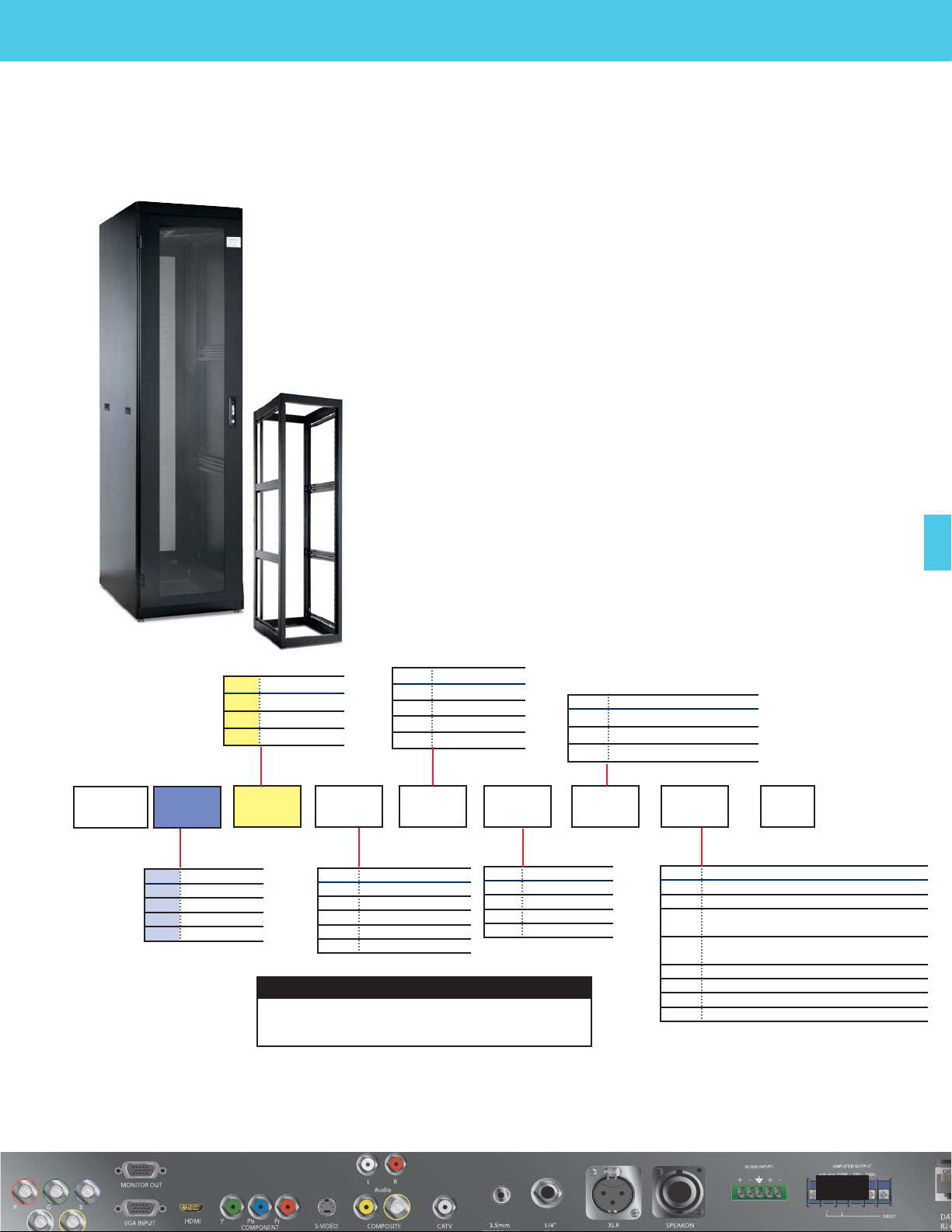

Free Standing Racks
CN-ADPBISO
CN-ADPBNC
FI-WM12
• Loaded with ST MultiMode Adaptors
Complete listing of Racks In the Fiber Optic
Accessories pg. 172
800-245-4964 • www.westpenn-wpw.com
WEST PENN WIRE
CABLE WITH CONFIDENCE
88
Page 9
Adaptors
CN-ADP503 BNC Right Angle M to F
CN-ADP506 BNC- T- 3 Female
CN-ADP505 BNC- T- 2 Female- 1 Male
CN-ADP703 75 ohm BNC RA M to F
CN-ADP705 75 Ohm BNC- T- 2 F- 1 M
CN-ADP511 BNC M to M
CN-ADP521 BNC F to F Iso.Bulkhead
CN-ADP559 BNC F to F Bulkhead-UG49
CN-ADP721
75 ohm BNC F to F Iso.Bulk-
head
CN-ADP755 75 Ohm Splice
CN-ADP756 75 ohm BNC F to F Bulkhead
CN-ADP-ST BNC Bulkhead - Tab
CN-ADP-ST75
75 ohm BNC Bulkhead -
Solder Tab
CN-MT-50 50 Ohm BNC Terminator
CN-MT-75 75 Ohm BNC Terminator
Accessories
BNC Adaptors
CN-ADP516 BNC M to “F” Female
CN-ADP500 BNC F to UHF M
CN-ADP504 BNC F to UHF F
CN-ADP512 BNC M to UHF F
CN-ADP807 BNC M to “N” F
CN-ADP523
BNC 2 Female - 1 Male
Goal Post
800-245-4964 • www.westpenn-wpw.com
WEST PENN WIRE
CABLE WITH CONFIDENCE
89
Page 10
Adaptors
Accessories
RCA Adaptors
CN-ADP501 BNC F to RCA M
CN-ADP515 BNC M to RCA F
CN-ADP103 RCA M to “F” Female
CN-ADP106 RCA F to “F” Male
Accessories
UHF Adaptors
CN-ADP205 UHF RA Male to Female
CN-ADP207 Inline UHF ( F to F)
CN-ADP805 UHF Male to “N” Female
“N” Type Style
Catalog No. Description
CN-NM53-808 For Cable P.N. 808F
CN-NM53-110 “N” Type RG8/U
CN-ETN-23 “N” Type Ethernet
CN-NM53-8X “N” Type Ethernet- RG8x/U
Video Connectors
“N” Type Connectors
UHF Connectors
Catalog No. Description
CN-PL259-1 RG58/U
CN-PL259-2 RG59/U
CPF-249-1 2 Pc. UHF
Video Connectors
UHF
50 OHM RF CONNECTORS
TNC Style Connectors
Catalog No. Description
CN-TM53-1 TNC RG58/U
CN-TM53-2 TNC RG59/U
800-245-4964 • www.westpenn-wpw.com
WEST PENN WIRE
CABLE WITH CONFIDENCE
90
Page 11
Pro Video Cables:
New: 2011
HDMI Extenders
USB Extenders
EZ Run Installation: Cross To CablestoGo

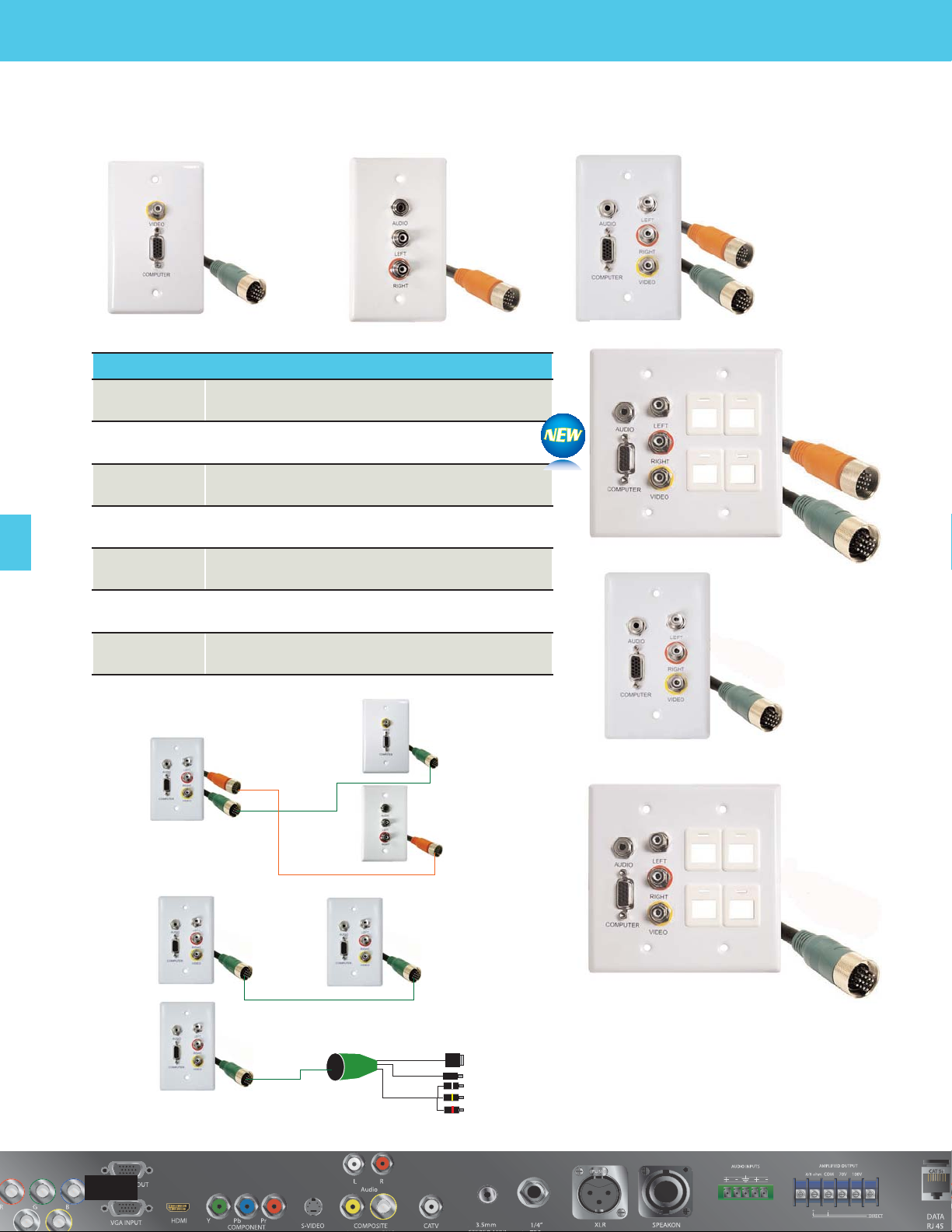

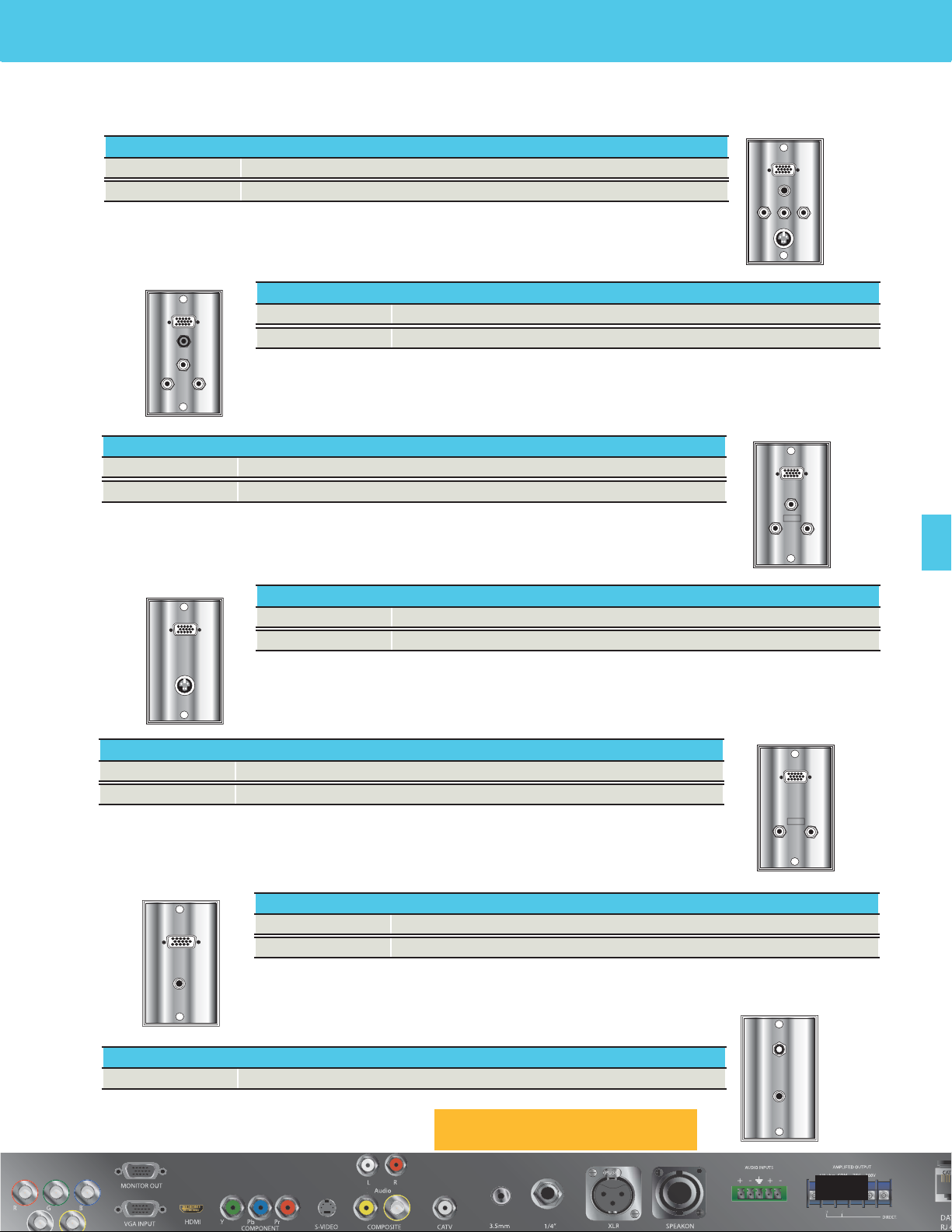

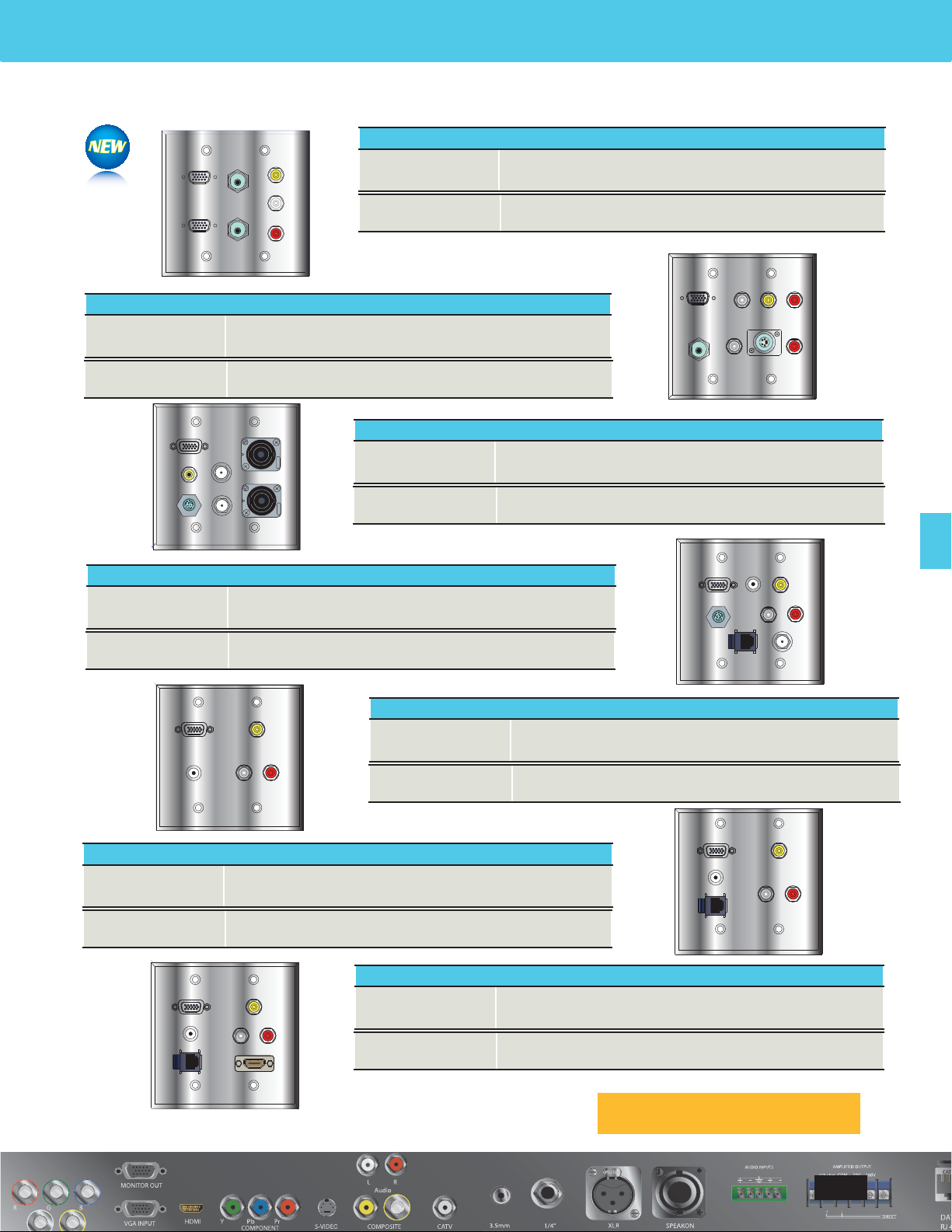

AV Wallplates:
- Stocked items.
- Custom plates can be produced. Contact West Penn Wire
Engineering Dept.
- We will create a drawing (pdf, dwg(CAD)) then send it to you
For approval.
Page 12
Digital Video RG59/U Non-Plenum
Catalog No. Length Jacket Colors
CN-7B819**-3 3 Foot
**- Jacket Colors
Black-BK, Blue-BL, Red-RD,
Yellow-YE,
Green-GN, White-WH
CN-7B819**-6 6 Foot
CN-7B819**-10 10 Foot
CN-7B819**-15 15 Foot
CN-7B819**-20 20 Foot
CN-7B819**-25 25 Foot
Digital Video MiniMax Plenum
Catalog No. Length Jacket Colors
CN-HD25825**-3 3 Foot
**- Jacket Colors
Black-BK, Blue-BL, Red-RD,
Yellow-YE,
Green-GN, White-WH
CN-HD25825**-6 6 Foot
CN-HD25825**-10 10 Foot
CN-HD25825**-15 15 Foot
CN-HD25825**-20 20 Foot
CN-HD25825**-25 25 Foot
Digital Video MiniMax Non-Plenum
Catalog No. Length Jacket Colors
CN7BHD825**3 3 Foot
**- Jacket Colors
Black-BK, Blue-BL, Red-RD,
Yellow-YE,
Green-GN, White-WH
CN7BHD825**6 6 Foot
CN7BHD825**10 10 Foot
CN7BHD825**15 15 Foot
CN7BHD825**20 20 Foot
CN7BHD825**25 25 Foot
Economy AV DUBBING Cables
Catalog No. Description
CN-ERCA-AVxx
3 RCA- 3 RCA AV Replace xx with:
3,6,12 feet
3 COAX Component Video RGB RCA Economy
Catalog No. Description
CN-E3RCA-xx
3 COAX PVC RGB Replace xx with:
3,6,12 feet
Pro-Audio/Video and Digital Video
Cable Assemblies:
75 Ohm BNC to 75 Ohm BNC
Pro-Audio/Video Dubbing Cable &
Component Video Assemblies:
3 RCA to 3 RCA
3 Miniature Component Video 26Awg. RCA Plenum
Catalog No. Description Length (FT)
CN258263RCAxx 3 COAX PVC RGB
Replace xx with:
12, 25,50,75,100,150
AV RCA Dubbing Plenum
Catalog No. Description
CNLS25AVRCAxx
1 Coax + 2- Twisted Pair Plenum
Replace xx with: 15,25,50,75,100 feet
Digital Video MiniMax Non-Plenum
Catalog No. Length Jacket Colors
CNHD825**RCA3 3 Foot
**- Jacket Colors
Black-BK, Blue-BL, Red-RD,
Yellow-YE,
Green-GN, White-WH
CNHD825**RCA6 6 Foot
CNHD825**RCA10 10 Foot
CNHD825**RCA15 15 Foot
CNHD825**RCA20 20 Foot
CNHD825**RCA25 25 Foot
Pro-Audio/Video and Digital Video
Cable Assemblies:
RCA to RCA
Digital Video MiniMax Plenum
Catalog No. Length Jacket Colors
CNHD25825**R3 3 Foot
**- Jacket Colors
Black-BK, Blue-BL, Red-RD,
Yellow-YE,
Green-GN, White-WH
CNHD25825**R6 6 Foot
CNHD25825**R10 10 Foot
CNHD25825**R15 15 Foot
CNHD25825**R20 20 Foot
CNHD25825**R25 25 Foot
• 800-245-4964 • www.westpenn-wpw.com
Pro-Video Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
102
Page 13
S-Video Cable Accessories:
Cable Assemblies
S-Video - SVHS Cable Assemblies
Catalog
No.
Description Colors
Standard
Length (ft)
DTD2825-(Length) PVC 4 Pin Mini Din to 4 Pin Mini Din Jacket: Blue
12, 25, 50, 75,
100, 125,150
DTB2825-(Length) PVC 4 Pin Mini Din to 75Ω BNC’s Jacket: Blue
DTD252825-(Length) Plenum 4 Pin Mini Din to 4 Pin Mini Din Jacket: Blue
DTB252825- (Length) Plenum 4 Pin Mini Din to 75Ω BNC’s Jacket: Blue
DTDE-(Length) Economy Mini Din to Mini Din Jacket: Black 3, 6, 12
S-Video - Miniature Plenum Cable Assemblies
DTD252CSVHS-(Length) 4 Pin Mini Din to 4 Pin Mini Din Jacket: Black
12, 25, 50, 75,
100, 125,150
DTB252CSVHS-(Length) 4 Pin Mini Din to 75Ω BNC’s Jacket: Black
SVHS Connectors
Catalog No. Description
CN-SVHS-M
4 PIN MINI DIN SVHS
CN-MD4FFN 4 PIN MINI DIN SVHS Panel Mt. feed Thru
CN-TCS415PST SVHS Female to Terminal Block Panel Mt.
SVHS Installation Kit- 4 Pin Mini Din -to- 75 Ohm or 4 Pin Mini Din
Catalog No. Description Length (ft.)
DTBK252CSVHS(Length)
SVHS Install Kit 4 Pin MiniDin to
75Ω BNC or 4 Pin MiniDin Plenum
12, 25, 50, 75,
100, 125
SVHS Installation Kit- 4 Pin Mini Din -to- 75 Ohm or 4 Pin Mini Din
Catalog No Description Length (ft.)
DTBK2825-(Length)
SVHS Install Kit 4 Pin MiniDin to
75Ω BNC or 4 Pin MiniDin Non-Plenum
25, 50, 75, 100, 150
DTBK252825-(Length)
SVHS Install Kit 4 Pin MiniDin to
75Ω BNC or 4 Pin MiniDin Plenum
25, 50, 75, 100, 150
S-Video Cable Accessories:
Installation Kits and Connectors
CN-MD4FFN
DTBK2825-25
• 800-245-4964 • www.westpenn-wpw.com
Pro-Video Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
103
Page 14
RGBHV- 5 Coaxial Cable
75 Ohm BNC
5 - R6/U RGBHV PVC 75Ω BNC
Catalog No. Description Length (FT)
CN-6355-xx
5 COAX PVC RGBHV
5 BNC (M) to 5 BNC (M)
Replace xx with:
12, 25,50,75,100,150
5 - R59/U RGB PVC 75Ω BNC
Catalog No. Description Length (FT)
CN-8195-xx
5 COAX PVC RGBHV
5 BNC (M) to 5 BNC (M)
Replace xx with:
12, 25,50,75,100,150
5 - R59/U RGBHV Plenum 75Ω BNC
Catalog No. Description Length (FT)
CN-258195-xx
5 COAX PVC RGBHV
5 BNC (M) to 5 BNC (M)
Replace xx with:
12, 25,50,75,100,150
5 - Miniature RGBHV PVC 75Ω BNC
Catalog No. Description Length (FT)
CN-5CRGB-xx
5 COAX PVC RGBHV
5 BNC (M) to 5 BNC (M)
Replace xx with:
12, 25,50,75,100,150
5 - Miniature RGBHV Plenum 75Ω BNC
Catalog No. Description Length (FT)
CN-255CRGB-xx
5 COAX Plenum RGBHV
5 BNC (M) to 5 BNC (M)
Replace xx with:
12, 25,50,75,100,150
RGB- 3 Coaxial Cable
75 Ohm BNC- Component Video
3 - Miniature RGB 25Awg. PVC 75Ω BNC
Catalog No. Description Length (FT)
CN-3CRGB-xx
3 COAX PlenumRGB
3 BNC (M) to 3 BNC (M)
Replace xx with:
12, 25,50,75,100,150
3 - Economy RGB PVC 75Ω BNC
Catalog No. Description Length (FT)
CN-E3BNC-xx
3 COAX PVC RGB
3 BNC (M) to 3 BNC (M)
Replace xx with:
3,6,12
HD15 to BNC and
HD15 to HD15
HD15(M) to 5-BNC (F) Economy
Catalog No. Description Length (FT)
CN-EVGA-xx
ECONOMY
HD15 (M) to 5 BNC (F)
Replace xx with:
1,3,6,10,15
HD15(M) to HD15(M) Economy
Catalog No. Description Length (FT)
CN-VGAMM-xx
HD15 Male to
HD15 Male
Replace xx with:
6,10,25,50
• 800-245-4964 • www.westpenn-wpw.com
Pro-Video Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
104
Page 15
VGA- HD15 To HD15 or BNC
255CRGB- 5 Coax RGBHV 25Awg. Plenum
5 - 25Awg RGB BNC to HD15(F) Plenum
Catalog No. Description Length (FT)
CN255CRGBHDFxx 5 BNC (M) to HD15 (F)
Replace xx with:
25,50,75,100,150
5 - 25Awg RGB BNC to HD15(M) Plenum
Catalog No. Description Length (FT)
CN255CRGBHDMxx 5 BNC (M) to HD15 (M)
Replace xx with:
25,50,75,100,150
VGA 5 - 25Awg RGB HD15(F) to HD15(M) Plenum
Catalog No. Description Length (FT)
CN255CRGHDFMxx HD15 (F) to HD15 (M)
Replace xx with:
25,50,75,100,150
VGA 5 - 25Awg RGB HD15(M) to HD15(M) Plenum
Catalog No. Description Length (FT)
CN255CRGHDMMxx HD15 (M) to HD15 (M)
Replace xx with:
25,50,75,100,150
HD15 - VGA- with Audio 3.5mm
Cable Assemblies
VGA with Audio
Catalog No. Description Length (FT)
CN-HDVGAAP-xx
VGA with Audio
HD15 (M) + 3.5mm Audio
Replace xx with:
6,10,25
HDMI
Cable Assemblies and Accessories
HDMI to HDMI with Repeaters
Catalog No. Description Length (Meters)
CN-HDMIXLR-xxm HDMI to HDMI Replace xx with: 15,20,30
HDMI to HDMI
Catalog No. Description Length (Meters)
CN-HDMIUL-xxm HDMI to HDMI
Replace xx with:
2,3,6,8,10,12,15,20
• 800-245-4964 • www.westpenn-wpw.com
Pro-Video Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
1.3 HDMI Passive - Over Cat5E/6 up to 50ft. 1080/60p
Catalog No. Description
CN-R01EXT-HSS
HDMI 1.3 TX and RX - RJ45 to HDMI Pigtail
Not HDCP compliant
1.3 HDMI Active - Over Cat5E/6 up to 150ft. 1080/60p
Catalog No. Description
CN-R01EXT-HSL
HDMI 1.3b and HDCP -
TX and RX - RJ45 to HDMI (2.1”Dx1.5”Wx1”H)
HDMI Extender Pigtail - Male to Female
Catalog No. Description
CN-EQL-MF-1 HDMI Extender Cable (M to F) 1ft. Pigtail
105
HDMI Extender - Over Cat5E/6 - Wall Plates
Catalog No. Description
CN-R01EXT-C5E-FP HDMI Extender Wall Plate
Page 16
• 800-245-4964 • www.westpenn-wpw.com
Pro-Video Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
VGA Extender over NanoSkew Cables
Catalog No. Description
CN-R02EXT-C5E
VGA UTP Extender - Box Style
1000ft. over NanoSkew WPW Cables (TX & RX Included)
VGA + Audio Extender over NanoSkew Cables
Catalog No. Description
CN-R02EXT-C5E35
VGA + Audio UTP Extender - Box Style
1000ft. over NanoSkew WPW Cables (TX & RX Included)
VGA Extender over NanoSkew Cables - Wall Plate
Catalog No. Description
CN-R02EXT-FP
VGA UTP Extender - Wall Plate
1000ft. over NanoSkew WPW Cables (TX & RX Included)
RX
TX BACK
VGA + Audio Extender over NanoSkew Cables - Wall Plate
Catalog No. Description
CN-R02EXT-35FP
VGA + Audio UTP Extender - Wall Plate
1000ft. over NanoSkew WPW Cables (TX & RX Included)
VGA Splitter
Catalog No. Description
CN-R02SPL-102
2 Port VGA Splitter- Simultaneously display
1 VGA in, 2 VGA out
Digital Signage Products
VGA over NanoSkew West Penn Cable
RX
TX BACK
500ft over Cat5E
500ft over Cat5E
500ft over Cat5E
500ft over Cat5E
500ft over Cat5E
106
Page 17

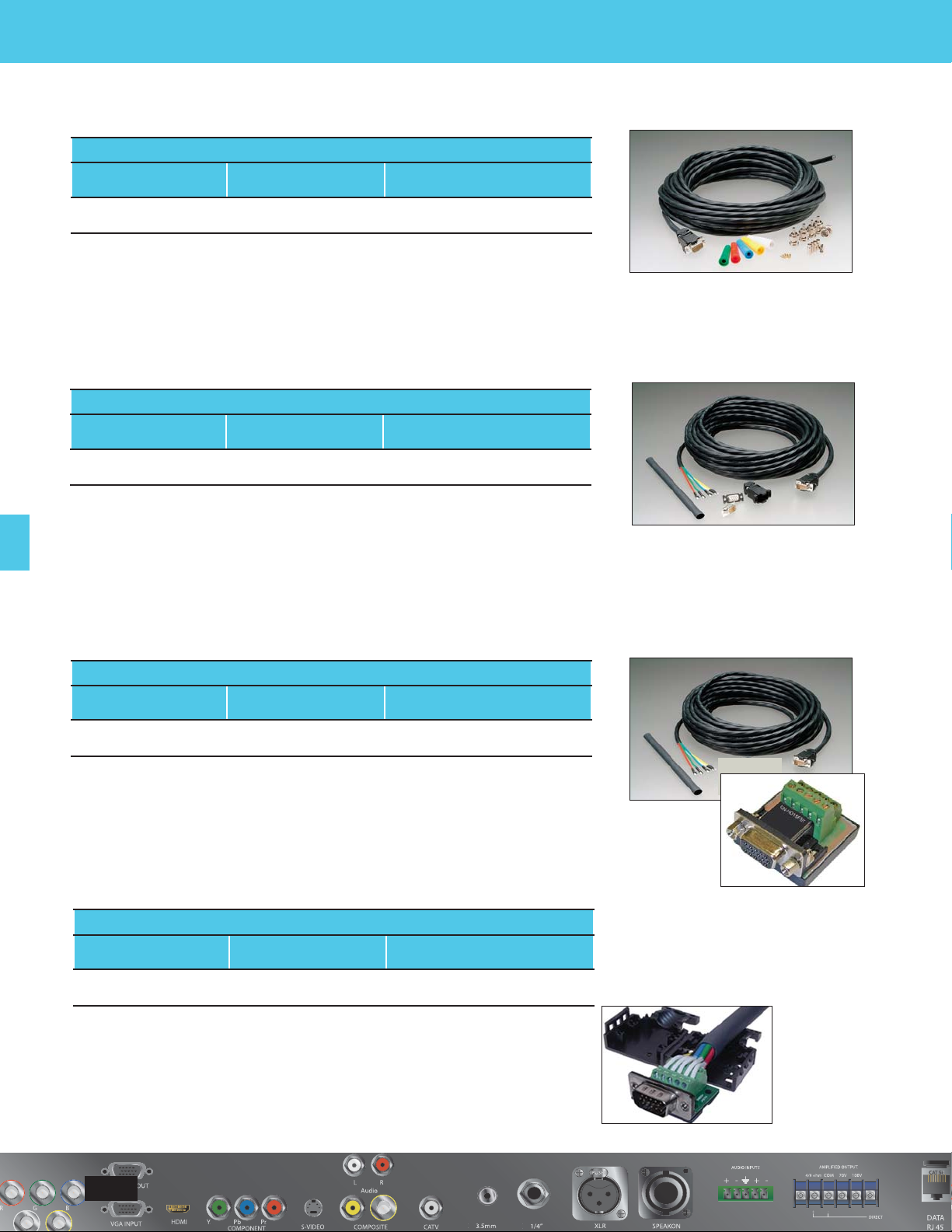

VGA Install Kits- 25 AWG Plenum- 255CRGB
Note: HD15 (M) to 5- BNC 255CRGB Install Kit Includes:
• 1- Length of RGBHV 25AWG. Plenum Cable Connected with 1 HD15 Male.
• 5- 75Ω BNC Connectors- Crimp or Compression
• 5- Colored Connector Boots
• 1- Piece of Heat Shrink Tube
Note: HD15 (M) to HD15 (M or F) 255CRGB Install Kit Includes:
• 1- Length of RGBHV 25AWG. Plenum Cable Connected with 1 HD15 Male.
• The other end is prepared for field termination
• 1- HD15 Male/ 1 HD15 Female
• 1- Piece of Heat Shrink Tube
• 1- HD15 Hood
Note: HD15 (M) to HD15 Terminal Block 255CRGB Install Kit Includes:
• 1- Length of RGBHV 25AWG. Plenum Cable Connected
with 1 HD15 Male.
• The other end is prepared for field termination
• 1- HD15 Terminal Block (F)- Works with WPW AV WallPlates Pg. 113-115
HD 15 Male to 5 BNC 75Ω
Catalog No. Description Length (FT)
CN255CRGKBHMxx HD 15 Male to 5 BNC
Replace xx with:
25,50,75,100,150,175
HD 15 Male to HD 15 Male or Female
Catalog No. Description Length (FT)
CN255CRGKHMFxx HD 15 M- HD15 M/F
Replace xx with:
25,50,75,100,150,175
HD 15 Male to HD 15 Terminal Block
Catalog No. Description Length (FT)
CN255CRGKHTBxx HD 15 M- HD15 TB
Replace xx with:
25,50,75,100,150,175
HD 15 Male to HD 15 MaxBlox
Catalog No. Description Length (FT)
CN255CRGKHMXxx HD 15 M- HD15 MaxBlox
Replace xx with:
25,50,75,100,150,175
Note: HD15 (M) to HD15 Terminal Block 255CRGB Install Kit Includes:
• 1- Length of RGBHV 25AWG. Plenum Cable Connected with 1 HD15 Male.
• The other end is prepared for field termination
• 1- HD15 MaxBlox Terminal Block (F) with Hood
• 800-245-4964 • www.westpenn-wpw.com
Note: Crimp is the Standard.
For Compression Connector
contact WPW Engineering.
Pro-Video Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
107
Page 18
VGA Install Kits- 25 AWG - 5CRGB
Note: HD15 (M) to 5- BNC
5CRGB Install Kit Includes:
• 1- Length of RGBHV 25AWG. Cable Connected with 1 HD15 Male.
• 5- 75Ω BNC Connectors- Crimp or Compression
• 5- Colored Connector Boots
• 1- Piece of Heat Shrink Tube
Note: HD15 (M) to HD15 (M or F)
5CRGB Install Kit Includes:
• 1- Length of RGBHV 25AWG. Cable Connected with 1 HD15 Male.
• The other end is prepared for field termination
• 1- HD15 Male/ 1 HD15 Female
• 1- Piece of Heat Shrink Tube
• 1- HD15 Hood
Note: HD15 (M) to HD15 Terminal Block 5CRGB Install Kit Includes:
• 1- Length of RGBHV 25AWG. Cable Connected with 1 HD15 Male.
• The other end is prepared for field termination
• 1- HD15 Terminal Block (F)-Works with WPW AV WallPlates Page 113-115
HD 15 Male to 5 BNC 75Ω
Catalog No. Description Length (FT)
CN5CRGKBHMxx HD 15 Male to 5 BNC
Replace xx with:
25,50,75,100,150,175
HD 15 Male to HD 15 Male or Female
Catalog No. Description Length (FT)
CN5CRGKHMFxx HD 15 M- HD15 M/F
Replace xx with:
25,50,75,100,150,175
HD 15 Male to HD 15 Terminal Block
Catalog No. Description Length (FT)
CN5CRGKHTBxx HD 15 M- HD15 TB
Replace xx with:
25,50,75,100,150,175
HD 15 Male to HD 15 MaxBlox
Catalog No. Description Length (FT)
CN5CRGKHMXxx HD 15 M- HD15 MaxBlox
Replace xx with:
25,50,75,100,150,175
Note: HD15 (M) to HD15 Terminal Block 5CRGB Install Kit Includes:
• 1- Length of RGBHV 25AWG. Cable Connected with 1 HD15 Male.
• The other end is prepared for field termination
• 1- HD15 MaxBlox (F) with Hood
• 800-245-4964 • www.westpenn-wpw.com
Note: Crimp is the Standard.
For Compression Connector
contact WPW Engineering.
Pro-Video Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
108
Page 19

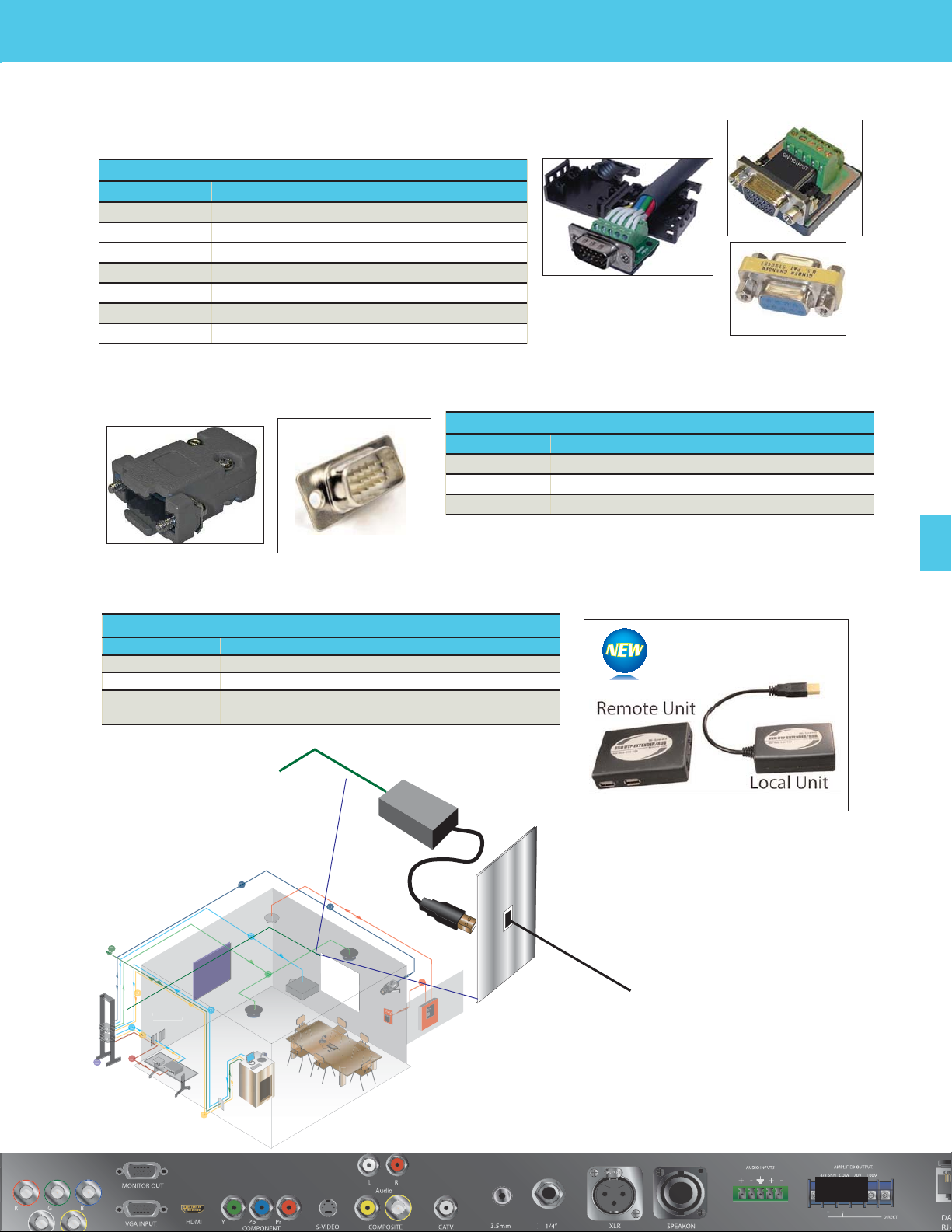

HD15 Terminal Block Connectors
Catalog No. Description
CN-HD15FST HD15(F) Terminal Block
CN-MX15F
PREMIUM HD15(F) Terminal Block
CN-MX15M
PREMIUM HD15(M) Terminal Block
CN-MX9F PREMIUM DB9 (F) Terminal Block RS-232
CN-MX9M
PREMIUM DB9 (M) Terminal Block- RS-232
CN-MX915H Hood for PREMIUM Terminal Blocks
CN-HD15FF HD15 Feed Thru
Video Connectors
HD15- VGA And DB9
DB and HD connectors and hoods
Catalog No. Description
40-9709HS 9 Pin DB Sub Hood - BLACK HOOD
40-9515HDM 15 Pin HD Male Solder
40-9515HDS 15 Pin HD Female Solder
AV- USB Extenders
Catalog No. Description
CN-R04EXT-C5E-P USB UTP Extender, plastic Case
CN-R04HUB-C5E USB UTP Extender Hub- 1 In - 4 Out Remote
CN-R04HUB-C5E-A
USB UTP Extender Hub- 1 In - 3 Out(Local) + 1 Out
(Remote)
USB Adaptors and Connectors
CN-MX15M
With Hood
CN-MX915H
CN-HD15FST
40-9515HDM
40-9709HS
CN-HD15FF
• 800-245-4964 • www.westpenn-wpw.com
Pro-Video Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
F
I
R
E
V
G
A
IN
P
U
T
3
.
5
m
m
S
T
E
R
E
O
M
I
N
I
L
R
A
u
d
i
o
4
/
8
o
h
o
h
m
C
OM
OM
7
0
0
V
1
0
0
0
V
A
M
P
L
L
I
FI
E
D
O
O
U
T
P
U
T
-
+
-
+
A
U
D
I
O
I
N
P
U
T
S
M
M
O
N
ITO
R
O
U
T
V
G
A
IN
P
U
T
3
.
5
m
m
S
T
E
R
E
O
M
I
N
I
L
R
Au
d
i
o
4
/
8
o
h
o
h
m
COM
OM
7
0
0
V
1
0
0
0
V
A
M
P
LI
LI
F
I
E
D
O
O
U
T
P
U
T
+
-
+
A
U
D
I
O
I
N
P
U
T
S
N
M
M
O
N
ITO
R
O
U
T
W
Standard or Custom
(
d
)
F
E
E
E
E
D
D
D
D
E
E
ata Cab
t
(Eth
H
S
mart
Bo
ar
d
Cat5E/6 cable- USB- 150 ft. to the teacher station or
console.
USB cable assembly
to SmartBoard.
109
To a D
ine
ernet, IP, or Data)
all Plates
Variety of Metals an
Colors
Page 20
Video Connectors
75 Ohm BNC Crimp Style
75 Ohm BNC Crimp Style
Catalog No. Description
CN-BM74-19 4 Pc.Miniature RGBHV 25 & 26 AWG
CN-BM74-18 4 Pc Minimax 25 AWG Miniature
CN-BM74-32 4 Pc RG59/U PVC or Plenum
CN-BM73-5 3 Pc RG6/U PVC
CN-BM73-4 3 Pc RG6/U Plenum
CN-BM73-3 3 Pc P806 Connector
CN-BF74-18 4 Pc Female Minimax Miniature
Video Connectors
75 Ohm BNC Compression Style
3 Pc. 75 Ohm BNC
CN-CSBNC-26
CN-CSBNC-59
CN-BNCP-RGB
CN-FSCR
75 Ohm BNC Compression Style
Catalog No. Description
CN-FS1BNC 1 Pc.Miniature RGBHV 25Awg.
CN-CSBNC-26 Multi-Piece Miniature 26Awg. RGBHV
CN-CSBNC-25 Multi-Piece Miniature 25Awg. RGBHV
CN-CSBNC-59 1 Pc. RG59/U PVC
CN-FS59BNCPL4 1 Pc. RG59/U Plenum
CN-CSBNC-6 1 Pc. RG6/U PVC
CN-FS6BNCPL2 1 Pc. RG6/U Plenum
CN-CSBNC-11 RG11/U
CN-FSCR Colored Rings- Bag of 100- for ICM
75 Ohm BNC Compression Style- Window
CN-BNCP-RGB 1 Pc. Miniature 25Awg. RGB- Window
CN-BNCP-825 1 Pc. MiniMax 25Awg. Window
CN-BNCP-59 1 Pc. RG59/U Window
CN-BNCP-6 1 Pc. RG6/U Window
CN-RR Colored Rings- Bag of 100- for small profile
• 800-245-4964 • www.westpenn-wpw.com
Small
Profile
Compression
Design
Pro-Video Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
110
Page 21

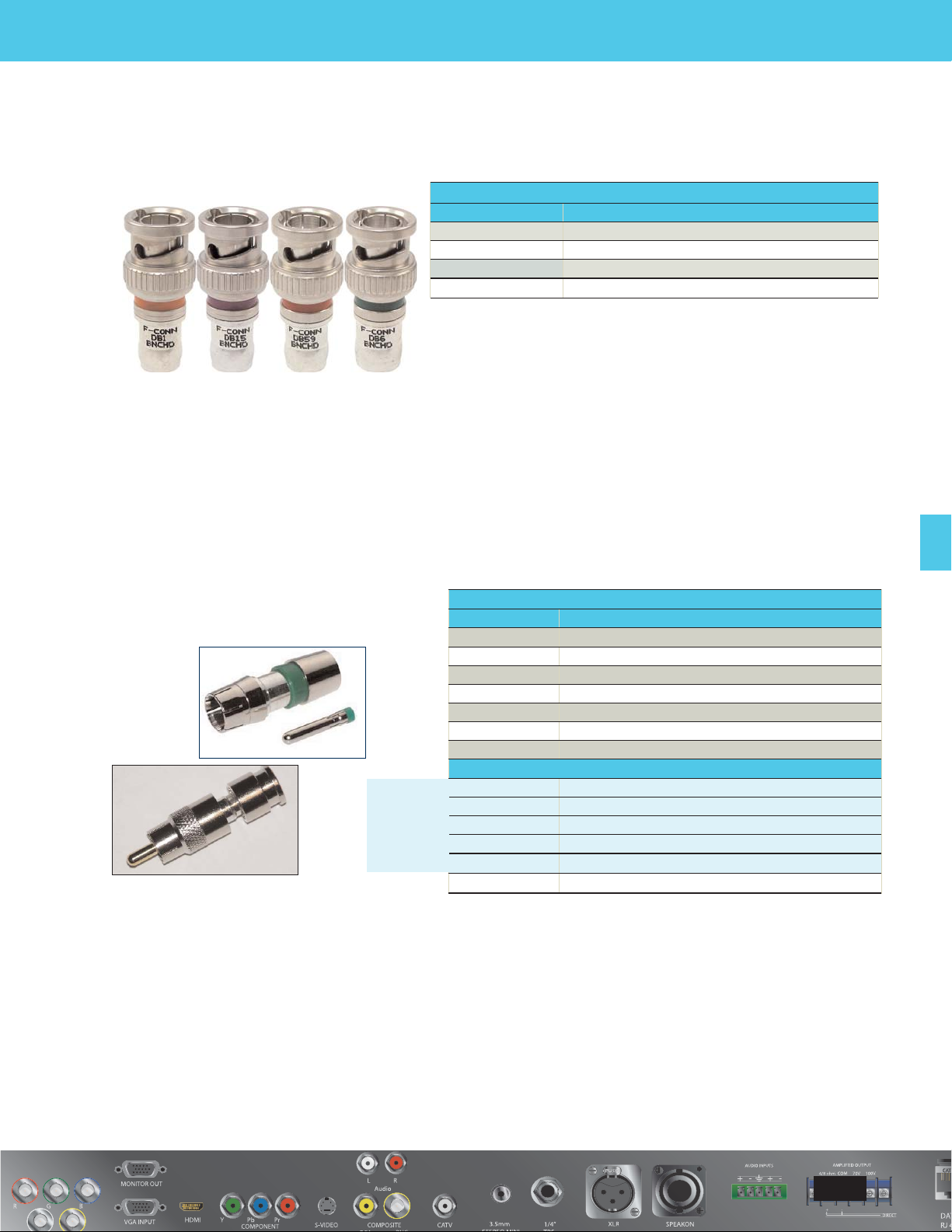

BNC Style Compression- 360 Double Bubble
Catalog No. Description
CN-DB1BNCHD 25 Awg. RGB Cables - Orange Band
CN-DB15BNCHD MiniMax 25 Awg. Cables- Purple Band
CN-DB59BNCHD RG59/U - Red Band
CN-DB6BNCHD RG6/U - Green Band
TL-CPLRBC- Double Bubble Compression Tool
Video Connectors
75 Ohm BNC Compression Style-Double Bubble- High Definition
360 Compression System:
• True 360 degree Compression
• Creates Permanent “Double Bubble” Connection
• Environmentally Sealed
• Superior Return Loss Values
• 75 Ohm Impedance
• Superior Pull-out Strength
• High Definition Applications
RCA Style - Compression
Catalog No. Description
CN-FS1RCA 1 Pc. Miniature RGB 25Awg.
CN-CSRCA-26 Multi-Piece 26Awg. RGB
CN-CSRCA-25 Multi-Piece MiniMax 25Awg.
CN-CSRCA-59 Multi-Piece RG59/U
CN-FS59RCAPL4 Multi-Piece RG59/U Plenum
CN-CSRCA-6 Multi-Piece RG6/U
CN-FS6RCAPL2 Multi-Piece RG6/U Plenum
RCA Style - Compression - Window
CN-RCP-RGB 1 Pc. Miniature RGB 25Awg. Window
CN-RCP-825 1 Pc. MiniMax 25Awg. RCA Window
CN-RCP-823 1 Pc. Mini RG59/U 23AWG. Window RCA Window
CN-RCP-59 1 Pc. RG59/U Window RCA Window
CN-RCP-6 1 Pc.RG6/U Window RCA Window
CN-DB6RCAPL2 Double Bubble- RG6/U Plenum
Audio/Video Connectors
RCA Compression Style
CN-CSRCA-6
CN-RCP-RGB
TL-CPLRBC- Double Bubble Compression Tool
• 800-245-4964 • www.westpenn-wpw.com
Small
Profile
Compression
Design
Pro-Video Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
111
Page 22

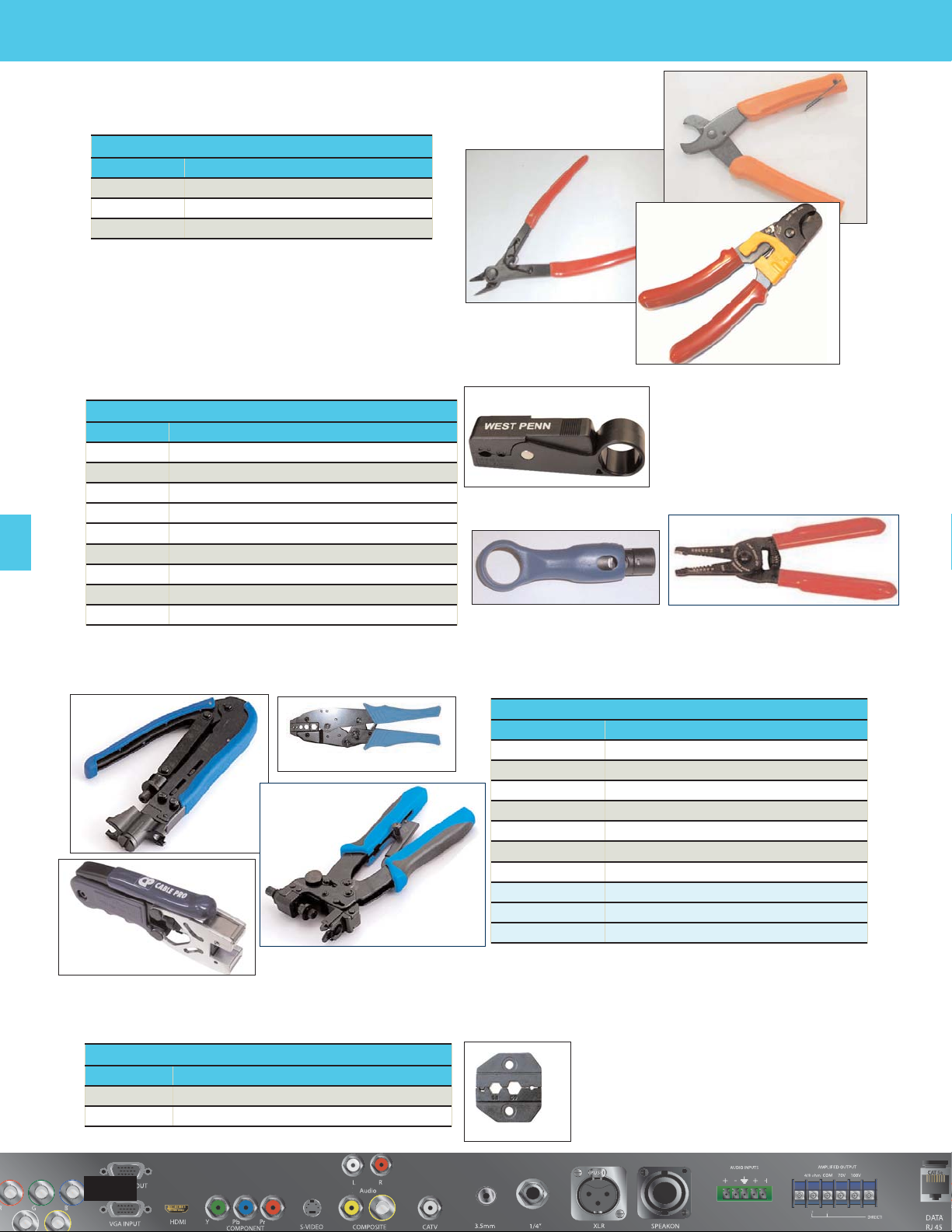

Crimp and Compression Tools
Catalog No. Description
TL-104 RG58, RG59/U, RG59 Plenum
TL-105 MiniMax 25Awg.and 26Awg.
TL-803 Universal MiniMax 25, 26 Awg. , RG59
TL-107 Universal RG59, RG6
TL-SNSA Compression Tool BNC, RCA, F
TL-SNS11 Compression Tool RG11 - CN-FSNS11
TL-CSBNC11 Compression Tool RG11 - CN-CSBNC-11
TL-548G Lever Compression Tool
TL-CPLCCT-SLM Lever Compression Tool-Alternate
TL-CPLRBC Double Bubble Compression Tool
Audio/Video Accessories
Tools- Crimp and Compression
Die Sets For Crimp Tools
Catalog No. Description
TL-126 .068,.213,.255 RG58, RG59+ RG59 Plenum
TL-129 .068, .178 MiniMax 25 & 26 AWG
Audio/Video Accessories
Strip Tools- Crimp and Compression
Stripping Tools
Catalog No. Description
TL-124 3 Cut Tool RG8, RG11, RG213- “F”
TL-825 MiniMax 25Awg.- BNC
TL-CSST Compression Strip Tool - BNC, RCA RG59-6
TL-CSST-RGB Compression Strip Tool - BNC, RCA Mini RGB
TL-PS11 Compression Strip Tool - BNC, RCA RG11
TL-59-6 Miniature Strip Tool RG59 and 6- “F” -2 Cut
TL-KLEIN All Purpose Strip Tool
TL-7502 Pro Series 2 step adjustable blades- BNC or “F”
TL-7503 Pro Series 3 step adjustable blades- BNC
Audio/Video Accessories
Cable Cutting Tools
Cable Cutting Tools
Catalog No. Description
TL-C109 Miniature Cable Cutter
TL-501 RG58, RG59, RG6 Cutter
TL-206A RG58, RG59, RG6 Cutter- Safe Guard
TL-825
TL-C109
TL-C206A
TL-501
TL-59-6
TL-SNSA
TL-107
Die Set
TL-KLEIN
TL-548G
Audio/Video Accessories
Die Sets for Crimp Tools
Notes:
TL-SNSA and TL-CPLCCT-SLM - Accepts RG59, & RG6
TL-548G- Accepts RG59, RG6, & RG11
RECOMMENDED FOR WINDOW STYLE
Crimp Tool Die Sizes:
TL-104: .068, .213, .255
TL-105: .068, .178
TL-803: .065, .068, .178, .213, .255
TL-107: .068, .093, .213, .255, .311
TL-CPLRBC
• 800-245-4964 • www.westpenn-wpw.com
Pro-Video Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
112
Page 23
Audio/Video Accessories

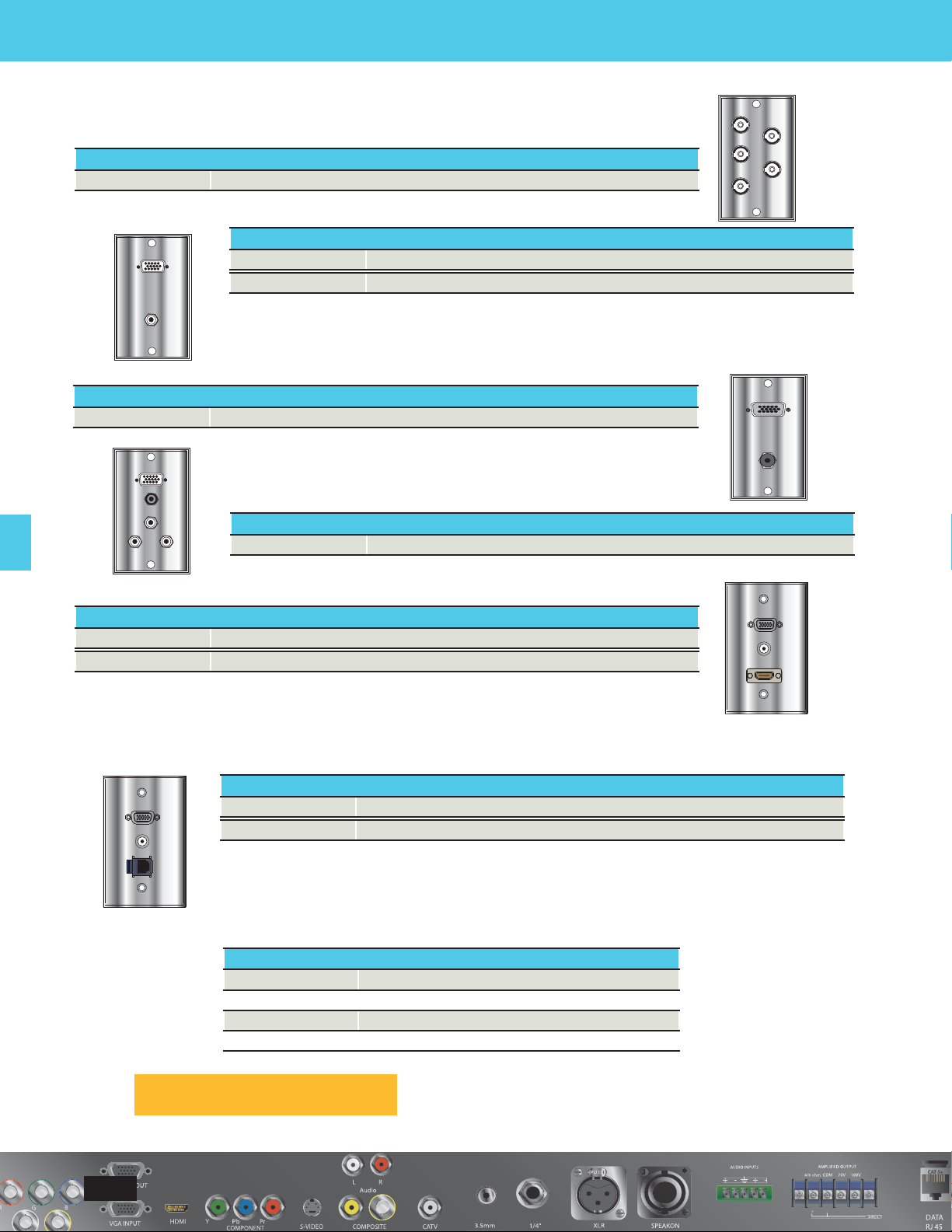

Stocked Metal AV Wall Plates
AV Wall Plates
CN-xxHDTB3RS3.5 HD15 Terminal Block, 3 RCA (V,L,R), S-Video, 3.5mm
CN-xxHD3RS3.5 HD15 Feed Thru, 3 RCA (V,L,R), S-Video, 3.5mm
AV Wall Plates
CN-xxHDTB3R3.5 HD15 Terminal Block, 3 RCA (V,L,R), 3.5mm
CN-xxHD3R3.5 HD15 Feed Thru, 3 RCA (V,L,R), 3.5mm
AV Wall Plates
CN-xxHDTB3R HD15 Terminal Block, 3 RCA (V,L,R)
CN-xxHD3R HD15 Feed Thru, 3 RCA (V,L,R)
AV Wall Plates
CN-xxHDTBS HD15 Terminal Block, S-Video
CN-xxHDS HD15 Feed Thru, S-Video
AV Wall Plates
CN-xxHDTB2R HD15 Terminal Block, 2 RCA (L,R)
CN-xxHD2R HD15 Feed Thru, 2 RCA (L,R)
AV Wall Plates
CN-xxHDTB3.5 HD15 Terminal Block, 3.5mm Feed Thru
CN-xxHD3.5 HD15 Feed Thru, 3.5mm Feed Thru
AV Wall Plates
CN-xxV3.5 RCA Composite Video, 3.5mm Feed Thru
Replace xx with: SS- Stainless Steel
WS- White- Stainless Steel
AC- Anodized Clear
AW- Anodized White
AB- Anodized Black
Replace xx with: SS- Stainless Steel
WS- White- Stainless Steel
AC- Anodized Clear
AW- Anodized White
AB- Anodized Black
Replace xx with: SS- Stainless Steel
WS- White- Stainless Steel
AC- Anodized Clear
AW- Anodized White
AB- Anodized Black
Replace xx with: SS- Stainless Steel
WS- White- Stainless Steel
AC- Anodized Clear
AW- Anodized White
AB- Anodized Black
Replace xx with: SS- Stainless Steel
WS- White- Stainless Steel
AC- Anodized Clear
AW- Anodized White
AB- Anodized Black
Replace xx with: SS- Stainless Steel
WS- White- Stainless Steel
AC- Anodized Clear
AW- Anodized White
AB- Anodized Black
• 800-245-4964 • www.westpenn-wpw.com
For Custom Plates:
Contact WPW Engineering Team
Pro-Video Accessories
Audio Wallplates- Page 138
XLR, and Speakon
WEST PENN WIRE
CABLE WITH CONFIDENCE
113
PC/ PROJECTOR
LEFT
AUDIO
VIDEO
RIGHT
COMPUTER
S-VIDEO
PROJECTOR
AUDIO
LEFT
PROJECTOR
AUDIO
S-VIDEO
L
PROJECTOR
AUDIO
VIDEO
COMPUTER
VIDEO
AUDIO
COMPUTER
L
AUDIO
RIGHT
R
R
Page 24
Audio/Video Accessories
Metal AV Wall Plates
AV Wall Plates
CN-xxRGBHV 5- 75 Ohm BNC
AV Wall Plates
CN-xxHDTBV HD15 Terminal Block, RCA Video
CN-xxHDV HD15 Feed Thru, RCA Video
AV Wall Plates
CN-xxHDTB3.5T HD15 Terminal Block, 3.5mm Terminal Block
AV Wall Plates
CN-xxHDTB3R3.5T HD15 Terminal Block, 3 RCA (V,L,R), 3.5mm Term. Block
Economy Stainless Steel AV Wall Plates
CN-DW28 Single HD15 Empty
CN-DW28L Single HD15 Loaded
CN-DW28RGBHD Single HD15 + 3 RCA- RGB
CN-DW28AVHD Single HD15 + 3 RCA (Video, L/R Audio)
Replace xx with: SS- Stainless Steel
WS- White- Stainless Steel
AC- Anodized Clear
AW- Anodized White
AB- Anodized Black
Replace xx with: SS- Stainless Steel
WS- White- Stainless Steel
AC- Anodized Clear
AW- Anodized White
AB- Anodized Black
AV Wall Plates
CN-xxHDTBAH HD15 Terminal Block,3.5mm Audio pass thru, HDMI
CN-xxHDAH HD15 Feed Thru, 3.5mm Audio pass thru, HDMI
Replace xx with: SS- Stainless Steel
WS- White- Stainless Steel
AC- Anodized Clear
AW- Anodized White
AB- Anodized Black
AV Wall Plates
CN-xxHDTBAD HD15 Terminal Block, 3.5 mm Audio pass thru, RJ45 Jack Black
CN-xxHDAD HD15 Feed Thru, 3.5 mm Audio pass thru, RJ45 Jack Black
Replace xx with: SS- Stainless Steel
WS- White- Stainless Steel
AC- Anodized Clear
AW- Anodized White
AB- Anodized Black
• 800-245-4964 • www.westpenn-wpw.com
For Custom Plates:
Contact WPW Engineering Team
Pro-Video Accessories
Audio Wallplates- Page 138
XLR, and Speakon
WEST PENN WIRE
CABLE WITH CONFIDENCE
114
R
H
G
V
B
COMPUTER
VIDEO/DVD
PC/ PROJECTOR
LEFT
AUDIO
VIDEO
RIGHT
PC/PROJECTOR
AUDIO
VGA
AUDIO
HDMI
VGA
AUDIO
DATA
Page 25
LEFT RI
GHTVI
DEO
COMPUPUT
ER 1
LEFT RI
GHT
S-VI
DEO
AUDUDI
O 1
COMPUPUT
ER 1
LEFT
LEFT
RI
GHT
RI
GHT
VI
DEO
Dual Gang AV Wall Plates
CN-xx2G2HA3R
2 Gang- HD15 Feed Thru, 2- 3.5mm Feed Thru,
3- RCA- RWY Feed Thru
CN-xx2G2HAT3R
2 Gang- HD15 Terminal Block, 2- 3.5mm Terminal Block, 3- RCA-
RWY Feed Thru
Dual Gang AV Wall Plates
CN-xx2GHA3RSA
2 Gang- HD15 Feed Thru, 3.5mm Feed Thru,
3- RCA- RWY Feed Thru, SVHS+ 2 RCA L/R Audio
CN-xx2GHAT3RSA
2 Gang - HD15 Terminal Block, 3.5mm Terminal Block, 3- RCA-
RWY Feed Thru + 2 RCA L/R Audio
Audio/Video Accessories
Standard Dual Gang Metal AV Wall Plates
NEUTRIK
S-VI
DEO
VI
DEO
NEUTRIK
Dual Gang AV Wall Plates
CN-xx2GCL1
2 Gang- HD15 Feed Thru, 2 Speakon Feed Thru
1- RCA- Video Feed Thru, SVHS+ 2 “F” Feed Thru (IR, TV)
CN-xx2GCL1TB
2 Gang - HD15 Terminal Block, 2 Speakon Feed Thru
1- RCA- Video Feed Thru, SVHS+ 2 “F” Feed Thru (IR, TV)
Dual Gang AV Wall Plates
CN-xx2GCL3
2 Gang- HD15 Feed Thru, 3.5mm Feed Thru,
3- RCA- RWY Feed Thru
CN-xx2GCL3TB
2 Gang - HD15 Terminal Block, 3.5mm Terminal Block, 3- RCA-
RWY Feed Thru
Dual Gang AV Wall Plates
CN-xx2GCL2
Stainless Steel 2- HD15 Feed Thru, 3.5mm Feed Thru, 3- RCA-
RWY Feed Thru, SVHS, RJ45 Jack, “F” Feed Thru
CN-xx2GCL2TB
Stainless Steel 2- HD15 Term. Block, 3.5mm Term. Block, 3- RCA-
RWY Feed Thru, SVHS, RJ45 Jack, “F” Feed Thru
Dual Gang AV Wall Plates
CN-xx2GCL4
2 Gang- HD15 Feed Thru, 3.5mm Feed Thru,
3- RCA- RWY Feed Thru, RJ45 Jack
CN-xx2GCL4TB
2 Gang - HD15 Terminal Block, 3.5mm Terminal Block, 3- RCA-
RWY Feed Thru, RJ45 Jack
Dual Gang AV Wall Plates
CN-xx2GCL7
2 Gang- HD15 Feed Thru, 3.5mm Feed Thru,
3- RCA- RWY Feed Thru, RJ45 Jack, and HDMI
CN-xx2GCL7TB
2 Gang - HD15 Terminal Block, 3.5mm Terminal Block, 3- RCA-
RWY Feed Thru, RJ45 Jack, and HDMI
Replace xx with: SS- Stainless Steel
WS- White- Stainless Steel
AC- Anodized Clear
AW- Anodized White
AB- Anodized Black
• 800-245-4964 • www.westpenn-wpw.com
Audio Wallplates- Page 138
XLR, and Speakon
For Custom Plates:
Contact WPW Engineering Team
Pro-Video Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
115
VIDEO
AUDIO 1
COMPUTER 1
COMPUTER 2
LEFT
AUDIO 2
RIGHT
CO
ER 1
LEFT
CO
LEFT
ER 1
O 1
LEFT
LEFT
GHT
DEO
GHT
DEO
S-V
DEO
GHT
GHT
VGA
S-V
SPEAKER 1
IR
DEO
DEO
SPEAKER 2
TV
VGA
VIDEO
AUDIO
RIGHTLEFT
VGA
S-VIDEO
VIDEO
AUDIO
RIGHTLEFT
DATA
TV
VGA
AUDIO
DATA
VIDEO
RIGHTLEFT
VGA
AUDIO
DATA
VIDEO
RIGHTLEFT
HDMI
Page 26
Audio/Video Accessories
Advantage EZ Run Installation
EZ Run Cables- UXGA / PC
CN-EZ01A-xx
Non-Plenum UXGA /PC
Replace xx with 15,25,35,50,75,100,125,150
CN-EZ02A-xx
Plenum UXGA/PC
Replace xx with 15,25,35,50,75,100,125,150
EZ Run Cables- AV- Component Video
CN-EZ01B-xx
Non-Plenum AV-Component Video
Replace xx with 15,25,35,50,75,100,125,150
CN-EZ02B-xx
Plenum AV-Component Video
Replace xx with 15,25,35,50,75,100,125,150
Multi-Media - Home Theater EZ Run Cables
Pro-AV EZ Run Cables
AV and Component Video Applications, Compatible with Analog and
S/PDIF Digital Audio.
Includes Protective Pulling Caps, Max.
Pull Tension 30lbs.
UXGA Supports PC Resolutions up to
1600x1200 pixels
Includes Protective Pulling Caps, Max.
Pull Tension 30lbs.
CN-EZHD1535-FP
CN-EZHD15-FP
CN-EZMD4-FP
CN-EZ3BNC-FP
CN-EZRGB-FP
CN-EZ4RCA-FP
CN-EZ5BNC-FP
CN-EZRWY-FP
CN-EZ5RCA-FP
EZ Run Cables- AV- Component Video
CN-EZ01C-xx
Non-Plenum HDMI
Replace xx with 15,25,35,50,75,100,125,150
CN-EZ02C-xx
Plenum HDMI
Replace xx with 15,25,35,50,75,100,125,150
HDMI EZ Run Cables
Optimized design for TMDS uncom-
pressed video- HDMI
Includes Protective Pulling Caps, Max.
Pull Tension 30lbs.
CN-EZHDMI-FP
Notes: HDMI CABLE LENGTHS GREATER THAN 25 FT. WILL REQUIRE HDMI
EXTENDERS
CN-EQL-FF-FA-B
• 800-245-4964 • www.westpenn-wpw.com
Pro-Video Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
116
Page 27
EZ Wall Plates- Single Gang
Catalog No. Description
CN-EZD14A-FP DIN Wall Plate UXGA/ PC
CN-EZD14B-FP DIN Wall Plate AV/ Component Video
CN-EZD19-FP DIN Wall Plate HDMI Video
CN-EZHD1535-FP Wall Plate HD15 (Female) + 3.5mm Audio
CN-EZHD15-FP Wall Plate HD15 (Female)
CN-EZMD4-FP Wall Plate 3 RCA + MDIN 4 Female
CN-EZ3BNC-FP Wall Plate 3 BNC
CN-EZRGB-FP Wall Plate 3 RCA Component Video-RGB
CN-EZ4RCA-FP Wall Plate 4 RCA - 3 RCA (Component Video) 1- RCA- S/PDIF
CN-EZ5BNC-FP Wall Plate 5 BNC - RGBHV
CN-EZRWY-FP Wall Plate 3 RCA- Composite Video + Stereo Audio
CN-EZ5RCA-FP Wall Plate 5 RCA - Component Video + Stereo Audio
CN-EZHDMI-FP Wall Plate- HDMI
CN-EQL-FF-FA-B Wall Plate- HDMI- Extender
CN-EQL-FF-B HDMI Extender
Single Gang EZ Run Wall Plates
Audio/Video Accessories

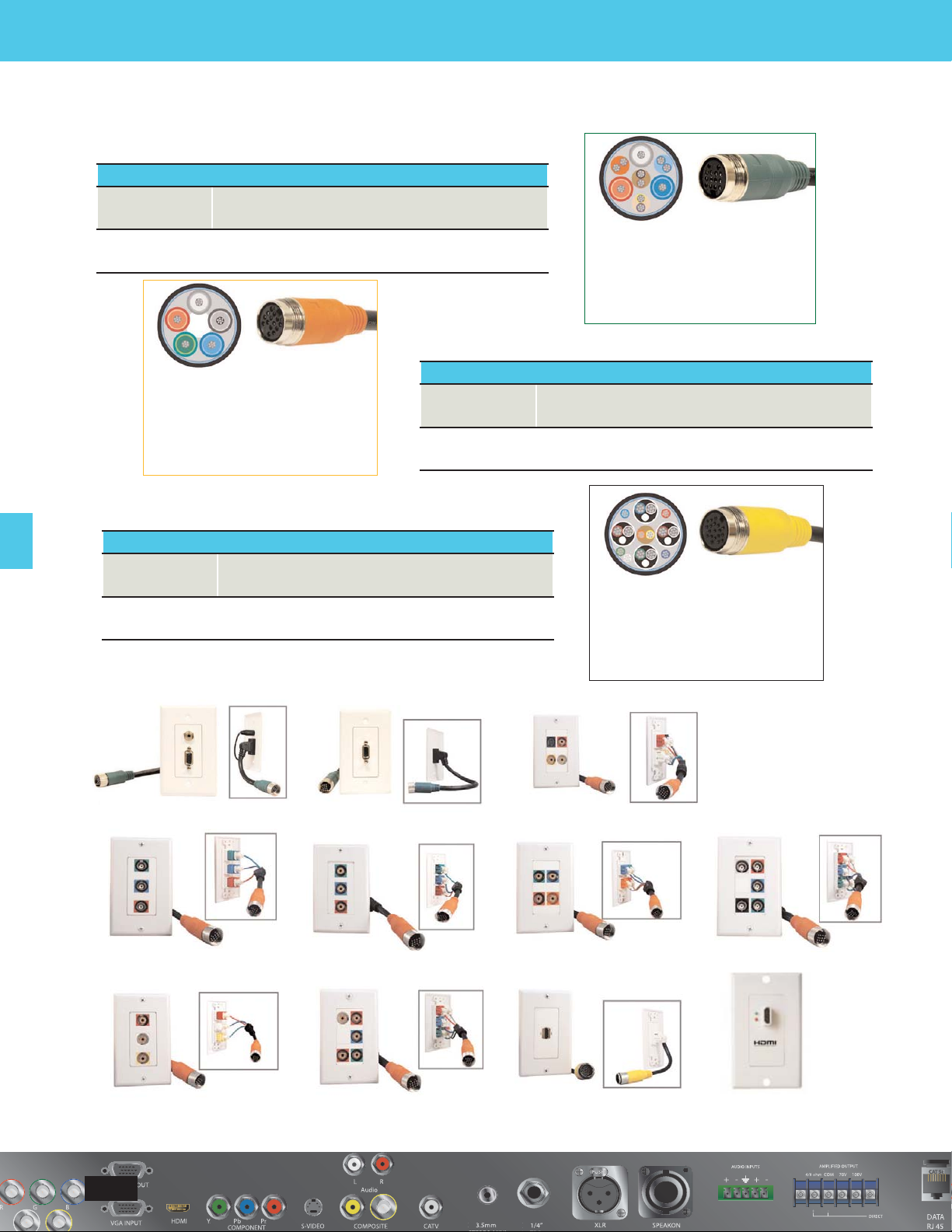

Advantage EZ Run Installation

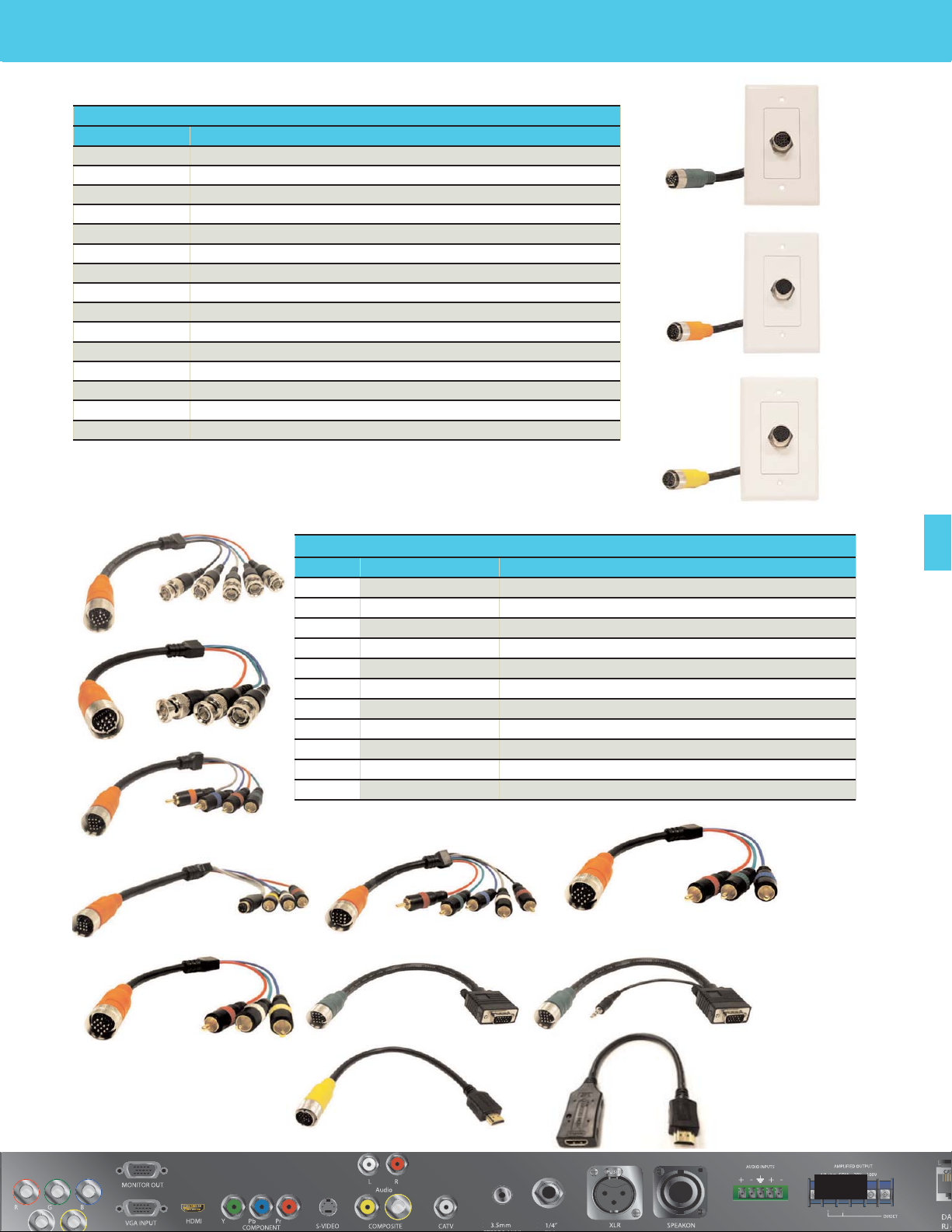

EZ Run Adapter Cables
Dwg.No Catalog No. Description
1 CN-EZ5BNC-xx 5 BNC to D14- Or
2 CN-EZ3BNC-xx 3 BNC to D14- Or
3 CN-EZ4RCA-xx 4 RCA (RGB + Digital Audio) to D14- Or
4 CN-EZMD4-xx 3 RCA (YWR)+ S-Video toD14- Or
5 CN-EZ5RCA-xx 5 RCA (RGB + Stereo Audio) to D14- Or
6 CN-EZRGB-xx 3 RCA (RGB) to D14- Or
7 CN-EZRWY-xx 3 RCA (YWR) to D14- Or
8 CN-EZHD15-xx HD15(RGBHV) to D14- Gn
9 CN-EZHD1535M-xx HD15 + 3.5mm Audio to D14- Gn
10 CN-EZHDMI-xx HDMI to D19- Ye
11 CN-EQL-MF-1 HDMI Extender Cable 1ft.Cable
Replace xx with:
1, 3, 6, 10 (ft)
1
3
4
5
6
7
8
CN-EZD14A-FP
CN-EZD14B-FP
2
9
CN-EZD19-FP
10
11
• 800-245-4964 • www.westpenn-wpw.com
Pro-Video Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
117
Page 28
Audio/Video Accessories
Advantage EZ Run Diagrams- Classroom Design
EZ Run NEW Classroom Plates
CN-VACP-2-SFP
Single Gang- HD15 + 3.5mm Audio +
3 RCA (RWY) - 2 Flying Leads
CN-VACPK-2-DFP
Dual Gang- HD15 + 3.5mm Audio +
3 RCA (RWY)- 2 Flying Leads
CN-A2R-1-SFP 2 RCA- (L/R Audio) + 3.5mm Audio
CN-VR-1-SFP Single Gang- HD15 + RCA- Yellow (Video)
CN-VACP-1-SFP
Single Gang- HD15 + 3.5mm Audio +
3 RCA (RWY) - 1 Flying Leads
CN-VACPK-1-DFP
Dual Gang- HD15 + 3.5mm Audio +
3 RCA (RWY)- 1 Flying Leads
CN-VACP-1-xx
Adpator Cable: Din14 (TypeA) Male to HD15, Composite
Video/Audio Male
CN-VR-1-SFP
CN-A2R-1-SFP
CN-VACP-2-SFP
• 800-245-4964 • www.westpenn-wpw.com
Pro-Video Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
118
CN-VACPK-2-DFP
CN-VACPK-1-DFP
CN-VACP-1-SFP
VIDEO
AUDIO
AUDIO/VIDEO
AUDIO/VIDEO
Page 29

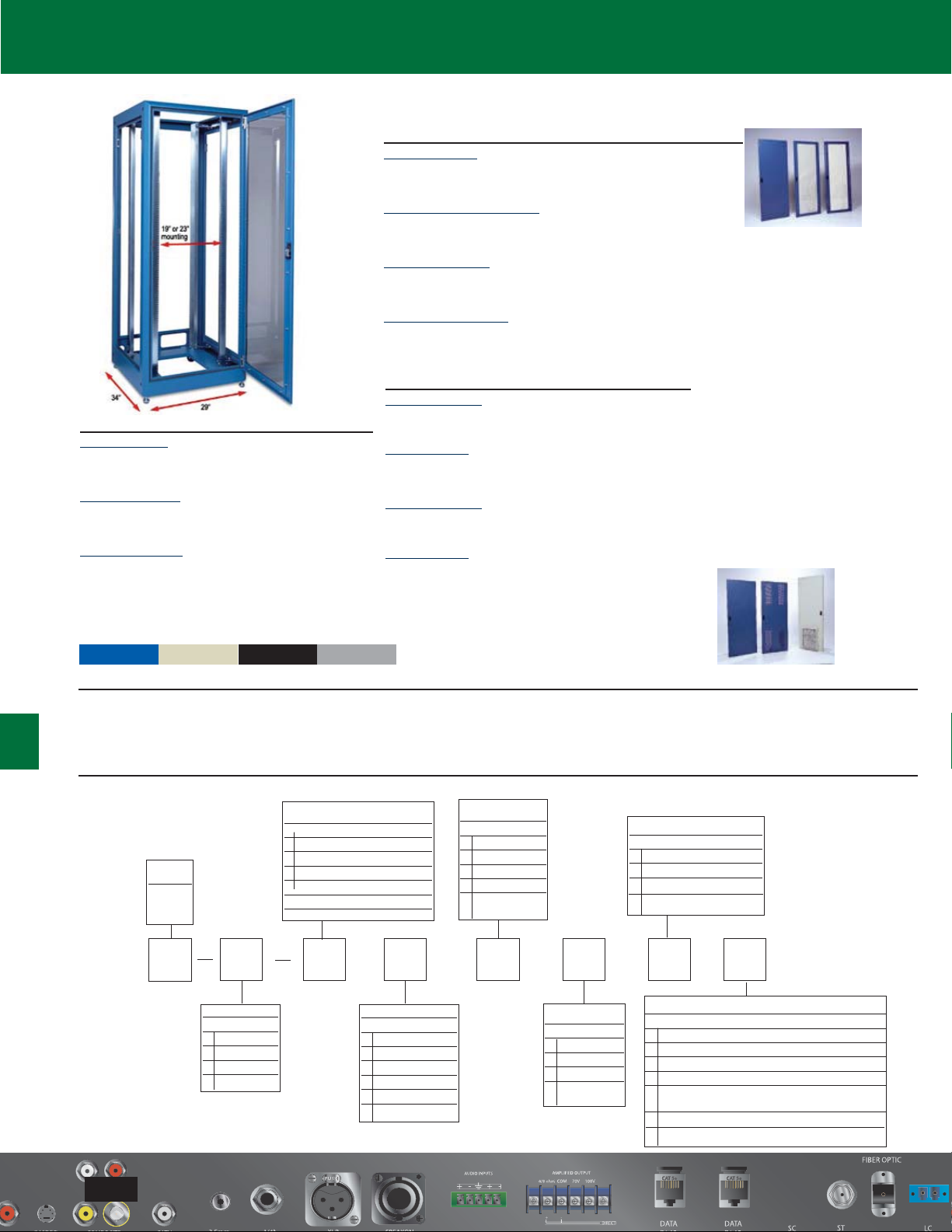

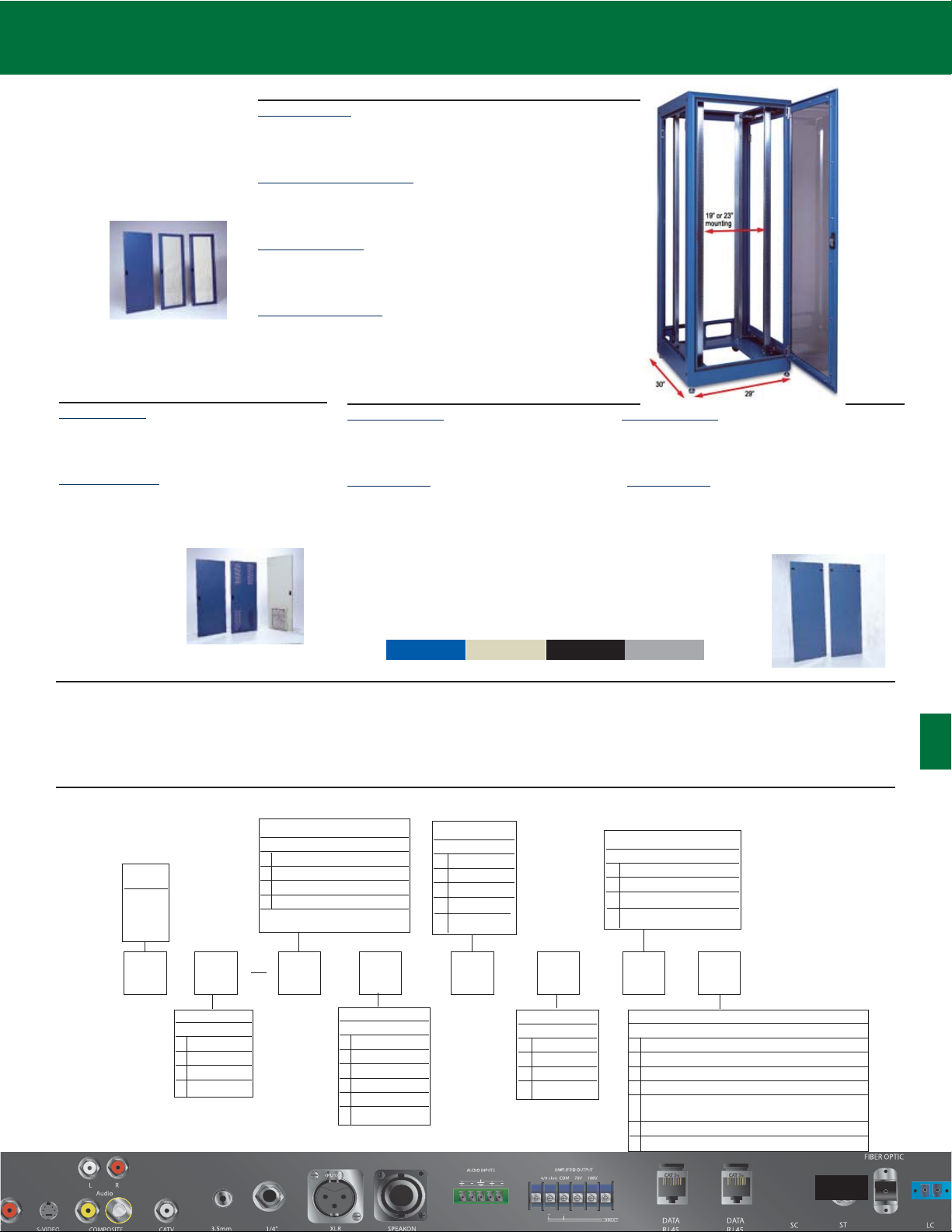

XME Series- Broadcast, Audio/Video & Security Applications
Stand-alone or Gangable - 48.87”(24RU) to 83.87” (44RU)H x 22” W x 20” or 26.5” D
Design Features
• Available in 4 heights and 2 depths. Fully welded construction, with 16
gauge one piece formed vented sides, 16 gauge formed bottom and 16 gauge
formed top. Top and bottom EIA rail support channels are an integral part of
the top and bottom. Formed center rail support channels are spot welded to
the sides.
• Two 12 gauge EIA mounting angles 10-32 tap, fully adjustable front and rear.
Rails can be removed from frame without removing hardware. Rack unit
marking on all rails.
• Frame is available with optional front & rear surface mount doors in solid,
glass or perforated with a swing latch with lock. Doors mounted with lift off
hinges capable of 180 degree swing even when cabinets are ganged. The
door swing is field reversible.
Cable Management
• Various sizes of electrical knockouts from .5” to 1.5” across the width of the
rear header and footer.
• Electrical knockouts of 1”, 1.5”, and 2” on the top and rear of rack
• Lasered 4” electrical knockouts in side panels in the rear for cable pass
through when ganging. Optional edge guard to protect cable.
Color:
Durable, textured black powder coat.
Note: Caster bases install directly to bottom flanges of
enclosure and recesses the casters in the base to allow
the leveling legs to be lowered when cabinet is in position and raise the casters off the floor.
# Description
20 20”
26 26.5”
# Description
1 Glass
2 Solit
3 Perforated
0 26.5”
# Description
1 Two (2) integrated Solid Sided w/ venting
RU Frame Height
24 48.87”
35 68.12”
40 76.87”
44 83.87”
# Description
1 Solid
2 Vented
3 Solid w/10” Fan
4 Solid w/ Four 4” Fans
0 None
# Description
1 Glass Swing
2 Solid Swing
3 Perforated Swing
0 None
# Description
2 4 ft. 14 outlet 15 Amp w/ surge- 10’ cord
3 2 ft. 8 outlet 15 Amp strip w/10’ cord
4
19” Rack mount 6 outlet (Rear) 15 Amp
power strip w/ 10 ‘ cord
5
19” Rack mount 6 outlet (Rear) 15 Amp
power strip w/ surge suppressor, 10’ cord
6 4 ft. 14 outlet 20 Amp w/ surge- 10’ cord
7 2 ft. 8 outlet 20 Amp strip w/10’ cord
8 66”- 20 outlet 20 Amp w/ surge, 10’ cord
0 None
RUs*
Top Panel
Rear Door
Power Distribution Units (PDU’s)
see notes
Frame Depth
Front Door
Side Panels
XME
1
Notes:
1. 19” rack PDU will work on all Racks/Enclosures, for use with 19” mounting rails.
2. 4” PDU will NOT work on any Racks/Enclosures with height of 28RU (52”) or less.
3. 2” PDU will NOT work on any Racks/Enclosures with height of 14RU (27.5”) or less.
4. 66” PDU will NOT work on any Racks/Enclosures with height of 40RU (73”) or less.
Part number example: XME442031313
XME Enclosure, 44 RUs height, 20” depth, with 10” fan top panel,
glass swing front door, perforated swing rear door, two fixed vented
side panels, and 2ft. 15 Amp power strip
• 800-245-4964 • www.westpenn-wpw.com
AV Racks/Cabinets
WEST PENN WIRE
CABLE WITH CONFIDENCE
119
Page 30

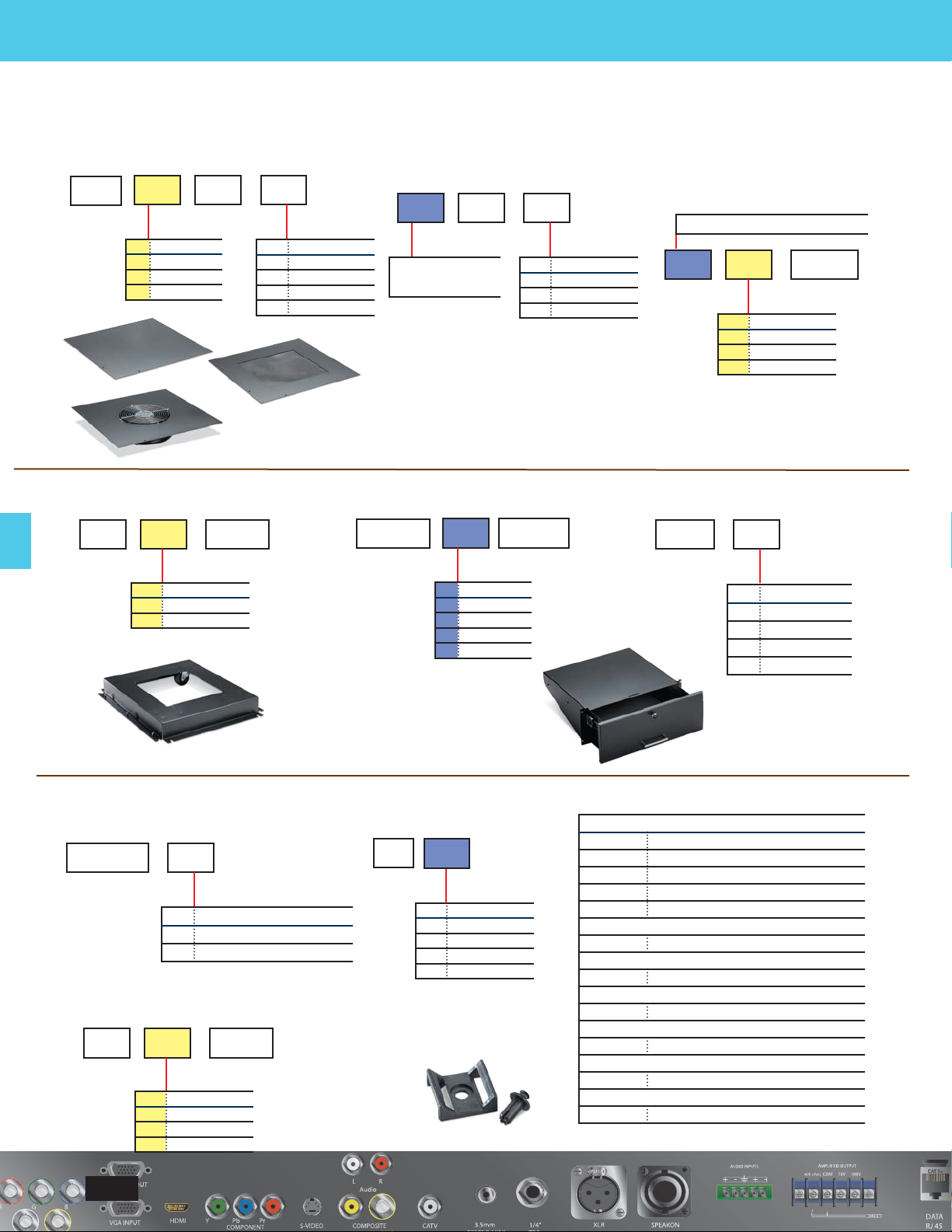

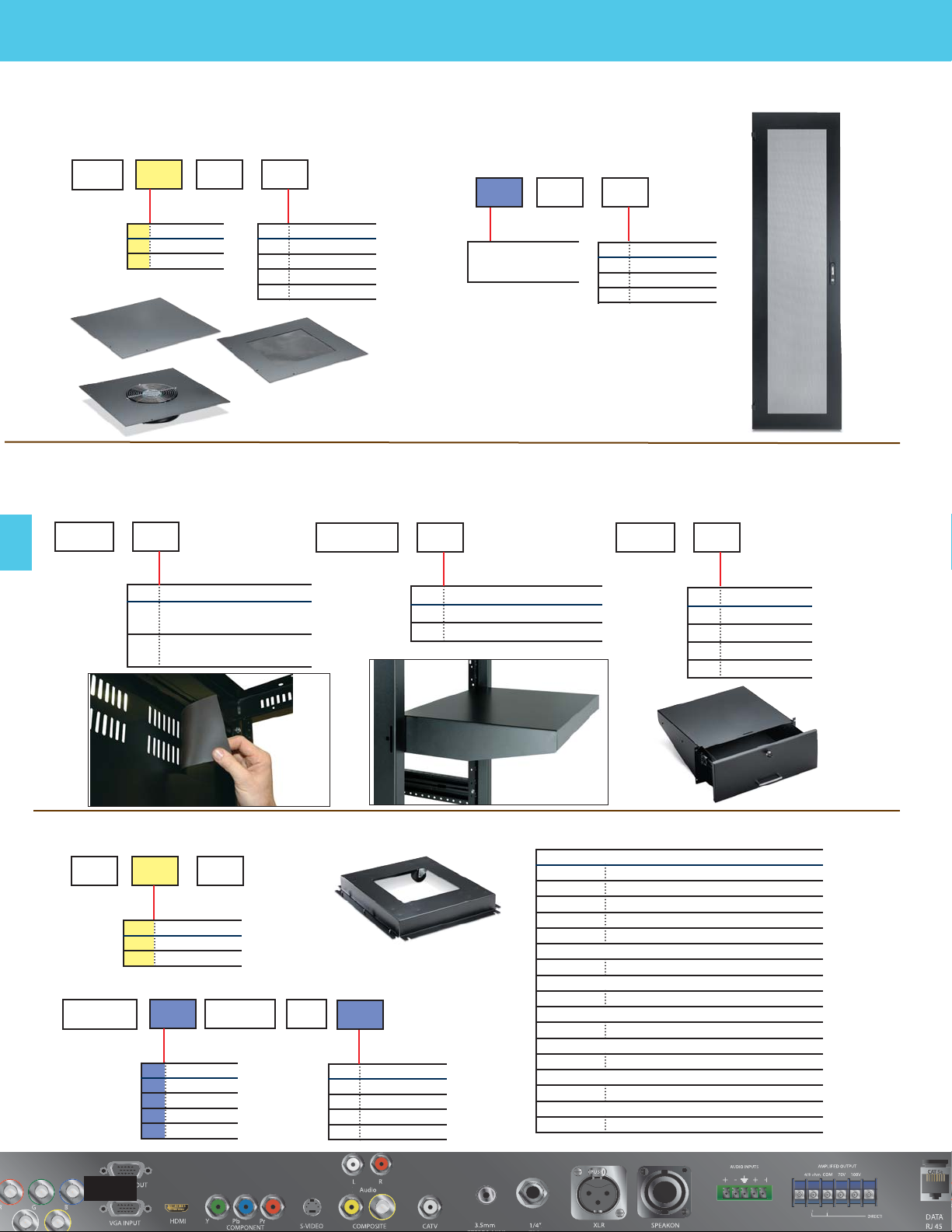

22
TP
Panel Depth
# Description
1 Solid
2 Vented
3 10” Fan
4 (4) 4” Fans
Panel Style
# Description
14 20”
20 26.5”
Top Panel Options
22
Door Height-RU
# Description
GD Tempered Glass
SD Solid
PD Perforated
Door Style
refer to RU in FRAME
HEIGHT chart
Door Options
Compatible with enclosure front or rear
XME
# Description
SVC
Side Vent Cover kit.
Plate to block off vents in side
FVC
Front Vent Cover kit.
Plate to block off vents in front
Vent Kit
Vent Kits
Allows for top vent to be blocked to
optimize forced air cooling (fanned top).
XMEW
# Description
22 1 bay, 22”
44 2 bays, 44”
Work Surface
Front-Mount Work Surface
For standard 19” mounting.
RMD
Drawer Height
Rack Mount Drawers
For standard 19” mounting.
# Description
22U
3 3U
4 4U
5 5U
22
# Description
20 20”
26 26.5”
Base Depth
Recessed Caster Base
XMER
RT10
Rail Height
# Description
24 24RU
35 35RU
40 40RU
44 44RU
Lacing Panel
RU Description
24 48”
35 67.5”
40 76”
44 83”
Lacing- EIA Rail Kits- 1 pair w/ hardware
LP
Lacing Accessories
# Description
XMFCTM Quick mount with fastners- 10pcs.
XCTV12 Velcro 12” long- hook/loop 10pcs/kit
XCTV18 Velcro 18” long- hook/loop 10pcs/kit
XCTV24 Velcro 24” long- hook/loop 10pcs/kit
Rack Mount Lacing Bar
9512-1903 Rack mount lacing bar
Top-Mounted Ladder Rack Support
XMELM Top mounted ladder rack support
Adjoining Kit
XMEBK01 (4) 1/4” whiz bolt and whiz nuts
Grounding Kit
XMEGK01 Straps and 1/4” wing nuts
Edge Guard Kit
XMEEG01 Edge guard kit
Seismic Anchor Bracket Kit
XMERSB Seismic bracket kit
Other Accessories
XME Series- Accessories
• 800-245-4964 • www.westpenn-wpw.com
AV Racks/Cabinets
WEST PENN WIRE
CABLE WITH CONFIDENCE
120
Page 31
Stand-alone or Gangable - 48.87”(24RU) to 83.87” (44RU)H x 22” W x 26.5”, 31.5” or 36” D
Design Features
• Available in 4 heights and 3 depths. Taller units (48RU, 50RU, & 52RU).
Fully welded construction, with 14 gauge one piece formed top and bottom and 16
gauge vertical corner posts. Top and bottom EIA rail support is an integral part of
the top and bottom- spot weld inner support channel. Middle rail support channels
are spotwelded with two 16 gauge formed rail channel.
• Four 12 gauge EIA mounting angles 10-32 tap, fully adjustable front and rear. Rails
can be installed and removed from frame without removing hardware. Rack unit
marking on all rails. Markings are hidden when equipment is mounted.
• Frame is available with optional front & rear surface mount doors in solid, glass or
perforated with a swing latch with lock. Doors mounted with lift off hinges capable
of 180 degree swing even when cabinets are ganged. The door swing is field
reversible.
• Open top with optional configurable panels.
• Open bottom with leveling legs. 1/4 - 20 ground bonding studs on frame and doors.
• Ganging can be accomplished after equipment is placed in.
Cable Management
• Numerous lacing points on two surfaces of each rail support
to facilitate cable management.
• Various sizes of electrical knockouts from .5” to 1.5” across the
width of the rear header and footer.
• Cable tie holes entire length of EIA rail on the attachment
flange spaced at 1.75”.
Color:
Durable, textured black powder coat.
# Description
26 26.5”
31 31.5”
36 36”
# Description
1 Glass Swing
2 Solid Swing
3 Perforated Swing
0 None
# Description
1 One Solid Side
2 Two Solid Side
0 None
RU Frame Height
24 48.87”
35 68.12”
40 76.87”
44 83.87”
# Description
1 Solid
2 Vented
3 Solid w/10” Fan
4 Solid w/ Four 4” Fans
0 None
# Description
1 Glass Swing
2 Solid Swing
3 Perforated Swing
0 None
# Description
2 4 ft. 14 outlet 15 Amp w/ surge- 10’ cord
3 2 ft. 8 outlet 15 Amp strip w/10’ cord
4
19” Rack mount 6 outlet (Rear) 15 Amp
power strip w/ 10 ‘ cord
5
19” Rack mount 6 outlet (Rear) 15 Amp
power strip w/ surge suppressor, 10’ cord
6 4 ft. 14 outlet 20 Amp w/ surge- 10’ cord
7 2 ft. 8 outlet 20 Amp strip w/10’ cord
8 66”- 20 outlet 20 Amp w/ surge, 10’ cord
0 None
RUs*
Top Panel
Rear Door
Power Distribution Units (PDU’s)
see notes
Frame Depth
Front Door
Side Panels
XMER
XMER Enclosure, 40RUs height, 36” depth, with vented top panel,
solid swing front door, perforated swing rear door, two solid side
panels, and 4ft. 20 Amp surge suppressor strip.
Notes:
1. Tie bar options (TB): 11-14RU= 2TB, 20-32RU= 8TB, 36-75RU= 12 TB.
2. 19” rack PDU will work on all Racks/Enclosures, for use with 19” mounting rails.
3. 4” PDU will NOT work on any Racks/Enclosures with height of 28RU (52”) or less.
4. 2” PDU will NOT work on any Racks/Enclosures with height of 14RU (27.5”) or less.
5. 66” PDU will NOT work on any Racks/Enclosures with height of 40RU (73”) or less.
TB
Horizontal
Tie Bar- Optional
(Refer to Notes)
XMER Series- Broadcast, Audio/Video & Security Applications
Part number example: XMER403622326
• 800-245-4964 • www.westpenn-wpw.com
AV Racks/Cabinets
WEST PENN WIRE
CABLE WITH CONFIDENCE
121
Page 32
XMER Series- Accessories
22
TP
Panel Depth
# Description
1 Solid
2 Vented
3 10” Fan
4 (4) 4” Fans
Panel Style
# Description
26 26.5”
31 31.5”
36 36”
Top Panel Options
22
Door Height-RU
# Description
GD Tempered Glass
SD Solid
PD Perforated
Door Style
refer to RU in FRAME
HEIGHT chart
Door Options
Compatible with enclosure front or rear
01SP
Panel Height-RU
# Description
26 26.5”
31 31.5”
36 36”
Panel Depth
refer to RU in FRAME HEIGHT chart
Side Panel Options
Solid Removable (Single)
22 CB1
Base Depth
Recessed Caster Base
# Description
26 26.5”
31 31.5”
XMER
RT10
Rail Height
RU Description
24 48”
35 67.5”
40 76”
44 83”
Lacing- EIA Rail Kits- 1 pair w/ hardware
RMD
Drawer Height
Rack Mount Drawers
For standard 19” mounting.
# Description
22U
3 3U
4 4U
5 5U
XMEW
# Description
22 1 bay, 22”
44 2 bays, 44”
Work Surface
Front-Mount Work Surface
For standard 19” mounting.
# Description
24 24RU
35 35RU
40 40RU
44 44RU
Lacing Panel
LP
Cable Management
Lacing Panel
44 CC
Chase Depth
Side Cable Chase (4” Wide)
# Description
26 26.5”
31 31.5”
36 36”
Lacing Accessories
# Description
XMFCTM Quick mount with fastners- 10pcs.
XCTV12 Velcro 12” long- hook/loop 10pcs/kit
XCTV18 Velcro 18” long- hook/loop 10pcs/kit
XCTV24 Velcro 24” long- hook/loop 10pcs/kit
Rack }ount Lacing Bar
9512-1903 Rack mount lacing bar
Top-Mounted Ladder Rack Support
XMELM Top mounted ladder rack support
Adjoining Kit
XMEBK01
(4) 1/4” whiz bolt and whiz nuts
Grounding Kit
XMEGK01 Straps and 1/4” wing nuts
Edge Guard Kit
XMEEG01 Edge guard kit
Seismic Anchor Bracket Kit
XMERSB Seismic bracket kit
Other Accessories
Quick Mount
XMER Series- Accessories
• 800-245-4964 • www.westpenn-wpw.com
AV Racks/Cabinets
WEST PENN WIRE
CABLE WITH CONFIDENCE
122
Page 33

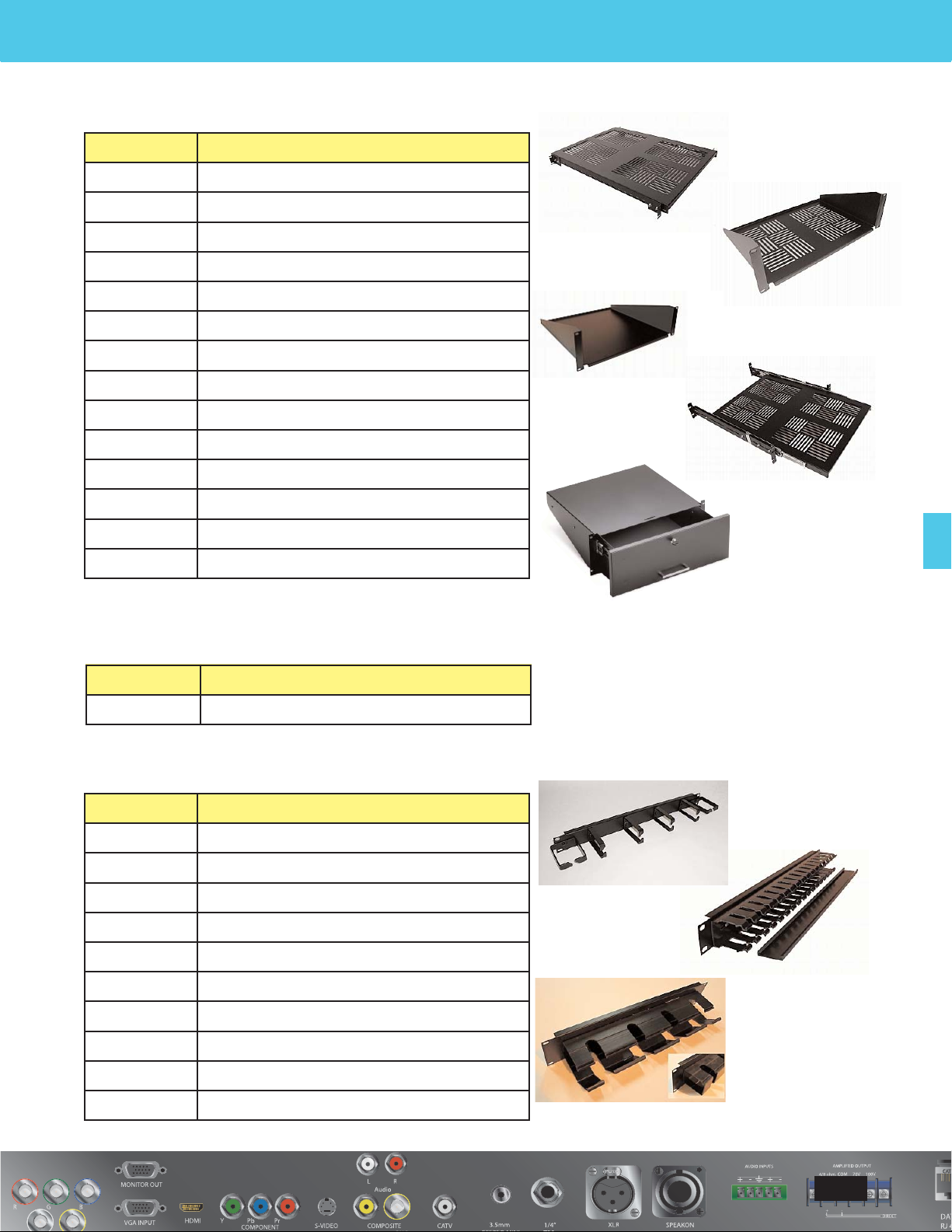

Rack/Cabinet Accessories
Enclosure Shelves:
Catalog No. DescrÈption
9010-1924
9010-1912
9011-0918
9011-1918-16
9012-1918
9012-1918-16
9013-1924
9015-1909
RMD2
RMD3
RMD4
RMD5
XMEW22
XMEW22
19” Heavy duty Adj. Vented, 4pt. Mtg, 24”D
19” Vented flush mnt. cantilevered, 12”D
19” Vented flush mnt. cantilevered, 18”D
19” Vented flush mnt. cantilevered, 18”D, 25lbs LR
19” Solid flush mnt. cantilevered, 18”D
19” Solid flush mnt. cantilevered, 18”D, 25lbs LR
19” HD Sliding Adj. vented, 4pt. Mtg, 24”D
19” Sliding rotating keyboard
2U Rackmount drawer, 19” Mtg.
3U Rackmount drawer, 19” Mtg.
4U Rackmount drawer, 19” Mtg.
5U Rackmount drawer, 19” Mtg.
1 Bay 22” Front mount work surface
1 Bay 22” Front mount work surface
9010-1924
9010-1912
9012-1918
9013-1924
RMD3
Vertical Cable Management:
Catalog No. Description
LP40
Vertical Lacing Bar
Cable Management:
Catalog No. Description
9510-1901
9511-1902
9512-1901
9512-1902
9512-1902-FR
9512-1903
9513-1902
BHH191UC
BHH192UC
1U 19” manager w/finger stock w/arm 1.5”x3”
2U 19” manager w/finger stock w/arm 3”x3”
1RU 19” manager with rings
2RU 19” manager with rings
2U 19” manager w/finger Frt/Rr
1U 19” Rack mount lacing bar
2U 19” manager w/guide touch 2”x3”
1U 19” manager w/cover
2U 19” manager w/cover
9510-1901
9512-1901
• 800-245-4964 • www.westpenn-wpw.com
BHH193UC
3U 19” manager w/cover
WEST PENN WIRE
9513-1902
CABLE WITH CONFIDENCE
123
Page 34
• 800-245-4964 • www.westpenn-wpw.com

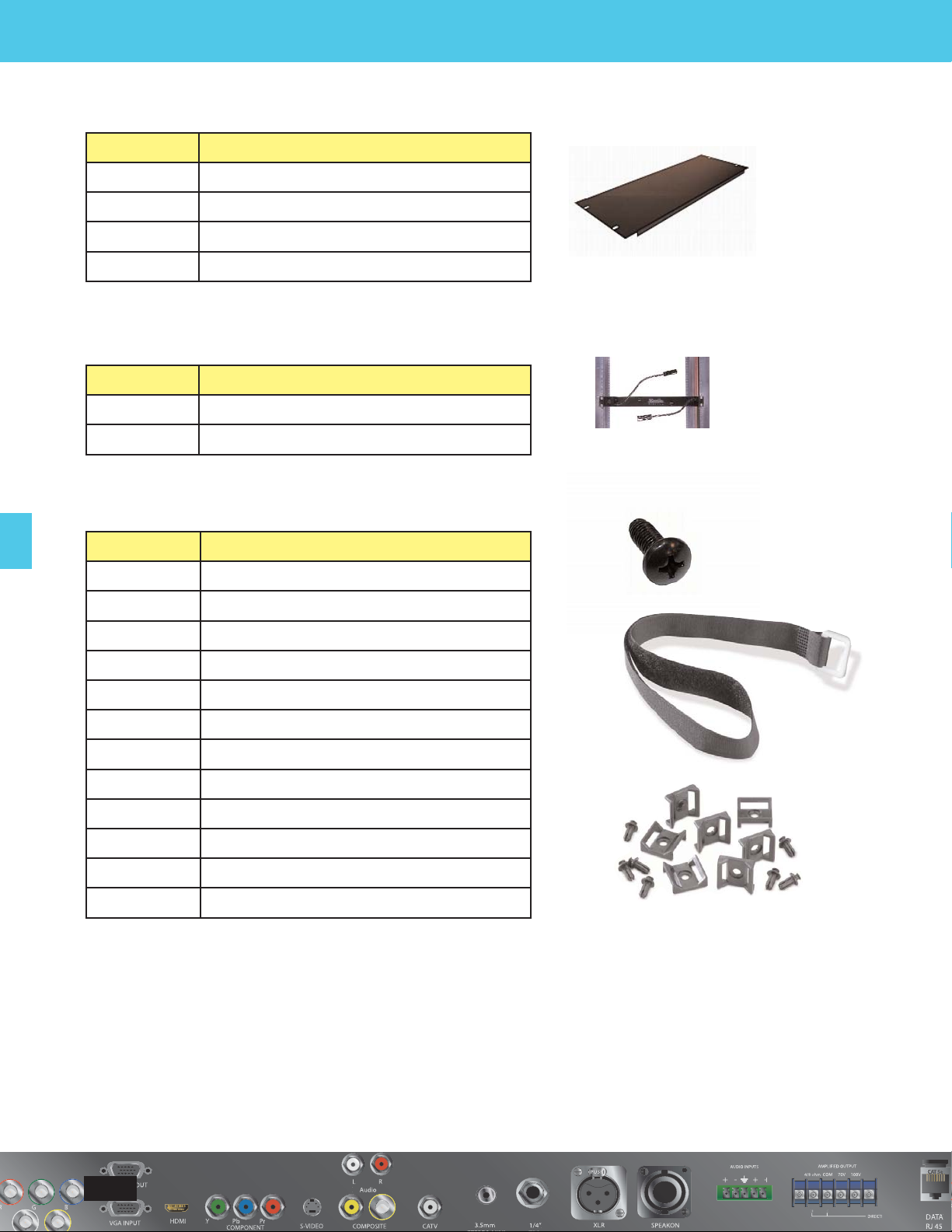

Filler Plates
Catalog No. Description
9910-0100
1U 19” Solid filler panel - Black
9911-0200
2U 19” Solid filler panel - Black
9912-0300
3U 19” Solid filler panel - Black
9913-0400
4U 19” Solid filler panel - Black
Lighting Kits
Catalog No. Description
9420-1906
19” RM Single Adm. 5W halogen w/dimmer
9420-1905
19” RM Dual Adm. 5W halogen w/dimmer
Hardware
Catalog No. Description
8911-0100
10-32 Mounting screws- pkg.50
XBS-11-0011
Groundng strap kit- 11”
XBX-18-0011
Groundng strap kit- 18”
XMERSB
Seismic anchor bracket kit
XMEBK01
Bolt together kit
XMEEG01
Edge guard kit
XMFCTM
Quick mount w/fastners 10pc.
XCTV12
Vecro 12” L hook and loop 10pc/kit
XCTV18
Vecro 18” L hook and loop 10pc/kit
XCTV24
Vecro 24” L hook and loop 10pc/kit
XMESVC
Side vent cover
XMEFVC
Front vent cover
Rack/Cabinet Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
124
Page 35
• 800-245-4964 • www.westpenn-wpw.com

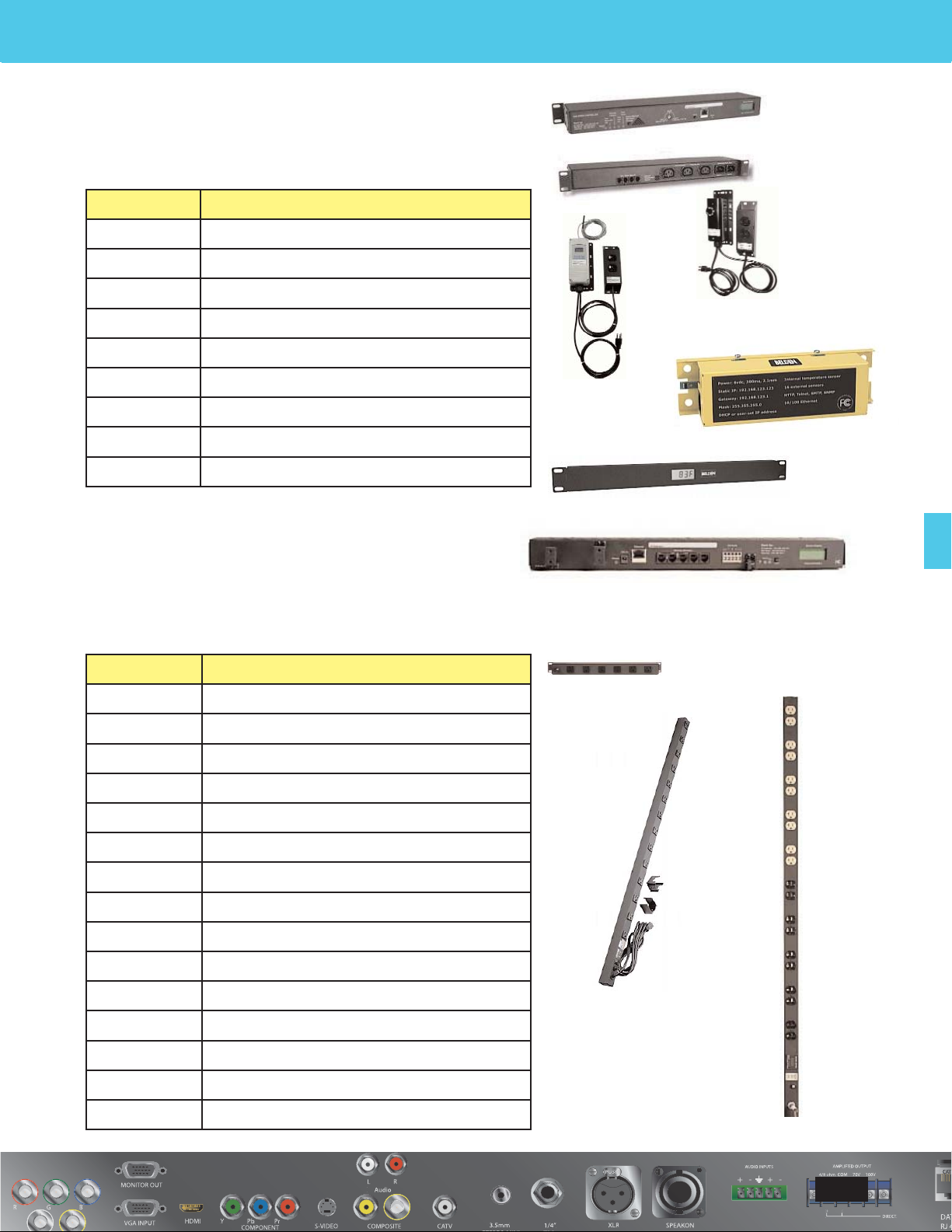

Remote Climate Controls
Catalog No. Description
9318-0150
19” fan controller
9318-0200
Thermostat fan controller -Mechanical
9318-0300
Thermostat fan controller- Electrical
9318-0500
Compact climate controller
9318-0512
Temp. display - 1U Panel
9318-0513
Temp. display- Miniature unit-1.72”x3.8”x1.1”
9318-0550
19” remote monitor, 16RJ12 sensors 3I/O inputs
9318-0560
19” remote monitor, 5RJ12 sensors 3I/O inputs
9321-0100
19”, 20A, PDU, RJ12-remote monitoring
9318-0150
9318-0300
9318-0200
9318-0500
9318-0512
9318-0560
Power Distribution Units
Catalog No. Description
9413-0601
19” 6 outlet rear, 15A CB, 5-15R,5-15P
9414-0602
19” 6 outlet rear surge, 15A CB, 5-15R,5-15P
9416-1005
19” 10 outlet rear, 20A CB, 5-20R,5-20P
9412-0801
2” 8 outlet, 15A CB, 5-15R,5-15P
9416-0803
2” 8 outlet, 20A CB, 5-20R,L5-20P
9416-0804
2” 8 outlet, 20A CB, 5-20R,5-20P
9411-1602
4’14”outlet 15A surge, CB, 5-15R, 5-15P
9415-1601
4’14”outlet 20A , CB, 5-20R, L5-20P
9415-1603
4’14”outlet 20A , CB, 5-20R, 5-20P
9415-1610
4’14”outlet 20A surge, CB, 5-20R, 5-20P
9415-1614
4’14”outlet 20A surge, CB, 5-20R, L5-20P
9415-2002
66” 20 outlet 30A surge w/Amtr, CB,5-30R, L5-30P
9416-2002
66” 20 outlet 20A w/Amtr, CB,5-20R, L5-20P
9416-2005
66” 20 outlet 20A, CB,5-20R, 5-20P
9416-2006
66” 20 outlet 20A surge,CB,5-20R, 5-20P
9413-0601
9411-1602
9415-2002
Rack/Cabinet Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
125
Page 36
Wall Mount Solutions
Wall Mount Enclosures
CATALOG # DESCRIPTION Height Width Depth Weight Mounting Rack Spaces
XWM-2420-GD-3 24" Wall Mount 20" Depth w/Glass Door w/Lock 24" 21.25" 20 5/8" 75 19"12μ
XWM-2424-GD-3 24" Wall Mount 24" Depth w/Glass Door w/Lock 24" 21.25" 24 5/8" 80 19" 12μ
XWM-3620-GD-3 36" Wall Mount 20" Depth w/Glass Door w/Lock 36" 21.25" 20 5/8" 90 19" 18μ
XWM-3624-GD-3 36" Wall Mount 24" Depth w/Glass Door w/Lock 36" 21.25" 24 5/8" 98 19" 18μ
XWM-4820-GD-3 48" Wall Mount 20" Depth w/Glass Door w/Lock 48" 21.25" 20 5/8" 120 19" 25μ
XWM-4824-GD-3 48" Wall Mount 24" Depth w/Glass Door w/Lock 48" 21.25" 20 5/8" 135 19" 25μ
XWM-2420-SD-3 24" Wall Mount 20" Depth Solid Door w/Lock 24" 21.25" 20 5/8" 70 19" 12μ
XWM-2424-SD-3 24" Wall Mount 24" Depth Solid Door w/Lock 24" 21.25" 24 5/8" 75 19" 12μ
XWM-3620-SD-3 36" Wall Mount 20" Depth Solid Door w/Lock 36" 21.25" 20 5/8" 85 19" 18μ
XWM-3624-SD-3 36" Wall Mount E 24" Depth Solid Door w/Lock 36" 21.25" 20 5/8" 95 19" 18μ
XWM-4820-SD-3 48" Wall Mount 20" Depth Solid Door w/Lock 48" 21.25" 20 5/8" 110 19" 25μ
XWM-4824-SD-3 48" Wall Mount 24" Depth Solid Door w/Lock 48" 21.25" 20 5/8" 125 19" 25μ
XWM-2406-GD-3 6” Depth with Glass Door/ Lock 24" 21.25" 6 5/8" 40 Backboard
XWM-3606-GD-3 6” Depth with Glass Door/ Lock 36" 21.25" 6 5/8" 45 Backboard
XWM-4806-GD-3 6” Depth with Glass Door/ Lock 48" 21.25" 6 5/8" 75 Backboard
XWM-2406-SD-3 6” Depth with Solid Door/ Lock 24" 21.25" 6 5/8" 35 Backboard
XWM-3606-SD-3 6” Depth with Solid Door/ Lock 36" 21.25" 6 5/8" 45 Backboard
XWM-4806-SD-3 6” Depth with Solid Door/ Lock 48" 21.25" 6 5/8" 65 Backboard
XWM-2401 24" Plywood Back Board (Black) Kit
XWM-3601 36" Plywood Back Board (Black) Kit
XWM-4801 48" Plywood Back Board (Black) Kit
Available Colors:
(2) Beige, (3) Black
Wall Max Accessories
9011-1912 19” Flush mounted Cantilevered shelf (vented) 12” depth
XWM-9312-1600 Fan Assembly
CASTERS
8912-0200-3 Casters/Leveler Base 20” or 24”
MOUNTING UPRIGHTS
XWM-2419 19" Mounting uprights 24”
XWM-3619 19" Mounting uprights 36”
XWM-4819 19" Mounting uprights 48”
8911-010 Mounting hardware, 10-32 tapped, mounting screws (50)
BACK BOARDS
XWM-2401 24” Backboard
XWM-3601 36” Backboard
XWM-4801 48” Backboard
VERTICAL MANAGERS
9712-0103 IU- 1”W x 2” D
Available on request Standard
WPW
• 800-245-4964 • www.westpenn-wpw.com
Wall Mount Enclosures
WEST PENN WIRE
CABLE WITH CONFIDENCE
126
C
O
H
T
N
I
F
W
I
D
L
L
E
N
A
T
C
S
N
I
E
WPW
Page 37

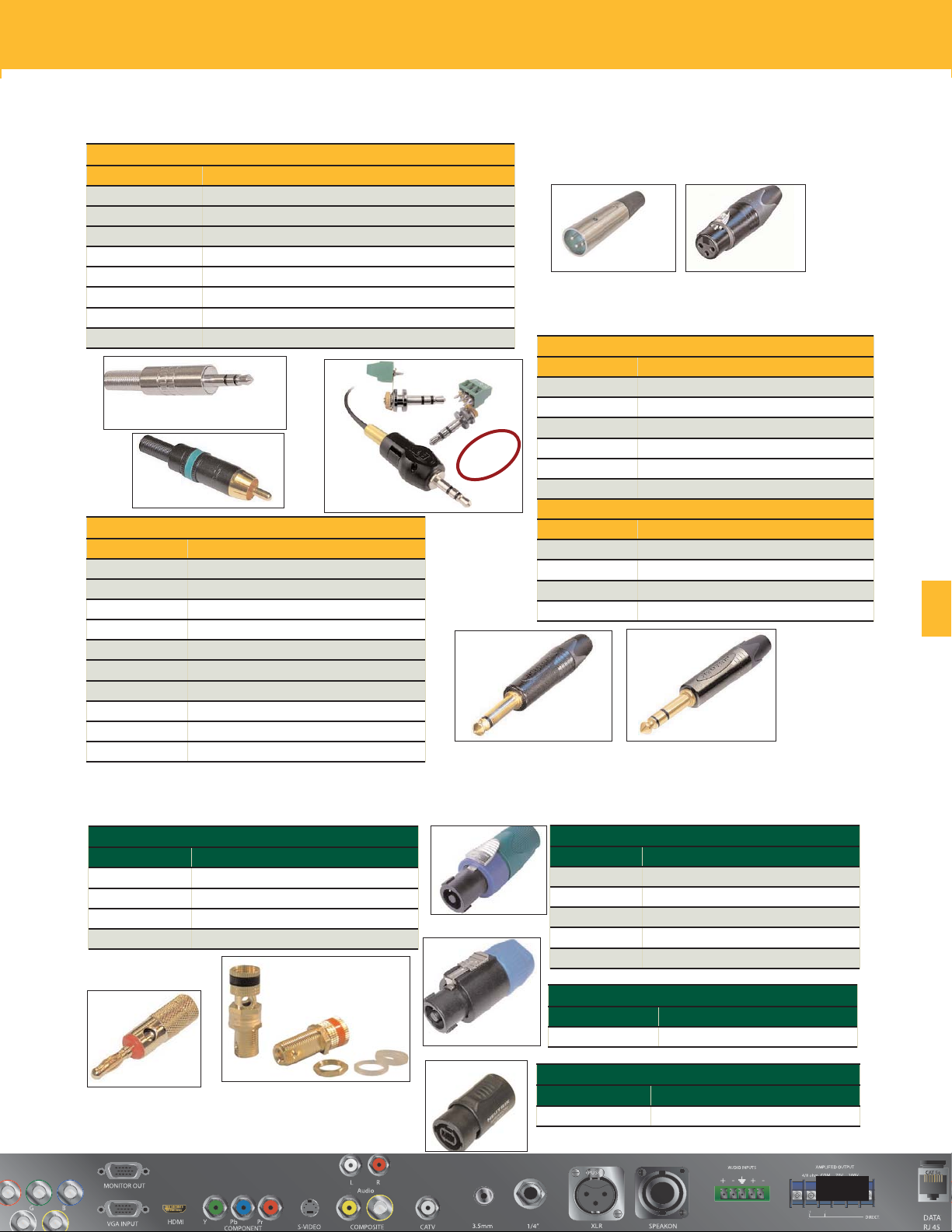

3.5mm Audio Connectors
Catalog No. Description
19-1202 Stereo Mini Plug
CN-SM3.5F 3.5 Stereo Mini Jack
CN-NYS231B 3.5mm Mini Plug- Black/Nickel
CN-NYS231 3.5mm Mini Plug Nickel/Nickel
CN-MX35M 3.5mm Mini Plug- Terminal Block
19-1201 3.5 mm Mini Mono Plug
RCA Audio Connectors
Catalog No. Description
19-1207 RCA Plug- Red
19-1268 RCA Plug- Black
CN-NYS373-xx RCA Phono - xx-BK,BL,RD,YE,GN
25-7290 RCA RG59/U Male Plug
Audio Connectors
Line Level Audio Connectors- Cable Mount
44-A3M
CN-NYS231
XLR Style Connectors
Catalog No. Description
CN-NC3MXB 3 Position XLR Male Black-Gold Contact
CN-NC3MXBAG 3 Position XLR Male Black-Nickel Contact
CN-NC3MX 3 Position XLR Male Nickel-Nickel Contact
CN-NC3FXB 3 Position XLR Female Black-Gold Contact
CN-NC3FXBAG 3 Position XLR Female Black-Nickel Contact
CN-NC3FX 3 Position XLR Female Nickel-Nickel Contact
44-A3F 3 Position XLR Jack
44-A3M 3 Position XLR Plug
1/4” Audio Connectors
Catalog No. Description
CN-NP3CBAG 1/4” Black-Silver Contact TRS
CN-NP3C 1/4” Silver- Silver Contact TRS
CN-NP2CBAG 1/4” Black-Silver Contact TS
CN-NP2C 1/4” Silver- Silver Contact TS
CN-NP3XB Thin 1/4” Black-Gold Contact TRS
CN-NP3XBAG Thin 1/4” Black-Silver Contact TRS
CN-NP3X Thin 1/4” Silver- Silver Contact TRS
CN-NP2XB Thin 1/4” Black-Gold Contact TS
CN-NP2XBAG Thin 1/4” Black-Silver Contact TS
CN-NP2X Thin 1/4” Silver- Silver Contact TS
CN-373-GN
CN-NC3FX
Speakon Cable Mt. Female SPX
Catalog No. Description
CN-NL4FX 4 Pole, SPX Gray
CN-NL4FX2 4 Pole, SPX Red
CN-NL4FX4 4 Pole, SPX Yellow
CN-NL4FX5 4 Pole, SPX Green
CN-NL4FX9 4 Pole, SPX White
CN-NP2XB
CN-NP3X
Speakon Audio Adapter
Catalog No. Description
CN-NL4MMX 4 Pole Male to Male Adapter
CN-NL4FX5
Speakon Cable Mt. Female Standard
Catalog No. Description
CN-NL4FC 4 Pole, Standard
CN-NL2FC
CN-NL4MMX
Speaker Level Audio Connectors
CN-MX35M
Banana and Binding Post Connectors
Catalog No. Description
19-1239 Banana Red
19-1240 Banana Black
CN-MDP8 Banana Plug (8 Awg.) Double
CN-BPX-24B Binding Post with Red,Black
19-1239
CN-BPX-24B
800-245-4964 • www.westpenn-wpw.com
Professional Audio Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
137
NEW
Page 38

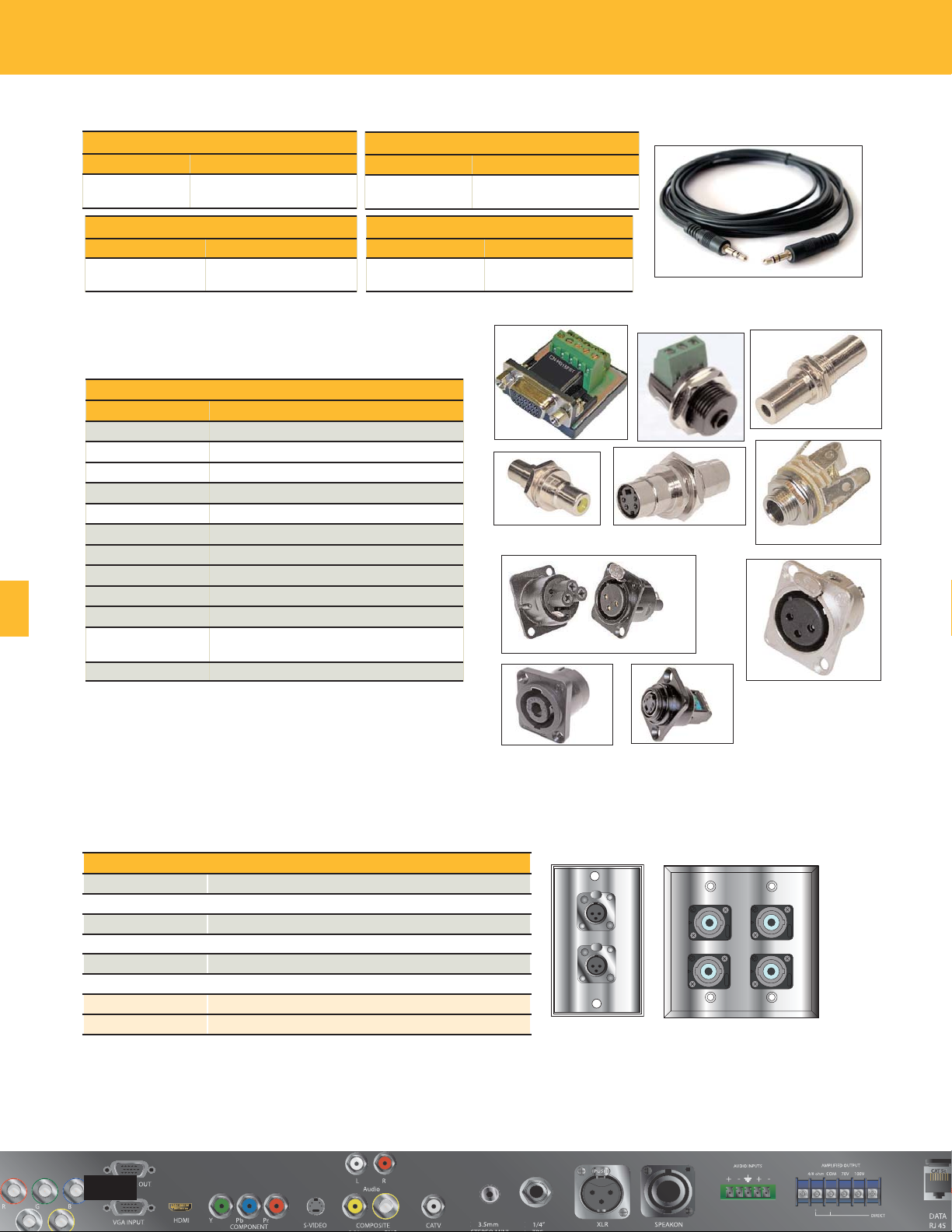

Panel Mount Connectors
Catalog No. Description
CN-342B-xx RCA- xx: YE, WH or RD
CN-35FFSP 3.5mm Panel Mount
CN-MX35 3.5mm Terminal Block
CN-HD15FST HD15 Term. Block
CN-TCS415PST Female SVHS to Terminal Block
CN-NC3FDLB XLR Panel Mt. Black- Gold Contact
CN-NC3FDLBAG XLR Panel Mt. Black- Nickel Contact
CN-NC3FDL1 XLR Panel Mt. Nickel-Nickel Contact
CN-NC3FDS1B XLR Panel Mt. Solderless Female
CN-NC3MDS1B XLR Panel Mt. Solderless Male
CN-NL4MPST
Speakon Panel Mt. 4 Pole- D-size
Screw terminal
CN-NYS230 1/4” TRS- Panel Mount
Audio/Video Connectors
A/V Connectors - Panel Mount
CN-HD15FST
CN-MX35
CN-35FFSP
CN-342B-YE CN-MD4FFN
CN-TCS415PST
CN-NC3FD-L-BAG
CN-NL4MPST
CN-NC3FS1B
CN-NYS230
XLR and Speakon Audio Wall Plates
CN-PL-103F Single Plate- One Loaded XLR (Female)
CN-PL-103M Single Plate- One Loaded XLR (Male)
CN-PL-103STF Single Plate- One XLR (Female Screw Terminal)
CN-PL-203F Single Plate- Two Loaded XLR (Female)
CN-PL-203M Single Plate- Two Loaded XLR (Male)
CN-PL-203STF Single Plate- Two XLR (Female Screw Terminal)
CN-SS1GSPK Single Plate- Two 4 Pin Speakon- Stainless
CN-SS2GSPK Dual Plate- Four 4 Pin Speakon- Stainless
NEUT
RI
K
NEUT
RI
K
NEUT
RI
K
NEUT
RI
K
Audio Stereo Mini
Male to Male Cable Assemblies
CM Stereo Mini M to M
Catalog No. Description
CN-454SM-xx
Replace xx with:
15,25,50,75,100,150
CMP Stereo Mini M to M
Catalog No. Description
CN-SMTSM-xx
Replace xx with:
15,25,50,75,100,150
CMP RCA to RCA Phono
Catalog No. Description
CND25430RASxx
Replace xx with:
15,25,50,75,100,150
Audio/Video Connectors
Audio Wallplates
800-245-4964 • www.westpenn-wpw.com
Professional Audio Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
ECONOMY Stereo Mini M to M
Catalog No. Description
CN-E3.5MM-xx
Replace xx with:
6, 12, 25
138
SPEAKERS
SPEAKERS
SPEAKERS
SPEAKERS
N
EU
TRI
K
Page 39

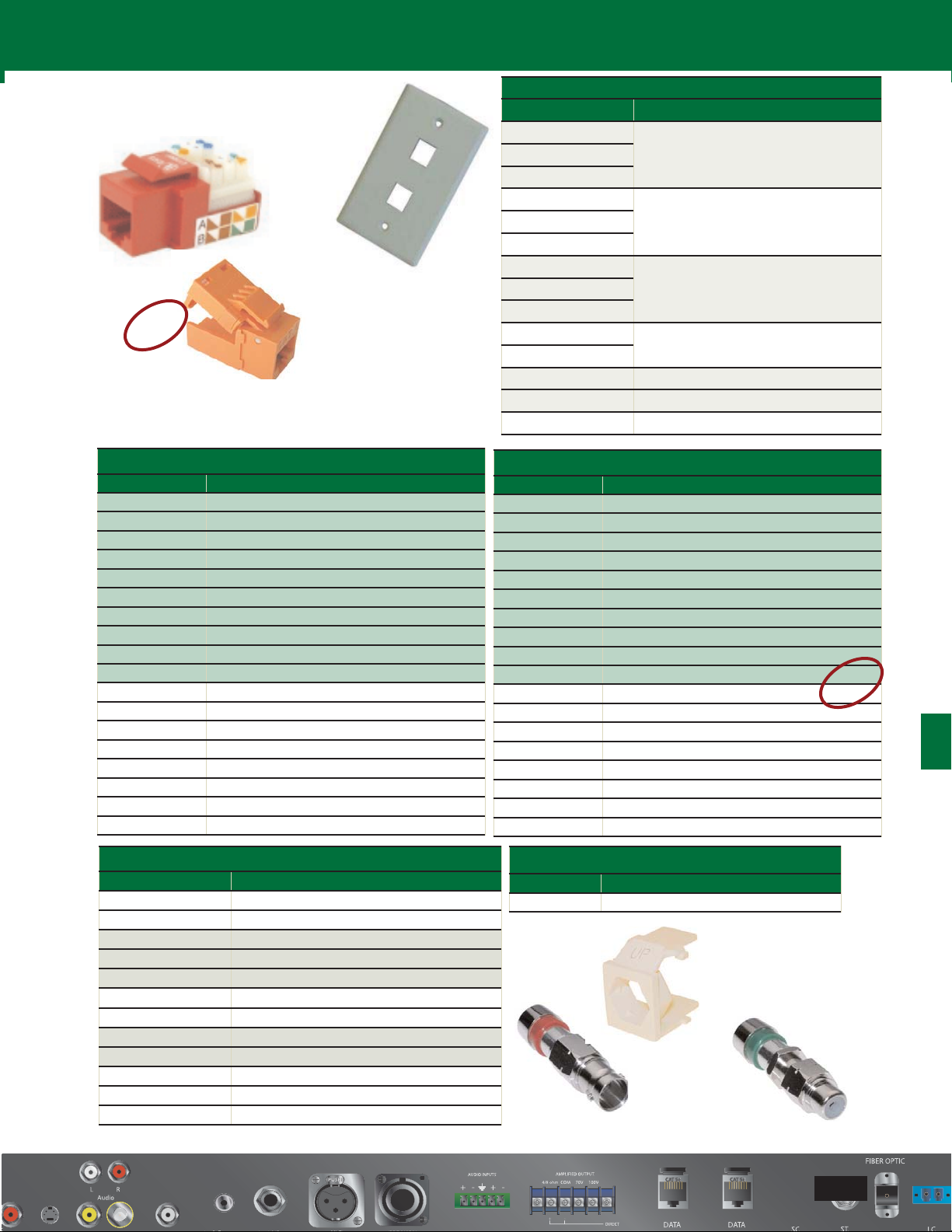

Keystone Wallplates (Plastic Molded)
Catalog No. Description
30-9209 Ivory
Single Port
30-9429 White
--
30-9210 Ivory
Two Port
30-9420 White
--
30-9211 Ivory
Three Port
30-9421 White
--
30-9223 Ivory
Four Port
30-9423 White
30-9212 Ivory
Six Port Modular Plate
30-9422 White
Six Port Modular Plate
30-6208
Dual gang 8 Port Plate
Voice and Data Products
Keystone Wall Plates
30-9210
Keystone Jacks (110 Style- 8 Cond.) RJ45
Catalog No. Description
AX101318
Category 6 Gray
AX101319
Category 6 Almond
AX101320
Category 6 White
AX101321
Category 6 Black
AX101322
Category 6 Orange
AX101323
Category 6 Red
AX101324
Category 6 Yellow
AX101325
Category 6 Green
AX101326
Category 6 Blue
AX101327
Category 6 Purple
AX101310
Black- Category 5E
AX101315
Blue- Category 5E
AX101314
Green- Category 5E
AX101312
Red- Category 5E
AX101313
Yellow- Category 5E
AX101309
White- Category 5E
AX101311
Orange- Category 5E
AX101308
Ivory- Category 5E
Voice and Data Products
Keystone Jacks
AX101312
Keystone Jacks Cat 3 and 4
Catalog No. Description
30-9201
6 Conductor
Compression System - Adaptors
Catalog No. Description
CN-HIPUWM
Universal Clip- White
CN-HIPUIM
Universal Clip - Ivory
CN-FS6US
“F” Type Adapter RG6/U Quad
CN-FS6BNCUS
BNC Adapter RG6/U Quad
CN-FS6RCAUS
RCA Adapter RG6/U Quad
CN-FS59BNCUS
BNC Adapter RG59/U
CN-FSRCA59US
RCA Adapter RG59/U
CN-FS1BNCSST
BNC Adapter 25 Awg. RGB
CN-FS1RCASST
RCA Adapter 25 Awg. RGB
CN-FS15BNCSST
BNC Adapter 25 Awg.MiniMax
CN-FS15RCASST
BNC Adapter 25 Awg.MiniMax
CN-RGSBPOST
Binding Post (Audio) Pkg.(2) Black, Red
CN-FS6RCAUS
CN-FS59BNCUS
CN-705OR
CN-HIPUIM
Keystone Jacks EZ SnapJack RJ45
Catalog No. Description
CN-706LA
Category 6 Light Almond
CN-706AL
Category 6 Almond
CN-706WH
Category 6 White
CN-706BK
Category 6 Black
CN-706OR
Category 6 Orange
CN-706RD
Category 6 Red
CN-706YL
Category 6 Yellow
CN-706GN
Category 6 Green
CN-706BL
Category 6 Blue
CN-706BN
Category 6 Brown
CN-705BK
Black- Category 5E
CN-705BL
Blue- Category 5E
CN-705GN
Green- Category 5E
CN-705RD
Red- Category 5E
CN-705YL
Yellow- Category 5E
CN-705WH
White- Category 5E
CN-705OR
Orange- Category 5E
CN-705IV
Ivory- Category 5E
800-245-4964 • www.westpenn-wpw.com
LAN Cable Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
153
NEW
NEW
Page 40
Patch Panels Category 5E
Catalog No. Description
12458MD-C5E
12 Port Panel Horizontal rack mount
24458MD-C5E
24 Port Panel Horizontal rack mount
48458MD-C5E
48 Port Panel Horizontal rack mount
12458M-C5E
12 Port Panel Vertical
Wall Brackets
Catalog No. Description
30-5424H
24 Port with hinge
30-5448H
48 Port with hinge
30-5496H
96 Port with hinge
Ring Management
Catalog No. Description
30-5400
With 5 ring- metal
30-5615
Plastic cable hangers
Patch Panels Category 6
Catalog No. Description
12458MD-C6C
12 Port Panel Horizontal rack mount
24458MD-C6C
24 Port Panel Horizontal rack mount
48458MD-C6C
48 Port Panel Horizontal rack mount
12458M-C6C
12 Port Panel Vertical
Ring Management
Voice and Data Products
Patch Panels- SignaMax- Warranty
Single Loop Tie Wire Management
Catalog No. Color
Length Width
Bundle Dia.
Tensile
RT-550
Natural 6.25” .135” 1.25” 40
RT-675
Natural 7.50” .190” 1.75” 50
RT-1100
Natural 11.50” .190” 3.00” 50
RT-1400
Natural 14.50” .190” 4.00” 50
RT-550B
UV Black 6.25” .135” 1.25” 40
RT-675B
UV Black 7.50” .190” 1.75” 50
RT-1100B
UV Black 11.50” .190” 3.00” 50
RT-1400B
UV Black 14.50” .190” 4.00” 50
RT-675Z
Aqua Plenum 7.50” .190” 1.75” 35
RT-1100Z
Aqua Plenum 11.50” .190” 3.00” 35
RT-1400Z
Aqua Plenum 14.50” .190” 4.00” 35
Wire Strip Tools
Catalog No. Description
WP-4500P
Automatic wire/Jacket Stripper
24-7740P
4” Universal UTP Strip Tool
24-7371P
Wire Strip Tool, Cutter, Plier 10-18 AWG
Voice and Data Products
Wire Stripper
800-245-4964 • www.westpenn-wpw.com
LAN Cable Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
154
Page 41

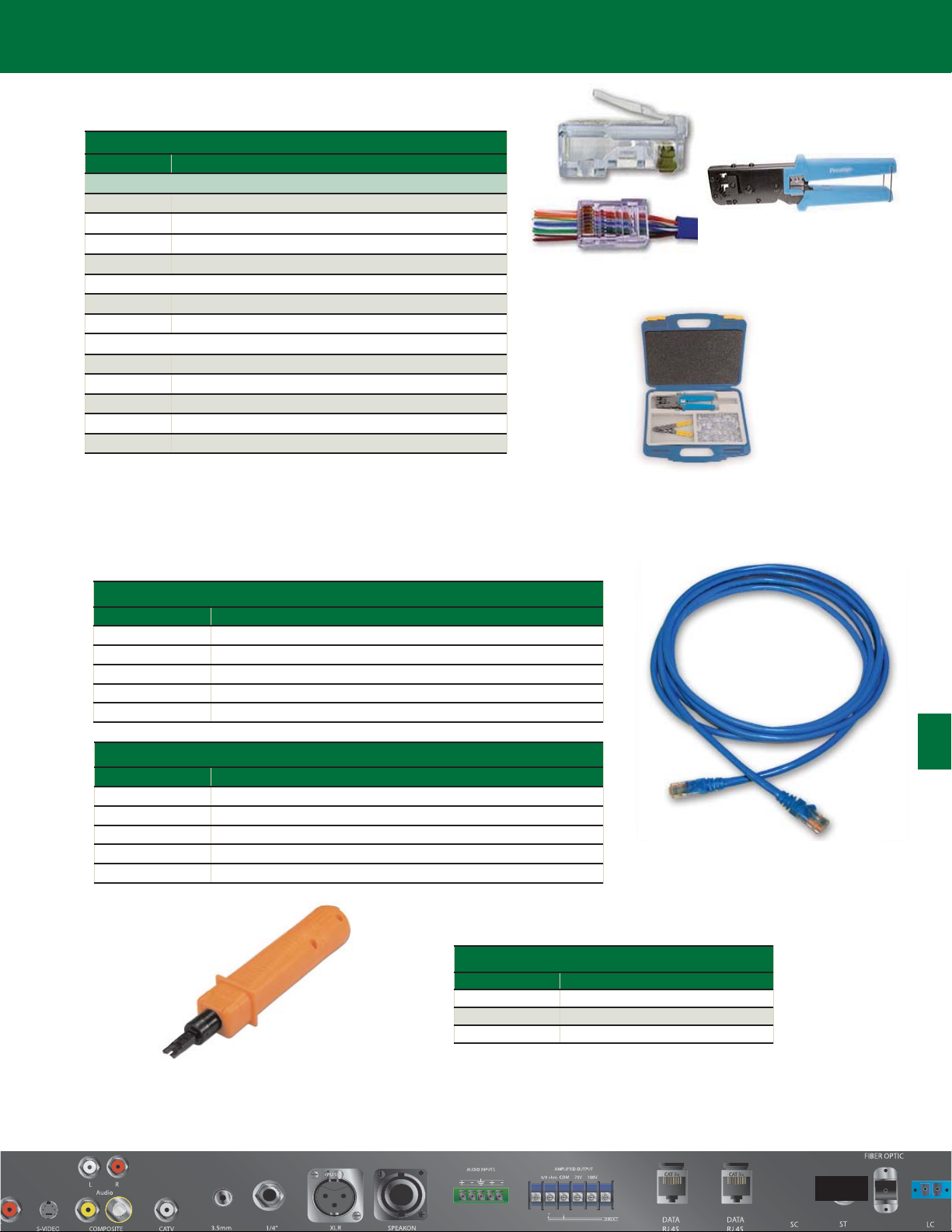

Voice and Data Products
Plugs
Category 5E Patch Cable Assemblies
Catalog No. Description
WP-66XX-3 Cat 5E - 3ft. Replace: XX -70 (Gray), 72 (Blue), 74 (Red)
WP-66XX-7 Cat 5E - 7ft. Replace: XX -70 (Gray), 72 (Blue), 74 (Red)
WP-66XX-10 Cat 5E - 10ft. Replace: XX -70 (Gray), 72 (Blue), 74 (Red)
WP-66XX-15 Cat 5E - 15ft. Replace: XX -70 (Gray), 72 (Blue), 74 (Red)
WP-66XX-25 Cat 5E - 20ft. Replace: XX -70 (Gray), 72 (Blue), 74 (Red)
Category 6 Patch Cable Assemblies
Catalog No. Description
WP-4236XX-3 Cat 6 - 3ft. Replace: XX -GY, BL
WP-4236XX-7 Cat 6 - 7ft. Replace: XX -GY, BL
WP-4236XX-10 Cat 6 - 10ft. Replace: XX -GY, BL
WP-4236XX-15 Cat 6 - 15ft. Replace: XX -GY, BL
WP-4236XX-25 Cat 6 - 20ft. Replace: XX -GY, BL
LAN Cable Assemblies
Voice and Data Products
Cable Assemblies
Voice and Data Products
Tools and Tester
Punchdown Tool
Catalog No. Description
TL-135
110 Punchdown Tool
TL-3650
110 Adjustable Impact Tool
TL-110/66
110/66 Punchdown Tool
32-EZP
TL-114
TL-135
EZ-TK
Voice and Data Plugs
Catalog No. Description
Round Solid or Stranded Cable
32-6198UL
Cat 6 - RJ45 - 8 Cond. - 100/bag
* 32-EZP
Cat 5E - EZ RJ45- 8 Cond. - 50/bag
* 32-6EZP
Cat 6 - EZ RJ45- 8 Cond. - 10/bag
32-5998UL
Cat 5E - RJ45- 8 Cond. 100/bag
Round Shielded Cable
32-2098UL
Cat 5 - RJ45- 8 Cond. 100/bag
32-EZSTP
Cat 5E Shielded- EZ RJ45- 8 Cond. - 10/bag
Crimp Tools
TL-114
Crimp Tool 2,4,6,8 and 8 Keyed modular plugs
* TL-EZRJ45
EZ Crimp Tool for EZ Plug Connectors - Cat5E and Cat6
TL-2668R
Pro-Series 2,4,6,8 and 8 Keyed modular plugs
32-1964UL
RJ11 Hand set plug
EZ-TK
EZ Plug Tool Kit
800-245-4964 • www.westpenn-wpw.com
* Recommended WPW Plugs and Plug Crimp Tool
LAN Cable Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
155
Page 42

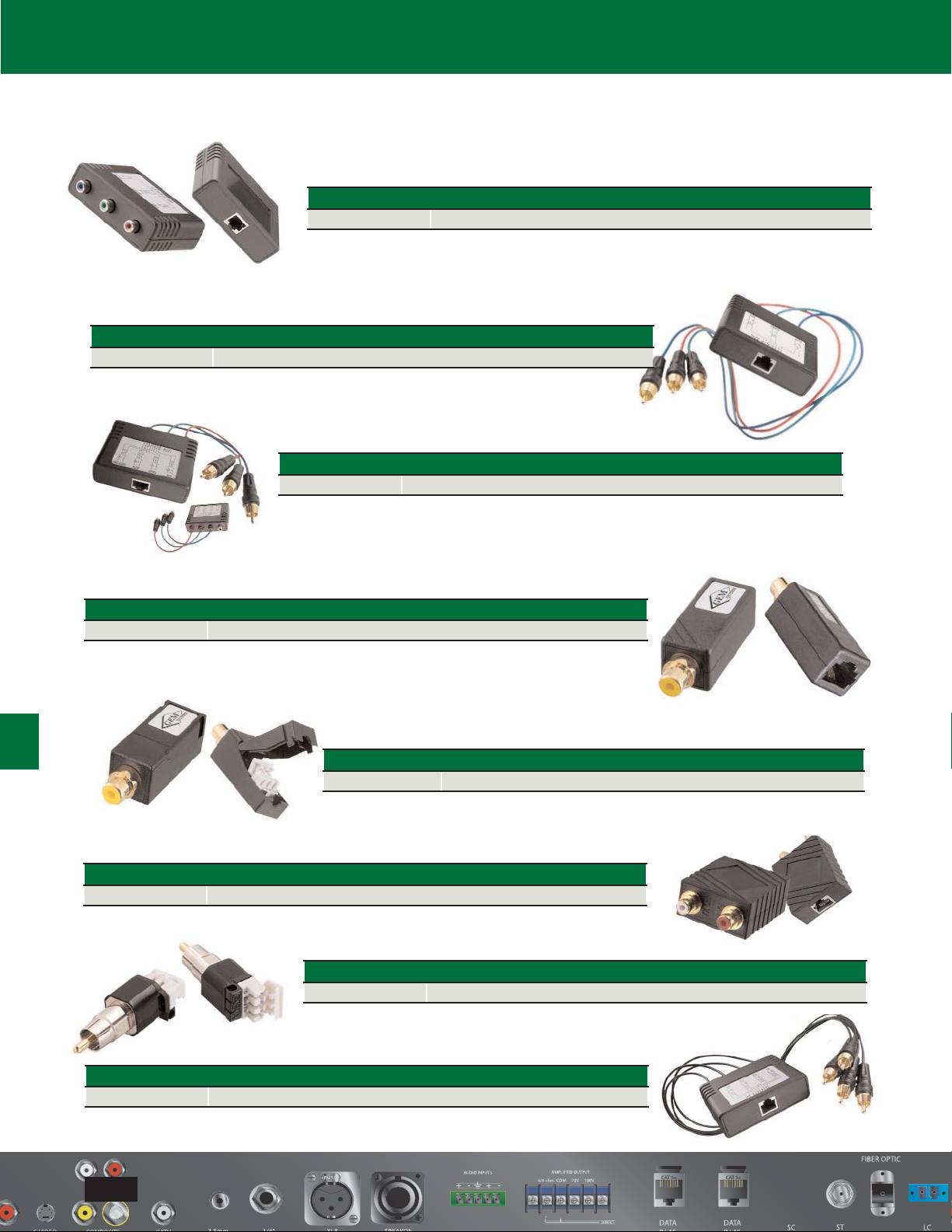

AV Passive Baluns
RGB Passive Device
CN-RGB 3 RCA to RJ45 Jack - Distance 520ft.
RGB Passive Device
CN-RGBPT 3 RCA to RJ45 Jack - Pigtail- Distance 450ft.
RGB Passive Device
CN-RGBPTDA 3 RCA Male to RJ45 Jack - Pigtail- With Digital Audio.
Category 5 or Better UTP
Category 5 or Better UTP
Category 5 or Better UTP
Video Distance: 480i--1000ft
720p- 1080i- 500ft
Digital Audio- 600ft
Video Passive Device
CN-RCARJ45 RCA to RJ45 Jack - Video
Video Passive Device
CN-RCATL RCA to RJ45 IDC Clamp Down - Video
Category 5 or Better UTP
Distance: 2230ft
Category 5 or Better UTP
Distance: 2230ft
Audio Passive Device
CN-AV2RCA 2 RCA to RJ45 Jack
Audio Passive Device
CN-RCAMTL RCA to RJ45 Jack
Audio Passive Device
CN-4RCAPT 4 RCA to RJ45 Jack - Pigtail
800-245-4964 • www.westpenn-wpw.com
LAN Cable Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
156
Page 43
Active Balun Device
CN-AR Active Video Receiver
CN-AT Active Video Transmitter
CN-ARST Active Video Receiver- Screw Terminal
CN-ATST Active Video Transmitter- Screw Terminal
Active Baluns
Active Balun Device
CN-ARAV Active Audio - Video Receiver
CN-ATAV Active Audio - Video Transmitter
Category 5 or Better UTP
Max. Distance- 8200ft
HDMI PRODUCTS
SEE WEST PENN WIRE DIGITAL SIGNAGE
SECTION OF YOUR CATALOG PAGE
106.
CCTV Active Receiver Hub
CN-AH16PRJ45BNC 16 Port Active Reciever Hub
CN-AH32PRJ45BNC 32 Port Active Reciever Hub
Active Balun Device
CN-PRT Single Channel Passive Receiver, 2 Screw UTP Transient Protection
CN-PTT Single Channel Passive Transceiver, Screwless TB
Active Baluns with Transient Protection
Passive Balun Device
CN-STTPT Single Channel Passive Receiver, 2 Screw UTP Transient Protection
CN-TLTPT Single Channel Passive Transceiver, Screwless TB
CN-TLT Single Channel Passive Transmitter, Screw Terminals for UTP
CN-STGLIPT
Single Channel Passive Transmitter, Screw Terminals for UTP, Groud Loop
Isolation
Passive Baluns with Transient Protection
800-245-4964 • www.westpenn-wpw.com
LAN Cable Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
157
Page 44
Passive CCTV Baluns
CCTV Passive Device
CN-BNCJ BNC Female to RJ45
CCTV Passive Device
CN-BNCJKS BNC Female to RJ45 Keystone Mount
CCTV Passive Device
CN-MTL Miniature - BNC Male to IDC Clamp Down
CN-MTL2 Miniature - BNC Male to screw terminals- Sold in Pairs
CCTV Passive Device
CN-RJ45PT BNC Male to RJ45 IDC Clamp Down Pigtail
CN-STPT2 BNC Male to Screw Terminal Pigtail- Sold in Pairs
CCTV Passive Device
CN-PVRJ45 BNC Male to RJ45 - Power Thru and Video
CCTV Passive Device
CN-VPDRJ45 BNC Male to RJ45 - Power Thru , Video, and Data
CCTV Passive Patch Panel
CN-H16PRJ45BNC 16 Port RJ45 to 16 Port BNC PatchPanel
CN-H16STRJ45 16 Port RJ45 With Power and Control Screw Terminal
CN-H16PRJ45 16 Port RJ45 to RJ45 PatchPanel
Category 5 or Better UTP
Distance: 2230ft
Category 5 or Better UTP
Distance 2230ft
Category 5 or Better UTP
Distance: 2230ft
Category 5 or Better UTP
Distance: 2230ft
Category 5 or Better UTP
Distance: 2230ft
Category 5 or Better UTP
Distance: 2230ft
Transceiver Box Devices
CN-AV2R1B 1 BNC, 2 RCA Female to RJ45 Jack - Cat 5- 500ft
CN-AV3R 3 RCA Female to RJ45 Jack - Cat 5- 2200ft
CN-4BNC 4 BNC Female to RJ45 Jack - Cat 5- 2200ft
CN-4BNCPT 4 BNC Female Pigtail to RJ45 Jack - Cat 5- 2200ft
CN-16BNCST 16 Channel Transciever box. Screw Terminal
CN-4BNCSTRJ45 4 Channel Transciever box. Screw Terminal or RJ45
CN-8BNCSTRJ45 8 Channel Transciever box. Screw Terminal or 2- RJ45
800-245-4964 • www.westpenn-wpw.com
LAN Cable Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
CCTV Passive Device
CN-TL BNC Male to IDC Clamp Down
CN-50VB10 Economy BNC Male to Spring Clamps- Sold in Pairs up to 1250ft.
CCTV Passive Device
CN-RJ45 BNC Male to RJ45
CN-50VBRJ45 Economy BNC Male to RJ45 - Sold in Pairs - Up to 1250ft.
158
Page 45
COLOR
# DESCRIPTION
1 Blue
2 Beige
3 Black
4 Gray
Front Door
Solid Front Door
4829-SF-C Solid Steel Front Door w/Latch & Lock
7229-SF-C Solid Steel Front Door w/Latch & Lock
7829-SF-C Solid Steel Front Door w/Latch & Lock
8429-SF-C Solid Steel Front Door w/Latch & Lock
Tempered Glass Front Door
4829-GF-C Tempered Glass Front Door w/Latch & Lock
7229-GF-C Tempered Glass Front Door w/Latch & Lock
7829-GF-C Tempered Glass Front Door w/Latch & Lock
8429-GF-C Tempered Glass Front Door w/Latch & Lock
Vented Front Door
4829-VF-C Tempered Glass Front Vented Door w/Latch & Lock
7229-VF-C Tempered Glass Front Vented Door w/Latch & Lock
7829-VF-C Tempered Glass Front Vented Door w/Latch & Lock
8429-VF-C Tempered Glass Front Vented Door w/Latch & Lock
Perforated Front Door
4829-PD-C Perforated Steel Front Door w/Latch & Lock
7229-PD-C Perforated Steel Front Door w/Latch & Lock
7829-PD-C Perforated Steel Front Door w/Latch & Lock
8429-PD-C Perforated Steel Front Door w/Latch & Lock
Data Standard
CATALOG # Height Width Depth WeighT Mounting Options Rack Spaces
XST48-C Frame, Gland Plate, Casters & Levelers 48" 29" 30" 230 19," 23" 25μ
XST72-C Frame, Gland Plate, Casters & Levelers 72" 29" 30" 325 19," 23" 39μ
XST78-C Frame, Gland Plate, Casters & Levelers 78" 29" 30" 350 19," 23" 42μ
XST84-C Frame, Gland Plate, Casters & Levelers 84" 29" 30" 360 19," 23" 46μ
* EIA- 310-D Compliant
Ordering Matrix
XST
FRAME
HEIGHT
48
72
78
84
MOUNTING
# DESCRIPTION
1 19'' mtg
2 23'' mtg
3 6mm mtg
0 None
(Frame Mount Shelf Application)
FRONT
# DESCRIPTION
1 Solid
2 Glass
3 Glass Vented
4 Perforated
0 None
TOP
# DESCRIPTION
1 Top Mount A/C
2
10'' Diameter Fan
3 4'' Diameter Fan
4 Solid
5 Vented
0 None
SIDES
# DESCRIPTION
1 One Side
2 Two Sides
3 One Side Perforated
4 Two Side Perforated
REAR
# DESCRIPTION
1 Solid
2 Vented
3 Filtered
0 None
POWER STRIPS
# DESCRIPTION
1 4' 16 Outlet 15 Amp/15' Cord
2 4' 16 Outlet Surge Suppressor, 15' Cord
3 2' 8 Outlet 15 Amp/15' Cord
4 19" Rack Mount 6 Outlet (Rear) 15 Amp/15' Cord
5 19" Rack Mount 6 Outlet (Rear) Surge Suppressor, 15
Amp/15' Cord
6 4’ 16 Outlet Surge Suppressor 20 Amp/15’ Cord
0 None
Rear Door
Solid Rear Door
4829-SR-C Solid Steel Rear Door w/Latch & Lock
7229-SR-C Solid Steel Rear Door w/Latch & Lock
7829-SR-C Solid Steel Rear Door w/Latch & Lock
8429-SR-C Solid Steel Rear Door w/Latch & Lock
Vented Rear Door
4829-VR-C Vented Steel Rear Door w/Latch & Lock
7229-VR-C Vented Steel Rear Door w/Latch & Lock
7829-VR-C Vented Steel Rear Door w/Latch & Lock
8429-VR-C Vented Steel Rear Door w/Latch & Lock
Side Panels
Single Side Panel
Single Side Panel
4801-SP-C One Solid Lift Off Side Panel w/Lock 4801-SPP-C One Perforated Lift Off Side Panel w/Lock
7201-SP-C One Solid Lift Off Side Panel w/Lock 7201-SPP-C One Perforated Lift Off Side Panel w/Lock
7801-SP-C One Solid Lift Off Side Panel w/Lock 7801-SPP-C One Perforated Lift Off Side Panel w/Lock
8401-SP-C One Solid Lift Off Side Panel w/Lock 8401-SPP-C One Perforated Lift Off Side Panel w/Lock
Pair Side Panel Pair Side Panel
4802-SP-C Two Solid Lift Off Side Panels w/Lock 4802-SPP-C Two Perforated Lift Off Side Panels w/Lock
7202-SP-C Two Solid Lift Off Side Panels w/Lock 7202-SPP-C Two Perforated Lift Off Side Panels w/Lock
7802-SP-C Two Solid Lift Off Side Panels w/Lock 7802-SPP-C Two Perforated Lift Off Side Panels w/Lock
8402-SP-C Two Solid Lift Off Side Panels w/Lock 8402-SPP-C Two Perforated Lift Off Side Panels w/Lock
Available Colors:
(1) Blue, (2) Beige, (3) Black, (4) Gray
Data Standard
29”W x 30”D
800-245-4964 • www.westpenn-wpw.com
Rack/Cabinet Accessories- Pages 123-125
Data Racks/Cabinets
WEST PENN WIRE
CABLE WITH CONFIDENCE
159
Page 46
Deep
CATALOG # Height Width Depth Weight Mounting Options Rack Spaces
XDP72-C Frame, Gland Plate, Casters & Levelers 72" 29" 34" 350 19," 23" 39μ
XDP78-C Frame, Gland Plate, Casters & Levelers 78" 29" 34" 380 19," 23" 42μ
XDP84-C Frame, Gland Plate, Casters & Levelers 84" 29" 34" 390 19," 23" 46μ
FRAME
HEIGHT
72
78
84
Ordering Matrix
XDP
FRONT
# DESCRIPTION
1 Solid
2 Glass
3 Glass Vented
4 Perforated
0 None
TOP
# DESCRIPTION
1 Top Mount A/C
2
10'' Diameter Fan
3 4'' Diameter Fan
4 Solid
5 Vented
0 None
COLOR
# DESCRIPTION
1 Blue
2 Beige
3 Black
4 Gray
REAR
# DESCRIPTION
1 Solid
2 Vented
3 Filtered
0 None
POWER STRIPS
# DESCRIPTION
1 4' 16 Outlet 15 Amp/15' Cord
2 4' 16 Outlet Surge Suppressor, 15' Cord
3 2' 8 Outlet 15 Amp/15' Cord
4 19" Rack Mount 6 Outlet (Rear) 15 Amp/15' Cord
5 19" Rack Mount 6 Outlet (Rear) Surge Suppressor, 15
Amp/15' Cord
6 4’ 16 Outlet Surge Suppressor 20 Amp/15’ Cord
0 None
SIDES
# DESCRIPTION
1 One Side
2 Two Sides
3 One Side Perforated
4 Two Side Perforated
MOUNTING
# DESCRIPTION
1 19'' mtg
2 23'' mtg
3 6mm mtg
0 None
(Frame Mount Shelf Application)
Data Deep 29”W x 34”D
Available Colors:
(1) Blue, (2) Beige, (3) Black, (4) Gray
Front Door
Solid Front Door
7229-SF-C Solid Steel Front Door w/Latch & Lock
7829-SF-C Solid Steel Front Door w/Latch & Lock
8429-SF-C Solid Steel Front Door w/Latch & Lock
Tempered Glass Front Door
7229-GF-C Tempered Glass Front Door w/Latch & Lock
7829-GF-C Tempered Glass Front Door w/Latch & Lock
8429-GF-C Tempered Glass Front Door w/Latch & Lock
Vented Front Door
7229-VF-C Tempered Glass Front Vented Door w/Latch & Lock
7829-VF-C Tempered Glass Front Vented Door w/Latch & Lock
8429-VF-C Tempered Glass Front Vented Door w/Latch & Lock
Perforated Front Door
7229-PD-C Perforated Steel Front Door w/Latch & Lock
7829-PD-C Perforated Steel Front Door w/Latch & Lock
8429-PD-C Perforated Steel Front Door w/Latch & Lock
Rear Door
Solid Rear Door
7229-SR-C Solid Steel Rear Door w/Latch & Lock
7829-SR-C Solid Steel Rear Door w/Latch & Lock
8429-SR-C Solid Steel Rear Door w/Latch & Lock
Vented Rear Door
7229-VR-C Vented Steel Rear Door w/Latch & Lock
7829-VR-C Vented Steel Rear Door w/Latch & Lock
8429-VR-C Vented Steel Rear Door w/Latch & Lock
Filtered Rear Door
7229-FR-C Filtered Rear Door w/Latch & Lock
7829-FR-C Filtered Rear Door w/Latch & Lock
8429-FR-C Filtered Rear Door w/Latch & Lock
* EIA- 310-D Compliant
Side Panels
Single Side Panel
7201-SP-C One Solid Lift Off Side Panel w/Lock
7801-SP-C One Solid Lift Off Side Panel w/Lock
8401-SP-C One Solid Lift Off Side Panel w/Lock
Pair Side Panel
7202-SP-C Two Solid Lift Off Side Panels w/Lock
7802-SP-C Two Solid Lift Off Side Panels w/Lock
8402-SP-C Two Solid Lift Off Side Panels w/Lock
Single Side Panel
7201-SPP-C One Perforated Lift Off Side Panel w/Lock
7801-SPP-C One Perforated Lift Off Side Panel w/Lock
8401-SPP-C One Perforated Lift Off Side Panel w/Lock
Pair Side Panel
7202-SPP-C Two Perforated Lift Off Side Panels w/Lock
7802-SPP-C Two Perforated Lift Off Side Panels w/Lock
8402-SPP-C Two Perforated Lift Off Side Panels w/Lock
800-245-4964 • www.westpenn-wpw.com
Rack/Cabinet Accessories- Pages 123-125
Data Racks/Cabinets
WEST PENN WIRE
CABLE WITH CONFIDENCE
160
Page 47
Removable Tops
2918-TP-3 10" Diameter Fan (550 CFM)
2918-TP-4 4'' Diameter Fan (Four = 320 CFM)
2918-TP-1 Solid
2918-TP-2 Vented
Power Strips
9411-1602* 4' 16 Outlet Strip Surge Suppressor,
15' Power Cord UL Listed
9412-0801 2' 8 Outlet Strip 15 Amp/15' Power Cord
UL Listed
9413-0601 19" Rack Mount 6 Outlet Strip (Rear)
15 Amp/15' Power Cord UL Listed
9414-0602 19" Rack Mount 6 Outlet Strip (Rear) Surge Suppres-
sor, 15 Amp/15' Power Cord UL Listed
9415-1610 * 4’ 16 outlet strip surge suppression 20Amp/ 15’
powercord UL Listed
*9410-1601 & 9411-1602 does not apply to 48" enclosure
WP Partial Rails*
XRL3006-0300 19” 6U (10.5") Mounting Rails
XRL3012-0200 19” 12U (21.5") Mounting Rails
XRL3024-0100 19” 24U (42.5") Mounting Rails
REVERSIBLE DOORS:
Front and Rear doors manufactured with
spring loaded hinges to change door swing in
the field from right or left hand hinge options.
Critical when connecting enclosures together.
LIFT OFF SIDE PANELS
Flush surface lock, quick disconnect lift off side
panels.
CABLE GLAND PLATE
Adjustable bottom plate to minimize dirt &
dust entering the enclosure.
CABLE ACCESS TOP
Rubber gland access, 14.25” x 4” prevents dust
from entering.
REAR CABLE PLATE
Two 3 7/8” x 8 1/2” openings for cable access
with removable plates and edge grommet kit.
Also, two 1.75” capping opening.
TEMPERED SAFETY GLASS
Strengthens door Enhances overall look No
static discharge Non combustible material Tinted bronze Easy cleaning/Non scratching.
Data Standard , Data Deep & Data Slim Accessories
Data Standard , Data Deep & Data Slim Features / Benefits
800-245-4964 • www.westpenn-wpw.com
Rack/Cabinet Accessories- Pages 123-125
Racks/Cabinets Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
161
Page 48
Data Slim
Catalog# Height Width Depth Weight Mounting Rack Spaces
XSL48-C Frame, 2 pr 19" mtg Rails, Casters & Levelers 48" 24" 30" 230 19" 25μ
XSL72-C Frame, 2 pr 19" mtg Rails, Casters & Levelers 72" 24" 30" 320 19" 39μ
XSL78-C Frame, 2 pr 19" mtg Rails, Casters & Levelers 78" 24" 30" 340 19" 42μ
XSL84-C Frame, 2 pr 19" mtg Rails, Casters & Levelers 84" 24" 30" 350 19" 46μ
Ordering Matrix
XSL
FRAME
HEIGHT
48
72
78
84
MOUNTING
# DESCRIPTION
1 19'' mtg
2 6mm mtg
TOP
# DESCRIPTION
1 Top Mount A/C
2
10'' Diameter Fan
3 4'' Diameter Fan
4 Solid
5 Vented
0 None
COLOR
# DESCRIPTION
1 Blue
2 Beige
3 Black
4 Gray
REAR
# DESCRIPTION
1 Solid
2 Vented
3 Filtered
0 None
Front Door
Solid Front Door
4824-SF-C Solid Steel Front Door w/Latch & Lock
7224-SF-C Solid Steel Front Door w/Latch & Lock
7824-SF-C Solid Steel Front Door w/Latch & Lock
8424-SF-C Solid Steel Front Door w/Latch & Lock
Tempered Glass Front Door
4824-GF-C Tempered Glass Front Door w/Latch & Lock
7224-GF-C Tempered Glass Front Door w/Latch & Lock
7824-GF-C Tempered Glass Front Door w/Latch & Lock
8424-GF-C Tempered Glass Front Door w/Latch & Lock
Vented Front Door
4824-VF-C Tempered Glass Front Vented Door w/Latch & Lock
7224-VF-C Tempered Glass Front Vented Door w/Latch & Lock
7824-VF-C Tempered Glass Front Vented Door w/Latch & Lock
8424-VF-C Tempered Glass Front Vented Door w/Latch & Lock
Perforated Front Door
4824-PD-C Perforated Steel Front Door w/Latch & Lock
7224-PD-C Perforated Steel Front Door w/Latch & Lock
7824-PD-C Perforated Steel Front Door w/Latch & Lock
8424-PD-C Perforated Steel Front Door w/Latch & Lock
Rear Door
Solid Rear Door
4824-SR-C Solid Steel Rear Door w/Latch & Lock
7224-SR-C Solid Steel Rear Door w/Latch & Lock
7824-SR-C Solid Steel Rear Door w/Latch & Lock
8424-SR-C Solid Steel Rear Door w/Latch & Lock
Vented Rear Door
4824-VR-C Vented Steel Rear Door w/Latch & Lock
7224-VR-C Vented Steel Rear Door w/Latch & Lock
7824-VR-C Vented Steel Rear Door w/Latch & Lock
8424-VR-C Vented Steel Rear Door w/Latch & Lock
Side Panels
Single Side Panel
4801-SP-C One Solid Lift Off Side Panel w/Lock
7201-SP-C One Solid Lift Off Side Panel w/Lock
7801-SP-C One Solid Lift Off Side Panel w/Lock
8401-SP-C One Solid Lift Off Side Panel w/Lock
Single Side Panel
4801-SPP-C One Perforated Lift Off Side Panel w/Lock
7201-SPP-C One Perforated Lift Off Side Panel w/Lock
7801-SPP-C One Perforated Lift Off Side Panel w/Lock
8401-SPP-C One Perforated Lift Off Side Panel w/Lock
4802-SP-C Two Solid Lift Off Side Panels w/Lock
7202-SP-C Two Solid Lift Off Side Panels w/Lock
7802-SP-C Two Solid Lift Off Side Panels w/Lock
8402-SP-C Two Solid Lift Off Side Panels w/Lock
Pair Side Panel
FRONT
# DESCRIPTION
1 Solid
2 Glass
3 Glass Vented
4 Perforated
0 None
SIDES
# DESCRIPTION
1 One Side
2 Two Sides
3 One Side Perforated
4 Two Side Perforated
POWER STRIPS
# DESCRIPTION
1 4' 16 Outlet 15 Amp/15' Cord
2 4' 16 Outlet Surge Suppressor, 15' Cord
3 2' 8 Outlet 15 Amp/15' Cord
4 19" Rack Mount 6 Outlet (Rear) 15 Amp/15' Cord
5 19" Rack Mount 6 Outlet (Rear) Surge Suppressor, 15
Amp/15' Cord
6 4’ 16 Outlet Surge Suppressor 20 Amp/15’ Cord
0 None
Data Slim 24”W x 30”D
Available Colors:
(1) Blue, (2) Beige, (3) Black, (4) Gray
* EIA- 310-D Compliant
4802-SPP-C Two Perforated Lift Off Side Panels w/Lock
7202-SPP-C Two Perforated Lift Off Side Panels w/Lock
7802-SPP-C Two Perforated Lift Off Side Panels w/Lock
8402-SPP-C Two Perforated Lift Off Side Panels w/Lock
Pair Side Panel
800-245-4964 • www.westpenn-wpw.com
Rack/Cabinet Accessories- Pages 123-125
Data Racks/Cabinets
WEST PENN WIRE
CABLE WITH CONFIDENCE
162
Page 49
Fiber Optic Cables:
New: 2011
Fiber Express Connector Kit
- Save Labor costs and expensive connector kits
- New Kit- less than 30 seconds to terminate
- Reusable connectors
- Connectors available:
o SC
o LC
Page 50

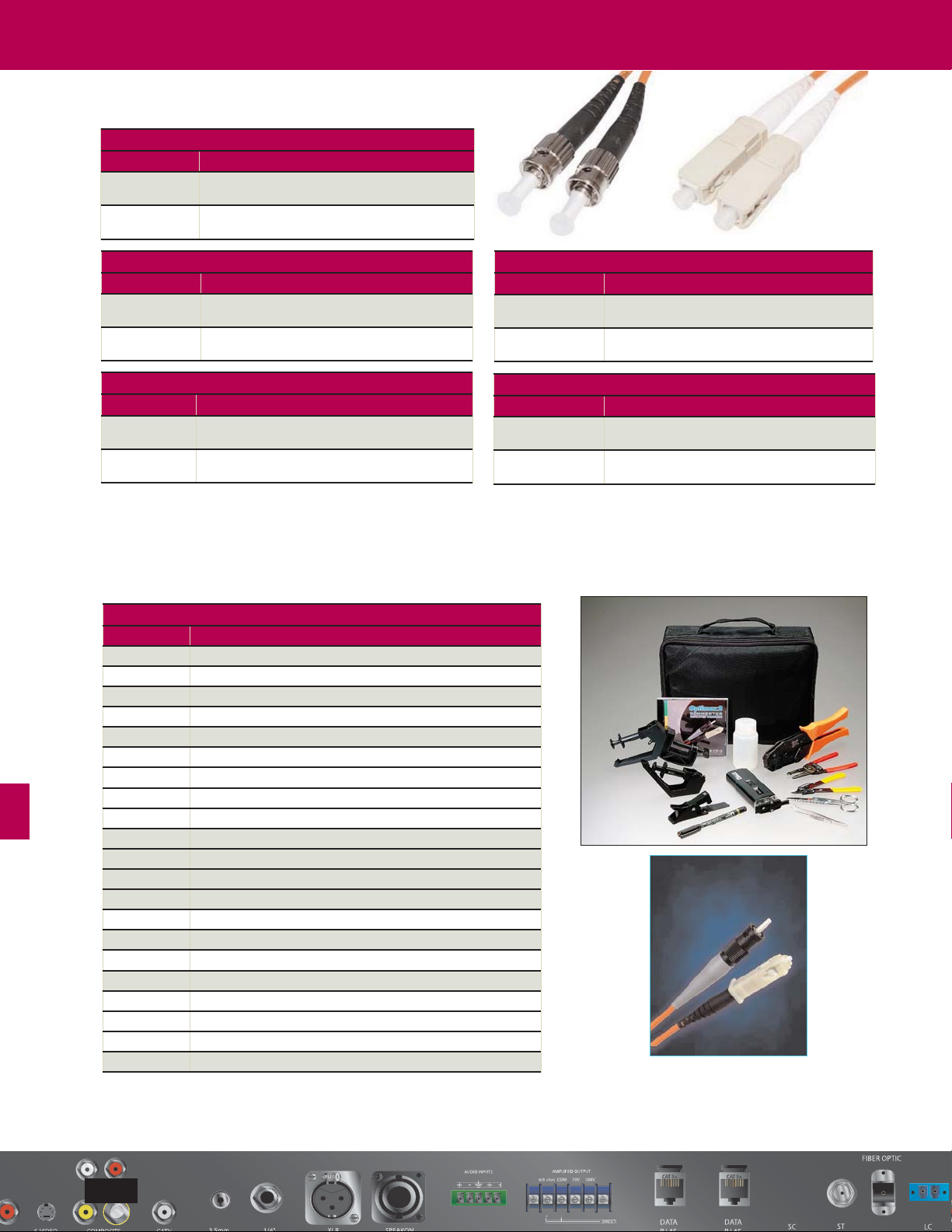

Fiber Optic Cable Assemblies
Assemblies
ST Fiber Optic Assemblies
Catalog No. Description
FI-2001-xx
Simplex ST to ST
Replace xx with:3,6,10,15,30
FI-2002-xx
Duplex ST to ST
Replace xx with:3,6,10,15,30
SC Fiber Optic Assemblies
Catalog No. Description
FI-2001-xxSC
Simplex SC to SC
Replace xx with:3,6,10,15,30
FI-2002-xxSC
Duplex SC to SC
Replace xx with:3,6,10,15,30
LC Fiber Optic Assemblies
Catalog No. Description
FI-2001-xxLC
Simplex LC to LC
Replace xx with:3,6,10,15,30
FI-2002-xxLC
Duplex LC to LC
Replace xx with:3,6,10,15,30
Fiber Optic Kits
Kits and Connectors- FiberExpress - Optimax
ST to SC Fiber Optic Assemblies
Catalog No. Description
FI-2001-xxST/SC Simplex ST to SC Replace xx with:3,6,10,15,30
FI-2002-xxST/SC Duplex ST to SC Replace xx with:3,6,10,15,30
SC to LC Fiber Optic Assemblies
Catalog No. Description
FI-2001-xxLC/SC Simplex SC to LC Replace xx with:3,6,10,15,30
FI-2002-xxLC/SC Duplex SC to LC Replace xx with:3,6,10,15,30
Single-mode fiber Cable Assemblies- Available upon request:
Example: FI-3001-xx
Optimax Tools and Accessories
Catalog No. Description
FI-3635 OPTIMAX Complete Kit
FI-3634 Installation Tool- ST
FI-3641 ST Compatible Crimp Tool
FI-8829 Fiber Cleaver
FI-8832 Microscope
FI-8835 ST 900um Connector - 62.5/125um
FI-8837 ST Universal connector- 62.5/125um
FI-1075 ST 900um Connector - 50/125um
FI-1074 ST Universal connector- 50/125um
FI-0028 SC Universal connector- 62.5/125um
FI-0029 SC 900um connector- 62.5/125um
FI-1077 SC 900um connector- 50/125um
FI-1076 SC Universal connector- 50/125um
FI-1791 ST Single-Mode 900um connector
FI-1792 SC Single-Mode 900um connector
FI-1793 ST- Accessory Kit For Jacketed Single-Mode
FI-1794 SC- Accessory Kit For Jacketed Single-Mode
FI-1981 LC 900um connector- 62.5/125um
FI-1982 LC 900um connector- 50/125um
FI-1983 LC 900um connector- Single-Mode
FI-1984 LC- Accessory Kit For Jacketed Single-Mode Fiber
FI-3635
800-245-4964 • www.westpenn-wpw.com
Fiber Optic Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
168
Page 51

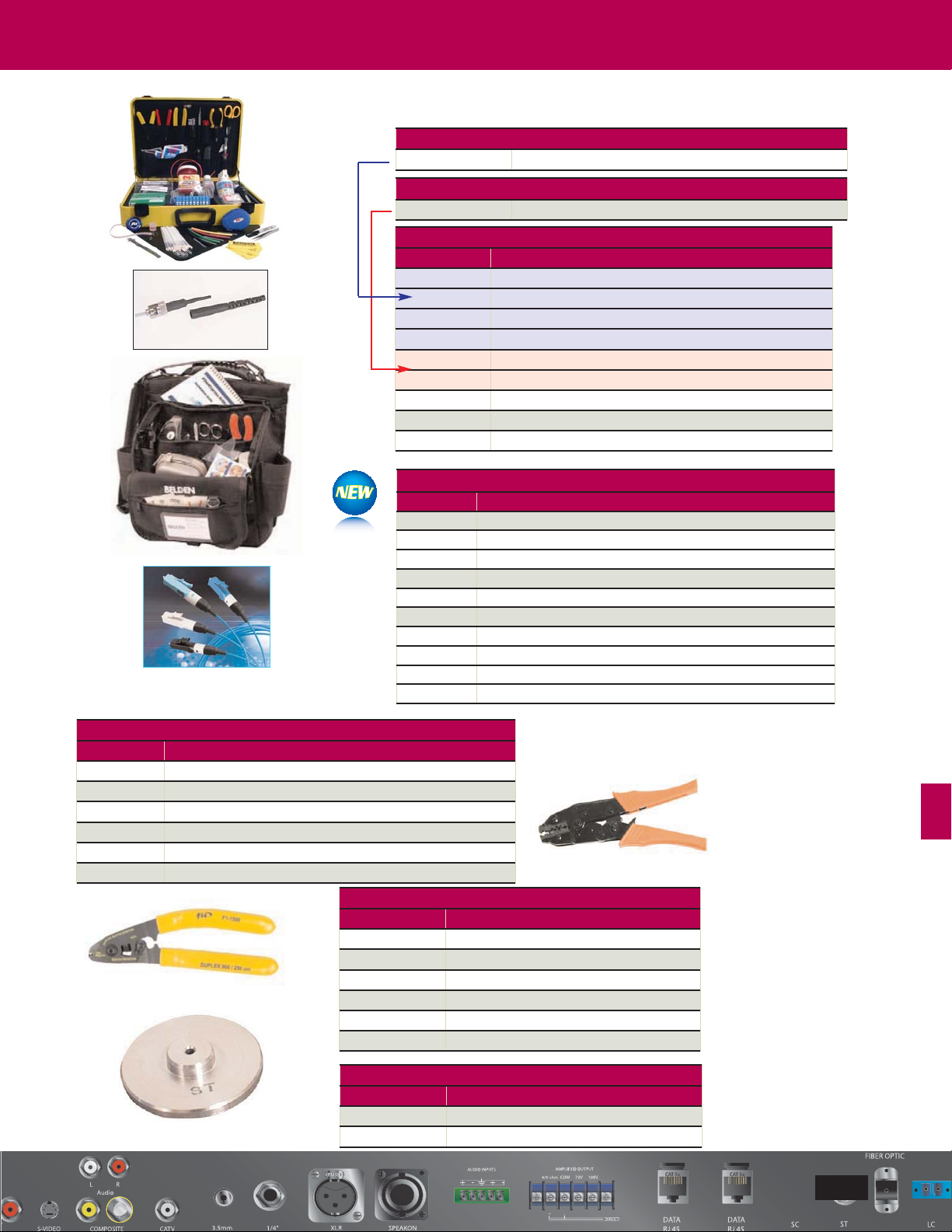

Fiber Optic Kits
Epoxy Style Kits
Epoxy Style Connectors and Accessories
Catalog No. Description
FI-0061 ST- Stainless MultiMode Epoxy Connector
FI-0066 ST Ceramic MultiMode- Epoxy Connector
FI-3069 ST Ceramic Single-Mode- Epoxy Connector
FI-3066 SC Epoxy MultiMode- Epoxy Connector
3M-6100 Hotmelt ST Connector MultiMode
3M-6300 Hotmelt SC Connector MultiMode
FI-7070 Epoxy Tube
FI-7070P Epoxy Mini Packets- Fast Cure
FI-BAF253 Epoxy Packets
Basic Epoxy Kit
FI-0053ST Basic Epoxy Style Kit -
Terminating Tools- Optical Fiber
Catalog No. Description
FI-NN203 No-Nik 203u Red
FI-86-1/2S Serrated Scissors
FI-05-60-C 60 Degree Wedge Scribe- Pen
FI-FO103-S Miller Strippers
FI-1302 Crimp Tool Epoxy
FI-NN175 No-Nik 175u
Epoxy Polishing Paper
Catalog No. Description
FI-0109-03 .03um
FI-0109-1 1 um
FI-0109-3 3 um
FI-0109-5 5 um
FI-0109-15 15um
FI-0109-5-1-03 5um, 1um, 03um
Epoxy Polishing Discs
Catalog No. Description
FI-6925ST ST Polishing Disc
FI-6925UN Universal Polishing Disc
3M Hotmelt Kit
FI-0053HM Hotmelt Kit
FI-0053ST
FI-0061
FI-1302
FI-FO103-S
FI-6925ST
FiberExpress Tools and Accessories
Catalog No. Description
FI-4270 FiberExpress Field Installable Complete Kit
LC Connectors
FI-4240 LC - 900μm, Multimode Beige Connector, 62.5um
FI-4241 LC - 900μm, Multimode Black Connector, 50um
FI-4242 LC - 900μm, Multimode Aqua Connector, 50um
FI-4243 LC - 900μm, Single-mode Blue Connector, 8um
SC Connectors
FI-4244 SC - 900μm, Multimode Beige Connector, 62.5um
FI-4245 SC - 900μm, Multimode Black Connector, 50um
FI-4246 SC - 900μm, Multimode Aqua Connector, 50um
FI-4270
800-245-4964 • www.westpenn-wpw.com
Fiber Optic Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
169
Page 52

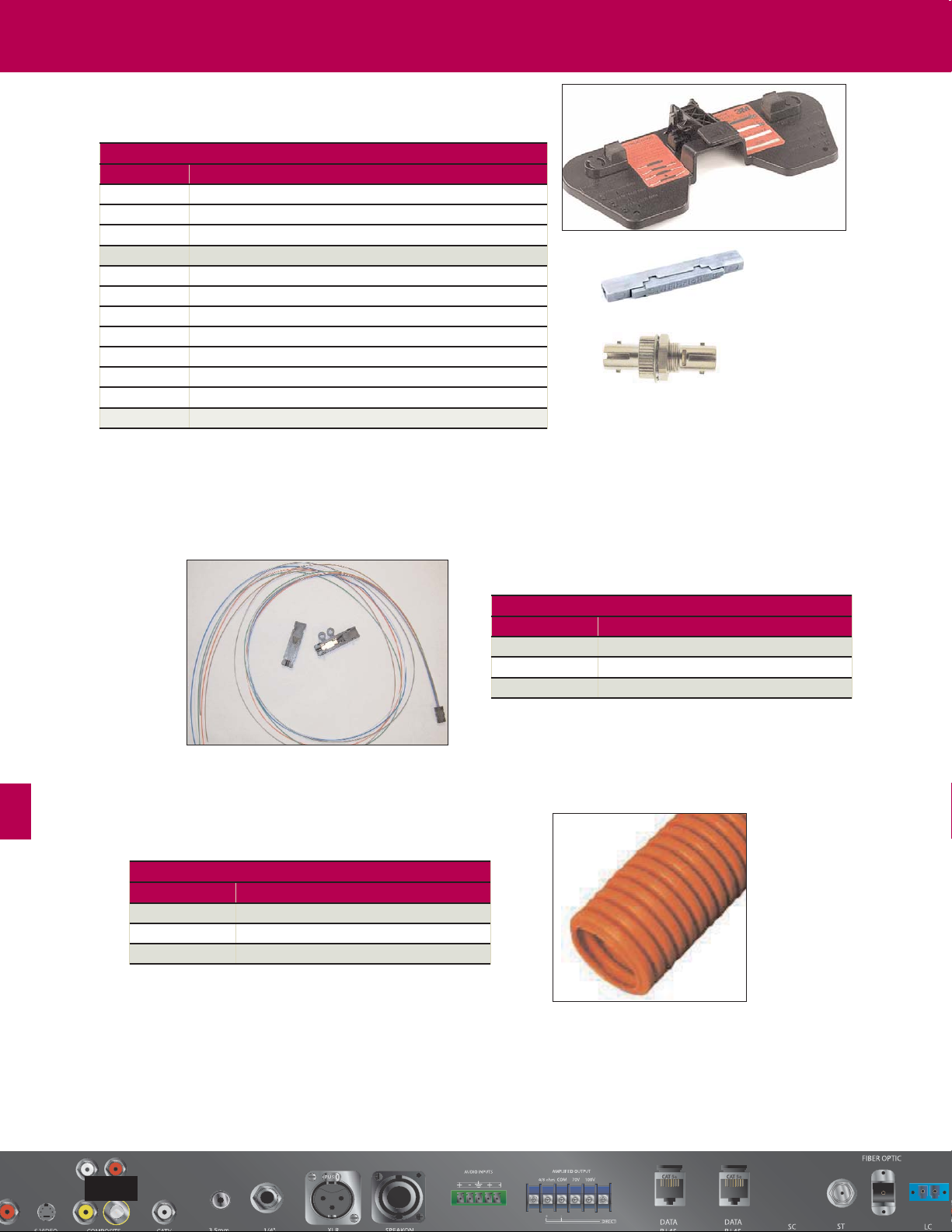

Fiber Optic Cable
Splice and Adaptors
Splice/ Adapter Tools and Accessories
Catalog No. Description
3M-2501 3M Mechanical Splice Tool
3M-2529 3M Splice
FI-8400 Universal 3M Splice Tray Enclosure
FI-0053-FI ST Compatible Crimp Tool
FI-8102 Adapter- ST to ST MultiMode or Single-Mode
FI-8200 Adapter- ST to ST Single-Mode
FI-8300 Adapter- SC to SC MultiMode or Single-Mode
FI-8400APC SC Adapter- APC Polished - Green
FI-8521 FC/APC Adapter
FI-19202 SC to ST Adapter MultiMode
FI-SCLFF LC to SC Adapter
FI-SPTRME West Penn Wire Splice Tray for Wall Mount Enclosures
Fiber Optic Cable
Breakout- Fanout Kits
Fanout Kits
Catalog No. Description
FI-1100 6 Fiber- color coded
FI-1101 12 Fiber- color coded
FI-FT900 900um Tubing- Clear
Innerduct
Catalog No. Description
FI-6211 1” Poly -250’ with pull tape
FI-6311 1” Plenum -250’ with pull tape
FI-6212 1” Riser -250’ with pull tape
Fiber Optic Cable
Innerduct
Notes:
Additional sizes and lengths are available upon request.
FI-8102
3M-2529
FI-6211
FI-1100
3M-2501
800-245-4964 • www.westpenn-wpw.com
Fiber Optic Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
170
Page 53

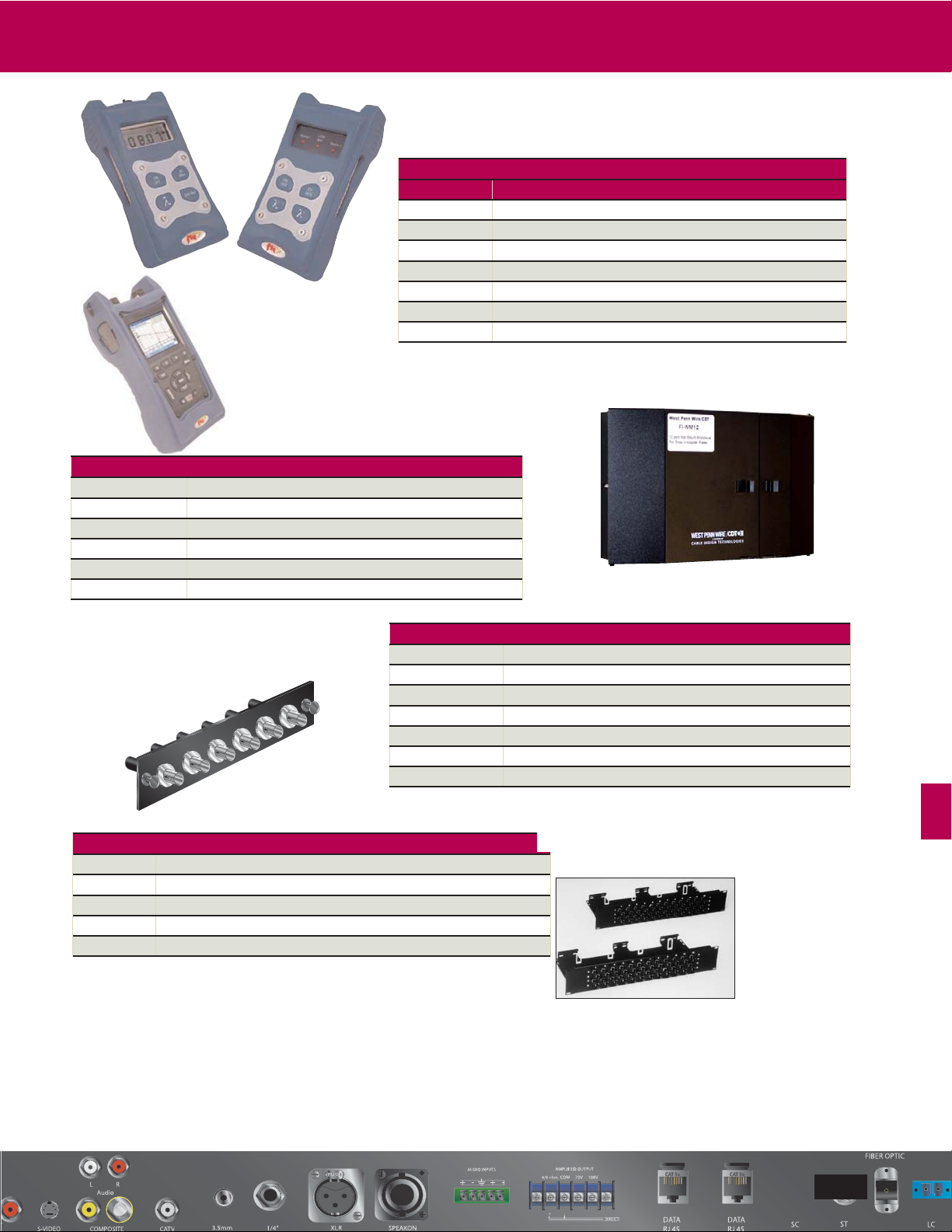

Fiber Optic Cable Accessories
Testing Equipment
Test Equipment
Catalog No. Description
FI-5000 Continuity Tester- Flashlight
FI08513 850/1300/1550 Power Meter
FI-0850 850nm Light Source
FI-1300 1300nm Light Source
FI-8513 850/1300nm Light Source
FI-1550 1550 Laser Source
FI-9699 Mini OTDR
Fiber Optic Cable Accessories
Wall Mount Enclosures
Wall Mount Enclosures
FI-WME06STL 6 Port Economy, Dedicated PP Loaded•
FI-WME12STL 12 Port Economy, Dedicated PP Loaded•
FI-WM12 6/12 Port Double Door, Six Pack Empty - 2 Plates
FI-WM24 24 Port Double Door, Six Pack Empty - 4 Plates
FI-WM48 48 Port Double Door, Six Pack Empty - 8 Plates
FI-WM100 100/120Port Wall Mount Patch Panel
Fiber Optic Adapter Plates
FI-ADP6STE 6 ST Empty
FI-ADP6STL 6 ST Loaded
FI-ADP6SCE 6 SC Empty
FI-ADP6SCL 6 SC Loaded
FI-ADP6SMSTL 6 ST Loaded Single-Mode
FI-ADP6S/MSTL 6 ST Loaded MultiMode/Single-Mode
FI-ADP6BNK Blank Plate
Fiber Optic Cable Accessories
Adapter Plates for Enclosures
5.0625” X 1.125”
Rack Mount Patch Panels
FI-RM24 Empty Rack - Load with 4 Adapter Plates (19”- 3.35”H X 11.970D)
FI-RM48 Empty Rack - Load with 8 Adapter Plates (19”- 5.1”H X 11.970D)
FI-RM72 Empty Rack - Load with 12 Adapter Plates (19”- 6.85”H X 11.970D)
FI-RME24STL 24 Port ST Loaded (19”- 3.470”H X 8.00D)
FI-RME48STL 48 Port ST Loaded (19”- 3.470”H X 8.00D)
Fiber Optic Cable Accessories
Rack Mounted Patch Panels
• Loaded with ST Adaptors
FI-ADP6STL
800-245-4964 • www.westpenn-wpw.com
Fiber Optic Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
171
Page 54
Distribution Racks
Free Standing Swing Rack
Catalog# DESCRIPTION Height Weight
XSW-8419 84” Swing Rack 19” 84” 179#
XSW-0100 Power Strip Mounting Kit (mounting kit
only) Pwr. Strip ordered separately.
XSW-0200 Wire Basket (Top Mount) mounting brackets
and wire basket 2” H x 8” W x 24” L
Distribution Rack- Steel Knockdown 2 Post
Catalog# DESCRIPTION Height Weight Mounting
XDR-4819 48” Distribution Rack- Tapped front Rails 48” 34lbs. 19”
XDR-7219 72” Distribution Rack - Tapped front Rails 72” 43lbs. 19”
XDR-8419 84” Distribution Rack - Tapped front Rails 84” 50lbs. 19”
XDR-8419-310 84” Distribution Rack -#10-32 tapped- 3 Channel w/angle base 84” 63lbs. 19”
XDR-8423-310 84” Distribution Rack- #10-32 tapped - 3 Channel w/angle base 84” 70lbs. 23”
XDR-8419-312 84” Distribution Rack- #12-24 tapped- 3 Channel w/angle base 84” 63lbs. 19
XDR-8423-312 84” Distribution Rack- #12-24 tapped - 3 Channel w/angle base 84” 70lbs. 23”
Vertical Cable Manager
Catalog# DESCRIPTION
XDR-7201 72” Vertical Cable Manager - Compatible with XDR-7219
XDR-8401 84” Vertical Cable Manager
XDR-8403 84” Vertical Cable Manager double sided w/ Removable Cover
Distribution Rack- Steel Welded 2 Post
Catalog# DESCRIPTION Height Weight Mounting
XDR-8419-310W 84” Distribution Rack -#10-32 tapped- 3 Channel w/angle base 84” 66lbs. 19”
XDR-8423-310W 84” Distribution Rack- #10-32 tapped - 3 Channel w/angle base 84” 73lbs. 23”
XDR-8419-312W 84” Distribution Rack- #12-24 tapped- 3 Channel w/angle base 84” 66lbs. 19”
XDR-8423-312W 84” Distribution Rack- #12-24 tapped - 3 Channel w/angle base 84” 73lbs. 23”
Distribution Rack- Steel Seismic 2 Post
Catalog# DESCRIPTION Height Weight Mounting
XDR-8419-610 84” Distribution Rack -#10-32 tapped- 6 Channel w/angle base 84” 105lbs. 19”
XDR-8423-610 84” Distribution Rack- #10-32 tapped - 6 Channel w/angle base 84” 115lbs. 23”
Distribution Rack- Aluminum 2 Post
Catalog# DESCRIPTION Height Weight Mounting
BHRR194 84” Distribution Rack -#12-24 Tapped Black, Knockdown 3” channel 84” 30lbs. 19”
BHR6194 84” Distribution Rack -#12-24 Tapped Black, Knockdown 6” channel 84” 41lbs. 19”
BHRR234 84” Distribution Rack -#12-24 Tapped Black, Knockdown 3” channel 84” 32lbs. 23”
For Data Racks/Cabinets
See pages 159-162
800-245-4964 • www.westpenn-wpw.com
Fiber Optic Accessories
WEST PENN WIRE
CABLE WITH CONFIDENCE
172
Loading...
