INSTALLATION & USER MANUAL

CANOPY RANGEHOOD

WRCG930SB, WRCG940SB, WRCG914BC

WARNING

WARNING

TIPS & INFORMATION

ENVIRONMENTAL TIPS

CONTENTSCONGRATULATIONS

Dear customer,

Congratulations and thank you for choosing our canopy
rangehood. We are sure you will find your new rangehood
a pleasure to use. Before you use your rangehood,
we recommend that you read through the whole user
manual, which provides the description of the rangehood
and its function.

To avoid the risks that are always present when you use
an electrical appliance it is important that the canopy
rangehood is installed correctly and that you read the
safety instructions carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet
for future reference and pass it on to any future owners.
After unpacking the canopy rangehood please check it
is not damaged. If in doubt, do not use the appliance but
contact your local Electrolux Service Centre.

Conditions of use

This appliance is intended to be used in household and
similar applications such as:

• Staff kitchen areas in shops, offices and working
environments

• Farm houses

• By clients in hotels, motels and other residential type
environments

• Bed and breakfast type environments

• Catering and similar non-retail applications

Please ensure you read the instruction manual fully
before you call for service, or a full service fee could
be applicable.

Record model and serial number here:

Important safety instructions ........................................................3

Product description ...........................................................................5

Rangehood dimensions ................................................................. 6

Installation ............................................................................................. 8

Using your rangehood ...................................................................13

Care & maintenance .........................................................................13

Troubleshooting .................................................................................14

Optional ducting accessories ......................................................16

Warranty ................................................................................................19

Please read the user manual carefully and store in a handy
place for later reference.

The symbols you will see in this booklet have
these meanings:

WARNING

This symbol indicates information concerning your
personal safety.

CAUTION

This symbol indicates information on how to avoid
damaging the appliance.

IMPORTANT

This symbol indicates tips and information about use
of the appliance.

ENVIRONMENT

This symbol indicates tips and information about
economical and ecological use of the appliance.

CONTENTS

2 CONTENTS

Model number:........................................................................................

Serial number: .........................................................................................

PNC: .............................................................................................................

IMPORTANT INFORMATION THAT MAY
IMPACT YOUR MANUFACTURER’S WARRANTY

Adherence to the directions for use in this manual is
extremely important for health and safety. Failure to
strictly adhere to the requirements in this manual may
result in personal injury, property damage and affect
your ability to make a claim under the Westinghouse
manufacturer’s warranty provided with your product.
Products must be used, installed and operated in
accordance with this manual.
You may not be able to claim on the Westinghouse
manufacturer’s warranty in the event that your product
fault is due to failure to adhere this manual.

TIPS & INFORMATION

ENVIRONMENTAL TIPS

WARNING

IMPORTANT SAFETY INSTRUCTIONS

This manual explains the proper use of your new
Westinghouse canopy rangehood. Please read this
manual carefully before using the product. This manual
should be kept in a safe place for handy reference. This
canopy rangehood is a domestic appliance which has
been manufactured and tested to comply with Australian
and New Zealand Standard AS/NZS 60335.2.31.

IMPORTANT

Important – check for any damages or marks

If you find the rangehood is damaged or marked, you
must report it within 7 days if you wish to claim for
damage/marks under the manufacturers warranty. This
does not affect your statutory rights.

Unpacking

Check that the cooker hood has no damage.
Transportation damage should immediately be reported
to the company responsible for the transportation
Damage, faults and missing details should immediately be
reported to the retailer. Take care of the packing materials
so that small children cannot play with them

ENVIRONMENT

Information on disposal for users

• Most of the packing materials are recyclable. Please
dispose of those materials through your local
recycling depot or by placing them in appropriate
collection containers.

• If you wish to discard this product, please contact

your local authorities and ask for the correct method
of disposal.

These warnings have been provided in the interest of
safety. You MUST read them carefully before installing
or using the appliance.

• The appliance must be plugged into its own

• This appliance can be used by children aged from 8

• This canopy rangehood is not recommended for

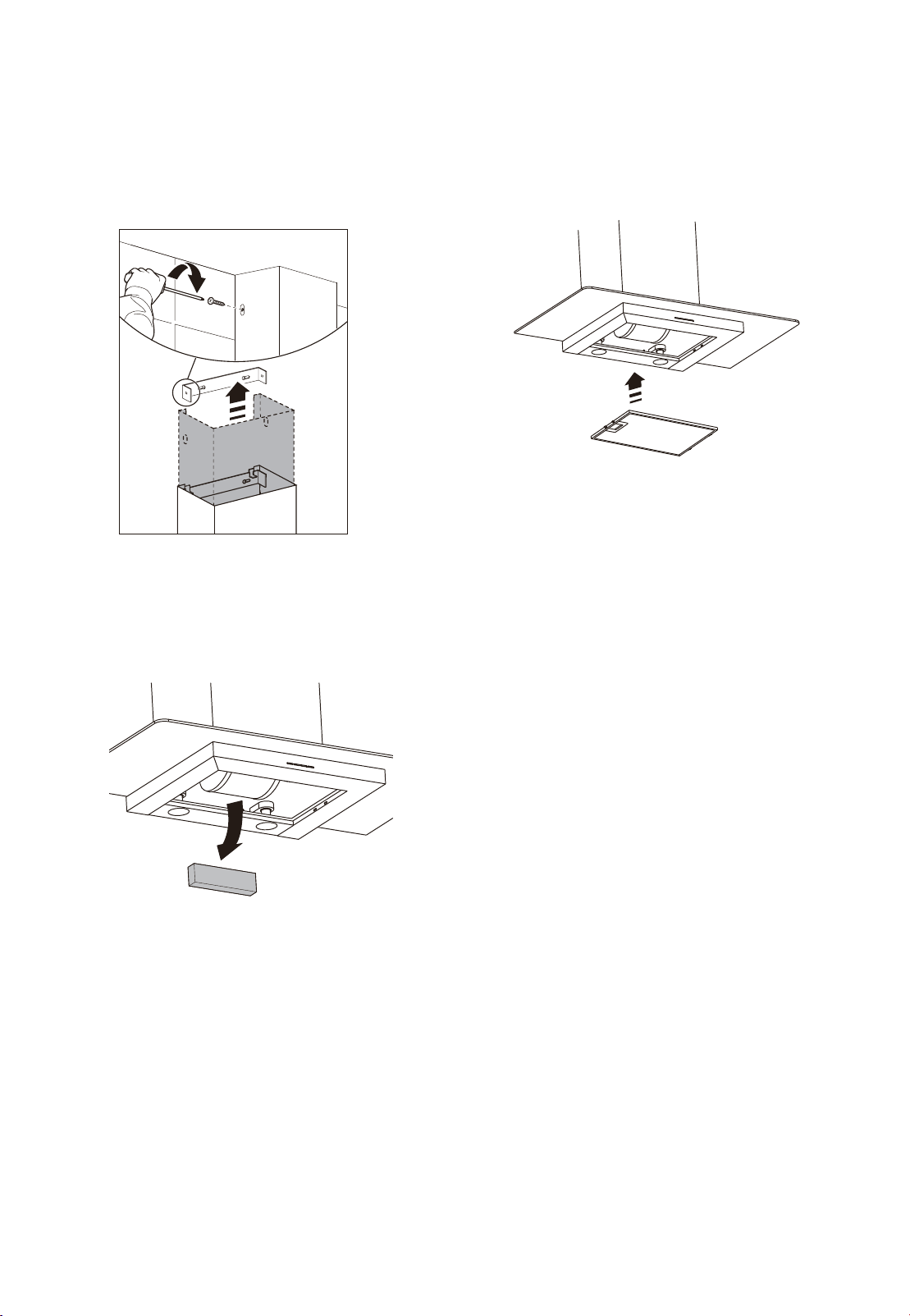

• Grease filters must be removed every four weeks

• The exhaust from the canopy rangehood must not

• Exhaust air must not be discharged into a wall cavity,

• There must be adequate ventilation of the room when

• Always cover lit gas burners with pots or pans when

• Always switch off gas burners before you remove

• Do not leave lit gas burners exposed due to the risk

• The hood must always be disconnected from

• Failure to install the screws or fixing device in

WARNING

dedicated 220-240V, 50Hz AC electrical outlet.

years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning the use of the appliance
in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision.

barbecues and cannot be installed for external use.

(maximum) for cleaning to reduce the risk of fire.

be discharged into any heating flue, which may carry
combustion products from other sources. (Fig 1)

unless the cavity is designed for the purpose.

the canopy rangehood is used at the same time as
appliances burning gas or other fuels.

canopy rangehood is in use.

pots or pans.

of fire. (Fig 2)

the electricity supply before beginning any
maintenance work.

accordance with these instructions may result in
electrical hazards.

Fig. 1 Fig. 2

SAFETY

3SAFETY

IMPORTANT SAFETY INSTRUCTIONS (CONTINUED)

Electrical connection

Check that the mains voltage matches with the voltage
on the data plate inside the canopy rangehood. Check
that the installation complies with standards of local
building, gas and electrical authorities. Before connecting
to the mains supply ensure that the mains voltage
corresponds to the voltage on the rating plate inside the
cooker hood.

If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or similarly qualified
person in order to avoid a hazard.

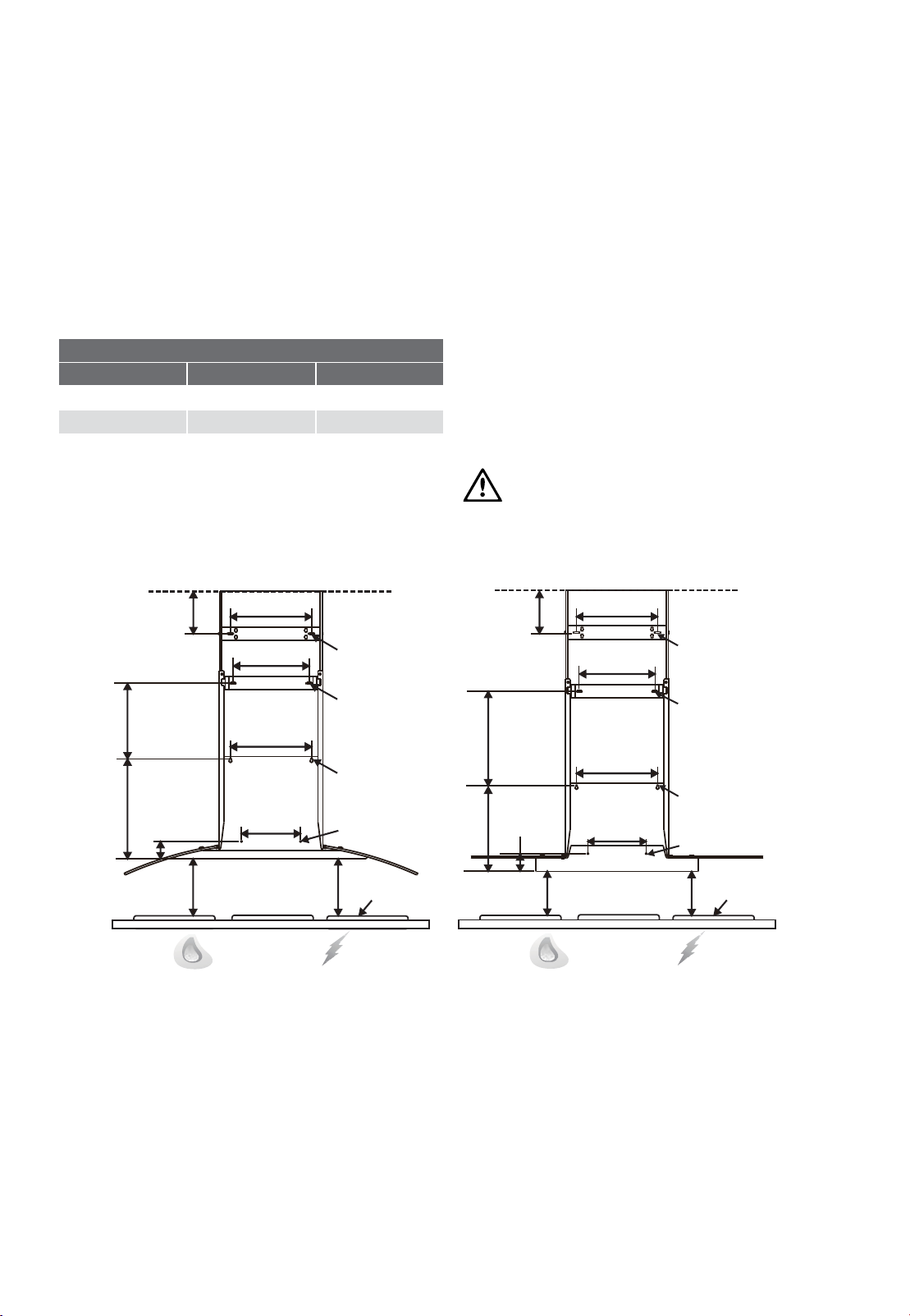

Safety warnings – for the installer

When installing the cooker hood, make sure you adhere
to the minimum and maximum distances from the cooker
hood base to the hob surface (refer to page 8).

Exhaust flue installation: The following rules must be
strictly followed to obtain optimal air extraction.

• Keep exhaust flue short and straight.

• Do not reduce the size or restrict exhaust flue. Keep

bends in the exhaust flue to a minimum.

• When using flexible flue always install duct with helix

pulled taut to minimise pressure loss.

• Failure to observe these basic instructions will

drastically reduce the performance and increase the
noise levels of the cooker hood.

Exhaust air must not be discharged into a wall cavity,
unless the cavity is designed for that purpose. The
exhaust from the cooker hood must not be discharged
into any heating flue, which may carry combustion
products from other sources.

NOTE: Some installations may require the telescopic
exhaust cover to be cut to length. Cut with sharp tin snips
or a fine-tooth hack saw blade, taking care not to distort
or dent the exhaust cover.

4 SAFETY

PRODUCT DESCRIPTION

WRCG930SB WRCG940SB/WRCG914BC

1

Upper Flue mounting bracket

2

Telescopic flue cover

3

Lower Flue mounting bracket

4

Lower Flue cover

5

150-120 reducer

6

Exhaust transition duct

(with Valve for WRCG914BC model only)

7

Hood motor body

8

Glass fixing screws x4

9

Glass canopy

10

Filter

1

2

3

4

5

6

7

8

9

Fig. 3

Additional items required for installation

· Fixings required to attach rangehood body and

anti tilt brackets

· Fixings required to attach flue cover

mounting brackets

Technical specification

· Power supply: 240 V 50 Hz. Connects to 10 A
power point

· Lights: 2 x 4 watt, 240 V LED (for WRCG930SB & WRCG940SB)

· Lights: 2 x 3.5 watt, 240 V LED (for WRCG914BC)

10

· Worm drive clamps, duct tape or cable ties

· Ducting accessories

MODEL WRCG930SB WRCG940SB

Height 730 mm - 1115mm 745 mm - 1130mm
Width 900mm 900mm
Depth 500mm 500mm
Max absorbed power 338 W 338 W
Lighting 2 x 4W LED (GU10 fitting) 2 x 4W LED (GU10 fitting)
Outlet diameter 150mm 150mm
Electrical connection 220 - 240V, 50Hz 220 - 240V, 50Hz

The manufacturer reserves the right to make technical changes.

WRCG914BC

745 mm - 1130mm
900mm
500mm
337 W
2 x .5W LED (GU10 fitting)
150mm
220 - 240V, 50Hz

5PRODUCT DESCRIPTION

RANGEHOOD DIMENSIONS

WRCG930SB

500

320

280

900

6 DIMENSIONS

Min 730/ Max 1115

576

588 380

Fig. 4
