Westinghouse Digital EW39T4LZ User Manual
USER’S MANUAL
MANUEL DE L’UTILISATEUR
MANUAL DEL USUARIO
EW39T4LZ
Contents
Contents
Caution
Safety Information
Unit and Accessories
Product Feature
Introduction
1. Front View
2. Rear View
3. Instruction for Wall Mount 7
4. Remote Control
First Time Installation 10-11
Basic Operation
OSD Menu

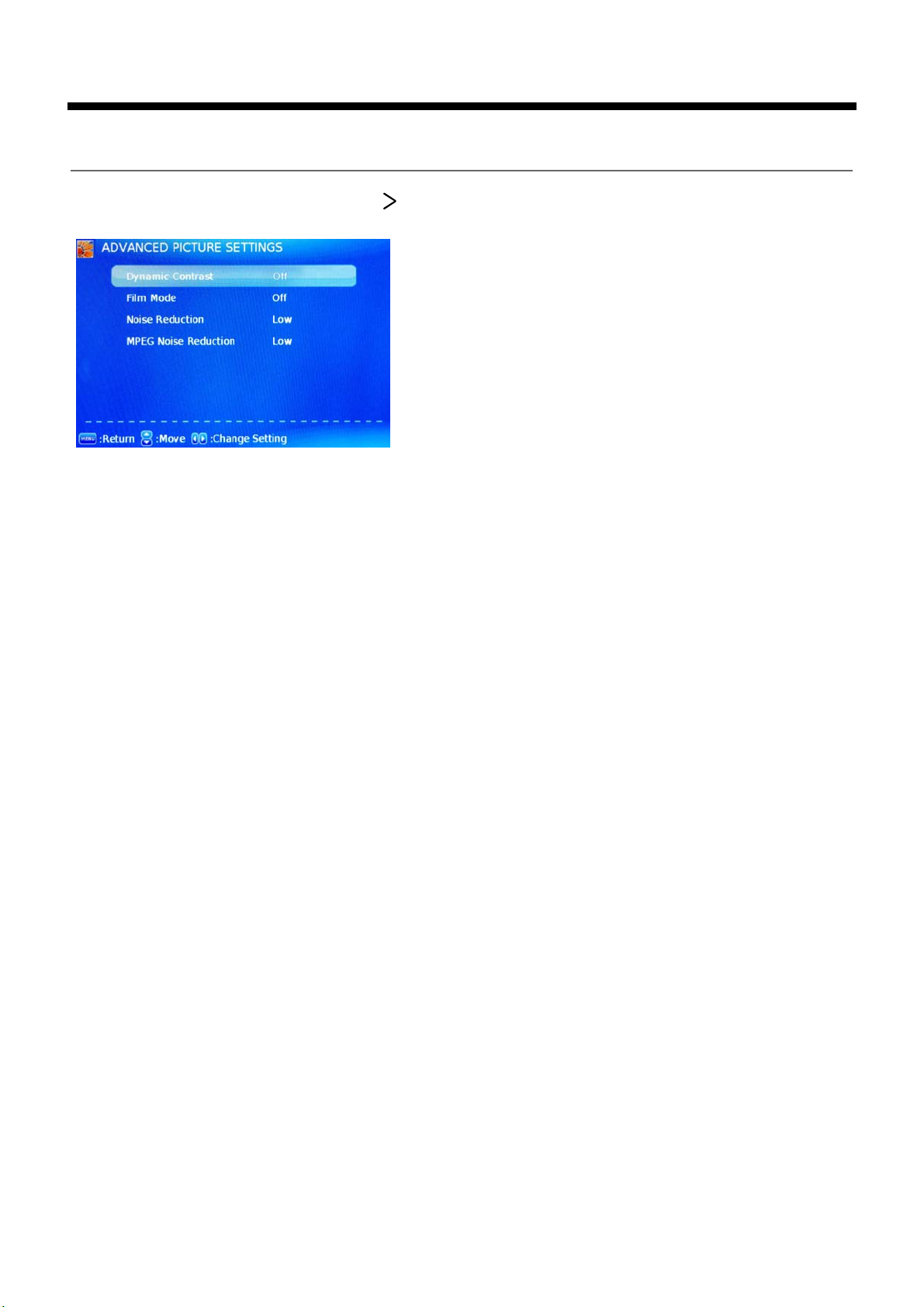

1. Picture menu

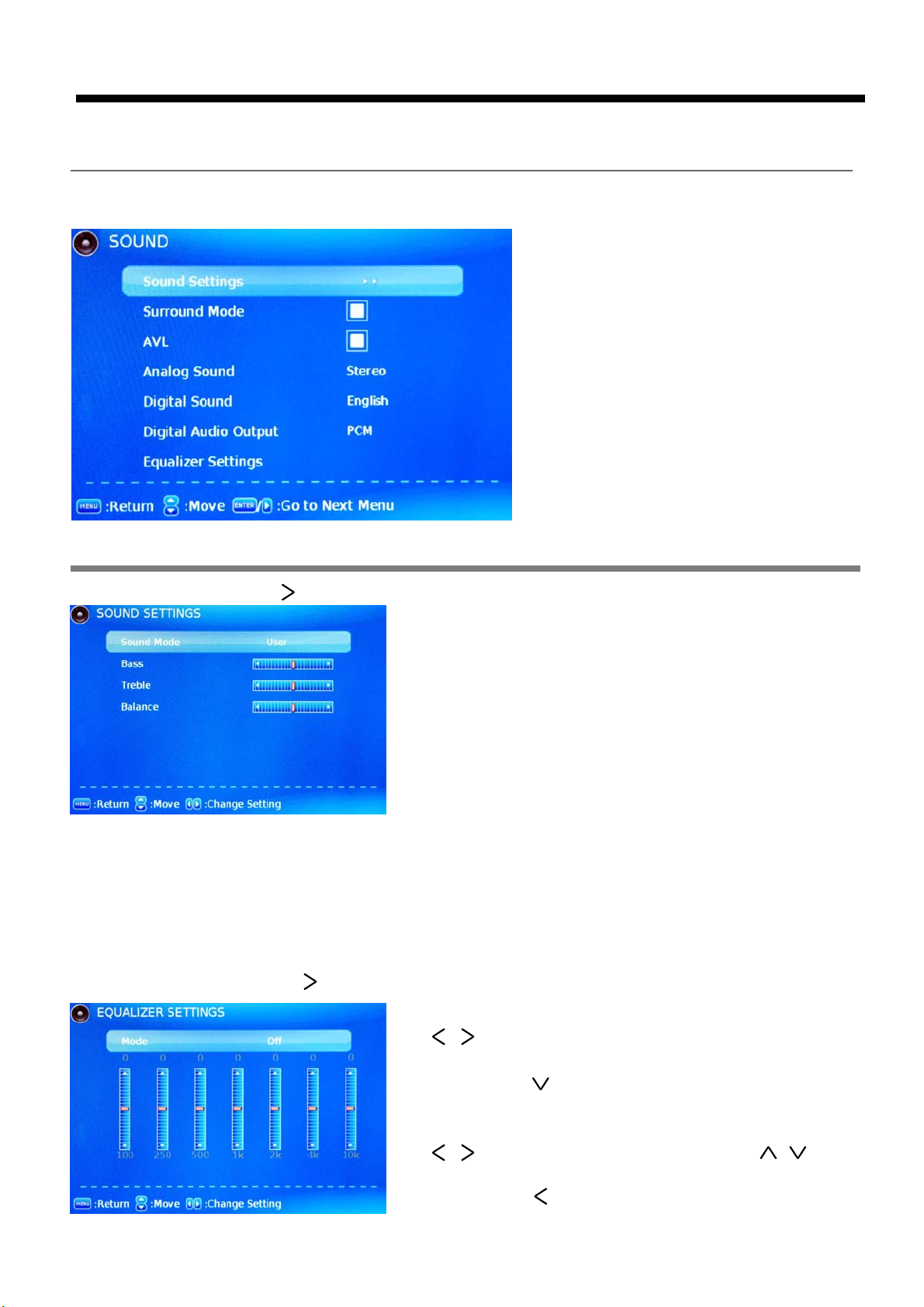

2. Sound menu
3. Channel menu

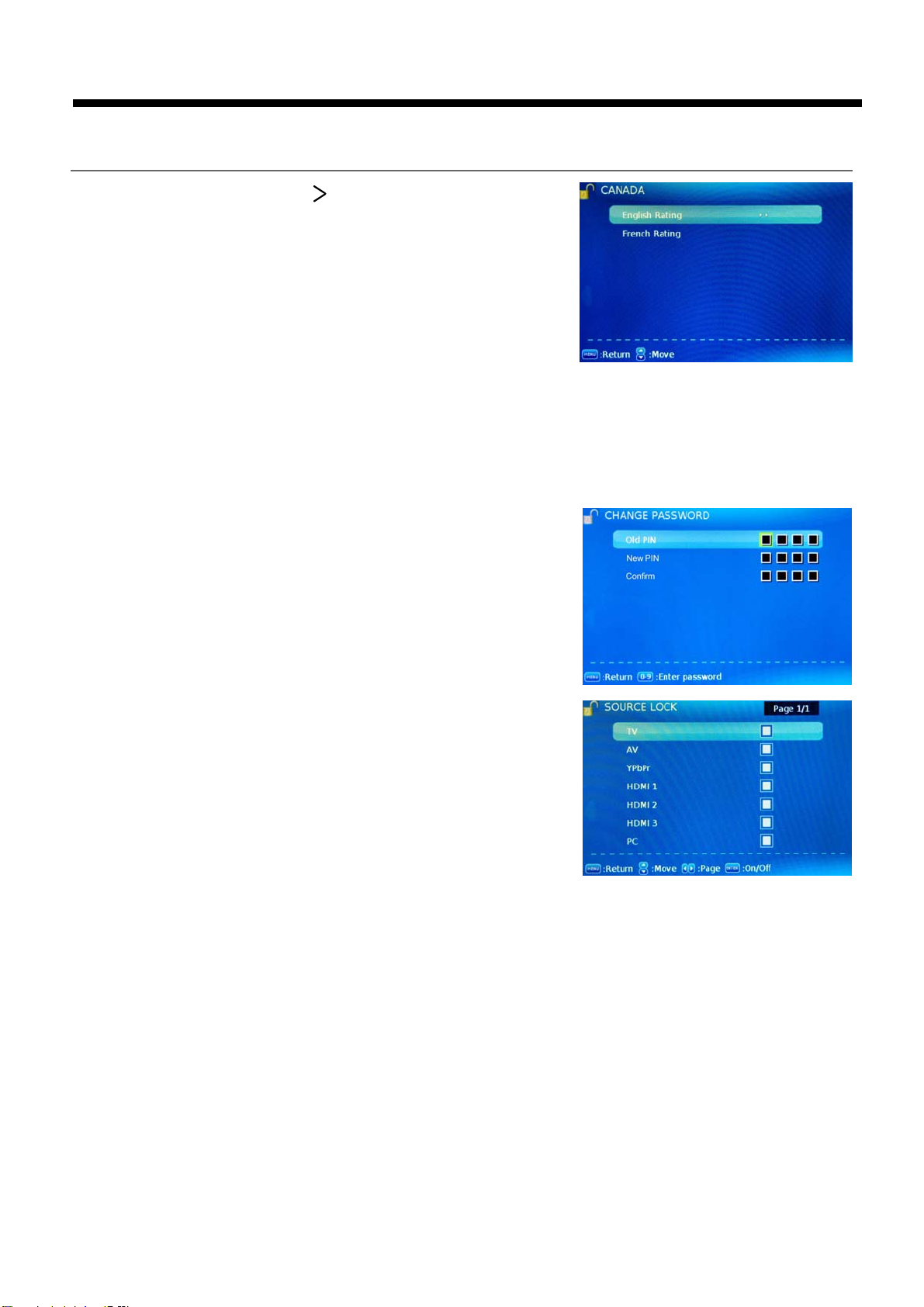

4. Parental Control menu

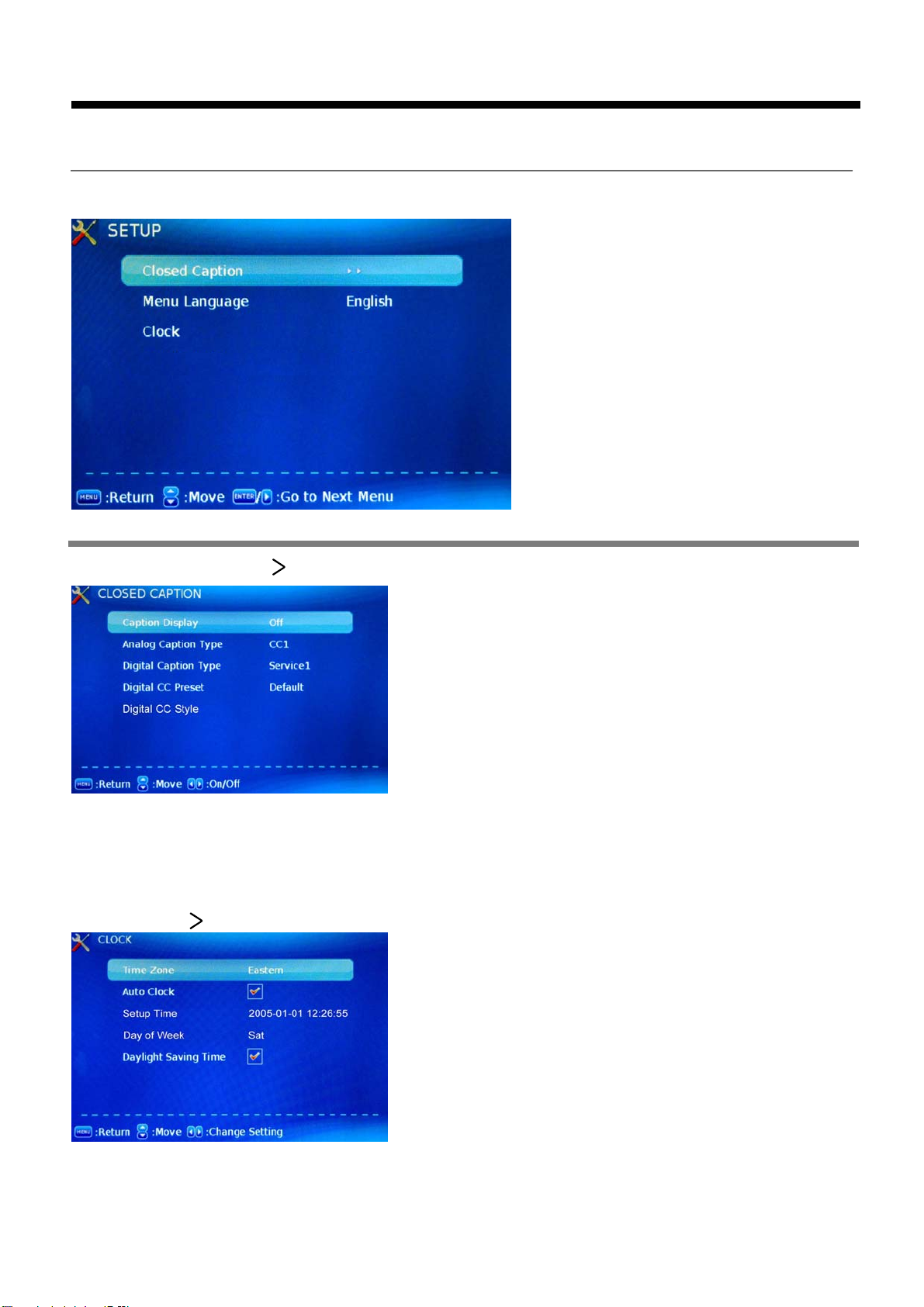

5. Setup menu

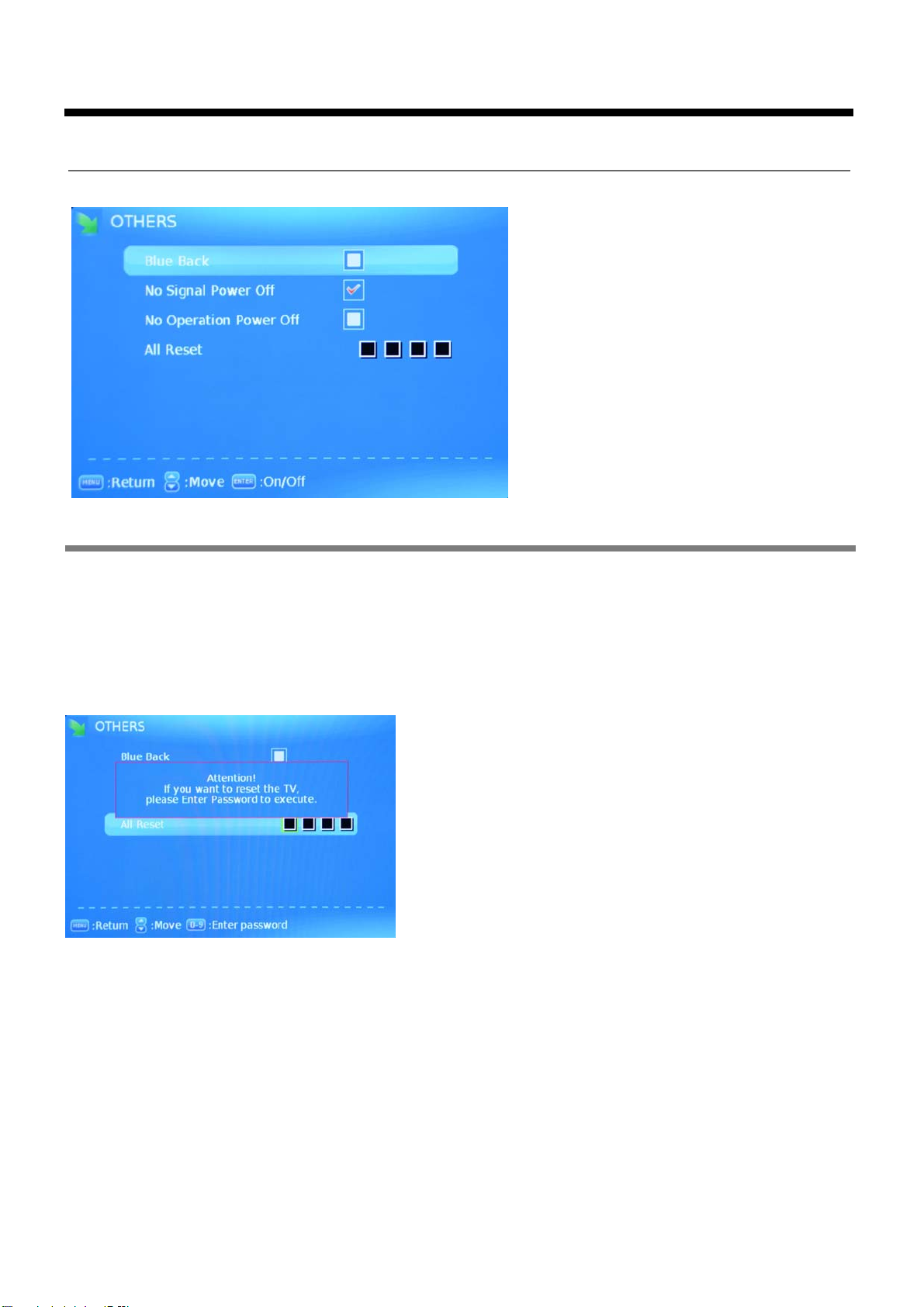

6. Others menu
2
3
4
4
5-9
5
6
8-9
12
13-21
13-14
15
16-17
18-19
20
21
Simple Troubleshooting
22
23
1
Caution
Caution
is intended to alert the user to the presence of un-insulated "dangerous
to constitute a risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their endof-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling centre.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live
in!
This unit complies with America Safety directives.
This unit complies with FCC directives.
LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE
RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR
FEDERALLAWS.
ENERGY STAR :
This Westinghouse product has earned the Energy Star for meeting U.S. Federal energy
efficiency guidelines as set by the Department of Energy and Environmental Protection agency.
The Energy Star program exists to provide energy saving guidelines and help promote
energy efficient products and practices. Changes to certain features, settings and functions of
this TV can change and/or increase its power consumption. Depending on how settings are
changed, power consumption may exceed the limits required for Energy Star qualification.
This Westinghouse TV will operate at optimal energy efficiency in “Home” mode.
2
Safety Information
Electrical safety
the power cable
Safety Information
Physical safety
3
Unit andAccessories
Unit and Accessories and Product Feature
TV set
Quick Connect Guide
User's Manual
Warranty Card
Remote Control and
Batteries (AAA x2)
Power Cord
Product Feature
39
1920 x 1080 native resolution for Full-HD(1080p) performance
Three HDMI inputs for true digital connections
HDMI is a trademark of HDMI Licensing LLC in the United States and other countries.
®
4
Introduction
1. Front View
Introduction
Power Indicator
Remote Control window
(Keep clear)
1). (IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby)LED Indicator: Press POWER to turn on and off.
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
The effective receiving range for the signal is 5-8 metres from the front of the remote
0
control window, and 30
to the left or right side and 200 above or below the remote control
window.
2). The functions of the buttons:
INPUT: Press to display the input source menu.
MENU: Press to display the OSD menu,
press again to exit the menu.
CH+/-: Press to scan through channels.
VOL+/-: Press to adjust the volume.
POWER: Turn on/standby the TV set.
Press INPUT button on the TV set or remote control to
display the input source menu, and use CH+/- button on
the TV set or
/ button on remote control to select the
input source, press OK button on the remote control to
enter.
Note: Before you select the input source, make sure the
connections are prepared.
5
2. Rear View
Introduction
L
R
YPbPr
L
R
HEADPHONE OUT
1).
AC POWER IN:
2).
SWITCH:
3). Headphone out
Connect to an earth 100-240V~ 50/60Hz outlet with the power cable.
Switch on/off the power supply.
: Connect it to your headphone or audio equipments.
4).
5).
: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
RF
6).
HDMI1/2/3
7).
COAX : Digital audio output.
8).
9). Service
10).
VIDEO : Connect it to video output of video device.
: Connect it to the HDMI output of video device.
: For service use only.
PC IN
RF VGA HDMI1
PC IN
HEADPHONE OUT
RF VGA HDMI1
VIDEO
USB
(SERVICE)
COAX
HDMI3
HDMI2
L/R in
11).
YPbPr : Connect them to the component video output of video device.
12).
L/R out
: Connect them to audio output of video device.
L/R in
: Connect them to audio output of video device.
: Connect them to audio equipments.
6
Introduction
3. Instruction for Wall Mount
A wall mount kit (purchased separately) would allow you to mount your Westinghouse
TV on the wall. For detailed information on installing the wall mount, refer
to the instructions provided by the wall mount manufacturer. It is strongly
recommended to contact a technician for professional assistance for wall mount
installation. Westinghouse is not responsible for any damage to the product or injury
to yourself or others resulting from the wall-mounting.
Dimensions for Mounting Hole Pattern
400mm
200mm
- This Westinghouse TV is compatible with a 400mm x 200mm mounting hole
pattern.
- 4 pcs of type M5 screws are required for installing the wall mount bracket to
your Westinghouse TV. Do not use screws that are longer than 15 mm. Screws
that are too long may cause damage to the inside of the TV set.
- Do not fasten the screws too tight for this may damage the TV or cause the
TV to fall, resulting in personal injury. Westinghouse is not liable for these kinds
of incidents.
- Do not mount your Westinghouse TV at more than a 15 degree tilt.
- Always use two people to mount the TV to a wall.
- Do not install your Wall Mount Kit while your TV is turned on. It may result in
personal injury due to electric shock.
7
