Westinghouse 3305000 Specification

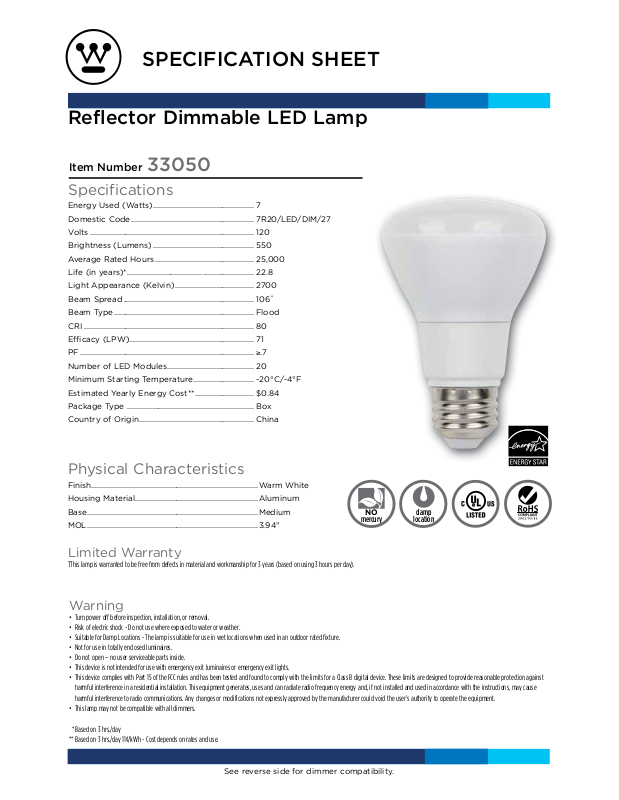

SPECIFICATION SHEET
Reflector Dimmable LED Lamp
Item Number 33050
Specifications
Energy Used (Watts) ................................................... 7
Domestic Code .............................................................. 7R20/LED/DIM/27
Volts ................................................................................... 120
Brightness (Lumens) ................................................... 550
Average Rated Hours .................................................. 25,000
Life (in years)*...................................... .......................... 22.8
Light Appearance (Kelvin) ........................................ 2700
Beam Spread .................................................................. 106˚
Beam Type ....................................................................... Flood
CRI ...................................................................................... 80
Efficacy (LPW) ............................................................... 71
PF ........................................................................................ ≥.7
Number of LED Modules ............................................ 20
Minimum Starting Temperature ............................... -20°C/-4°F
Estimated Yearly Energy Cost**...... ........................ $0.84
Package Type ................................................................ Box
Country of Origin .......................................................... China
Physical Characteristics
Finish .................................................................................... Warm White
Housing Material. ............................................................. Aluminum
Base ...................................................................................... Medium
MOL ...................................................................................... 3.94"
NO
mercury
Limited Warranty
TThis lamp is warranted to be free from defects in material and workmanship for 3 years (based on using 3 hours per day).
Warning
• Turn power off before inspection, installation, or removal.
• Risk of electric shock - Do not use where exposed to water or weather.
• Suitable for Damp Locations - The lamp is suitable for use in wet locations when used in an outdoor rated fixture.
• Not for use in totally enclosed luminaires.
• Do not open – no user serviceable parts inside.
• This device is not intended for use with emergency exit luminaires or emergency exit lights.
• This device complies with Part 15 of the FCC rules and has been tested and found to comply with the limits for a Class B digital device. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.
• This lamp may not be compatible with all dimmers.
* Based on 3 hrs./day
** Based on 3 hrs./day 11¢/kWh - Cost depends on rates and use.
damp
location
See reverse side for dimmer compatibility.
REFLECTOR
LED Dimmer Compatibility
Brand Model
Almond LUXDM600-12
GE 18024
Leviton 6631-LA, IPI06, S-600P-WH
Lutron
DV-603P, LGCL-153CL, TGCL-153PHWH, DV-603PR, S-600PR-WH
Specifications are subject to change without notice, please visit www.westinghouselighting.com for latest information.
Call 1-800-999-2226 or visit www.westinghouselighting.com.
, WESTINGHOUSE, and INNOVATION YOU CAN BE SURE OF are trademarks of Westinghouse Electric Corporation.
Used under license by Westinghouse Lighting. All Rights Reserved.
2014 WESTINGHOUSE LIGHTING / 1114 / 104248
