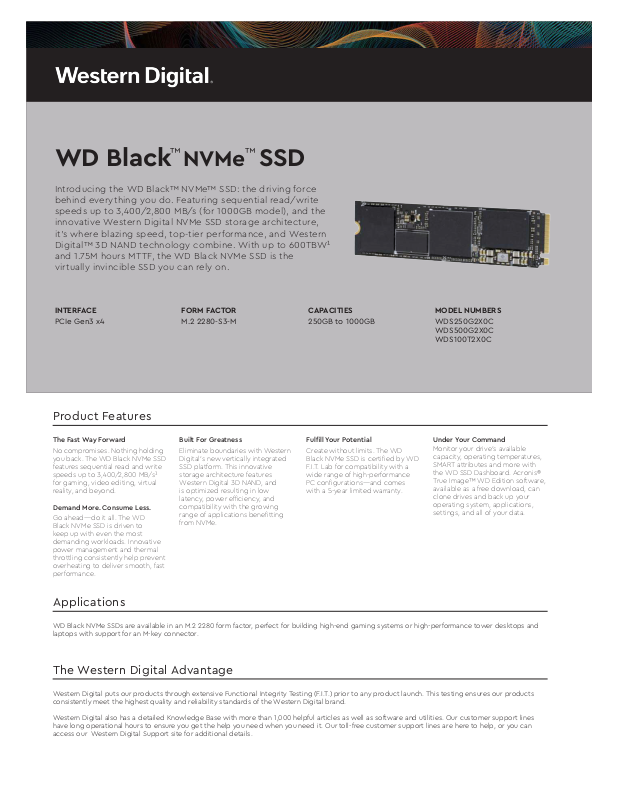

WD Black

™

NVMe

™

SSD

Introducing the WD Black™ NVMe™ SSD: the driving force behind everything you do. Featuring sequential read/write speeds up to 3,400/2,800 MB/s (for 1000GB model), and the innovative Western Digital NVMe SSD storage architecture, it’s where blazing speed, top-tier performance, and Western Digital™ 3D NAND technology combine. With up to 600TBW and 1.75M hours MTTF, the WD Black NVMe SSD is the virtually invincible SSD you can rely on.

INTERFACE

PCIe Gen3 x4

Product Features

The Fast Way Forward

No compromises. Nothing holding you back. The WD Black NVMe SSD features sequential read and write speeds up to 3,400/2,800 MB/s¹ for gaming, video editing, virtual reality, and beyond.

Demand More. Consume Less.

Go ahead—do it all. The WD Black NVMe SSD is driven to keep up with even the most demanding workloads. Innovative power management and thermal throttling consistently help prevent overheating to deliver smooth, fast performance.

FORM FACTOR

M.2 2280-S3-M

Built For Greatness

Eliminate boundaries with Western Digital’s new vertically integrated SSD platform. This innovative storage architecture features Western Digital 3D NAND, and is optimized resulting in low latency, power efﬁciency, and compatibility with the growing range of applications beneﬁtting from NVMe.

CAPACITIES

250GB to 1000GB

Fulﬁll Your Potential

Create without limits. The WD Black NVMe SSD is certiﬁed by WD F.I.T. Lab for compatibility with a wide range of high-performance PC conﬁgurations—and comes with a 5-year limited warranty.

MODEL NUMBERS

WDS250G2X0C WDS500G2X0C WDS100T2X0C

Under Your Command

Monitor your drive’s available capacity, operating temperatures, SMART attributes and more with the WD SSD Dashboard. Acronis® True Image™ WD Edition software, available as a free download, can clone drives and back up your operating system, applications, settings, and all of your data.

Applications

WD Black NVMe SSDs are available in an M.2 2280 form factor, perfect for building high-end gaming systems or high-performance tower desktops and laptops with support for an M-key connector.

The Western Digital Advantage

Western Digital puts our products through extensive Functional Integrity Testing (F.I.T.) prior to any product launch. This testing ensures our products consistently meet the highest quality and reliability standards of the Western Digital brand.

Western Digital also has a detailed Knowledge Base with more than 1,000 helpful articles as well as software and utilities. Our customer support lines have long operational hours to ensure you get the help you need when you need it. Our toll-free customer support lines are here to help, or you can access our Western Digital Support site for additional details.

WD Black™ NVMe™ SSD

Speciﬁcations² 1000GB 500GB 250GB

2,4

2,5

600 300 200

140 110 110

1.75M hours 1.75M hours 1.75M hours

32 °F to 158 °F (0 °C to 70 °C) 32 °F to 158 °F (0 °C to 70 °C) 32 °F to 158 °F (0 °C to 70 °C)

-67 °F to 185 °F (-55 °C to 85 °C) -67 °F to 185 °F (-55 °C to 85 °C) -67 °F to 185 °F (-55 °C to 85 °C)

C-Tick

FCC, UL, TUV, KCC, BSMI, VCCI, C-Tick

5 years 5 years 5 years

Model Numbers

WD Black NVMe SSD M.2 2280 WDS100T2X0C WDS500G2X0C WDS250G2X0C

Interface

WD Black NVMe SSD M.2 2280 PCIe Gen3 8 Gb/s, up to 4 lanes PCIe Gen3 8 Gb/s, up to 4 lanes PCIe Gen3 8 Gb/s, up to 4 lanes

Performance

Sequential Read MB/s up to (Q=32, T=1)63,400 3,400 3,000

Sequential Write MB/s up to (Q=32, T=1) 2,800 2,500 1,600

Random Read 4KB IOPS up to (Q=32, T=8) 500,000 410,000 220,000

Random Write 4KB IOPS up to (Q=32, T=8) 400,000 330,000 170,000

Endurance (TBW)

Power

Average Active Power (mW)

Low Power (PS3) 100mW 70mW 70mW

Peak Power (10us) 2.8A 2.8A 2.8A

Slumber (PS4) Low Power 2.5mW 2.5mW 2.5mW

Reliability

MTTF

Environmental

Operating Temperatures

Non-operating Temperatures

Operating Vibration 5.0 gRMS, 10–2000 Hz, 3 axes 5.0 gRMS, 10–2000 Hz, 3 axes 5.0 gRMS, 10–2000 Hz, 3 axes

Non-operating Vibration 4.9 gRMS, 7–800 Hz, 3 axes 4.9 gRMS, 7–800 Hz, 3 axes 4.9 gRMS, 7–800 Hz, 3 axes

Shock 1,500 G @ 0.5 ms half sine 1,500 G @ 0.5 ms half sine 1,500 G @ 0.5 ms half sine

Certiﬁcations FCC, UL, TUV, KCC, BSMI, VCCI,

Limited Warranty

Physical Dimensions

Length 80 ± 0.15mm 80 ± 0.15mm 80 ± 0.15mm

Width 22 ± 0.15mm 22 ± 0.15mm 22 ± 0.15mm

Height 2.38mm 2.38mm 2.38mm

Weight 7.5 ± 1g 7.5 ± 1g 7.5 ± 1g

Speciﬁcations subject to change without notice.

For 1000GB capacity.

As used for storage capacity, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for transfer rate or interface,

megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second. Performance will vary depending on your hardware and software components and conﬁgurations.

Not all products may be available in all regions of the world.

Backward compatible with PCIe Gen3 x2, PCIe Gen3 x1, PCIe Gen2 x4, PCIe Gen2 x2, and PCIe Gen2 x1.

Test Conditions: Performance is based on the CrystalDiskMark 5.2.2 benchmark using a 1000MB LBA range ASUS Z170A desktop with Intel® i7–6700K 4.0GHz, 8GB 2133MHz DDR4. Windows 10 Pro 64-bit using Microsoft

StorNVMe driver, secondary drive. Performance may vary based on host device. 1 MB = 1,000,000 bytes. IOPS = input/output operations per second.

Q=Queue, T=Thread.

TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity.

Power measurements at 25°C.

Measured using MobileMark™ 2014 on HP EliteBook X360 1030 G2 with i7–7600U, 8GB RAM. Windows 10 Pro 64-bit RS3 using Microsoft StorNVMe driver, Primary drive.

MTTF = Mean Time To Failure based on internal testing using Telcordia stress part testing (Telcordia SR-332, GB, 25°C). MTTF is based on a sample population and is estimated by statistical measurements and accelera-

tion algorithms. MTTF does not predict an individual drive’s reliability and does not constitute a warranty.

Operational temperature as reported by device (composite temperature).

Non-operational storage temperature does not guarantee data retention.

5 years or Max Endurance (TBW) limit, which ever comes ﬁrst. See support.wdc.com for regional speciﬁc warranty details.

Western Digital 5601 Great Oaks Parkway San Jose, CA 95119 U.S.A.

For service and literature:

http://support.wdc.com www.wdc.com

800.ASK.4WDC (800.275.4932)

800.832.4778 Spanish +86.21.2603.7560 Asia Paciﬁc

00800.27549338 Europe

+31.880062100 Europe/Middle East/Africa

North America

(toll free where available)
