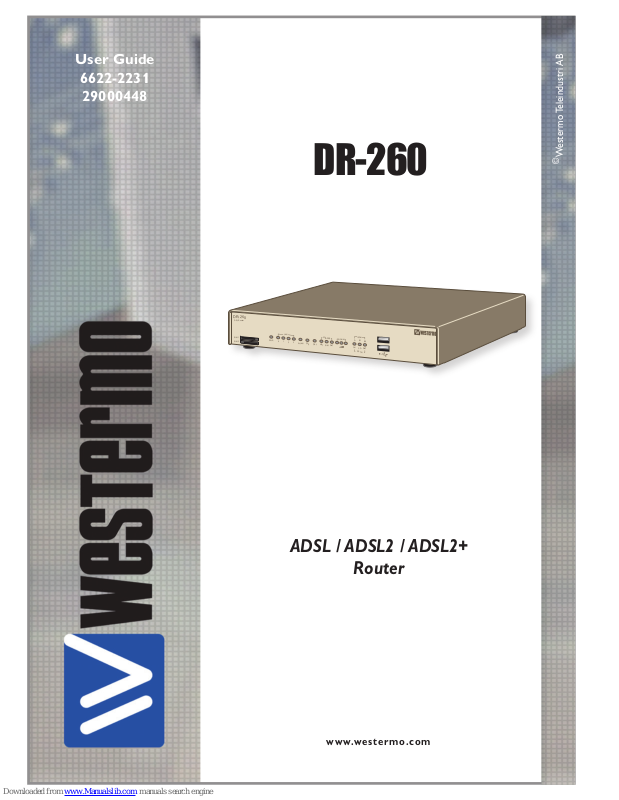

Westermo DR-260, DR-270 User Manual
ADSL / ADSL2 / ADSL2+
Router
www.westermo.com
©
Westermo Teleindustri AB
User Guide
6622-2231
29000448
DR-260
DR-260
DSL Router
SIM 1
SIM 2
PWR
0
WLAN
DTE
DSL
1
2
3
NET SIM DAT
3G/GPRS
LAN
SIGNAL
D
B1
B2
OH
CD
DAT
ISDN
PSTN
2
6622-2231 • 29000448
2
Legal information
The contents of this document are provided “as is”. Except as required by applicable
law, no warranties of any kind, either express or implied, including, but not limited to,
the implied warranties of merchantability and fitness for a particular purpose, are made
in relation to the accuracy and reliability or contents of this document. Westermo
reserves the right to revise this document or withdraw it at any time without prior
notice.
Under no circumstances shall Westermo be responsible for any loss of data or income
or any special, incidental, and consequential or indirect damages howsoever caused.
More information about Westermo can be found at the following Internet address:
http://www.westermo.com
3
6622-2231 • 29000448
3
Safety
Before using this unit:
Read this manual completely and gather all information on the unit. Make sure
that you understand it fully. Check that your application does not exceed the safe
operating specifications for this unit.
Hazardous voltages may occur within this unit when connected to a power supply.
Prevent access to hazardous voltages by disconnecting the unit from its power
supply.
Prevent damage to internal electronics from electrostatic discharges (ESD) by
discharging your body to a grounding point (e.g. use of wrist strap).
Before installation:
This unit should only be installed by qualified personnel.
This unit should be built-in to an apparatus cabinet, or similar, where access is
restricted to service personnel only.
The power supply wiring must be sufficiently fused, and if necessary it must be
possible to disconnect manually from the power supply. Ensure compliance to
national installation regulations.
This unit uses convection cooling. To avoid obstructing the airflow around the unit,
follow the spacing recommendations (see Installation section).
Care recommendations
Follow the care recommendations below to maintain full operation of unit and to fulfil
the warranty obligations.
This unit must not be operated with covers or lids removed.
Do not attempt to disassemble the unit. There are no user serviceable parts inside.
Do not drop, knock or shake the unit, rough handling beyond the specification may cause
damage to internal circuit boards.
Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit.
Do not paint the unit. Paint can clog the unit and prevent proper operation.
Do not expose the unit to any kind of liquids (rain, beverages, etc). The unit is not
waterproof.-Keep the unit within the specified humidity levels.
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical
part may be damaged.
If the unit is not working properly, contact the place of purchase, nearest Westermo
distributor office or Westermo Tech support.
GSM specific safety
Please read and follow the guidelines listed below. The precautions must be observed
during all phases of the operation. Breaking these rules may be dangerous, illegal or affect
performance of the unit and/or invalidate the unit’s approval and/or warranty.
!
!
4
6622-2231 • 29000448
General
Remember to follow any special regulations and warnings in force in any area and never
use the unit whenever it’s forbidden to use it. Do not use the unit when it may cause
interference or danger. A wireless device exposed to interference above specified limits
could result in deteriorated performance.
Hospitals or other Medical environment
Do not use the unit in a medical environment such as health care facilities. Follow any
regulations or rules that instruct you to not use the unit.
Pacemakers
The Health Industry Manufacturers Association recommends that a minimum separation
of six (6”) inches be maintained between cellular wireless equipment and a pacemaker
to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of-Wireless Technology
Research.
Persons with pacemakers:
… Should ALWAYS keep the the unit and its antenna more than six inches from their
pacemaker when the unit is turned ON.
… If you have any reason to suspect that interference is taking place, turn your wireless
equipment OFF immediately.
Hearing Aids
Some digital wireless equipment may interfere with some hearing aids. In the event of
such interference, you may want to consult your service provider [or call the customer
service line to discuss alternatives.]
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your device to
determine if they are adequately shielded from external RF energy.-Your physician may be
able to assist you in obtaining this information.
Turn the wireless equipment OFF in health care facilities when any regulations posted in
these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.
Aircraft
Do not use the unit in an aircraft. The use of a wireless unit in an aircraft may be dangerous to the operation of the aircraft, disrupt the wireless network, and may be illegal.
Failure to observe these instructions may lead to suspension or denial of cellular services
to the offender, legal action, or both.
Vehicle
If the unit is incorrectly installed in a vehicular environment, the operation of the unit
could interfere with the vehicle electronics. Faulty installation and/or operation can constitute a safety hazard.
5
6622-2231 • 29000448
For Vehicles equipped with an airbag
An air bag inflates with great force. DO NOT place objects, including either installed or
portable wireless equipment, in the area over the air bag or in the air bag deployment
area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result.
Blasting areas
Do not use the unit where blasting is in progress or in “blasting areas”.
Observe restrictions and follow any regulation or rules.
Explosive atmospheres
Do not use the unit in any area with a potentially explosive atmosphere.
Potentially explosive areas are often, but not always, clearly marked.
They include fuelling areas such as petrol stations, below decks on boats, fuel or chemical
transfer or storage facilities, and areas where the air contains chemicals or particles, such
as grain, dust, or metal powder.
RF energy
The DR-260/3G is a low power radio transmitter and receiver. When it is ON, it receives
and also sends out radio frequency (RF) signals.
Most modern electronic equipment is shielded from RF signals. However, certain electronic equipment may not be shielded against the RF signals from the wireless unit. All
radio-transmitting devices send signals, which may cause interference in different electronic devices. To avoid interference, place the units antenna a sufficiently long distance
from other electronics.
Critical applications
Cellular units operate using radio signals and cellular networks cannot be guaranteed to
connect in all conditions. Therefore you should never rely solely on a wireless device for
essential communications, for example medical emergencies.
Backup copies
Remember to make backup copies of all important data, for example PIN/PUK codes,
contents of SIM card etc.
Antenna care
Use only the supplied or an approved replacement antenna. Unauthorized antennas,
modifications, or attachments could damage the unit and may violate current regulations.
Do not touch the antenna unnecessarily when the unit is in use. Contact with the antenna affects call quality and may cause the unit to operate at a higher power level than
otherwise needed.
Maintenance
No maintenance is required, as long as the unit is used as intended within the specified
conditions.
6
6622-2231 • 29000448
FCC Part 15.105 Notice: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equip ment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
… Reorient or relocate the receiving antenna
… Increase the separation between the equipment and receiver
… Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
… Consult the dealer or an experienced radio/TV technician
for help.
Type Approval / Compliance
EMC
EN 55024, EN 55024 A1, EN 55024 A2, Electromagnetic compatibility -
Immunity IT equipment
EN 55022, EN 55022 A1, Information technology equipment.
Radio disturbance characteristics. Limits and methods of measurement
FCC part 15 Class B
Safety IEC / EN 60950-1, IT equipment
R&TTE
Article 3.1a EN 60950 Safety
EN 50385 EMF exposure
Article 3.1b EN 301 489-1 ERM/EMC
EN 301 489-7 ERM/EMC GSM
EN 301 489-24 ERM/EMC 3G
Article 3.2 EN 301 908-1 ERM 3G
EN 301 908-2 ERM 3G
EN 301 511 GSM
Agency approvals and standards compliance
7
6622-2231 • 29000448
Declaration of Conformity
Westermo Teleindustri AB
Declaration of conformity
Org.nr/
Postadress/Postal address
Tel.
Telefax
Postgiro
Bankgiro
Corp. identity number Registered office
S-640 40 Stora Sundby 016-428000 016-428001 52 72 79-4 5671-5550 556361-2604 Eskilstuna
Sweden Int+46 16428000 Int+46 16428001
The manufacturer
Westermo Teleindustri AB
SE-640 40 Stora Sundby, Sweden
Herewith declares that the product(s)
Type of product Model Art no
Cellular router DR-260A series 3622-0210, 3622-0220, 3622-0230
Cellular router DR-260B series 3622-0240, 3622-0250, 3622-0260,
3622-0270, 3622-0280
is in conformity with the following EC directive(s).
No Short name
1999/5/EC Radio equipment and Telecommunications terminal equipment (R&TTE)
References of standards applied for this EC declaration of conformity.
No Title Issue
EN 60950-1 Information technology equipment - Safety -- General
requirements
2006
+A11:2009
EN 55022 Information technology equipment - Emission 2006
+A1:2007
EN 55024 Information technology equipment - Immunity 1998
+A1:2001
+A2:2003
EN 61000-3-2 Electromagnetic compatibility (EMC): Limits - Limits for
harmonic current emissions
2006
EN 61000-3-3 Electromagnetic compatibility (EMC) : Limits - Limitation of
voltage changes, voltage fluctuations and flicker in public lowvoltage supply systems.
1995
+A1:2001
+A2:2005
EN 301489-7 Electromagnetic compatibility and Radio spectrum Matters
(ERM); ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services: Specific conditions for mobile and
portable radio and ancillary equipment of digital cellular radio
telecommunications systems (GSM and DCS)
V1.3.1
EN 301489-17 Electromagnetic compatibility and Radio spectrum Matters
(ERM); ElectroMagnetic Compatibility (EMC) standard for radio
equipment: Specific conditions for Broadband Data Transmission
Systems
V1.3.2
EN 301511 Global System for Mobile communications (GSM); Harmonized
EN for mobile stations in the GSM 900 and GSM 1800 bands.
V9.0.2
The last two digits of the year in which the CE marking was affixed: 11
Pierre Öberg
Technical Manager
25th January 2011
8
6622-2231 • 29000448
Type tests and environmental conditions
Phenomena Test Description Test levels
ESD EN 61000-4-2 Enclosure contact ± 4 kV
Enclosure air ± 8 kV
RF eld AM modulated EN 61000-4-3 Enclosure 3 V/m 80% AM (1 kHz), 80 – 1 000 MHz, 1
400 MHz – 2 000
Fast transient EN 61000-4-4 Signal ports ± 0.5 kV
Power ports ± 1 kV
Surge EN 61000-4-5 Telecom/Signal ports ± 0.5 kV line to earth
Power ports ± 2 kV line to earth, ± 2 kV line to line
RF conducted EN 61000-4-6 Power ports 3V/m 80% AM (1 kHz), 0.15 – 80 MHz
Voltage dips and
interruption
EN 61000-4-11 AC power ports 10 & 100 ms, interruption
10 ms, 30% reduction
100 ms, 60% reduction
5000 ms, >95% reduction
+30% above & –20% below rated voltage
Radiated emission EN 55022 Enclosure Class B
FCC part 15 Class B
Conducted emission EN 55022 AC power ports Class A
FCC part 15 AC power ports Class B
EN 55022 DC power ports Class B
Temperature Operating
DR-260
–20 to +70º Celsius
–4 to +158º Fahrenheit
Operating
DR-260 + 3G
–20 to +55º Celsius
–4 to +131º Fahrenheit
Storage & Transport –40 to +85º Celsius
–40 to +185º Fahrenheit
Humidity Operating 5 to 95% relative humidity
Storage & Transport 5 to 95% relative humidity
Altitude Operating 2000 m / 70 kPa
Reliability prediction
(MTBF)
Bellcore
RQGR at 40°C
131 400 hours
Enclosure Pressed steel
Dimension W x H x D DR-260 239 x 40 x 151 mm
9.4 x 1.6 x 5.9 inches
DR-260 + 3G 239 x 40 x 159 mm
9.4 x 1.6 x 6.2 inches
Weight 0.9 kg
Degree of protection IEC529 Enclosure IP 40
Cooling Convection
Mounting Horizontal on 35 mm DIN-rail or flat on
level surface
