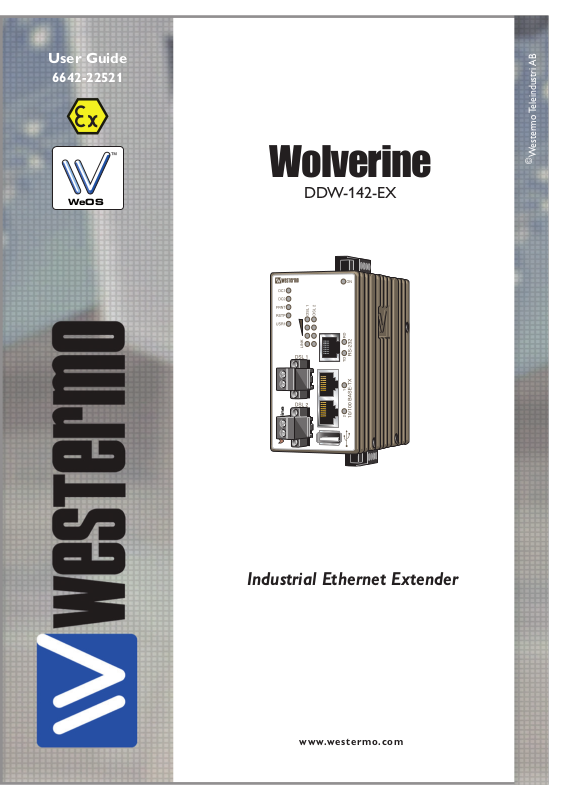

User Guide
6642-22521
WeOS
Wolverine
DDW-142-EX
Westermo Teleindustri AB
©
Industrial Ethernet Extender
www.westermo.com
2
6642-22501
Software tools
Related software tools are available in the folder software tools under
technical support on the Westermo website.
License Information
This device contains public available software which is under the GPL license.
For more information see legal.pdf included with all firmware releases.
This product includes software developed by the OpenSSL Project for use in the
OpenSSL Toolkit. http://www.openssl.org
Legal information
The contents of this document are provided “as is”. Except as required by applicable
law, no warranties of any kind, either express or implied, including, but not limited to,
the implied warranties of merchantability and fitness for a particular purpose, are made
in relation to the accuracy and reliability or contents of this document. Westermo
reserves the right to revise this document or withdraw it at any time without prior
notice.
Under no circumstances shall Westermo be responsible for any loss of data or income
or any special, incidental, and consequential or indirect damages howsoever caused.
More information about Westermo can be found at the following Internet address:
http://www.westermo.com
6642-22501
Safety
!
!
Before installation:
Read this manual completely and gather all information on the unit. Make sure
that you understand it fully. Check that your application does not exceed the safe
operating specifications for this unit.
This unit should only be installed by qualified personnel.
This unit should be built-in to an apparatus cabinet, or similar, where access is
restricted to service personnel only. Refer to Specific Conditions of Use.
The power supply wiring must be sufficiently fused, and if necessary it must be
possible to disconnect manually from the power supply. Ensure compliance to
national installation regulations.
This unit uses convection cooling. To avoid obstructing the airflow around the unit,
follow the spacing recommendations (see Cooling section).
"Note that this unit can be connected to two different power sources."
Before mounting, using or removing this unit:
Prevent access to hazardous voltage by disconnecting the unit from power supply.
Warning! Do not open connected unit. Hazardous voltage may occur within this
unit when connected to power supply.
When this unit is operated at an ambient temperature above +60°C (+140°F),
forced ventilation is required to not exceed Touch Temperature Limits according
to UL/IEC/EN 60950-1. A recommended airflow 32CFM (61m3/h) located 17cm
(7") below the unit is a minimum requirement. To reduce the risk of fire, use only
No. 26 AWG or larger telecommunication line cord.
Care recommendations
Follow the care recommendations below to maintain full operation of unit and to fulfil
the warranty obligations.
This unit must not be operating with removed covers or lids.
Do not attempt to disassemble the unit. There are no user serviceable parts inside.
Do not drop, knock or shake the unit, rough handling above the specification may cause
damage to internal circuit boards.
Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit.
Do not paint the unit. Paint can clog the unit and prevent proper operation.
Do not expose the unit to any kind of liquids (rain, beverages, etc). The unit is not
waterproof. Keep the unit within the specified humidity levels.
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical
part may be damaged.
If the unit is not working properly, contact the place of purchase, nearest Westermo
distributor office or Westermo Tech support.
A readily accessible disconnect device shall be incorporated external to the equipment.
This unit may have hot surfaces when used in high ambient temperature.
Maintenance
No maintenance is required, as long as the unit is used as intended within the specified
conditions.
4
6642-22521
4
ATEX certification
ATEX certification number
Baseefa 14ATEX 0151X
Standards
EN 60079-0:2012, EN 60079-15:2010
Certification code
Ex nA IIC T4 Gc (–40°C ≤ Ta ≤ +70°C)
ATEX code
II 3G
Specific Conditions of Use
The equipment must be installed in an area of not more than pollution degree 2 in
accordance with IEC/EN 60664-1, and in an enclosure that provides a minimum degree of
protection of at least IP54 and complies with the relevant requirements of EN 60079-0
and EN 60079-15.
All external connections to the equipment must not be inserted or removed unless
either the area in which the equipment is installed is known to be non-hazardous, or the
circuits connected have been de-energized.
The network cables once installed must be properly fixated by the use of cable ties or
similar to reduce the risk of accidently withdrawing the plugs.
Equipment input parameters
Power Connector: +DC1, +DC2 & –COM
Working Voltage Range = 24 V to 48 VDC.
I/O Connector: ‘Status +’ & ‘Status –’ and ‘Digital in +’ and ‘Digital in –’
Maximum I/P Voltage = 60 VDC.
6642-22521
5
ATEX-Zertifizierung
ATEX-Zulassungsnummer
Baseefa 14ATEX 0151X
Standards
EN 60079-0:2012, EN 60079-15:2010,
Zertifizierungscode
Ex nA IIC T4 Gc (–40°C ≤ Ta ≤ +70°C)
ATEX-Code
II 3G
Spezifische Einsatzbedingungen
Die Geräte müssen in einem Bereich welcher einem maximalen Verschmutzungsgrad der
Stufe 2 gemäß IEC/EN 60664-1 entspricht und in einem Gehäuse, das einen Schutzgrad
von mindestens IP54 bietet und die relevanten Anforderungen von N 60079-0 und EN
60079-15 erfüllt, installiert werden.
Alle Anschlüsse des Gerätes dürfen nur dann angeschlossen oder abgeschlossen werden,
wenn der Bereich, in dem das Gerät installiert ist, nachweislich ungefährlich oder das
Gerät völlig spannungsfrei ist.
Die Netzwerkkabel müssen nach der Installation mithilfe von Kabelbindern oder
ähnlichem Material ordnungsgemäß befestigt werden, um ein versehentliches Abziehen
der Stecker zu verhindern.
Eingangsparameter der Geräte
Stromversorgung: +DC1, +DC2 & –COM
Betriebsspannungsbereich = 24 V to 48 VDC.
I/O-Anschluss: ‘Status +’ & ‘Status –’ und ‘Digital in +’ und ‘Digital in –’
Maximale I/P-Spannung = 60 VDC.
6
6642-22521
Certification ATEX
Numéro de certification ATEX
Baseefa 14ATEX 0151X
Normes
EN 60079-0:2012, EN 60079-15:2010
Code de certification
Ex nA IIC T4 Gc (–40°C ≤ Ta ≤ +70°C)
Code ATEX
II 3G
Conditions spéciales d'utilisation
L'équipement doit être installé dans une zone où le degré de pollution ne dépasse pas le
degré 2 conformément à l'IEC/EN 60664-1, et dans un boîtier qui fournit un niveau de
protection au moins égal à IP54 et conforme aux exigences applicables à EN 60079-0 et
EN 60079-15
Toutes les connexions externes à l'équipement ne doivent pas être insérés ou retirés sauf
si la zone dans laquelle l'équipement est installé est reconnue comme non dangereuse, ou
si les circuits raccordés sont hors-tension.
Une fois les câbles réseau installés, ils doivent être correctement fixé grâce à des attaches
de câbles ou autre élément semblable afin de réduire le risque de débranchement
accidentel.
Paramètres d'entrée des équipements
Connecteur d'alimentation : +DC1, +DC2 & –COM
Double entrée d'alimentation 24 V à 48 VCC
Connecteur E/S : « Statut + » et « Statut – » et « Entrée digitale + » et « Entrée digitale – »
Tension maximale I/P = 60 VCC.
6642-22521
7
ATEX Information
General
This unit is intended for use in Zone 2 hazardous location only.
Marking
II 3G
Ex nA IIC T4 Gc
SPECIAL CONDITION
Indicate that this unit complies with relevant European standards that are
harmonised with the 94/9/EC Directive (ATEX).
II
3
G
Ex Indicates that this unit is in conformity with relevant European Ex standard(s).
nA
IIC Gas group, a typical gas i hydrogen.
T4
Gc
SPECIAL
CONDITION
Equipment group II.
This unit can be installed in all places with an explosive gas atmosphere other
than mines susceptible to firedamp.
Equipment category 3.
A category is the classification according to the required level of protection.
This unit ensures the requisite level of protection during normal operation and
is intended for use in areas in which explosive atmosphere caused by gases,
vapours, mists, or dust mixtures are unlikely to occure or, if they do occure, are
likely to do so only infrequently and for a short periode only.
Indicates protection concerning explosive atmospheres caused by gases,
vapours or mists (G).
The type of protection used.
This unit is a non-sparking device "nA" which is constructed to minimize the risk
of occurence of arcs or sparks capable of creating an ignition hazard during
conditions of normal operation.
Temperature class T4 (T4 = 135 °C).
This unit is classified in accordance with its maximum surface temperature
(external and internal).
Equipment protection level Gc (EPL Gc).
Equipment for explosive gas atmospheres, having a "enhanced" level of
protection, which is not a source of ignition in normal operation and which may
have some additional protection to ensure that it remains inactive as an ignition
source in the case of regular expected occurences.
EPL Gc are analogous to the ATEX Categories (Category 3 G = EPL Gc).
This unit has a special condition for safe use.
The special condition for safe use contains safety related information that is
necesarry for the correct installation and safe use.
8
6642-22521
SPECIAL CONDITION FOR SAFE USE
Ambient temperature:
This unit is designed for use in extreme ambient temperature conditions according to the
following: –40ºC ≤ Ta ≤ +70ºC
Installation in an apparatus cabinet:
This unit requires installation in an Ex certified apparatus cabinet suitable for the area of
use and providing a degree of protection of at least IP54.
Resistance to impact:
This unit requires installation in an apparatus cabinet where adequate resistance to
impact is provided by the apparatus cabinet. See "Installation in an apparatus cabinet"
above for requirements on the external apparatus cabinet.
Secureness of plugs:
When this unit is installed in an explosive atmospheres, all connectors must be
mechanically secured to prevent loosening.
Conductor temperature:
When this unit is installed in locations with high ambient temperature, special precautions
shall be taken upon the choice of external conductor(s) and the temperature rating of
the conductor(s).
Directive 94/9/EC alongside with other directives:
Directive 2004/108/EC (EMC) applies and to assure a safe performance of this unit
under the scope of Directive 94/9/EC, refer to the electromagnetic immunity level
specified under “Type tests and environmental conditions” in this manual.
Warning marking:
When this unit is installed in an explosive atmospheres, the warning label submitted
together with this unit shall be attached on the unit and visible to the end user.
Standards and date of compliance
EN 60079-0 and EN 60079-15
2014-06-19
6642-22521
9
Agency approvals and standards compliance
Type Approval / Compliance
EMC EN 50121-4, Railway signalling and telecommunications apparatus
EN 50581, Technical documentation for the assessment of electrical and electronic
products with respect to the restriction of hazardous substances
EN 61000-6-1, Immunity residential environments
EN 61000-6-2, Immunity industrial environments
EN 61000-6-3, Emission residential, commercial and light-industrial environments
EN 61000-6-4, Emission industrial environments
FCC part 15 Class A and Class B
IEC 62236-4, Railway signalling and telecommunications apparatus
Safety UL/IEC/EN 60950-1
Ex EN 60079-0 and EN 60079-15
Marine DNV Standard for Certification no. 2.4
FCC Part 15.105 Notice:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
… Reorient or relocate the receiving antenna
… Increase the separation between the equipment and receiver
… Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
… Consult the dealer or an experienced radio/TV technician for help.
10
6642-22521
Declaration of Conformity
Org.nr/
th
Westermo Teleindustri AB
Declaration of conformity
The manufacturer Westermo Teleindustri AB
Herewith declares that the product(s)
Type of product Model Art no
Industrial Ethernet Extender DDW-142-EX 3642-5300
is in conformity with the following EC directive(s).
No Short name
2004/108/EC Electromagnetic Compatibility (EMC)
94/9/EC Equipment for explosive atmospheres (ATEX)
2011/65/EU Restriction of the use of certain hazardous substances in electrical and
References of standards applied for this EC declaration of conformity.
No Title Issue
EN 61000-6-1 Electromagnetic compatibility – Immunity for residential environments 2007
EN 61000-6-2 Electromagnetic compatibility – Immunity for industrial environments 2005
EN 61000-6-3 Electromagnetic compatibility – Emission for residential environments 2007
EN 61000-6-4 Electromagnetic compatibility – Emission for industrial environments 2007
EN 50121-4 Railway applications – Electromagnetic compatibility – Emission and
IEC 62236-4 Railway applications - Electromagnetic compatibility
EN 60079-0 Explosive atmospheres - Equipment - General
EN 60079-15 Electrical apparatus for explosive gas atmospheres -
EN 50581 Technical documentation for the assessment of electrical and
The last two digits of the year in which the CE marking was affixed: 15
SE-640 40 Stora Sundby, Sweden
electronic equipment (RoHS)
immunity of the signalling and telecommunications apparatus
Emission and immunity of the signaling and telecommunications
apparatus
requirements
Construction, test and marking of type of protection
"n" electrical apparatus
electronic products with respect to the restriction of hazardous
substances
+A1:2011
+A1:2011
2006
2008
2012
2010
2012
Pierre Öberg
Technical Manager
February 2015
20
Postadress/Postal address
S-640 40 Stora Sundby 016-428000 016-428001 52 72 79-4 5671-5550 556361-2604 Eskilstuna
Sweden Int+46 16428000 Int+46 16428001
Tel.
Telefax
Postgiro
Bankgiro Corp. identity number Registered office
6642-22521
11
Type tests and environmental conditions
Electromagnetic Compatibility
Environmental
phenomena
Electrostatic discharge EN 61000-4-2 Enclosure Contact: ± 6 kV
Fast transients EN 61000-4-4 Power port ± 2 kV
Surge EN 61000-4-5 Power port L-L: ±0.5 kV, 2 Ω, 18 μF
Pulse magnetic field EN 61000-4-9 Enclosure 300 A/m
Radiated RF immunity EN 61000-4-3 Enclosure 20 V/m 80% AM, 1 kHz sine, 80 – 1000 MHz
Conducted RF
immunity
Voltage dips
and interruption
Radiated RF emission CISPR 16-2-3
Conducted RF
emission
Basic
standard
EN 61000-4-6 Power port 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz
EN 61000-4-29 DC Power port 10, 20 and 5000 ms, interruption
ANSI C63.4
(FCC part 15)
CISPR 16-2-1 Power port Class B
Description Test levels
Air: ± 8 kV
Ethernet ports ± 2 kV
SHDSL ports ± 2 kV
RS-232 port ± 2 kV
Status out / Digital in ± 2 kV
Earth port ± 1 kV
L-E: ±0.5 kV, 12 Ω, 9 μF
L-E: ±2 kV, 42 Ω, 0.5 μF
Ethernet ports L-E: ±2 kV, 2 Ω
SHDSL ports L-E: ±2 kV, 42 Ω, 0.5 μF
RS-232 port L-E: ±2 kV, 2 Ω
Status out / Digital in L-E: ±2 kV, 42 Ω, 0.5 μF
Ethernet ports 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz
SHDSL ports 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz
RS-232 port 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz
Status out / Digital in 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz
Earth port 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz
Enclosure Class B
Ethernet ports Class B
L-L: ±1 kV, 42 Ω, 0.5 μF
12 V/m 80% AM, 1 kHz sine, 1000 – 2700 MHz
500 ms, 30% reduction
200 ms, 60% reduction
+20 above & –20% below rated voltage
Class B
Class B
Class B
12
6642-22521
Electromagnetic Compatibility
Environmental
phenomena
Dielectric strength EN 60950-1 Power port to other
Environmental
Temperature EN 60068-2-1
Humidity EN 60068-2-27 Operating 5 to 95% relative humidity
Altitude Operating 2 000 m / 70 kPa
Service life Operating 10 years
Reliability prediction
(MTBF)
Vibration IEC 60068-2-64
Shock IEC 60068-2-27 Operating 6 ms 1000 m/s²
Bump IEC 60068-2-27 Operating 11 ms 100 m/s²
Packing
Enclosure material EN 60950-1 Zinc (fire enclosure)
Dimension W x H x D Without connectors 52.5 x 100 x 92 mm
Weight 0.8 kg
Degree of protection EN 60529 Enclosure IP 40
Cooling Convection
Mounting Enclosure Horizontal on 35 mm DIN-rail
Basic
standard
EN 60068-2-2
(random)
Description Test levels
isolated ports
Ethernet ports to all
other isolated ports
RS-232 port to all
other isolated ports
SHDSL ports to all
other isolated ports
Status out / Digital
in port to all other
isolated ports
Operating –40 to +70ºC (–40 to +158ºF)
Storage & Transport –40 to +85ºC (–40 to +185ºF)
Storage & Transport 5 to 95% relative humidity
Operating 437,000 hours (MIL-HDBK- 217F2, GB, 25°C)
Operating 5 – 20 Hz: 2 m²/s³
With connectors 52.5 x 100 x 111 mm
2000 Vrms 50 Hz 1 min
1500 Vrms 50 Hz 1 min
20 – 500 Hz: – 3 dB/oct
3 axis = 3 * 30 min
6 directions, 3 shocks/direction
6 directions, 100 shocks/direction
6642-22521
13
Description
Functional description
The Wolverine DDW-142 allows effec tive Ethernet networks to be created over long
distances up to 15 km (9.3 mi) at data rates up to 15.3 Mbit/s on a single twisted pair
cable. By using two pairs “bonded” this rate can be doubled up to 30.4 Mbit/s. The integral
switch allows 2 Ethernet devices to be attached and an RS-232 port allows for a legacy
piece of equipment to be incorporated into the IP network.
The operating system in DDW-142 (WeOS) can deliver unique security functionality for
this class of product as well as allowing the DDW-142 to form part of a resilient multimedia ring network using the Westermo FRNT protocol or industry standard STP/RSTP.
WeOS has been developed to provide industrial networking solutions and contains amazing serial connectivity capability – from being able to simulate an old AT modem, convert
Modbus RTU to TCP or encapsulate serial data into an IP packet.
The DDW-142 is incredibly flexible and easy to use. A basic point to point or multidrop
network can be created without the need for any kind of configuration. If however a more
complex solution requires some kind of network configuration the Web based setup is
simple to use. A CLI interface is also provided making the unit easy for networking professionals to quickly master. Once the system is configured an easy solution is also available for the maintenance engineer – USB backup and restore means that stored configurations can be automatically downloaded from a USB stick.
The DDW-142 is often used in applications on railways, roads or with utilities where failure could result in significant costs. All Westermo products are designed with high MTBF
in mind to improve operational reliability and also give long service life. Even features
like the SHDSL diagnostics and management allow indication of line degradation allowing
planned main tenance. As the unit is designed for these applications Westermo also ensure
that testing is carried out to ensure the unit can operate at extremes of temperature,
EMC and vibration and still provide robust communications.
14
6642-22521
Interface specifications
Power
Rated voltage 24 to 48 VDC
Operating voltage 19 to 60 VDC
Rated current 245 mA (405 mA) @ 24 VDC (with 500 mA USB load)
Rated frequency DC
Inrush current, I²t 10.6 mA²s @ 24 VDC
Startup current*) 2 x Rated current
Polarity Reverse polarity protected
Redundant power input Ye s
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm² (AWG 24 – 13)
Shielded cable Not required
* External supply current capability for proper start-up.
RS-232
Electrical specification EIA RS-232
Data rate 300 bit/s – 115.2 kbit/s
Data format 7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits
Protocol Transparent, optimised by packing algorithm
Circuit type SELV
Transmission range 15 m / 49 ft
Isolation to Power, SHDSL, Ethernet
Galvanic connection to USB, Console
Connection RJ-45 according to EIA-561
Shielded cable Recommended
Conductive housing Ye s
Number of ports 1
124 mA (200 mA) @ 48 VDC (with 500 mA USB load)
24.7 mA²s @ 36 VDC
42.4 mA²s @ 48 VDC
Connect the unit using at least 18 AWG (0.75 mm²) wiring
6642-22521
15
Ethernet TX
Electrical specification IEEE std 802.3. 2005 Edition
Data rate 10 Mbit/s, 100 Mbit/s, manual or auto
Duplex Full or half, manual or auto
Circuit type TNV-1
Transmission range Up to 150 m, with CAT5e cable or better
Isolation to All other
Connection RJ-45, auto MDI/MDIX
Shielded cable Not required, except when installed in Railway applications as
signalling and telecommunications apparatus and located close
to rails.*
Conductive housing Ye s
Number of ports 2
* To minimise the risk of interference, a shielded cable is recommended when the cable is located inside 3 m
boundary to the rails and connected to this port.
The cable shield should be properly connected (360°) to an earthing point within 1 m from this port.
This earthing point should have a low impedance connection to the conductive enclosure of the apparatus
cabinet, or similar, where the unit is built-in. This conductive enclosure should be connected to the earthing
system of an installation and may be directly connected to the protective earth.
Console
Electrical specification LVTTL/LVCMOS-level
Data rate 115.2 kbit/s
Data format 8 data bits, none parity, 1 stop bit, no flow control
Circuit type SELV
Connection 2.5 mm jack, use Westermo cable 1211-2027
USB
Electrical specification USB 2.0 host interface
Data rate Up to 12 Mbit/s (full-speed mode)
Circuit type SELV
Maximum supply current 500 mA
Connection USB receptacle connector type A
16
6642-22521
I/O / Relay output
Maximum voltage/current 60 VDC / 80 mA
Connect resistance Max 30 Ω
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm² (AWG 24 – 13)
I/O / Digital in
Maximum voltage / load current 60 VDC / 2 mA
Voltage levels Logic one >12 V, Logic zero <1V
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm² (AWG 24 – 13)
SHDSL
Electrical specification ITU-T G.991.2 Annex B
Data rate 32 kbit/s to 30.4 Mbit/s with bonding
Protocol EFM according to IEEE 802.3-2005
Transmission range According to ITU-T G.991.2 depending on line quality
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm² (AWG 24 – 13)
Shielded cable Not required
Number of ports 2
6642-22521
17
Location of interface ports and LED’s
(for details see page 9 and 13)
LED Indicators
(for details see page 15)
Power connection
I/O connection
(for details see
page 11 and 14)
SHDSL connection
(for details see page
11 and 14)
RS-232 Connection
(for more details see also page 9)
Position Signal Direction* Description
No. 1 DSR Out Data Set Ready
No. 2 DCD Out Data Carrier Detect
No. 3 DTR In Data Terminal Ready
No. 4 SG – Signal Ground, not chassis ground
No. 5 RD
No. 6 TD
No. 7 CTS Out Clear To Send
No. 8 RT S In Request To Send
* Direction relative this unit.
Out
Receive Data
In Transmit Data
Female
Pin 1Pin 8
Ethernet connection TX (2 ports)
(for more details see also page 10)
Position Direction* Description
No.1 In/Out Transmitted/Received data
No. 2 In/Out Transmitted/Received data
No. 3 In/Out Transmitted/Received data
No. 4 Not Connected
No. 5 Not Connected
No. 6 In/Out Transmitted/Received data
No. 7 Not Connected
No. 8 Not Connected
* Direction relative this unit.
USB
(for more details see also page 10)
Position Direction* Description
No.1 Out VBUS
No. 2 In/Out D–
No. 3 In/Out D+
No. 4 Out GND
Shield In/Out Connected to protective earth
* Direction relative this unit.
18
6642-22521
Power connection
(for more details see also page 9)
4-position Product marking Direction Description
1
2
3
4
This unit supports redundant power connection. The positive inputs are +DC1 and +DC2, the negative input for
both supplies are –COM. Connect the primary voltage (e.g. +24 VDC) to the +DC1 pin and return to one of the
–COM pins on the power input.
No. 1 +DC1 Input Supply voltage input DC1
No. 2 +DC2 Input Supply voltage input DC2
No. 3 -COM Input Common
No. 4 -COM Input Common
Console port
(for more details see also page 10)
Position Direction* / description
No.1 In / out / GND
No. 2 Out / Tx
No. 3 In / Rx
* Direction relative to this unit.
I/O connection (for details see page 11 and 14)
Cable 1211-2027
Connection to console port
The console port can be used to connect to the CLI
(Command Line Interface).
The following steps needs to be taken
Bottom view
1. Connect the serial diagnostic cable to the console port
(use only Westermo cable 1211-2027).
2. Connect cable to your computer (USB port, if drivers are needed they can be downloaded
from our Web page).
3. Use a terminal emulator and connect with correct speed and format (115200, 8N1)
to the assigned port.
For more information about the CLI, see the WeOS management guide.
Accessories
Description Art no
Westermo console cable 1211-2027
RJ45 to DB9 cable 1211-2210
6642-22521
19
SHDSL
1
2
* Direction relative this unit.
Position Direction* Description
No.1 In/Out 2-wire Receive/Transmit SHDSL
No. 2 In/Out 2-wire Receive/Transmit SHDSL
I/O connection
4-position Product marking Direction Description
1
2
3
4
The Status output is a potential free, opto-isolated normally closed solid-state relay.
This can be configured to monitor various alarm events within the unit, see WeOS Management Guide.
An external load in series with an external voltage source is required for proper functionality.
For voltage/current ratings, see Interface Specification section.
No. 1 Status + Output Alarm relay (status) contact
No. 2 Status – Output Alarm relay (status) contact
No. 3 Digital in + Input Digital in +
No. 4 Digital in – Input Digital in –
The Digital in is an opto-isolated
digital input which can be used
to monitor external events.
For voltage/current ratings, see
Interface Specification section:
DDW-142
External
Load
1
Status
2
3
4
V
+
V
–
Digital In
20
6642-22521
LED indicators
LED Status Description
ON OFF Unit has no power.
GREEN All OK, no alarm condition.
RED
FLASH Location indicator ("Here I am!"). Activated
DC1 OFF Unit has no power.
GREEN
RED Power failure on DC1.
DC2 OFF Unit has no power.
GREEN Power OK on DC2.
RED Power failure on DC2.
RSTP OFF RSTP disabled.
GREEN RSTP enabled.
BLINK Unit elected as RSTP/STP root switch.
FRNT OFF FRNT disabled.
GREEN FRNT OK.
RED FRNT Error.
BLINK Unit configured as FRNT focal point.
LNK
SHDSL ports
Link indicator
Port 1–2
SHDSL ports
Quality indicator
Port 1–2
RD OFF No serial data transmitted.
TD OFF No serial data received.
Copper ports
Port 1–2
OFF No DSL link.
GREEN DSL link established.
GREEN FLASH DSL link negotiation.
YELLOW Port alarm and no link.
All OFF No DSL link.
3 RED Signal to noise value below 3 dB.
1 GREEN Signal to noise value 3–5 dB.
2 GREEN Signal to noise value 6–9 dB.
3 GREEN Signal to noise value above 9 dB.
GREEN FLASH Serial data transmitted.
GREEN FLASH Serial data received.
OFF No link.
GREEN Link established.
GREEN FLASH Data traffic indication.
YELLOW Port alarm and no link. Or if FRNT, RSTP or
Alarm condition, or until unit has started
up. (Alarm conditions are configurable,
see ''WeOS Management Guide'').
when connected to IPConfig Tool, or upon
request from Web or CLI.
Power OK on DC1.
Or if FRNT or RSTP mode, port is blocked.
Unstable DSL link.
Marginal DSL link.
Normal DSL link.
Strong DSL link.
Link Aggregation mode, port is blocked.
6642-22521
21
Mounting
This unit should be mounted on 35 mm DIN-rail, which is horizontally mounted inside an
apparatus cabinet or similar. It is recommended that the DIN-rail is connected to ground.
Snap on mounting, see figure.
Mounting DDW-142 with integrated DIN-clip:
Removal
Removing DDW-142 with integrated DIN-clip:
Press down the support at the back of the unit using
a screwdriver. See figure.
Cooling
This unit uses convection cooling. To avoid
obstructing the airflow around the unit, use minimum
spacing 25 mm (1.0") above/below and 10 mm (0.4")
left/right the unit.
Spacing is recommended for the use of unit in full
operating temperature range and service life. When
this unit is operated at an ambient temperature
above +60°C (+140°F), refer to the Safety warnings
on page 3.
22
10mm 10mm
6642-22521
Getting Started
This product runs Westermo Operating System (WeOS) which provides several
management tools that can be used for configuration of the unit.
• IPConfig tool
This is a custom Westermo tool used for discovery of attached Westermo units.
• Web
Configuration of the unit using the web browser.
• CLI
Configuration of the unit via the Command Line Interface.
If the computer is located in the same subnet as the switch you can easily use a web
browser to configure the unit. Within the web you can configure most of the available
functions.
For advanced network settings and more diagnostic information, please use the CLI.
Detailed documentation is available in the chapter ”The Command Line Management
Tool” in the WeOS management guide.
Factory default IP address: 192.168.2.200
Netmask: 255.255.255.0
Gateway: Disabled
Note! If you are not sure about the subnet – consult your network administrator.
Configuration
Configure the unit via web browser
The unit can easily be configured via a web browser.
Open the link http://192.168.2.200 in your web browser, and you will be prompted with
a Login screen, where the default settings for Username and Password are:
Username: admin
Password: westermo
Once you have logged in, you can use the extensive integrated help function describing
all configuration options. Two common task when configuring a new switch is to assign
appropriate IP settings, and to change the password of the admin account.
The password can be up to 64 characters long, and should consist of printable ASCII
characters (ASCII 33-126); 'Space' is not a valid password character.
6642-22521
23
Referring documents
Type Description Document number
Management Guide Westermo OS management guide
6101-3201
Cable factory reset on DDW-142
It is possible to set the unit to factory default settings by using a standard Ethernet RJ-45
cable.
1. Power off the unit and disconnect all cables.
2. Connect an Ethernet cable between Ethernet ports 1 and 2.
The unit needs to be connected directly by an Ethernet cable i.e., not via a hub or switch.
Use a straight cable – not a cross-over cable, when connecting the ports.
3. Power on the unit.
4. Wait for the unit to start-up. Control that the ON LED is flashing red.
The ON LED flashing indicates that the unit is now ready to be reset to factory
default. You now have the choice to go ahead with the factory reset, or to skip factory
reset and boot as normal.
• Go ahead with factory reset:
Acknowledge that you wish to conduct the factory reset by unplugging the
Ethernet cable. The ON LED will stop flashing.
This initiates the factory reset process*, and the unit will restart with factory default
settings. When the switch has booted up, the ON LED will show a green light, and is
now ready to use.
• Skip the factory reset:
To skip the factory reset process, just wait for approximately 30 seconds
(after the ON LED starts flashing RED) without unplugging the Ethernet cable.
The switch will conduct a normal boot with the existing settings.
* Note Do not power off the unit while the factory reset process is in progress.
24
6642-22521
Dimensions
Min 4mm
Max 7,5mm
Measurements are stated in millimeters.
52
±1
±1
34
±1
100
96
±1
92
±1
6642-22521
25
Westermo • SE-640 40 Stora Sundby, Sweden
Tel +46 16 42 80 00 Fax +46 16 42 80 01
Sales Units
Westermo Data Communications
E-mail: info@westermo.com
www.westermo.com
China
sales.cn@westermo.com
www.cn.westermo.com
France
infos@westermo.fr
www.westermo.fr
Germany
info@westermo.de
www.westermo.de
For complete contact information, please visit our website at www.westermo.com/contact or scan the QR code
REV. C 6642-22521 2015-03 Westermo Teleindustri AB, Sweden – A Beijer Electronics Group Company
North America
info@westermo.com
www.westermo.com
Singapore
sales@westermo.com.sg
www.westermo.com
Sweden
info.sverige@westermo.se
www.westermo.se
United Kingdom
sales@westermo.co.uk
www.westermo.co.uk
Other Offices
Loading...
