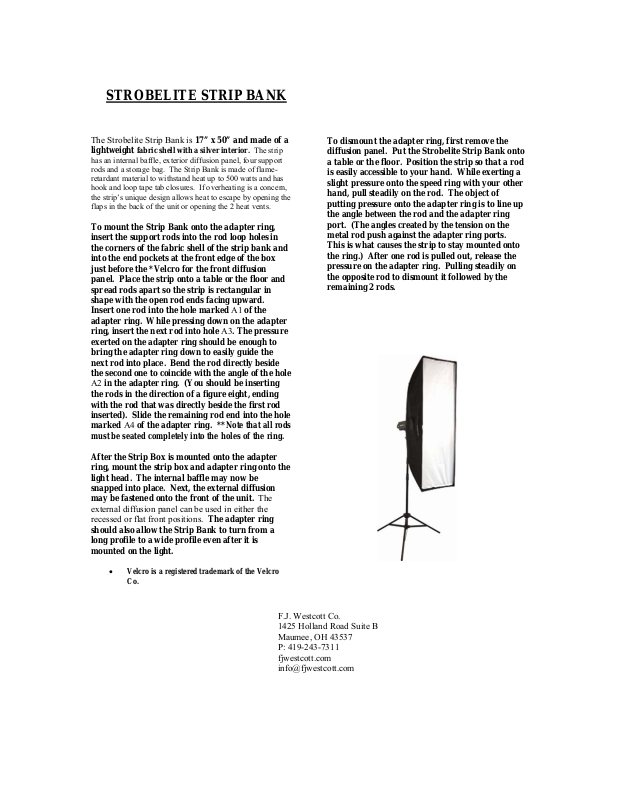

STROBELITE STRIP BANK
The Strobelite Strip Bank is 17” x 50” and made of a
lightweight fabric shell with a silver interior. The strip
has an internal baffle, exterior diffusion panel, four support
rods and a storage bag. The Strip Bank is made of flameretardant material to withstand heat up to 500 watts and has
hook and loop tape tab closures. If overheating is a concern,
the strip’s unique design allows heat to escape by opening the
flaps in the back of the unit or opening the 2 heat vents.
To mount the Strip Bank onto the adapter ring,
insert the support rods into the rod loop holes in
the corners of the fabric shell of the strip bank and
into the end pockets at the front edge of the box
just before the *Velcro for the front diffusion
panel. Place the strip onto a table or the floor and
spread rods apart so the strip is rectangular in
shape with the open rod ends facing upward.
Insert one rod into the hole marked A1 of the
adapter ring. While pressing down on the adapter
ring, insert the next rod into hole A3. The pressure
exerted on the adapter ring should be enough to
bring the adapter ring down to easily guide the
next rod into place. Bend the rod directly beside
the second one to coincide with the angle of the hole
A2 in the adapter ring. (You should be inserting
the rods in the direction of a figure eight, ending
with the rod that was directly beside the first rod
inserted). Slide the remaining rod end into the hole
marked A4 of the adapter ring. **Note that all rods
must be seated completely into the holes of the ring.
After the Strip Box is mounted onto the adapter
ring, mount the strip box and adapter ring onto the
light head. The internal baffle may now be
snapped into place. Next, the external diffusion
may be fastened onto the front of the unit. The
external diffusion panel can be used in either the
recessed or flat front positions. The adapter ring
should also allow the Strip Bank to turn from a
long profile to a wide profile even after it is
mounted on the light.
• Velcro is a registered trademark of the Velcro
Co.
F.J. Westcott Co.
1425 Holland Road Suite B
Maumee, OH 43537
P: 419-243-7311
fjwestcott.com
[email protected]
To dismount the adapter ring, first remove the
diffusion panel. Put the Strobelite Strip Bank onto
a table or the floor. Position the strip so that a rod
is easily accessible to your hand. While exerting a
slight pressure onto the speed ring with your other
hand, pull steadily on the rod. The object of
putting pressure onto the adapter ring is to line up
the angle between the rod and the adapter ring
port. (The angles created by the tension on the
metal rod push against the adapter ring ports.
This is what causes the strip to stay mounted onto
the ring.) After one rod is pulled out, release the
pressure on the adapter ring. Pulling steadily on
the opposite rod to dismount it followed by the
remaining 2 rods.
