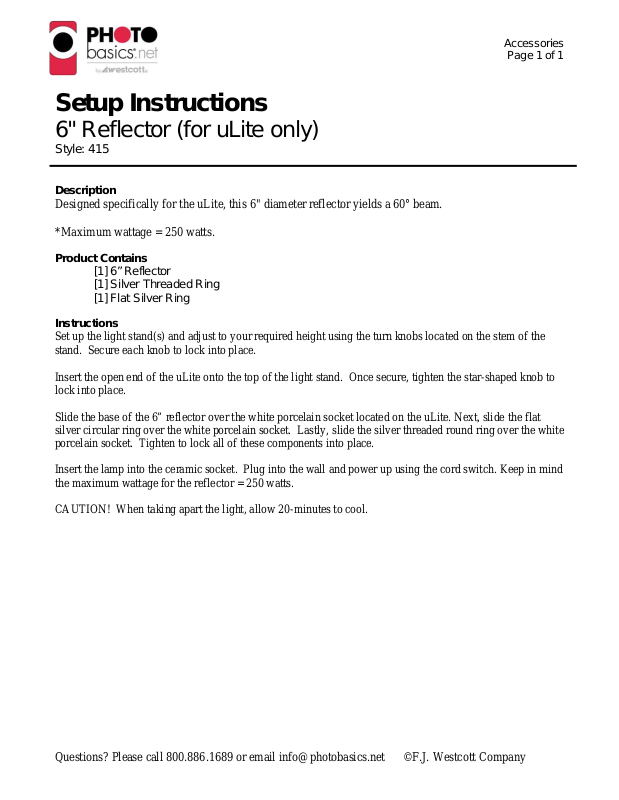

Setup Instructions

6" Reflector (for uLite only)

Style: 415

Description

Designed specifically for the uLite, this 6" diameter reflector yields a 60° beam.

*Maximum wattage = 250 watts.

Product Contains

[1] 6” Reflector [1] Silver Threaded Ring [1] Flat Silver Ring

Instructions

Set up the light stand(s) and adjust to your required height using the turn knobs located on the stem of the stand. Secure each knob to lock into place.

Insert the open end of the uLite onto the top of the light stand. Once secure, tighten the star-shaped knob to lock into place.

Slide the base of the 6” reflector over the white porcelain socket located on the uLite. Next, slide the flat silver circular ring over the white porcelain socket. Lastly, slide the silver threaded round ring over the white porcelain socket. Tighten to lock all of these components into place.

Insert the lamp into the ceramic socket. Plug into the wall and power up using the cord switch. Keep in mind the maximum wattage for the reflector = 250 watts.

CAUTION! When taking apart the light, allow 20-minutes to cool.
