Weslo Cadence A3 User Manual
Model No. WLTL223040
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
Serial No.
Serial Number Decal
QUESTIONS?
If you have questions, or if there
are missing parts, we will guarantee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
USER'S MANUAL
CUSTOMER HOT LINE:
1-866-699-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc
tions in this manual before using
this equipment. Save this manual
for future reference.
-
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

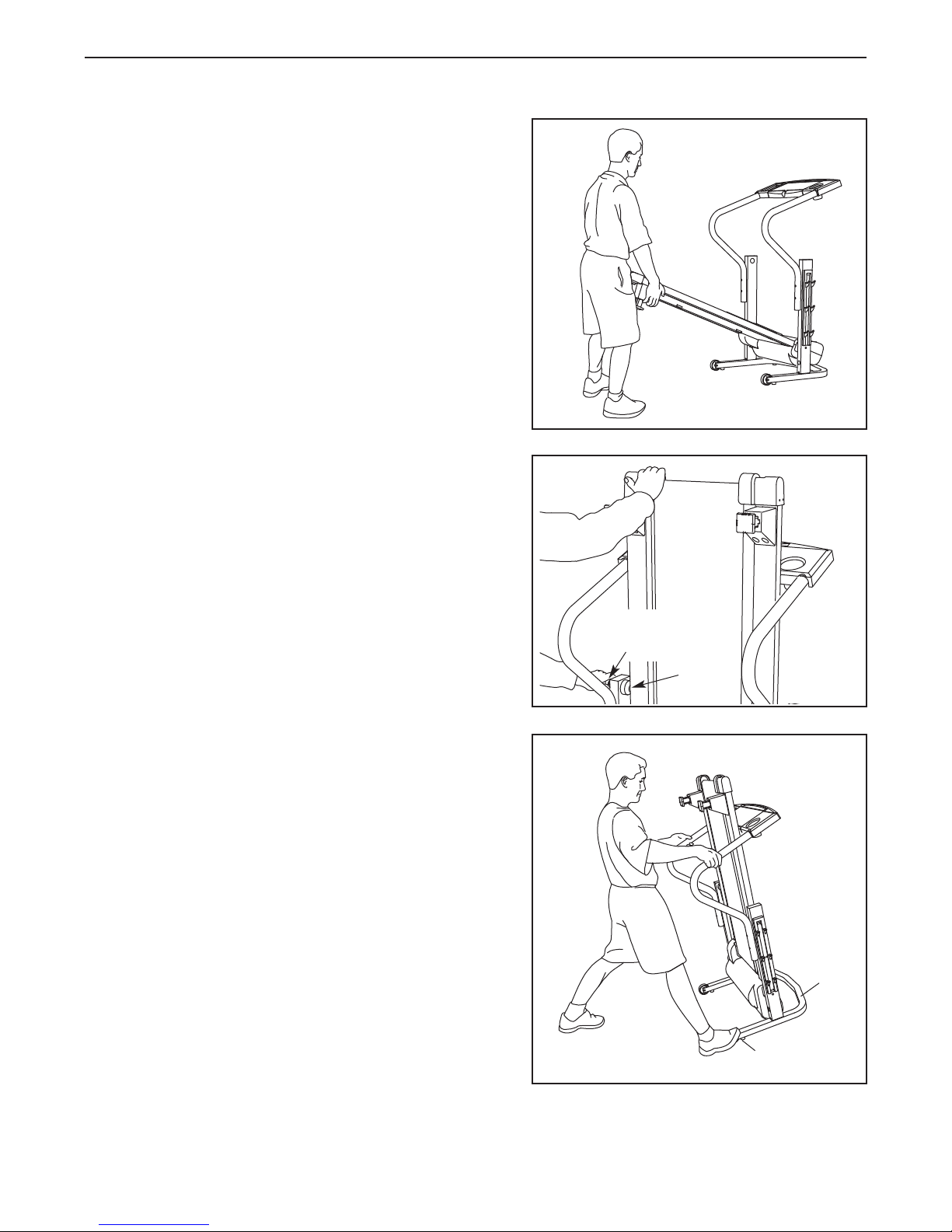

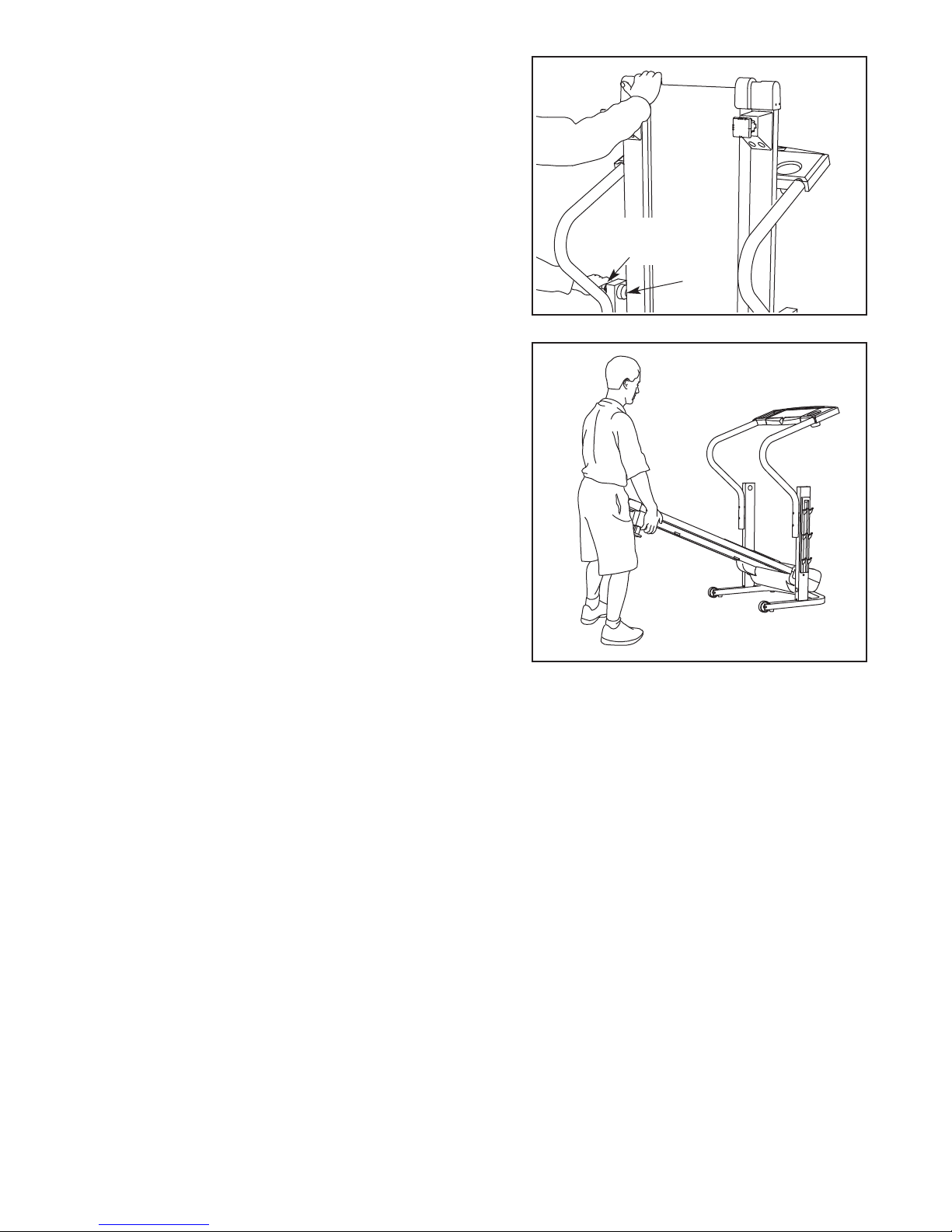

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.
WESLO is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described in this
manual.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Inspect and properly tighten all parts of the
treadmill regularly.
7. Keep children under the age of 12 and pets
away from the treadmill at all times.
8. The treadmill should not be used by persons
weighing more than 250 pounds.
9. Never allow more than one person on the
treadmill at a time.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 10. To purchase a surge suppressor, see
your local WESLO dealer or call 1-866-6993756 and order part number 146148, or see
your local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
14. Keep the power cord and the surge suppressor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See page 5
if the treadmill is not working properly.)
16. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
17. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
18. Never leave the treadmill unattended while it is
running. Always remove the key and unplug
the power cord when the treadmill is not in use.
10. Wear appropriate exercise clothes when using
the treadmill. Do not wear loose clothes that
could become caught in the treadmill. Athletic
support clothes are recommended for both
men and women.
Never use the treadmill with bare feet, wearing
only stockings, or in sandals.

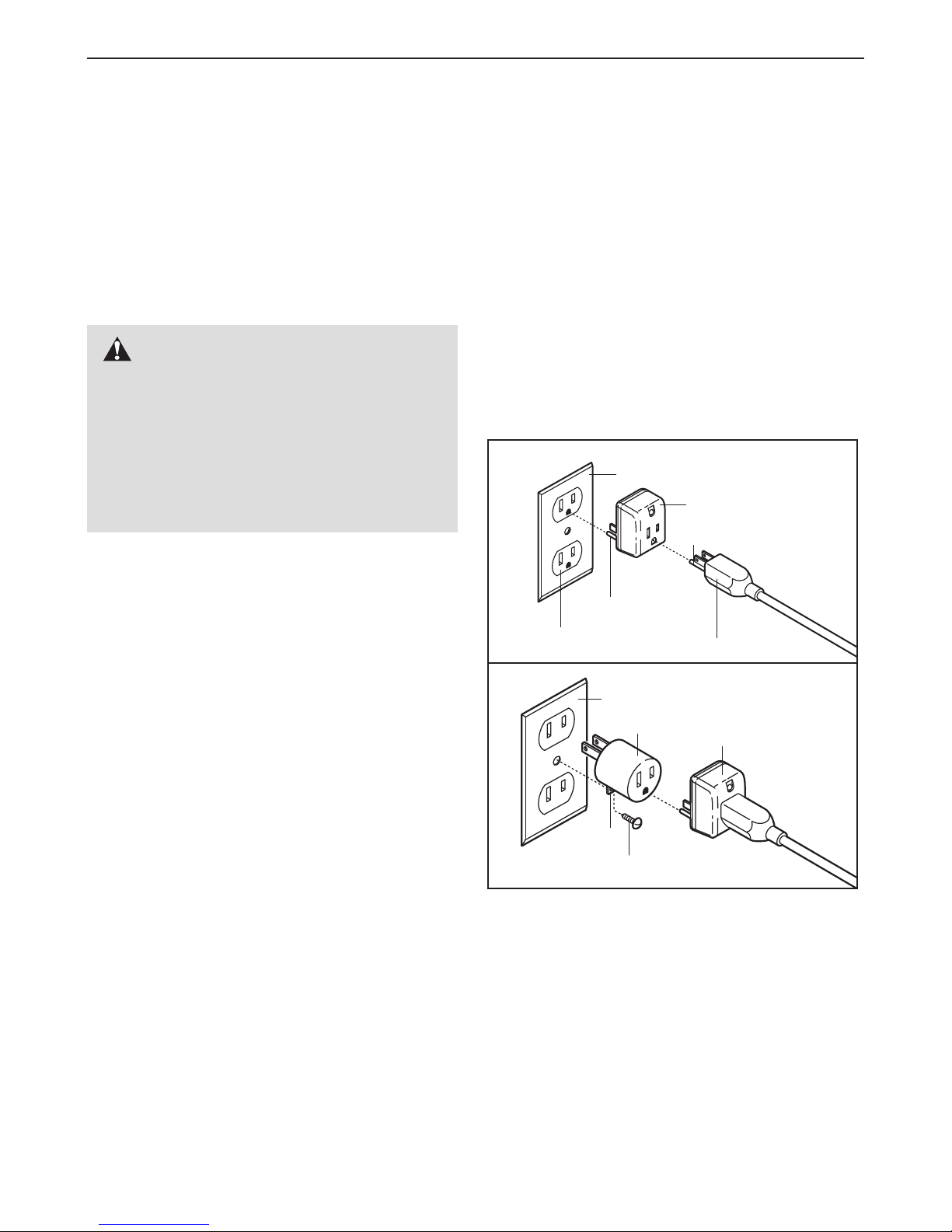

When connecting the power cord (see page
11.
10), plug the power cord into a surge suppressor (not included) and plug the surge
suppressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
Always wear athletic shoes.
Do not attempt to raise, lower, or move the
19.
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO MOVE
THE TREADMILL on page 13.) You must be
able to safely lift 45 pounds (20 kg) to raise,
lower, or move the treadmill.
Do not change the incline of the treadmill by
20.
placing objects under the treadmill.
21. Use the hand weights only at walking speeds.
Using weights and not holding the handrails
may compromise your ability to maintain your
balance. Exercises using weights should be
attempted only by experienced users.
3
22. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
23. Never drop or insert any object into any
opening.
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
24. DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the maintenance and adjustment procedures de-
25. This treadmill is intended for in-home use
only. Do not use this treadmill in any commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown have been placed on your
treadmill. If a decal is missing, or if it is not legible, please call our Customer Service
Department, toll-free, to order a free replacement
decal (see ORDERING REPLACEMENT PARTS on
the back cover of this manual). Apply the decal in
the location shown. Note: The decals are not
shown at actual size.
4
BEFORE YOU BEGIN
Thank you for selecting the WESLO CADENCE®A3
treadmill. The CADENCE A3 treadmill combines advanced technology with innovative design to let you
enjoy an excellent form of cardiovascular exercise in
the convenience and privacy
you’re not exercising, the innovative CADENCE A3
treadmill can be folded up, requiring less than half the
floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please call our Customer Service
Accessory Tray
Key/Clip
of your home. And when
Department toll-free at 1-866-699-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note
the product model number and serial number before
calling. The model number of the treadmill is
WLTL223040. The serial number can be found on a
decal attached to the treadmill (see the front cover of
this manual for the location).
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Water Bottle
Holder (Bottle
not included)
Handrail
Storage Latch
LEFT SIDE
Foot Pad
Walking Belt
Rear Roller
Adjustment Bolts
RIGHT SIDE
Hand Weight
Circuit Breaker
Power Cord
Wheel
Incline Leg
5
ASSEMBLY
5/16” Star Washer
(64)–4
3/8" Star
Washer (42)–6
6 1/2" Bolt (10)–2
3/4" Tek Screw (24)–4
2" Bolt (12)–6
Wheel Nut (29)–2
3/4" Screw (7)–10
Rack Screw (21)–12
3” Bolt (30)–4
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of
the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there
is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrench and your own phillips screwdriver ,
adjustable wrench , wire cutters , and needlenose pliers .
For help identifying the assembly hardware, see the part drawings below. Note: The assembly hardware
and other small parts are packaged in separate part bags. Do not open the part bags until instructed to
do so.
1. Make sure that the power cord is unplugged.
Orient the Base (28) so the holes for the four Base Pads
(19) are on top. Open part bag A. Attach the four Base
Pads to the Base with the four 3/4” Tek Screws (24).
Attach the two Wheels (15) to the Base (28) with two 2”
Bolts (12) and two Wheel Nuts (29) as shown. Do not
overtighten the Bolts. The Wheels must be able to
turn freely.
1
12
15
6
24
19
19
29
19
29
15
24
28
24
19
24
12
2. Identify the Right Upright (6), which has a large round
hole near the lower end, and the Left Upright (17).
See drawing 2a. Make sure that there are two U-nuts
(63) in the lower end of each Upright (6, 17).
Open part bag B. See drawing 2b. Have a second person hold the Base (28) so it is resting on the Wheels (15)
as shown. Attach the Right and Left Uprights (6, 17) to
the Base with four 3” Bolts (30) and four 5/16” Star
Washers (64). Do not tighten the Bolts yet. Make sure
that the large and small holes in the Right Upright
are on the sides shown, and that the small holes in
the Left Upright are on the indicated side. In addition,
make sure that the Base is oriented so the Base Pads
(19) are in the location shown.
2
Hole
2b
Small
Holes
6, 17
6
17
64
2a
6, 17
63
Small
Holes
64
28
30
19
15
3. Raise the Uprights (6, 17) to the vertical position. Place
the Frame (55) between the Uprights as shown.
Feed the Wire Harness (22) into the large round hole in
the lower end of the Right Upright (6) and out of the indicated hole. Note: It may be helpful to use needlenose pliers to pull the end of the Wire Harness out of the hole.
Large
Hole
3
30
19
15
17
6
22
55
22

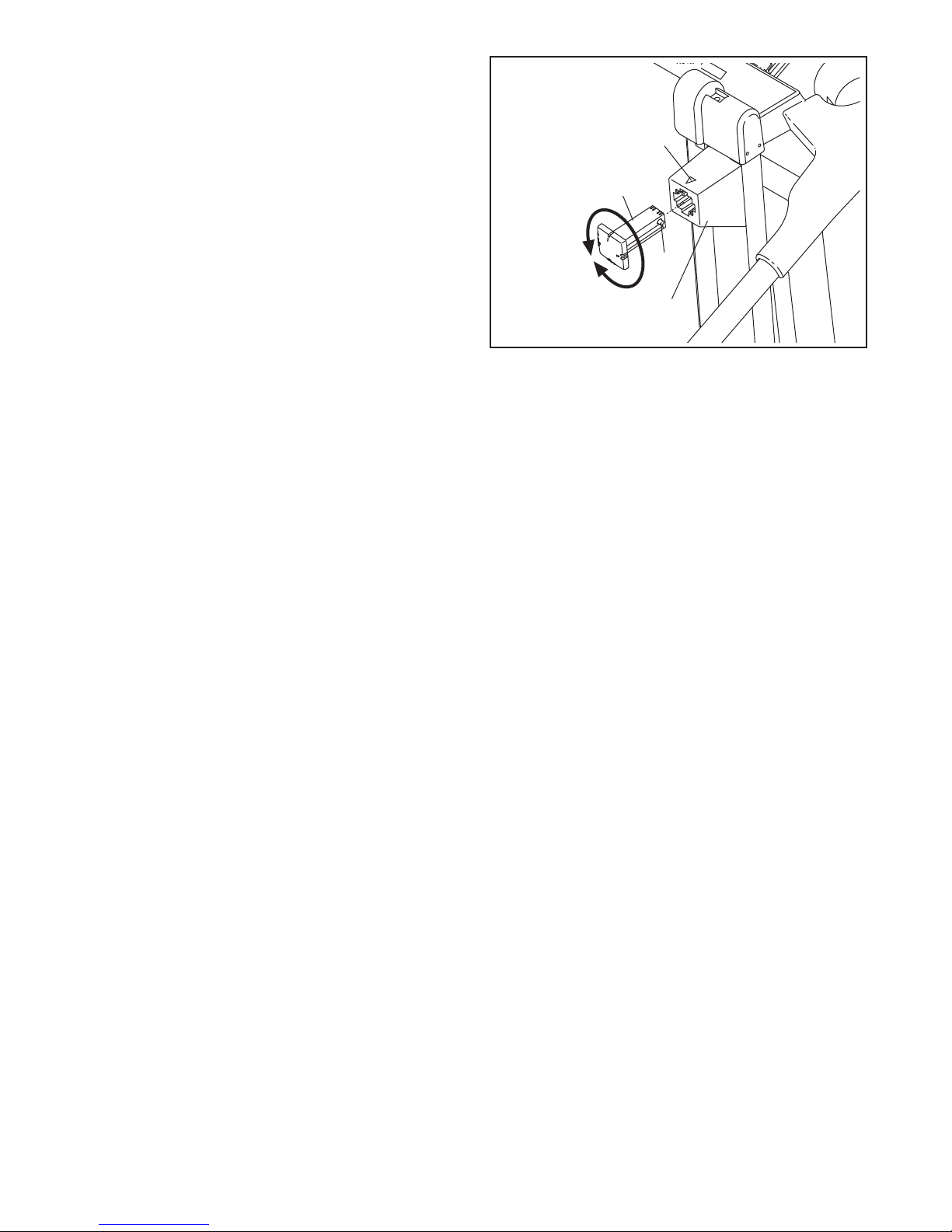

4. Hold the Right Frame Spacer (16) and the Left Frame
Spacer (not shown) against the sides of the Frame (55) as
shown. Make sure that the widest side of each Frame
Spacer is facing forward. With the help of a second person, carefully lift and hold the Frame so the Frame
Spacers are between the Right Upright (6) and the Left
Upright (not shown).
Align the hole in the Right Upright (6) with the hole in the
Right Frame Spacer (16). Tighten a 6 1/2” Bolt (10) with a
3/8” Star Washer (42) into the Right Upright, the Right
Frame Spacer, and the Frame (55).
the left side of the treadmill. Do not overtighten the
Bolts.
Repeat this step on
7
4
6
Wide
side
42
10
16
55
