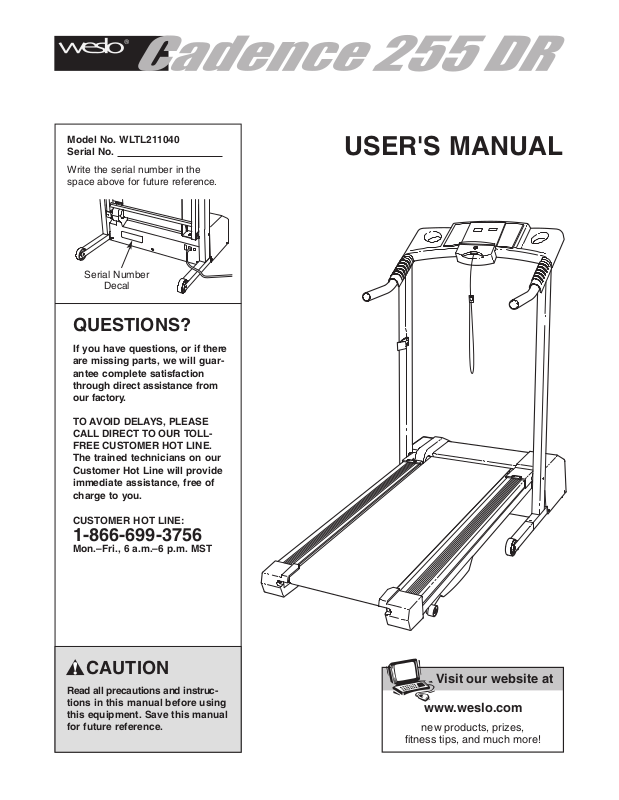

Write the serial number in the
space above for future reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if there
are missing parts, we will guarantee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
USER'S MANUAL
OMER HOT LINE:
CUST
1-866-699-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
the following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage,
place a mat under the treadmill.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
Keep children under the age of 12 and pets
6.
away from the treadmill at all times.
The treadmill should not be used by persons
7.
weighing more than 250 pounds.
Never allow more than one person on the
8.
treadmill at a time.
9. Wear suitable exercise clothes when using
the treadmill. Do not wear loose clothes that
could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women.
ic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.
Always wear athlet-
10. When connecting the power cord (see page 8),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be
on the same circuit. Do not use an extension
cord.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 8. To purchase a surge suppressor, see
your local WESLO dealer or call 1-866-6993756 and order part number 146148, or see
your local electronics store.
12. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control sys
tem is damaged, the walking belt may change
speed or stop unexpectedly, which may result
in a fall and serious injury
Keep the power cord and the surge
13.
away from heated surfaces.
sor
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See page 4
if the treadmill is not working properly.)
15. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
.
suppres
-
-
2
The treadmill is capable of high speeds.
16.
Adjust the speed in small increments to
avoid sudden jumps in speed.
17. Never leave the treadmill unattended while it is
running. Always remove the key and unplug
the power cord when the treadmill is not in
use.
18. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 5, and HOW TO MOVE
THE TREADMILL on page 11.) You must be
able to safely lift 45 pounds (20 kg) to raise,
lower, or move the treadmill.
19. Do not change the incline of the treadmill by
placing objects under the treadmill.
20. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
Inspect and properly tighten all parts of the
21.
treadmill regularly.
22. Never drop or insert any object into any
opening.
DANGER: Always unplug the power
23.
cord immediately after use, before cleaning
the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service representative only.
24. This treadmill is intended for in-home use
only. Do not use this treadmill in any commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown have been placed on your treadmill. If a decal is missing, or if it is not legible, please
call toll-free 1-866-699-3756 to order a free replacement decal. Apply the decal in the location shown.
Note: The decals are not shown at actual size.
3
BEFORE YOU BEGIN
Thank you for selecting the WESLO®CADENCE 255
DR treadmill.
bines advanced technology with innovative design to
let you enjoy an excellent form of cardiovascular exercise in the convenience and privacy of your home. And
when you’re not exercising, the unique CADENCE 255
DR treadmill can be folded up, requiring less than half
the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please call our Customer Service
The CADENCE 255 DR treadmill com-
Console
Handrail
Department toll-free at 1-866-699-3756, Monday
through Friday
(excluding holidays). To help us assist you, please note
the product model number and serial number before
calling. The model number of the treadmill is
WLTL211040. The serial number can be found on a
decal attached to the treadmill (see the front cover of
this manual for the location).
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
, 6 a.m. until 6 p.m. Mountain Time
Water Bottle Holder
(Bottle not included)
Key/Clip
Walking Belt
Foot Rails
BACK
Rear Roller
Adjustment Bolts
Storage Latch
Upright
FRONT
Circuit Breaker
Power Cord
Incline Leg
RIGHT SIDE
4
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply
wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrenches and your own phillips screwdriver ,
wire cutters , and needlenose pliers .

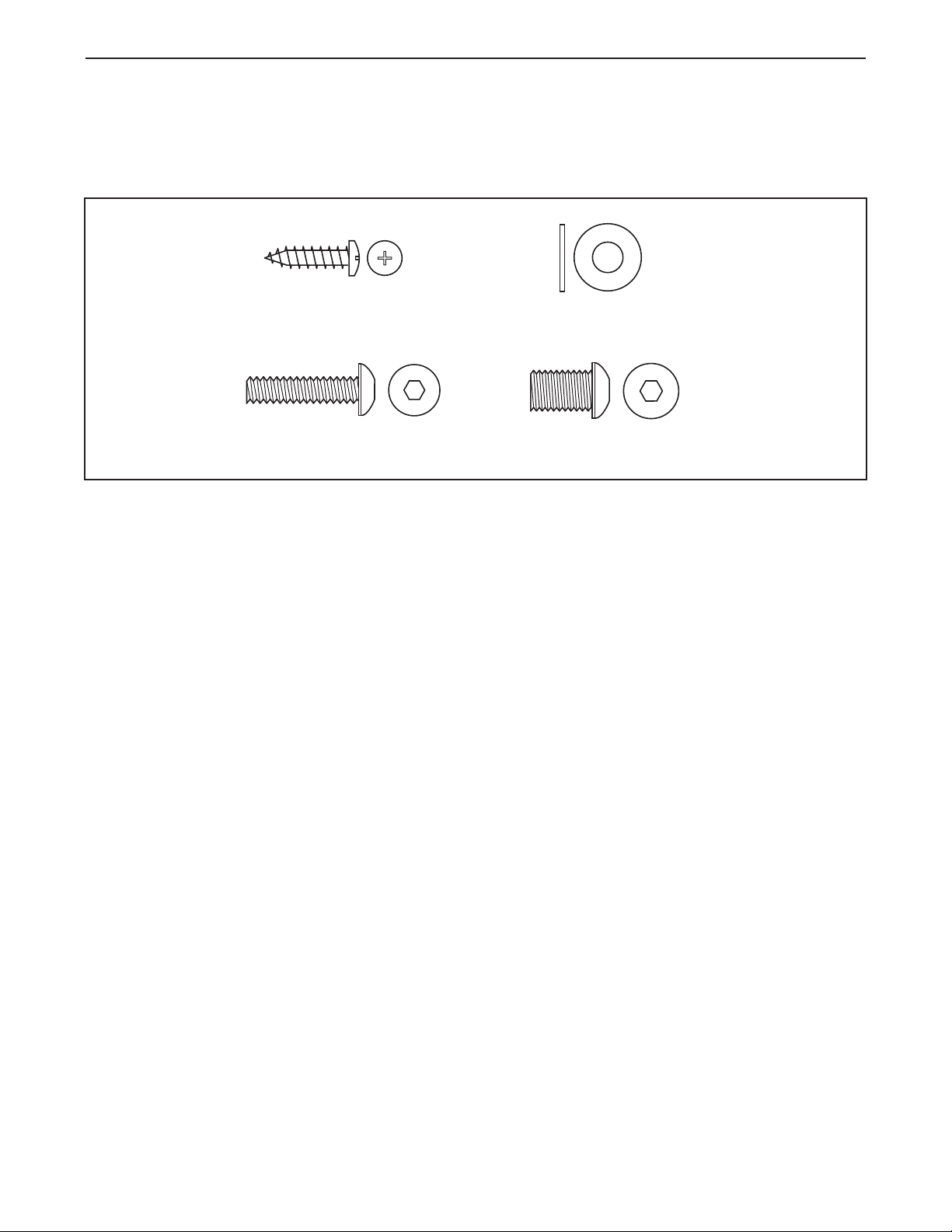

To identify small parts, use the PART IDENTIFICATION CHART attached in the center of this manual.
Note: If a part is not in the parts bag, first check to see if it has been pre-assembled.
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully raise the
Uprights (38) until the treadmill is in the position shown.
Cut the plastic tie (not shown) off the right Upright (38).
2. Insert one of the Extension Legs (15) into the treadmill
as shown. Make sure that the Base Pad (33) is on the
indicated side. Note: It may be helpful to tip the Uprights
in the direction shown by the arrow as you insert
(38)
the Extension Leg.
Attach the Extension Leg (15) with an Extension Leg
Screw (14). Make sure to push on the head of the
Extension Leg Screw while tightening it.
1
38
2
38
ttach the other Extension Leg (15) in the same way
A
.
33
14
15
5
3. If there are plastic ties in the brackets on the Handrails
(4), remove the plastic ties. Hold one of the Handrails
near the right Upright (38) as shown. Insert the W
Harness (53) up through the bracket on the Handrail and
out of the round hole in the side of the Handrail. If nec
essary, use needlenose pliers to pull the Wire Harness
out of the hole. Be careful not to damage the Wire
Harness.
Insert the brackets on the Handrails (4) into the upper
ends of the Uprights (38).
Finger tighten four 1” Bolts (16) with Handrail Washers
(40) into the Uprights (38) and the Handrails (4) as
shown.
ire
3
-
16
4
Connectors
16
40
Bracket
40
38
16
53
4
16
40
38
4. Set the Console Base (87) on the Handrails (4). Thread
four 3/4” Screws (5) into the Handrails and the Console
Base. After you have started all four Screws,
Screws until they are snug; do not overtighten the
Screws. Note: It may be helpful to press down on the
top of the Console Base above the Handrails as you
tighten the Screws.
See step 3. Firmly tighten, but do not overtighten,
the four 1” Bolts (16).
Insert the Wire Harness (53) through the two indicated
plastic ties on the Console Base (87) and up through the
hole in the Console Base as shown.
5. Hold the Console (11) near the Console Base (87).
Touch the right Handrail (4) to discharge any static.
Next, insert the Wire Harness (53) through the plastic tie
labeled C in the drawing at the right.
Locate the two connectors on the Wire Harness (53).
Plug the wider connector into the connector labeled
the drawing at the right
tors should slide together easily and snap into
place. If they do not, turn the connector on the Wire
Harness and try again.
through the plastic tie labeled D; plug the connector into
the connector labeled B (see drawing 5c).
ORS ARE NOT INSERTED PROPERLY, THE
NECT
CONSOLE MAY BE DAMAGED WHEN THE POWER
IS TURNED ON.
(see drawing 5b).
Insert the other connector
tighten the
A
The connec
IF THE CON-
4
87
53
4
Plastic Ties
5
5
in
-
5a
87
4
11
A
Tie C
53
4
5
ie D
T
B
See drawing 5a. Pull any slack in the Wire Harness (53)
through the two ties. Make sure that the end of the Wire
Harness indicated by the arrow is routed as shown.
Securely tighten the plastic ties around the W
Harness.
Cut off the end of each plastic tie.
ire
6
5b
53
53
Tie
Tie
5c
A
B
53
