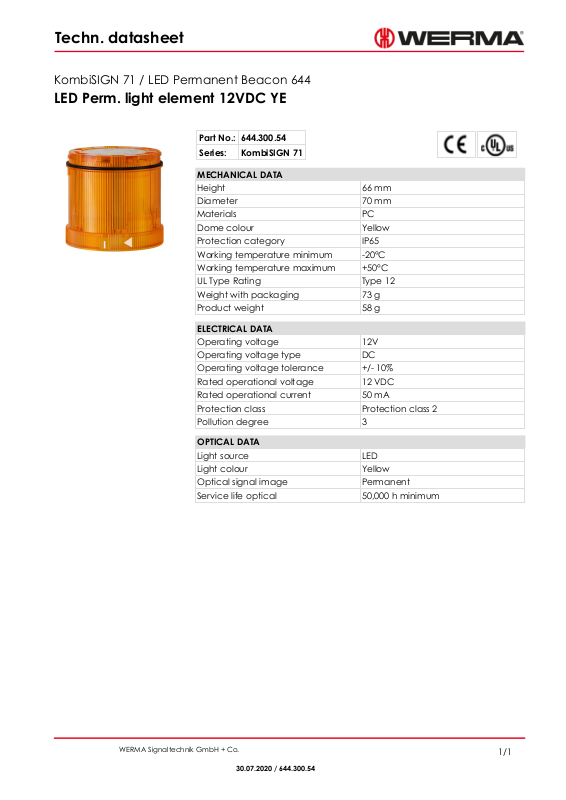

Techn. datasheet

KombiSIGN 71 / LED Permanent Beacon 644

LED Perm. light element 12VDC YE

Part No.: 644.300.54
Series: KombiSIGN 71

MECHANICAL DATA

Height 66 mm
Diameter 70 mm
Materials PC
Dome colour Yellow
Protection category IP65
Working temperature minimum -20°C
Working temperature maximum +50°C
UL Type Rating Type 12
Weight with packaging 73 g
Product weight 58 g

ELECTRICAL DATA

Operating voltage 12V
Operating voltage type DC
Operating voltage tolerance +/- 10%
Rated operational voltage 12 VDC
Rated operational current 50 mA
Protection class Protection class 2
Pollution degree 3

OPTICAL DATA

Light source LED
Light colour Yellow
Optical signal image Permanent
Service life optical 50,000 h minimum

WERMA Signaltechnik GmbH + Co.

1/1

30.07.2020 / 644.300.54
