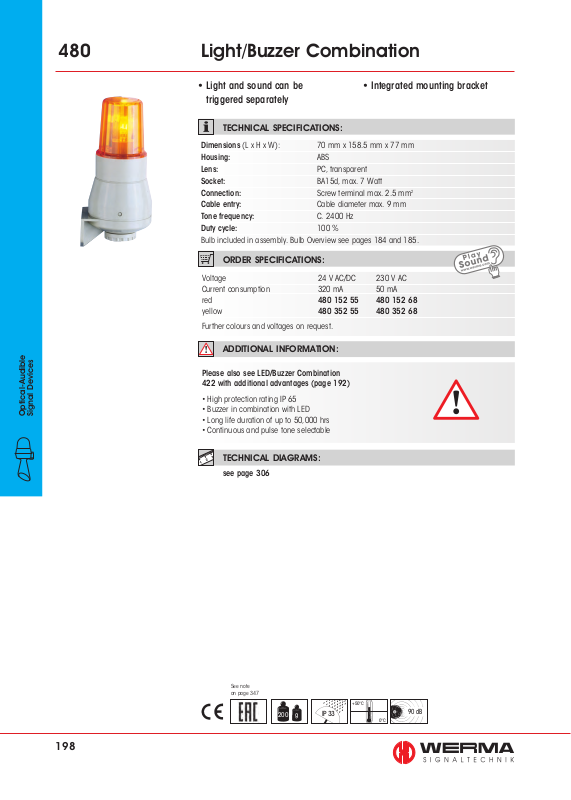

Werma 480 Light/Buzzer Combination Catalog Page

Light/Buzzer Combination480

• Light and sound can be

• Integrated mounting bracket

triggered separately

TECHNICAL SPECIFICATIONS:

Dimensions (L x H x W): 70 mm x 158.5 mm x 77 mm
Housing: ABS
Lens: PC, transparent
Socket: BA15d, max. 7 Watt
Connection: Screw terminal max. 2.5 mm
Cable entry: Cable diameter max. 9 mm
Tone frequency: C. 2400 Hz
Duty cycle: 100 %

Bulb included in assembly. Bulb Overview see pages 184 and 185.

ORDER SPECIFICATIONS:

Voltage 24 V AC/DC 230 V AC
Current consumption 320 mA 50 mA
red 480 152 55 480 152 68
yellow 480 352 55 480 352 68

Further colours and voltages on request.

ADDITIONAL INFORMATION:

2

Optical-Audible

Signal Devices

Please also see LED/Buzzer Combination
422 with additional advantages (page 192)

• High protection rating IP 65

• Buzzer in combination with LED

• Long life duration of up to 50,000 hrs

• Continuous and pulse tone selectable

TECHNICAL DIAGRAMS:

see page 306

198

See note
on page 347

200 g

IP 33

+50°C

90 dB

0°C
