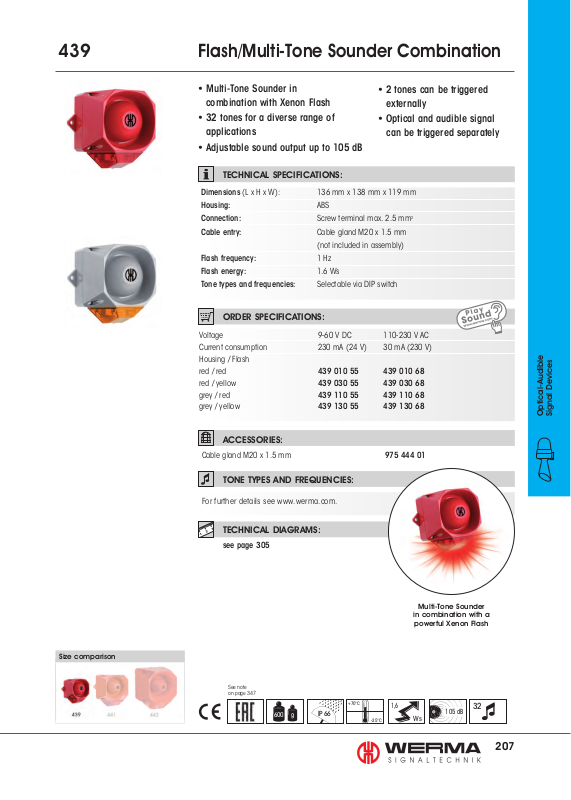

Werma 439 Flash/Multi-Tone Sounder Combination Catalog Page

439
Flash/Multi-Tone Sounder Combination
• Multi-Tone Sounder in combination with Xenon Flash
• 32 tones for a diverse range of applications
• 2 tones can be triggered externally
• Optical and audible signal can be triggered separately
• Adjustable sound output up to 105 dB
TECHNICAL SPECIFICATIONS:
Dimensions (L x H x W): 136 mm x 138 mm x 119 mm Housing: ABS Connection: Screw terminal max. 2.5 mm Cable entry: Cable gland M20 x 1.5 mm
(not included in assembly)
Flash frequency: 1 Hz Flash energy: 1.6 Ws Tone types and frequencies: Selectable via DIP switch
ORDER SPECIFICATIONS:
Voltage 9-60 V DC 110-230 V AC Current consumption 230 mA (24 V) 30 mA (230 V) Housing / Flash red / red 439 010 55 439 010 68 red / yellow 439 030 55 439 030 68 grey / red 439 110 55 439 110 68 grey / yellow 439 130 55 439 130 68
2
Optical-Audible
Signal Devices
Size comparison
ACCESSORIES:
Cable gland M20 x 1.5 mm 975 444 01
TONE TYPES AND FREQUENCIES:
For further details see www.werma.com.
TECHNICAL DIAGRAMS:
see page 305
See note on page 347
600 g
+70°C
IP 66
1,6
-25°C
Multi-Tone Sounder
in combination with a
powerful Xenon Flash
32
105 dB
207
