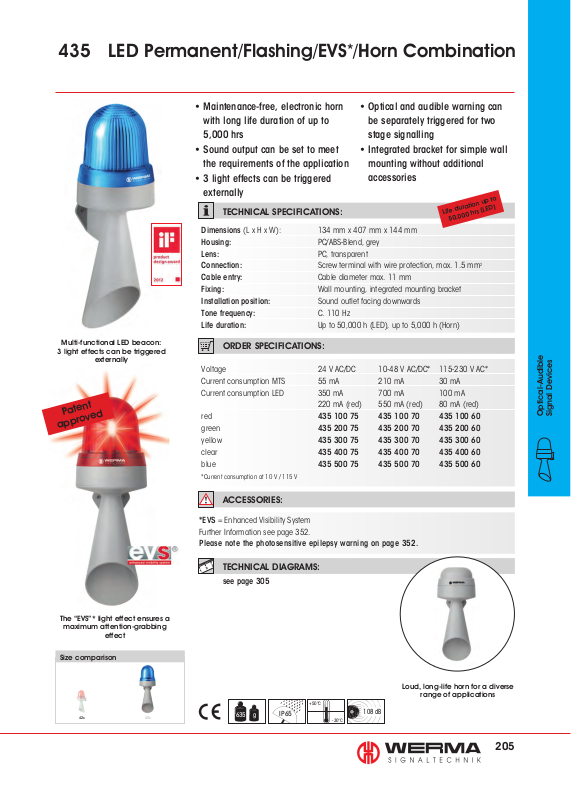

Werma 435 LED Permanent/Flashing/EVS*/Horn Combination Catalog Page

43x

435

LED Permanent/Flashing/EVS*/Horn Combination

Multi-functional LED beacon:

3 light effects can be triggered

externally

Patent

approved

• Maintenance-free, electronic horn
with long life duration of up to
5,000 hrs

• Sound output can be set to meet
the requirements of the application

• 3 light effects can be triggered

• Optical and audible warning can
be separately triggered for two
stage signalling

• Integrated bracket for simple wall
mounting without additional
accessories

externally

TECHNICAL SPECIFICATIONS:

Dimensions (L x H x W): 134 mm x 407 mm x 144 mm
Housing: PC/ABS-Blend, grey
Lens: PC, transparent
Connection: Screw terminal with wire protection, max. 1.5 mm
Cable entry: Cable diameter max. 11 mm
Fixing: Wall mounting, integrated mounting bracket
Installation position: Sound outlet facing downwards
Tone frequency: C. 110 Hz
Life duration: Up to 50,000 h (LED), up to 5,000 h (Horn)

ORDER SPECIFICATIONS:

Voltage 24 V AC/DC 10-48 V AC/DC* 115-230 V AC*
Current consumption MTS 55 mA 210 mA 30 mA
Current consumption LED 350 mA 700 mA 100 mA
220 mA (red) 550 mA (red) 80 mA (red)
red 435 100 75 435 100 70 435 100 60
green 435 200 75 435 200 70 435 200 60
yellow 435 300 75 435 300 70 435 300 60
clear 435 400 75 435 400 70 435 400 60
blue 435 500 75 435 500 70 435 500 60

*Current consumption at 10 V / 115 V

Life duration up to

50,000 hrs (LED)

2

Optical-Audible

Signal Devices

The “EVS”* light effect ensures a

maximum attention-grabbing

effect

Size comparison

42x

ACCESSORIES:

*EVS = Enhanced Visibility System
Further Information see page 352.

Please note the photosensitive epilepsy warning on page 352.

TECHNICAL DIAGRAMS:

see page 305

Loud, long-life horn for a diverse

635 g

IP 65

+50°C

-30°C

108 dB

range of applications

205
