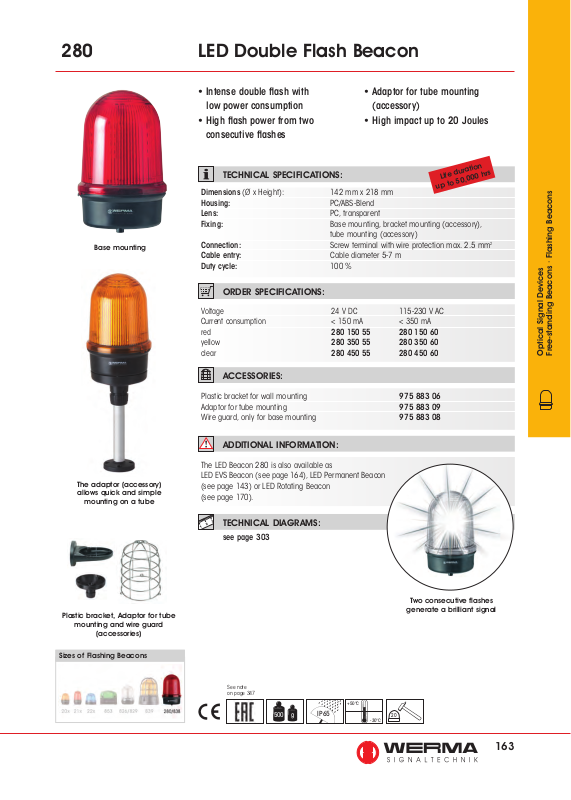

Werma 280 LED Double Flash Beacon Catalog Page

280 LED Double Flash Beacon

Base mounting

• Intense double fl ash with
low power consumption

• High fl ash power from two

• Adaptor for tube mounting
(accessory)

• High impact up to 20 Joules

consecutive fl ashes

TECHNICAL SPECIFICATIONS:

Dimensions (Ø x Height): 142 mm x 218 mm
Housing: PC/ABS-Blend
Lens: PC, transparent
Fixing: Base mounting, bracket mounting (accessory),

tube mounting (accessory)

Connection: Screw terminal with wire protection max. 2.5 mm
Cable entry: Cable diameter 5-7 m
Duty cycle: 100 %

ORDER SPECIFICATIONS:

Voltage 24 V DC
Current consumption < 150 mA < 350 mA
red 280 150 55 280 150 60
yellow 280 350 55 280 350 60
clear 280 450 55 280 450 60

115-230 V AC

ACCESSORIES:

Life duration

up to 50,000 hrs

2

Optical Signal Devices

Free-standing Beacons · Flashing Beacons

The adaptor (accessory)
allows quick and simple

mounting on a tube

Plastic bracket, Adaptor for tube

mounting and wire guard

(accessories)

Sizes of Flashing Beacons

Plastic bracket for wall mounting 975 883 06
Adaptor for tube mounting 975 883 09
Wire guard, only for base mounting 975 883 08

ADDITIONAL INFORMATION:

The LED Beacon 280 is also available as
LED EVS Beacon (see page 164), LED Permanent Beacon
(see page 143) or LED Rotating Beacon
(see page 170).

TECHNICAL DIAGRAMS:

see page 303

Two consecutive flashes

generate a brilliant signal

See note
on page 347

500 g

IP 65

+50°C

-30°C

20

163
