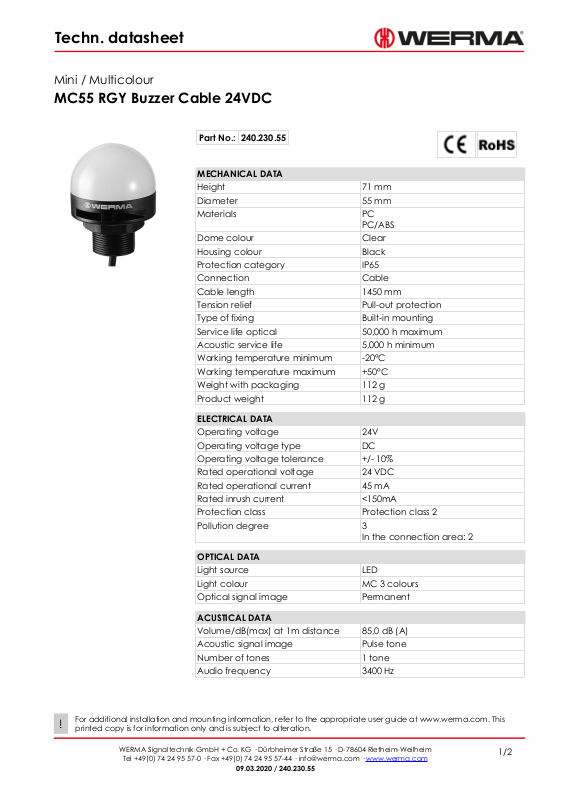

Werma 24023055 Data Sheet

Techn. datasheet
Mini / Multicolour
MC55 RGY Buzzer Cable 24VDC
Part No.: 240.230.55
MECHANICAL DATA
Height 71 mm Diameter 55 mm Materials PC
Dome colour Clear Housing colour Black Protection category IP65 Connection Cable Cable length 1450 mm Tension relief Pull-out protection Type of fixing Built-in mounting Service life optical 50,000 h maximum Acoustic service life 5,000 h minimum Working temperature minimum -20°C Working temperature maximum +50°C Weight with packaging 112 g Product weight 112 g
PC/ABS
ELECTRICAL DATA
Operating voltage 24V Operating voltage type DC Operating voltage tolerance +/- 10% Rated operational voltage 24 VDC Rated operational current 45 mA Rated inrush current <150mA Protection class Protection class 2 Pollution degree 3
In the connection area: 2
OPTICAL DATA
Light source LED Light colour MC 3 colours Optical signal image Permanent
ACUSTICAL DATA
Volume/dB(max) at 1m distance 85,0 dB (A) Acoustic signal image Pulse tone Number of tones 1 tone Audio frequency 3400 Hz
For additional installation and mounting information, refer to the appropriate user guide at www.werma.com. This
!
printed copy is for information only and is subject to alteration.
WERMA Signaltechnik GmbH + Co. KG · Dürbheimer Straße 15 · D-78604 Rietheim-Weilheim
Tel +49(0) 74 24 95 57-0 · Fax +49(0) 74 24 95 57-44 · info@werma.com · www.werma.com
09.03.2020 / 240.230.55
Techn. datasheet
Mini / Multicolour
MC55 RGY Buzzer Cable 24VDC
DRAWING
For additional installation and mounting information, refer to the appropriate user guide at www.werma.com. This
!
printed copy is for information only and is subject to alteration.
WERMA Signaltechnik GmbH + Co. KG · Dürbheimer Straße 15 · D-78604 Rietheim-Weilheim
Tel +49(0) 74 24 95 57-0 · Fax +49(0) 74 24 95 57-44 · info@werma.com · www.werma.com
09.03.2020 / 240.230.55
