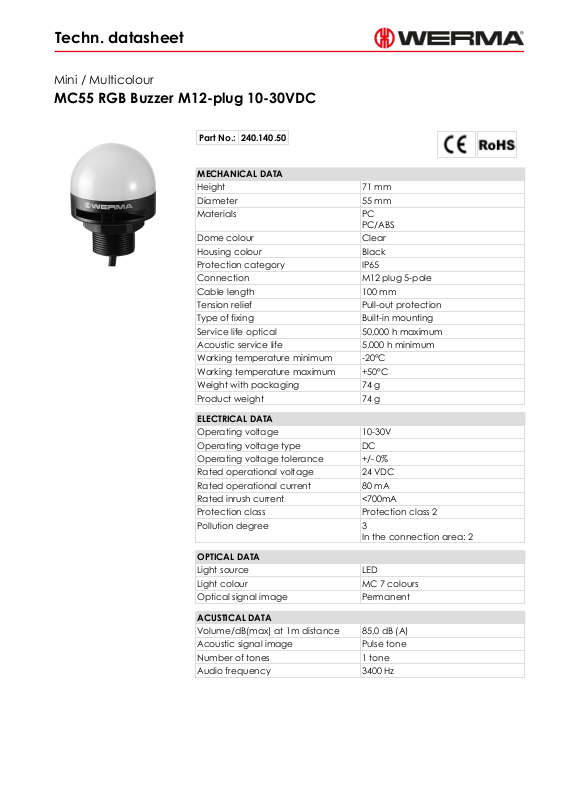

Techn. datasheet
Mini / Multicolour
MC55 RGB Buzzer M12-plug 10-30VDC
Part No.: 240.140.50
MECHANICAL DATA
Height 71 mm
Diameter 55 mm
Materials PC
Dome colour Clear
Housing colour Black
Protection category IP65
Connection M12 plug 5-pole
Cable length 100 mm
Tension relief Pull-out protection
Type of fixing Built-in mounting
Service life optical 50,000 h maximum
Acoustic service life 5,000 h minimum
Working temperature minimum -20°C
Working temperature maximum +50°C
Weight with packaging 74 g
Product weight 74 g
PC/ABS
ELECTRICAL DATA
Operating voltage 10-30V
Operating voltage type DC
Operating voltage tolerance +/- 0%
Rated operational voltage 24 VDC
Rated operational current 80 mA
Rated inrush current <700mA
Protection class Protection class 2
Pollution degree 3
In the connection area: 2
OPTICAL DATA
Light source LED
Light colour MC 7 colours
Optical signal image Permanent
ACUSTICAL DATA
Volume/dB(max) at 1m distance 85,0 dB (A)
Acoustic signal image Pulse tone
Number of tones 1 tone
Audio frequency 3400 Hz
Techn. datasheet
Mini / Multicolour
MC55 RGB Buzzer M12-plug 10-30VDC
DRAWING
