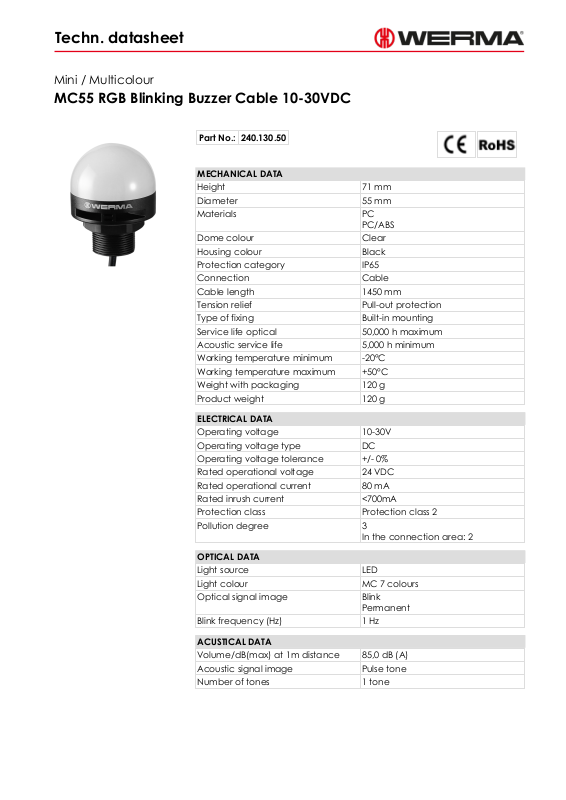

Werma 24013050 Data Sheet

Techn. datasheet

Mini / Multicolour

MC55 RGB Blinking Buzzer Cable 10-30VDC

Part No.: 240.130.50

MECHANICAL DATA

Height 71 mm
Diameter 55 mm
Materials PC

Dome colour Clear
Housing colour Black
Protection category IP65
Connection Cable
Cable length 1450 mm
Tension relief Pull-out protection
Type of fixing Built-in mounting
Service life optical 50,000 h maximum
Acoustic service life 5,000 h minimum
Working temperature minimum -20°C
Working temperature maximum +50°C
Weight with packaging 120 g
Product weight 120 g

PC/ABS

ELECTRICAL DATA

Operating voltage 10-30V
Operating voltage type DC
Operating voltage tolerance +/- 0%
Rated operational voltage 24 VDC
Rated operational current 80 mA
Rated inrush current <700mA
Protection class Protection class 2
Pollution degree 3

In the connection area: 2

OPTICAL DATA

Light source LED
Light colour MC 7 colours
Optical signal image Blink

Permanent

Blink frequency (Hz) 1 Hz

ACUSTICAL DATA

Volume/dB(max) at 1m distance 85,0 dB (A)
Acoustic signal image Pulse tone
Number of tones 1 tone

Techn. datasheet

Mini / Multicolour

MC55 RGB Blinking Buzzer Cable 10-30VDC

Audio frequency 3400 Hz

DRAWING
