Werma 24011050 Data Sheet

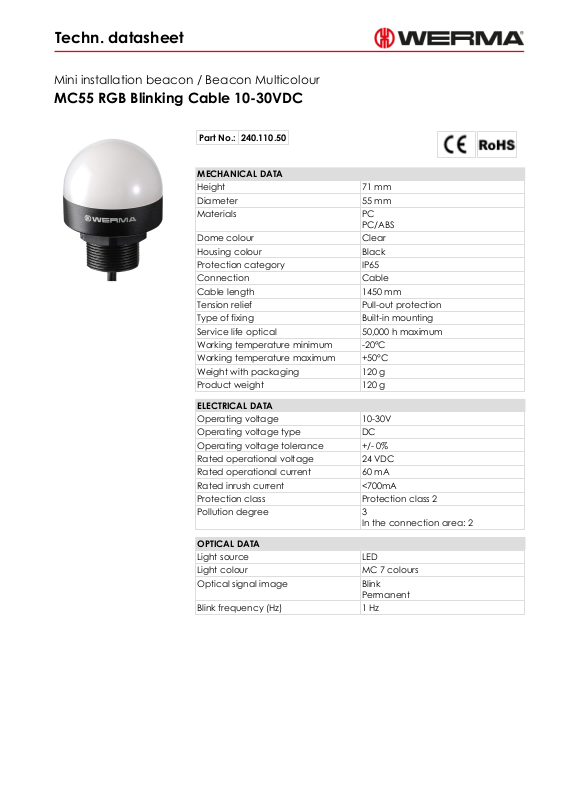

Techn. datasheet

Mini installation beacon / Beacon Multicolour

MC55 RGB Blinking Cable 10-30VDC

Part No.: 240.110.50

MECHANICAL DATA

Height 71 mm
Diameter 55 mm
Materials PC

Dome colour Clear
Housing colour Black
Protection category IP65
Connection Cable
Cable length 1450 mm
Tension relief Pull-out protection
Type of fixing Built-in mounting
Service life optical 50,000 h maximum
Working temperature minimum -20°C
Working temperature maximum +50°C
Weight with packaging 120 g
Product weight 120 g

PC/ABS

ELECTRICAL DATA

Operating voltage 10-30V
Operating voltage type DC
Operating voltage tolerance +/- 0%
Rated operational voltage 24 VDC
Rated operational current 60 mA
Rated inrush current <700mA
Protection class Protection class 2
Pollution degree 3

In the connection area: 2

OPTICAL DATA

Light source LED
Light colour MC 7 colours
Optical signal image Blink

Permanent

Blink frequency (Hz) 1 Hz

Techn. datasheet

Mini installation beacon / Beacon Multicolour

MC55 RGB Blinking Cable 10-30VDC

DRAWING
