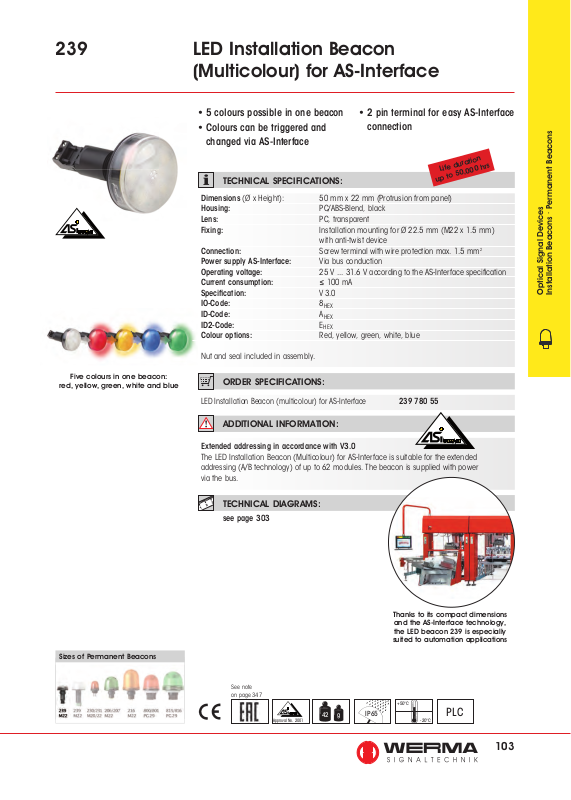

Werma 239 LED Installation Beacon (Multicolour) for AS-Interface Catalog Page

239 LED Installation Beacon
(Multicolour) for AS-Interface

Five colours in one beacon:

red, yellow, green, white and blue

• 5 colours possible in one beacon

• Colours can be triggered and

• 2 pin terminal for easy AS-Interface
connection

changed via AS-Interface

Life duration

TECHNICAL SPECIFICATIONS:

Dimensions (Ø x Height): 50 mm x 22 mm (Protrusion from panel)
Housing: PC/ABS-Blend, black
Lens: PC, transparent
Fixing: Installation mounting for Ø 22.5 mm (M22 x 1.5 mm)

with anti-twist device

Connection: Screw terminal with wire protection max. 1.5 mm
Power supply AS-Interface: Via bus conduction
Operating voltage: 25 V ... 31.6 V according to the AS-Interface specifi cation
Current consumption: ≤ 100 mA
Specifi cation: V 3.0
IO-Code: 8
ID-Code: A
ID2-Code: E

HEX
HEX
HEX

Colour options: Red, yellow, green, white, blue

Nut and seal included in assembly.

ORDER SPECIFICATIONS:

up to 50,000 hrs

2

Permanent Beacons

•

Optical Signal Devices

Installation Beacons

Sizes of Permanent Beacons

LED Installation Beacon (multicolour) for AS-Interface 239 780 55

ADDITIONAL INFORMATION:

Extended addressing in accordance with V3.0

The LED Installation Beacon (Multicolour) for AS-Interface is suitable for the extended
addressing (A/B technology) of up to 62 modules. The beacon is supplied with power
via the bus.

TECHNICAL DIAGRAMS:

see page 303

Thanks to its compact dimensions

and the AS-Interface technology,
the LED beacon 239 is especially

suited to automation applications

See note
on page 347

Approval No.

2001

42 g

IP 65

+50°C

-20°C

PLC

103
