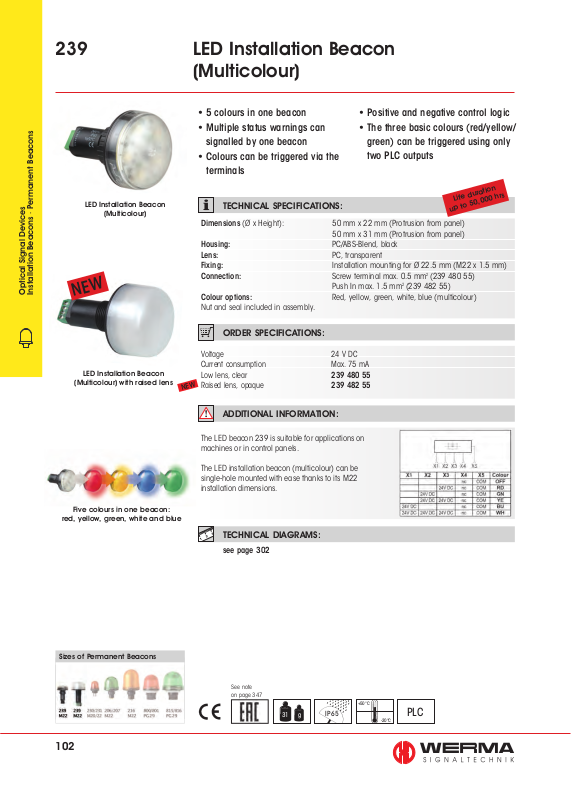

Werma 239 LED Installation Beacon Catalog Page

239 LED Installation Beacon
(Multicolour)

Permanent Beacons

•

Optical Signal Devices

Installation Beacons

LED Installation Beacon

(Multicolour)

NEW

LED Installation Beacon

(Multicolour) with raised lens

• 5 colours in one beacon

• Multiple status warnings can
signalled by one beacon

• Colours can be triggered via the

• Positive and negative control logic

• The three basic colours (red/yellow/
green) can be triggered using only
two PLC outputs

terminals

TECHNICAL SPECIFICATIONS:

Dimensions (Ø x Height): 50 mm x 22 mm (Protrusion from panel)
50 mm x 31 mm (Protrusion from panel)

Housing: PC/ABS-Blend, black
Lens: PC, transparent
Fixing: Installation mounting for Ø 22.5 mm (M22 x 1.5 mm)
Connection: Screw terminal max. 0.5 mm

Colour options: Red, yellow, green, white, blue (multicolour)

Nut and seal included in assembly.

Push In max. 1.5 mm2 (239 482 55)

ORDER SPECIFICATIONS:

Voltage 24 V DC
Current consumption Max. 75 mA
Low lens, clear 239 480 55
Raised lens, opaque 239 482 55

NEW

Life duration

up to 50,000 hrs

2

(239 480 55)

Five colours in one beacon:

red, yellow, green, white and blue

Sizes of Permanent Beacons

ADDITIONAL INFORMATION:

The LED beacon 239 is suitable for applications on
machines or in control panels.

The LED installation beacon (multicolour) can be
single-hole mounted with ease thanks to its M22
installation dimensions.

TECHNICAL DIAGRAMS:

see page 302

102

See note
on page 347

31 g

IP 65

+50°C

-20°C

PLC
