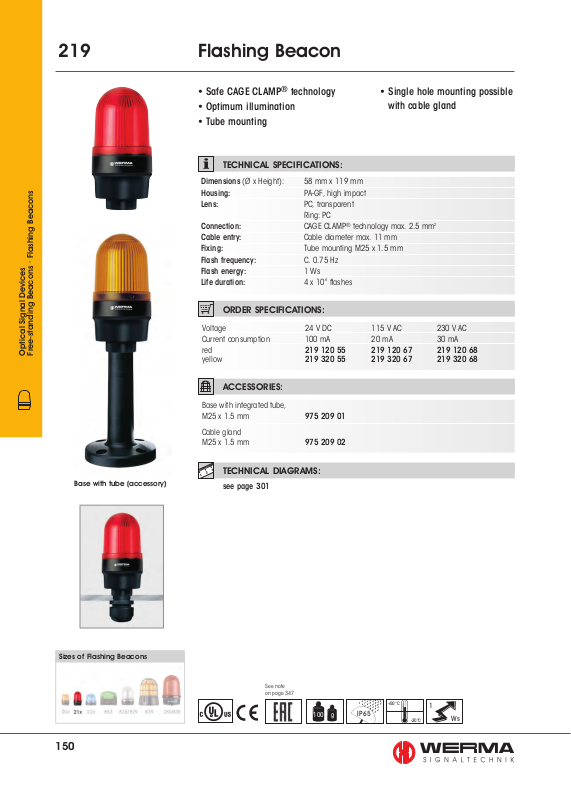

Werma 219 Flashing Beacon Catalog Page

219

Flashing Beacon

Optical Signal Devices

Free-standing Beacons · Flashing Beacons

• Safe CAGE CLAMP® technology

• Optimum illumination

• Single hole mounting possible
with cable gland

• Tube mounting

TECHNICAL SPECIFICATIONS:

Dimensions (Ø x Height): 58 mm x 119 mm
Housing: PA-GF, high impact
Lens: PC, transparent

Ring: PC

Connection: CAGE CLAMP
Cable entry: Cable diameter max. 11 mm
Fixing: Tube mounting M25 x 1.5 mm
Flash frequency: C. 0.75 Hz
Flash energy: 1 Ws
Life duration: 4 x 10

®

technology max. 2.5 mm

6

fl ashes

ORDER SPECIFICATIONS:

Voltage 24 V DC 115 V AC 230 V AC
Current consumption 100 mA 20 mA 30 mA
red 219 120 55 219 120 67 219 120 68

yellow 219 320 55 219 320 67 219 320 68

2

Base with tube (accessory)

Sizes of Flashing Beacons

ACCESSORIES:

Base with integrated tube,
M25 x 1.5 mm 975 209 01

Cable gland
M25 x 1.5 mm 975 209 02

TECHNICAL DIAGRAMS:

see page 301

150

See note
on page 347

100 g

IP 65

+50°C

-20°C

1

Ws
